Product Type	Pneumatic Stapler
Model	D51275K
Brand	DeWalt
Weight	1.75 kg
Recommended Working Pressure	4.9 - 8.3 bar
Max Working Pressure	8.3 bar
Air Consumption	6.0 L/stroke at 6.9 bar
Working Mode	Contact (bump)
Magazine Angle	34°
Staple Length	32 - 65 mm
Staple Diameter	1.8 mm (15 gauge)
Power Source	Compressed Air
Air Inlet	1/4 in NPT
Sound Pressure Level	< 82 dB(A)
Sound Power Level	< 95 dB(A)
Hand/arm Vibration Level	2.7 m/s²
Package Contents	Stapler, sequential trigger, safety glasses, oil, Allen keys, case, manual
Functions	Sequential and bump mode, depth adjustment, trigger lock, belt hook
Maintenance	Daily lubrication with pneumatic oil, cleaning with compressed air
Safety	Contact surface, trigger lock, safety glasses and ear protection recommended

Frequently Asked Questions - D51275K DEWALT

How to load staples into the double load magazine?

Make sure the tool is connected to the air supply. Insert the staples into the loading slot at the back of the magazine, then pull the nail pusher back so it goes behind the staples. You can also lock the pusher in the rear position, load the staples, then unlock by pushing forward.

How to clear a jammed staple?

Disconnect the air hose and lock the trigger. Lock the pusher in the rear position, release the front latch and bracket to open the barrel. Remove the bent staple using pliers if necessary. If the blade is in the down position, push it up with a screwdriver. Close the barrel and replace the bracket.

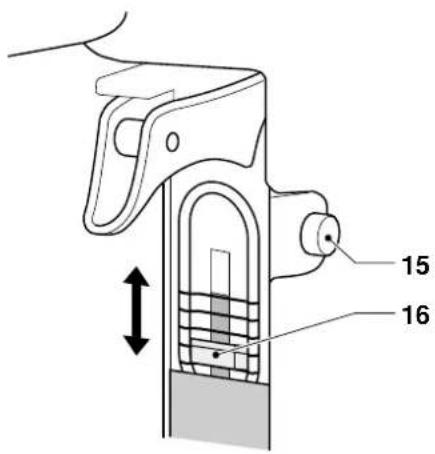

How to adjust the driving depth?

Always disconnect the tool from the air supply before adjustment. Press the adjustment button located on the nosepiece and slide the switch up to increase depth, or down to decrease it.

What oil to use for lubrication?

Use DeWALT pneumatic tool oil or standard pneumatic oil. Apply 5-7 drops into the air fitting on the tool end cap daily.

What types of staples are compatible with the D51275K?

The D51275K accepts staples 32 to 65 mm in length, with a wire diameter of 1.8 mm (15 gauge) and a 34° angle.

How to change the firing mode (sequential/bump)?

Disconnect the air hose and remove all staples from the magazine. Remove the rubber cap and pin, then disassemble the trigger assembly. Replace with the gray trigger (sequential) or black trigger (bump) and reassemble in reverse order.

What safety precautions to take during use?

Always wear safety glasses and hearing protection. Never point the tool at yourself or others. Use only clean, dry compressed air, never oxygen or combustible gases. Disconnect the tool when not in use.

How to clean the tool?

Regularly clean the magazine, pusher, and contact surface mechanism with compressed air. Drain all condensation from compressor tanks and hoses. Ensure all fasteners are tightened.

What air pressure to use?

The recommended working pressure is 4.9 to 8.3 bar. Never exceed 8.3 bar. Ensure the supply pressure cannot exceed the tool's maximum pressure by more than 10%.

What to do if the tool does not work in cold weather?

Keep the tool as warm as possible before use. Disconnect the air hose, put 5-10 drops of pneumatic tool oil (or winter oil containing ethylene glycol) into the air inlet. Set the pressure to 5.5 bar max, reconnect, load staples, and run the tool 5-6 times into scrap wood before increasing to normal pressure.

USER MANUAL D51275K DEWALT

B
C

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

D

4

E

F

DANSK

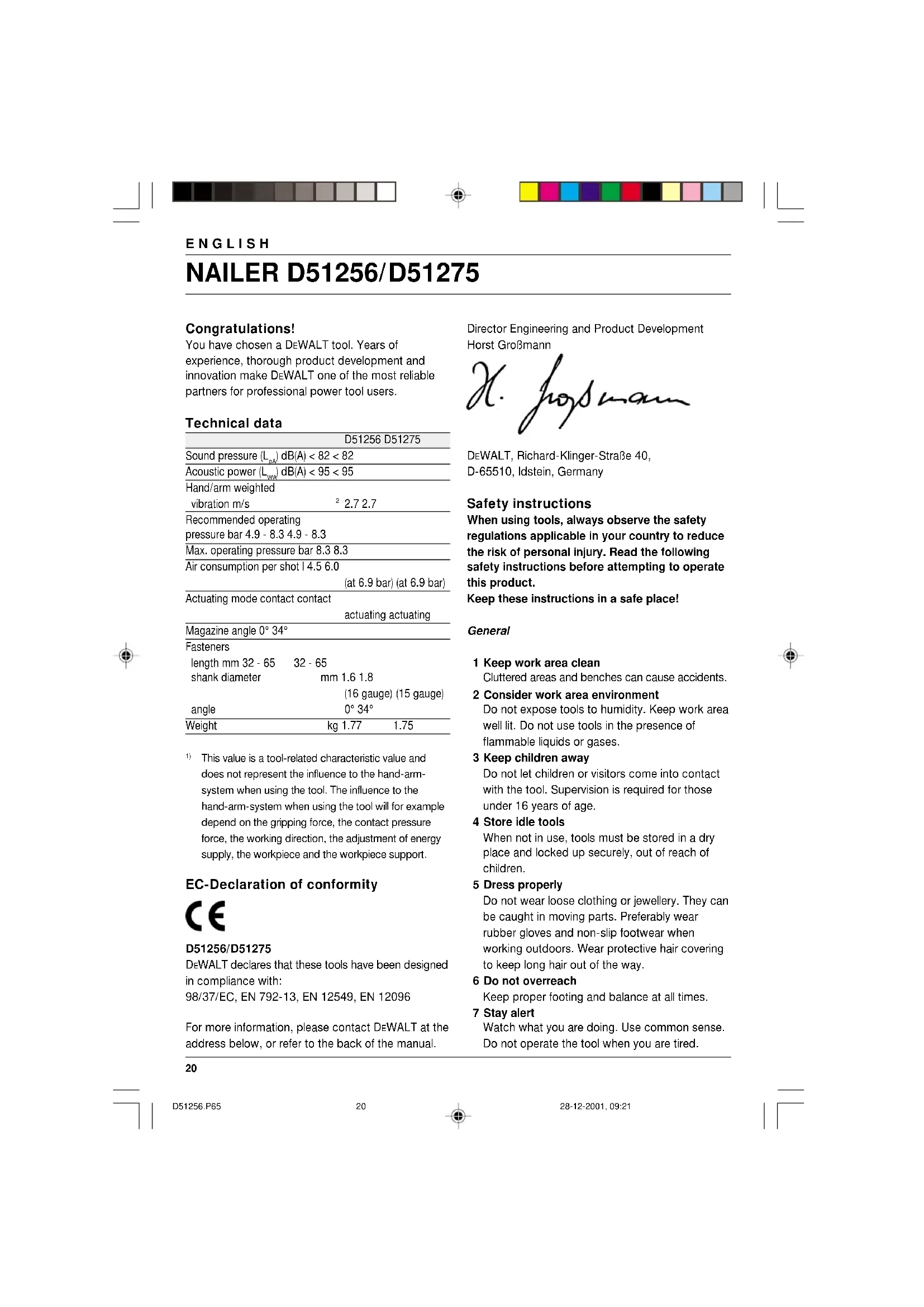

S∅MPISTOL D51256/D51275

Tillykke!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

	D51256 D51275
Sound pressure (L _pA ) dB(A) < 82 < 82
Acoustic power (L _Wt ) dB(A) < 95 < 95
Hand/arm weighted vibration m/s	^2 2.7 2.7
Recommended operating pressure bar 4.9 - 8.3 4.9 - 8.3
Max. operating pressure bar 8.3 8.3
Air consumption per shot | 4.5 6.0(at 6.9 bar) (at 6.9 bar)

Actuating mode contact contact
		actuating actuating
Magazine angle 0° 34°
Fasteners
length mm 32 - 65	32 - 65
shank diameter	mm 1.6 1.8(16 gauge) (15 gauge)
angle	0° 34°
Weight	kg 1.77	1.75

1) This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when using the tool. The influence to the hand-arm-system when using the tool will for example depend on the gripping force, the contact pressure force, the working direction, the adjustment of energy supply, the workpiece and the workpiece support.

EC-Declaration of conformity

CE

D51256/D51275

DEWALT declares that these tools have been designed in compliance with: 98/37/EC, EN 792-13, EN 12549, EN 12096

For more information, please contact DeWALT at the address below, or refer to the back of the manual.

Director Engineering and Product Development Horst Großmann

When using tools, always observe the safety regulations applicable in your country to reduce the risk of personal injury. Read the following safety instructions before attempting to operate this product.

Keep these instructions in a safe place!

General

1 Keep work area clean
Cluttered areas and benches can cause accidents.
2 Consider work area environment
Do not expose tools to humidity. Keep work area well lit. Do not use tools in the presence of flammable liquids or gases.

3 Keep children away

Do not let children or visitors come into contact with the tool. Supervision is required for those under 16 years of age.

4 Store idle tools

When not in use, tools must be stored in a dry place and locked up securely, out of reach of children.

5 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

6 Do not overreach

Keep proper footing and balance at all times.

7 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

8 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

9 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep all controls dry, clean and free from oil and grease.

10 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.

11 Have your tool repaired by an authorized DEWALT repair agent

This tool is in accordance with the relevant safety regulations. To avoid danger, tools must only be repaired by qualified technicians.

Additional safety instructions for pneumatic nailers

• Always wear safety glasses.
• Always wear ear protection.
- Only use fasteners of the type specified in the manual.
- Do not use any stands for mounting the tool to a support.
- Never use the tool for any other purpose than specified in this manual.
- Prior to each operation check that the safety and triggering mechanism is functioning properly and that all nuts and bolts are tight.
- Use quick-action couplings for connection to the compressed air system. The non-sealable nipple must be fitted to the tool in such a way that no compressed air remains in the tool after disconnection.

• Always use clean, dry compressed air. Do not use oxygen or combustible gases as an energy source for this tool.
- Only connect this tool to an air supply where the maximum allowable pressure of the tool cannot be exceeded by more than 10% . In case of higher pressures, a pressure reducing valve including a downstream safety valve shall be built into the compressed air supply.
- Only use hoses with a rating exceeding the maximum operating pressure of the tool.
- Before transporting the tool, disconnect it from the compressed air system, especially where ladders are used or where unusual physical posture is adopted while moving.
- Disconnect the tool from the air supply when it is not in use.
- Avoid weakening or damaging the tool, for example by:
- punching or engraving
- modifications not authorised by the manufacturer
- guiding against templates made of hard material such as steel
- dropping or pushing across the floor
- applying excessive force of any kind
- Do not use the equipment as a hammer.
- Never point any operational fastener driving tool at yourself or at any other person.
- While working, hold the tool in such a way that no injuries can be caused to the head or to the body in the event of a possible recoil due to a disruption in the energy supply or hard areas within the workpiece.
- Never actuate the fastener driving tool into free space.
- In the work area, carry the tool at the workplace using only one handle, and never with the trigger actuated.
- Consider the conditions in the work area. Fasteners can penetrate thin workpieces or slip off corners and edges of the workpiece, and thus put people at risk.
- Do not drive fasteners close to the edge of the workpiece.
- Do not drive fasteners on top of other fasteners.
- Only use spare parts specified by the manufacturer or his authorised agents.

ENGLISH

• Have repairs carried out only by the manufacturer or authorised agents having due regard to the information given in the manual and using the appropriate tools and equipment.
• Do not disassemble or block any parts of the fastener driving tool such as the safety yoke.
• Have the tool serviced properly and at regular intervals.

The following pictograms are shown on the tool:

Pneumatic tool with safety yoke.

Do not use on a ladder.

Magazine angle.

Maximum number of nails in magazine.

Nail diameter.

Nail length.

Max. operating pressure.

Package contents

The package contains:

1 Nailer
1 Sequential action trigger
1 Pair of safety glasses
1 Bottle of DEWALT pneumatic tool oil
2 Allen keys
1 Kitbox
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  • Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your nailer D51256/D51275 has been designed for driving fasteners into wooden workpieces.

1 Trigger/lock-off switch

2 Air fitting

3 Contact trip

4 Magazine

Assembly and adjustment

Trigger selection

These tools are assembled with a bump action trigger. A sequential action trigger is also included with the original packaging. For definitions of "bump action" and "sequential action", see below.

• The grey trigger with a single nail printed on the side is the sequential action trigger. Installation of this kit causes the tool to function in sequential action mode.
• The black trigger with three nails printed on the side is the bump action trigger. Installation of this kit causes the tool to function in bump action mode.

Removing the trigger (fig. B)

• Disconnect the airline from the tool.
• Remove all nails from the magazine.
• Remove the rubber grommet (5) from the end of the dowel pin (6).
• Remove the dowel pin.
• Remove the trigger assembly (7).

Fitting the trigger (fig. B)

• Select the appropriate trigger.
• Insert the trigger assembly into the trigger cavity, ensuring that the trigger spring (8) is properly seated.
• Insert the dowel pin (6) through the tool frame, contact trip guide and trigger assembly.
• Push the rubber grommet (5) onto the end of the dowel pin.

Air fitting (fig. A)

These tools have a standard 1/4" pipe thread for the air fitting (2).

• Wrap the male end of the fitting with Teflon tape to prevent air leaks.
• Screw the fitting into the end cap and tighten firmly.

Instructions for use

Always observe the safety instructions and applicable regulations.

Preparing the tool (fig. C)

• Drain all condensation from the air compressor tanks and hoses.
• Lubricate the tool. See "Maintenance".
• Remove all nails from the magazine.
• Lock the nail pusher (11) in the back position.
• Check if the contact trip (3) and nail pusher (11) can move freely.

Do not use the tool if the contact trip or nail pusher cannot move freely.

• Check that the pressure of the air supply is below the maximum recommended operating pressure.
• Connect the air hose to the fitting on the tool.
• Check for audible leaks around valves and gaskets.

Never use a tool that leaks or has damaged parts.

Cold weather operation

When operating tools at temperatures below freezing:

• Keep the tool as warm as possible before use.
• Disconnect the airline from the tool.
• Put 5-10 drops of DEWALT pneumatic tool oil (or winter-weight pneumatic oil containing ethylene glycol) into the air inlet.
• Set the air pressure to a maximum of 5.5 bar.
• Connect the air hose to the fitting on the tool.
• Load nails into the magazine as described below.
• Actuate the tool 5 or 6 times into scrap lumber to lubricate the o-rings.
• Increase the air pressure to the normal operating level.
• Use the tool in the normal manner.

Hot weather operation

The tool should operate normally. Avoid the heat of direct sunlight to avoid damage to the bumpers, o-rings, and other rubber parts.

Loading the tool (fig. C)

These tools are equipped with a dual-load magazine.

Always connect the tool to the air supply before loading nails.

• Select an appropriate collated nail stick. See "Technical data".
• Load the magazine using one of the following methods:

Loading and locking

• Insert collated nail stick (s) into the loading slot in the rear of the magazine.
• Pull the nail pusher (11) rearward to fall behind the nails.

Locking and loading

• Lock the nail pusher (11) in the back position.
• Insert collated nail stick (s) into the loading slot in the rear of the magazine.
• Unlatch the nail pusher by pushing forward and carefully slide the nail pusher forward to press against the nails.

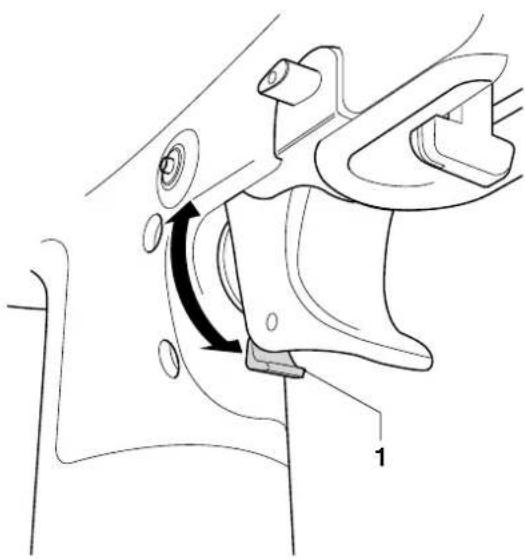

Actuating the tool (fig. D)

These tools are equipped with a trigger/lock-off switch (1). When rotated to the right, this switch prevents the tool from actuating.

When the switch is centred, the tool will be fully operational. The tool can be operated using one of two modes: sequential action mode or bump action mode. The trigger installed on the tool determines the mode of actuation.

Sequential action mode

The sequential action mode is used for intermittent nailing when very careful and accurate placement is desired.

• Fit the grey trigger as described above.
• Push the contact trip against the work surface.
• Pull the trigger to actuate the tool. Each trigger pull with the contact trip pushed against the work surface will drive one nail.

Bump action

The bump action mode is used for rapid nailing on flat, stationary surfaces.

• Fit the black trigger as described above.
- To drive a single nail: Operate the tool as described for sequential action.

ENGLISH

- To drive several nails: Pull the trigger first, and then push the contact trip repeatedly against the work surface.

Do not keep the trigger depressed when the tool is not in use. Keep the trigger lock-off switch rotated to the right to prevent accidental actuation when the tool is not in use.

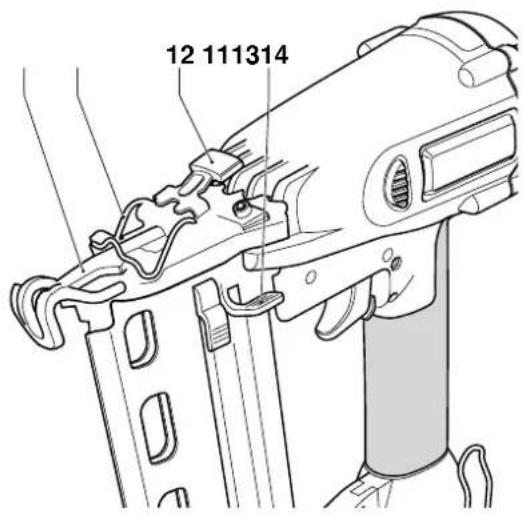

Clearing a jammed nail (fig. E)

If a nail becomes jammed in the nosepiece, follow these instructions to remove the nail:

• Disconnect the airline from the tool.
• Lock the trigger with the trigger lock-off switch.
• Lock the nail pusher (11) in the back position.
• Flip up the front latch (12) and move the bracket (13) out of the way so that barrel (14) can be opened.
• Remove the bent nail, using pliers if necessary.
• If the driver blade is in the down position, push the driver blade upward using a screwdriver.
• Close the barrel (14) and put the bracket (13) back in position.
• Press the front latch (12) into the locked position.
• Connect the air hose to the fitting on the tool.
• Load nails into the magazine. See "Loading the tool".
• Unlatch the nail pusher by pushing forward and carefully slide the nail pusher forward to press against the nails.

If nails become jammed in the nosepiece frequently, have the tool serviced by an authorised DEWALT service centre.

Depth setting (fig. F)

Always disconnect the tool from the air supply before adjusting the depth setting.

The depth that the nails are driven can be adjusted using the depth adjustment on the nosepiece of the tool.

- To reduce the depth, press the adjustment button (15) and slide the slider switch (16) downward.

- To increase the depth, press the adjustment button (15) and slide the slider switch (16) upward.

Belt/rafter hook

These tools have an integrated belt/rafter hook. The hook can be rotated to either side of the tool and can be folded out of the way when not in use. To remove the belt/rafter hook:

• Remove the air hose from the fitting on the tool.
• Use pliers or a wrench to remove the nut for the belt/rafter hook from the end cap of the tool.
• Remove the belt/rafter hook, washer and detent spring.

Maintenance

Your DeWALT tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends on proper tool care and regular cleaning.

Perform the following maintenance operations every day:

Lubricate tool with 5-7 drops of DEWALT pneumatic tool oil

- Insert drops into the air fitting on the end cap of the tool.

Drain all condensation from the air compressor tanks and hoses

• Open petcocks or other drain valves on the compressor tanks.
• Allow any accumulated water to drain from hoses.

Clean magazine, pusher, and contact trip mechanism

- Clean by blowing with compressed air.

Ensure that all fasteners on the tool are tight and undamaged

- Tighten loose fasteners using the appropriate tool.

Troubleshooting

If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your repair agent.

Tool does not work

• Check the air supply.
• If the temperature is low, warm the tool up.

Tool has insufficient power

• Check the air supply.
• Check if the air exhaust is clear.
• Lubricate the tool.

Top cap leaks air

- Tighten the cap screws.

Tool skips nails

• Check the air supply.
• Lubricate the tool.
• Clean the magazine and nosepiece.

Fasteners jam in tool

• Make sure only to use fasteners of the type specified.
• Tighten the nosepiece screws.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •
If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DeWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DeWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DeWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

ESPAÑOL

MARTILLO CLAVADOR D51256/D51275

¡Enhorabuena!

Director Engineering and Product Development Horst Großmann

L'emballage contient:

1 Cloueur

Director Engineering and Product Development Horst Großmann

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Duitsland

Director Engineering and Product Development Horst Großmann

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Sikkerhetsforskrifter

Director Engineering and Product Development Horst Großmann

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Alemanha

- Introduza as gotas no bocal

Director Engineering and Product Development Horst Großmann

Director Engineering and Product Development Horst Großmann

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Säkerhetsinstruktioner

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Two isolated circular markers with crosshairs on a white background, no text or symbols present.

Belgique et Luxembourg	DEWALT	Tel: [phone]
België en Luxemburg	Weihoek 1, Nossegem Fax: [phone]
	1930 Zaventem-Zuid www.dewaltbenelux.com

Danmark DEWALT Tlf: 70 20 15 30

Hejrevang 26 B Fax: [phone]

3450 Allerød www.dewalt-nordic.com
