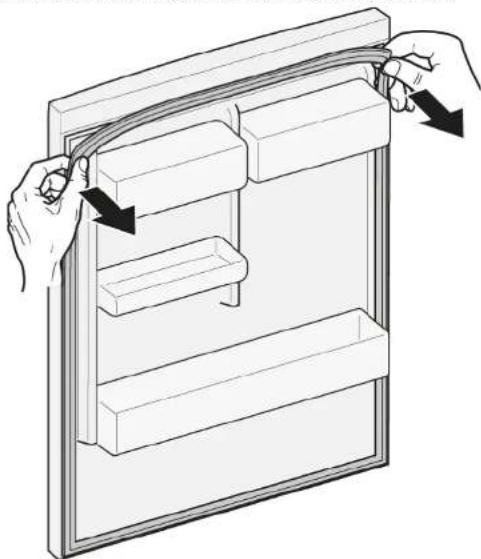

To replace the door gasket, first remove the old gasket by pulling it out of the groove. Then warm the new gasket to reshape it, then insert it gradually into the groove starting from the corners. Make sure the groove is not damaged. Refer to the manual for more details.

How to defrost the Siemens GS54NVWE0N freezer?

To defrost, unplug the appliance and remove all food. Leave the door open to allow the ice to melt. Do not use sharp objects to scrape the ice. Clean the interior with a damp cloth and dry before restarting.

What is the freezing capacity of the GS54NVWE0N?

The freezing capacity is approximately 24 kg of fresh food in 24 hours, in accordance with standards. This may vary depending on usage.

How to adjust the temperature of the Siemens GS54NVWE0N freezer?

The temperature is adjusted via the control panel on the front of the appliance. The recommended temperature is -18°C. Use the + or - buttons to adjust.

What to do if the freezer no longer cools sufficiently?

First check that the appliance is properly plugged in and that the fuse has not blown. Make sure the door closes properly and the gasket is not damaged. Clean the rear condensers if dirty. If the problem persists, contact customer service.

How to replace the LED lighting of the GS54NVWE0N?

Unplug the appliance, open the door and remove the upper interior fittings. Move the LED lighting to the left to disconnect the electrical connection, then release the hooks and remove the module. Install the new one in reverse order. Note: unplug at least 60 seconds beforehand.

How to change the freezer door handle?

Remove the screw caps, unscrew the two Torx TX20 screws, then remove the handle. For installation, follow the reverse order. Make sure the appliance is unplugged and the door is open.

The freezer makes an unusual noise, what to do?

Noises can come from the compressor, fans, or material expansion. Check that the appliance is level and not in contact with furniture. If the noise persists, consult the manual or a professional.

How to clean the interior of the Siemens GS54NVWE0N freezer?

Unplug the appliance and remove the food. Use a soft cloth dampened with warm water and mild detergent. Rinse and dry. Never use abrasive cleaners or harsh chemicals.

Where can I download the full manual for the GS54NVWE0N?

The full manual is available free in PDF format on sites like notice-facile.com. You can also request it directly online. It includes 543 pages with detailed repair instructions.

USER MANUAL GS54NVWE0N SIEMENS

4.2 Replacing the door gasket 10

4.2.1 Removing the door gasket 10 4.2.2 Installing the door gasket 10

4.3 Replacing the easy opening handle 11

4.3.1 Removing the easy opening handle 11 4.3.2 Installing the easy opening handle 11

4.4 Replacing the door panel 12

4.4.1 Removing the door panel 12 4.4.2 Installing the door panel 14

4.5 Replacing the top panel of the door (door with dispenser) 15

4.5.1 Removing the door panel 16 4.5.2 Installing the door panel 17

4.6 Replacing the bottom panel of the door 18

4.6.1 Replacing the bottom panel of the door 18 4.6.2 Installing the bottom panel of the door 19

4.7 Replacing the hinge 20

4.7.1 Removing the hinge 20 4.7.2 Installing the hinge 20

4.8 Replacing the container for frozen food products 21

4.8.1 Removing the container for frozen food products 21 4.8.2 Installing the container for frozen food products 21

4.9 Replacing the defrost heater 22

4.9.1 Replacing the humidifier 22 4.9.2 Installing the humidifier 22

4.10 Replacing the LED lighting section 23

4.10.1 Removing the LED lighting section 23 4.10.2 Installing the LED lighting section 24

ABOUT THIS DOCUMENT

1.1 Important information

1.1.1 Purpose

This document is intended to assist the user in repairing the device themselves, in accordance with the regulations for environmentally friendly design of devices (03.2021).

It contains information on how to replace certain spare parts, including warnings and risks.

If you have any questions, please contact our customer service. We are not responsible for damage if the repair instructions have not been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger

Warnings are indicated by the symbol of an exclamation mark in a triangle. The signal word indicates the severity of the danger.

Ниво на п dedурждени 3начени
ОПАСHОCT	Еспаразы新股у на п dedурждени.TО сбоб Shedени по Смьт ини сернони наразяваим.
ПРEDУПЕЖДЕНЕ	Еспаразы新股у на п dedурждени.TOT сбob Shedени по Смьт ини сернони наразяваим.
ВИМATEЛНО	Еспаразы新股у на п dedурждени.TOT сбob Shedени по Смьт ини наразяваим.
ВИМАМЕЛ	Еспаразы新股у на п dedурждени.TOT сбob Shedени по Смьт ини onMy-шостевни.$etп.

Table 1: Danger levels

1.2.2 Danger symbols

Danger symbols are graphic representations that provide information about the type of danger.

The following symbols are used in this document for danger:

Mounting and removal.

Repair

4.3 Installation of the easy opening handle

Special tools:

Cross-head screwdriver PH2

Removal:

The door is disconnected from the power supply. The door is open.

4.3.1 Removing the easy opening handle

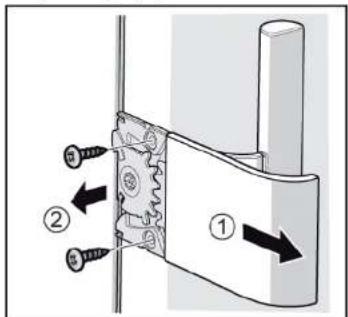

1. Pull the cable of the easy opening handle (1).
2. Unscrew the two screws (2).

The easy opening handle is removed.

4.3.2 Installing the easy opening handle

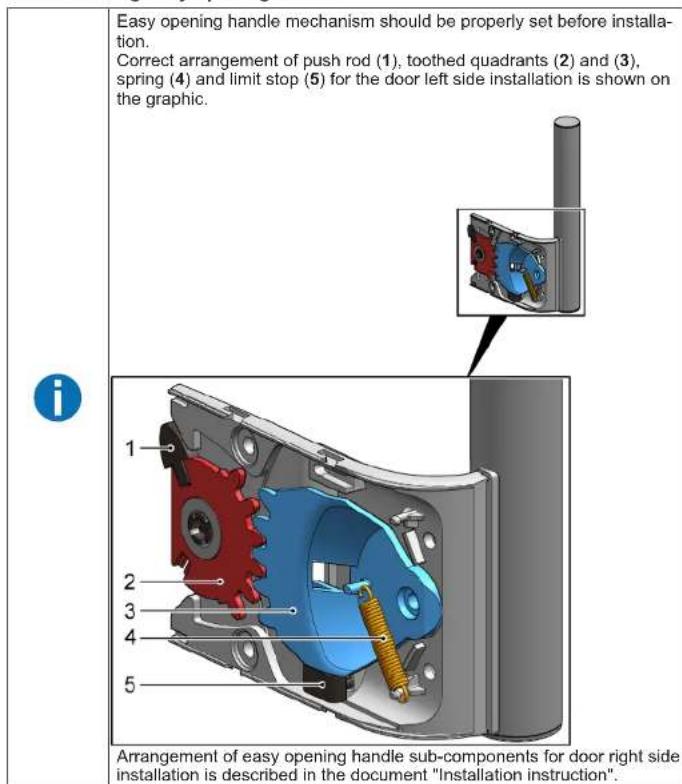

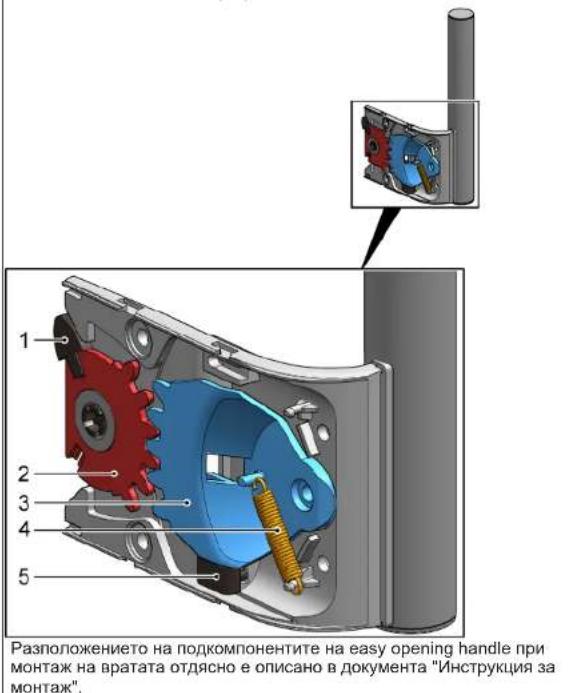

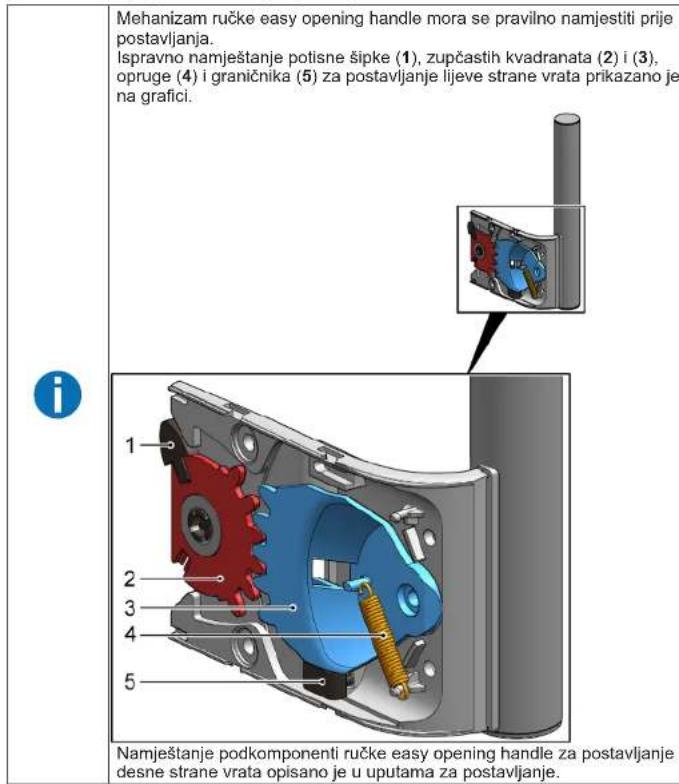

The mechanisms of the easy opening handle must be correctly adjusted before installation. The correct position of the buffer (1), the square nuts (2) (3), the spring (4) and the limiter (5) for mounting on the door is shown in the figure.

Mounting and removal.

4.4 Changing the blades

Special tools:

Torx TX20 wrench 6.3 mm (1/4") [00340865]

WARNING

Risk of injury!

Injuries from the blades

The blades must only be replaced by qualified specialists. Special tools are required for replacing the blades. Use only suitable tools and equipment.

CAUTION

Sharp blades!

Risk of cuts

Wear protective gloves.

WARNING

Risk of injury from the blades!

Bone fractures/cuts

Remove the device from the power supply.

ATTENTION

Risk of falling parts. Tighten the screws!

Secure the right and left parts of the device to prevent it from falling.

ATTENTION!

Risk of falling parts. Tighten the screws!

Damaged parts on the customer's device, e.g.

TC

Secure the component so that it does not fall.

Removal:

Remove the device from the power supply. The device's retaining screws are removed.

4.4.1 Removing the door panel

Repair

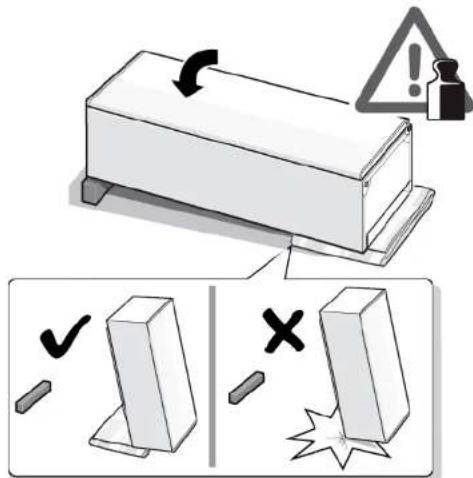

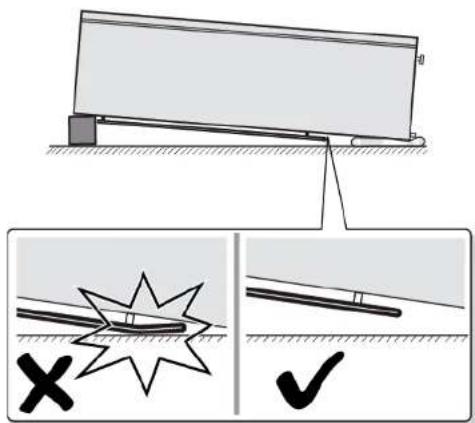

1. Place the device on a flat surface on its side.

2.1. Press the release button on the top panel from both sides (1).

1. Remove the hinge pin from the upper hinge (2).
2. Remove the hinge pin from the upper hinge (3).

Repair

3.1. Remove the hinge pin (1).

1. Remove the lower hinge (2).

The upper hinge of the door is removed. 4.4.2 Mounting the door hinge Mount the hinge in reverse order.

Repair

4.5 Replacing the upper hinge of the door (door with closer)

Special tools:

Torx wrench TX20 6.3 mm (1/4") [00340865]

WARNING

Danger of injury!

Mount the hinge in reverse order.

Repair

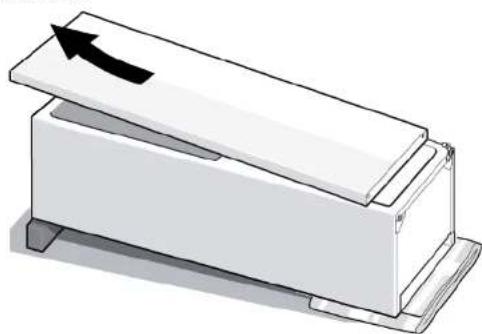

4.6 Replacing the lower hinge of the door

Special tools:

Socket wrench TX20 6.3 mm (1/4") [00340865]

MAINTENANCE

Current, live parts!

The generator is de-energized.

4.9.2 Installing the generator

Install in reverse order.

Repair

4.10 Signal on LED lighting of the stove

Special tools:

Screwdriver bit 2.4 mm x 0.4 mm x 60 mm, in set [00341820]

The stove is equipped with LED lighting that does not require maintenance. The lighting can be repaired only by the manufacturer or by the customer service technician.

DANGER

Risk of electric shock from live parts! Danger to life from electric shock in case of improper handling.

Electrical parts must only be repaired by qualified electricians. After repair, a safety test must be carried out in accordance with VDE 0701 or in accordance with the national regulations.

Danger! Risk of electric shock from current in the front part before de-energizing!

Electric shock hazard

Disconnect the device from the electrical supply for at least 60 seconds before performing repairs.

CAUTION

Sharp edges!

Warning

Wear protective gloves.

Inspection:

The device is disconnected from the supply. The cover is open. The internal parts are exposed.

4.10.1 Replacing the LED lighting

1. Remove the LED lighting cover.

The connection to the electrical network and the LED lighting is disconnected.

2. Release the LED lighting.

Repair

3. Connect the LED lighting to the power supply.

The LED lighting is connected. 4.10.2 Mounting the LED lighting to the mounting bracket.

4.3 Replacing the easy opening handle 34

4.3.1 Removing the easy opening handle 34 4.3.2 Installing the easy opening handle 34

4.4 Replacing the upper door hinge 35

4.4.1 Removing the door hinge 35 4.4.2 Installing the door hinge 37

4.5 Replacing the upper door hinge (door with screen) 38

4.5.1 Removing the door hinge 39 4.5.2 Installing the door hinge 40

4.6 Replacing the lower door hinge 41

4.6.1 Replacing the lower door hinge. 41 4.6.2 Installing the lower door hinge 41

4.7 Replacing the shelf 42

4.7.1 Removing the shelf 42 4.7.2 Installing the shelf 42

4.8 Replacing the freezer drawer 43

4.8.1 Removing the freezer drawer 43 4.8.2 Installing the freezer drawer 43

4.9 Replacing the ice maker 44

4.9.1 Removing the ice maker 44 4.9.2 Installing the ice maker 44

4.3 Replacing the easy opening handle

Special tools:

Phillips screwdriver PH2

Requirement:

The appliance is disconnected from the power supply. The door is open.

4.3.1 Removing the easy opening handle

1. Remove the cover of the easy opening handle (1). 2. Unscrew the two screws (2).

The easy opening handle is removed.

4.3.2 Installing the easy opening handle

4.3 Replacing the easy opening handle 56

4.3.1 Removing the easy opening handle 56 4.3.2 Installing the easy opening handle 56

4.4 Replacing the upper door hinge 57

4.3 Replacing the easy opening handle

Special tools:

Make sure to secure the component to prevent it from falling.

Presetting:

Make sure to secure the devices to prevent them from slipping.

Danger of falling parts due to loose screws!

Injury due to falling parts

Make sure to secure the component to prevent it from falling.

Danger of falling parts due to loose screws!

Make sure to secure the component to prevent it from falling.

Make sure to secure the devices to prevent them from slipping.

Danger of falling parts due to loose screws!

Injury due to falling parts. Make sure to secure the component to prevent it from falling.

BEM/ERK!

Danger of falling parts due to loose screws!

Make sure to secure the component against falling.

Presetting:

Repair hints - Freezer

1 Concerning this document. 116

1.1 Important information 116

1.1.1 Purpose 116 1.2 Explanation of symbols 116 1.2.1 Danger levels.. 116 1.2.2 Hazard symbols 116 1.2.3 Structure of the warnings.. 117 1.2.4 General symbols 117

Safety. 118

2.1 General Safety instructions 118

2.1.1 All domestic appliances 118

Tools and aids. 119

Repair 120

4.3 Replacing easy opening handle 124

4.3.1 Removing easy opening handle 124 4.3.2 Installing easy opening handle 124

4.4 Replacing door upper hinge 125

4.5 Replacing door upper hinge (door with display) 128

4.7 Replacing shelf 133

4.7.1 Removing shelf 133 4.7.2 Installing shelf 133

4.8 Replacing frozen food container 134

4.8.1 Removing frozen food container 134 4.8.2 Installing frozen food container 134

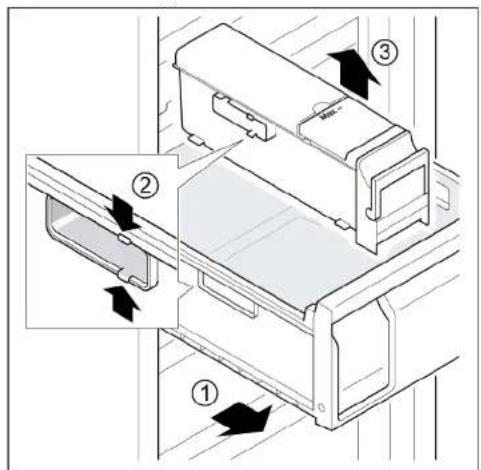

4.9 Replacing ice maker 135

4.9.1 Removing ice maker 135 4.9.2 Installing ice maker 135

4.10 Replacing LED top light 136

4.10.1 Removing LED light 136 4.10.2 Installing top LED light 137

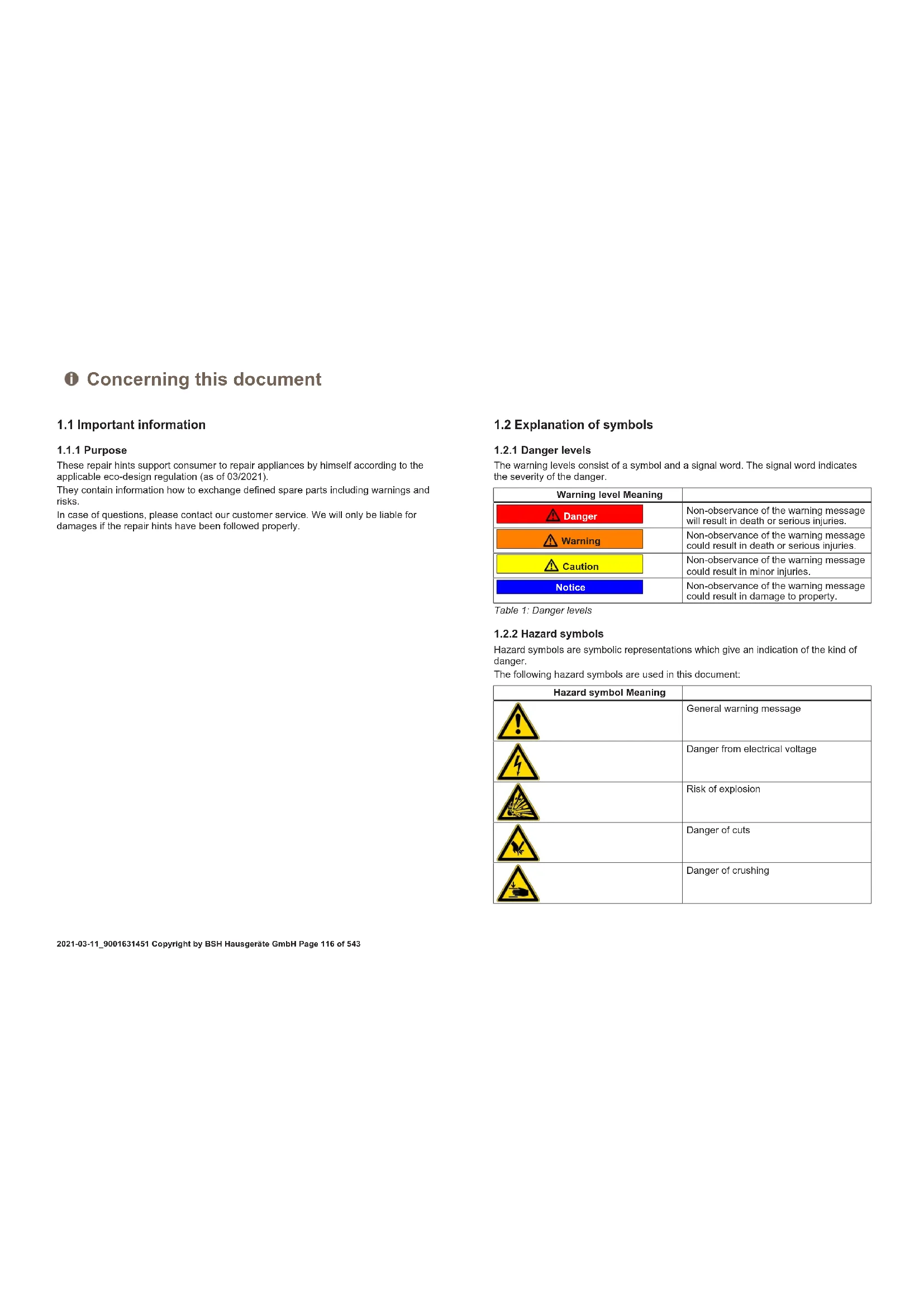

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers to repair appliances by themselves according to the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Table 1: Danger levels

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
i	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components.

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth [00342013]	60 cm x 50 cm	###
Phillips screwdriver PH2
Torr Bit TX20 [00340865]	6.3 mm (1/4")
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]	①

Prerequisite: Door is open.

1. Release door gasket from the groove on right and left corner.

1. Pull out door gasket from groove.

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

1. If groove for gasket is damaged.
2. Contact customer service.
3. Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Repair

1. Press whole gasket step by step into the groove.

Door gasket is installed.

Appliance is disconnected from power supply. Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

Install in reverse order.

Repair

4.3 Replacing easy opening handle

Required tools:

Phillips screwdriver PH2. Prerequisite: Appliance is disconnected from power supply. Door is open.

4.3.1 Removing easy opening handle

1. Remove easy opening handle cover (1).
2. Unscrew two screws (2).

Easy opening handle is removed.

4.3.2 Installing easy opening handle

Install in reverse order.

Repair

4.4 Replacing door upper hinge

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

Appliance door removal operation should only be carried out by trained specialists. To move the appliance, two people are required. Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts. - Secure component from falling down.

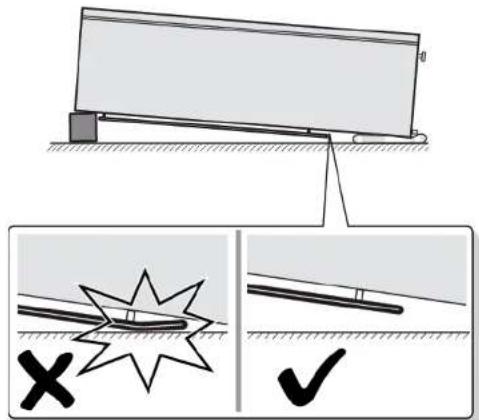

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customer's home, e.g., bottom.

Secure component from falling down.

• Prerequisite:

Appliance is disconnected from power supply. Appliance interior fittings are removed.

Appliance is disconnected from power supply. Appliance interior fittings are removed.

1. 2.1. Press upper hinge cover on both sides (1).

Move out upper hinge cover (2).

1. Remove upper hinge cover (3).
2. Repair

3.1. Unscrew two screws (1).

Remove upper hinge (2).

1. Door upper hinge is removed. 4.4.2 Installing door hinge Install in reverse order.

Door upper hinge is removed. 4.4.2 Installing door hinge Install in reverse order.

4.5 Replacing door upper hinge (door with display)

4.5 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

Appliance door removal operation should only be carried out by trained specialists. To move the appliance, two people are required. Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customer's home, e.g. bottom.

Secure component from falling down.

• Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair.

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electrician.

After the repair, have a safety test performed according to VDE 0701 or country-specific regulations.

Risk of electric shock due to live parts!

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Prerequisite:

Appliance is disconnected from power supply. Appliance interior fittings are removed.

Repair

1. Place appliance on the back side.

Repair

2.1. Press upper hinge cover on both sides (1). 2. Move out upper hinge cover (2). 3. Remove upper hinge cover (3)

3.1. Remove cable box cover (2) 2. Remove cable protection (2) 3. Disconnect electrical connection (3). 4. Unscrew two screws (4) 5. Remove upper hinge (5).

Door upper hinge is removed.

Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

The appliance is disconnected from the power supply. The appliance interior fittings are removed. The appliance is placed on its back.

The upper hinge is removed. (See page 128)

4.6.1 Replacing the door lower hinge

1. Remove the door.

2.1. Unscrew the screw (1).

1. Turn the lower hinge out (2).
2. Remove the lower hinge (3).

The lower hinge is removed.

Repair

Install in reverse order.

Repair

4.7 Replacing the shelf

Prerequisite: The door is open.

4.7.1 Removing the shelf

Pull out shelf.

Shelf is removed.

4.7.2 Installing shelf

Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite: Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1). 2. Remove frozen food container (2).

• Frozen food container is removed.

4.8.2 Installing frozen food container

Install in reverse order.

Repair

4.9 Replacing ice maker

Prerequisite: Door is open.

4.9.1 Removing ice maker

1. Pull out shelf frozen food container with ice maker (1).
2. Release hooks (2).
3. Remove ice maker (3).

Ice maker is removed.

4.9.2 Installing ice maker

Install in reverse order.

Repair

4.10 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only!

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electrician.

After the repair, have a safety test performed according to VDE 0701 or country-specific regulations.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Prerequisite:

1. Appliance is disconnected from power supply. Door is open. Upper interior fittings are removed.

4.10.1 Removing LED light

1. Move the LED light to the left side.

LED light electrical connection is disconnected.

1. Release LED light hooks.

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.10.2 Installing top LED light

Install in reverse order.
