ZHG51251G - Range hood ZANUSSI - Free user manual and instructions

Product type	Cooker hood
Brand	Zanussi
Model	ZHG51251G
Power supply	220-240 V, 50 Hz
Number of speeds	2
Lighting	1 LED lamp of type CANDLE, 4 W, socket E14, diameter 37 mm
Installation type	Extractor or recirculation
Grease filter	Metal, dishwasher-safe
Charcoal filter	Not washable, replace every 4 months
Minimum distance from hob	65 cm
Grease filter maintenance	Every 2 months minimum
Charcoal filter replacement	Every 4 months (or more often with heavy use)
External cleaning	Soft cloth, neutral detergent, no steam cleaner
Earthing mandatory	Yes, if the appropriate symbol is on the rating plate
Replacement bulb type	CANDLE LED 4W, 220-240V, E14, Ø37mm

Frequently Asked Questions - ZHG51251G ZANUSSI

What is the minimum distance between the hood and the hob?

The minimum distance between the hob surface and the lower part of the hood is 65 cm, unless otherwise stated in the hob installation manual.

How to clean the grease filters?

The grease filters must be cleaned every 2 months minimum. They can be washed by hand with a neutral detergent or in a dishwasher. Any discolouration does not affect their efficiency.

When to replace the charcoal filter?

The charcoal filter is not washable and must be replaced every 4 months, or more often with heavy use. It is not renewable.

How to replace the hood bulb?

Unplug the hood. Make sure the bulb has cooled down. Replace it with a lamp of the same type: CANDLE LED 4W, 220-240V, E14, Ø37mm.

Can I install the hood in extractor or recirculation mode?

Yes, the hood can be installed in extractor mode (evacuation to the outside) or in recirculation mode (air recycling). The choice must be made at installation.

What to do if the hood does not work?

First check that the appliance is properly plugged in and that the circuit breaker has not tripped. Ensure the filters are not clogged. If the problem persists, contact an authorised service centre.

How to connect the hood electrically?

The electrical connection must be carried out by a qualified electrician. Check that the rating plate specifications match the power supply. The appliance must be earthed if the appropriate symbol is present.

Can I use the hood without charcoal filter?

Yes, if the hood is installed in extractor mode, the charcoal filter is not necessary. In recirculation mode, it is essential for air recycling.

How to adjust the motor speed?

Use switch B (MOTOR SPEED) to select the speed. Position 0: motor off. Position C: motor on (single speed or first speed). Depending on the model, there may be multiple speeds.

Is the hood suitable for a gas hob?

Yes, but maintain a minimum distance of 65 cm between the hood and the gas hob. Make sure the room is well ventilated to prevent gas backflow.

USER MANUAL ZHG51251G ZANUSSI

User Manual

GETTING STARTED? EASY.

ZHG 51251 G

ZHG 51351 G

ZHG 71351 G

ZANUSSI

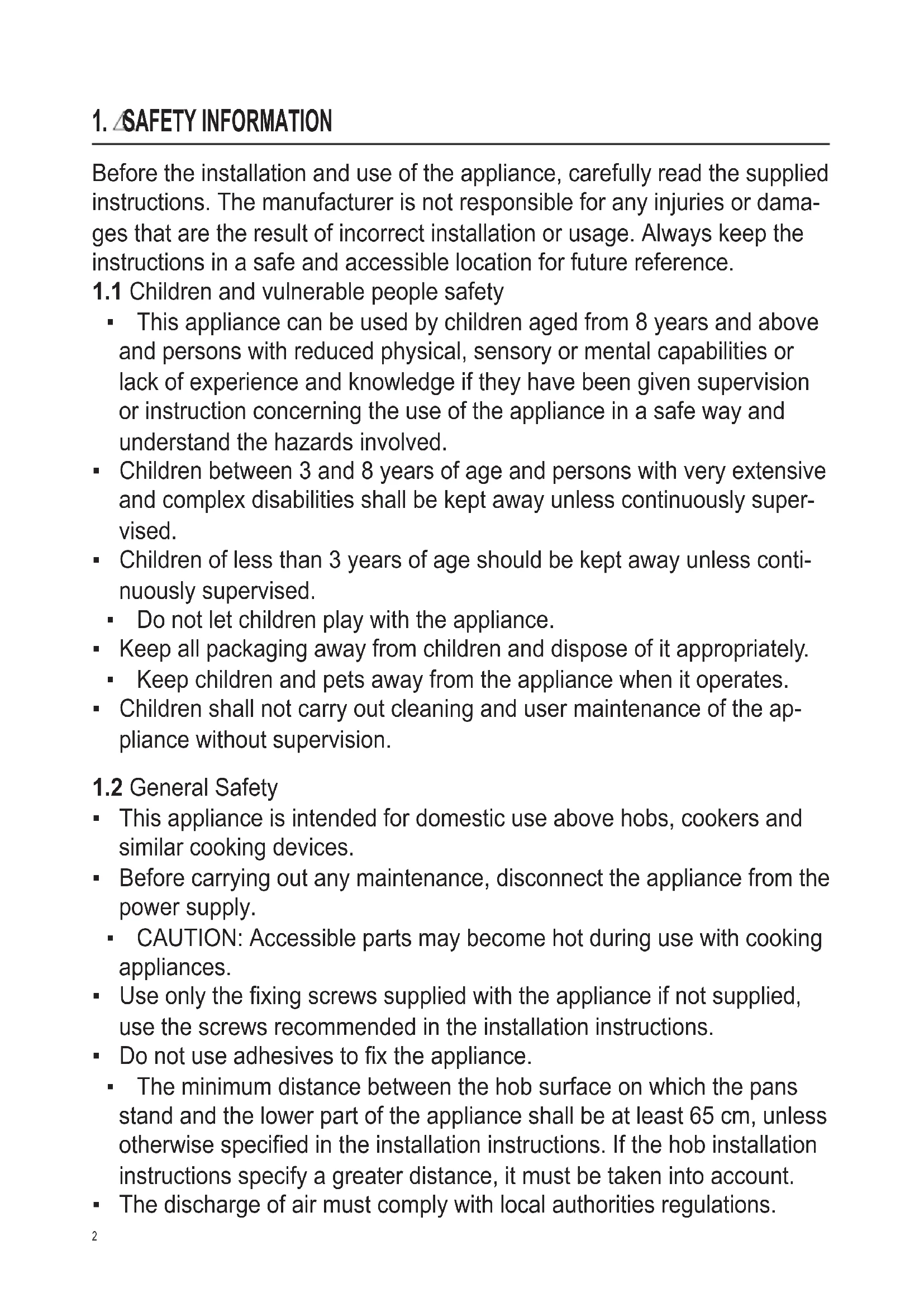

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).
• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flambé under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly to prevent the deterioration of the surface material
• Clean the appliance with a soft cloth regularly.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Risk of injury, electric shock, fire, burns or damage to the appliance.

Only a qualified person must install this appliance. Do not install or use a damaged appliance. Follow the installation instructions supplied with the appliance. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. Before installing the appliance, remove all the packaging, the labelling and the protective film. Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (□) is not printed on the rating plate, the appliance must be earthed. Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING! Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purposes.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

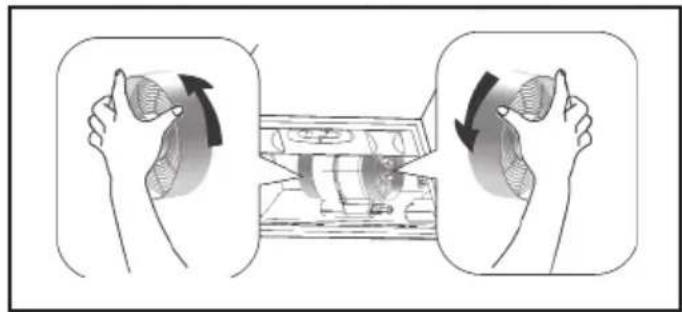

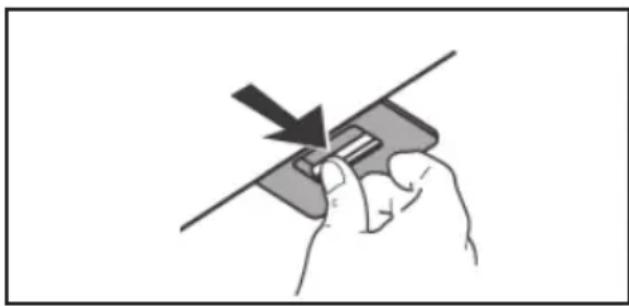

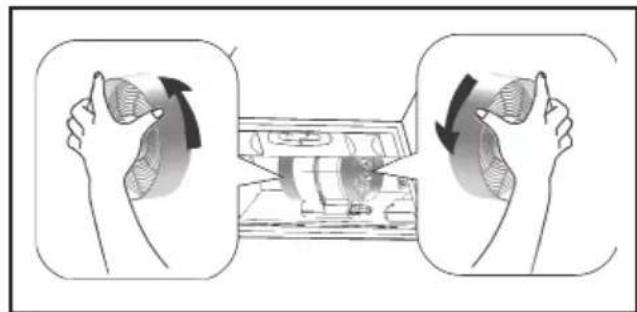

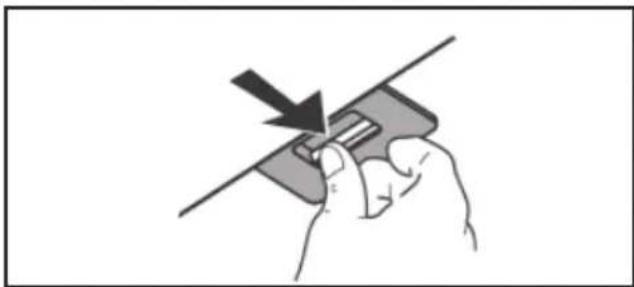

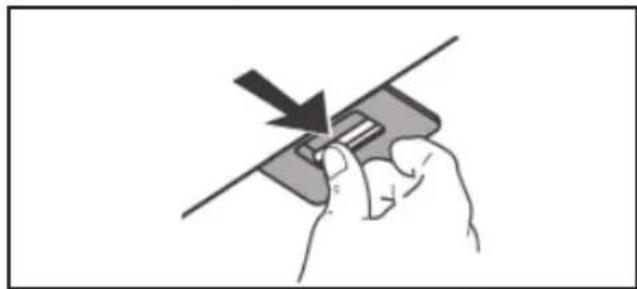

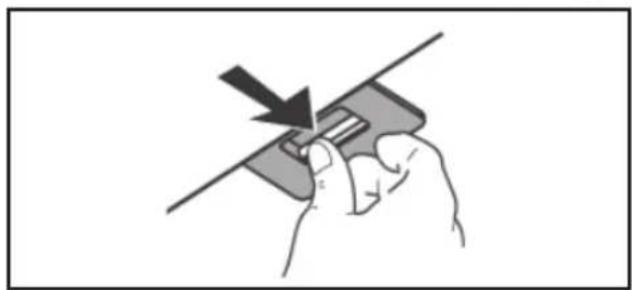

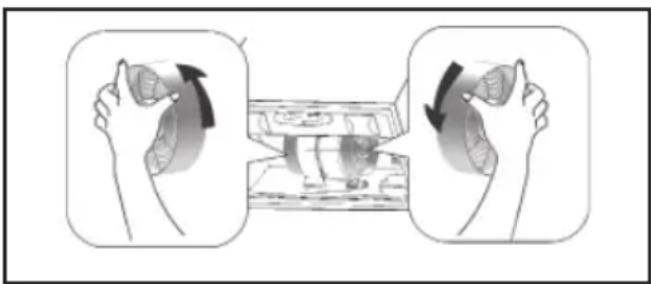

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.

Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

4. CONTROLS

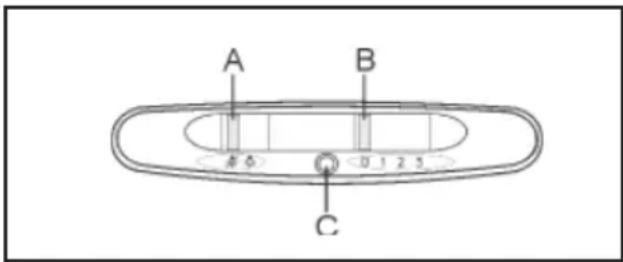

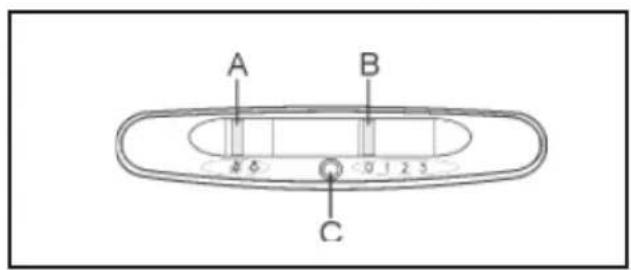

Switch A: LIGHT;

position light off;

position light on.

Switch B: MOTOR SPEED: makes it possible to select the motor operating speed; position 0: motor off.

C: Motor on light.

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION?

The hood may be in filtering or in ducting version.

Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifies the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifies the air and recycles the clean air back into the room.

6. LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs, ensure they are cooled down.

Replace it with lamps of the same type

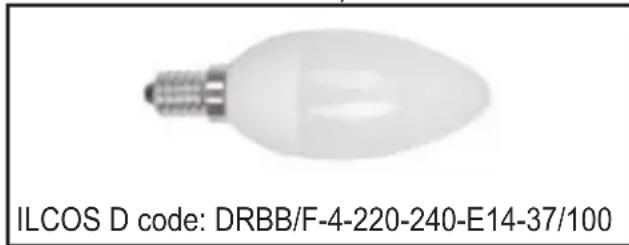

(CANDLE LED 4W, 220-240V, E14, 037mm).

ILCOSD code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Put the packaging in relevant containers

to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

DISPOSAL OR RECYCLING?

1.1 SAFETY OF CHILDREN AND PERSONS WITH LIMITED CAPABILITIES

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Keep the appliance out of reach of children and dispose of it properly. Cleaning and user maintenance shall not be made by children without supervision.

1.2 GENERAL SAFETY RULES

• If the cooker hood is used simultaneously with appliances operating on gas or other fuels, the room must have adequate ventilation. Regularly clean the hood both inside and outside (at least once a month). Cleaning must be carried out in accordance with the maintenance instructions given in this manual. Failure to follow the instructions for cleaning the hood, as well as cleaning and replacing filters, may lead to fire.
• Avoid open flames, as they can damage the filters and lead to fires. The hood must be installed under supervision to avoid the risk of oil fires.
• The appliance is intended for household use. Before any cleaning or maintenance operations,

Disconnect the appliance from the power supply by pulling the plug out of the socket or disconnecting the main power source.

Warning! When the hob is operating, accessible parts of the extractor may become hot. - Only use the fixing screws supplied with the appliance; if they are not provided, use the screws recommended in the installation instructions. Do not use glue to fix the appliance. The minimum distance between the hob and the lower part of the extractor must be 65 cm, unless otherwise specified in the installation instructions. If the installation instructions specify a greater distance, this must be taken into account. - As for technical measures and safety conditions for flue gas evacuation, strictly follow the rules in force in your place of residence. - Make sure that the ventilation openings are not blocked and that the air expelled by the appliance is not discharged into a pipe used for evacuating fumes from other devices (central heating system, thermosiphons, water heaters, etc.). Be careful not to damage the power cord. To replace a damaged power cord, contact an authorized service center or a qualified electrician. - If the extractor is not fitted with a plug (direct connection to the mains) or if the socket is not accessible after installation, use an approved two-pole switch that ensures complete disconnection from the mains under overvoltage category III, in accordance with the installation instructions. - It is strictly forbidden to cook with an open flame under the extractor. Do not use the appliance to extract vapors of dangerous or explosive substances. The extractor should be cleaned regularly with a soft cloth to prevent damage to the surface material. Do not use abrasive cleaners, water spray, abrasive cleaning agents, or sharp metal

scrapers to clean the surface of the appliance. Use only neutral detergents. Do not use or leave the extractor without correctly installed lamps, due to the possible risk of electric shock. We disclaim all liability for malfunctions, damage, or fire of the appliance resulting from failure to follow the instructions given in this manual.

• Clean the grease filters regularly (at least once a month).
• To clean the inside of the extractor, use a cloth or a brush.

2. SAFETY INSTRUCTIONS

2.1 Installation

Warning! Risk of injury, electric shock, fire, or damage to the appliance.

• Installation of the appliance must be carried out only by qualified personnel. Do not install or use a damaged appliance. Follow the installation instructions supplied with the appliance.
• Due to the large mass of the appliance, always be careful when moving it. Always use protective gloves and keep the appliance closed and stable.
• Before installing the device, remove all packaging and the protective film. Do not allow air to escape through the wall opening if the opening is not intended for this purpose.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

The electrical connection must be carried out by a qualified electrician. - Make sure that the characteristics on the technical data plate match those of the power supply. - If the symbol (回) is not printed on the technical data plate, the device must be grounded. Always use a properly installed

and fully insulated socket.

Do not leave the power plug exposed. Do not use multi-socket adapters or extension cords. - If the socket is loose, do not connect the device to it. Do not disconnect the device by pulling on the power cord. Always pull on the plug. Protection against electric shock of live parts must be installed in such a way that it cannot be removed without tools. - Make sure that the device is installed correctly. An incorrectly connected power cord can lead to contact breakage. Connect the device only after installation is complete. Make sure that the power supply is connected after installation.

2.3 Use

WARNING! Risk of injury, burns, and electric shock.

• The device is intended solely for the removal of smoke and steam generated during cooking. Do not use the extractor for any other purposes. Do not make any modifications to the device. Do not touch the device with wet hands and do not switch it on if it has come into contact with water.
• Use only accessories supplied with the device. During cooking, frying, and oil heating, do not let them come into contact with the appliance or other objects. Do not place any

objects on the extractor.

Do not look directly at the light source.

2.4 Service

Before installing the device, please contact an authorized service center. Use only original spare parts.

2.5 Cleaning

Attention! Before disposing of the appliance, please contact the regional waste management operator or local authorities for information on proper disposal, including separate collection of waste electrical and electronic equipment. Disconnect the appliance from the power supply. Cut the power cord close to the appliance body and dispose of it.

3. (i) Maintenance

Warning! Before performing any cleaning or maintenance operation, disconnect the appliance from the electrical supply by removing the plug from the socket or switching off the circuit breaker. The appliance should be cleaned regularly both inside and outside (at least as often as the grease filter is cleaned). For cleaning, use a soft cloth dampened with a neutral liquid detergent. Do not use abrasive materials. Do not use alcohol! Warning! Failure to follow the cleaning instructions and filter replacement may lead to a fire risk. Therefore, it is recommended to follow the instructions provided.

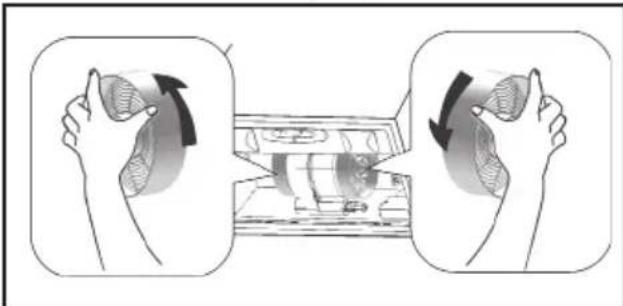

Cleaning the grease filters.

The grease filter should be cleaned (washed) monthly with neutral detergents, either by hand or in a dishwasher at low temperature and with a short cycle. When washing in a dishwasher, some discoloration of the grease filter may occur, but its filtering characteristics remain absolutely unchanged.

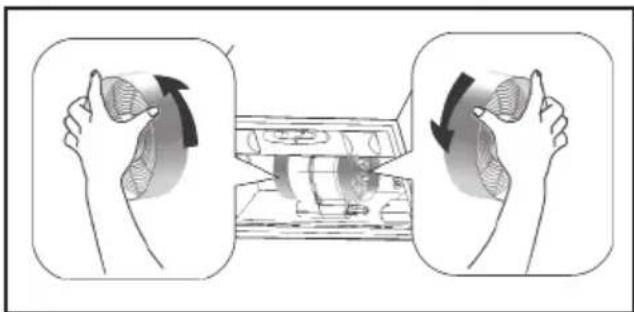

Charcoal filter.

The saturation of the charcoal filter occurs after a longer or shorter period of operation, depending on the type of cooking and the frequency of grease filter cleaning. In any case, replace the filter at least every 4 months. The charcoal filter cannot be washed or restored for reuse.

4. CONTROL PANEL

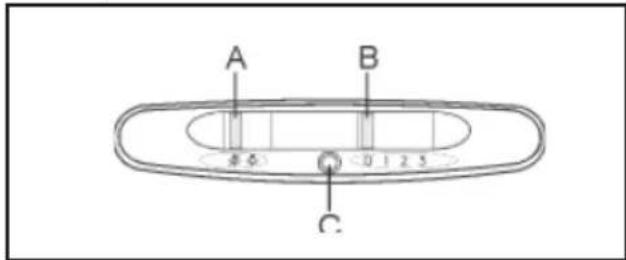

A. Light switch: position - light off, position - light on. B. Motor speed switch (position 0 - motor off). C. Motor operation indicator: the indicator lights up when the motor is running.

5. INSTALLATION METHODS

Ducted version.

It is necessary to choose the installation method of the hood from the very beginning.

For maximum performance, we recommend installing the hood with the possibility of ducting.

Ducting

The hood extracts air and discharges it outside through a duct pipe.

The exhaust fan draws air out of the room and returns cleaned air to the room.

6. LIGHTING

Disconnect the unit from the power supply.

Warning! Do not touch the lamp until it has completely cooled down (it takes at least 5 minutes after switching off). Replace with a lamp of the same type (CANDLE LED 4W, 220-240V, E14, Ø37mm).

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL PROTECTION.

Materials marked with the symbol must be recycled.

To recycle packaging materials, place them in the appropriate waste containers. Waste from electrical and electronic equipment must be recycled to protect the environment and human health.

Appliances marked with the symbol must not be disposed of with household waste.

The product should be sent to a local waste recycling center or contact local authorities.

The manufacturing date of the product is indicated in its serial number, where the first digit of the number corresponds to the last digit of the year of manufacture, and the second and third digits correspond to the ordinal number of the week. For example, serial number 84512345 means that the product was manufactured in the 45th week of 2018.

Manufacturer: Electrolux Appliances AB, St. Goransgatan 143, 10545 Stockholm, Sweden

Importer and authorized manufacturer's organization: LLC "Electrolux Rus", Kozhevnichesky proezd 1, 115114, Moscow, tel.: [phone]

Made in Poland.

(CANDLE LED 4W,220-240V,E14,037mm).

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL CARE

The product should not be disposed of with household waste.

The product must be sent to a local recycling center or returned to the local authority.

5. INSTALLATION METHODS

DUCTED OR FILTER VERSION?

The hood can be in filter or ducted version. It is necessary to decide which version will be installed. Considering better efficiency, we recommend installing the hood in the ducted version (if possible).

Ducted version

The hood purifies the air and expels it outside through a duct.

Filter version

ACTIVE CARBON FILTER FOR AIR EXTRACTION IS NOT INCLUDED AND CANNOT BE RECYCLED, AND IT MUST BE REPLACED EVERY 4 MONTHS OF USE OR MORE OFTEN IN CASE OF INTENSIVE USE.

4. CONTROLS

Switch A: Light; switch B: Light; switch C: Light.

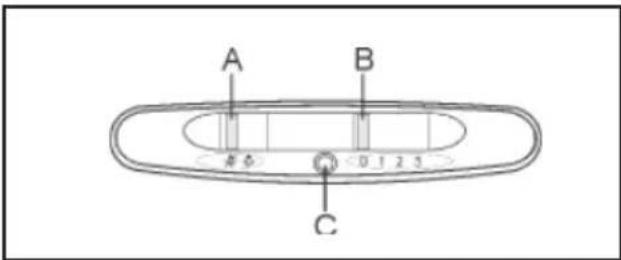

Switch D: Motor speed: allows selection of motor speed; position 0: motor is off.

5. INSTALLATION METHODS

FILTRATION - DUCTED VERSION?

The hood can be with filtration or ducted version. It must be decided which one needs to be installed.

For better effects, we recommend installation of the hood with ducted version (if this is possible).

Ducted version

The hood extracts the air and expels it through an exhaust duct.

Filtration version.

The hood extracts the air and returns it purified back into the room.

6. LIGHTING

The extractor must be disconnected from the electrical supply.

Warning! Risk of burning, make sure the lamp is cool.

Replace the lamps with the same type (CANDLE LED 4W, 220-240V, E14, ø37mm).

7. DISPOSAL OF THE ENVIRONMENT

Materials marked with the symbol must be recycled.

Dispose of the materials at a recycling facility, placing them in the containers intended for them. Electrical and electronic equipment must be handed over for recycling to help protect the environment and human health. Do not dispose of them

with household waste.

Hand over the product to your local waste processing company or contact the local authorities.

The device is intended for household use. The device is not intended for commercial or industrial use. Keep the device away from heat sources and open flames. Do not use the device near flammable materials.

1.1 Safety of children and vulnerable persons

• This device can be used by children aged 8 and above, as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children aged 3 to 8 years may only switch the device on or off, provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children aged 3 years and under must not be allowed to use the device.
• Children must not play with the device.
• Keep the device and its cord out of reach of children and do not allow them to operate it.
• Children and pets must not be allowed to come near the device while it is in operation.
• Do not allow children to clean or maintain the device without supervision.

1.2 Safety precautions

Do not use the device on or near surfaces that are not intended for this purpose, such as tables, shelves, or other furniture. Before performing any maintenance or cleaning, always unplug the device. CAUTION: Hot surfaces may cause burns if touched. Keep the device away from curtains and other flammable materials; if they are not, they may catch fire.

Keep the device away from curtains.

The device must be installed in accordance with the installation instructions. - If the head is installed at an angle, the device must be positioned so that the distance between the hot water outlet and the cold water inlet is at least 65 cm. If the hot water outlet is installed at an angle, it must be corrected. - The ambient air must be free of dust, corrosive gases, and other harmful substances. - If the device is installed in a room with a gas water heater, the room must have a ventilation opening to prevent the accumulation of harmful gases. The ventilation opening must be at least 0.04 m². The gas supply must be shut off. To shut off the gas supply, contact our service center or an electrician. If the device is connected to the gas supply, the gas supply must be shut off before any maintenance. The maintenance must be performed by a qualified technician. The device must be connected to the gas supply with a rigid pipe. Do not use flexible hoses. Do not use the device if it is damaged or has missing parts. - To prevent damage to the material, the device must be cleaned regularly. Do not use abrasive cleaners. Use a soft cloth and mild detergent to clean the device.

Do not use solvents, abrasive cleaners, or sharp objects to clean the device. Only use mild cleaning agents.

• To prevent malfunctions, clean the device regularly (at least once every 2 months) and remove any dirt from the device. Do not use water or steam to clean the device.

2. TROUBLESHOOTING

2.1 Installation

CAUTION! Risk of electric shock, fire, or damage to the device.

The device must be installed only by a qualified technician. Do not install or operate a damaged device. Keep the installation instructions that came with the device. Be careful not to damage the device during installation. - Do not use the device if the power cord is damaged. After installation, remove all packaging materials, protective films, and labels. If the device is not used for a long time, disconnect it from the power supply.

2.2 Electric mower

WARNING! Fire and electric shock hazard.

• The electric mower is intended only for mowing grass. Do not use it for other purposes. If the device is faulty, it must be repaired by a qualified technician.
• Do not use the device if the power cord or plug is damaged. Do not touch the cord with wet hands.

Do not use extension cords or adapters. - If the socket is not grounded, connect the device to it. Pull the plug by the cord, not by the cord itself. Do not pull the cord to disconnect it. Protect the electric motor from moisture and do not operate it in wet conditions. Use only grounded outlets. Do not operate the device if the cord is damaged. Do not touch the cord or plug with wet hands. Do not use the device if the cord is damaged. After use, disconnect the device from the power supply.

2.3 Connection

WARNING! Risk of electric shock.

The device is intended only for cooking food. Do not use it for other purposes. Do not modify the device. Do not operate the device with wet hands or barefoot. Do not use the device with wet hands. - When cleaning, use a damp cloth or mild detergent. Do not use abrasive cleaners. Do not immerse the device in water. Do not use the device near water or in damp places.

2.4 Maintenance

Before cleaning, disconnect the device from the power supply. Only use a soft cloth to clean the device.

2.5 Storage

WARNING! Risk of fire or explosion.

Store the device in a dry place, away from heat sources. Do not expose the device to rain or moisture. Disconnect the device from the power supply before storing.

3. TECHNICAL MAINTENANCE

To avoid any malfunction, have the device checked by a qualified technician at least once every 2 years.

The device must be used with a grounded socket. If the socket is not grounded, the electrical safety of the device may be affected.

The device must not be used with an extension cord, and it must be connected to a separate circuit from other appliances. If necessary, consult a qualified electrician.

4. CONTROL ELEMENTS

A knob: temperature; knob: temperature setting; knob: temperature adjustment. B knob: fan, humidity: fan humidity adjustment; 0 knob: fan setting. C: Fan running.

5. OPERATING INSTRUCTIONS

Is the plug suitable?

The plug may be suitable. It is necessary to check what type of plug is required. For safety, the plug must be replaced by a qualified technician (if possible).

Suitable plug

The plug must be removed and replaced with the appropriate plug.

Unsuitable plug

The plug must be removed and replaced with a suitable plug.

The plugs must be replaced. The wires must not be connected together with the plugs.

The replacement of the plugs must be reported to the relevant authorities or the relevant organizations.

If the device is repaired on the day of the repair, the repair must be carried out by a qualified technician. The repair must be carried out in accordance with the instructions. For example, the repair of the device must be carried out by a qualified technician.

Manufacturer: Electrolux Appliances AB, St. Goransgatan 143, 10545 Stockholm, Sweden

HmnpTayu, KeTki3yuiXHeYbIMhIn eHdipywi yakineTTi: OOO «3neKtpoIooC Pyc KoxeBnueckn npoe3d 1,115114, MockBa/ Mackey, Pcei Te.:8-800-200-3589

Before installation and use, read this manual carefully. The manufacturer is not responsible for any damage or injury resulting from incorrect installation or use of the device. This manual should be kept in a safe place for future reference.

1.1 Safety of children and persons with special needs

• This device may be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years and persons with special needs of an extensive and complex character must not have access to the device unless they are provided with constant supervision.
• Children aged under 3 years must not have access to the device unless they are provided with constant supervision.
• Children must not use the device as a toy.
• Children must not have contact with the packaging; remove it in an appropriate manner.
• Children and animals must not have access to the device while it is working.
• Children must not perform cleaning or maintenance of the device without supervision.

1.2 General safety rules

• The device is intended for household use, for heating plates, pots and other cooking appliances.
• Before performing any maintenance work on the device, it must be disconnected from the power source. WARNING: The accessible parts may become hot during use with the heating device. For mounting the device, use only the screws supplied with the device; if they are not supplied, use

screws recommended in the installation instructions.

The appliance must be installed in accordance with the regulations. The minimum distance between the top surface of the hob on which the appliance is placed and the underside of the appliance must be 65 cm, unless otherwise specified in the installation instructions. If the installation instructions for the hob specify a greater distance, that must be respected. - The appliance must be connected to the exhaust air outlet in accordance with the regulations in force at the local level. In the room where the appliance is installed, good ventilation must be ensured to avoid the risk of harmful gases being drawn back into the room where there are appliances that burn gas or other fuels, including open fires. - Ensure that the ventilation openings are not blocked and that the air taken in by the appliance is not discharged into a duct used for ventilation of other appliances (central heating, thermosiphons, water heaters, etc.). - While the appliance is operating with the burners on, the maximum vacuum generated in the room must not exceed 0.04 mbar. Be careful not to damage the power cord. For replacement of a damaged power cord, contact our authorized service center or an electrician. If the appliance is directly connected to the power supply, the electrical installation must be equipped with a disconnecting device that allows the appliance to be completely disconnected from the power supply. The complete disconnection must comply with the conditions specified in category III for overvoltage. The appliance used for disconnection must be connected to the existing network, in accordance with the wiring rules for electrical installations. Do not use the appliance without supervision. Do not use the appliance to vacuum materials that are dangerous or explosive substances. - The appliance must be cleaned regularly to prevent damage to the surface material. - Clean the appliance regularly with a soft cloth.

For cleaning the surface of the appliance, do not use cleaning agents with steam, water spray, abrasive cleaning agents, or sharp metal scrapers. Use only neutral detergents. - Clean the grease filters regularly (at least once a month) and remove the grease deposits from the appliance to prevent fire hazard. For cleaning the interior of the appliance, use a cloth or brush.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Risk of injury, electric shock, fire, or damage to the appliance.

• Installation must be carried out only by a qualified electrician. Do not install or use a damaged appliance. Follow the installation instructions. Due to the heavy weight of the appliance, be extremely careful when moving it. Always use protective gloves and sturdy shoes.
• Before installing the appliance, remove and dispose of the protective film. Do not let the air out through the opening in the floor, unless the opening is designed for that purpose.

2.2 Connection to the mains

WARNING! Risk of fire or electric shock.

• Electrical connection must be made by a qualified electrician.
• Check the parameters in the table with the device against the characteristics of the energy source. If the symbol (回) is not on the table with the device, the device must be replaced.
• Current users, instructions for use:
• The power cord is permanently connected. Do not leave the power cord hanging. Do not use an extension cord or adapter. If the plug is damaged, do not connect the device with it. Do not disconnect the device by pulling the

power cord. Always disconnect the plug.

Protection against electric shock from live parts and insulated parts must be installed so as to prevent accidental contact. Ensure that the device is properly installed. An inappropriate power cord can cause overheating of the contacts. - The device must be connected after installation. After installation, ensure that there is an accessible power source.

2.3 Use

WARNING! Risk of injury, electric shock.

• The device is intended only for cooking. Do not use the device for purposes other than those specified. Do not modify the specifications of the device. Do not use the device with wet hands or when in contact with water.
• Use only the supplied device. During cooking and use, fats and oils must not come into contact with flames or hot surfaces. Do not use uncovered grills for cooking. Do not use the device as a storage space for other items. Do not use sharp or pointed objects to look directly at the light source of the device.

2.4 Servicing

For repair of the device, contact an authorized service center. Use only original spare parts.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Information on proper disposal of the device can be obtained by contacting local authorities.
• Do not turn the device on before filling it. The filling device must be placed close to the body of the device and then turned on.

3. CLEANING

The oil filter must be cleaned depending on the frequency of use, at least every two months, to prevent the risk of fire. It can be cleaned in a dishwasher or with a neutral detergent. In case of cleaning in a dishwasher, the slight change in the color of the filter does not affect its functioning in any way.

The activated carbon filter cannot be cleaned and regenerated. It must be replaced with a new one - at least every four months of use, or more often in case of particularly intensive use.

4. CONTROLS

Switch: light; position: off light; position: on light. Switch: motor speed: allows selection of the motor speed; position 0: motor off. C: motor on.

5. INSTALLATION METHODS

FILTRATION OR DUCTED VERSION? The extractor can be installed in a filtration or ducted version. You must decide which type to install. For better performance, we recommend installing the extractor in the ducted version (where possible).

Ducted version

The extractor draws in the air and expels it outside through the duct.

Filtration version

The extractor draws in the air and returns it already filtered into the room.

6. LIGHTING

The extractor must be disconnected from the electrical supply.

!Warning! Before touching the lights, make sure they are off. Replace with lamps of the same type (CANDLE LED 4W, 220-240V, E14, 037mm).

ILCOS D code: DRBB/F-4-220-240-E14-37/100

5. MOUNTING

FILTERED OR DUCTED VERSIONS?

The hood can be in filtered or ducted version. You must decide which version will be installed.

For better performance, we recommend installing the hood in ducted version (if possible).

Ducted version

(LED CANDLE W4, V240-220, 14E, mm37)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

5.4

fig.3

15d + 26 = 9a + 2b + 10

J 15 JdY1 1c d2y y

.

aIwG

aall 1go aaiy jao all

y

J 1

.

aaiiaai

y 8

1 4

J 1

A

puiu y. bai jbiy paan jalil

.

jglal 130 Caleo

y

.

.

jaiy

.

jai jui bia g i yu ci jiu p

jll 1

4.2

+

.

baa yaa jyaae

jgl jol 5.2

y1y

Jauu

y

jlln bblly

aiu

1.2

a 1

j14

Jaa Jaa Jaa Jaa Jaa Jaa Jaa

.

J 1jbi jai Jie lae

aaiia 1y, aXlll jie lai

aaiia aiee 1

bila 1

i 1

2.2

y
