Product type	Multifunctional blender (immersion blender, chopper bowl, whisk)
Brand	Panasonic
Model	MXS401
Power supply	230-240 V ~ 50 Hz
Power consumption (immersion blender/chopper bowl)	120-125 W
Power consumption (whisk)	40-45 W
Dimensions (motor unit + immersion blender)	6.5 × 7.4 × 42.3 cm
Dimensions (motor unit + chopper bowl)	13.9 × 13.9 × 41.9 cm
Dimensions (motor unit + whisk)	6.4 × 7.3 × 46.7 cm
Weight (motor unit + immersion blender)	0.84 kg
Weight (motor unit + chopper bowl)	0.80 kg
Weight (motor unit + whisk)	0.77 kg
Jug capacity	700 mL (max), 100 mL (min)
Maximum onion quantity (chopper bowl)	200 g
Number of speeds	3 (High, Low, Pulse)
Main functions	Blend, chop, whisk
Nominal duration (immersion blender/chopper bowl)	1 minute
Nominal duration (whisk)	2 minutes
Cable length	1.3 m
Safety	Overload and motor overheat protection, child lock
Care and cleaning	Blades not dishwasher safe; jug and bowl dishwasher safe; motor unit and adapter wipe clean
Spare parts	Jug (AMD02E142), chopper bowl (AMD00-142) available
General information	Household use only; do not immerse; do not blend hot ingredients (>60°C)

Frequently Asked Questions - MXS401 PANASONIC

How to use the immersion blender?

Attach the immersion blender to the motor unit (align the symbols, turn to lock). Fill the jug with cut ingredients, select High mode, unlock the child lock, then press the on/off switch while holding the unlock button. Submerge the blender in the ingredients and blend.

How to use the chopper bowl?

Insert the chopper blade into the fixing axis, place the ingredients (cut into 2-3 cm cubes), close the lid, attach the adapter, then the motor unit. Select High or Pulse mode according to desired texture. Do not use for more than one minute continuously.

How to use the whisk?

Attach the whisk to the motor unit via the adapter (align the symbols, turn). For cream, use cream with at least 30% fat content. Select Low mode at the beginning, then switch to High when the cream thickens. Do not whisk more than 4 eggs at a time.

Can I blend hot ingredients?

No, ingredients must not exceed 60°C. Pouring hot liquid may cause sudden steam ejection. Wait for food to cool before blending.

What to do if the appliance stops during use?

This may be due to overload or overheating. Release the switch, unplug, remove some ingredients or add water, then let rest for 30 minutes. If the mode indicators flash, the overheating protection is activated.

How to clean the blades?

Clean the blades with the provided spatula brush, without touching them with bare hands. For the immersion blender, pour water into the jug and run for 15 seconds. The chopper blades can be cleaned with a soft sponge, but do not soak them.

Can I put parts in the dishwasher?

The jug and chopper bowl (without the non-slip ring) are dishwasher safe. The motor unit, adapter, and blades must not be washed in the dishwasher. Wipe the motor unit with a damp cloth.

Which ingredients are prohibited in the chopper bowl?

Do not use very hard ingredients (coffee beans, ice cubes, dry bread), sticky (mashed potatoes, cream cheese) or fibrous (stringy meat). Frozen foods are also prohibited.

How to activate the child lock?

The child lock engages when the unlock button is not pressed. To unlock, press the unlock button (button 12). The lock prevents operating the on/off switch.

What is the warranty of the appliance?

The manual does not explicitly mention the warranty period. Contact your Panasonic dealer or after-sales service for more information. Keep the proof of purchase.

USER MANUAL MXS401 PANASONIC

Representative in EU:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Panasonic Taiwan Co., Ltd.

http://www.panasonic.com

© Panasonic Taiwan Co., Ltd. 2017

1

MZ50G142
MX0617E0

Printed in China

MX-S401 MX-S301

Panasonic

Operating Instructions

Bedienungsanleitung

Mode d'emploi

Gebruiksaanwijzng

Thank you for purchasing the Panasonic product.

• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" and "Important Information" (Page G3-BG6).
  This product is intended for household use only.
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, or in the event of failure to comply with these instructions.

Contents Page

Safety Precautions . GB3

Important Information. .GB6

Part Names and Instructions.. .GB7

Preparation. .GB10

Handling Precautions.. .GB11

Prohibited Ingredients & Conditions.. GB12

How to Use

• Blender attachment. GB13
  Chopper attachment. GB15
  Whisk attachment . GB17

Cleaning & Care. GB18

Troubleshooting .GB20

Replacement Parts. GB23

Specifications .GB23

This symbol on the product indicates "Make sure you read the Operating Instructions carefully before using".

Disposal of old equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Safety Precautions

Please make sure to follow these instructions.

To reduce the risk of personal injury, electric shock or fire, please observe the following:
The following signals indicate the degree of harm and damage when the product is misused.

WARNING:Indicates potential hazard that could result in serious injury or death.
CAUTION: Indicates potential hazard that could result in minor injury or property damage.

The symbols are classified and explained as follows.

This symbol indicates prohibition.
This symbol indicates requirement that must be followed.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

Do not allow infants and children to play with packaging. (It may cause suffocation.)
- Do not disassemble, repair or modify this appliance. Consult the place of purchase or Panasonic service centre.
- Do not damage the mains lead or mains plug. Following actions are strictly prohibited: Mains lead - Modifying, touching on or placing near heating elements or hot surfaces, Mains plug bending, twisting, pulling, pulled over sharp edges, putting heavy objects on top, bundling the mains lead or carrying the appliance by the mains lead.
- Do not use the appliance if the mains lead or mains plug is damaged or the mains plug is loosely connected to the household mains socket.
If the mains lead is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

Safety Precautions

Please make sure to follow these instructions.

WARNING WARNING

• Do not plug or unplug the mains plug with wet hands.
• Do not immerse the motor housing in water, or splash it with water and/or any liquid.
• Do not put your face close to the chopper bowl or beaker during use.

• This appliance shall not be used by children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its mains lead out of reach of children.

• Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same household mains socket to prevent electrical overheating. However, if you are connecting a number of mains plugs, make sure the total wattage does not exceed the rated wattage of the household mains socket.

• Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down
The mains plug and the mains lead become abnormally hot.
The mains lead is damaged or the appliance power fails.
The motor housing is deformed, has visible damage or is abnormally hot.
- There is crack on the beaker, chopper bowl or other parts.
There is an unpleasant smell.
The blade units get stuck.
There is abnormal turning noise while in use.
There is another abnormality or failure.
Contact Panasonic service centre for inspection or repair.

GB4 GB5

• Insert the mains plug firmly.
  Dust off the mains plug regularly.
  Unplug the mains plug, and wipe with a dry cloth.
• Be careful if hot liquid is poured into the beaker or chopper bowl as it can be ejected out of the appliance due to a sudden steaming.

CAUTION

To avoid risk of electric leakage, electric shock, fire due to short circuit, burn, injury or property damage.

• Do not use the appliance on the following places.

• On uneven surfaces, on carpets or tablecloths etc.

• Place where it may be splashed with water or near a heat source.
• Near any open water such as bathtubs, sinks, or other containers.

• Near a wall or furniture.
  Place the appliance on a firm, dry, clean flat worktop.

• Do not insert any object in the gaps.

• Do not replace any parts of the appliance with the spare parts other than this appliance genuine parts.

• Do not open the chopper lid while in use.
• Never use the chopper blade without setting it on appliance correctly.
• Do not put your fingers, spoon or fork close to the blade while the appliance is operating.
• Do not blend or place over 60^ C ingredients into the beaker and chopper bowl.
• Do not put your hand in the chopper bowl when taking mixture out before removing the chopper blade.
• Do not use the blender when the saucepan is on the heat source. Hot liquid may spurt out and touch on your hand.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

• Make sure to hold the mains plug when unplugging it. Never pull on the mains lead.
• Beware not to be tripped over or get caught in the mains lead while in use.
• Care shall be taken when handling the blender blade, chopper blade, emptying beaker, chopper bowl and during cleaning. Do not clean the blades by bare hand. Use the spatula brush provided.
  Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning.
• Switch off the appliance and disconnect from supply before changing attachments or approaching parts that move in use.

Important Information

• Do not use the appliance outdoors.
• Do not use the appliance for commercial purpose.
• Do not place the beaker and chopper bowl on any heat sources or in a microwave.
• Do not drop the appliance to avoid damaging it.
• Do not wrap the mains lead around the motor housing.
  Make sure the attachments are set firmly.
• Do not use the appliance beyond the rated time.
• Do not move the chopper bowl by holding the chopper lid or motor housing.
• Do not operate the appliance without ingredients.

GB6 GB7

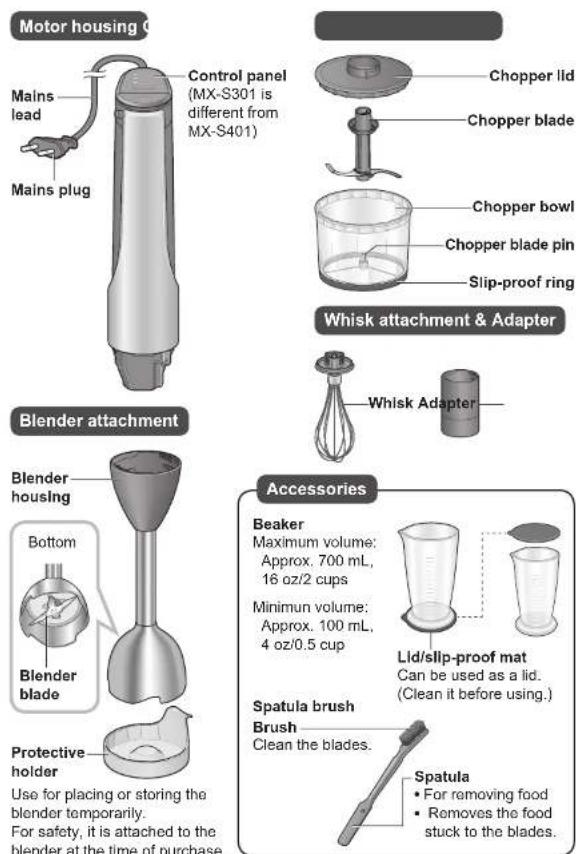

Part Names and Instructions

• Illustration color of product in this instructions are exemplified by MX-S401.

English

Part Names and Instructions (continue)

Control panel

(MX-S401)

Mode indicator

Lights up to indicate the mode chosen with the made selector

Mode selector

Choose rotation speed [High/Pulse/ Low (soft start)P.G89]

• Initial settings: standby mode (All mode indicators are flashing.) The machine will return to standby mode in following instances;
  insert mains plug. not in use for more than 30 seconds.
  motoroverloading/overhealing protection is activated.

Unlock button ( section)

Press the section.
Lock is released while the button is pressed. (When the trigger switch is pressed and rotation begins, the lock will not engage even if your finger is removed.)
Cannot be pressed when child lock is locked.

Mode

High

Continuous operation with high speed rotation. (Use for making juice, smoothie by blender blade, m meat by chopper blade, etc.)

Pulse (for MX-S401 only)

Repeated operation between medium speed and stop. Uses the chopper blade and alternates between medium speed and stop for a gritter texture. (Use for chopping onion, fish, squid, prawn, etc.)

Low (soft start) (for MX-S401 only)

Starts slowly and then continues at low speed.
Starts slowly and then continues at low speed while whipping with the whisk attachment to prevent ingredients from flying out. (Use for whipping cream, making sauces, etc.)

Low (for MX-S301 only)

Continuous operation with low speed rotation. (Use for chopping onion, fish by using chopper blade, etc.)

Rotation Speed (sketch map)

Time

(MX-S301)

Mode switch

Choose rotation speed [Low/High]

Unlock button (section)

• Press the 'f' section.
• Lock is released while the button is pressed. (When the trigger switch is pressed and rotation begins, the lock will not engage even if your finger is removed.)
  Cannot be pressed when child lock is locked.

Motor housing back

Trigger switch

Press the trigger switch while holding down the unlock button to start the machine. (P, GB14)
The power will be "On" only while holding this switch.

Lock Unlock

Preparation

Before using, wash parts except the motor housing and adapter. (P.GB19)
- Make sure to handle according to the following instructions. (Cleaning & Care see P. GB18-20)

Assembly and disassembly of attachments

Assembly of blender attachment

Assembly of whisk attachment

①Align the on the motor housing with the on the blender housing.

①Align the adapter and whisk attachment (below 3 ○) and Insert until a "click" sound is heard.

Twist the motor housing clockwise to align and to lock until it cannot be rotated.

Reverse the steps to disassemble blender attachment.

③Twist the motor housing clockwise to align and to lock until it cannot be rotated.

Reverse the steps to disassemble whisk attachment.

Assembly of chopper attachment

①Insert the chopper blade into the chopper blade pin.
Close the chopper lid and face the on the lid to the front.
Align the on the adapter with the on the chopper lid.
Twist the adapter clockwise to align and to lock until it cannot be rotated.

The chopper blade is set with the chopper bowl at the time of purchase.

Align the on the motor housing with the on the adapter.

Twist the motor housing clockwise to align and to lock until it cannot be rotated.

Reverse the steps to disassemble chopper attachment.

Handling Precautions

• Be sure to follow the rated time of each attachment. (P. GB23)

For continued use, unplug and rest machine for at least 10 minutes until motor housing returns to a normal temperature. (Cause of smoke, odour or malfunction due to motor overheating.) If the motor becomes hot from high load, repeated long use, insufficient rest time, or other factors, even if it is used within the rated time, the motor overheating protection function may be activated and the motor stops. (P.GB20-21)

Prohibited Ingredients & Conditions

Blending prohibited ingredients can cause damage to each attachment, beaker, chopper bowl and motor housing malfunction.

Blender attachment

Strong sticky ingredients (Cause of malfunction)

• Bolled tubers*
  (Potatoes, pumpkins, etc.)
• Okra
  Chilled cream cheese*2
• Dough (bread, pasta, et

Hard ingredients

(Cause of blade damages)
- Coffee beans - Ice cubes
Dry bread Dried soybeans
Frozen food Turmeric

Ingredients with rich fibers or muscles (Cause of malfunction by trapping fibers or muscles around the blender blade.)

Meats (includes chopped meal)
Fishes

Low moisture content ingredients (Cause of malfunction)

• Boiled tubers*
  Boiled beans* (Kidney beans, butter beans, etc.)

Chopper attachment

Strong sticky ingredients (Cause of malfunction)

Boiled tubers
(Potatoes, pumpkins, etc.)
Chilled cream cheese
- Dough (bread, pasta, etc.)

Ingredients with rich fibers or muscles (Cause of malfunction by trapping fibers or muscles around the chopper blade.)

Fibrous meals

Hard ingredients

(Cause of blade damages)
- Coffee beans - Ice cubes
Dry bread Dried soybeans
- Frozen food - Turmeric

Whisk attachment

Whipping whole eggs or low fat cream (less than 30% milk fat) takes 2 minutes or longer. (Whole eggs cannot be whipped)

Preparations for other than whipping cream, egg whites, or making sauces.
(Cannot be used for mixing chilled butter or cream cheese, or kneading dough.)

1 Can be used by adding the same amount of water as ingredients.
2 Can be used when the ingredients are in room temperature (approx. 25°C).

How to Use -Blender attachment

Preparations

Cut soft ingredients into 2-3 cm cubes.

Citrus

(Peel and)
separate.

Remove core and peel skin if desired.

• Remove pit from peaches, plums and other stone fruits.

Cut hard

Ingredients into
1 cm cubes.

Carrots, etc.
(Pool)

If pieces are too big, they cannot be mixed well.

Wash leafy veg

etables well and
cut into 2-3 d
width pieces

Remove the stem
end/root, then wash
well before use
(Spinach, etc.)
Remove large
stems from kale.

Notes

• Use a container or a pan that can be used with the blender. Hold the container firmly while in use.

Can use	Cannot use
• Beaker • Metal or plastic containers or pan. Do not make contact with the rim or the bottom of container to avoid damaging it.	• Glass containers (Including heat resistant and strengthened glass.) • Ceramic and earthenware containers and pots that are easy to break. • Chopper bowl

• Do not use continuously for longer than 1 minute. (Cause of malfunction: P. GB11)
• Follow the quantities that can be made in 1 batch.
  Do not add ingredients that exceed the height.
  of the blender shaft.
• When adding liquid, follow the chart to
  the right.
  Depending on the type and quantity of
  ingredient, mixture may spill from the beaker or container. In such cases, reduce the quantity.
• Do not insert or remove the blender from the beaker, etc. while trigger switch is pressed. (It may cause injury and/or burn.)
• Attach blender attachments firmly. (P. GB10)

How to Use -Blender attachment- (continue)

Preparation:

① Attach blender attachments to motor housing. (P. GB10)
② Insert mains plug into mains socket.
Choose "High" mode. (P. GB8-9)
④ Unlock child lock.

Insert blender into container.

Press trigger switch while holding down unlock button to start.

Mix while pushing blender blade into the ingredients. (Do not push hard.)
Hold beaker firmly so it does not lift up.
Insert blender directly downwards when using beaker.
When ingredients stick to the container and is difficult to move, release trigger switch and reapply to ingredients. Then, restart again.
Do not lift blender blade above the surface of liquid ingredients while in use. (Risk of splattering.)
- When handling in a pot or bowl, swirl the liquid at a slanted 5 - 10mm without removing blender blade from the liquid. This will mix ingredients more smoothly.
If device stops during use, see P. GB21.

When finished, release trigger switch and lock child lock. Confirm that rotation has stopped, then remove blender from container.

The blender can be placed on the protective holder temporarily.

After Use

Unplug the mains plug.
- Remove blender attachments and clean them. (P. GB18-20)

GB14 GB15

How to Use -Chopper attachment

Preparations

Cut into approx. 2-3 cm cubes.

• Remove peels, stems, seeds, and cores from ingredients.
  Cut hard ingredients (carrots, etc.) into approx. 1-2 cm cubes.
  Cut hard cheese such as parmesan, etc into 1 cm cubes. (Remove hard outer rind.)

Remove parsley stalks.
Wipe away excess water.

Peel, delvein, and remove legs on squid and prawn.
Remove bones, gristle and tendons from meat. Debone fish.

• Thinly slice pork belly and cut into 2-3 cm length.

Remove crust from bread.
Tear 6-8 slices.
Remove nuts from shell.

Notes

Do not use continuously for more than 1 minute. (Cause of malfunction: P.GB11)
- Scrape down ingredients that stick to the bowl during operation.

Correct

Make sure that the chopper lid is not floating. (Cause of malfunction)
- Rotate lid and close again if it is not closed well.
- Be sure to attach slip-proof rings while in use.

The quantity and points of ingredient that can be used at a time.

• Choose appropriate mode according to the ingredients and finished condition.
• Be sure to follow the quantity that can be used at a time. (If quantity is too large, separate into batches.)

Ingredient	Min. - Max.(1 time)	Mode	Approximate time forhandling	Main pointsof usage
Onion 40-200 g		Pulse	12-18 sec (MX-S401)	Cut to preferred size.
		Low	Power "On" and "Off"repeatedly (MX-S301)
Carrot 40-200 gHigh	10-18 sec
Parsley 5-30 gHigh	10-30 sec
Garlic 10-200 gHigh	5-13 sec
Nuts (walnut, etc.)	10-200 gHigh	8-30 sec
Slice of bread	10-80 g	High	15-30 sec
Parmesan cheese	40-200 gHigh	15-50 sec
Meat (beef, pork,chicken, etc.)	80-200 gHigh	5-20 sec		For rough finishedcondition, use "Pulse"mode for MX-S401,power "On" and"Off" repeatedly forMX-S301.
Fish	80-200 g	Low	5 sec-1 min
Squid, prawn	80-200 g	Low	10 sec-1 min

• When using only liquids, it should not exceed 50~mL .

How to Use -Chopper attachment- (continue)

Preparation:

① Attach chopper blade, place ingredients, and then close chopper lid. (P. GB11)
② Insert mains plug into mains socket.
Choose appropriate mode. (P.GB8-9)
④ Unlock child lock.

1

Press trigger switch while holding down the unlock button to start.

Hold the chopper bowl firmly.
Do not open the chopper lid while in use.

While holding down the unlock button,

2

When finished, release trigger switch and lock child lock. Confirm that rotation has stopped, then remove blender from adapter.

Unplug the mains plug.

3

Remove the adapter and chopper lid. After removed chopper blade, using a rubber spatula to take out the finished food.

After Use

• Remove all parts and clean them. (P. GB18-20)

How to Use -Whisk attachment

eennnnnne

Preparations

Keep cream and egg white in the refrigerator.

Notes

Do not use continuously for longer than 2 minutes. (Cause of malfunction: P, GB11)
- Use a large, deep bowl to minimize any splatter.
- Do not use more than 4 eggs when whipping egg whites.
- Attach whisk attachment firmly. (P. GB10)
Before using, wipe moisture from bowl and whisk.

(Water residue prevents proper whipping.)

The quantity and points of ingredient that can be used at a time.

• Choose appropriate mode according to the ingredients and finished condition

Ingredient	Max. (1 time) Mode		Approximate time for handling	Main points of usage
Cream	Up to 200 mL (30% or more milk fat)	Low → High	Within 2 minutes	Cool bottom of bowl with iced water. Start "Low" mode and switch to "High" mode when it starts to thicken.
Egg whites	Up to 4 eggs High Within 2 minutes			-

• Cannot be used for mixing chilled butter or cream cheese, or kneading dough.

Preparation:

① Attach whisk attachment to motor housing. (P. GB10)
② Insert mains plug into mains socket.
Choose appropriate mode. (P. GB8-9)
④ Unlock child lock.

1

Place the whisk in a large and deep bowl.

Press trigger switch while holding down unlock button.

• When whisking, hold the motor housing perpendicular to the liquid surface and mix around the periphery of the bowl.
  Slightly tilt the bowl when using minimal ingredients.

While holding down the unlock button.

How to Use -Whisk attachment- (continue)

When finished, release trigger switch and lock child lock. Confirm that rotation has stopped, and then remove whisk from bowl.

After Use

• Unplug the mains plug.
• Remove whisk attachment and clean it. (P. GB18-20)

Cleaning & Care

Unplug before cleaning.
Clean the machine after every use.

Notes for Cleaning

• Be careful not to directly touch blades with your hands.
• Do not use benzine thinner, bleach, nylon face of sponge, metal brush,
  polishing powder, etc. (Otherwise, the parts surface will be damaged.)
• Do not use chlorine type detergents. (Cause of rust and breakdown.)
• Be sure to dry well after washing. (Risk of rust)
  Dry blender blades with blades pointing downwards.
• Do not clean the machine and attachments with a metal pointed object.

Notes for Storage

• Keep the machine out of reach of children.
  (Avoid personal injury.) Attach protective holder to the blender.

About Resin Parts Discolouration

Resin parts' may become discoloured through contact by the staining compounds in carrots and other vegetables. This discolouration cannot be fully removed with a sponge, but it poses no problem to use. Early cleaning after use can reduce discolouration.
* Blender housing, beaker, chopper bowl, chopper blade, protective holder.

Blender attachment

Pour approx. 200 - 300~mL of water into the beaker.
Choose "High" mode.
③ Run the blender for approx.
15 seconds. (P. GB14)
Do not move up and down
otherwise, water may spill. Replace water and repeat several times.
⑤ After removing leavings, wash with the spatula brush.

Motor housing & Adapter

Wipe with a well-wrung cloth.

Water entering the inside of the machine can cause malfunction.

Blender housing

Adapter
Motor housing

Other Parts

Wash with diluted dish detergent (neutral).
*Use a brush to clean chopper blade and chopper blade pin.

• Do not soak chopper blade in water or hot water. (Water entering the inside of the machine can cause malfunction.)

Chopper blade
Chopper blade pin

• Use a soft sponge to clean lid/slip-proof mat and slip-proof ring.

Lid/slip-proof mat
Wash it after removing from beaker.

Slip-proof ring
Wash it after removing from chopper bowl.

Cleaning & Care (continue)

Use of Dishwasher and Dish Dryer

Motor housing	Blender attachment				AdapterB	Settler attachment		Whisk attachment
X	√	√	√	X	X	√	X	√

• Use a detergent intended for use with a dishwasher machine. (Use after thoroughly referring to the user manual accompanying your dishwasher.)
• The beaker and chopper bowl may become fragile. Distance these items from the heating element, and set temperature to low if using a model with heat control.

Troubleshooting

Please check following points before calling or arranging for repair.

Problem Ca

Button cannot be pressed.

and Action

• Child lock does not unlock. (P.GB8)
• Did not hold down the unlock button beforehand. (P.GB8)

Does not operate even when button is pressed.

Large vibrations

The blade gets stuck.

The mode is not chosen. (Only apply for MX-\$401) Choose a kind of speed mode.
The mains plug is disconnected with the socket. Securely insert it.
- Motor overheats, activating the motor overheating protection function. (All mode indicators of MX-S401 are flashing.)
Unplug and rest the machine for approx. 30 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again. If the machine still does not operate, consult the store of purchase or Panasonic service centre.
Did not follow the indicated ingredient portion for 1 batch. (P, CB13, P, CB15, P, CB17)
Did not prepare the ingredients to the indicated sizes. (P.CB13,P.CB15)
Ingredients are hard. Remove the hard ingredients.

• Unplug and remove ingredients trapped between metal parts with the spatula brush. If cannot clearly clean, try to use a non-metallic pointed object (made of wood is recommended). (Do not touch rubber portion.)

Problem Ca

Motor housing becomes hot.

There is abnormal noise

Operation stops abruptly.

Starting and stopping alternately.

and Action

Use beyond rated time.

Use within rated time (P. GB23). For continued use, unplig and rest machine for at least 10 minutes until motor housing returns to a normal temperature. (Motor overheating causes malfunction.)

Ingredients are hard.
Remove the hard ingredients.
Chopper lid is not set properly
Reset the chopper lid properly. (P. GB15)

• Motor overloading protection is activated due to overload. (The mode indicator of MX-S401 goes off.)

If blender is pressed strongly against ingredients, release trigger switch and unlock button, unplug the machine, then reinsert to operate again. (P.CB14)
- Do not press blender forcefully into ingredients.

For circumstances other than the above, perform the following steps while the blender is stopped. Release

(1) Release trigger switch and unlock
button then remove motork
button, then remove model 1 from the container.
② Unplug the mains plug.
③ Remove half of the ingredients or add water.
If prohibited ingredients were
added,remove them
④Borreliaeation
(RGR14RGR16RGR1718)
Do not cross biander forsefully into
一

If machine still does not operate after performing the above, motor overheating protection has been activated. See below.
Motor overheating protection function activated from motor overheating during or after use. (All mode indicators of MX-S401 are flashing.)
Unplug and rest the machine for approx. 30 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again. (If machine still does not operate, consult the store of purchases Panasonic service centre.)

• Chosen "Pulse" mode. {Only apply for MX-S401}

"Pulse" mode alternates between medium speed and stop. (P, GB9)

Troubleshooting (continue)

Please check following points before calling or arranging for repair.

Problem Ca

Ingredients do not mix well.

Poor finished product.

and Action

Did not follow the indicated ingredient portion for 1 batch. (P.GB13, P.GB15, P.GB17)
Did not prepare the ingredients to the indicated sizes. (P.CB13,P.CB15)
Ingredients are hard.
Remove the hard ingredients.
Operating time is short
Lengthen operating time, but not exceed the rated time of continuous operation.
The chosen speed mode is not appropriate.
Choose appropriate speed mode.

The blade is damaged.
Stop using and contact the store of purchase or Panasonic service centre.

Replacement Parts

Replacement parts are available at your dealer or Panasonic service centre.

Part Name Part Number
Beaker (exclude lid/slip-proof mat) AMD02E142
Chopper bowl (exclude slip-proof ring) AMD00-142

Specifications

Using blender attachment

Using chopper attachment

Using whisker attachment

Power Supply 230 - 240 V ~50 Hz
Power Consumption 120 - 125 W 40 - 45 W
Rated Time(continuous operation)	1 minute			2 minutes
Speed Control	Changeable type
Safety Device	Motor overloading protectionMotor overheating protection
Length of Mains Lead(approx.)	1.3 m
Dimensions (approx.)Motor housing + Attachments(W × D × H)	6.5 × 7.4 ×42.3 cm	13.9 × 13.9 ×41.9 cm		6.4 × 7.3 ×46.7 cm
Mass.(approx.)Motor housing + Attachments	0.84 kg	0.80 kg	1.04 kg(Attach withchopper blade)	0.77 kg	0.76 kg
Airborne Acoustical Noise[dB(A) ref 1 pW]	58.8 dB(A)	58.3 dB(A)	56.5 dB(A)	55.9 dB(A)	54.2 dB(A)

WAARSCHUWING WAARSCHUWING

m = 311

Odemykaci tlacitko (cst:

Siskneta cask
- Stiskutmi taciška se uvolni pojstka. (Kozy je stiskutny spoša spoušiće a spožćbi se rožtiči, pojstka nezapadne, i kdyz uvolni pej.)
- Nelze stisknout, kdy je zajistén dolsky zamek.

Rezim

High (Vysoké)

Deli provoz pI yvsokych otackach.
(Pouzivefte pîy vérobe dûsùm. Smoothie potomoi nozi é mixéru.
pî mêti lamas sekacirno Šaún.)

Pulse (Pulzni) (pouze model MX-S401)

Opokanve pferuosoane stfdn otacky. Pouziva sekaci nuz a opokanve pferusjne stfdn otacky pro dosazeni hrubsi textury. (Slouzi k sekani cibule, ryo, krvet ald.)

Low (Nizke) (méký start) (pouze model MX-S401)

Zaçne pomalu a potomPokruçëpi nizkëch otakchak. Zaçne pomalu a potomPokruçëpi nizkëch otakchak. Slahe naśvostec mšlehac taki, ayé se zabránlo yletováni pīsad. (Služć i stehlān smelny, k vyrobe omečak ed.)

Low (Nizké) (pouze model MX-S301)

Delis provo pili nizkoe otackech. (Slouzi k sekari cibule, ryno pomoch sekanho noze akt.)

Rychost olaceni (schematicky diagram)
→C8s

A

(MX-S301)

Prepinae rezimu

Odemykaci tlaichko (cst J)

Stisknete cast
- Stiskrunn tlačka se uvojljesta, (Kótyz je stiskrunny spinač spošiláce a spošebeč se rožálć, pojskja pamagracje, (Kótyu vlovićne pigt.)
- Noto zisstkoul, kdy2 je zuajion dalsky zamek.

Zadni cast skrnn motoru

Spinaç spoustéce

Sputite spotiflebi stekulini spince spouilieze a zirovien pfidzovnaniem odemyakacho tafitka. (S.CZ14)
Napajeni se zapre pouze stiskrutim loholo spinae.

Zamknuto Odemknuto

Prijprava

Pfed zulitom omlye castei, vylma skhne motoru aadapteru. (S.CZ19) Pfl manipulaci dorzutne nadeudljić polkyn. (Cistelnj undr2ba viz S.CZ

(Kidney-beans, butter-beans osv.)

Piskeris-tilbehør

• Tag stikket ud for renngning.
  Sarg for at rengore apparentet after hcvr brug.

Fejlfinding (fortsat)

Kontroller falgende punkter, inden du ringer aller arrangerer for reparation.

Problem Ar

Pulse (Puls) (endast for MX-S401 only)

Low (Lag) (mjukstart) (endast for MX-S401 only)

Low (Lag) (endast for MX-S301 only)

Kontinuierlg drift mad lag rotakshastighet. (Anvand for att hacka jok, fisk mad rotakknipen etc.)

Rotationshestighet (skiss over)

Tid

Motorhus tillbaka

Frigoringsknapp

ast medan du haller
- Tryck på frörigsnökneren medan du häller nere uplåssnökneren for all slarla maskinen. (S, SE14)
Strommenkommenattara‘P8'endastmedunhalle nere den har knappen.

Barnlas

Lock/halksaker matta
