Product type	Ceiling-mount loudspeaker
Brand	Bose
Model	DesignMax DM6C
Dimensions (grille)	Diameter 356 mm (14.00 in)
Dimensions (housing)	Diameter 288 mm (11.34 in), depth 223 mm (8.78 in)
Cutout opening	292 mm (11.5 in)
Maximum ceiling thickness	57 mm (2.25 in)
Net weight (speaker with grille)	6.50 kg (14.3 lb)
Net weight (reinforcement plate)	0.82 kg (1.8 lb)
Input voltage	70 V / 100 V
Impedance	8 Ω, 100 W
Power (70 V)	2.5 / 5 / 10 / 20 / 40 / 80 W
Power (100 V)	5 / 10 / 20 / 40 / 80 W
Recommended cable size	18 AWG (0.8 mm²) to 14 AWG (2.1 mm²)
Use	Indoor only
Cleaning	Dry cloth only
Safety attachment	Single-use safety cord included
Warranty	Limited warranty (see PRO.BOSE.COM)
Compliance standards	ANSI/UL 1480A, UL-2043, NFPA 70, NFPA 90-A, IEC 60268-5

Frequently Asked Questions - DesignMax DM6C BOSE

What is the input voltage and how to adjust the power?

The speaker operates at 70 V or 100 V. Power is adjusted via a rotary switch on the transformer using a flathead screwdriver. Available values are 2.5/5/10/20/40/80 W at 70 V and 5/10/20/40/80 W at 100 V.

What type of cable should be used for connection?

Use a cable with a cross-section of 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²). Strip 6 mm (¼ in) of wire for the connector.

How to install the speaker in a drop ceiling?

Cut a 292 mm diameter opening in the tile. Place the reinforcement plate on the grid, put the tile back, then assemble the plate by inserting the arms and ring. Pass the cable, insert the speaker, and tighten the mounting screws.

Is it mandatory to use a safety cable?

Some building codes require it. Bose recommends a safety cable or wire as secondary attachment. The grille is equipped with a single-use safety cord to be inserted into the provided hole.

Can I install the speaker in a professional kitchen?

The speaker is not designed for direct exposure to cooking oils. Such installation can reduce performance and compromise operation. For kitchens, avoid placing the speaker directly near cooking surfaces.

How to clean the DesignMax DM6C speaker?

Clean only with a dry cloth. Do not use soap, detergent, mineral oil, alcohol, or other chemical agents. Do not expose the speaker to chemicals not specified by Bose.

Is the speaker suitable for humid environments (pool, sauna)?

No, this product is intended for dry indoor use only. Do not install it in areas exposed to water or condensation (indoor pool, water park, sauna, steam room, etc.).

What are the exact dimensions of the speaker?

Grille diameter: 356 mm (14 in), housing diameter: 288 mm (11.34 in), housing depth: 223 mm (8.78 in). Cutout opening: 292 mm (11.5 in). Maximum ceiling thickness: 57 mm (2.25 in).

What to do in case of failure or need for repair?

Do not attempt to repair yourself. Entrust maintenance to an authorized service center or professional installer. Contact Bose Professional via PRO.BOSE.COM to find an authorized dealer or distributor.

What are the safety standards and certifications of the speaker?

The speaker complies with ANSI/UL 1480A-2016, UL-2043 (suitable for plenums), NFPA 70 (National Electrical Code), NFPA 90-A, and IEC 60268-5. It also complies with European directives (declaration at www.Bose.com/compliance).

USER MANUAL DesignMax DM6C BOSE

Two black plastic enclosures: one with a mesh cover on top, the other with a grid-patterned cover on the side (no text or symbols visible)

DesignMax DM6C

In-ceiling Loudspeaker

Installation Guide....2

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

WARNINGS/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do not mount the product in locations where it may be exposed to water or condensation.
• This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.
• Use only the hardware and accessories included or specified by Bose for use with DesignMax DM6C loudspeakers. For information on compatible accessories, see the product's technical data sheet at PRO.BOSE.COM.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or other hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.
  • The grille is equipped with a safety lanyard pin designed for a single use.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 100 W

Current or Power: (70V): 2.5W, 5W, 10W, 20W, 40W, 80W; (100V): 5W, 10W, 20W, 40W, 80W

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O O O	0
Metal Parts X O O O O O	0
Plastic Parts O O O O O	0
Speakers X O O O O O	0
Cables X O O O O O	0
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM6C, Type designation: 829679
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+b)	Polybrominated biphenyls (PSB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose and DesignMax are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2019 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit PRO.BOSE.COM.

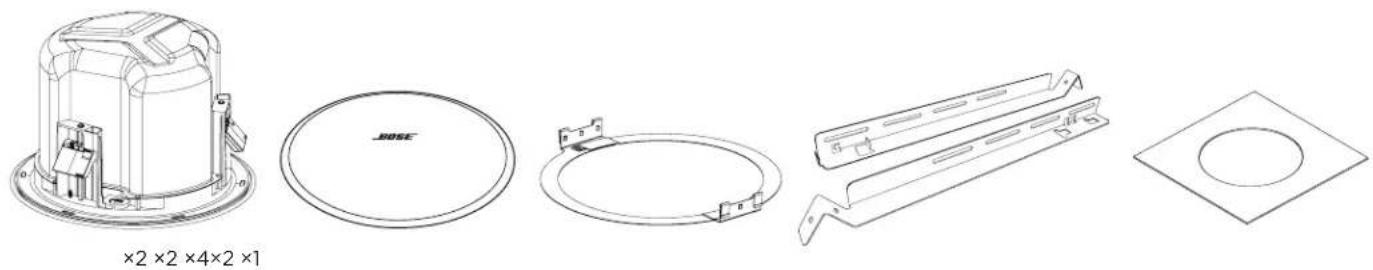

Package Contents

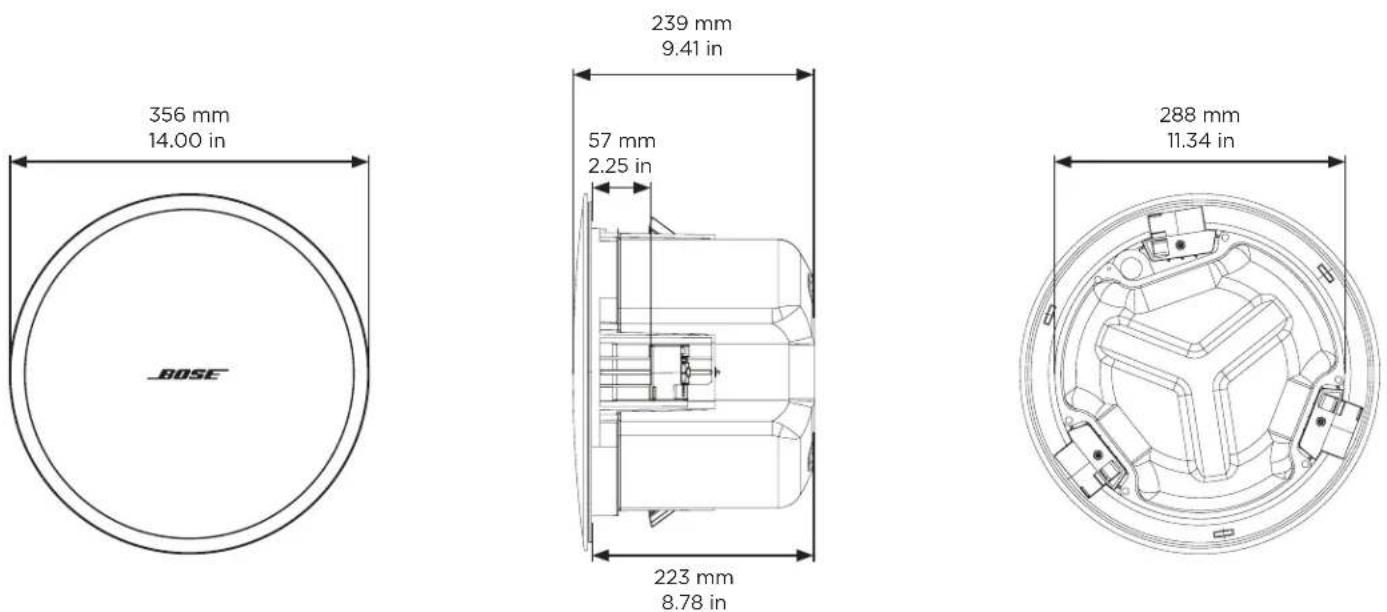

Product Dimensions

Technical Specifications

For additional specifications, see the DesignMax DM6C technical data sheet at PRO.BOSE.COM.

Physical
Product Dimensions Grille diameter: 356 mm(14.00 in)
	Enclosure diameter: 288 mm(11.34 in)
	Backcan depth: 223 mm(8.78 in)
Hole cutout 292 mm (11.5 in)
Maximum Ceiling Thickness 57 mm (2.25 in)
Net Weight, Loudspeaker with grille (single)	6.50 kg (14.3 lb)
Net Weight, Tile Bridge (single)	0.82 kg (1.8 lb)
Shipping Weight (pair)	17.74 kg (39.1 lb)

Important Installation Information

This product is intended for indoor use only.

It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.

It is the responsibility of the installer to ensure the safety of the loudspeaker installation. Failure to properly install the loudspeaker could result in damage, injury, or death.

Do not mount the product in locations where it may be exposed to water or condensation.

This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks). Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat. Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.

Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or other hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

Installation Options

Installation Options and Accessories

① Adjustable Tile Bridge (included)
② Rough-in Pan (optional)

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with holes (no text or symbols)

Conduit Fitting

If using a flexible metal conduit, use with a 38 -inch conduit fitting or a 38 -inch dual (duplex) connector.

Note: Conduit fittings are not provided.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

^3/8 -inch single in ^3/8 -inch duplex in/loop

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM6C loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

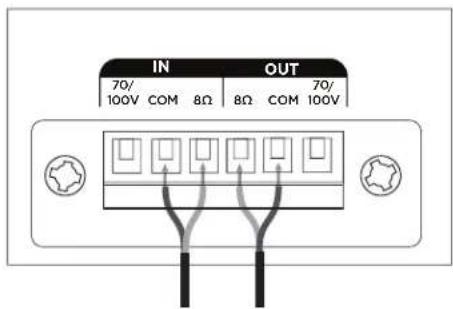

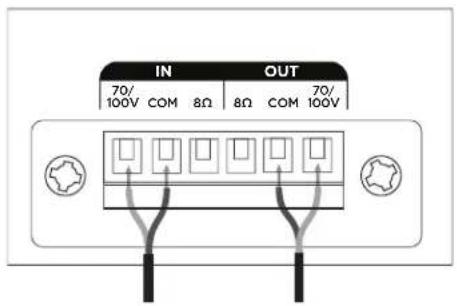

Connection Diagrams

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

70V/100V

8Ω

Loudspeaker Settings

70V
2.5W	5W	10W	20W	40W	80W*
5W	10W	20W	40W	80W	NC**
100V

** NC: No Connection (do not use)* Factory default

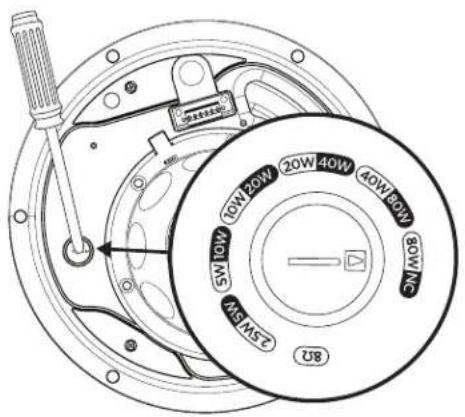

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose recommends using (1) a safety wire or (2) a safety cable as a secondary securing mechanism. See the diagrams below for safety attachment points.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

Preparing Acoustic Ceiling Tile

Cutting the Ceiling Tile

1. Remove the tile and use the template to trace a loudspeaker hole onto the tile. To center the template on the tile, draw an X by connecting the corners diagonally and center the template using the crossing point.

2. Cut a hole into the tile.

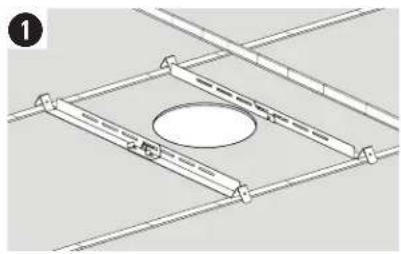

Installing the Tile Bridge

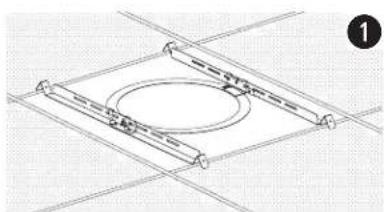

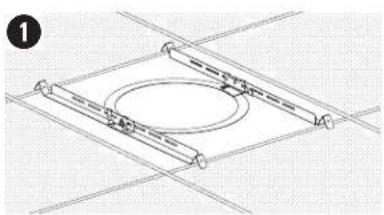

1. Place the assembled tile bridge across the ceiling grid. If necessary, adjust the tile bridge so the rails rest on the ceiling grid.

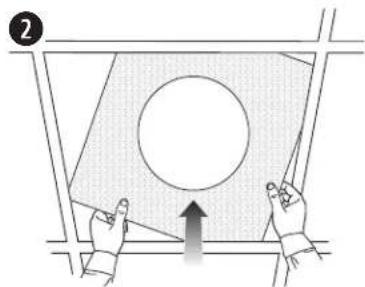

2. Replace the tile in the ceiling.

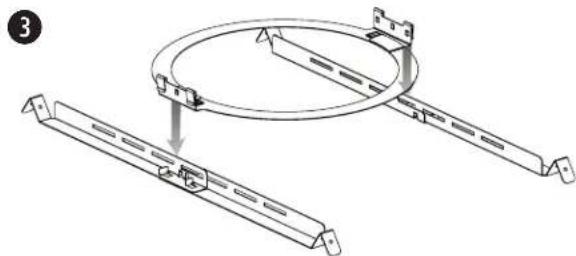

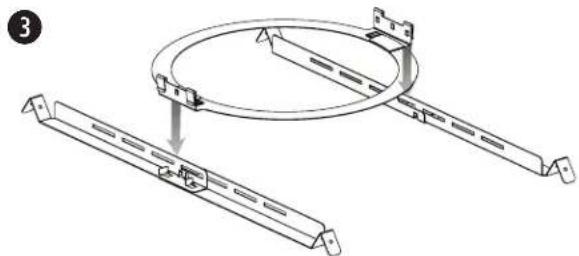

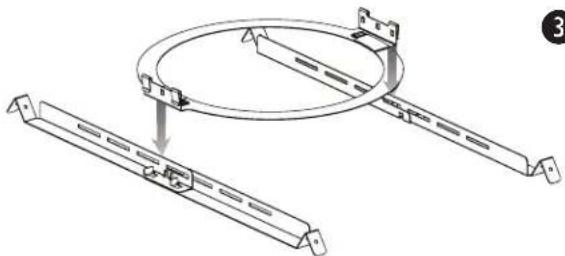

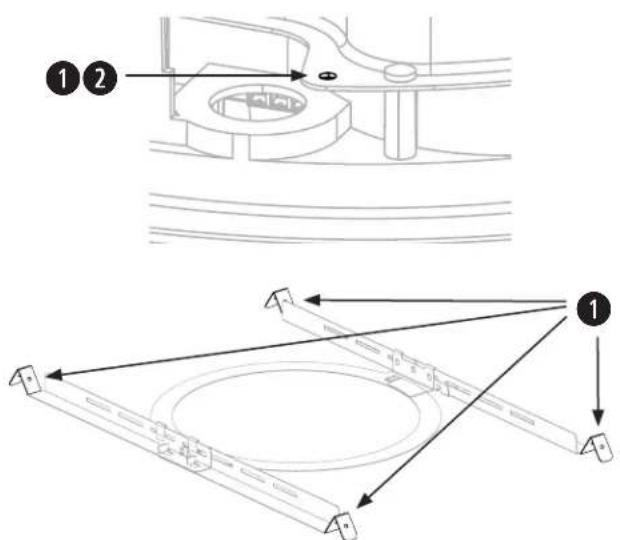

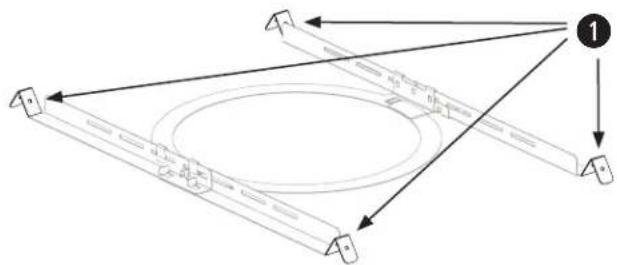

Assembling the Tile Bridge

Note: If you are installing in a hard ceiling, assemble the tile bridge after inserting the rails and ring through the hole cutout (see page 6).

1. Align the rails and insert the tabs into the slots.
2. Pull the rails outward to secure them together.

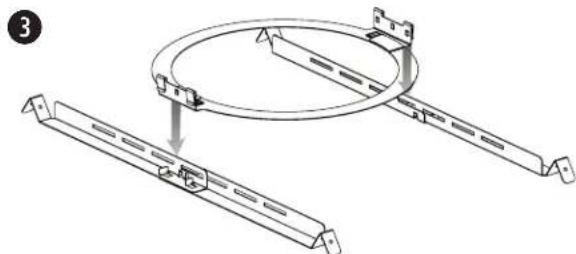

3. Align the rails parallel to each other and press the tile bridge ring down to secure the ring to the rails.

Diagram of a car's side profile showing lane markings and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, such as in commercial cooking environments, may decrease the performance or functionality of the loudspeaker.

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a tool above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with a circular center and flanged ends (no text or symbols)

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

Preparing Hard Ceiling (Existing Construction)

Cutting the Ceiling

1. Use the template to trace a hole onto the ceiling.
2. Cut a hole into the ceiling.

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a pointer above a blank oval, with no text or symbols present.

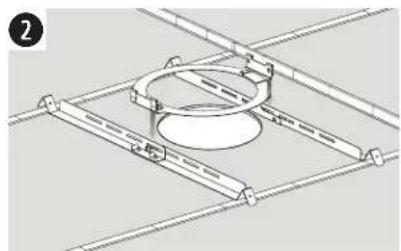

Installing the Tile Bridge

1. Insert the tile bridge rails and ring through the hole and place the rails parallel to each other across the ceiling grid or ceiling furring.

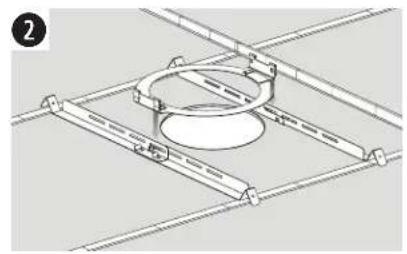

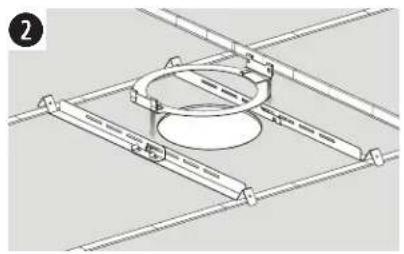

2. Assemble the tile bridge.

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a circular component mounted on a grid frame (no text or symbols)

Mounting the Loudspeaker

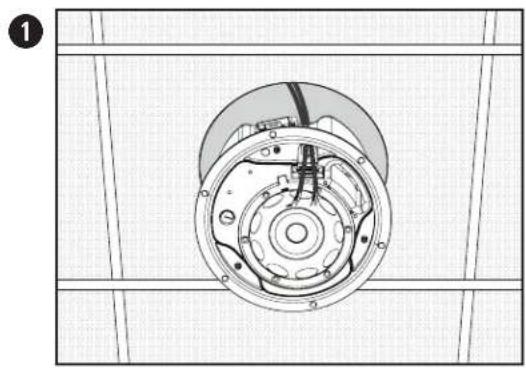

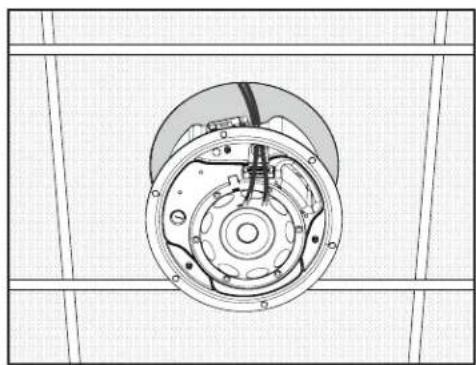

1. Pass the audio wire through the wire opening.

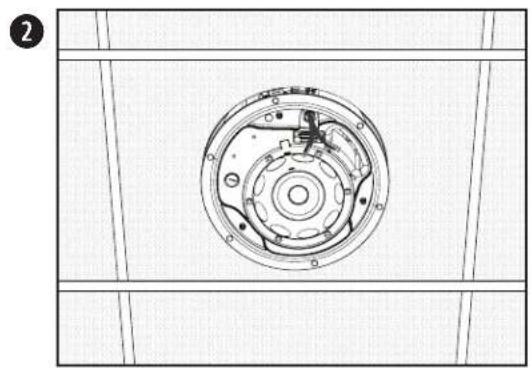

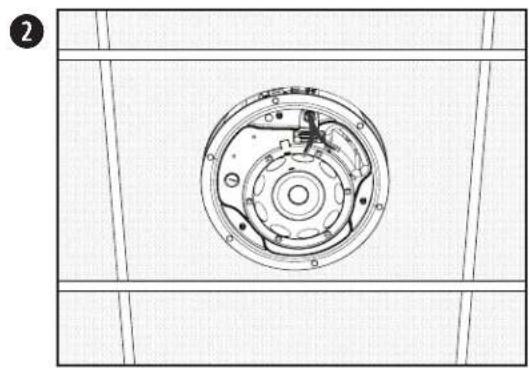

2. Insert the loudspeaker through the hole and into the tile bridge. Make sure the anchors engage on the tile bridge before loosening your grip on the loudspeaker.

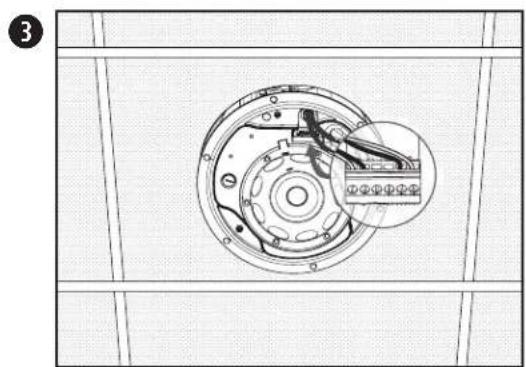

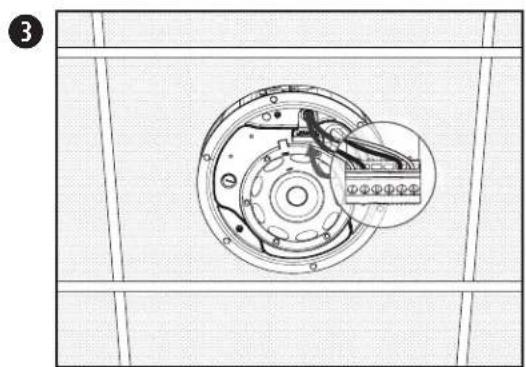

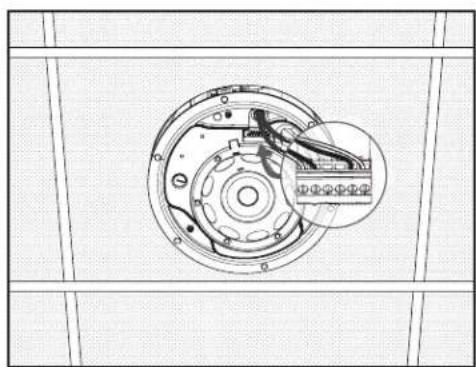

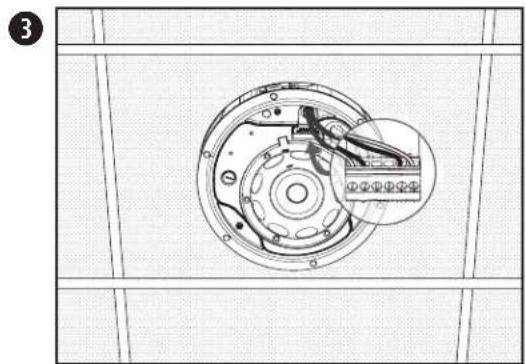

3. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 4.

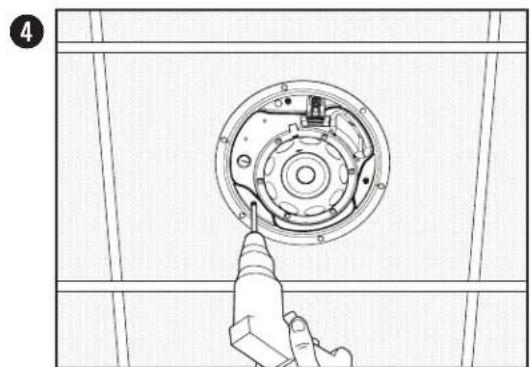

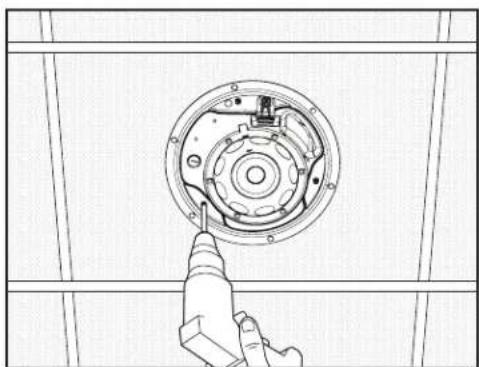

4. Tighten the anchor arm screws to secure the loudspeaker. If using a power drill, set to a low torque setting.

WARNING: Over-tightening the screws may result in damage to the anchor attachment point or the ceiling, which could lead to a falling hazard.

Technical diagram of a mechanical assembly with concentric circular components and mounting holes (no text or labels)

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and internal components (no text or symbols)

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Installing in Hard Ceiling Using a Rough-in Pan (New Construction)

For information on installing a rough-in pan, see the DesignMax Rough-in Pan installation guide at PRO.BOSE.COM. Once the rough-in pan is installed, see Mounting the Loudspeaker on page 6.

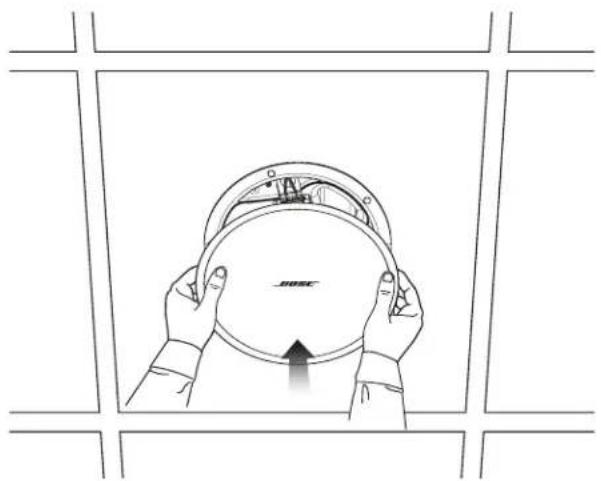

Attaching the Grille

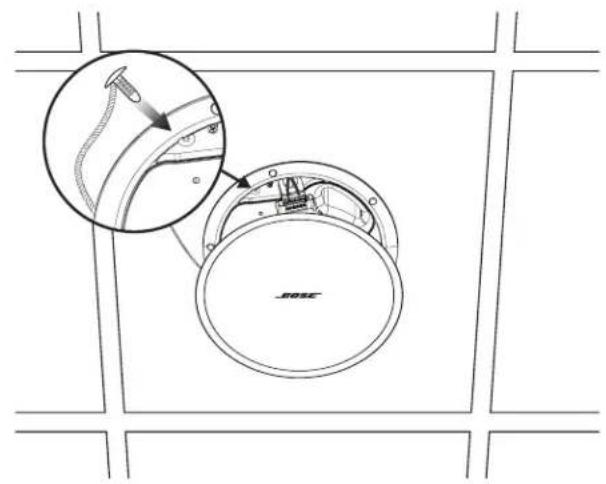

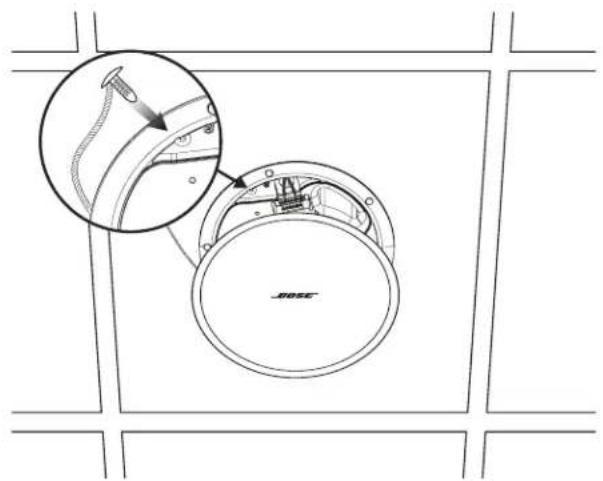

Insert the safety lanyard pin into the hole in the loudspeaker. Using both hands, position the grille against the loudspeaker. The grille secures to the loudspeaker magnetically.

Line drawing of hands holding a circular object with 'BOSC' label, framed by a grid pattern (no text or symbols on the object itself)

Safety and Regulatory Compliance

The Bose DesignMax DM6C loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89

UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces. Suitable for use in air handling (plenum) spaces.

Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

NFPA 70, National Electrical Code, 2017, Article 300-22(c)

NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5

The DesignMax DM6C loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems:

Tested to IEC60268-5, 2007

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with holes (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Entrada única de ^3/8 pulgadas

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70 V
2.5 W 5	W 10 W	20 W 40 W	80 W*			8 Ω
5 W 10 W	20 W	40 W	80 W NC**
100 V

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two parallel plates and a circular component (no text or symbols)

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a hand holding a square plate with an oval on top, placed on a flat surface (no text or symbols)

Simple line drawing of a hand holding a pointer above a circular object, with no text or symbols present.

Pure technical diagram of a structural frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

Montaje del altavoz

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'BOSC' label, framed by a grid pattern (no text or symbols on the object itself)

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with holes (no text or symbols)

Raccord de conduit

Pure mechanical diagram showing a gear assembly with no text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70 V
2,5 W 5	W 10 W	20 W 40 W	80 W*			8 Ω
5 W 10 W	20 W	40 W	80 W NC**
100 V

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

Technical diagram showing two mechanical components with a circular component and directional arrows, no text or symbols present.

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a pointer above a blank oval, with no text or symbols present.

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular device with 'SOSC' label, no text or symbols present

NFPA 70, National Electrical Code, 2017, Article 300-22(c)

www.Bose.com/compliance.

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Technical line drawing of two mechanical components with a circular component, no text or symbols present

Simple geometric diagram showing a circle inscribed in a parallelogram with dots, no text or symbols present.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70 V
2,5 W 5	W 10 W	20 W 40 W	80 W*			8 Ω
5 W 10 W	20 W	40 W	80 W KA**
100 V

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two parallel plates and a circular component (no text or symbols)

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with a circular center and flanged ends (no text or symbols)

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a circular object above a V-shaped structure (no text or symbols)

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with concentric circular components and mounting holes (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with internal gear assembly (no text or symbols)

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Illustration of hands holding a circular device with 'BEEC' label, no text or symbols present

NFPA 70, National Electrical Code, 2017, Article 300-22(c)

NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5

www.Bose.com/compliance.

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with holes (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70 V
2,5 W 5	W 10 W	20 W 40 W	80 W*			8Ω
5 W 10 W	20 W	40 W	80 W NC**
100V

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with a circular center and flanged ends (no text or symbols)

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a pointer above a blank oval, with no text or symbols present.

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a circular component mounted on a grid frame (no text or symbols)

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'BOSC' label, framed by a grid pattern (no text or symbols on the object itself)

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Gegevens importeur en service-informatie: [phone]

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefoonnummer: [phone]

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with holes (no text or symbols)

Geleiding

Pure mechanical diagram showing a car inside a vehicle or enclosure, without any text, numbers, or symbols.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

9,5 mm enkel in 9,5 mm duplex in/lus

De luidspreker bekabelen

Bekabelingsdiameter

70 V
2,5 W 5	W 10 W	20 W 40 W	80 W*			8 Ω
5 W 10 W 20 W 40 W 80 W NC**
100 V

* Fabrieksinstelling

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a tool above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a hand holding a square with a circle on top, placed on a flat surface (no text or symbols)

Simple line drawing of a hand holding a circular object above a V-shaped structure (no text or symbols)

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a circular component mounted on a metal frame structure (no text or symbols)

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'BOSC' label, framed by a grid pattern (no text or symbols on the object itself)

ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89

UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces, geschikt voor gebruik in luchtbehandelingsruimten.

NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5

Importor i Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North

Riying Road, Kina (Shanghai) pilotfri handelssone

Importør i EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importør i Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For informasjon om importør og service: [phone]

Importor I Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefonnummer: [phone]

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with a central circle (no text or symbols)

Rørforbindelse

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

^3/_8 -tommers enkel inngang

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

^3/_8 -tommers dobbel inngang / sløyfe

Kable høyttaleren

Kabeldiameter

70 V
2,5 W 5	W 10 W	20 W 40 W	80 W*			8Ω
5 W 10 W	20 W	40 W	80 W NC**
100 V

Sette sammen monteringsbroen

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Installere monteringsbroen

Isometric line drawing of a mechanical component with no text or symbols

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a pointer above a blank oval, with no text or symbols present.

Installere monteringsbroen

Technical line drawing of a structural frame with a central circular opening and flanges (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

Montere høyttaleren

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with a circular housing and internal components (no text or symbols)

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'BOSC' label, framed by geometric grid lines (no text or symbols on the object itself)

Importer na terenie Chin: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer na terenie UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Technical line drawings of two mechanical components: a circular component with flanges and a rectangular plate with concentric circles (no text or symbols)

Przepust kablowy

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70 V
2,5 W 5	W 10 W	20 W 40 W	80 W*			8Ω
5 W 10 W	20 W	40 W	80 W NC**
100 V

Pure diagram of a mechanical component with directional arrows, no text or symbols present

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes: a square with internal circle and a tilted square, both drawn with a hand holding a pencil (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a pointer above a blank oval, with no text or symbols present.

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a circular component mounted on a grid frame (no text or symbols)

Montaż głośnika

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical diagram of a mechanical component with concentric circular features and mounting holes (no text or labels)

Technical line drawing of a mechanical component with a circular housing and internal components (no text or symbols)

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'BOSC' label, framed by a grid pattern (no text or symbols on the object itself)

NFPA 70, National Electric Code, 2017, art. 300-22(c).

Technical line drawings of two mechanical components: a cylindrical component with flanges and a square plate with circular holes (no text or symbols)

导管配件

Pure technical line drawing of a car inside a mechanical assembly (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70V
2.5W	5W	10W	20W	40W	80W*
5W	10W	20W	40W	80W	NC**
100V

准备吊顶板

切割吊顶板

Diagram of a car interior showing directional arrows and lane markings (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes with a hand holding a pen, one tilted upward and the other centered inside a square (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Diagram showing two hands holding a circular object with an upward arrow, no text or symbols present

准备硬顶天花板（现有结构）

切割天花板

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a circular object above a V-shaped structure (no text or symbols)

安装桥板

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

安装扬声器

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

Technical diagram of a mechanical assembly with a circular component and internal components, no visible text or symbols.

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Illustration of hands holding a circular device with 'JOSC' branding, no text or symbols present

安全与法规遵从

Technical line drawing of two mechanical components with a circular center and flanged ends (no text or symbols)

2

Simple geometric diagram showing a circle inscribed in a parallelogram with dots, no text or symbols present.

導管接頭

Pure technical line drawing of a car inside a mechanical assembly (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Loop 連接器

揚聲器接線

線規

70V
2.5W 5	W 10W 20W 40W 80W*					8Ω
5W 10W 20W 40W 80W NC**
100V

吸音天花板板材準備工作

裁切天花板板材

Diagram of a car interior showing directional arrows and lane markings (no text or symbols)

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Line drawing of two geometric shapes with a hand holding a pen, one containing a circle and the other a crosshairs (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram showing two hands holding a circular object above a window frame, with an upward arrow indicating motion or force (no text or symbols present)

硬式天花板 (現有工程) 準備工作

裁切天花板

Simple line drawing of a hand holding a magnifying glass over a square plate (no text or symbols)

Simple line drawing of a hand holding a pointer above a blank oval, with no text or symbols present.

安装天花板跨橋板

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

安裝揚聲器

Technical diagram of a mechanical assembly with concentric circular components and internal wiring (no text or labels)

Technical line drawing of a circular mechanical component with internal components, mounted on a grid-patterned surface (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and internal components, no visible text or symbols.

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'BOSC' label, no text or symbols present

安全與規章遵循

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

中国における輸入元: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおける輸入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

メキシコにおける輸入元: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. 輸入元およびサポート情報: [phone]

台湾における輸入元: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Technical line drawings of two mechanical components: a cylindrical component with flanges and a square plate with circular holes (no text or symbols)

導管器具の設置

Pure technical line drawing of a car inside a mechanical assembly (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

70V
2.5W 5W 10W 20W 40W 80W*						8Ω
5W 10W 20W 40W 80W NC**
100V

*工場出荷時設定

**NC: 未接続 使用しない)

トランスフォーマータップの設定

タイルブリッジを組み立てる

Diagram of a car interior showing directional arrows and lane markings (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes: a square with internal lines and a circular hole, both drawn with hand-drawn lines (no text or symbols)

Line drawing of a hand holding a pipette above a circular hole on a square base (no text or symbols)

タイルブリッジを設置する

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing two hands holding a circular object with an upward arrow, no text or symbols present

硬い天井にタイルブリッジを設置する

天井を切り抜く

Simple line drawing of a hand holding a circular object on a square base, no text or symbols present

Simple line drawing of a hand holding a pointer above a circular object, with no text or symbols present.

タイルブリッジを設置する

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

スピーカーの取り付け

Technical diagram of a mechanical assembly with concentric circular components and mounting holes (no text or labels)

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

Technical diagram of a mechanical assembly with a circular component and internal components, no visible text or symbols

Hand inserting a component into a circular mechanical housing (no text or symbols visible)

Line drawing of hands holding a circular object with 'JOSC' label, no text or symbols present

安全上のコンプライアンス

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

3% Bosnia, Herzugaya

Pure technical line drawing of a car inside a vehicle or enclosure, without any text, numbers, or symbols.

3% بوصات، فردية

Technical line drawings of two mechanical components: a square plate with circular holes and a cylindrical bracket with a curved handle (no text or symbols)

تحضير التركيب

تجمع عارضة الألواح

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

1

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

3

Technical line drawing of a mechanical assembly with two parallel plates and a circular component (no text or symbols)

Simple line drawing of a hand holding a pipette above a square base with a circular hole (no text or symbols)

Line drawing of two geometric shapes with a pencil, one tilted and one centered with a circle (no text or symbols)

قص لوح السفق

Illustration of hands holding a circular object over a window frame, with an upward arrow indicating motion (no text or symbols)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

تركيب عارضة الألواح

Technical line drawing of a circular mechanical component with internal gears and mounting holes, mounted on grid-patterned background (no text or symbols)

2

Technical line drawing of a mechanical assembly with concentric circular components and mounting holes (no text or symbols)

1

Hand inserting a component into a circular housing (no text or symbols visible)

4

Technical line drawing of a mechanical component with a circular housing and internal components (no text or symbols)

3

Line drawing of hands holding a circular device with a label 'SABEC' and an arrow pointing upward (no text or symbols on the device itself)
