HERZLICHEN GLÜCKWUNSCH!

AUSSCHALTEN DES ALARMTONS

SLEEP (ABSCHALTFUNKTION)

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

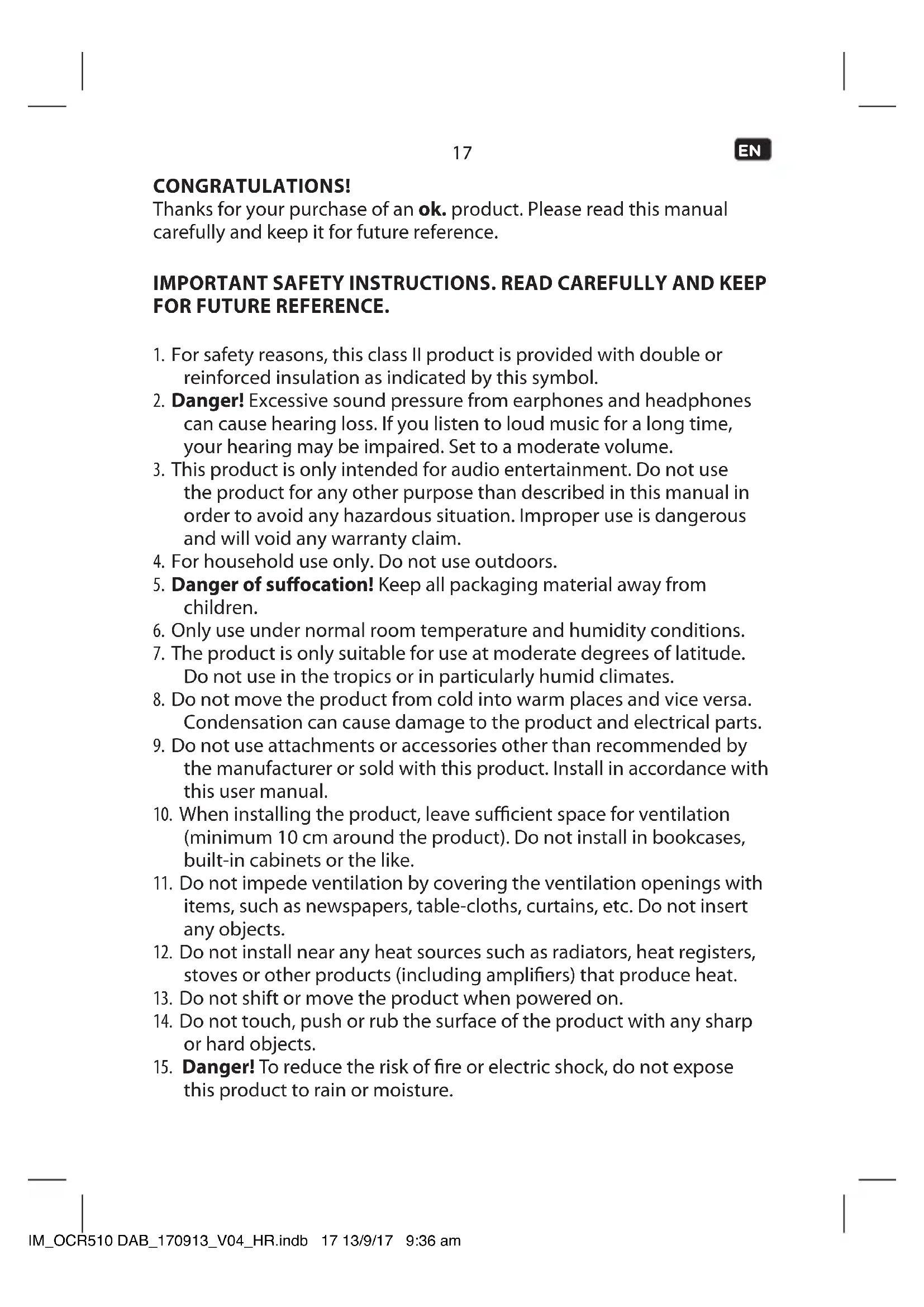

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. For safety reasons, this class II product is provided with double or reinforced insulation as indicated by this symbol.
2. Danger! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate volume.
3. This product is only intended for audio entertainment. Do not use the product for any other purpose than described in this manual in order to avoid any hazardous situation. Improper use is dangerous and will void any warranty claim.
4. For household use only. Do not use outdoors.
5. Danger of suffocation! Keep all packaging material away from children.
6. Only use under normal room temperature and humidity conditions.
7. The product is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.
8. Do not move the product from cold into warm places and vice versa. Condensation can cause damage to the product and electrical parts.
9. Do not use attachments or accessories other than recommended by the manufacturer or sold with this product. Install in accordance with this user manual.
10. When installing the product, leave sufficient space for ventilation (minimum 10 cm around the product). Do not install in bookcases, built-in cabinets or the like.
11. Do not impede ventilation by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Do not insert any objects.
12. Do not install near any heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.
13. Do not shift or move the product when powered on.
14. Do not touch, push or rub the surface of the product with any sharp or hard objects.
15. Danger! To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

EN

1. The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product.
2. Care should be taken so that no objects or liquids enter the enclosure through openings.
3. No naked flame sources, such as lighted candles, should be placed on the product.
4. Refer all servicing to authorised service agent. Do not attempt to repair the product yourself. Servicing is required when the product has been damaged in any way, such as the supply cord or plug are damaged, liquid has been spilled, objects have fallen into the product, the enclosure is damaged, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
5. Before connecting the product to a socket outlet, make sure the voltage indicated on the product corresponds to your local mains.
6. Only use the provided adaptor.
7. The adaptor power plug is used as the disconnect device; the disconnect device shall remain readily operable. To completely disconnect the power input, disconnect the adaptor power plug.
8. The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the appliance; reconnect after a few seconds.
9. Protect the supply cord from being walked on or pinched particularly at the plug, convenience receptacles and the point where it exits from the product.
10. Disconnect the adaptor power plug in case of faults during use, during lightening storms, before cleaning and when not using the product for a longer period of time.
11. Danger! Before cleaning, switch the product off and disconnect the adaptor power plug from the socket.
12. When the product has reached the end of its service life, make it defective by disconnecting the adaptor power plug from the socket and cutting the cord in two.

INTENDED USE

This product is intended for audio playback via DAB Radio, FM Radio or head phone. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

COMPONENTS

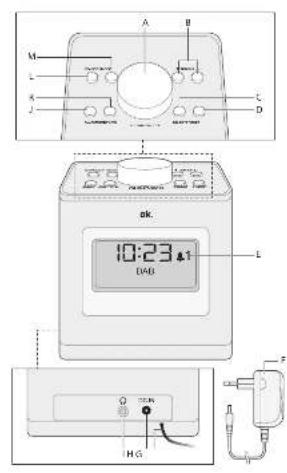

A. VOLUME/SNOOZE knob
B. ▲TUN/CH▼buttons
C. SELECT button
D. PRESET button
E. Display
F. AC/DC-Adaptor
G. Wire antenna
H. DC-IN jack
I. Headphone jack
J. ALARM button
K. MENU/INFO button
L. STANDBY button
M. MODE button

ACCESSORIES

1 x AC/DC Adaptor
1 x User manual

BEFORE FIRST TIME USE

Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

EN

20

POWER SUPPLY

Operation by mains

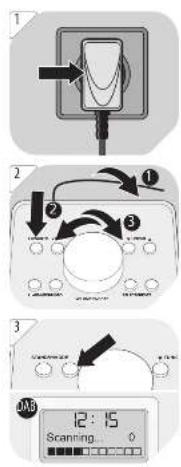

Connect plug to suitable mains socket.

OPERATION

Adjusting the antenna

For optimal reception, extend the antenna, move to fully extend and adjust it.

Turning the unit on

Press the STANDBY button to turn the unit on.

Adjusting the volume

The volume can be adjusted during playback with the volume control.

TIME SETTING

The time will be automatically set in DAB mode. If there is no DAB signal reception, the time can be set manually. Please refer to chapter GENERAL SETTINGS.

SET ALARM

Note:

• The Alarm can only be set when the radio is turned on.
• Make sure the clock shows the correct time.

1 Press ALARM button to choose following options:

• [Alarm 1 Setup]
• [Alarm 2 Setup]

2 Press SELECT to access the Alarm Wizard.
3 [On time] Set the hours and minutes with TUN/CH and confirm with SELECT.
4 Set the alarm duration [Duration] with TUN/CH and confirm with SELECT.

• [15] The alarm sounds for 15 minutes.

• [30] The alarm sounds for 30 minutes.

• [45] The alarm sounds for 45 minutes.

• [60] The alarm sounds for 60 minutes.

• [90] The alarm sounds for 90 minutes.

• [120] The alarm sounds for 120 minutes.

5 Select the alarm tone [Source] with TUN/CH and confirm SELECT.

• [Buzzer]: Make the buzzer your alarm tone.
• [DAB]: Make the most recent DAB +station played your alarm tone.
• [FM]: Make the most recent FM station played your alarm tone.

Note:

If [DAB] or [FM] is selected, [last listened] will be displayed. Press SELECT to confirm.

EN

22

6 Set alarm schedule with TUN/CH and confirm with SELECT.

• [Daily]: The alarm is activated every day.
• [Weekends]: The alarm is activated from Monday to Friday.
• [Weekdays]: The alarm is activated on Saturdays and Sundays.
- [Once][xx-xxxxxx]: (Date to be determined) The alarm is activated only once. The date must be set.

7 The volume bar will be displayed. Adjust the volume with TUN/CH and confirm with SELECT.

8 Switch on/off the alarm [Alarm on/ Alarm off] with TUN/CH and confirm with SELECT.

9 The alarm settings are stored and [Alarm saved] is displayed.

ACTIVATING OR DEACTIVATING THE ALARM TIMER

1 Press ALARM in standby mode to show the alarm state.

2 Press repeatedly ALARM, to select following options:

• Alarm1: Off / Alarm2: Off
• Alarm1: On / Alarm2: Off
• Alarm1: Off / Alarm2: On
• Alarm1: On / Alarm2: On

REPEAT ALARM

When the alarm sounds, press SNOOZE to select the snooze function interval:

• [Snooze 5 minutes]: The alarm repeats after 5 minutes.
• [Snooze 10 minutes]: The alarm repeats after 10 minutes.
• [Snooze 15 minutes]: The alarm repeats after 15 minutes.
• [Snooze 30 minutes]: The alarm repeats after 30 minutes.

TURNING OFF THE ALARM

When the alarm sounds, press STANDBY to turn the alarm off.

DAB RADIO

3 Press MODE to select DAB mode.

When the radio is switched on for the first time, it will automatically do a full scan of DAB/DAB+ stations. The list of stations is then stored, eliminating the need for another full scan when the radio is turned on next time.

When the scan is complete, the stations are stored in alphabetical order. The first available station will be played back.

Note

If there is no DAB reception at any time, change the position of the unit or adjust the antenna.

EN

CHANGING DAB/DAB+ STATIONS

1 Press ▲TUN/CH▼n DAB mode to navigate available DAB/DAB+ stations.

2 To confirm, press SELECT.

DAB MODE-AUTO SCAN

Press and hold the button MENU/INFO in DAB mode until appears on the display. Press SELECT to confirm.

The unit scans all available DAB/DAB+ stations and plays the first available station.

Note

New stations and services are added to the stored DAB/DAB+ stations. In order to make new DAB/DAB+ stations and services available on your radio, run a full scan at regular intervals.

DISPLAYING STATION INFORMATION

1 Select a DAB station.

2 During DAB/DAB+ radio playback, press MENU/INFO repeatedly to display the following information (if available):

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type

STORING DAB STATIONS

You can store up to 10 preset DAB/DAB+ stations.

1 Select the desired station.
2 Press and hold PRESET until <#: (Empty)> appears on the display.
3 Press ▲TUN/CH ▼ to preset a number from 1-10. Press SELECT to confirm the selection.
4 The preset number of the stored station is displayed.
5 Repeat steps 1 to 4 to store more DAB/DAB+ stations.

SELECTING PRESET DAB STATIONS

1 Press MODE to select the DAB/DAB+ mode.
2 Press PRESET to access the preset menu "Preset Recall" <#: stored station name>.
3 Use ▲ TUN/CH ▼ to select a preset number and confirm your selection by pressing SELECT.

USING THE DAB/DAB+ MENUS

In DAB mode press MENU/INFO for 1-2 seconds until display shows and use ▲TUN/CH ▼ to browse the menu options. To confirm your selection press SELECT every time.

• Searches for all available DAB/DAB+ stations.
-

Manual tuning adjustment, for example aligning the antenna or adding stations.

• Removes all invalid stations from the station list.

PRUNE

Deleting inactive DAB stations

1 Press ▲TUN/CH ▼ until appears and confirm with SELECT.
2 Select with ▲TUN/CH ▼ and confirm with SELECT.

EN

FM RADIO

SELECTING FM STATIONS

4 1 Press MODE to select FM stations.

2 The radio plays the last station selected.

SELECTING FM STATION FREQUENCIES

1 Select a FM station.
2 Manual frequency selection

Press ▲TUN/CH to change the frequency at intervals of 0.05 MHz.

STORING FM STATIONS

You can store up to 10 preset FM stations.

1 Select the desired FM station.
2 Press and hold PRESET until <#: (Empty)> appears on the display.
3 Press ▲TUN/CH ▼ to preset a number from 1-10. Press SELECT to confirm the selection.
4 The preset number of the stored station is displayed.

SELECTING A PRESET FM STATION

1 Press PRESET to access the Preset menu.
2 Use ▲TUN/CH ▼o select a preset number and confirm your selection by pressing SELECT.

USING THE FM MENU

1 Press and hold MENU/INFO in FM mode and select a menu option with ▲TUN/CH ▼

•
  •

2 Confirm selection with SELECT.

SCAN SETTING

1 Press and hold MENU/INFO in FM mode and select with

▲ TUN/CH ▼.

2 Press SELECT to confirm the selection.

3 Select a menu option with ▲TUN/CH ▼ and confirm with SELECT.

•
Scans for stations with strong signals
-
Scans all available stations

AUDIO SETTING

Selecting mono or stereo mode.

1 Press and hold MENU/INFO in FM mode and select with

▲ TUN/CH ▼

2 Select a menu option with ▲TUN/CH ▼ and confirm with SELECT.

•
  Selects mono playback
•
  Selects stereo playback

EN

GENERAL SETTINGS

5 Press and hold MENU/INFO in any mode and select with ▲TUN/CH ▼Confirm selection with SELECT.

Following menu options are available:

SLEEP

1. Select menu option with ▲TUN/CH ▼ and confirm with SELECT.

2. Use TUN/CH to select the desired sub-menu:

Sleep off

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

1. Confirm with SELECT.

The product will automatically switches off after your desired sleep time is ended.

SETTING THE TIME

1 Select menu option with ▲ TUN/CH ▼ and confirm with SELECT.

2 Use ▲TUN/CH ▼ to select the desired sub-menu:

• Set 12/24 hour: Choice of 12 or 24 hour format
1. manual time and date setting
2. Choice of DAB Update or No Update
- Set date format: Choice of DD-MM-YYYY or MM-DD-YYYY

BACKLIGHT

1. Select menu option BACKLIGHT with ▲TUN/CH ▼ and confirm with SELECT.
2. Use TUN/CH to select the desired backlight level:

<High>
<Medium>
<Low>

1. Confirm with SELECT.

Note: The set level will be marked with “*” on the display.

RESET

Select menu option with ▲TUN/CH ▼ and confirm with SELECT.

DISPLAYING THE SOFTWARE VERSION

Select menu option with ▲ TUN/CH ▼ and confirm with SELECT.

CLEANING AND CARE

• Unplug the adaptor from the socket before cleaning the unit.
- Attention! Do not let water penetrate into the unit.
- Clean the housing with a lightly dampened cloth.
- Do not use sharp, scouring or aggressive cleaners.
- Do not use chemicals (such as gasoline or alcohol) to clean the housing.

EN

30

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible	causes Solution
Product does not function	Interrupted power supply	Check the power supply
No Sound • Volume	is very low • Adjust the volume
Poor radio reception quality	Poor radio reception	Place the product to another place and adjust the antenna again.

TECHNICAL DATA

ADAPTOR

ADAPTOR Input (AC/DC adaptor) : 100 - 240 V\~ / 50/60 Hz

Output (AC/DC adaptor): 6 V = 0.5 A

DAB RADIO

Input: 6 V = 0.5 A

Operation power consumption : 3 W

Standby power consumption : < 1 W

Tuning range (Tuner DAB) : 174 - 240 MHz

Tuning range (Tuner FM) : 87.5 - 108 MHz

Tuning Grid (Tuner FM) : 0.05 MHz

Dimensions (W x H x D) : 100 x 113 x 100 mm

Weight : Approx. 0.9 kg

DISPOSAL

Do not dispose of this appliance as unsorted municipal waste.

Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

ENHORABUENA

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

ALMACENAMIENTO DE EMISORAS DAB

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

1. Confirme con SELECT.

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

MÉMORISER DES STATIONS DAB

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

DAB ÁLLOMÁSOK TÁROLÁSA

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

Consumo in standby : < 1 W

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

GEBRUIK VAN DE DAB/DAB+ MENU'S

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

ZAPISYWANIE STACJI RADIOWYCH DAB W PAMIĘCI URZĄDZENIA

WYBÓR ZAPROGRAMOWANYCH STACJI DAB

WYBÓR STACJI RADIOWYCH FM

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

GUARDAR ESTAÇÕES DAB

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

1. Confirme com SELECT.

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

RU

152

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

SE

LAGRA DAB-STATIONER

VÄLJA FM-STATIONSFREKVENSER

1 Välj en FM-station.
2 Manuellt frekvensval

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes

1. Bekräfta med SELECT.

• Ensemble
• Frequency
  • Signal frequency error
  • Audio state and bit rate
• Time
• Date
• Radio text
• Signal strength
• Programme type
  • Power status (Mains or battery)

TR

180

DAB İSTASYONLARININ KAYDEDİLMESİ

10 minutes
20 minutes
30 minutes
60 minutes
70 minutes
80 minutes
90 minutes
