USER MANUAL MTS7101 Meister Craft

Noise/vibration informationMeasured values determined inaccordance with EN 60745-1.The specified vibration emission valuewas measured in accordance with anormed test procedure and can be usedto compare one power tool with another.The specified vibration emission valuecan also be used for an introductoryestimation of exposure.CAUTION! The vibrationemission value may fluctuatefrom the specified value during actualuse of the power tool. Thesefluctuations will depend on the way inwhich the power tool is used.Safety measures must be taken inorder to protect the operator. As aresult, the evaluation of the influencemust be made whilst taking account Operating instructions & safety hints To prevent injury, always read the operating instructions before use andpass them on to any future owners of the tool. Keep with the tool.

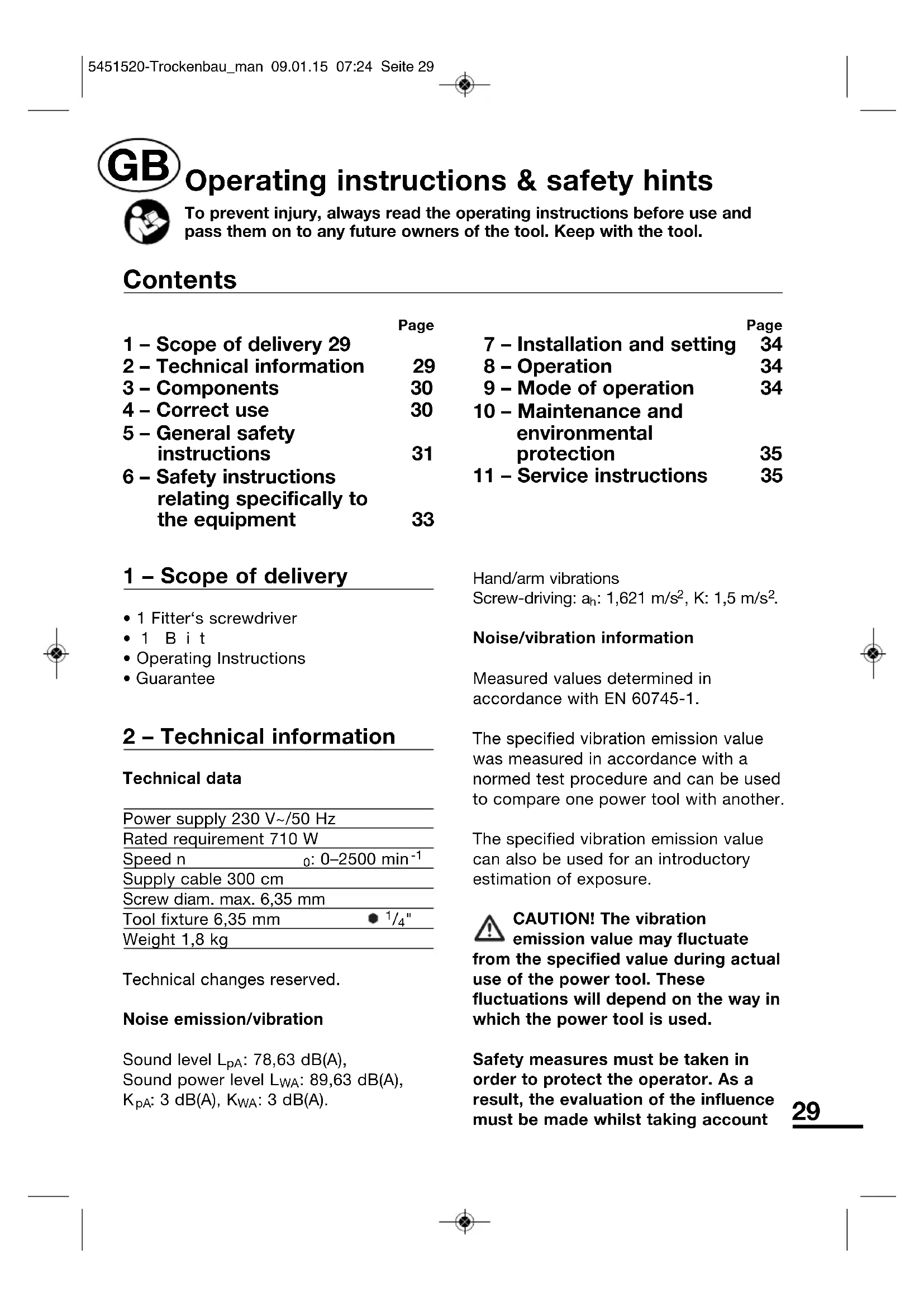

Page 1 – Scope of delivery 29 2 – Technical information 29 3 – Components 30 4 – Correct use 30 5 – General safety instructions 31 6 – Safety instructions relating specifically to the equipment 33 Page 7 – Installation and setting 34 8 – Operation 34 9 – Mode of operation 34 10 – Maintenance and environmental protection 35 11 – Service instructions 35 Contents

5451520-Trockenbau_man 09.01.15 07:24 Seite 29of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the power tool is switched off and times in which it is switched on, but is running without load.) CAUTION! A certain amount of noise is unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. CAUTION! The effects of noise may cause damage to the hearing. Only ever work with suitable ear defenders. Anybody else in the vicinity should thus also wear ear defenders. 3 – Components 1 Belt holder 2 Lock for continuous operation 3 On/Off switch 4 Revolution regulator 5 Right/Left directional switch 6 Bit/tool holder 7 Depth stop 8 Setting ring 4 – Correct use Processing of self-tapping and thread- forming screws in serial screw connections in façade, wall and roof construction. Only use the machines and accessories for the intended purposes. All other uses are expressly excluded. The machine is intended only for use in the household. Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool. Tool inserts that do not fit precisely to the sanding spindle of the electrical tool will rotate unevenly, vibrate very heavily and may lead to a loss of control. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks: The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care. Remaining risks may be, for example:

• Touching rotating parts or tools.

• Injury caused by flying tools or tool parts.

• Risk of fire with insufficient ventilation of the motor.

5451520-Trockenbau_man 09.01.15 07:24 Seite 30• Adverse effects on the hearing caused by working without ear defenders. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks. WARNING! During operation, this power tool generates an electro magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. Work area

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

5451520-Trockenbau_man 09.01.15 07:24 Seite 31• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

• Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow

5451520-Trockenbau_man 09.01.15 07:24 Seite 32persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6 – Safety instructions relating specifically to the equipment

• Hold the tool by the insulated handle surfaces when carrying out tasks during which is it possible that the screw will come across hidden power cables or its own cable. If the screw comes into contact with a live cable, this will connect the metal parts of the machine to voltage and result in electrical shock.

• Wear eye and ear protectors.

• Before driving screws into a wall check – if possible, using a mains detector – that you are not driving screws into an electricity cable or a gas or water pipe.

• When operating the machine, avoid allowing the motor to stop under load.

• Select a speed that will not cause the screw tips to overheat.

• To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative. Safety symbols The symbols on the housing have the following meanings: Do not dispose of with the household waste! Important! Observe the operating instructions! Wear goggles. Wear a dust protection mask. Wear ear defenders. The housing is double insulated

5451520-Trockenbau_man 09.01.15 07:24 Seite 33Voluntary “geprüfte Sicherheit” seal of quality (tested safety) CE mark (conformity with European safety standards) 7 – Installation and setting Changing tools Unplug from the power source. To change the screw bit, turn the depth stop (7) back and reset after the tool has been changed. 8 – Operation Starting Press switch (3). The motor will start at a low speed. The speed will increase as the pressure on the switch is increased, until maximum preset speed is reached. Stopping Release switch. Switching on continuous operation Press the switch (3) down, press the locking switch (2) and release all switches. Switching off continuous operation Press the switch (3), the locking switch (2) releases automatically. Release the switch (3), the machine switches off. CAUTION! The screwdriver shaft or inserted screwdriving tool will not start running until it is pressed against the work and will stop running as soon as the screwing operation is finished. As long the screwdriving tool is not in contact with the material, it is normal for it to stop running, even if the motor is still running. 9 – Mode of operation Preselecting speed Stop motor. For higher speed, turn switch (4) towards (+); for lower speed, turn it towards (– ). In this way speeds can be preset to suit material and screw size. The right speed can be found by trial and error. It is reached if the screw can be driven into the work without overheating. Forward/reverse rotation To screw in: set switch to position R To unscrew: set switch to position L Do not operate forward/ reverse switch while the motor is running. Setting the depth stop/working In order to precisely set the screw depth, to prevent damaging material surfaces to be screw-connected, pull the setting ring (8) forwards as far as it will go. Set the screw depth by turning the setting ring.

• Turn towards (+): Increases the screw depth

• Turn towards (–): Decreases the screw depth The screw depth is modified by 2 mm for every complete turn. Pull the setting ring back to the latching position. The desired

5451520-Trockenbau_man 09.01.15 07:24 Seite 34setting can be checked by testing with a screw. The screw is held by the magnetic bit holder. Press the screw tip firmly up against the material to be screwed into. Start the screwing process until the depth stop (7) touches the material surface and the screw spindle automatically decouples. To remove screws, set the switch (5) to left (anti-clockwise) rotation and turn the depth stop (7) back, away from the material. Belt holder During breaks in work the machine can be slung from the trouser belt by the belt holder (1). 10 – Maintenance and environmental protection Maintenance, storage, disposal Before maintaining or servicing the machine, always unplug it from the power supply. Clean the machine with a damp cloth (do not use solvents) and dry thoroughly. Keep air vents free from dust. Before using check the machine, cable and accessories for damage. Repairs must be carried out by a specialist. Unusable machines should be properly disposed of in accordance with local waste-disposal regulations. CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the house - hold waste! They are to be collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned. 11 – Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim. IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any

5451520-Trockenbau_man 09.01.15 07:24 Seite 35damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
