USER MANUAL BAS 36 LIO Meister Craft

/50/60 Hz/7 W Sec. 6 V ---

/50/60 Hz/7 W Sec. 6 V ---

/50/60 Hz/ 7 W Sec. 6 V ---

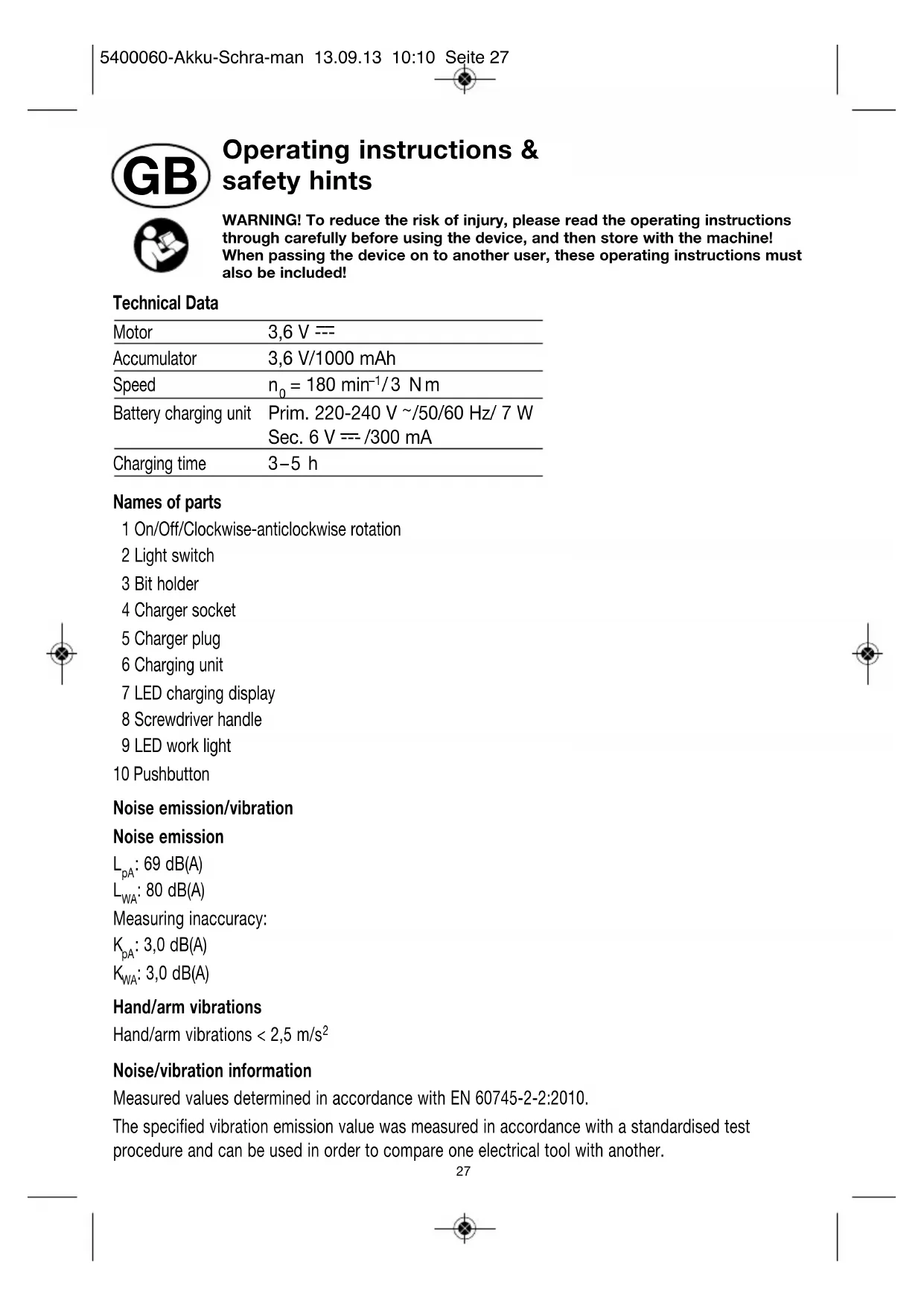

Noise/vibration information Measured values determined in accordance with EN 60745-2-2:2010. The specified vibration emission value was measured in accordance with a standardised test procedure and can be used in order to compare one electrical tool with another. Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instructions through carefully before using the device, and then store with the machine! When passing the device on to another user, these operating instructions must also be included!

5400060-Akku-Schra-man 13.09.13 10:10 Seite 2728 The specified vibration emission value can also be used for preliminary evaluation of the disturbance. CAUTION! The vibration emission value may fluctuate from the specified value during use of the electrical tool. These fluctuations will depend on the way in which the tool is used. Safety measures must be taken in order to protect the operator. As a result, the evaluation of the disturbance must be made whilst taking account of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the tool is switched off and times in which it is switched on, but is running without load.) Applications Drilling in wood and metal, screw-driving. Employ the machine, charging unit and accessories (follow manufacturer's directives!) for specified area of application only! All other applications are explicitly excluded. The machine is intended only for use in the household. This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery- operated (cordless) power tool. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 5400060-Akku-Schra-man 13.09.13 10:10 Seite 2829 d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations. h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5400060-Akku-Schra-man 13.09.13 10:10 Seite 2930 e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Use and treatment of the battery-operated tool a Only use chargers to recharge the battery that have been recommended by the manufacturer. When using a charger designated for a particular type of battery, there is a risk of fire if it is used with other batteries. b Only use the batteries designed for use in the electric tools. The use of other batteries may lead to injury and risk of fire. c When not in use, keep the battery away from paper clips, coins, keys, nails, screws or other small metallic objects that may bridge the contacts. A short-circuit between the battery contacts can lead to burns or fire. d Fluid can escape from the battery when used incorrectly. Avoid all contact with this. In the event of accidental contact, rinse with water. If liquid should get into the eyes, get medical assistance. Battery fluid may result in skin irritations and burns. 6 General safety information for battery-powered screwdrivers Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 7 Safety information for battery-powered screwdrivers a Hold the tool by the insulated handle surfaces only when carrying out tasks during which is it possible that the tools will come across hidden power cables or its own cable. Contact with a power-carrying cable can also put metal parts of the unit under power and cause an electric shock. 8 Safety notes for battery/charger a Keep the charger away from rain or damp. Water entering into the charger will increase the risk of an electrical shock. b Only use chargers recommended by the manufacturer to recharge the battery. When using a charger designated for a particular type of battery, there is a risk of fire if it is used with other batteries. c Never use to recharge third-party batteries. The charger is only designed to charge the supplied batteries using the voltages specified in the Technical Data. Otherwise there is a risk of fire or explosion. d Keep the charger clean. Contamination will increase the risk of an electrical shock. e Check the charger, cable and plug each time you use the unit. Do not use the charger if you find any damages. Never open the charger up yourself, have it repaired by a qualified 5400060-Akku-Schra-man 13.09.13 10:10 Seite 3031 specialist only and with original replacement parts. A damaged charger, cable or plug will increase the risk of an electrical shock. f Never operate the charger on a surface that will burn easily (for example, paper, textiles etc) or in a flammable environment. There is a risk of fire occurring as a result of the heat generated during the charging process. g Fluid can escape from the battery when used incorrectly. Avoid all contact with this. In the event of accidental contact, rinse with water. If liquid should get into the eyes, get medical assistance. Battery fluid may result in skin irritations and burns. h Do not open the battery. There is a risk of short-circuiting. i Protect the battery from heat, for example, from constant sun and fire. There is a risk of explosion. j Never short circuit the battery. There is a risk of explosion. k In the event of damages and incorrect use, vapours may come out of the battery. Ensure plenty of fresh air and, if you have any symptoms, consult a doctor. These vapours may irritate the respiratory system. Safety instructions relating specifically to the equipment CAUTION! LED is laser class 1! Do not look directly into the laser as this may result in damage to the eyes.

• Use the appliance, the charger and the attachments, only for their intended applications!

• Before laying the stick screwdriver aside, ensure that all moving parts have come to a standstill.

• Avoid frequent blocking when drilling, tightening or loosening screws.

• Connect the charger only to a 230 V AC power supply.

• Charge the screwdriver battery only with the charger supplied.

• Protect the charger and the screwdriver from contact with moisture. Never immerse in water!

• Do not use the charger in the open air.

• To avoid damage to the batteries, never expose them to temperatures of over 50 °C. CAUTION! Do not short-circuit the contacts of the battery or charger.

• When charging, ensure that the device is correctly connected („+/–“).

• Do not attempt to burn the battery.

• The connection cord cannot be replaced. In case of damage, dispose of the device in the correct manner. In case of damage, dispose of the device in the correct manner. Lithium-ion battery technology This new type of battery has decisive advantages over conventional Ni-Cd batteries:

• No memory effect, i.e. regardless of its charge status the battery can be recharged at any time before or after use without loss of capacity.

• Extremely low self-discharge, so it is ready for use even after longer storage periods.

• Long service life 5400060-Akku-Schra-man 13.09.13 10:10 Seite 3132 Charging (Fig. 3) ATTENTION! The charger is calibrated for use with the Li-ion battery installed in the tool! Therefore use only the charger supplied with the tool. ATTENTION! The charger will become warm during charging! Therefore do not use the charger on highly flammable materials, such as paper, fabrics, etc.) or in a potentially explosive environment. The battery-operated screwdriver has not been fully charged at the works. Before using for the first time charge the screwdriver unit for 4 hours. To do this insert the charger plug (5) into the charging socket (4), and connect the charging unit (6) up to a power supply. CARE! Do not exceed the maximum charging time of 5 hours, as there is a risk of overheating! Charge check (Fig. 4) The battery's charge status can be checked on the LED charging display (17) by pressing the pushbutton (10). LED RED+YELLOW+GREEN lights up: Battery fully charged LED RED+YELLOW lights up: Battery half charged LED RED lights up: Battery empty RECOMMENDATION: Connect the unit up to a time switch. Operation Insert bits of 50 mm length and over up to the stop in the bit holder (3). With normal 1" bits (a) and sockets, used an additional bit holder (b). (Fig. 2) Before starting the tool, apply the screwdriver bit to the screw and operate the switch (1) to set the screwdriver turning in the required direction. To stop, release the switch. Manual operation In the switched-off condition the drive shaft is automatically locked. This enables tight screws to be turned manually. LED work light The work light makes it easier to work in poor ambient light, e.g. in cupboards. It can be switched on and off with the slide switch (2), as required. Care and maintenance Clean the case only with a damp cloth – Do not use solvents! Then dry well. To maintain capacity, we recommend completely discharging and recharging the battery every two months. Store only fully charged batteries. They should therefore be recharged from time to time. The place of storage must be dry; the ambient temperature must not fall below 0 °C or rise above 40 °C. 5400060-Akku-Schra-man 13.09.13 10:10 Seite 3233 CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2002/96 EC directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling. ATTENTION! Batteries must be removed from battery-powered tools and disposed of separately in accordance with relevant waste-battery regulations. Batteries must never be disposed of with domestic waste! Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned. Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meisterbasic devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Please note additional hints given in the operating instructions.

• Meisterbasic devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim! IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price. 5400060-Akku-Schra-man 13.09.13 10:10 Seite 3334 Technische gegevens Motor 3,6 V ---
