USER MANUAL AP2700 SAGEM

AGFAPHOTO is used under license of Agfa-Gevaert AG.

produced for and sold by Sagem Communication, www.sagem.com

English

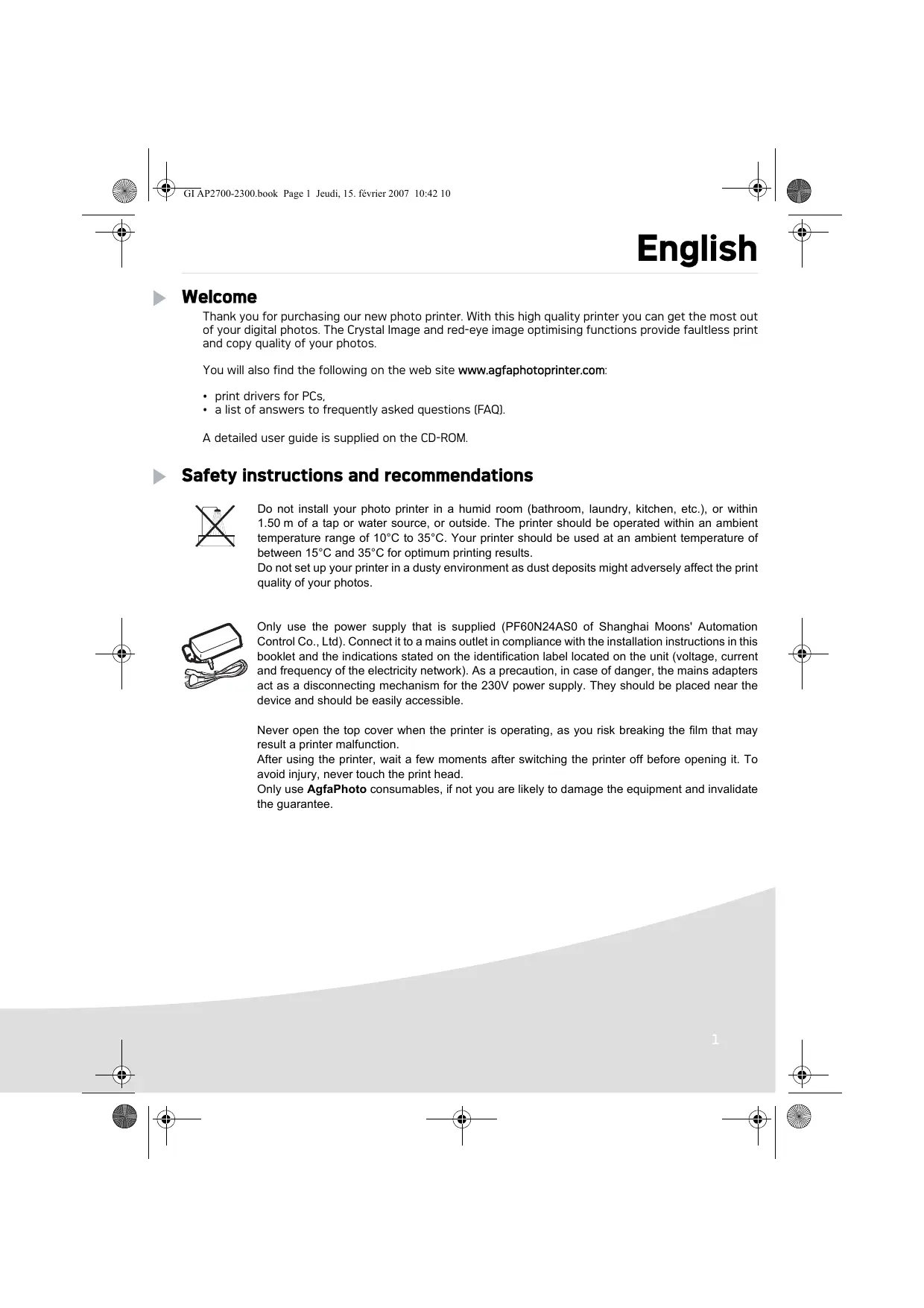

Welcome

Thank you for purchasing our new photo printer. With this high quality printer you can get the most out of your digital photos. The Crystal Image and red-eye image optimising functions provide faultless print and copy quality of your photos.

You will also find the following on the web site www.agfaphotoprinter.com:

• print drivers for PCs,
• a list of answers to frequently asked questions (FAQ).

A detailed user guide is supplied on the CD-ROM.

Safety instructions and recommendations

Do not install your photo printer in a humid room (bathroom, laundry, kitchen, etc.), or within 1.50m of a tap or water source, or outside. The printer should be operated within an ambient temperature range of 10^ to 35^ . Your printer should be used at an ambient temperature of between 15^ and 35^ for optimum printing results.

Do not set up your printer in a dusty environment as dust deposits might adversely affect the print quality of your photos.

Only use the power supply that is supplied (PF60N24AS0 of Shanghai Moons' Automation Control Co., Ltd). Connect it to a mains outlet in compliance with the installation instructions in this booklet and the indications stated on the identification label located on the unit (voltage, current and frequency of the electricity network). As a precaution, in case of danger, the mains adapters act as a disconnecting mechanism for the 230V power supply. They should be placed near the device and should be easily accessible.

Never open the top cover when the printer is operating, as you risk breaking the film that may result in a printer malfunction.

After using the printer, wait a few moments after switching the printer off before opening it. To avoid injury, never touch the print head.

Only use AgfaPhoto consumables, if not you are likely to damage the equipment and invalidate the guarantee.

The crossed-out waste bin stuck on the product means that the product belongs to the family of electrical and electronic equipment.

In this respect, the European regulations ask you to dispose of it selectively:

• At sales points in the event of the purchase of similar equipment.
• At the collection points made available to you locally (drop-off centre, selective collection, etc.).

The CE marking certifies that the product meets the main requirements of the European Parliament and Council directive 1999/5/CE on telecommunications terminal equipment, regarding safety and health of users, and regarding electromagnetic interference.

The declaration of compliance can be consulted on the site www.agfaphotoprinter.com category "support", or can be requested at the following address:

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are produced for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

Your printer and its accessories

Place your set in front of you. Take out the various components for your printer and check that the components shown below are present :

Power supply block

Mains lead

Paper tray
Photo printer

Installation guide

CD-ROM

Ribbon
depending on model)

WiFi adapter
(dependently on model)

Photo paper block
(dependently on model)

Remote control
(dependently on model)

Video cable
(dependently on model)

3

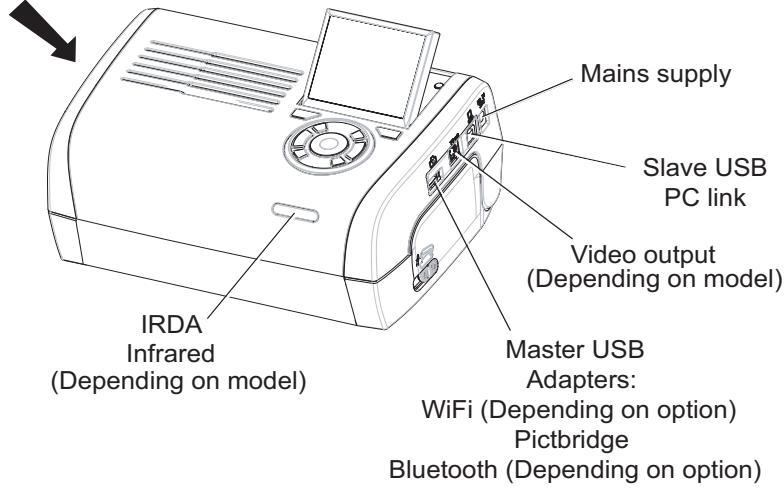

Connections

Memory card insertion slots

Before making the connections, please consult the safety instructions at the start of the user booklet on the CD-ROM provided with your printer.

	Video output	IRDA	WiFi	Bluetooth
AP2300	-	-	-	-
AP2700	●	●	Option	Option

Remarks:

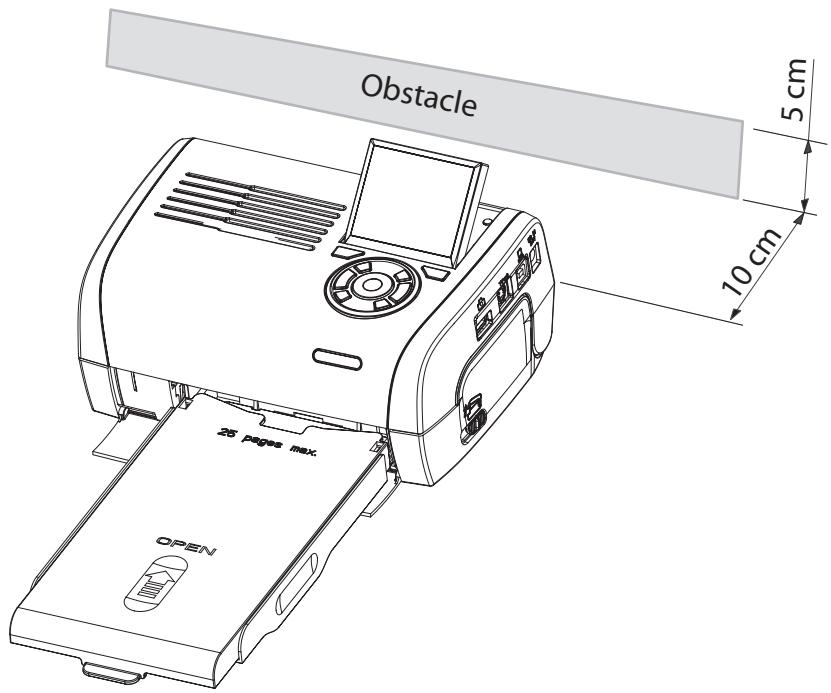

To guarantee that the sheet of paper moves correctly while printing, make sure that to allow at least 10 centimetres free space at the back of the printer.
Do not set up your printer in a dusty environment as dust deposits might adversely affect the print quality of your photos.

Setting up the printer

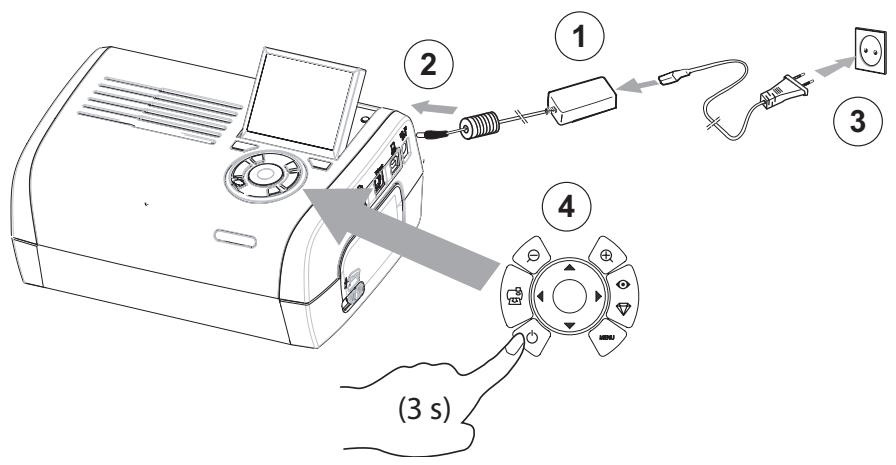

Powering up

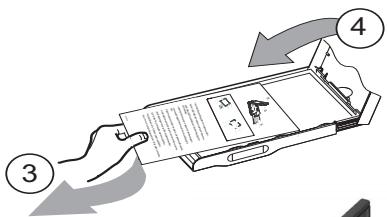

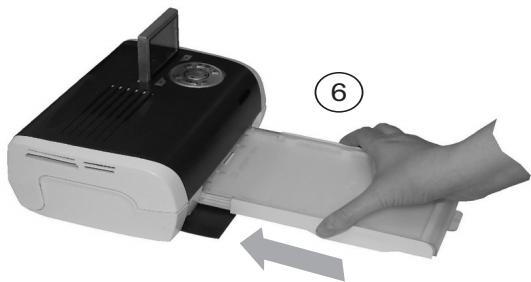

Inserting paper

6

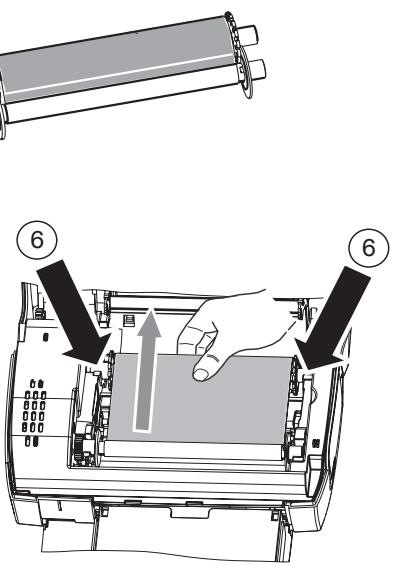

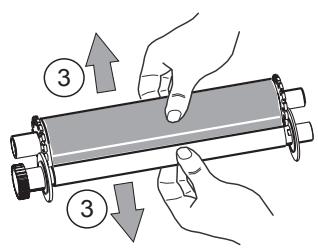

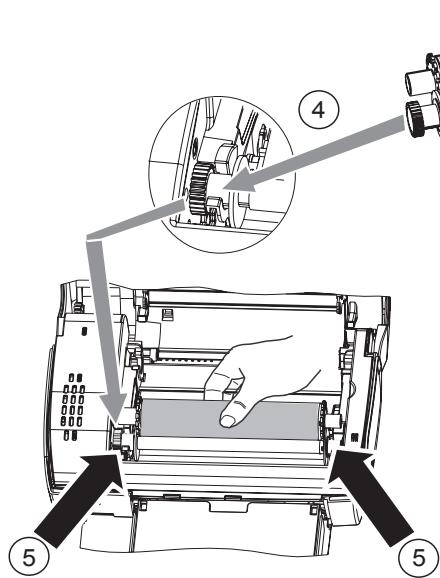

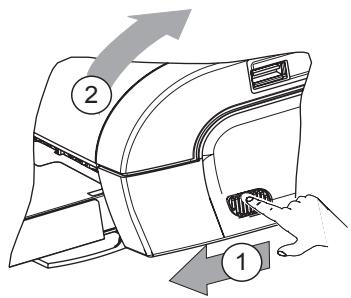

Installing the ribbon

Remark:
Use manufacturer consumables only. These are specially designed to provide optimum print quality.

Tighten the ribbon on these spindles (6) and close the printer.

7

Description of the user interface

The interface is used to:

• choose photographs one at a time or switch into mosaic mode (9 photographs on screen),

• start the printout of a photograph directly,

• enable automatic improvement of the photograph prior to printout.

• enable automatic improvement of the photograph prior to printout,

• set the "Format", "Preferences" and "Image setting" parameters according to your requirements.

• select several photographs and choose a different number of copies for each photograph to be printed,

• zoom in on a photograph and print it.

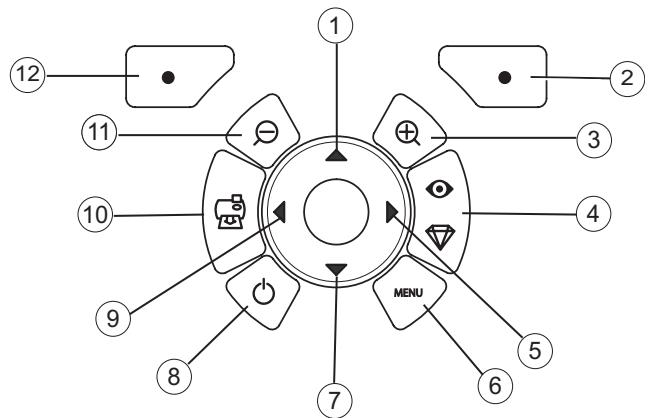

Description of the keypad

No.
Key

1 / 5 / 7 / 9	Browser
2	Validate / Enter / Add a copy
3	Zoom +
4	Crystal image / Red eyes
6	Menu
8	On / Off
10	Print
11	Zoom -
12	Back / Cancel / Remove a cop

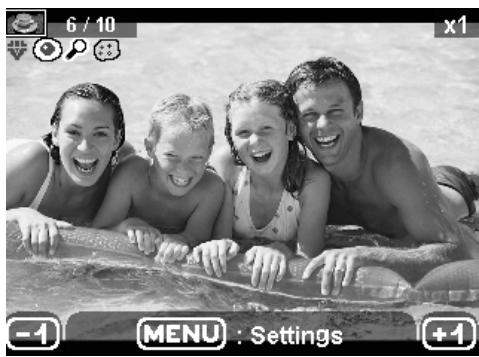

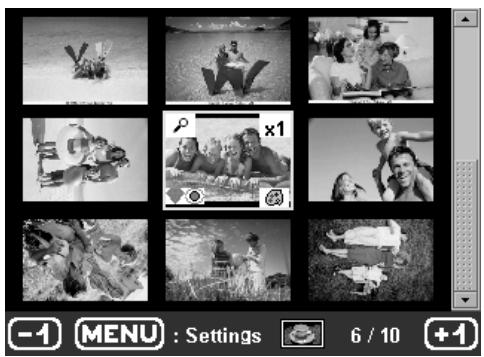

DESCRIPTION OF THE GRAPHIC USER INTERFACE

.2.4" LCD screen (1), to view your photographs

The icon...

indicates...

the photograph number

the number of copies selected

Crystal image function enabled

red eye function enabled

zoom applied to part of the image

modifications made to the image

remove a copy

selection key

access menus MENU key

add a copy

selection key

9

PRINTING A PHOTOGRAPH FROM A MEMORY CARD

Check that the consumables (paper and ribbon) are installed.
Check that your printer is plugged in and switched on.

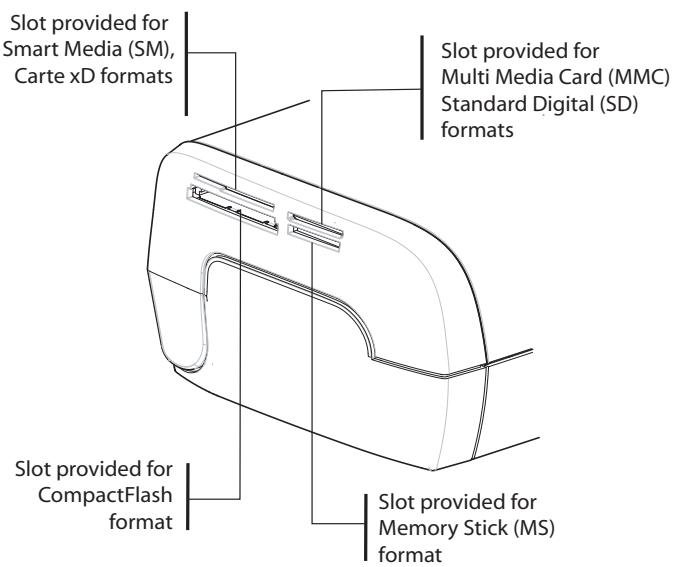

Insert your memory card into the correct slot, as shown on the diagram below.

Remarks: SmartMedia CONTACTS DOWNWARD.

The memory cards do not go completely inside the read slot. NEVER USE FORCE. Remove the card and check that you are inserting it the right way round into the correct slot.

For further information, refer to the user booklet on the CD-ROM provided with your printer.

Insert your memory card; after reading the card, the last photograph will be displayed on the LCD screen.
Press the key to display the first photograph on the card. Scroll through the photographs with

the and keys. After selecting the photograph, press the key and follow the

instructions displayed on screen to print your photograph.

Improving the print quality

Use the "Crystal Image" and "Red Eye" correction functions.

Crystal Image makes all the necessary settings and corrections related to picture sharpness, colour management and contrast automatically to obtain the best print quality possible.

Furthermore, exposure defects will be corrected (for example, under-exposed photos will be made lighter or the portions of photo with strong contrasts will be compensated for). The red-eye correction function touches up "red eyes" on shots taken with the flash.

Remarks:

By default, the "Crystal Image" and "Red Eye" correction functions are disabled.

When printing from a personal computer, the "Crystal Image" and "Red Eye" correction functions are not proposed.

The following table shows the number of times that the

key must be pressed to enable or disable

the components of the "Crystal Image" function.

Number of presses on the key	"Crystal Image" and "Red Eye" correction function status
	"Crystal Image" optimisation	"Red Eye" correction
0 (Default status)	Disabled	Disabled
1	Enabled	Disabled
2	Enabled	Enabled
3	Disabled	Enabled
4 [return to default status]	Disabled	Disabled

Other functions

New effects [special effects, sepia, B&W, negative, black & white and colour embossing, solarisation, black & white and colour contour, charcoal].
Organisation of photographs [choice of location].
Slide show.
TV display [depending on model].
Sudoku.
Screen background customisation.

Use of these functions is detailed in the user booklet on the CD-ROM provided with your printer.

11

Guarantee

GUARANTEE (UK Terms and Conditions)

In order to apply the guarantee, you should contact your dealer. Proof of purchase will be required. Should malfunctioning arise, the dealer will advise you what to do.

If you bought your equipment from Sagem Communication directly, the following shall apply :

A) Sagem Communication undertakes to remedy by repair, free of charge for labour and replacement parts, any defects in the equipment during a period of twelve [12] months from the date of original delivery of the Equipment, where those defects are a result of faulty workmanship.

During this twelve month guarantee period, the defective equipment will be repaired free of charge; the customer must however return the defective equipment at his/her own expense, to the address given by Sagem Communication After Sales Department, the phone number of which can be found on the delivery slip. Unless the customer has concluded with Sagem Communication a maintenance contract in respect of the equipment which specifically provides for repairs to be carried out at the customer's premises, the repairs will not be carried out on the equipment at the customer's premises. The following sentence applies to purchases of equipment for the customer's trade, business or profession. Except as otherwise expressly provided in this Document and to the extent permitted by law, Sagem Communication makes no representations or warranties, express or implied, statutory or otherwise, and to such extent, all terms and conditions implied by law are hereby excluded.

This guarantee does not affect the Customer's statutory rights.

B) Exclusions From Guarantee

Sagem Communication shall have no liability under the guarantee in respect of :
- damage, defects breakdown or malfunction due to :
-failure to properly follow the installation process and instructions for use; or
-an external cause to the equipment (including but not limited to, lightening, fire, shock or water damage of any nature); or
-modifications made without the written approval of Sagem Communication; or
-a failure or neglect to maintain the equipment or inappropriate maintenance; or
-unsuitable operating conditions, particularly of temperature and humidity; or
-repair or maintenance of the equipment by persons not authorised by Sagem Communication.
- wear and tear from normal daily use of the equipment and its accessories
- damage due to insufficient or bad packaging of equipment when returned to Sagem Communication
- supply of new versions of software
- work on any equipment or software modified or added without the prior written consent of Sagem Communication malfunctions not resulting from the Equipment or from software installed in user workstations for the purpose of use of the equipment

• communication problems related to an unsuitable environment, including :

-problems related to access and/or connection to the Internet such as interruptions by access networks or malfunction of the line used by the subscriber or his correspondent

-transmission faults (for example poor geographical coverage by radio transmitters, interference or poor line quality)

• the local network fault (wiring, servers, workstations) or the failure of the transmission network

• the normal servicing (as defined in the user guide supplied with the equipment) as well as malfunctioning due to servicing not being carried out, servicing costs are in any event always borne by the customer.

C) In the cases set forth in B) as well as after expiry of the twelve month guarantee period, the customer must ask Sagem Communication for an estimate, and he/she must accept the estimate and agree to pay the charges mentioned in it before returning the equipment to Sagem Communication. The repair and delivery costs will be invoiced to the customer.

The foregoing shall apply unless otherwise agreed in writing with the customer and only for the UK. If any provision of this guarantee shall be held to be in whole or in part invalid or illegal due to an obligatory rule applicable to consumers pursuant to their national legislation, such invalidity or illegality shall not impair or affect the remaining provisions or parts of this guarantee.

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procuded for Sagem Communication and distributed or sold by

Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by

Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by

Sagem Communication

Sagem Communication - Customer relations department

www.agfaphotoprinter.com, support category.

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procuded for Sagem Communication and distributed or sold by

Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procuded for Sagem Communication and distributed or sold by

Sagem Communication

Sagem Communication - Customer relations department

(B 3aBcHMOCTU OT MODeJIIN)

YdaienHoeynpaBlenne
(B 3aBcHMOCTN OT MOdJIIN)

Budoeokaeb
(B 3aBNCIMOCTN OT MOJeIN)

3

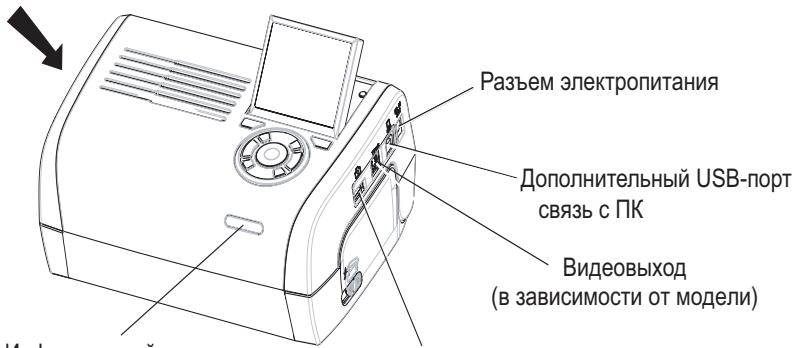

PoiKJIIOUeHnA

PazbemДЯуctaHOBKIN

KapTbI NamrTIn

Nnphpaekpachnb npT

IRDA

(B 3aBNCIMOCTN OT MOdJIIN)

TnabHbIe USB-aanTebpI:

Bluetooth (B 3aBnCmOCTn OT BapnaHT)

Ipeep noikquehnem BnMaTeIbHo n3yUte npabuHa texhkn

6e30napochtn, npBveeHHbIe B NaHaJIe 3TOrO "PykoBoIDCTBa

NIOJIb3OBATeJЯ".

	Видевыхов	IRDA	WiFi	Bluetooth
AP2300	-	-	-	-
AP2700	●	●	ВарваNT	ВарваNT

4

Примочан: Дя obecneченя npabINbHо NOdauNo ByMaRn BO BpeM NeaTn y6eNITcB, YTO c3aДипriNTepa ImeetcHe MeHee 10 caHTmEtpoC cBo6OHOrO MeCTa.

He yctaHabnBaIte npHTep B 3aBIIeHHOM MecTe, TAK KAK OceHaOua Ta bJIb MoKet OTpuataIbHO NOBmraTb Ha KaueCTBO NeaTn FOtorpaФи.

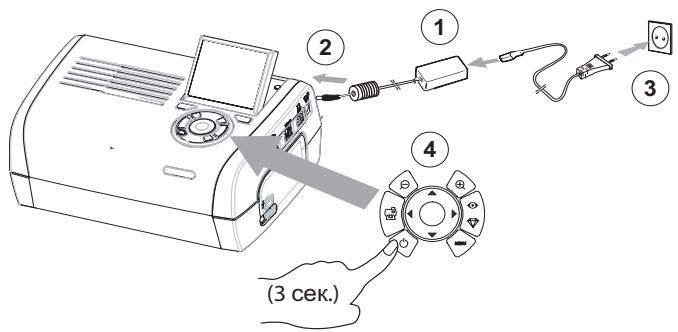

PoiIroTOBka npHTepa K pa6Ote

PoiKlIouHe 3JIeKTPoNtHaHn

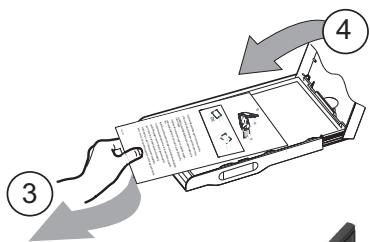

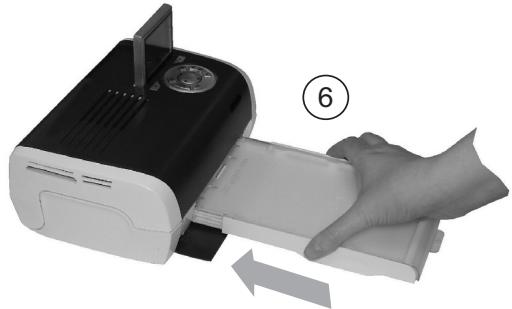

YctaHOBka 6ymarN

6

YctaHOBka KapTpndka

UncNo BbIbpaHHbIX CHIMKOB

UncNo BbIbpaHHbIX KOnn

AKTINBIPOBaHaФyHKLmCrystal Image

AKTINBIPOBAHaФуннклЯ Red-Eye

YbenuenHe uactn foToIrpaofni

U3meHnB u3opaKeHH

UdaneHne KOnn,KnabNsa BbIbopa

YnyucheHne KaueCTBa neaTn

IcnoJIb3yIte KoppeKtnpyUoiue fynkui "Crystal Image" n "YcTaPHeHne 3ΦΦeKa TpaChbIX rJa3".

Функця Crystal Image abTomatnueckn yctaHaBnBaet BCE HactpoK n uCnpaBHeHn, KOTopbIe Heo6xOdmbI dIy oEceueHn HauNyUnx 3NaeHn pe3KoCTn foTOrpaΦn, a TAKKe ZBeTa N KOthpactHOCTn, UTO npINBOuNT K yUnuSeHnIO KaueCTBa foTOrpaΦn.

Kpome TORO, 3Ta ΦyHKζηι ΜΟ3BΩJIaER T KOPpeKTnIPOBaTb DeΦeKtbl EKcN03HζιN (HapnIMep, φOTORpaФиЯm C HeIOCTaTOHCH ΚEKN03Mlueh ΜyET npdAbaTcB 6OJIbIaR JRPoCtB, a N3bIbTOHJa KOHTpAcTHOCb HekOTOpbIX φOTORpaФиR ΜyET KOMneHCnPOBaHΑ. ΦyHKζηι yCTpaHEHηι ΕφΦeKta "KpachbIX rIa3" Red-Eye npIMehaERcK φOTORpaФиЯm, CdeNaHHbIM CO BCbIbIKoK.

Примechа: По умлчаню корpeктуруюше Функции "Crystal Image" и "Устранене зфөгтаддхлгд" OTKПЮЧЕнbl.

Ybaxaemblnokynatelb,

BbToIbKo YTO npNo6peHn PnINTep Sagem Communication, mMb 6IarOaIapm Bac 3a 3Ty NOKynk. 3Ta npOyKuN8 bblna n3rOToBHeHa B CTrpEmHeH N BbICOKOMy KaHeCTBy, KOTOpoe, KaK Mbl HaedeemCra, DOJIxHO doCTaBnTb Bam a6conIOthoe yDoBneTBopeneHne.

Ecni, He cmoTpa Ha Bce Hauu ycnnia, Bbl obapyknn Kaoi-TO daOpnhb IeΦeK, noxaynta, o6patntecb M mara3nH, rde Bbl npnooppeiio ToBap. Tam Bbl noluynte nHΦopmaun O daIbHeuix DeIcTBnx.

ObopydobAHne, KOTOpoe Bby ToIbKO UTo npIObpeIN (He yUHTbIBaJeHbI, 6ymar...r) rapaHTnpoBaHO kOMnAhnE Sagem Communication, OTHocnteBHO KOMnJIeKtTyUOxN x c6OpKn*, corNaCHO HIXKeONcAHHbIM ycNoBnM n IpoCeDyPam. TapaTnI NOKpbIbAet DeΦeKtB I POn3BOvCTBa, BO3HkUWe B pe3yIbTaTe HeNPaBnBHO C6OpKn IIn N3bYHOB DeTanei, B TeYeHne 12 (DbEnaTu) MeCzEeB, HauHna O T DaTBI nOKynKN ObopydOBAHn (ДЯ akCEccyApOB: TpN (3) Mecza, CUnTA O T DaTBI NOKynKN). 3Ta rapaHTnI paCnpocSTpaHaeTcHa OOBpyDobAHne, INcNoB3OBAHnHO PoIObaUOuIM O6pa3OM.

Y Bac nontpe6yHOT doka3aTeIbCTBO O nOKyIke; nO3OMy peKoMeHdyETc xpaHITb Yek B hAedxHOM MeCTe.

ObopyoBaHne, OTPeMOHTnPOBaHHO B TeueHne cPoka DeiCTBna rapaHTnI, rapaHTnpoBaHO KOMpaHnei

Sagem Communication (Детали и сборka)¹ до постену днэ:

• NCTeueHnBbIeunomyHToRrapaHTmHorO cPoka, nJIn,
• Tpex (3) Meçaueb, co dHry yctpaHENr deΦeKt a KomnHnei Sagem Communication.

Hnkaoe obopuyobahne He 6ydt OdoJKeHo BO BpeMa peMOHa.

IpeTeM, KaK cTaB Ha peMOHT dEeKTHoe oOboyOBaHne, He 3a6yIbTe:

• Coxpahntb BCE nepcohaIbHbIe daHHbIe, TAK KAK OHN MOrY 6bITb ydaJIeHbI BO BpEmpeMOHTa. Kompanna Sagem Communication He Hecet OTBETCTBeHOCTH 3a yHNUToXeHne BaIIX nepcoHaJIbHbIX daHHbIX n He 6ydt 3aHIMaTbcra IX NOBTOPH YCTaHOBKO HA BaIeM oBOpyDobAHIN.
  BnOxNtB bynakOBky cobopyoBaHm BaIe nApc n TeJepOH.
  BLOKHTbByynakOBky KOINIOdoKa3aTeJIbCTBaO nokyIke o6OpdyoBAHn.
  -Держпгпспсceбе Всakceccуapы (провoda...),pacxODньe MaTePnAnbIи BaShи nInHbIe npin6Opbl (KapTbI nAmTn,Иnp...)

3Ta rapaHTnHe paacnpoctpaHReTcHa 3aKoHHbIe npaba YacThbIX noTpe6nteJIe.

HnKecIeNyUoee OTHocntcTc TOnbko K BeJIInKobpTaHm. Ecnn KaKoi-Jin6o NyHKT daHHoR rapaHTn Okajetc TaCTNUHO nIN NONHOCTbIO He 3aKOHEn nIN He 6yDeT COOTBETCTBOBaT bPnIMHeMbIM B o6raTeJbHOM nopAKe K Notpe6NTeJIam npaBnIaM, B COOTBETCTBn C aHrJnNCKIM 3aKOHODaTeJIbCTBOM, 3Ta He3aKOHHOCTb IN HecOoBTcTBne PpaBnIaM He NOBnIAJOT N He aHHyIpyIOT octaJIbHbe IyHKtI 3TOI rapaHTn.

TAPAHINHbIE NCKJIIOUeHENIA

He rapaHTnpyIOTc:

BHeuHn pafKTop (BKnIOUaI He OrpaHnUBAcB ydaPAMN, N3bIToCHbIM CBeTOM, YMbIuJIeHHoI NOPueH, HEOCTOPOXHbIMN DeIcTBnAIMN, BO3rOpAHMe, NOBpeKdEHNMAI, Bbl3BaHbIMN pa3NIuHbIMN XnIDKOCTaMn, HaceKOMbIMN-Napa3NTaMn HecOOBTcTByUoiMm 3NeKtpNuCeckMn NaHpRKeHneM); nII

www.agfaphotoprinter.com, support category.

Türkçe

HOSS GELDINIZ

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procued for Sagem Communication and distributed or sold by Sagem Communication

Sagem Communication - Customer relations department

GARANTIYE DAHIL OLMAYANLAR

www.agfaphotoprinter.com, support category.

Magyar

Udvzöljuk

AGFAPHOTO is used under license of Agfa-Gevaert AG

AP2300-2700 are procuded for Sagem Communication and distributed or sold by

Sagem Communication

Sagem Communication - Customer relations department

www.agfaphotoprinter.com, support category.
