EASY 270 - Photo printer SAGEM - Free user manual and instructions

Product type	Thermal transfer photo printer
Brand	SAGEM
Model	EASY 270
Dimensions (without paper tray)	201 x 174 x 94 mm
Weight	1.5 kg
Power supply	230 V AC, 50/60 Hz
Power consumption (standby/printing)	7.6 W / 60 W
Printing method	Thermal transfer (yellow, magenta, cyan + varnish)
Print resolution	300 x 300 dpi
Colors	16.7 million (continuous)
Print speed	Less than 120 seconds per photo
Supported memory card formats	CompactFlash (type I & II), SmartMedia, Memory Stick, SD, MMC
PC interface	USB 1.1
GSM photo storage (infrared)	Up to 500 KB
Max image resolution	Up to 12 million pixels
Paper tray	Automatic feeder, capacity 20 sheets
Paper format	101 x 152.4 mm (10x15 cm with perforated borders)
Consumables	3-color ribbon + varnish (40 prints); photo paper in packs of 20
Operating temperature	10 to 35 °C
Operating humidity	30 to 85%
Print head cleaning	Denatured alcohol and cotton swab (with power off)
Paper jam troubleshooting	Remove the sheet from the bottom after unplugging
Warranty	1 year parts and labor (excluding consumables and wear)
Safety standards	CE (directive 1999/5/EC)

Frequently Asked Questions - EASY 270 SAGEM

How do I insert a memory card into the EASY 270 printer?

Insert the card into the appropriate slot: CompactFlash on the right, SmartMedia, Memory Stick, SD or MMC on the left. Never force, the cards do not insert fully. Check the orientation (contacts facing up for SmartMedia).

What to do if the screen displays 'Err 01' (no paper)?

Error 'Err 01' indicates that the tray is empty or improperly inserted. Check that the paper tray contains a pack of 20 sheets (shiny side facing up) and that it is properly engaged. Then press the Print button to resume printing.

How to clean the print head?

Turn off the printer and unplug it. Wait 5 minutes for the head to cool down. Open the ribbon cover, remove the ribbon, then the paper tray. Turn the device over, remove the bottom cover, and gently clean the heating line with a cotton swab soaked in denatured alcohol. Replace the cover, tray, and ribbon before reconnecting.

Can I print directly from a smartphone?

Yes, via infrared connection. Place the phone facing the IR window of the printer less than 30 cm away (10 cm in bright environments). Select a photo on the phone and start the transfer. The printer displays 'Ir' during transfer, then the photo is stored and can be printed.

What types of paper and ribbon should I use?

Use only SAGEM consumables intended for this model: 101 x 152.4 mm photo paper in packs of 20 sheets, and three-color ribbon (yellow, magenta, cyan) with varnish. The kits are referenced 251 300 344 (40 photos) and 251 300 336 (120 photos).

How to print multiple photos on one sheet?

After selecting a photo, press the format button repeatedly to choose: 2 photos per page, 4 photos per page or 20 photos per page (contact sheet). The required number of sheets is displayed automatically.

What to do in case of a paper jam?

Turn off the printer and unplug it. Turn the device over, remove the bottom cover, gently remove the jammed sheet (without touching the print head). Replace the cover, reconnect, and turn on. Do not reuse the damaged sheet.

How to print in DPOF mode from the camera?

Select the photos to print on your DPOF-compatible camera. Insert the memory card into the printer: the DPOF icon appears with the number of photos to print. Press the Print button to start printing. To exit the mode, press the Cancel button (c).

My computer does not recognize the printer via USB, what should I do?

Make sure the printer driver is installed (provided CD-ROM) before connecting the USB cable. Once the driver is installed and the PC restarted, plug the USB cable into a PC port and into the printer. Recognition is automatic. Make sure the printer is turned on.

How to replace the print ribbon?

Turn on the printer, wait 10 seconds for the head to rise. Open the right cover, remove the old ribbon. Take the new ribbon out of its packaging, remove the cardboard piece by stretching the film. Insert the ribbon into its compartment until it stops, then lower the green latch. Close the cover.

USER MANUAL EASY 270 SAGEM

personal photo printer*

1 WELCOME 1
2 DISCOVER YOUR PHOTO EASY 150 PRINTER 2
3 PREPARE YOUR PHOTO EASY 150 PRINTER 3

Connect the mains supply 3

Insert a film cartridge 4

Loading paper 5

4 PRINTING FROM A MEMORY CARD 6

Insert a memory card 6

5 USER INTERFACE 8

Print your photographs 9

Rapid printing 9

Example of rapid printing from a memory card 10

Create a contact sheet (index) 11

Prepare a series of photographs for printing

(shopping trolley mode) 13

Print in DPOF (Digital Print Order Format) mode 15

Printing from a GSM mobile phone camera 15

6 PRINT FROM A PC (PERSONAL COMPUTER) 18

Install the software 18

Connect your printer 19

7 REPLACEMENT OF CONSUMABLES 20

8 MAINTENANCE 21

Cleaning the print head 21

Paper jam 22

Problems 22

Error messages 23

Technical data 24

9 GARANTEE 25

1 WELCOME

You have just acquired a SAGEM PHOTO EASY 150 printer, and we thank you for choosing our product. With this high quality printer you can get the most out of your digital photos. In a few simple steps you can produce photo prints identical to those from a professional developer, for your personal use or to share with friends and family.

The easy-to-follow steps in this user guide will walk you through:

1. Switching on your PHOTO EASY 150 printer
2. Printing photographs stored on a memory card
3. Printing photographs transferred from a camera in a GSM mobile phone
4. Installing the image processing software and printer driver on a PC
5. Maintenance and troubleshooting of your PHOTO EASY 150 printer

The CD-ROM included with your kit contains an additional guide with instructions for using the image processing software and printer driver on your PC.

Safety instructions and recommendations

• Do not install your PHOTO EASY 150 printer in a humid room (bathroom, laundry, kitchen, etc.), or within 1.50 m of a tap or water source, or outside. The printer should be operated within an ambient temperature range of 10 °C to 35 °C.
• Do not install your printer in a location where there is a noticeable amount of dust floating in the air. Such dust can degrade the print quality of your photos.
• Only the power supply provided with the printer should be used. Connect this to the mains in accordance with the installation instructions in this user guide and the information on the identification label affixed to the power supply (voltage, current, mains frequency) ^1 .
• Never open the cover of the film cartridge compartment during printing. This could break the film and cause printer malfunction.
• Only use SAGEM consumables, if not you are likely to damage the equipment and invalidate the guarantee. To obtain the references of the consumables (Refer to paragraph Replacement of consumables, page -20).
• The EC marking certifies that the product meets the main requirements of the European Parliament and Council directive 1999/5/CE on telecommunications terminal equipment, regarding safety and health of users, and regarding electromagnetic interference.

CE

2 DISCOVER YOUR PHOTO EASY 150 PRINTER

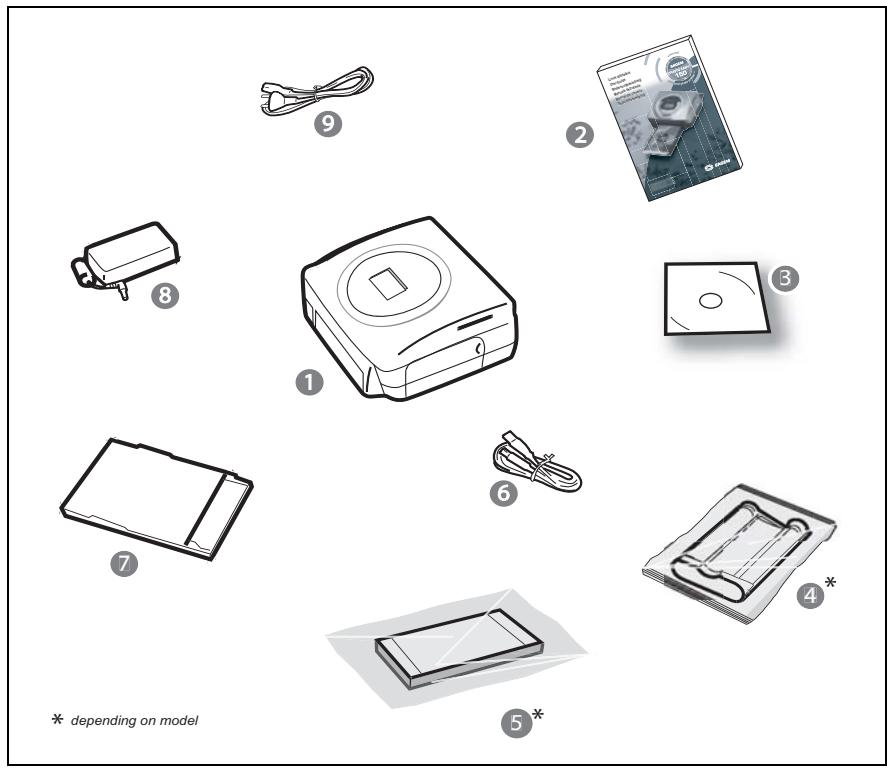

Place the box in front of you, open the packaging and check that you have received the items listed below:

1 PHOTO EASY 150 printer
2 User manual
3 CD-ROM with its applications
4 Film cartridge *
5 Photo paper (2 packs of 20 sheets)*
6 USB cable
7 Paper tray
8 Power supply unit
9 Mains cable

3 PREPARE YOUR PHOTO EASY 150 PRINTER

CONNECT THE MAINS SUPPLY

Remark:

When installing your printer near a wall or some other object, keep an open space of at least 4 inches at the back of the printer, to make sure the movement of the sheet of paper being printed is not obstructed.

Please refer to the safety instructions at the beginning of this user guide before making any connections.
Insert one end of the mains lead into the corresponding socket of the power supply.

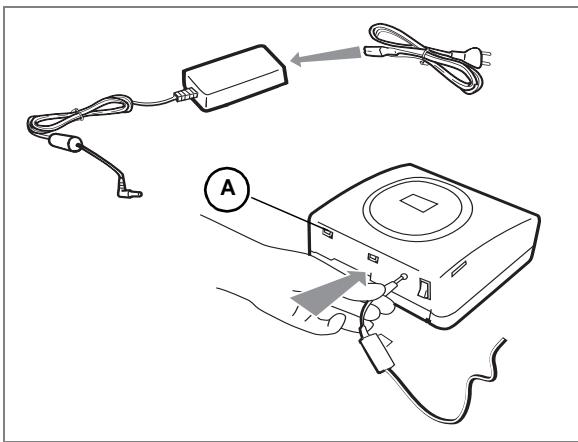

Connect the power supply to the printer as shown in the illustration below.

Plug the other end of the power supply mains lead into a wall socket.
Switch on the printer by pressing the "I" on the on/off switch located at the back of the printer. The green light on the upper cover of the printer and segments on the LCD screen blink during the initialisation phase.

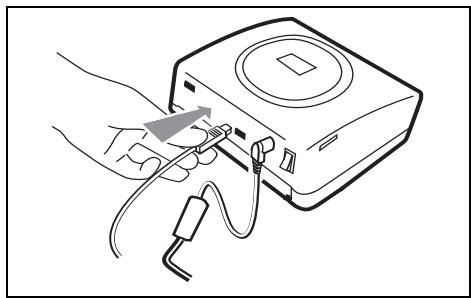

Your printer has a Master USB, Mass storage SCSI connector (A). To obtain the list of peripherals compatible with this USB port, please visit our site www.sagem.com.

INSERT A FILM CARTRIDGE

Switch on the printer. Wait 10 seconds for the printhead to lift, then:

1 - Open the external flap located on the right-hand side of the printer.
2 - Remove the protective foam.
3 - Take the new ribbon out of its packaging and make sure that the film is stretched after removing the card (A).
4 - Install the ribbon in the position shown in the illustration below.
5 - Lift the locking lever and push in the film cartridge until it touches the back of the compartment the locking lever must be locked after insertion.
6 - Close the external flap.

1

Line drawing of a hand holding a device with a curved arrow indicating motion (no text or symbols)

2

Diagram of a device with arrows indicating movement or force, no text or symbols present

3

4

Line drawing of a mechanical device with a circular top and rectangular base (no text or symbols)

5

6

Line drawing of a hand inserting a device into a box with an arrow indicating the process (no text or symbols)

Warning - Never touch the film cartridge with your fingers. Make sure the cartridge is completely inserted into the printer. Check that the green locking lever is correctly lowered.

Remark:

In the event of any difficulty, check that there are no foreign objects in the film cartridge compartment.

LOADING PAPER

1

Line drawing of a hand inserting a card into a folder with an arrow indicating direction (no text or symbols)

2

Protection sheet

3

4

1 - Pull the paper tray out of the printer.

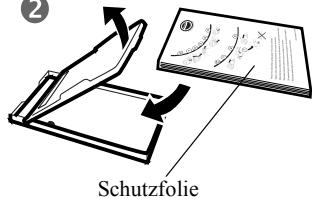

2 - Open a pack of paper with the protection sheet on the top, insert it in the paper tray, making sure the rectangle reserved for postage stamps is on the outside of the tray, that is, towards you. Make sure that the package of sheets that you have inserted in the paper tray is held down under the plastic tab located at the front left of the tray (see illustration after).
3 - Remove the protection sheet.
4 - Line up the tray with its compartment and push it in slowly until the locking system clicks.

Warning - handle paper sheets by their pre-cut edges, never allow your fingers to come into contact with the shiny surface before printing.

Illustration of two hands holding a ruler crossed out by a diagonal line (no text or symbols)

Your SAGEM PHOTO EASY 150 printer is now ready to print your digital photographs.

Warning - protect consumable items against prolonged exposure to light, humidly, heat and dust. Respect the operation conditions set out (Refer to paragraph Technical data, page -24). Only use SAGEM brand consumable items designed for this printer. Make sure that a previously printed photograph has not been slipped inadvertently into a packet of blank pages; this could damage the ribbon of your printer.

Warning - Make sure that a previously printed photograph has not been slipped inadvertently into a packet of blank pages; this could damage the ribbon of your printer.

4 PRINTING FROM A MEMORY CARD

Your SAGEM PHOTO EASY 150 printer is designed to be used with or without a computer. This chapter describes printer operation without a computer.

Refer to the technical data table at the end of this user manual to check whether your memory card is compatible with the printer. In the event of incompatibility, use a computer and the image processing software supplied on the CD-ROM.

Warning - Small sized images, less than 80,000 pixels, cannot be printed from memory cards (for example: an image size 320 x 240, equivalent to 76,800 pixels, will not be included in the index). On the other hand, these photographs may be printed from a PC or by means of a wireless IR link.

INSERT A MEMORY CARD

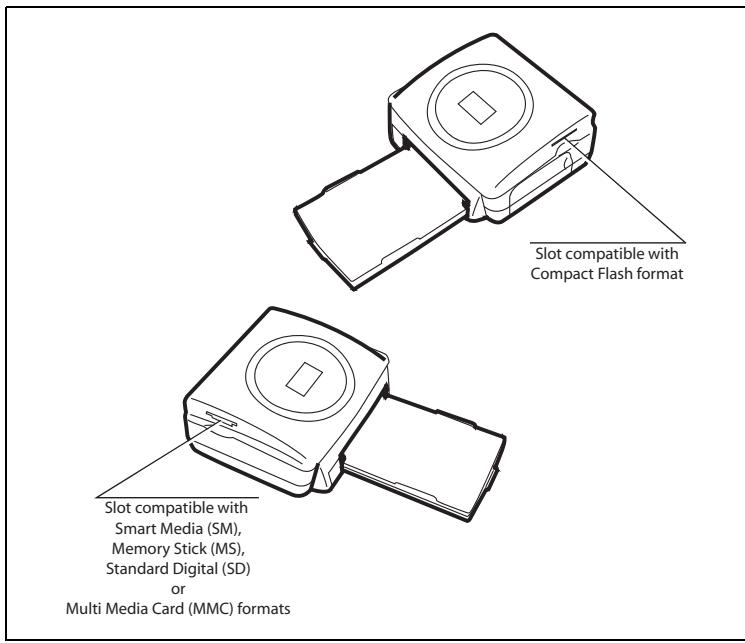

Insert your memory card into the corresponding slot, as shown in the illustrations below.

Warning - SmartMedia, CONTACTS FACING UPWARDS.

Warning - The memory cards do not enter fully in the reader slot. DO NOT USE FORCE UNDER ANY CIRCUMSTANCES.

If a card does not enter properly, remove it and check that you are introducing it in the correct slot and with the right orientation.

CARD	SLOT	LOCATION
Smart Media (SM)	Left
Memory Stick (MS)	Left
Standard Digital (SD)	Left
Multi Media Card (MMC)	Left
CompactFlash	Right

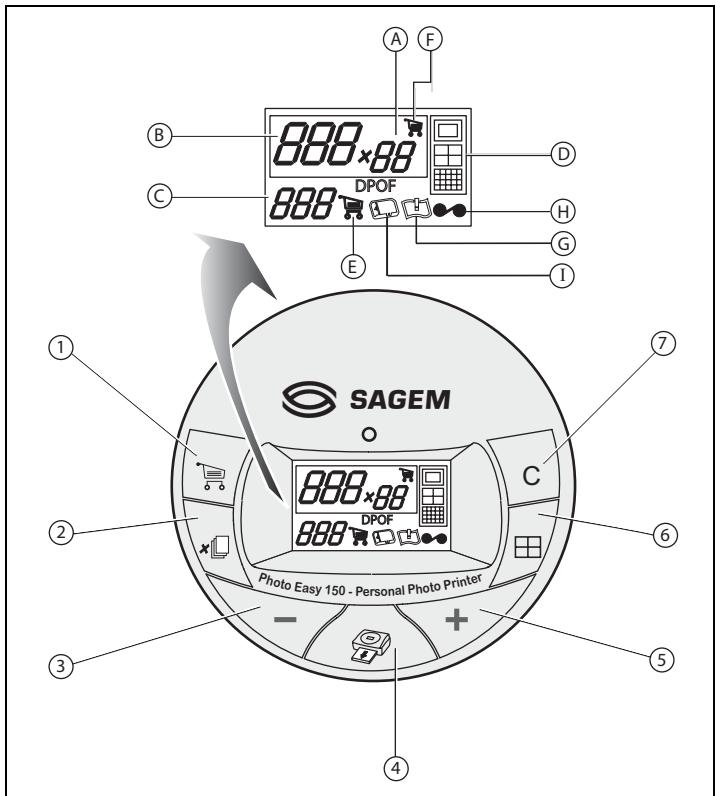

5 USER INTERFACE

1 - Add a selection to the shopping trolley ^1
2 - Select the number of copies per photograph (between 1 and 20)
3 - Go to the previous photograph number (..., 3, 2, 1)
4 - Start printing
5 - Go to the next photograph number (1, 2, 3...)
6 - Select the print format
7 - Cancel
A - Number of copies to be printed
B - Number of the active photo
C - Number of sheets that will be printed
D - Print format
E - Shopping trolley mode
F - Active photograph in the shopping trolley
G - Paper error
H - Ribbon error
I - Memory card icon

PRINT YOUR PHOTOGRAPHS

Your printer is switched on, and you have inserted a memory card, or you have transferred photographs from a GSM mobile phone camera using the IR (infrared) link.

The green light blinks while data are being transferred to the printer. After a few seconds, the number of photographs found on the memory card or in the digital camera, or transferred from the GSM mobile phone camera, is displayed on the screen. The light stops blinking.

Your photos are printed in four stages. The printer first prints the three colours: yellow, magenta and cyan in that order, then deposits a protective film on the sheet of papier, and finally ejects the photo.

The colour of the light shows the printer status:

Steady green: printer ready, on standby,

Blinking green: data being tranferred,

Steady red: incident: refer to the end of this user guide.

Remark:

To enable you to handle your photographs under the right conditions, the size of the sheets of paper is greater than the printed surface and the two lateral edges are pre-cut.

After printing, do not tear these edges abruptly, fold along the dotted line several times and then gently tear off the edges.

Tips - The edges can be removed on a number of photos at a time by superimposing them on each other.

RAPID PRINTING

Select the number of the photograph required using the

Press the x□ key to set the number of copies.

Press the key to select print format.

You may select a predefined format to print the photographs:

· Print your photograph in format 10 x 15 cm full page, no border ____.
- Print your photograph in format 10 x 15 cm with a white border.
· Print your photograph in format 10 x 13 cm
- Print 2 photographs per page.
- Print 4 photographs per page.
- Print 20 photographs per page (contact sheet or index).

Once the selection is made, press the key to start printing.

If printing is interrupted due to a lack of paper, paper jam or empty film cartridge, the printing operation may be restarted where it was interrupted by pressing the key after the necessary replacement or defect correction is performed.

Idea - Using the pre-printed reverse side postcard you can quickly send your photograph to friends, family, etc.

Tips - Hold the C key down for 3 seconds to reinitialise the printer and return to the default status, such as when inserting a card.

EXAMPLE OF RAPID PRINTING FROM A MEMORY CARD

The memory card contains 23 photographs. We want to print photograph number 3, 4 times on the same sheet of paper.

Put the On/Off switch to "I".

Insert the memory card into the correct printer slot.

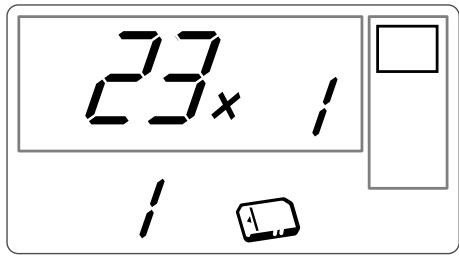

After the analysis and recognition phase, the number of valid photographs is displayed on screen and the memory card icon and green LED stop blinking.

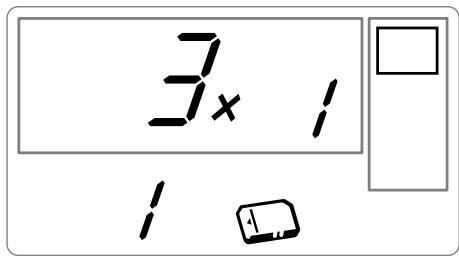

Select photograph 3, using the + key.

Press the × key until the figure 4 is displayed (that is 4 copies).

Press the key until the 4 images/page graphic is selected.

The figure 1 should be displayed as the number of sheets necessary for the printing operation.

Press the 🔍 key to start printing.

CREATE A CONTACT SHEET (INDEX)

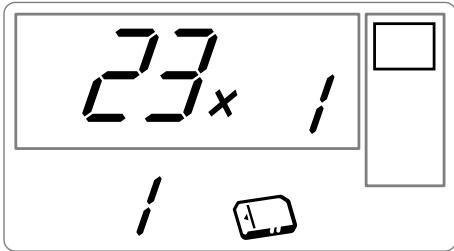

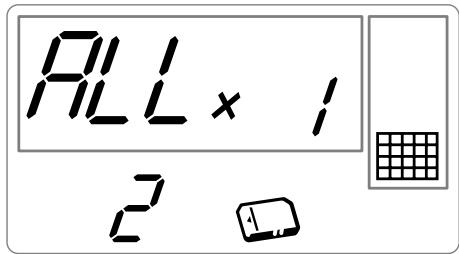

After inserting the memory card, the number of valid photographs is displayed on screen and the icon representing the memory card stops blinking.

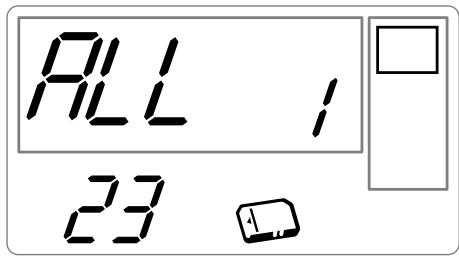

Press the + key until ALL is displayed on screen.

Select the format photographs per sheet format using the key.

In the example provided above, 2 sheets will be necessary to print 23 photographs.

Press the he key to initiate printing.

Idea - The contact plate is a simple way of displaying all the photographs on your memory card; choose those to be printed using the number assigned to each of them

PREPARE A SERIES OF PHOTOGRAPHS FOR PRINTING (SHOPPING TROLLEY MODE)

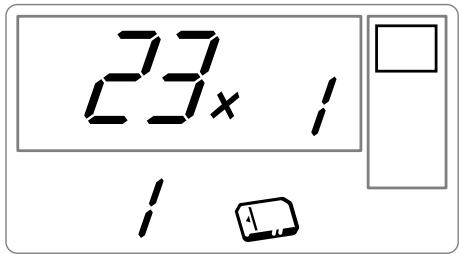

After inserting the memory card, the number of valid photographs is displayed on screen and the icon representing the memory card is lit up steadily.

This example describes how to print 4 copies of photograph 3, 1 copy of photograph 8 and 2 copies of photograph 16.

Remark: Printing format remains fixed for series printing.

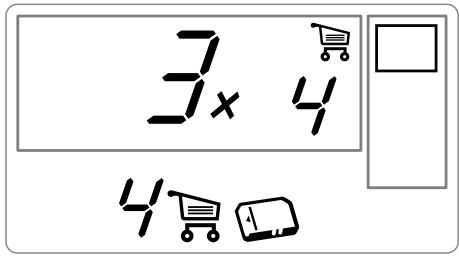

Select photograph 3, using the + , key; press the *□ key until the figure 4, corresponding to the quantity desired, is displayed.

Press the 📁 key to add the photograph to the "shopping trolley" (the series). The icon indicating that the active photograph is in the shopping trolley is displayed, as well as the shopping trolley mode icon to indicate the presence of photographs in the shopping trolley.

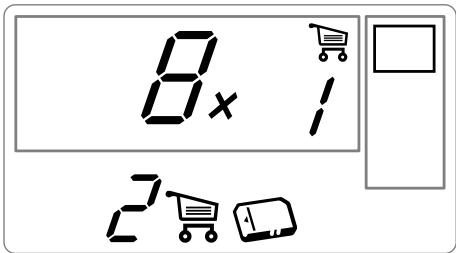

Select photograph 8, using the + key, press key to add this to the shopping trolley (the default number of copies is 1).

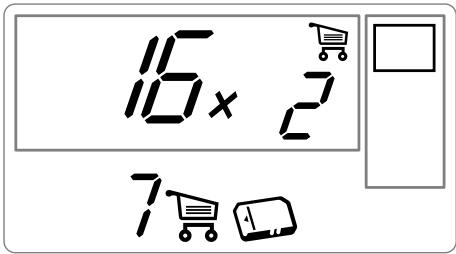

Select photograph 16, using the + key, press * key until the figure 2, corresponding to the desired number of copies, is displayed.

Press the key to add this to the shopping trolley.

The number of sheets required is displayed to the left of the shopping trolley icon. Press the key to start printing.

Remark:

If you notice that you have made an error after having validated the selection with the key, press the key again to cancel and redo the selection. This cancels only the most recent selection. It is also possible to deselect all photographs by selecting ALL using the + key and pressing the key twice.

Tips - To rapidly add a series of consecutive photographs to the shopping trolley, select the photograph with the lowest number and press and hold down the shopping trolley key.

Photographs will be automatically added to the shopping trolley one by one until the shopping trolley key is released.

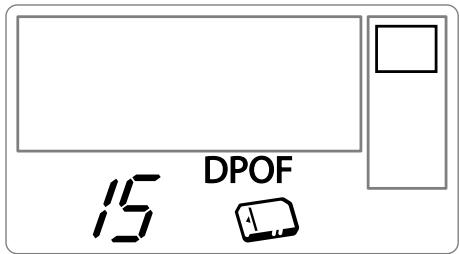

PRINT IN DPOF (DIGITAL PRINT ORDER FORMAT) MODE

This function lets you select the photographs to be printed on your camera, then print them on the SAGEM PHOTO EASY 150 printer from a memory card. Your camera must comply with the DPOF (Digital Print Order Format) standard. Refer to your camera documentation to find out if it is compatible with this standard.

Select the required photographs on the camera (follow the instructions in the documentation of your camera).

Remove the memory card from the camera and insert it into the correct slot of your SAGEM PHOTO EASY 150 printer. This starts the data transfer. The DPOF logo on the printer screen is activated and the number of printable photographs is displayed in the lower left-hand corner of the screen.

Warning - Example: memory card that contains 15 photographs selected for printing.

Start printing by pressing the key.

To exit DPOF mode, press the key.

To switch back to DPOF mode, press and hold the c key down for 3 seconds.

PRINTING FROM A GSM MOBILE PHONE CAMERA

Photographs taken with a GSM mobile phone equipped with a camera can be printed on the SAGEM PHOTO EASY 150 printer. To do this, the photographs need to be transferred to the printer via an IR (infrared) link between the 2 devices.

Switch on the SAGEM PHOTO EASY 150 printer (press "I" on the on/off switch).

Tips - GSM mobile phones with cameras work on low definition ; for a better quality of print we suggest you print 2 or 4 photos per sheet.

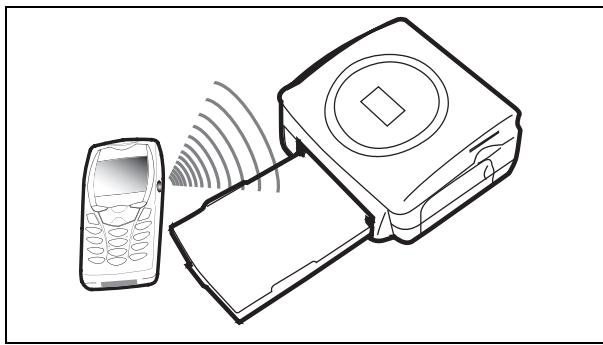

Place your GSM mobile phone opposite the SAGEM PHOTO EASY 150 printer so that the IR "windows" are facing each other and are not more than 30 centimetres apartPlace your GSM.

Warning - In an environment exposed to intense light, a distance of not more 10 centimetres between the two infrared windows is recommended.

Line drawing of a mobile phone connected to a CD and an open case, with signal waves indicating wireless or signal transmission (no text or symbols present)

Select a photograph on your GSM mobile phone and start the IR ink transfer. The message "Ir" blinks on the printer screen throughout the transfer operation.

When the transfer is complete, the following information is displayed on the screen:

You can now:

• Start printing the transferred photograph, after setting the print format and number of copies if required.
• Transfer another photograph from your GSM mobile phone camera, which will be added to those already stored in the printer. At the end of each transfer, the total number of photographs stored is displayed on the printer screen (the one with the highest number being the last one transferred).

- The same operations as described in the previous chapters can now be performed before starting to print the photographs: (selecting the photographs to be printed, selecting the format, selecting the number of copies).

After all photographs transferred from your GSM mobile phone camera have been printed, the SAGEM PHOTO EASY 150 printer screen displays the information that was on the screen just before you started the print job.

You can now:

• Start another print job, after selecting different parameters (photograph number, format, number of copies) if required.
• End the transferred photograph processing. To do this, hold the C key down for 2 seconds.

6 PRINT FROM A PC (PERSONAL COMPUTER)

Your kit includes an installation CD-ROM containing a printer driver, image processing software.

Make sure that your PC is compatible with the requirements as specified (Refer to paragraph Technical data, page -24).

PC configuration required:

Pentium or equivalent,

OS : Windows 98 SE / 2000 / Me / XP,

128 MB DRAM or more,

150 MB available on hard disk,

USB port available.

INSTALL THE SOFTWARE

The SAGEM PHOTO EASY 150 software is installed in three steps: running the Install program, restarting the computer, and performing the final printer installation.

Do not connect the printer to the PC before installing the printer driver. After you have installed the software, a message will be displayed asking you to restart the PC. After restarting you can connect the printer to the PC.

Insert the CD-ROM in the drive to start installation. A command window appears. Follow the instructions displayed on the screen.

If the installation program does not start automatically, you can start it by double-clicking on the "setup.exe" file located in the CD-ROM root directory.

The CD-ROM contains an installation manual which includes detailed operating instructions for the printer driver. Refer to this manual for further information.

Remark: The B/W print option is not available in Windows 98.

CONNECT YOUR PRINTER

Make sure that both the PC and the printer are switched on. Never apply force when plugging in connectors into the equipment as this could damage both the cable and the connector.

Connect the USB cable to a USB port on your PC.
Connect the other end of the USB cable to the SAGEM PHOTO EASY 150 printer.
Recognition between the two devices is automatic.

Line drawing of a hand inserting cables into a device (no text or symbols)

7 REPLACEMENT OF CONSUMABLES

The consumable items used with the SAGEM PHOTO EASY 150 printer (film cartridge, paper) are SAGEM (PLC) brand products. Consumables may be purchased in all big stores in the photography or printer sections but also on out internet site www.sagem.com or by using the consumables order form supplied with your printer.
Use of any consumable items other than SAGEM (PLC) brand products may result in the loss of the printer's guarantee.

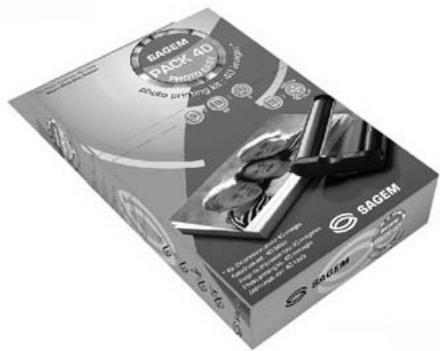

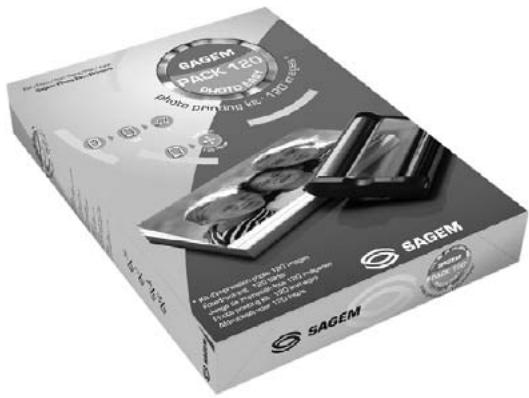

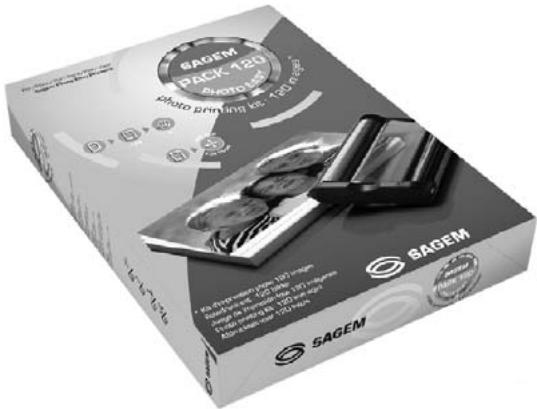

SAGEM consumable item kit references:
- Film cartridge (ribbon + paper for 40 photos): ref. 251 300 334

- Film cartridges (3 ribbons + paper for 120 photos): ref. 251 300 336

CLEANING THE PRINT HEAD

Continuous lines across the length of your photographs may be caused by dirt particles stuck to the printhead.

You will need a methylated alcohol ^1 based cleaning product and some off-the-shelf cotton tips ("Q-tips").
Switch off your printer, disconnect the main cables and wait for five minutes; since the print head operates at a high temperature, there is a risk of burning if you touch it.

1 - Open the cartridge flap. Press on the locking lever and pull out the film cartridge.
2 - Pull out the paper tray.
3 - Turn the printer upside down to remove the lower hatch.
4 - Clean the heating line of the print head carefully using a cotton bud.
5 - Replace the lower hatch, turn the printer right side up, connect the mains cable and switch on the printer.

Warning - Never touch the print head with your fingers or any object that might scratch it.

1

2

Illustration of a hand inserting a card into a folder with an arrow indicating direction (no text or symbols)

3

Line drawing of a hand using a tool to press or adjust a device (no text or symbols present)

4

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to press down an electronic device (no text or symbols visible)

Replace the film cartridge. Take care that the film is taut before inserting the cartridge into its compartment. Check that the locking lever is pushed down correctly and close the flap.
Push the paper tray back into place until the locking system clicks.

PAPER JAM

Follow this procedure if a sheet becomes stuck in the printer and cannot simply be pulled out:

Switch off your printer by pressing "O" on the switch behind the printer and disconnect the mains cable.
Turn the printer upside down.
Remove the lower cover.
Gently and carefully remove the sheet causing the jam. Under no circumstances touch the printhead.
Replace the lower cover and turn the printer right side up.
Switch on the printer and reconnect the mains cable.

Warning - Never use objects that could damage the printer (scissors, screwdriver, paper cutter, etc.)

PROBLEMS

Remark:

The printer is fitted with an automatic time-out to prevent overheating, this can be tripped when performing large print jobs. The printer automatically restarts the current print job as soon as the temperature drops back to normal.

PROBLEMS	SOLUTIONS
No mains supply(indicator lamp off)	Check that the power supply block is correctly plugged into the mains.Check that the power supply connector is correctly plugged into the printer.Check that the mains socket is live (check fuses and/or circuit breakers of your installation as necessary).
The light (indicator lamp red)	Refer to the error table below (Refer to paragraph Error messages, page -23).
The printer was unplugged during a print job	Set the printer on/off switch to "o" and then reconnect the mains lead.Switch on the printer and wait for the initialisation phase to be completed.If a sheet of paper is jammed, carry out the procedure (Refer to paragraph Paper jam, page -22).Restart printing.
No photograph is printed on a sheet	Are you using sheets that meet the technical specifications (Refer to paragraph Technical data, page -24)Have the sheets been inserted shiny face up?
The photograph is marked with a continuous line or a lot of spots	Clean the printhead (Refer to paragraph Cleaning the print head, page -21).
No PC printing	Check that the USB cable is correctly connected.Is the printer driver installed?

ERROR MESSAGES

After any intervention on your printer, do not forget to press the key to restart the current print job.

Error displayed	Icon displayed	Error Type	Description	Action
Err 01		Paper	No paper	Check that the paper has been correctly inserted in the loading tray.
Err 02		Paper	Paper jam	Remove any paper jammed in printer (do not reuse this sheet of paper)
Err 11		Film cartridge	No film cartridge	Insert a new film cartridge or replace the current one.
Err 12		Film cartridge	End of film cartridge	Replace the film cartridge with a new one.
Err 13		Film cartridge	Film cartridge error	Check that the film cartridge is correctly inserted. If error persists: replace the cartridge.
Err 14		Film cartridge	Film cartridge missing or incorrectly inserted	Check that the cartridge is correctly inserted and that the locking lever is locked.
Err 21		Memory card	File damaged or incorrect	File illegible. Try to print others. If error persists: check the file source, or try with a different source.
Err 22	–	Memory card	JPEG decompression error	The file cannot be read. Try printing the others. If the error persists, check the source of the file or try with another source.
Err 23	–	Memory card	Unsupported JPEG feature	The JPEG file contains an unsupported feature.
Err 27	–	Memory card	Read error	The card or file are illegible. Check the card source or try with another source
Err 72	None	IR link	transfer error	Error during transfer of photographs from GSM mobile phone camera. Restart transfer from the GSM phone. Check that both devices are facing each other.
Err 75	None	IR link	Not enough space to store photograph	Photograph to be transferred too big or insufficient space to store photograph in printer.
Err 76	None	IR link	File format not supported	Photograph to be transferred is not in JPEG format.
Other error number	None	Other	System error	Switch off printer, wait 30 seconds and restart. If error persists, contact your retailer.

TECHNICAL DATA

PC configuration required:

Pentium or equivalent,

OS : Windows 98 SE / 2000 / Me / XP,

128 MB DRAM or more,

150 MB available on hard disk

USB port available.

Device name	:	SAGEM PHOTO EASY 150
Print method	:	Dye-diffusion thermal transfer
Resolution	:	300 x 300 dpi
Colours	:	16.7 million continuous
Print speed	:	Less than 120 seconds per photo (not including data transfer)
Interface	:	Memory cards, type Compact Flash (support type I & II), SM / MS / MMC / SD. USB port version 1.1
Storage of photographs transferred from a GSM phone camera	:	Up to 500 kilobytes
Image resolution supported	:	Up to 12 million pixels
Consumable items	:	Photo-quality paper. Film cartridge with three colours (yellow, magenta, cyan) and protective coating, 40 print operations per cartridge.Paper size: 101 x 152.4 mm, available in packets of 20 sheets
Paper tray	:	By automatic loader, capacity 20 sheets
Mains supply	:	230 V AC 50/60 Hz
Approval	:	EC
Operating conditions	:	10 °C to 35 °C, 30 % to 85 % humidity
Size	:	201 x 174 x 94 mm excluding paper tray
Weight	:	1.5 kg
Power consumption	:	in standby: 7,6 Win print mode: 60 W

All data are provided for reference purposes only. SAGEM (PLC) reserves the right to make any changes without prior notice.

GUARANTEE (UK Terms and Conditions)

In order to apply the guarantee, you should contact your dealer. Proof of purchase will be required. Should malfunctioning arise, the dealer will advise you what to do.

If you bought your equipment from SAGEM directly, the following shall apply :

A SAGEM undertakes to remedy by repair, free of charge for labour and replacement parts, any defects in the equipment during a period of twelve (12) months from the date of original delivery of the Equipment, where those defects are a result of faulty workmanship.

During this twelve month guarantee period, the defective equipment will be repaired free of charge; the customer must however return the defective equipment at his/her own expense, to the address given by SAGEM After Sales Department, the phone number of which can be found on the delivery slip. Unless the customer has concluded with SAGEM a maintenance contract in respect of the equipment which specifically provides for repairs to be carried out at the customer's premises, the repairs will not be carried out on the equipment at the customer's premises.

The following sentence applies to purchases of equipment for the customer's trade, business or profession. Except as otherwise expressly provided in this Document and to the extent permitted by law, SAGEM makes no representations or warranties, express or implied, statutory or otherwise, and to such extent, all terms and conditions implied by law are hereby excluded.

This guarantee does not affect the Customer's statutory rights.

B Exclusions From Guarantee

SAGEM shall have no liability under the guarantee in respect of :

• damage, defects breakdown or malfunction due to :
- failure to properly follow the installation process and instructions for use; or
- an external cause to the equipment (including but not limited to, lightening, fire, shock or water damage of any nature); or
- modifications made without the written approval of SAGEM SA; or
- a failure or neglect to maintain the equipment or inappropriate maintenance; or
- unsuitable operating conditions, particularly of temperature and humidity; or
- repair or maintenance of the equipment by persons not authorised by SAGEM; or

• wear and tear from normal daily use of the equipment and its accessories

• damage due to insufficient or bad packaging of equipment when returned to SAGEM

• supply of new versions of software

• work on any equipment or software modified or added without the prior written consent of SAGEM

- malfunctions not resulting from the Equipment or from software installed in user workstations for the purpose of use of the equipment

• communication problems related to an unsuitable environment, including :

- problems related to access and/or connection to the Internet such as interruptions by access networks or malfunction of the line used by the subscriber or his correspondent

- transmission faults (for example poor geographical coverage by radio transmitters, interference or poor line quality)

- the local network fault (wiring, servers, workstations) or the failure of the transmission network

- the normal servicing (as defined in the user guide supplied with the equipment) as well as malfunctioning due to servicing not being carried out, servicing costs are in any event always borne by the customer.

C In the cases set forth in § B) as well as after expiry of the twelve month guarantee period, the customer must ask SAGEM for an estimate, and he/she must accept the estimate and agree to pay the charges mentioned in it before returning the equipment to SAGEM. The repair and delivery costs will be invoiced to the customer.

The foregoing shall apply unless otherwise agreed in writing with the customer and only for the UK. If any provision of this guarantee shall be held to be in whole or in part invalid or illegal due to an obligatory rule applicable to consumers pursuant to their national legislation, such invalidity or illegality shall not impair or affect the remaining provisions or parts of this guarantee.

1 BIENVENUE 1
2 DÉCOUVREZ VOTRE IMPRIMANTE PHOTO EASY 150
3 PRÉPAREZ VOTRE IMPRIMANTE PHOTO EASY 150 3

Line drawing of a rectangular electronic device with a square button and circular top (no text or symbols)

Simple line drawing of a rectangular object with a curved edge and a label '7' in the corner (no text or symbols on the object itself)

Illustration of a rolled-up document or scroll with a numbered label (4) and an asterisk, no readable text or symbols present.

Isometric illustration of a rectangular block with a diagonal line, no text or symbols present

Line drawing of a hand inserting a card into a device (no text or symbols)

2

Illustration of two hands holding a ruler and a diagonal line crossing over a square (no text or symbols)

IMPRIMEZ VOS PHOTOS

IMPRIMEZ EN MODE DPOF

Line drawing of a mobile phone connected to a flip-flop device with signal waves (no text or symbols)

Line drawing of hands connecting a device to a cable with a plug (no text or symbols)

7 REMPLACEMENT DES CONSOMMABLES

2

Line drawing of a hand inserting a card into a computer (no text or symbols)

4

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to press or press a device (no text or symbols visible)

Line drawing of a compact electronic device with a square button and circular top (no text or symbols)

Simple line drawing of a rectangular object with a circular label containing the number 7 (no text or symbols on the object itself)

Illustration of a rectangular object with internal structure, possibly a device or component (no text or symbols visible)

Simple 3D diagram of a rectangular block with a diagonal line, no text or symbols present

* Starterpaket

Line drawing of a hand holding a device with a curved arrow indicating motion (no text or symbols)

2

Diagram of a robotic device with two arrows indicating movement or force (no text or symbols present)

3

4

Line drawing of a CD or DVD device with a clip attachment (no text or symbols)

5

6

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Illustration of a hand inserting a card into a device (no text or symbols present)

2

3

4

Illustration of two hands crossed over a geometric shape, no text or symbols present

IHRE FOTOS AUSDRUCKEN

Line drawing of a mobile phone connected to a CD or DVD device with signal waves (no text or symbols)

Line drawing of a hand inserting cables into a device (no text or symbols)

7 VERBRAUCHSMATERIALIEN

2

Illustration of a hand inserting a card into a folder with an arrow indicating direction (no text or symbols)

3

Line drawing of a hand inserting a card into a device (no text or symbols)

4

Line drawing of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Illustration of a hand using a sewing machine to press or install a printed document (no text or symbols visible)

Line drawing of a rectangular electronic device with a square button and circular top (no text or symbols)

Simple line drawing of a rectangular object with a label '7' at the bottom (no text or symbols on the object itself)

Simple 3D diagram of a rectangular block with a diagonal line, no text or symbols present

3D diagram of a mechanical component with no visible text or symbols

Line drawing of a hand holding a device with a curved arrow indicating motion (no text or symbols)

2

Diagram of a device with arrows indicating directional flow or movement, no text or symbols present

3

4

Line drawing of a mechanical device with a circular top and rectangular base (no text or symbols)

5

6

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

IMPRIMA SUS FOTOS

Line drawing of a mobile phone connected to a compact electronic device with signal waves (no text or symbols)

Line drawing of a hand inserting cables into a device (no text or symbols)

Referencia kit consumibles (3 cintas + papel 120 fotografías): 251 300 336

STAMPA DELLE FOTOGRAFIE

STAMPA IN MODALITÀ DPOF

Line drawing of a mobile phone connected to a flip-flop device with signal waves (no text or symbols)

Line drawing of a hand inserting cables into a CD-ROM device (no text or symbols)

7 SOSTITUZIONE DEI CONSUMABILI

PULIZIA DELLA TESTINA DI STAMPA

Line drawing of a rectangular electronic device with a square button and circular top (no text or symbols)

Simple line drawing of a rectangular object with a side panel, labeled with number 7 (no text or symbols on the object itself)

3D diagram of a mechanical component with no visible text or symbols

Isometric illustration of a rectangular block with a diagonal line, no text or symbols present

UW FOTO'S AFDRUKKEN

Line drawing of a mobile phone connected to a CD or DVD device with signal waves (no text or symbols)

Pentium of equivalent;

Besturingssysteem: Windows 98 SE / 2000 / Me / XP;

128 MB DRAM of meer;

Line drawing of a hand inserting cables into a device (no text or symbols)

7 TOEBEHOREN

Pentium of equivalent;

Besturingssysteem: Windows 98 SE / 2000 / Me / XP;

128 MB DRAM of meer;

DECLARATION OF CONFORMITY

declare under our sole responsibility that the product

Model

Type

PE 150

AZUR

(EUROPE)

To which this declaration relates is in conformity with the harmonized standards

EN 60950-1

2001

Artical No 3(1) (a) of Directive 1999/5/EC (R&TTE Directive)

Artical No 2 of Directive 73/23/EEC (Low Voltage Directive)

EN 55022 Class B

1999 + A1 : 2001

Artical No 3(1) (b) of Directive 1999/5/EC (R&TTE Directive)

Artical No 4 of Directive 89/336/EEC (EMC Directive)

EN 55024

1999 + A2 : 2002

EN 61000-3-2

2001

EN 61000-3-3

1995+A1:2001

Meets the essential requirements according to article 3 of the following EC-Directive :

Directive, 1999/5/EC of the European parliament and of the council of 09 March 1999 relating to radio and telecommunication terminal equipment, including the mutual recognition of their conformity.

Osny, 2003-11-21

Authorized on behalf of SAGEM SA

Name and Signature

Nom et signature

Name und Untershift

R. WALLER

Managing Director Cordless Terminals Business unit

Terminals and Internet Division

User Guide - Data subject to change without notice

* 2 5 1 5 1 2 0 1 9 A *

SAGEM SA
