USER MANUAL Miinimo 3 CHICCO

Line drawing of a stroller with a helmet and wheels (no text or symbols)

Illustration of a person using a foot-to-heel exercise machine, showing the foot and legs (no text or symbols present)

Illustration of a seated car seat with a hand gripping the seat, showing a red directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a hand using a wheeled cart to adjust a component, with a red arrow indicating motion (no text or symbols present)

Illustration of hands operating a mechanical device with a red arrow indicating motion (no text or symbols present)

4

4A abuse

4B

Medical illustration showing a hand adjusting a joint with a red circle highlighting a specific area (no text or symbols present)

Diagram of a sewing machine needle with red square markers indicating specific points (no text or symbols present)

Line drawing of a person using a baby stroller with a red arrow indicating motion (no text or symbols)

Illustration of hands assembling or adjusting a mechanical component, no text or symbols present

6A

7

7A

Line drawing of a hand holding a small device inside a car seatbelt (no text or symbols)

Line drawing of a baby stroller with a red directional arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a wheel and lever mechanism (no text or symbols)

Mechanical diagram showing a stroller with wheels and a red directional arrow (no text or symbols)

Line drawing of a stroller with a red arrow indicating motion (no text or symbols)

Line drawing of a stroller with wheels and a red directional arrow indicating motion (no text or symbols)

14

Technical diagram of a vehicle's wheel assembly with numbered callouts (15), showing structural components without any readable text or symbols.

Line drawing of a baby stroller with wheels and internal compartments, no text or symbols present

17

17A

Line drawing of a car interior showing a hand adjusting a seatbelt, with a red circular annotation highlighting the seatbelt area (no text or symbols present)

Mechanical assembly diagram showing linkage components with red circles highlighting specific parts (no text or symbols present)

18A

18B

18C

Illustration of a person using a tool to adjust or install a piece of material, with red arrows indicating direction (no text or symbols present)

18E 2 1

19 a b

Line drawing of a stroller with a red arrow indicating motion, labeled '19A' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with wheels and a 20A indicator (no text or symbols on the diagram itself)

Line drawing of a mechanical device with gears and levers, no text or symbols present

21

22

IT CHICCO MIINIMO3

IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO.

ATTENZIONE: PRIMA DELL'USO RI-MUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

AVVERTENZE

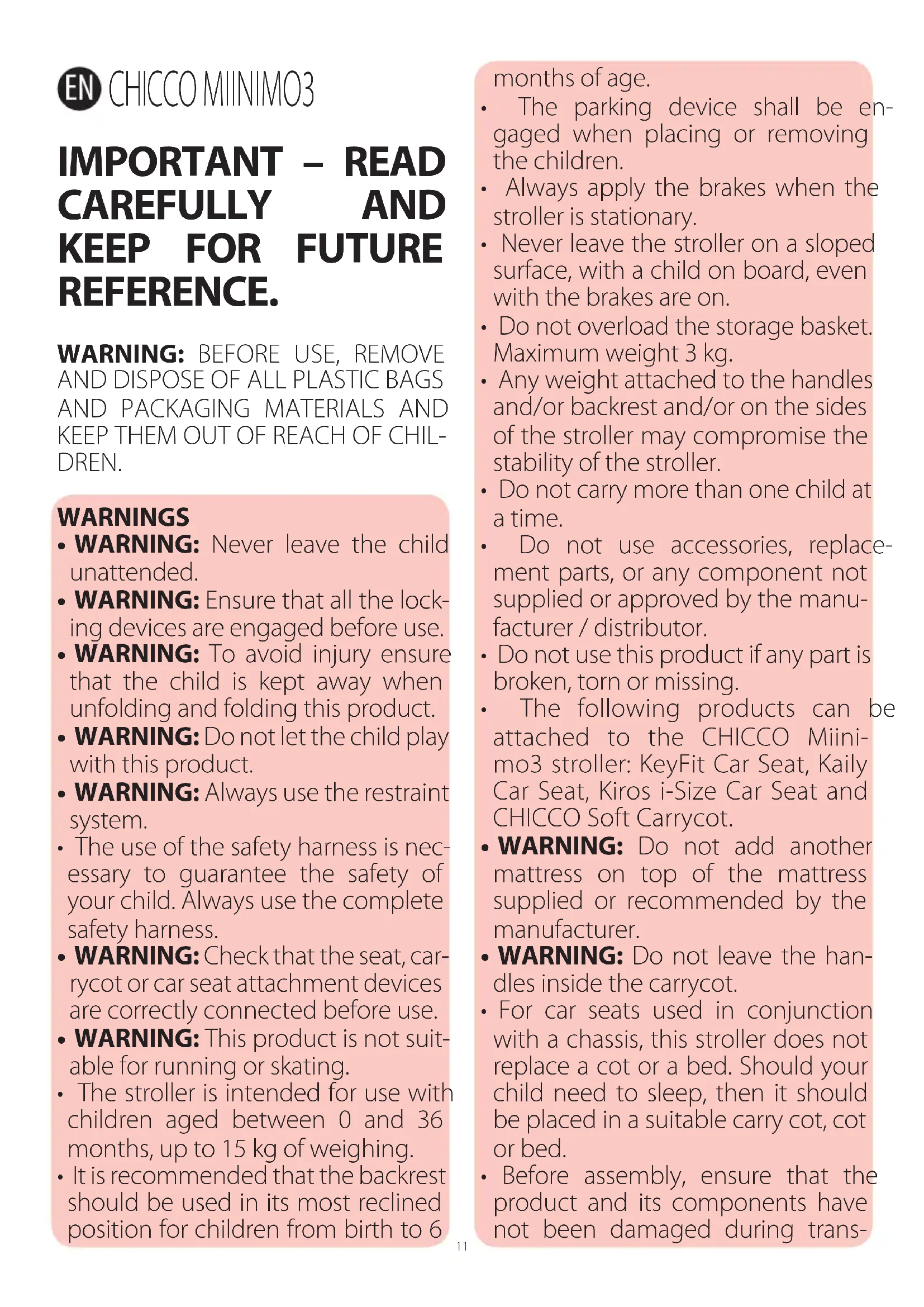

IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNINGS

• WARNING: Never leave the child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING: Do not let the child play with this product.
• WARNING: Always use the restraint system.
• The use of the safety harness is necessary to guarantee the safety of your child. Always use the complete safety harness.
• WARNING: Check that the seat, car-cycot or car seat attachment devices are correctly connected before use.
• WARNING: This product is not suitable for running or skating.
• The stroller is intended for use with children aged between 0 and 36 months, up to 15 kg of weighing.
• It is recommended that the backrest should be used in its most reclined position for children from birth to 6

months of age.

• The parking device shall be engaged when placing or removing the children.
  • Always apply the brakes when the stroller is stationary.
• Never leave the stroller on a sloped surface, with a child on board, even with the brakes are on.
• Do not overload the storage basket. Maximum weight 3 kg.
• Any weight attached to the handles and/or backrest and/or on the sides of the stroller may compromise the stability of the stroller.
• Do not carry more than one child at a time.
• Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.
• Do not use this product if any part is broken, torn or missing.
• The following products can be attached to the CHICCO Miini-mo3 stroller: KeyFit Car Seat, Kaily Car Seat, Kiros i-Size Car Seat and CHICCO Soft Carrycot.
• WARNING: Do not add another mattress on top of the mattress supplied or recommended by the manufacturer.
• WARNING: Do not leave the handles inside the carrycot.
• For car seats used in conjunction with a chassis, this stroller does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable carry cot, cot or bed.
• Before assembly, ensure that the product and its components have not been damaged during trans-

portation. In this case, do not use and keep out of reach of children.

• The product must only be assembled by an adult.
• This product must only be used by an adult.
  • Make sure that the person using the stroller knows how to operate it in the safest way.
• During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child.
  • To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.
• Never use the stroller on staircases or escalators: you could suddenly lose control of it.
  • Always pay attention when going up and down steps or pavements.
• If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.
• Prevent the stroller from coming into contact with salt water. It may cause rusting.
• Do not use the stroller on the beach.
• When not in use, the stroller should be kept out of reach of children.

LIST OF COMPONENTS

Check that none of the components of this model are missing before assembling the product. If any part is missing, contact Chicco Customer Service. No tools are needed to assemble this product. The following pieces are needed for product assembly:

• Frame
- 2 Front wheels
- 2 Rear wheels
- Sun canopy
- Storage basket
- Bumper bar

• Fabric cover
• Padded shoulder straps and crotch strap.
• Rain cover
• Stroller bag/backpack

TIPS FOR CLEANING AND MAINTENANCE

This product requires periodical maintenance.

Cleaning and maintenance operations must be performed exclusively by an adult.

CLEANING

The lining can be removed (please see the section FITTING AND REMOVING THE STROLLER LINING).

Clean the fabric parts using a wet terry towel and neutral soap.

Periodically wipe the plastic parts clean with a soft damp cloth.

To prevent the formation of rust, always dry metal parts if they have come into contact with water.

The washing symbols and relative meanings are indicated below:

Hand wash

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

MAINTENANCE

If necessary, lubricate the moving parts with dry silicone lubricant. Regularly check the condition of the wheels and clean off all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure all plastic parts that run along the metal tubes are clean of dust, dirt and sand.

Keep the stroller in a dry place.

FIRST ASSEMBLY OF THE STROLLER

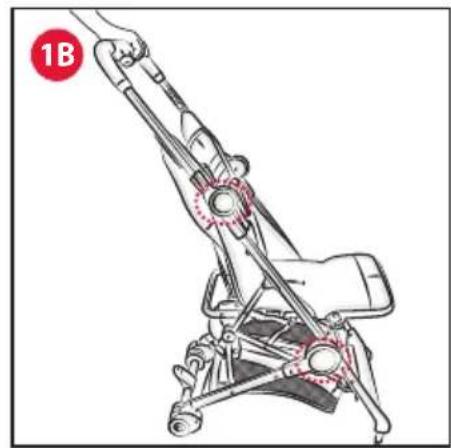

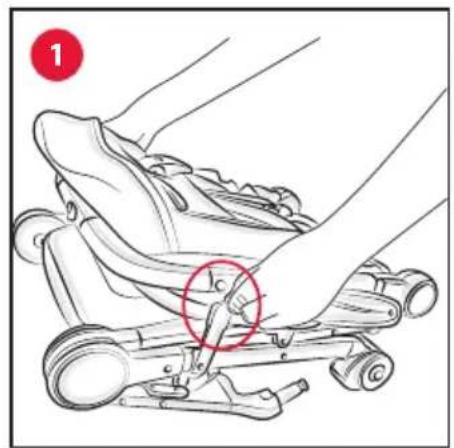

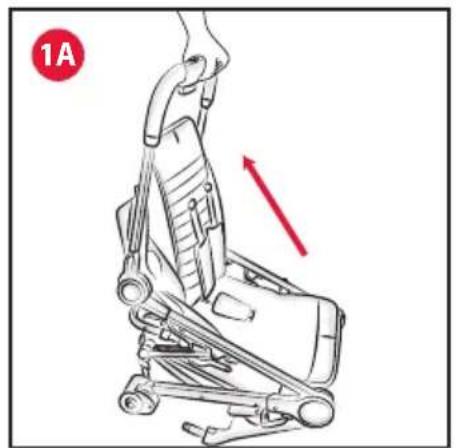

1. To open the stroller, pull the release lever located on the side (Fig. 1), rotate the handle and lift it until the frame is fully open (Fig. 1A); make sure that the front feet are locked and ensure that the handle is fully extended and engaged (Fig. 1B).

WARNING: Before use, make sure that the stroller is locked in open position, checking that the mechanism is actually locked.

ASSEMBLING THE FRONT AND REAR WHEELS

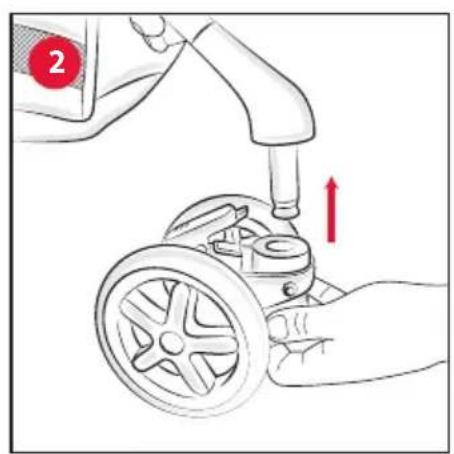

1. Assemble the front wheel by inserting the front leg tube in the appropriate hole until hearing a locking click (Fig. 2). Repeat the same operation for the second front wheel.

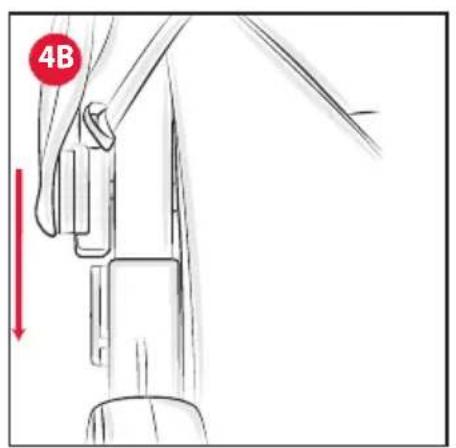

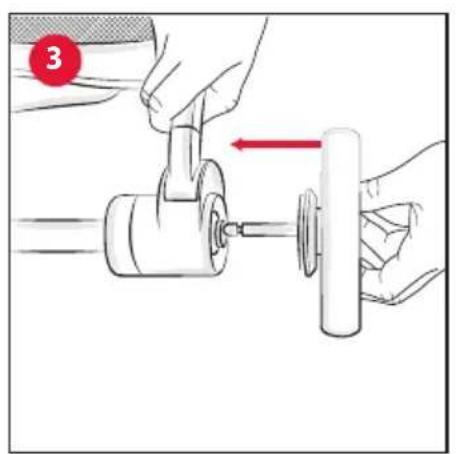

2. To assemble the rear wheels insert the wheel's pin into the rear axle tube as shown in figure 3. Repeat the same operation for the other wheel.

WARNING: Before using the stroller, make sure that the wheels are well secured to the structure, pulling them firmly.

SUN CANOPY

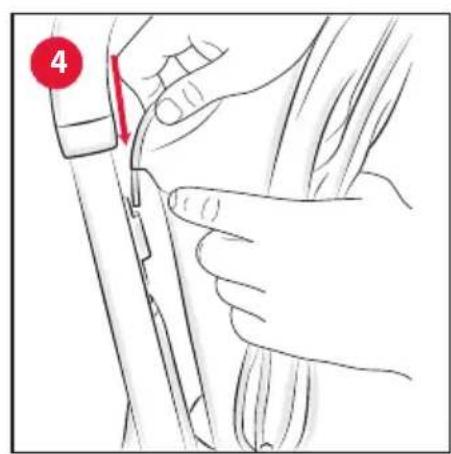

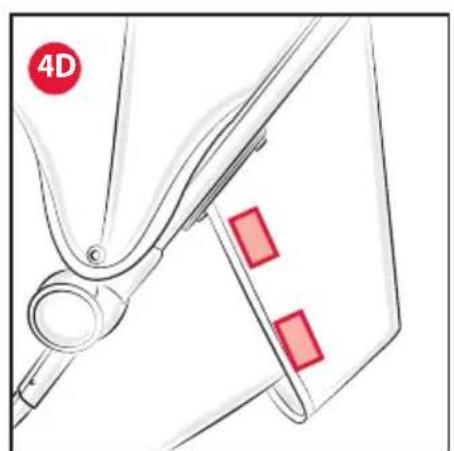

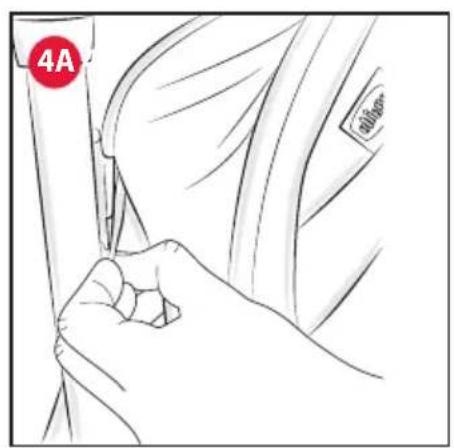

1. To mount the hood to the stroller's frame insert the metal rod into the hole positioned under the handle (Fig. 4), mount the elastic hole into the special seat (Fig. 4A) and insert the hood joint into the special sliding it in as far as possible (Fig. 4B). To complete the operation, mount the elastic band to the lower pin located on the rear side of the handle's tube (Fig. 4C). The rear fabric section of the hood can be hooked to the backrest by means of velcro pads provided (Fig. 4D)

WARNING: The canopy must be fixed to both sides of the stroller. Ensure that the hood is correctly secured into position.

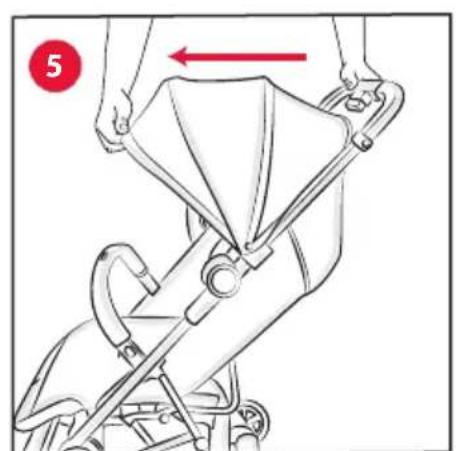

1. To adjust the hood, pull and/or push it centrally (Fig. 5). The hood can be extended by opening the zip. To remove the hood from the frame, carry out the procedure shown in point 4 in the reverse order.

WARNING: Keep the hood out of reach of children when it is not in use.

HOW TO USE THE SAFETY HARNESS

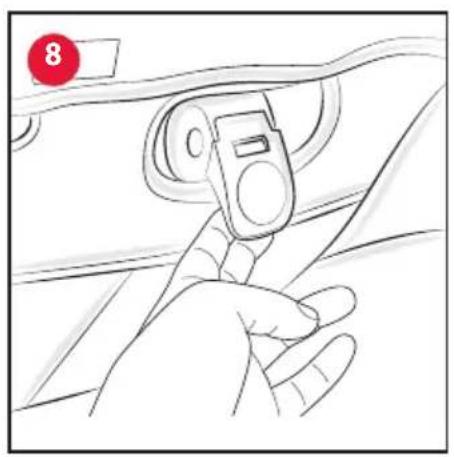

This stroller has a five-point safety harness featuring two shoulder straps, two adjustment holes, a waist strap and a crotch strap with buckle.

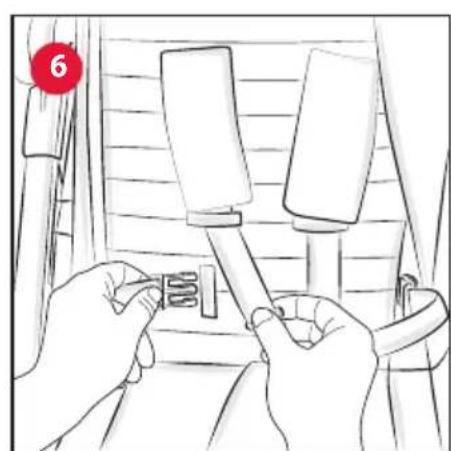

1. WARNING: For use with children from birth to about 6 months, the shoulder straps must be passed through the two horizontal adjustment holes before use and the waist straps must be inserted in the vertical holes (Fig. 6). After laying the child in the stroller, fasten the belts by threading first the two forks inside the shoulder straps' slot and then introduce them inside the crotch strap buckle (Fig. 6A); adjust the length of the straps, ensuring that they adhere to the child's shoulders and body correctly.

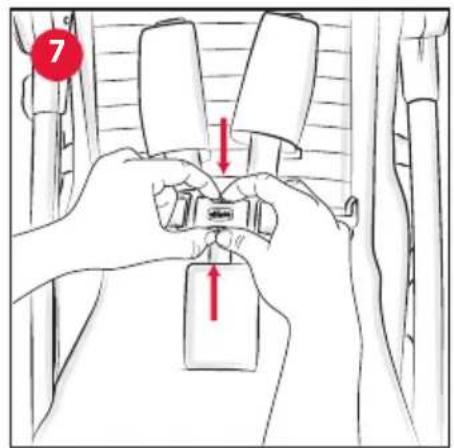

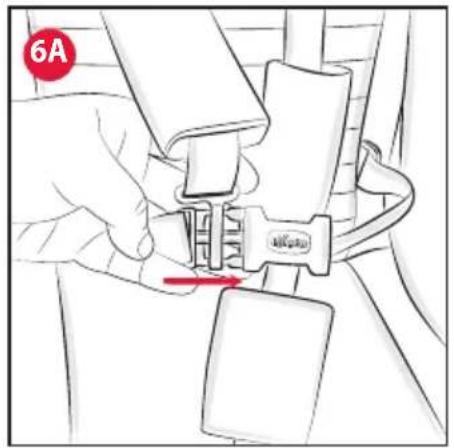

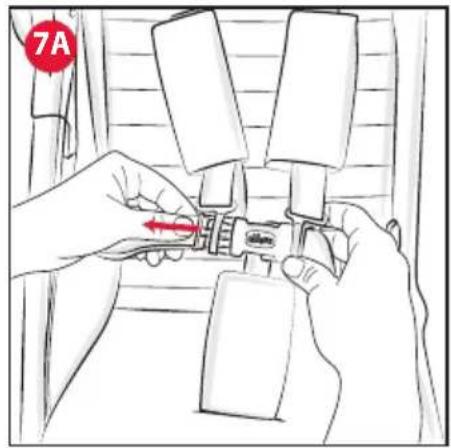

2. To unfasten the waist belt, press and pull the lateral forks (Fig. 7-7A).

WARNING: Always use the restraint systems. For the safety of your child use all five fixing points of the safety harness belts.

Make sure to reassemble correctly the waist straps (e.g. after washing) and the crotch strap, threading them through the holes located on the backrest and on the seat. The harness must be re-adjusted.

The backrest can be adjusted to 4 positions.

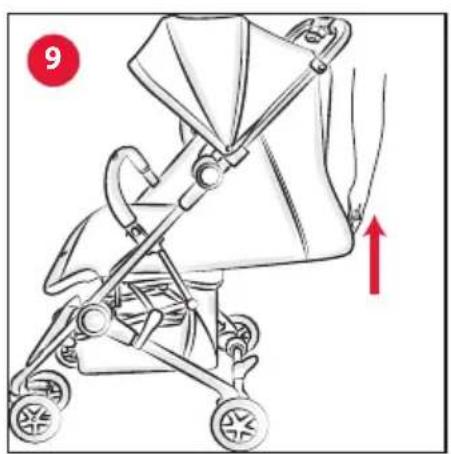

1. To lower the backrest, lift the adjusting handle located on the rear of the backrest (Fig. 8).

2. To raise the backrest, simply lift it to the desired position (Fig. 9).

WARNING: The child's weight can make these operations more difficult.

REAR BRAKES

The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels using one pedal only.

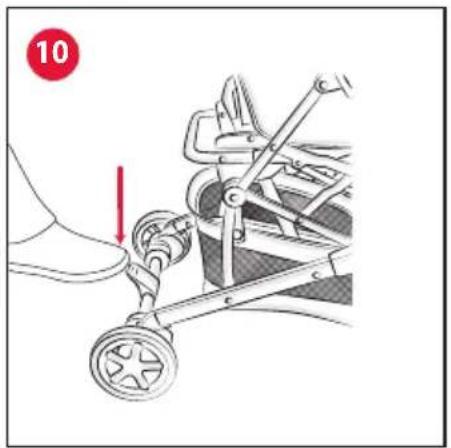

1. To operate the stroller's brakes, press downwards the pedal located at the centre of the rear wheels axle (Fig. 10).

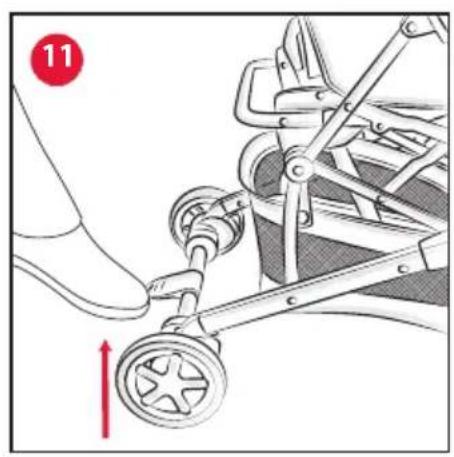

2. To release the brakes, push upwards the pedal located at the centre of the rear wheels axle (Fig. 11).

FRONT SWIVEL WHEELS

1. To make the wheels swivel, lift the lever found between the two wheels (Fig. 12).

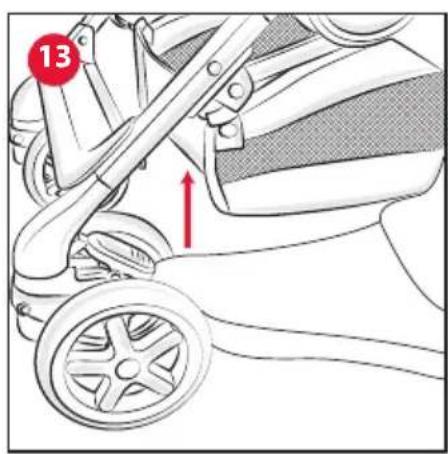

2. To lock the wheels, raise the lever (Fig. 13).

WARNING: Both front swivel wheels must always be locked or unlocked at the same time.

WARNING: The swivel wheels make the stroller easier to handle; in order to guarantee better stability, it is advisable to lock the wheels in place on uneven ground (gravel, unpaved roads, etc.).

HOW TO ADJUST THE LEGREST

The stroller's legrest can be adjusted into 2 positions for your child's improved comfort.

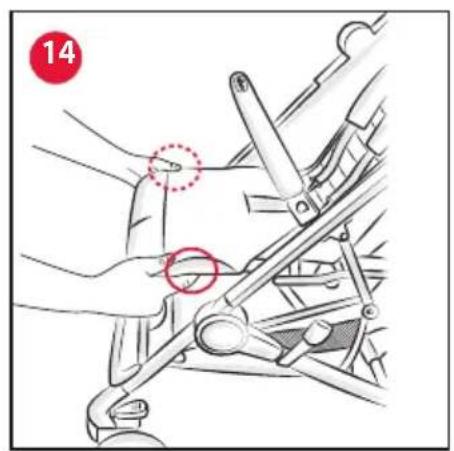

1. To adjust the legrest in the desired position, operate simultaneously the two side levers (Fig. 14). To raise the legrest up from the down position, just pull it up.

CARRY-ALL BASKET

The storage basket is already installed.

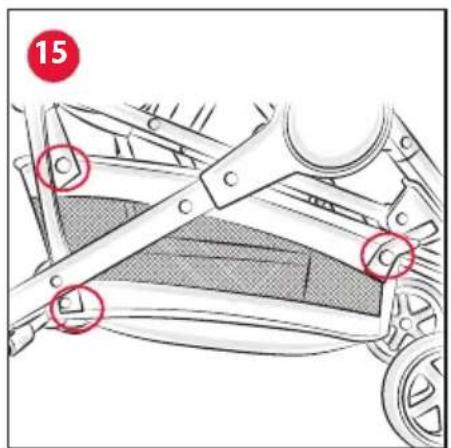

1. In order to remove it, release the six snap buttons located on the basket sides (3 per side) and extract the straps from the holes located on the frame (Fig. 15).

RAIN COVER

1. To mount the rain cover, fully open the hood, wrap the velcro around the stroller tubes in the positions shown in figure 16; repeat this operation on the other side.

When you have finished using the rain cover, allow it to dry properly if it is wet.

WARNING: Use only the supplied rain cover.

WARNING: The rain cover cannot be used on the stroller without hood, as it may cause suffocation.

WARNING: When the rain cover is fitted on the stroller, never leave it exposed to direct sunlight with your child inside, as the temperature will rise considerably.

FITTING AND REMOVING THE STROLLER LINING

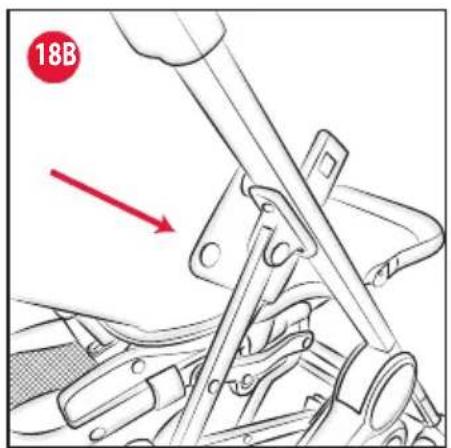

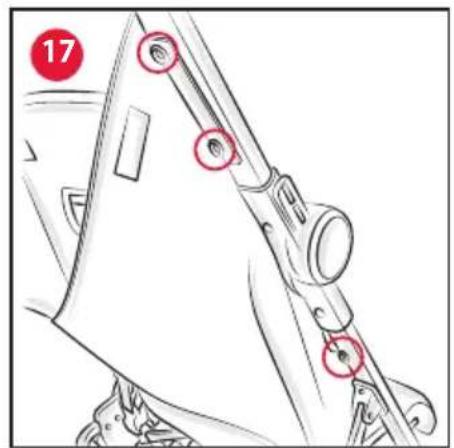

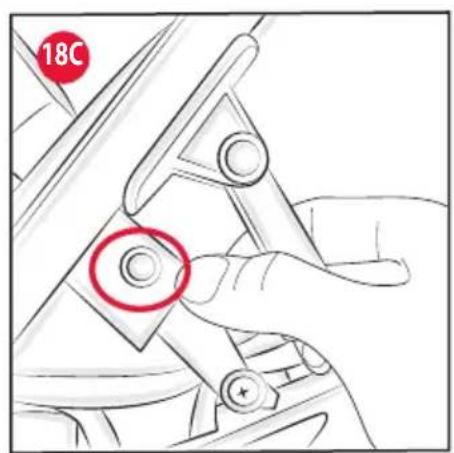

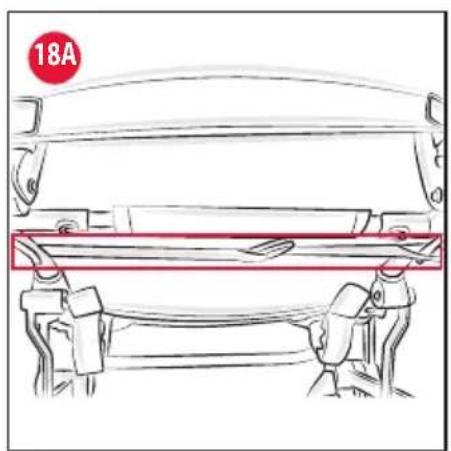

1. to remove the lining from the frame, remove the hood following the procedure shown in point 4 in the reverse order. To remove the fabric part of the stroller, extract the side flap from the 3 plastic pins located on the rear side of the handle tube (Fig. 17) on both sides, then remove the two waist straps and the crotch strap form the special holes located on the backrest and on the seat (Fig. 17A-17B).

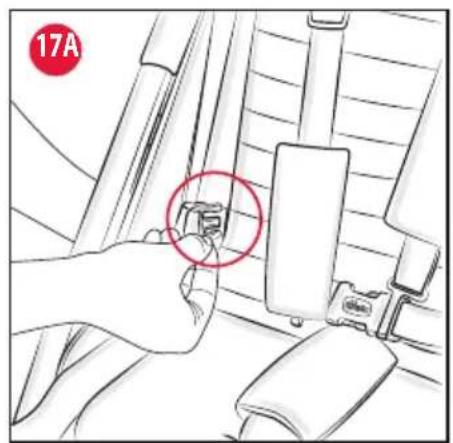

2. Release the fabric flap from the pin located under the seat (Fig. 18) making sure to carry out the same operation also on the other side, then complete the operation releasing the belt located under the seat (Fig. 18A). Unhook the two side snap buttons (Fig. 18B) and remove the fabric from the pin (Fig.18C). At this point the fabric part is released from the frame and can be extracted from the legrest (Fig. 18D).

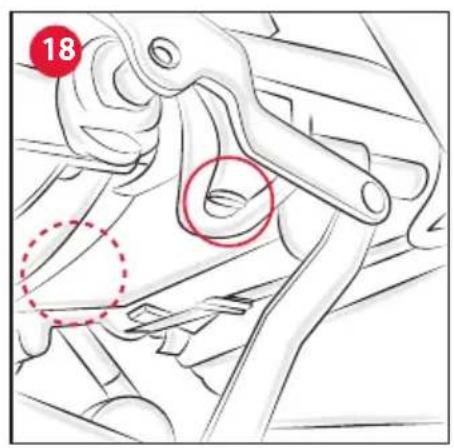

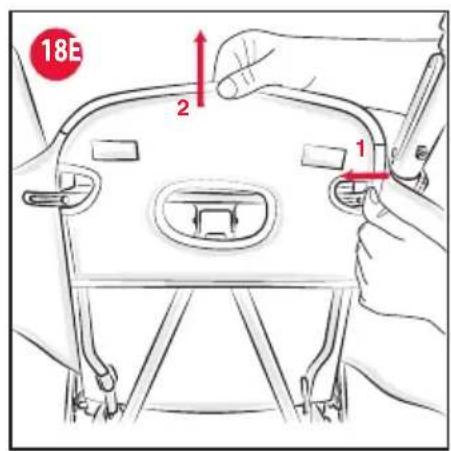

To complete the removal of the backrest fabric part, slide inwards the plastic component positioned on the sides and pull the fabric part upwards (Fig. 18E). The operation must be performed on both sides of the backrest.

To reinstall the fabric part on the stroller, repeat the above procedure in the reverse order, making sure to tension again the belt located under the seat (Fig. 18A) at the end of the procedure.

WARNING: When opening the stroller, ensure that your child and any other children are at a safe distance.

WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

WARNING: Before folding the stroller, make sure that the storage basket is empty and the canopy is closed.

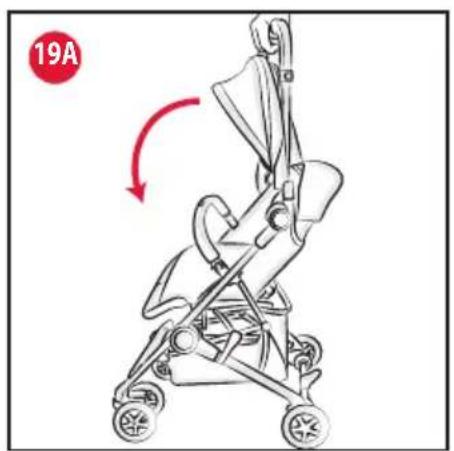

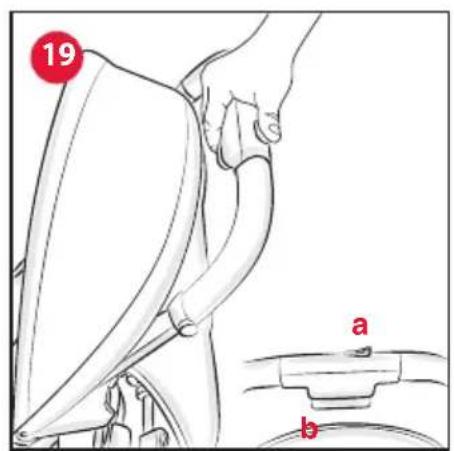

1. To close the stroller, push switch A to the left and simultaneously press the button B (Fig. 19). Rotate the handle forward until it aligns with the side tube (19A) and push it down until it clicks into place.

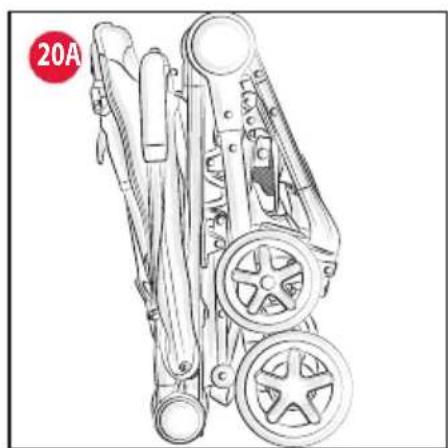

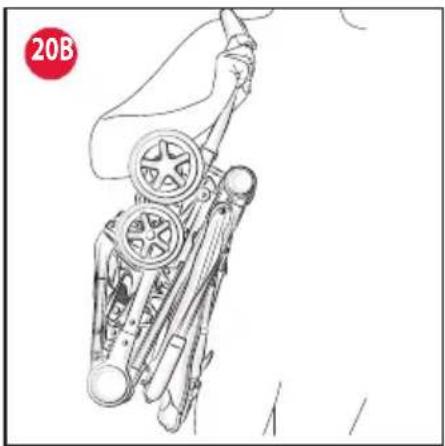

2. The stroller, once closed, stands by itself (Fig. 20A) and can be easily carried along by means of its useful carrying strap (Fig. 20B).

BUMPER BAR

The stroller is equipped with a bumper bar that can be folded when closing.

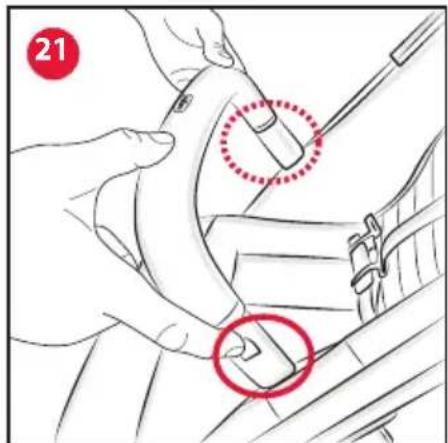

1. To remove the bumper bar, press the two buttons on the side of the bumper bar (fig. 21) and pull the bar towards you. To seat your child in the stroller more easily it is possible to open just one side of the bumper bar.

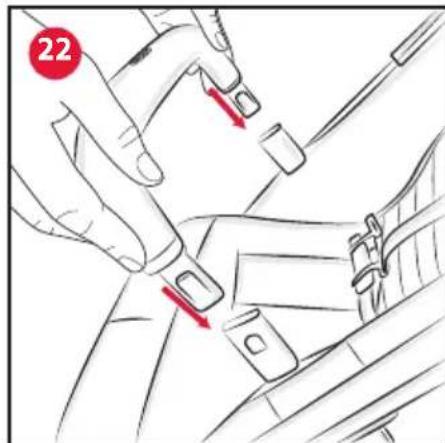

2. To fasten the bumper bar to the structure again, insert the two plastic ends of the bumper bar in the supports as illustrated in Fig. 22.

WARNING: Always fasten your child with the safety harnesses. The BUMPER bar IS NOT a device for containing your child.

WARNING: Never use the bumper bar to lift the stroller up with your child sitting in it.

NOTE: On the Chicco Miinimo3 stroller it is possible to attach the following elements, which can be purchased separately:

- CHICCO soft carrycot

- KeyFit Car Seat

• Kaily Car Seat

- Kiros I-size Car Seat

All car seats for use on the stroller require the special adaptors sold separately.

FOR THE ASSEMBLY AND/OR USE OF THE ITEMS LISTED ABOVE, REFER TO THE RELEVANT MANUALS.

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as stated in the instructions. Therefore, the warranty does not apply in the case of damage caused by improper use, wear or accidental events. For the duration of warranty on conformity defects, please refer to the specific provisions of national laws applicable in the country of purchase, where provided.

FR CHICCO MIINIMO3

IMPORTANT - A LIRE ATTENTIVEMENT ET À CONSERVER POUR RÉFÉRENCE ULTÉ- RIEURE.

AVERTISSEMENT : AVANT L'EMPLOI, ENLEVER ET ÉLIMINER TOUS LES SACS EN PLASTIQUE ET ÉLÉMENTS QUI FONT PARTIE DE L'EMBALLAGE DU PRODUIT ET LES TENIR HORS DE PORTÉE DES ENFANTS.

AVERTISSEMENTS

RÅD FÖR RENGÖRING OCH SKÖTSEL

INDSTILLING AF RYGLÆN

LUKNING AF KLAPVOGNEN

RÅD FOR RENHOLD OG VEDLIKEHOLD

Dette produktet trenger regelmessig vedlikehold.
