TCCG 3.6 Li - Glue gun EINHELL - Free user manual and instructions

Product type	Cordless glue gun
Brand	Einhell
Model	TCCG 3.6 Li
Power supply	3,6 V DC (integrated Li-ion battery)
Battery capacity	1,5 Ah
Heat-up time	Approx. 15 seconds
Melting temperature	170 °C
Glue stick diameter	7 mm
Weight	0,25 kg
Charger voltage	5 V DC
Charging current	400 mA
Charger mains voltage	100-240 V~, 50/60 Hz
Charging time	3 to 5 hours
Automatic shut-off	After approx. 5 minutes of inactivity
LED display	Indicates charge status, heating, and readiness
Deep discharge protection	Yes, integrated protection circuit
Nozzle	Yes, for precise application
Trigger lever	Yes, for dispensing glue
Adhesive materials	Wood, plastic, textile, cardboard, ceramic, leather
Intended use	Home DIY (non-professional)
Wear parts	Glue sticks (not included)
Cleaning	Damp cloth with mild soap; do not use harsh cleaners
Storage	Dry place, frost-free, between 5 and 30 °C
Warranty	24 months (terms apply)

Frequently Asked Questions - TCCG 3.6 Li EINHELL

How to charge the glue gun?

Plug the charger (6) into a mains socket and connect the charging cable (5) to the charging socket (a). The LED indicator (2a) lights up red during charging and turns green when the battery is fully charged. Charging takes about 3 to 5 hours.

How long does it take for the glue to heat up?

The heat-up time is about 15 seconds. The LED indicator (2b) changes from red to green when the device is ready for use.

How to know if the device is ready?

When the LED indicator (2b) is green, the device has reached the melting temperature (170 °C) and is ready to use. If it is red, the heating process is ongoing.

What types of glue sticks to use?

Use glue sticks with a diameter of 7 mm. Hot glue is suitable for bonding wood, plastic, textile, cardboard, ceramic and leather.

Can the device be used on all materials?

The device is designed for bonding wood, plastic, textile, cardboard, ceramic and leather. It is not suitable for professional or industrial use.

What to do if the LED indicator flashes red during use?

If the LED indicator (2b) flashes red during operation, it means the battery is discharged. Charge the device immediately.

How to clean the device?

Allow the device to cool down, then clean it with a damp cloth and a little mild soap. Do not use harsh cleaning products and avoid water entering the interior.

Does the device shut off automatically?

Yes, the device shuts off automatically after about 5 minutes of inactivity to save the battery.

Where can I find spare parts?

Spare parts can be ordered from ISC GmbH (www.isc-gmbh.info). Specify the type, article number, identification number and the required part.

What is the warranty period?

The warranty is 24 months from the date of purchase. It covers material and manufacturing defects, but not normal wear or damage due to improper use.

USER MANUAL TCCG 3.6 Li EINHELL

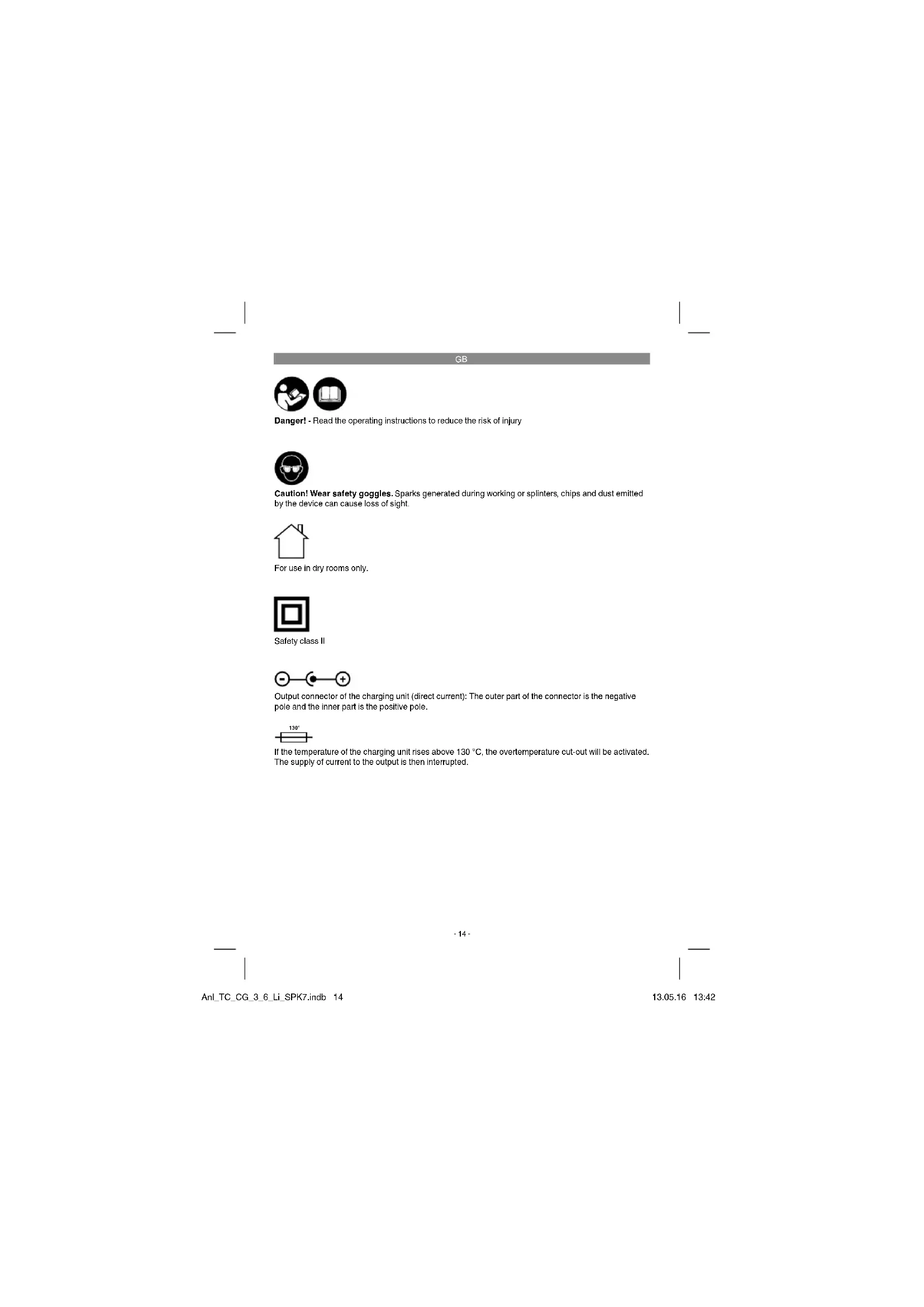

Danger! - Read the operating instructions to reduce the risk of injury

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

For use in dry rooms only.

Safety class II

Output connector of the charging unit (direct current): The outer part of the connector is the negative pole and the inner part is the positive pole.

If the temperature of the charging unit rises above 130^ , the overtemperature cut-out will be activated. The supply of current to the output is then interrupted.

-14-

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment or carry out user-level maintenance work.
2. The battery must be removed before the equipment is scrapped.
3. The equipment must be disconnected from the power supply before removing the battery.
4. The battery must be disposed of properly.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1-3)

1. On/Off switch
2. LED indicator
3. Nozzle
4. Trigger lever
5. Charging cable
6. Charger
7. Glue stick

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.

• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

-15-

GB

Cordless Hot Glue Gun
- Charger
Original operating instructions
SafetyInstructions

3. Proper use

You can use the cordless hot glue gun to glue the following materials: Wood, plastics, textiles, cardboard, ceramics, leather, etc.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Power supply: 3.6 V DC Heating time: approx. 15 seconds

Melting temperature: 170°C

Glue stick diameter: 7 mm Battery capacity: 1.5 Ah

Battery type: Lithium-ion Weight: 0.25 kg

Charger for TC-CG 3.6 LI

Battery charge voltage: 5 V DC

Battery charge current: 400 mA

Charging unit

supply voltage: 100-240V~50/60 Hz

Charging time: 3 - 5 hours

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.

5. Before starting the equipment

Hazard!

Charge the equipment only with the charger sup

Only place the equipment on non-flammable surfaces.

5.1 Charging the battery (Fig. 2)

The battery is protected from exhaustive discharge. An integrated protective circuit automatically switches off the equipment when the battery is fl at.

Note! Do not actuate the On/Off switch any more if the protective circuit has tripped. This may damage the battery.

Check that your mains voltage is the same as that marked on the rating plate. Plug the battery charger (6) in the plug socket and connect the charging cable (5) to the charging connection (a). The charging process starts as soon as the charging cable is connected to the charging adapter. The LED (2a) will light up red to indicate that the battery pack is being charged. When charging is finished, the LED (2a) changes to green.

If the LED (2a) it flashes red, this indicates that the temperature is too high or too low. Keep the tool at room temperature for a day and try again.

If no LEDs come on or fi ash during charging, this means that the battery pack is defective. A defective battery is not allowed to be used any more.

Important! The handle may become a little warm during the charging process. This is normal.

If the battery fails to charge, please check
whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts of the charging unit

If the battery still fails to charge, send

the charging unit
and the cordless hot glue gun
to our customer service center.

5.2 Inserting the glue stick (Fig. 3)

Push the glue stick (7) into the opening (b) as far as the stop.

GB

6. Operation

6.1 Operation (Fig. 2)

Check that a glue stick is fitted (see point 5.2)
Press the On/Off switch (1) for approx. 3 seconds.
The LED (2b) will light up red to indicate that the equipment is heating up
This takes approx. 15 seconds, after which the LED (2b) changes to green
The equipment is now ready for operation.

To switch the equipment off again, press the ON/OFF briefly just the once

Warning!

Never set the equipment down once you have started using it.
If or when your gluing work is interrupted or finished, always be sure to stand the equipment on its handle as shown in Fig. 1.
Switch the equipment off and allow it to cool down completely before you pack it away.

6.2 Working with the cordless hot glue gun

• You can now apply the glue by pressing the trigger lever (4) after the heating up time
  Press both surfaces together immediately and apply pressure to them
  It takes about 30 seconds for the glue to set.

The equipment switches off automatically after approx. 5 minutes of non-use.

Important!

Glue stains on textiles cannot be removed.

6.3 LED indicator (Fig. 2/Item 2)

The indicator (2) displays the charging status during charging (see point 5.1), the heating time and when the equipment is ready for operation (see point 6.1). If the red LED (2b) fl ashes during operation, the battery is empty. Recharge the battery.

7. Cleaning, maintenance and ordering of spare parts

Warning!

Allow the equipment to cool down before you start to clean it.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the device immediately each time you have finished using it.
  Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

7.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

GB

9. Storage

Store the equipment and accessories in a dark
and dry place at above freezing temperature. The
ideal storage temperature is between 5 and 30
°C. Store the electric tool in its original packaging.

-18-

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the ISC GmbH.

Subject to technical changes

This consignment contains lithium-ion batteries. In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*
Consumables* Glue stick
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction.

-20

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown.

Please note the following terms under which guarantee claims can be made: 1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

1. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

2. The following are not covered by our guarantee: - Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

3. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

4. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

5. The guarantee is valid for a period of 24 months starting from the purchase date of the device, Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

6. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
