Product type	Inspection camera (camera unit for Videolnspector)
Brand	Laserliner
Model	InspectorCamera 3DL
Camera head diameter	6 mm
Probe length	2 m
Camera resolution	1280 x 720 pixels
Field of view (FOV)	78°
Depth of field (DOF)	3 to 8 cm
Number of LEDs	8
Protection rating	IP68 (1 m, 60 min)
Head orientation	Up to 160° via control lever
Min. bending radius of the probe	150 mm
Weight	195 g
Dimensions (L x H x D)	2050 mm x 42 mm x 42 mm
Operating temperature	0°C to 45°C
Storage temperature	-10°C to 60°C
Max. relative humidity	80% RH, non-condensing
Fluid resistance	Diesel, gasoline, engine oil, AdBlue®, ethanol, salt water (28%)
Maintenance and cleaning	Slightly damp cloth, no abrasive products or solvents
Safety instructions	Do not use on people, avoid contact with acids, electrical parts, hot or moving parts. Do not modify the device.
Spare parts and repairability	Camera unit replaceable (see manual for disassembly). Warranty excludes damage from incorrect handling.
General information	Compliant with EU and UK. Recycling via collection points. Full manual at packd.li/ll/aln/in

Frequently Asked Questions - InspectorCamera 3DL Laserliner

How to connect the camera to the Videolnspector base unit?

The camera connects via the locking of the camera unit (reference 3). Make sure the probe is properly inserted and locked before use.

Can the camera be used underwater?

Yes, the probe is IP68 rated up to 1 meter depth for 60 minutes. Ensure a gap of 10 cm between the top of the cable and the base unit housing.

What is the depth of field of the camera?

The depth of field is between 3 and 8 cm in front of the camera head. Objects beyond may appear blurry.

How to orient the camera head?

Use the control lever (reference 4) to rotate the camera head up to 160°. Do not manipulate it by hand during operation.

Is the camera resistant to chemicals?

It is resistant to diesel, gasoline, engine oil, AdBlue®, ethanol, and salt water (salt content 28%). Avoid contact with acids or aggressive solvents.

How to clean the camera?

Clean all components with a slightly damp cloth. Do not use cleaning agents, abrasives, or solvents. Store the device in a dry, clean place.

What is the minimum bending radius of the probe?

The minimum bending radius is 150 mm. Do not bend the probe beyond this to avoid damage.

Can I use this camera with other base units?

The InspectorCamera 3DL is designed specifically for the Laserliner Videolnspector base unit. Its use with other devices is not guaranteed.

Does the camera detect electrical voltages?

No, the camera is not designed to measure voltage. It does not have a voltage detection function. Always ensure absence of voltage before any inspection near electrical installations.

What to do in case of malfunction?

First, consult the full manual at packd.li/ll/aln/in. If the problem persists, contact Laserliner's after-sales service. Damage caused by incorrect use (e.g., excessive pulling, manual twisting of the head) is not covered by the warranty.

USER MANUAL InspectorCamera 3DL Laserliner

Coiled medical or medical device with a probe inserted, no visible text or symbols

Laserliner

!

Pure diagram of a cylindrical object with a square cutout and a circular annotation, no text or symbols present.

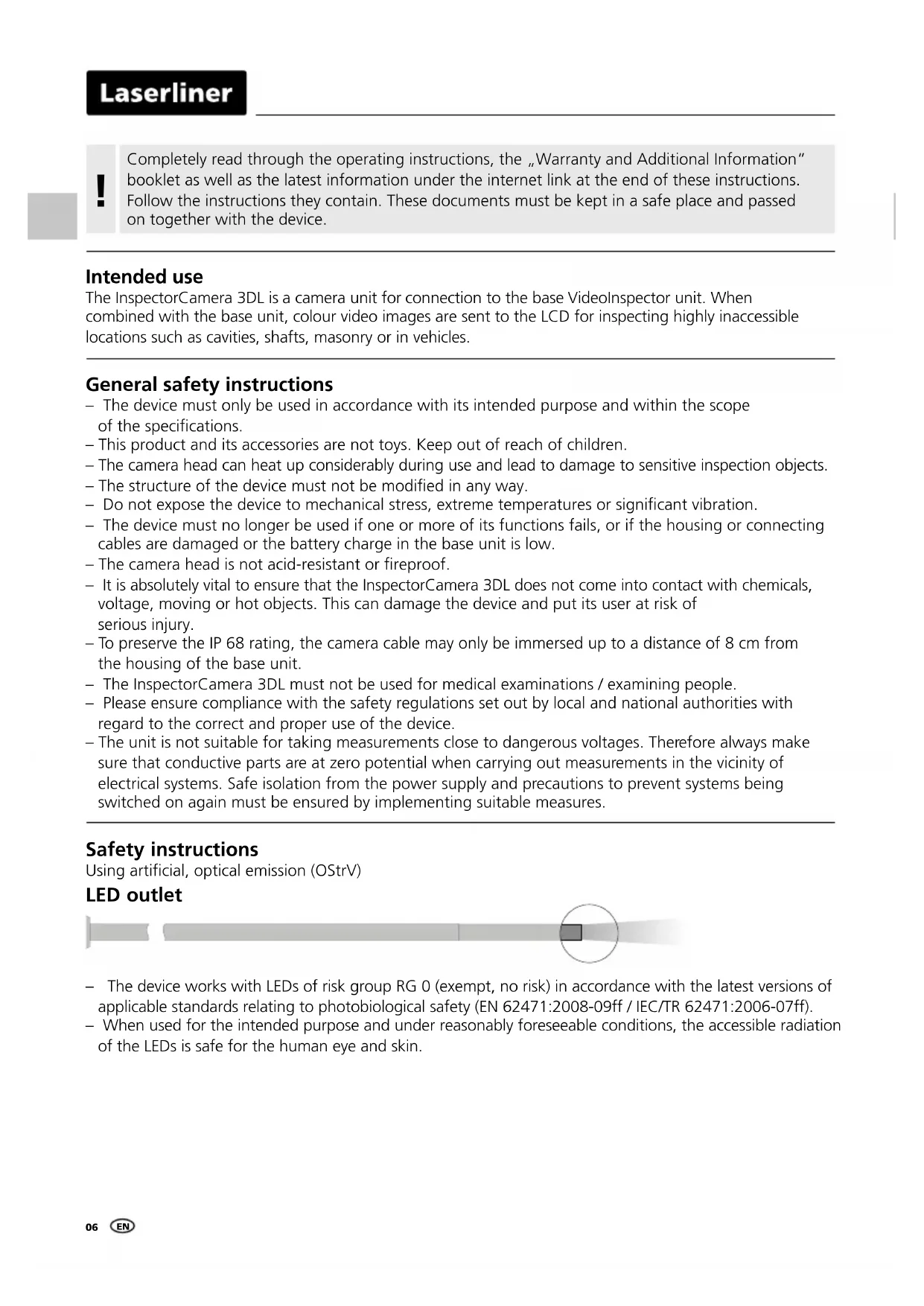

Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the device.

Intended use

The InspectorCamera 3DL is a camera unit for connection to the base VideoInspector unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• This product and its accessories are not toys. Keep out of reach of children.
  – The camera head can heat up considerably during use and lead to damage to sensitive inspection objects.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• The device must no longer be used if one or more of its functions fails, or if the housing or connecting cables are damaged or the battery charge in the base unit is low.
• The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the InspectorCamera 3DL does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• To preserve the IP 68 rating, the camera cable may only be immersed up to a distance of 8cm from the housing of the base unit.
• The InspectorCamera 3DL must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

• The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
• When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

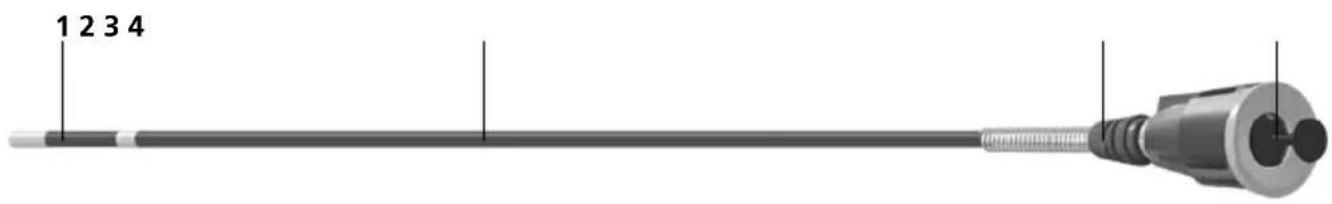

1 Camera head
2 Camera probe

3 Camera unit lock
4 Control lever for moving the camera head

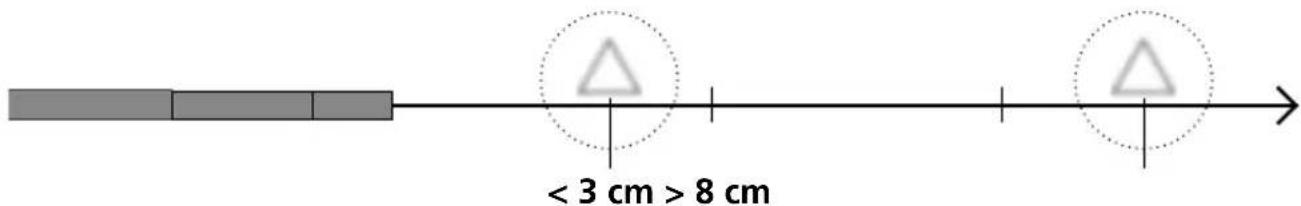

1 Focal depth

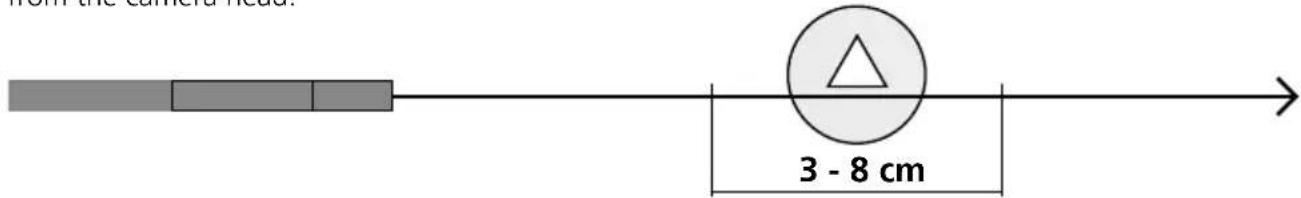

The camera on the InspectorCamera 3DL delivers sharp images in a range between 3 and 8 cm from the camera head.

Objects well beyond the focus range may appear blurred.

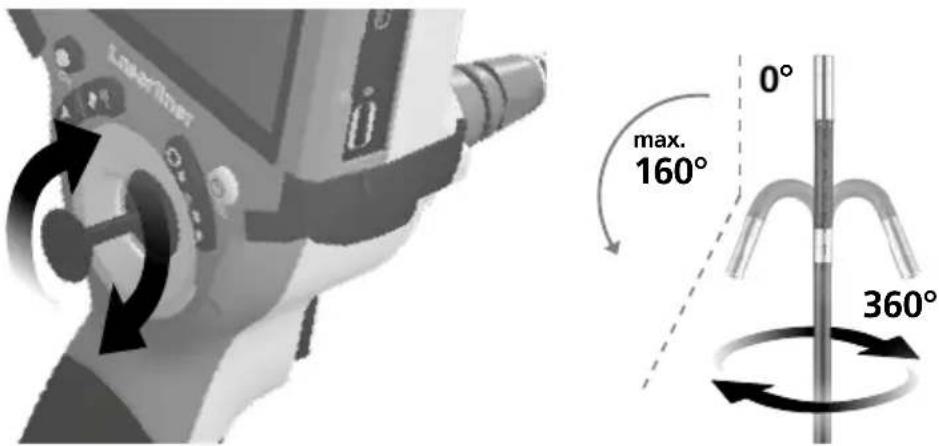

2 Camera head adjustment

The factory setting for the maximum angular position of the 3D camera head is 160^ in new condition, with a tolerance of ±5^ . To achieve this, the camera probe must be totally straight, meaning without any unnecessary curves or bends. The maximum angular position may be reduced by normal mechanical wear over the lifetime of the product.

!

The movable 3D camera head must not be subjected to heavy mechanical loads when in an angled position. Observe the maximum angular position, minimum bending radius and maximum traction force to prevent damage to the 3D camera head. Do not snatch or push the camera probe with a jerky movement. The camera head must never be moved by hand when in use; always use the control lever instead. When rolled up, the camera probe must not be moved either by hand or by the control lever.

This warranty does not cover damage to the 3D camera head or probe caused by incorrect handling.

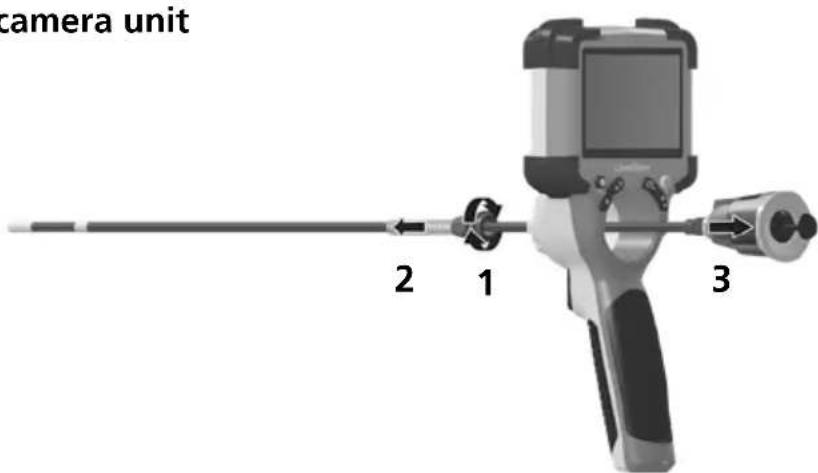

3 Replacement of the camera unit

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Technical data
Subject to technical alterations. 24W36

Camera head diameter 6 mm
Camera probe protection class IP 68 (immersion depth 1 m, 60 min.)
Number of LED lights 8
Camera resolution 1280 x 720 pixel
Field of view (FOV) 78°
Depth of focus (DOF) 3 ... 8 cm
Probe diameter 6 mm
Probe length 2 m
Length camera head 20 mm
Probe min. bending radius 150 mm
Features	Resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol, brine (salt content 28%)
Operating conditions	0°C ... 45°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions -10°C ... 60°C,	max. humidity 80% rH, no condensation
Weight 195 g
Dimensions (W x H x D) 2050 mm x 42 mm x 42 mm

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices and packaging do not belong in household waste. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at:

https://packd.li/ll/aln/in

!
