Product type	Flashlight / Camping lantern
Brand	ANSMANN
Model	Mini Camping Lantern
Light source	LED SMD 3W
Luminous flux	220 lumens (100%), 95 lumens (50%)
Range	8 m (100%), 5 m (50%)
Battery life	6 h (100%), 11 h 30 min (50%)
Number of modes	3 functions: 100%, 50%, Strobe
Power supply	3 micro AAA alkaline LR03 batteries (not included)
Protection class	III (Very low voltage)
Protection rating	IPX2 (protected against dripping water)
Housing material	PS and ABS plastic
Dimensions	115 x 66 x 66 mm
Weight	120 g (without batteries)
Operating temperature	-10 °C to 25 °C
Storage temperature	-10 °C to 50 °C
Mounting	Metal bracket and S-hook
Care and cleaning	Use a soft, dry or slightly damp cloth. Do not use abrasive cleaners.
Safety	Do not look directly into the light beam. Keep out of reach of children.
Batteries	Non-rechargeable. Observe polarity. Remove if not used for extended periods.
Disposal	Do not dispose of with household waste. Take to a collection point.
Package contents	1 lamp, 3 micro AAA batteries, 1 instruction manual
Warranty	Compliant with European directives (CE)

Frequently Asked Questions - Mini Camping Lantern ANSMANN

How to turn on the ANSMANN Mini Camping Lantern?

Press the switch to turn on the lamp. Each press changes the mode: 100%, 50%, strobe, then off.

What type of batteries to use?

Use three alkaline batteries of type Micro AAA (LR03). Do not use rechargeable batteries.

Can the lamp be used in the rain?

The lamp is rated IPX2, which protects against dripping water, but do not immerse it.

How to mount the lamp?

Use the metal bracket or the S-hook to easily hang or mount it.

What to do if the lamp does not turn on?

Check the batteries: insert them respecting polarity, or replace them with new ones.

Can I leave the batteries in the lamp if I don't use it?

It is recommended to remove the batteries if the lamp is not used for a long time to avoid leaks.

How to clean the lamp?

Use a soft, dry or slightly damp cloth, possibly with a little mild detergent. Do not use solvents.

Is the lamp dangerous for the eyes?

Yes, do not look directly into the light beam. Blue light can damage the retina if exposed for a long time.

How to dispose of the lamp at the end of its life?

Do not throw it away with household waste. Take it to a collection point for electrical devices and used batteries.

What is the battery life of the lamp?

The battery life is approximately 6 hours at 100% and 11h30 at 50%.

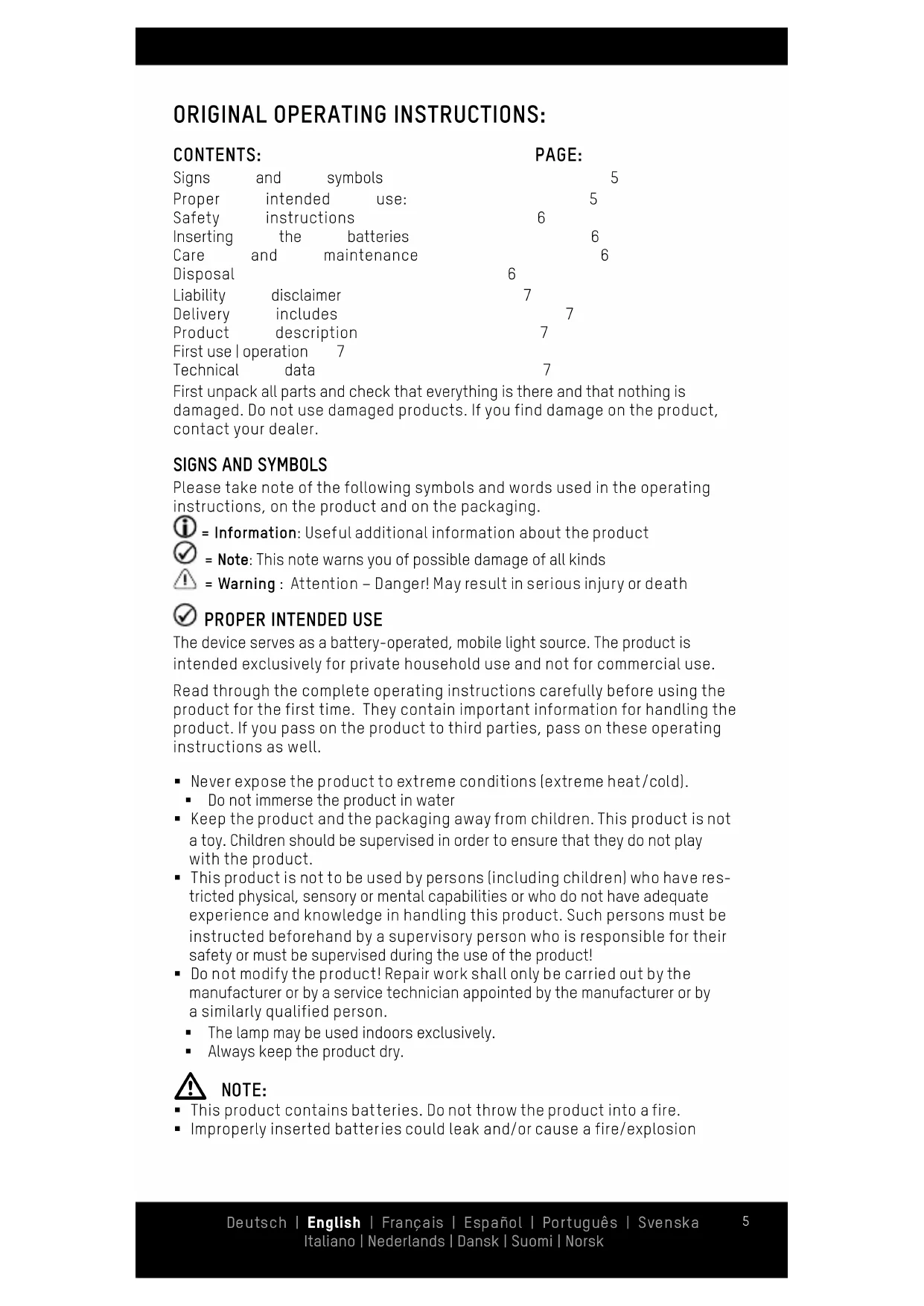

USER MANUAL Mini Camping Lantern ANSMANN

Signs and symbols				5
Proper intended use:				5
Safety instructions			6
Inserting the batteries				6
Care and maintenance				6
Disposal			6
Liability disclaimer			7
Delivery includes				7
Product description			7
First use | operation	7
Technical data			7

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information: Useful additional information about the product
√ = Note: This note warns you of possible damage of all kinds
⚠ = Warning : Attention - Danger! May result in serious injury or death

PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is intended exclusively for private household use and not for commercial use.

Read through the complete operating instructions carefully before using the product for the first time. They contain important information for handling the product. If you pass on the product to third parties, pass on these operating instructions as well.

• Never expose the product to extreme conditions (extreme heat/cold).
  ■ Do not immerse the product in water
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.
• This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!
• Do not modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
  ■ The lamp may be used indoors exclusively.
  ■ Always keep the product dry.

NOTE:

• This product contains batteries. Do not throw the product into a fire.

• Improperly inserted batteries could leak and/or cause a fire/explosion

• Always change all of the batteries at the same time as a complete set and always use equivalent batteries

• Keep batteries away from children > Risk of choking or suffocating

■ Never try to open, crush or heat a battery or set it on fire.

- Do not use the batteries if the product appears to be damaged.

■ The batteries cannot be recharged!

• Always dispose of used batteries & rechargeable batteries in accordance with the local regulations and requirements.
• In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water.
• If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately.

- Do not short-circuit the batteries!

■ Remove used or empty batteries from the lamp immediately

- If the lamp can no longer be used, the batteries must be removed from the lamp before it is disposed of

⚠ SAFETY INSTRUCTIONS

Do not look directly into the light am. Do not shine the light in other ople's faces. If this occurs for too ng, the blue light portion of the beam n cause retinal damage.

The product is categorised as pro-ctive class III and thus operates with a n-hazardous voltage range.

i INSERTING THE BATTERIES

3 batteries are included with the delivery. In order to activate the product, open the battery compartment and insert the batteries. Ensure that the batteries are inserted with the correct polarity.

i CARE AND MAINTENANCE

Cleaning:

• Disconnect the power supply from the product before any cleaning.
• Use only a soft, dry or slightly moist cloth (with a little mild washing-up liquid if
• required) for cleaning. Do not use abrasive agents or solvents for cleaning.

Maintenance:

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

i DISPOSAL

Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries. In this way you will fulfil your legal obligations and contribute to environmental protection.

i LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

i DELIVERY INCLUDES

1x Lamp

3x AAA batteries

1x Operating instructions

i PRODUCT DESCRIPTION

1 Main light
2 Button
3 Metal bracket
4 S-hook
5 Battery compartment

i OPERATION

The mini camping lamp has three different light functions. Pressing the button changes between the functions: 100% / 50% / strobe / off The lamp can be simply fastened in place with the help of the metal bracket and the S-hook.

i TECHNICAL DATA

Illuminant: Main light: 3W SMD LED

Risk group: 1

Power supply: 3x AAA alkaline batteries LR03 (included)

Protection class: III

Luminous flux: 100%: 220lm | 50%: 95lm

Battery life: 100%: 6h | 50%: 11h 30min

Light range: 100%: 8m | 50%: 5m

Housing material: PS and ABS plastic

Protection type: IPX2

Storage temperature: -10 to 50 °C

Operating temperature: -10 to 25 °C

Weight: 120g (without batteries)

Dimensions: 115 x 66 x 66mm

CE The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors. Traduction française du

MODE D'EMPLOI ORIGINAL :

i PRODUCTBESCHRIJVING:

1 Hoofdlicht

2 Knop

3 Metalen beugel

4 S-haak

5 Batterijvak

i BEDIENING

i PRODUKTBESKRIVELSE:

1 Hovedlys

2 Knap

3 Metalbøjle

4 S-krog

5 Batterislids

i BETJENING

i STELL OG VEDLIKEHOLD

Rengjøring:
