16000222 - Flashlight ANSMANN - Free user manual and instructions

Product type	Flashlight (torch) with built-in battery
Brand	ANSMANN
Model	16000222
Light source	5 W CREE LED, non-replaceable
Luminous flux	420 lm (100%), 105 lm (25%)
Battery life	2 h (100%), 9.5 h (25%), 16 h (flashing)
Battery	Li-Ion 3.7V, 2600 mAh
Power supply	USB 5V=1000 mA
Charging time	Approximately 4 hours
Dimensions (torch only)	214 x 104 x 81 mm
Dimensions (with wall mount)	238 x 126 x 91 mm
Weight (torch)	542 g
Protection rating	IP20 (charge indoors only)
Operating temperature	-10 to 25 °C
Charging temperature	0 to 25 °C
Materials	Plastic, integrated magnets
Package contents	Torch, wall mount, USB cable, color filter, 2 screws, 2 wall plugs
Main functions	On/off, 3 modes (100%, 25%, flashing), 90° articulation, wall mount with charging, magnetic attachment, removable color filter
Charging	Via wall mount or direct micro USB port
Cleaning and maintenance	Soft dry or slightly damp cloth; recharge the battery after 6 months of non-use
Safety	Do not look directly into the beam; protection class III; do not open or modify; do not expose to moisture during charging
Warranty	3 years
Repairability	Light source and battery not user-replaceable; repair only by manufacturer or authorized technician
Intended use	Portable household lighting, non-professional

Frequently Asked Questions - 16000222 ANSMANN

How to recharge the ANSMANN 16000222 flashlight?

You can recharge the lamp in two ways: Option A: Place the torch on the supplied wall mount (the mount must be plugged into a USB source). Option B: Open the rubber cap of the micro USB connector on the torch and plug in a compatible USB cable. Use a USB power source delivering at least 1 A (1000 mA).

How to mount the wall mount?

1. Use the mount as a template to mark the drilling holes. 2. Drill the holes and insert the wall plugs. 3. Connect the USB cable to the micro USB port on the wall mount. 4. Push the cable into the cord protector. 5. Screw the mount onto the wall. 6. Connect the USB cable to a USB power source (5 V, 1 A minimum). Note: Mounting must be done only in a dry room.

What is the lamp's battery life?

Battery life depends on the mode: 100%: approx. 2 hours, 25%: approx. 9.5 hours, flashing: approx. 16 hours. When the battery is almost empty, the light flashes 3 times every 15 seconds and there is about 2 minutes of light remaining.

Is the lamp waterproof?

No, the lamp is rated IP20, meaning it is protected against solid objects larger than 12 mm but not against water. Do not use it in rain or humid environments, and charge it only indoors.

Can I replace the LED or battery?

No. The light source and battery are built-in and not user-replaceable. If the LED or battery is defective, the entire lamp must be replaced. For any repair, contact the manufacturer or an authorized technician.

How to clean the lamp?

Before cleaning, disconnect the lamp from any power source. Use a soft, dry or slightly damp cloth (with a mild dishwashing detergent if needed). Never use abrasive cleaners or solvents.

What to do if the lamp is not used for several months?

If the lamp remains unused for more than 6 months, recharge the battery to preserve its lifespan. Store it in a dry place at a temperature between -10 and 45 °C.

How to use the color filter?

The color filter (included) can be placed in front of the torch to modify the lighting color. Simply snap it onto the front of the lamp.

Can the lamp be attached to a metal surface?

Yes, the torch has built-in retaining magnets that allow it to be attached to most metal surfaces. You can thus use it hands-free.

How to change the lighting modes?

Use the function button (located on the lamp body) to switch between the three modes: 100%, 25%, and flashing. The on/off button turns the lamp on and off.

USER MANUAL 16000222 ANSMANN

Scope of delivery 10
Intended use 10
Safety information 11
Product description. 12
Assembly 12
Charging 13
Operation 14
Maintenance and care. 15
Technical data 15
Disposal 16
Disclaimer. 16
Warranty information. 16

SCOPE OF DELIVERY

1x Portable spotlight
1x Wall mount
1x USB charging cable
1x Color filter
2x screws
2xdowels

First unpack all parts and check them for completeness and damages. Do not operate the product if it is damaged. Contact your retailer should you find any damage to the product.

INTENDED USE

The product is intended to be used as a mobile light source. It features a built-in rechargeable battery that can be charged via a Micro USB connection. The wall mount with charging function serves as a safe storage system with quick-remove action.

The product is designed exclusively for household use; it is not suitable for commercial purposes.

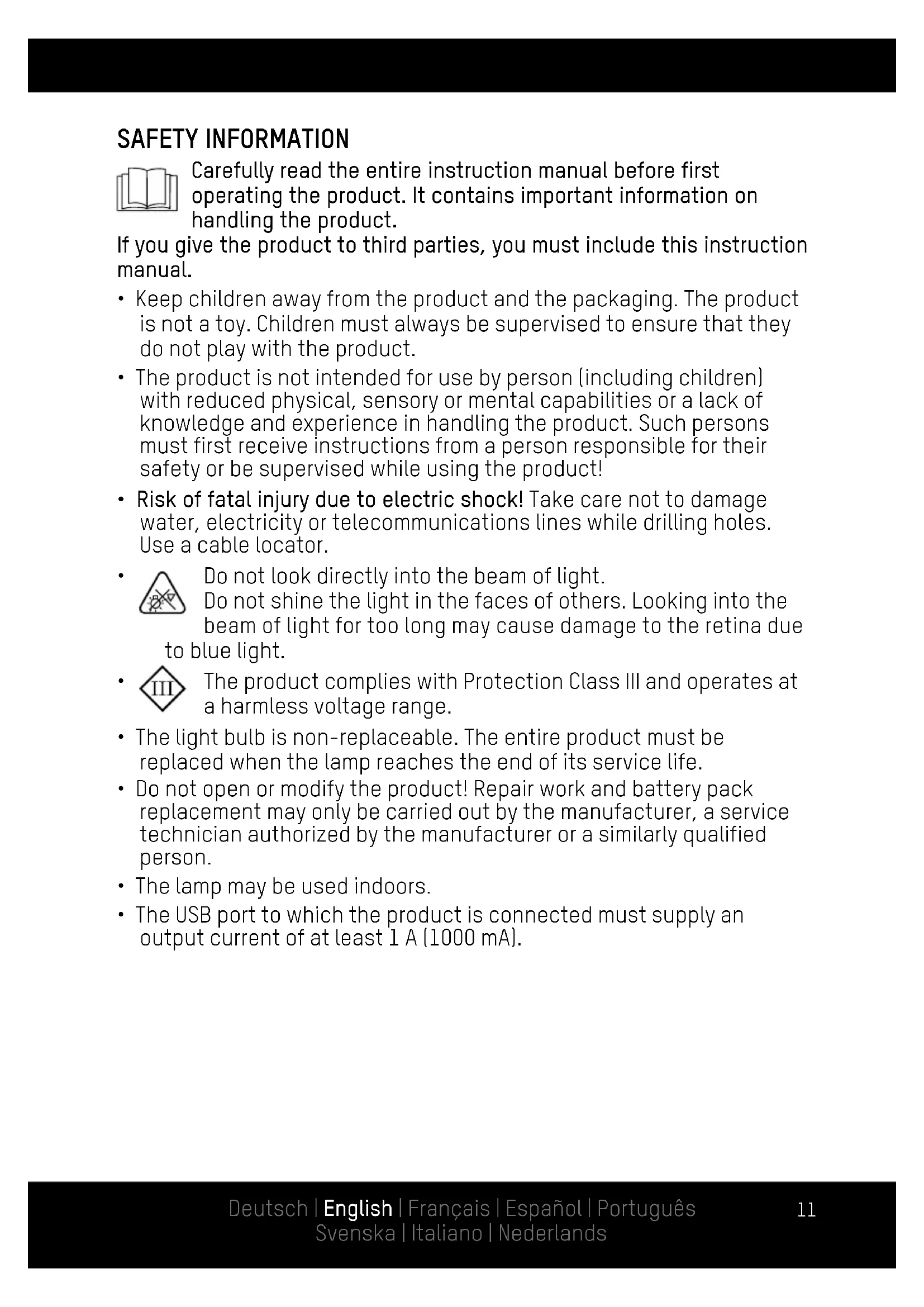

SAFETY INFORMATION

Carefully read the entire instruction manual before first operating the product. It contains important information on handling the product.

If you give the product to third parties, you must include this instruction manual.

• Keep children away from the product and the packaging. The product is not a toy. Children must always be supervised to ensure that they do not play with the product.

• The product is not intended for use by person (including children) with reduced physical, sensory or mental capabilities or a lack of knowledge and experience in handling the product. Such persons must first receive instructions from a person responsible for their safety or be supervised while using the product!

• Risk of fatal injury due to electric shock! Take care not to damage water, electricity or telecommunications lines while drilling holes. Use a cable locator.

Do not look directly into the beam of light.

Do not shine the light in the faces of others. Looking into the beam of light for too long may cause damage to the retina due to blue light.

The product complies with Protection Class III and operates at a harmless voltage range.

• The light bulb is non-replaceable. The entire product must be replaced when the lamp reaches the end of its service life.
• Do not open or modify the product! Repair work and battery pack replacement may only be carried out by the manufacturer, a service technician authorized by the manufacturer or a similarly qualified person.
• The lamp may be used indoors.

• The USB port to which the product is connected must supply an output current of at least 1 A (1000 mA).

• Always read the safety and operating instructions of any other devices which are connected to the product.

• Keep the product dry at all times.

• Caution:

• The product contains a non-replaceable lithium-ion rechargeable battery. Do not throw the product into open flames.

• Always charge the product in a spacious, empty area, removed from flammable materials and liquids. Failure to comply may lead to fire and burn injuries.

• Never attempt to open, crush, heat or set fire to the rechargeable battery.

• Do not use or charge the rechargeable battery if the product appears to be damaged.
• Dispose of used (rechargeable) batteries in keeping with local laws and requirements.

PRODUCT DESCRIPTION (SEE PAGE 2)

1 Joint
8 Mounting hole
2 On/off button
9 Charging contacts
3 Mode button
10 Micro USB connection
4 LED indicator
11 Strain relief
5 Holding magnet
12 USB cable
6 Charging contacts
13 Color filter
7 Micro USB connection with rubber cap
14 Screws
15 Dowels

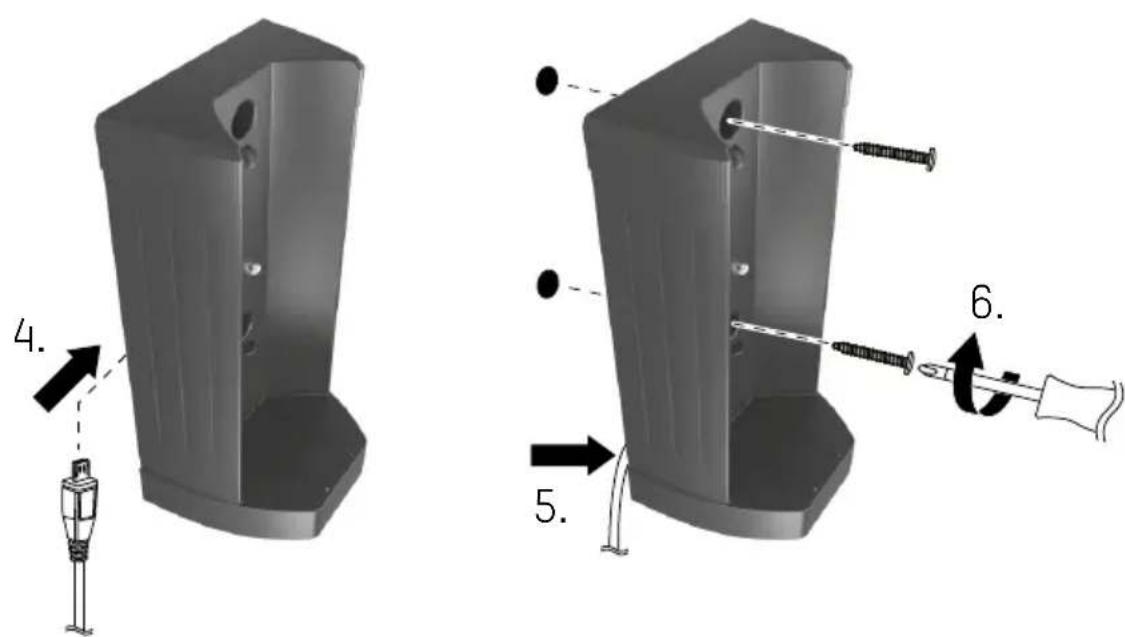

ASSEMBLY

Caution: Mount the product in dry indoor areas only.

1 Mark the positions for the drill holes through the mounting holes.
2 Drill the holes.
3 Insert the dowels.

4 Connect the USB cable to the Micro USB connection on the wall mount.
5. Firmly press the USB cable into the strain relief.
6 Screw on the wall mount.
7 Connect the USB cable to a USB voltage source with at least 1 A output current.

CHARGING

Option A: Place the product in the wall mount.

Option B: Charge the product via the built-in Micro USB connection.

1 Open the rubber cap on the Micro USB connection.
2 Use a suitable cable to connect a USB voltage source with at least 1 A output current.
3 After charging, unplug the USB cable and close the rubber cap.

Power failure system

• Begin charging while the product is turned on.
• As soon as the product is supplied with power, it turns itself off.
• If the power supply is interrupted, the product turns on automatically with approx. 20% luminosity.
• The product turns off again automatically when the power supply is reconnected.

LED indicator (charging)

Indicator Battery charge status

3 LEDs (permanent) approx. 100%

3 LEDs (flashing) approx. 60-99%

2 LEDs (flashing) approx. 30-59%

1 LED (flashing) approx. 0-30%

Note: If you turn the product on during charging, the luminosity is reduced in 100% mode to approx. 20% and in 25% mode to approx. 15% .

OPERATION

Button Function
On/off button	Turn on/off
Mode button	Switch mode 100 % | 25 % | flashing

• The spotlight unfolds 90^ thanks to the joint.
• The magnet holder allows the product to be fastened to most magnetizable surfaces.
• The color filter can be attached to the front of the spotlight if required.

LED indicator (light-ON mode)

Indicator Battery charge status

3 LEDs (permanent) approx. 100-67%

2 LEDs (permanent) approx. 66-34%

1 LEDs (permanent) approx. 33-11%

1 LED (flashing) approx. 10-0%

Note: Shortly before the rechargeable battery is depleted, the spotlight flashes 3 times once every 15 seconds. From this point, there are only 2 minutes left of light-ON operation.

MAINTENANCE AND CARE

Cleaning

• Always disconnect the power supply before cleaning the product.
• Use only a soft, dry or slightly damp cloth (where necessary with a little mild dishwashing detergent) to clean the product. Never use any abrasive cleaners or solvents to clean the product.

Maintenance

If the product has not been used for 6 months, the rechargeable battery should be charged to maintain its service life.

TECHNICAL DATA

Light bulb. .5 W CREE LED

Risk group. 2

Power supply.. USB, 5V=1000 mA

Protection class..

Rechargeable battery............Li-ion, 3.7V, 2600 mAh

Charging time. 4h

Light current 420 lm (100%)

105lm (25%)

Light-ON time 2h (100%)

9.5 h (25 %)

16 h (flashing)

Protection type IP20 (charge in indoor spaces only)

Storage temperature-10 to 45^

Operating temperature. -10 to 25^

Storage temperature 0 to 25^

USB cable length........................ approx. 1.5 m

Weight (lamp) .542g

Dimensions (lamp) (× × ) ....214x104x81mm

Dimensions (lamp with wall

At the end of its service life, dispose of the lamp in keeping with all legal requirements. The dustbin symbol indicates that waste electrical and electronic equipment may not be disposed of with normal household waste within the EU. Please use local recycling and collection points or contact the retailer where you purchased the product.

Return the used device to a collection point for used devices. Do not dispose of the device with household waste as it contains a (rechargeable) battery.

You thus fulfill your statutory obligations and contribute to protection of the environment.

DISCLAIMER

The information contained in this instruction manual is subject to change without prior notice. ANSMANN assumes no liability for direct, indirect, accidental or other types of damage or consequential damage that result from improper handling of the product or failure to comply with the information contained in this instruction manual. We assume no liability and grant no warranty claims in cases of improper use of the product.

WARRANTY INFORMATION

We offer a three-years warranty on the device. Damages to the device due to failure to observe the instruction manual will void the warranty. This does not affect your legal warranty right.

The product meets the conditions of the European Union.
