Future T350F - Flashlight ANSMANN - Free user manual and instructions

Product type	Flashlight
Brand	Ansmann
Model	Future T350F
Light source	LED COB
Luminous flux	175 lumens
Range	19 meters
Runtime	6 hours
Power supply	3 AAA alkaline batteries (LR03) included
Protection class	III (very low voltage)
Protection rating	IPX3 (protected against water jets)
Housing material	Aluminum
Dimensions (L × W × H)	95 × 29 × 29 mm
Weight (without batteries)	42.5 g
Operating temperature	-10 °C to 25 °C
Storage temperature	-10 °C to 50 °C
Risk group	2 (do not look directly into beam)
Operation	One button for on/off
Intended use	Mobile light source, private domestic use
Maintenance	Clean with a damp cloth, do not immerse
Safety	Do not open, do not look directly into the beam, keep out of reach of children
Replaceable light source	No (entire lamp must be replaced)
Included accessories	Lamp, 3 batteries, instruction manual
Warranty	See conditions at www.ansmann.de

Frequently Asked Questions - Future T350F ANSMANN

How to turn the Future T350F lamp on and off?

Simply press the button to turn the lamp on or off.

What type of batteries does the Future T350F lamp use?

It uses 3 AAA alkaline micro batteries (LR03). Batteries are included in the delivery.

Can I replace the LED in the lamp?

No, the light source (LED COB) is not replaceable. At the end of its life, you must replace the entire lamp.

Is the Future T350F lamp waterproof?

It has an IPX3 protection rating IPX3, which protects it against water jets, but it must not be immersed.

How to clean the Future T350F lamp?

Clean it with a slightly damp cloth, then wipe dry. Do not use abrasive products or solvents and do not submerge it in water.

What is the runtime of the Future T350F lamp?

The runtime is approximately 6 hours with new batteries.

What is the maximum range of the lamp?

The range is 19 meters.

Can I use rechargeable batteries in the lamp?

Using rechargeable batteries is not recommended due to different electrical values. Use only non-rechargeable alkaline batteries.

What to do if the lamp no longer turns on?

First check the batteries: insert them with correct polarity and replace them if they are used. Ensure the compartment is clean.

How to dispose of the lamp at the end of its life?

Do not dispose of it with household waste. Take it to a collection point for used electrical equipment or follow local regulations regarding batteries.

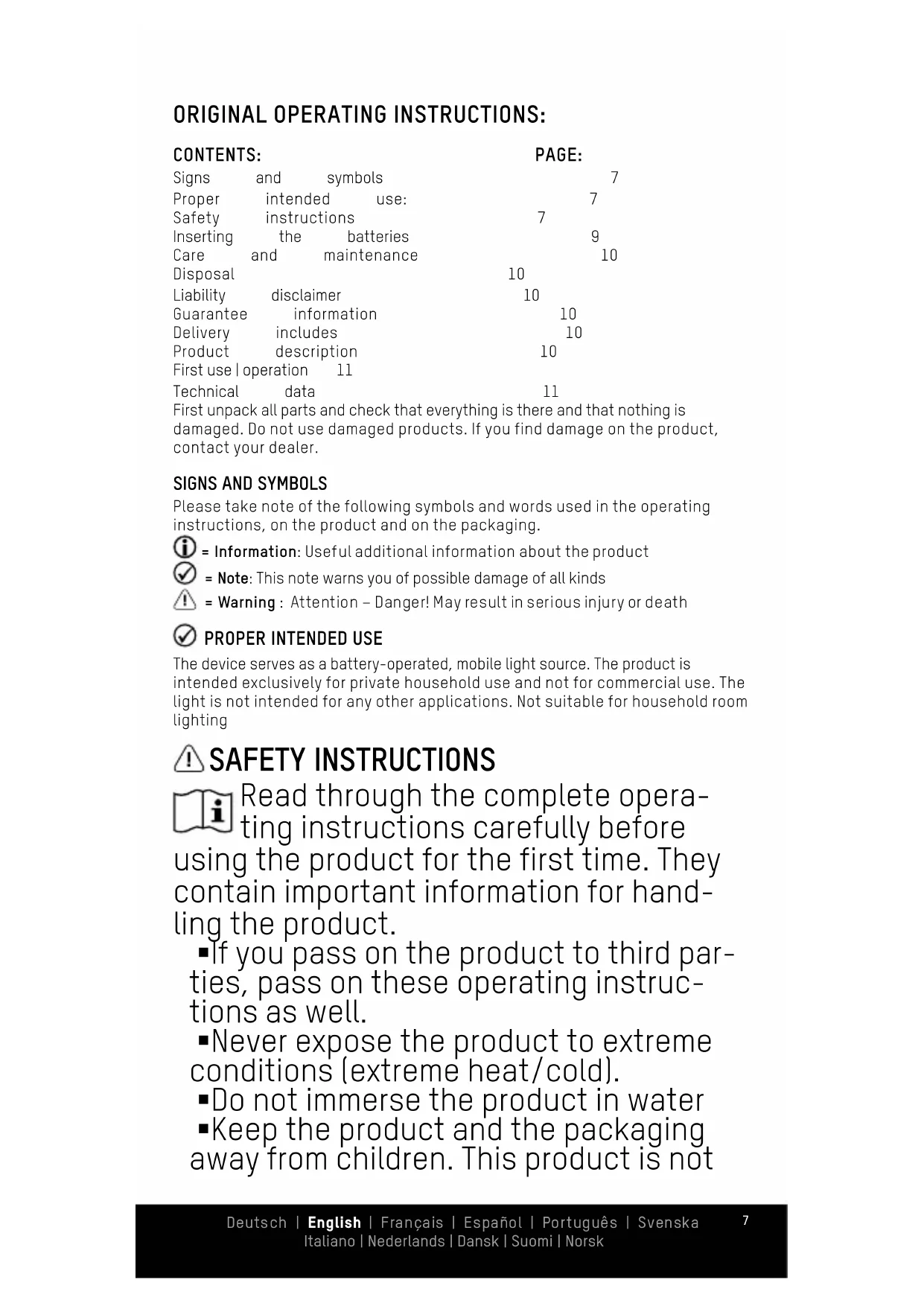

USER MANUAL Future T350F ANSMANN

Safety instructions 7

Inserting the batteries 9

Care and maintenance 10

Disposal 10

Liability disclaimer 10

Guarantee information 10

Delivery includes 10

Product description 10

First use operation 11

Technical data 11

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

1 = Information: Useful additional information about the product

= Note: This note warns you of possible damage of all kinds

= Warning: Attention - Danger! May result in serious injury or death

PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is intended exclusively for private household use and not for commercial use. The light is not intended for any other applications. Not suitable for household room lighting

SAFETYINSTRUCTIONS

Read through the complete operating instructions carefully before using the product for the first time. They contain important information for handling the product.

If you pass on the product to third parties, pass on these operating instructions as well.
- Never expose the product to extreme conditions (extreme heat/cold).
- Do not immerse the product in water
- Keep the product and the packaging away from children. This product is not

a toy. Children should be supervised in order to ensure that they do not play with the product.

• This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!

Do not look directly into the light beam. Do not shine the light in other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage.

The product is categorised as protective class III and thus operates with a non-hazardous voltage range.

The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the complete lamp must be replaced.

• Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

Always keep the product dry.

Note:

• This product contains batteries. Do not throw the product into a fire

• Improperly inserted batteries could leak

and/or cause a fire/explosion

Always change all of the batteries at the same time as a complete set and always use equivalent batteries
- Keep batteries away from children: Risk of choking or suffocating
- Never try to open, crush or heat a battery or set it on fire
- Do not use the batteries if the product appears to be damaged
Batteries are not rechargeable
Always dispose of used batteries & rechargeable batteries in accordance with the local regulations and requirements.
In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water
If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately
- Do not short-circuit the batteries!
The use of rechargeable batteries and high-current batteries is not permitted due to other electrical characteristics.
- Remove used or empty batteries from the lamp immediately
If the lamp is no longer to be used, the batteries must be removed from the lamp before it is disposed of

① INSERTING THE BATTERIES

When inserting batteries, ensure that the batteries are inserted with the correct polarity.

Switch the product off before changing the batteries.

① CARE AND MAINTENANCE

Cleaning:

• Carry out cleaning tasks only when the mains plug has been pulled out / when the power supply has been disconnected

Clean only with a slightly damp cloth, then rub it dry
- Do not use abrasive agents or solvents for cleaning.
- Never submerge the product in water or other liquids.
- Do not allow fluids to enter the housing.
- Do not use hard brushes or sharp objects for cleaning.

Maintenance:

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

DISPOSAL

Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries.

In this way you will fulfil your legal obligations and contribute to environmental protection.

① LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY INFORMATION

You can find our warranty terms online at www.ansmann.de. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this.

① DELIVERY INCLUDES

1x lamp

3x AAA batteries

1x operating instructions

PRODUCT DESCRIPTION

1 COB LED

2 Switch

3 Battery compartment

① OPERATION

The lamp is switched on or off by pressing the switch.

TECHNICAL DATA

Illuminant: COB LED

Risk group: 2

Power supply: 3x AAA alkaline batteries LR03 (included)

Protection class: III

Luminous flux: 175lm

Battery life: 6h

Light range: 19m

Housing material: Aluminium

Protection type: IPX3

Storage temperature: -10 to 50 °C

Operating temper- -10 to 25 °C rature:

Weight: 42.5g (without batteries)

Dimensions: 95 × 29 × 29mm

The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors.

TRADUCTION FRANÇAISE DU MODE D'EMPLOI ORIGINAL :

1 COB-LED
2 Interrupttore
3 Vano battery

① USO

① PRODUCTBESCHRIJVING:

3x micro AAA battery

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Hotline: [phone]

E-Mail: [e-mail]

MA-1600-0399/V1/03-2020
