Product type	LED flashlight
Brand	Ansmann
Model	WL230B
Dimensions (H x W x D)	220 x 35 x 38 mm
Weight	170 g
Power supply	3 AAA micro batteries 1.5 V (alkaline LR03)
LED types	LED COB 3W + LED 1W
Luminous flux (high mode)	230 lm
Luminous flux (low mode)	100 lm
Battery life (high mode)	4 hours
Battery life (low mode)	7 h 15 min
Protection rating	IP20
Protection class	III
Housing material	Plastic
Storage temperature	-10 to 50 °C
Functions	3 lighting modes (top LED, front LED, off)
Attachments	Hook, magnets, foot clip
Package contents	Lamp, 3 AAA batteries, instruction manual
Maintenance	Clean with a soft, dry or slightly damp cloth
Safety	Do not look directly at the light; do not expose to water; keep out of reach of children
Repairability	Do not modify; repairs by the manufacturer or an authorized technician
Disposal	Do not dispose of with household waste; recycle batteries and lamp via collection points

Frequently Asked Questions - WL230B ANSMANN

How to turn on the WL230B lamp?

Press the button on the lamp. One press turns on the top LED, two presses turn on the front LED, three presses turn off the lamp.

How to change the lamp batteries?

Open the battery compartment at the bottom of the lamp. Remove the old batteries and insert 3 new AAA batteries, respecting polarity (indicated inside). Close the compartment.

What types of batteries to use?

Use AAA micro batteries 1.5 V alkaline type (LR03). Do not use rechargeable batteries, as the product is not designed for them.

Is the lamp waterproof?

No, the lamp has an IP20 rating, meaning it is not protected against water. Do not immerse it and avoid exposure to moisture.

How to clean the lamp?

Before cleaning, remove the batteries. Use a soft, dry or slightly damp cloth (with a little mild dish soap). Never use abrasive products or solvents.

Can I use rechargeable batteries?

No, the manual states that the batteries are not rechargeable. Use only disposable alkaline batteries.

What to do if the lamp does not turn on?

Check that the batteries are inserted correctly (polarity) and that they are not dead. Replace the batteries if necessary. If the problem persists, contact your dealer.

How to mount the lamp on a surface?

The lamp has a hook for hanging, magnets at the bottom to attach to magnetic surfaces, and a clip in the foot to clip onto objects.

What lighting modes are available?

The lamp offers two modes: 1 press: top LED on (230 lm, battery life 4h); 2 presses: front LED on (100 lm, battery life 7h15); 3 presses: off.

How to dispose of the used lamp?

Do not throw the lamp in household waste. Take it to a collection point for electrical devices. Remove the batteries and recycle them separately according to local regulations.

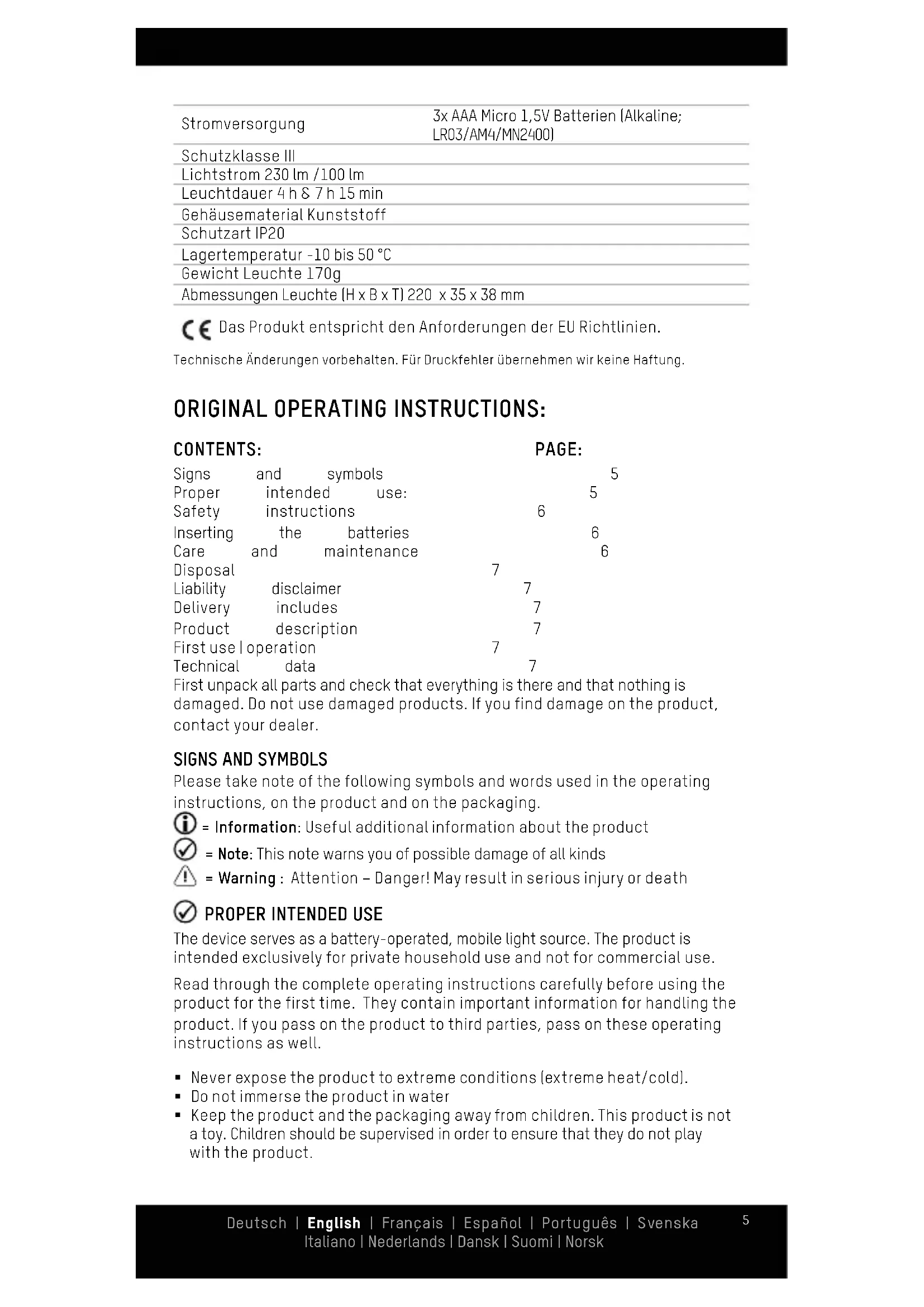

USER MANUAL WL230B ANSMANN

Signs and symbols			5
Proper intended use:			5
Safety instructions		6
Inserting the batteries			6
Care and maintenance			6
Disposal		7
Liability disclaimer		7
Delivery includes		7
Product description		7
First use l operation		7
Technical data		7

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information: Useful additional information about the product

√ = Note: This note warns you of possible damage of all kinds

⚠ = Warning : Attention – Danger! May result in serious injury or death

√ PROPER INTENDED USE

The device serves as a battery-operated, mobile light source. The product is intended exclusively for private household use and not for commercial use.

Read through the complete operating instructions carefully before using the product for the first time. They contain important information for handling the product. If you pass on the product to third parties, pass on these operating instructions as well.

• Never expose the product to extreme conditions (extreme heat/cold).
  ■ Do not immerse the product in water

• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.

• This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!

• Do not modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

■ The lamp may be used indoors exclusively.

■ Always keep the product dry.

• This product contains batteries. Do not throw the product into a fire.
• Improperly inserted batteries could leak and/or cause a fire/explosion
  ■ Always change all of the batteries at the same time as a complete set and always use equivalent batteries
• Keep batteries away from children > Risk of choking or suffocating

■ Never try to open, crush or heat a battery or set it on fire.

• Do not use the batteries if the product appears to be damaged.
  ■ The batteries cannot be recharged!
• Always dispose of used batteries & rechargeable batteries in accordance with the local regulations and requirements.
• In the event of battery leakage, do not touch. If you come into contact with battery fluid, wash the affected area thoroughly and immediately with plenty of water.
• If the battery fluid has caused a skin reaction or has come into contact with your eyes, contact a medical professional immediately.

- Do not short-circuit the batteries!

■ Remove used or empty batteries from the lamp immediately

- If the lamp can no longer be used, the batteries must be removed from the lamp before it is disposed of

SAFETY INSTRUCTIONS

Do not look directly into the light beam. Do not shine the light in other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage.

The product is categorised as pro-ctive class III and thus operates with a non-hazardous voltage range.

INSERTING THE BATTERIES

3 batteries are included with the delivery. In order to activate the product, open the battery compartment and insert the batteries. Ensure that the batteries are inserted with the correct polarity.

CARE AND MAINTENANCE

Cleaning:

• Disconnect the power supply from the product before any cleaning.
  ■ Use only a soft, dry or slightly moist cloth (with a little mild washing-up liquid if
• required) for cleaning. Do not use abrasive agents or solvents for cleaning.

Maintenance:

If the product is not going to be used, remove the batteries and store separately in order to preserve service life.

DISPOSAL

Dispose of unserviceable lamps in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the dealer from whom you purchased the product.

For disposal, pass the device on to a specialist disposal point for old equipment. Do not dispose of the device via household waste as the device contains batteries / rechargeable batteries. In this way you will fulfil your legal obligations and contribute to environmental protection.

i LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

i DELIVERY INCLUDES

1x Plastic workshop lamp
3x AAA 1.5V batteries
1x Operating instructions

First unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

i PRODUCT DESCRIPTION (SEE PAGE 2)

1 LED

2 On/off button

3 Base and fastening clip

4 Mounting magnets

5 Battery compartment

6 Hanging hook

i OPERATION

Button Press 1x: Top LED on

Press 2x: Front LED on

Press 3x: Front LED off

The work lamp can be hung from suitable hanging points with the help of the hanging hook.

The magnets on the underside of the lamp enable the product to be mounted on metallic surfaces.

The clip on the base also enables the lamp to be fastened to different objects.

i TECHNICAL DATA

Illuminants 3W COB LED + 1W LED

Risk group 1

Power supply	3x AAA 1.5V batteries (Alkaline; LR03/AM4/MN2400)
Protection class III
Luminous flux 230 lm /100 lm
Battery life 4 h & 7 h 15 min
Housing material Plastic
Protection type IP20
Storage temperature -10 to 50 °C
Weight of light 170g
Dimensions of light (H x W x D) 220 x 35 x 38 mm

CE The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors. Traduction française du

MODE D'EMPLOI ORIGINAL :

Lâmpada 3W LED COB + 1W LED

Grupo de risco 1

Lampadina 3W COB LED + 1W a LED

Lamp 3 W COB LED + 1 W LED

Lamppu 3 W COB LED + 1 W LED

INNHOLDSFORTEGNELSE: SIDE:

i STELL OG VEDLIKEHOLD

Rengjøring:

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadt

Germany

Hotline: [phone]

E-Mail: [e-mail]

MA-1600-0388/V1/03-2020
