USER MANUAL HR 5000 BEURER

Black hairbrush with multiple teeth and a power button, no visible text or symbols

ENHairclippers Instructions for use .....16

Labeled diagram of a hair salon brush and comb kit with numbered parts and interior control panel

Line drawing of a mechanical tool or device with a pointed tip and handle (no text or symbols)

Schnellaufladung

Illustration of two hands holding clips, showing a hand pressing a clip (no text or symbols present)

Technical line drawing of a mechanical component with hands operating (no text or symbols)

Illustration of a hand holding a small electronic device with directional arrows indicating rotation (no text or symbols)

Diagram of a device with a handle and lever mechanism, showing no text or symbols

1 0

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

Line drawing of a steam drop from a container with visible steam and bubbles (no text or symbols)

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• The device is only intended for domestic/private use, not for commercial use.
• This device can be used by children over the age of 3 when supervised.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.
• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to adhere to this instruction will void the warranty.
• Cleaning and user maintenance must not be performed by children unless supervised.

• When using the device in the bathroom, unplug the plug after use as water in the vicinity constitutes a danger, even when the device is switched off.

• Never use the device near baths, wash basins, showers or other objects containing water or other liquids – risk of electric shock!

• As an additional safety measure, we recommend the installation of a residual-current-operated protective device (RCD) with a rated operational current not exceeding 30 mA in the bathroom circuit. Your local electrical specialist can provide you with the relevant information.
• The hand-held part must be disconnected from the connection cable before it is cleaned in water.
• If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person to avoid any risk.
• The device may only be operated with the supplied mains adapter.

Dear customer,

Thank you for choosing a product from our range. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, baby and air. Please read these instructions for use carefully and keep them for later use, make them accessible to other users, and observe the information they contain.

With kind regards,

Your Beurer team

Table of contents

1. Included in delivery 18
2. Signs and symbols 18
3. Getting to know your device.... 20
4. Intended use....20
5. Warnings and safety notes 20
6. Device description.... 22
7. Initial use.... 24
8. Usage 24
9. Cleaning and maintenance.... 26
10. Disposal 27
11. Technical specifications 28
12. Warranty/service.... 28

1. Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

1 x HR 5000 hair clippers
1 x long comb attachment
1 x short comb attachment
1 x cutting oil
1 x scissors
1 x comb
1 x mains adapter
1 x cleaning brush
1 x charging and storage station

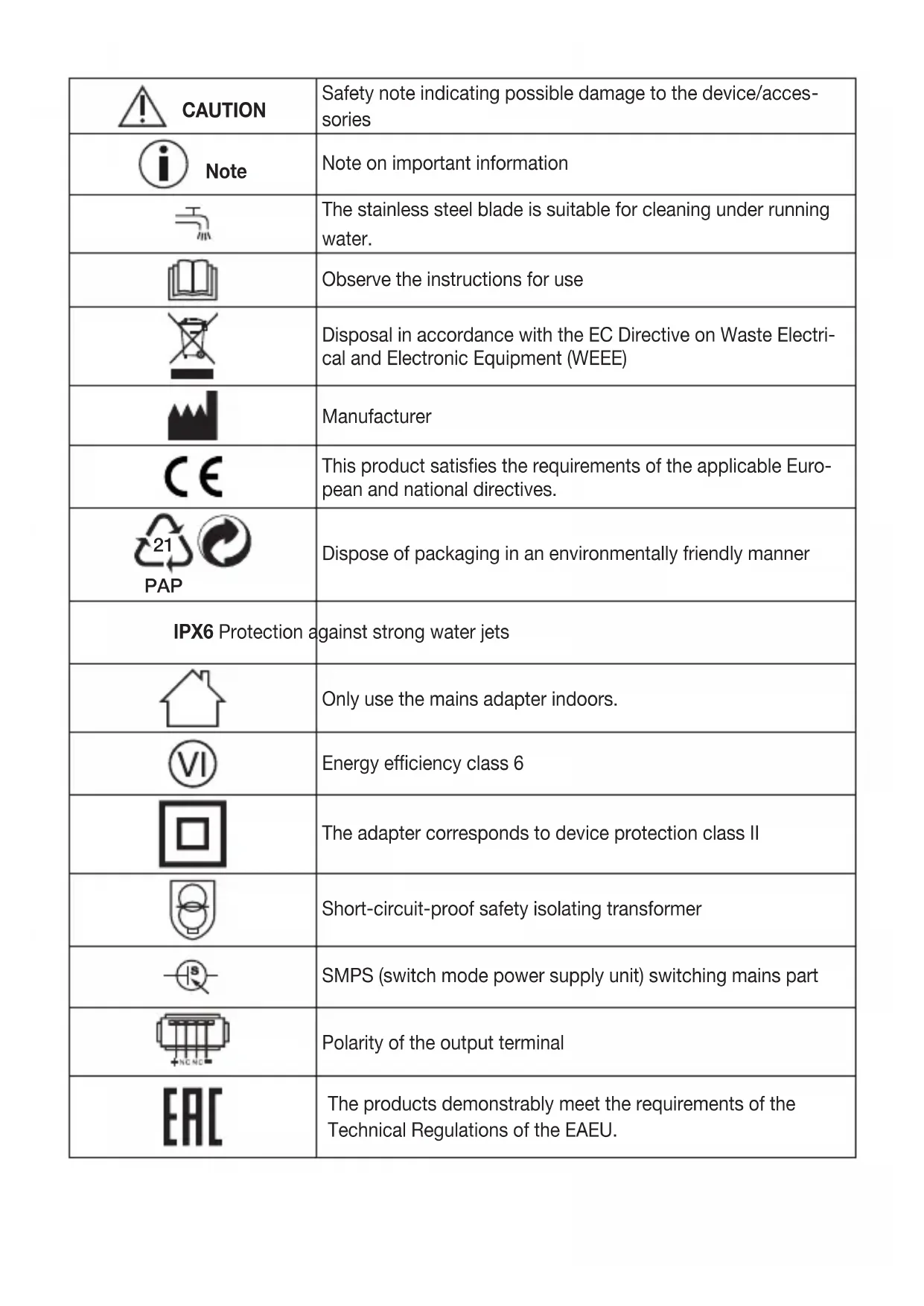

2. Signs and symbols

The following symbols are used in these instructions for use, on the packaging and on the type plate for the device:

	DANGER	This device must not be used near to water or in water (e.g. in a wash basin, or in the shower or bath) – risk of electric shock!
	WARNING	Warning notice indicating a risk of injury or damage to health

>AUTION	Safety note indicating possible damage to the device/access-sories
Note	Note on important information
[DASW]	The stainless steel blade is suitable for cleaning under running water.
	Observe the instructions for use
	Disposal in accordance with the EC Directive on Waste Electrical and Electronic Equipment (WEEE)
	Manufacturer
	This product satisfies the requirements of the applicable European and national directives.
PAP	Dispose of packaging in an environmentally friendly manner
IPX6 Protection against strong water jets
	Only use the mains adapter indoors.
	Energy efficiency class 6
	The adapter corresponds to device protection class II
	Short-circuit-proof safety isolating transformer
[TYS2]	SMPS (switch mode power supply unit) switching mains part
	Polarity of the output terminal
	The products demonstrably meet the requirements of the Technical Regulations of the EAEU.

3. Getting to know your device

With the HR 5000 hair clippers, you can cut head hair easily and precisely. Its high-quality stainless steel blade has a titanium coating, which ensures optimum skin compatibility.

Thanks to the two comb attachments and the 5 levels of precision adjustment that are integrated into the hair clippers, you can achieve various cutting lengths and clean contours effortlessly. The hair clippers feature an LED display with battery, travel lock and charging indicator. There is also a symbol in the LED display which informs you when you need to re-oil the stainless steel blade. The hair clippers can be powered by the battery as well as the supplied mains adapter. A high-performance lithium battery ensures that you can use the hair clippers for up to 60 minutes after just one battery charge.

The stainless steel blade can be removed and rinsed under running water for hygienic cleaning.

4. Intended use

The HR 5000 hair clippers are exclusively intended to cut human head hair. Do not use the hair clippers on other body parts, animals or objects! Do not use the hair clippers outside.

The hair clippers are intended for private use only. The hair clippers are not intended for commercial use. The hair clippers may only be used for the purpose for which they were designed and in the manner specified in the instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or incorrect use.

5. Warnings and safety notes

DANGER

To avoid damage to health, we strongly advise against using the device in the following situations:

• Danger of suffocation by packaging material! Keep packaging material away from children.
• Before use, inspect the device and accessories for visible damage. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.
• Keep the mains adapter away from water.
• Never submerge the device in water or other liquid! Risk of electric shock!
• If the device should fall into water despite following all safety precautions, immediately pull the mains plug from the socket! Do not reach into the water! Risk of electric shock!
• Have the device checked by an authorised specialist workshop before using it again! Danger to life due to electric shock!
• If the device has been dropped or has suffered any other damage, it must no longer be used. Risk of electric shock and injury!
• If there is visible damage to the device, accessories or mains adapter, do not use the device if you have any doubts and contact your retailer or the specified Customer Services address. Risk of electric shock!

• Do not use the device if the stainless steel blade is damaged as it may have sharp edges – risk of injury!

• The edges of the stainless steel blade and the attachments are sharp. Take care when using the device.

• Keep packaging material away from children – risk of suffocation!
• Store the device out of the reach of children.
• Do not use extension cables in the bathroom to ensure the mains adapter can be accessed quickly in an emergency.
• Never use the device with wet or moist hands when it is connected to the power supply.
• Only use the original comb attachments.

WARNING

To avoid damage to health, please note the following:

• Do not use the device if you have sunburn, open wounds, eczema or cuts on your face.
• Switch off the device before attaching or switching the comb attachments.
• Ensure that no highly flammable liquids are located near the device. Risk of fire!
• Remove all packaging material before using the device.
• Ensure that the mains cable does not pose a trip hazard.
• Only connect the device to a socket that has the correct voltage as indicated on the type plate.
• Only operate the device according to the specifications on the type plate.
• Only pull on the mains adapter to remove the mains cable from the power outlet.
• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply with this instruction will void the warranty.
• In the event of a fault or damage, have the device repaired by a certified specialist workshop.
• Never leave the device unattended while in use.
• If you pass on the device to someone else, make sure to also pass on these instructions for use.
• Switch off the device after every use.
• Pull the mains adapter out of the socket after each completed charging process.

CAUTION

• Protect the device and its accessories from impacts, humidity, dirt, marked temperature fluctuations and direct sunlight.
• Only operate, charge or store the device at temperatures from -10^ to 40^ .

WARNING

Notes on handling batteries

• If your skin or eyes come into contact with fluid from the battery cells, flush out the affected areas with plenty of water and seek medical assistance.
• Risk of explosion! Never throw batteries into a fire.
• Do not disassemble, split or crush batteries.

• Only use chargers specified in the instructions for use.

• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.

• Fully charge the battery prior to initial use (see Chapter 7).
• In order to achieve as long a battery service life as possible, fully charge the battery at least 2 times a year.

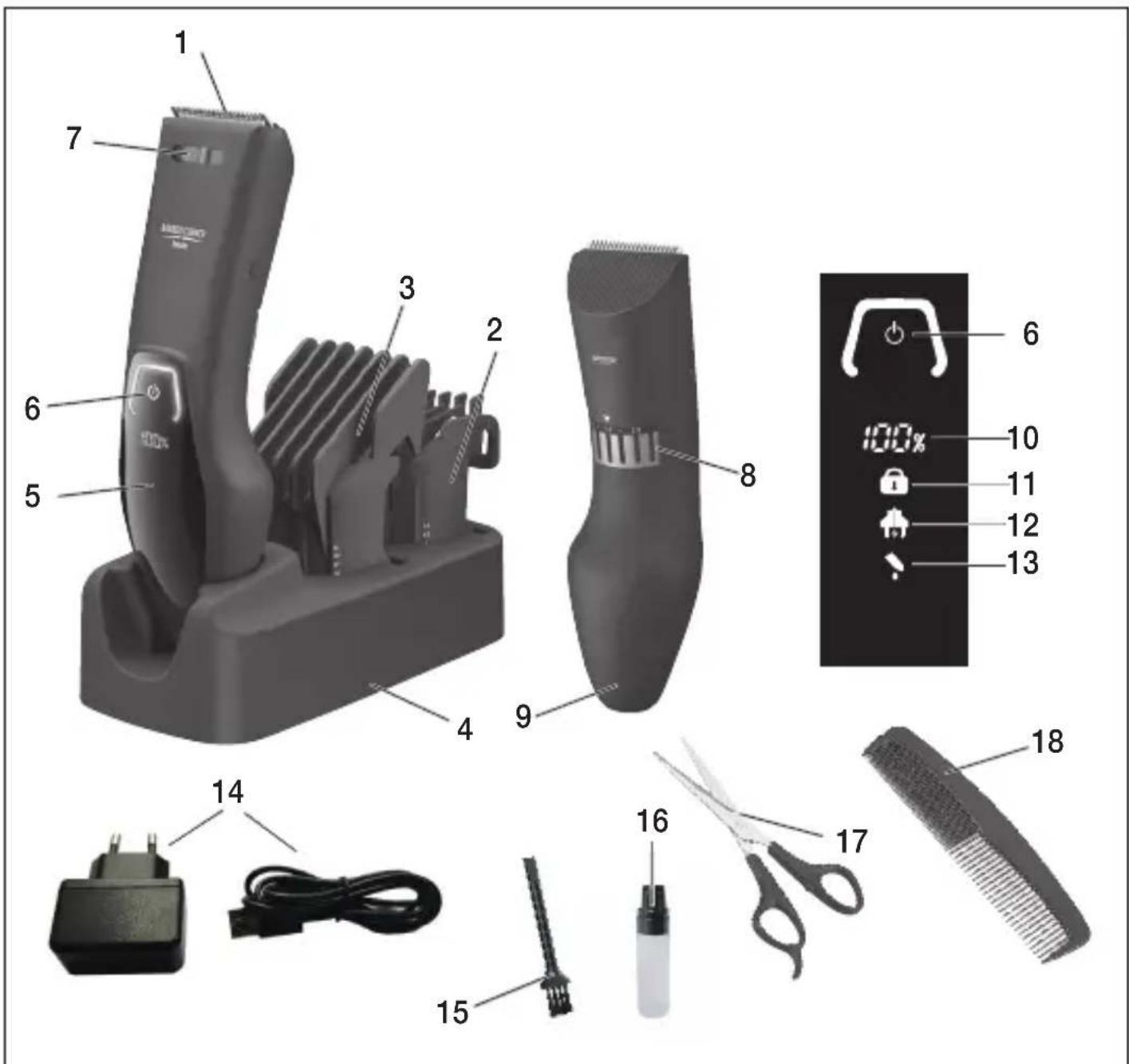

6. Device description

Labeled diagram of a hair salon brush kit with numbered parts and a 100% adjustment panel

1. Stainless steel blade 10. Battery indicator (0-100%)
2. Short comb attachment(3/6/9/12/15 mm)	11. Travel lock indicator
3. Long comb attachment(18/21/24/27/30/33 mm)	12. Charging indicator
4. Charging/storage station 13. Oil indicator
5. LED display 14. Mains adapter
6. ON/OFF switch	15. Cleaning brush
7. Sliding switch for thinning function 16. Cutting oil
8. Precision adjustment(0.5/1.0/1.5/2.0/2.5 mm)	17. Scissors
9. Connection socket (micro USB) 18. Comb

Attachments

	Long comb attachmentSuitable for cutting lengths of 18-33 mm (3-mm increments).
	Short comb attachmentSuitable for cutting lengths of 3-15 mm (3-mm increments).

7. Initial use

You can operate the device using the battery or the mains adapter supplied.

Battery operation

In order to be able to operate the device with the battery, fully charge the battery for 60 minutes prior to initial use. The operating period of the device is approx. 60 minutes when it is fully charged.

To charge the battery, proceed as follows:

1. Ensure that the device is switched off.
2. Connect the mains adapter to a suitable socket.
3. Plug the other end of the mains adapter into the connection socket on the underside of the device. The charging indicator now begins to flash. The battery indicator shows you the current battery state in percent.
4. Once the charging process is complete, pull the mains adapter out of the socket and the device. The device is now ready for use.

Line drawing of a medical or laboratory procedure with a tool and connector (no text or symbols)

Quick charging

If you have forgotten to charge the hair clippers before use, the quick-charge function helps. Connect the device to the power supply for this purpose. The device will be ready for a complete shave using battery operation within 5 minutes.

Mains operation

To operate the device with the supplied mains adapter, proceed as follows:

1. Connect the mains adapter to a suitable socket.
2. Plug the other end of the mains adapter into the connection socket on the underside of the device. The battery indicator shows you the current battery state in percent and the charging indicator begins to flash. The mains adapter delivers enough power to charge the battery and operate the device at the same time.
3. After use, pull the mains adapter out of the socket and the device.

WARNING

Never use the device in the shower when it is being operated via the mains.

The hand-held part of the device must be disconnected from the connection cable before use in a damp environment.

8. Usage

Travel lock

The device has a travel lock. If the travel lock is activated, it is not possible to switch on the device. The travel lock prevents the device from switching on by accident (e.g. when transporting it in a suitcase).

To activate the travel lock, press and hold the ON/OFF switch ⏻ for 3 seconds. The travel lock indicator begins to flash. The device is now locked. If the ON/OFF switch ⏻ is briefly pressed when the device is locked, the travel lock symbol will light up in the display to indicate that the device is locked.

To deactivate the travel lock, press and hold the ON/OFF switch ⏻ for 3 seconds.

Direct drive function

If the battery is completely flat, you can continue using the device immediately via mains operation.

Tips before cutting hair

• Make sure that you wash and dry the hair to be cut.
- Comb the hair to be cut thoroughly in order to remove any knots and to smooth down the hair.
- Wear a hairdressing cape to stop hair from landing on your neck.

Cutting hair using a comb attachment

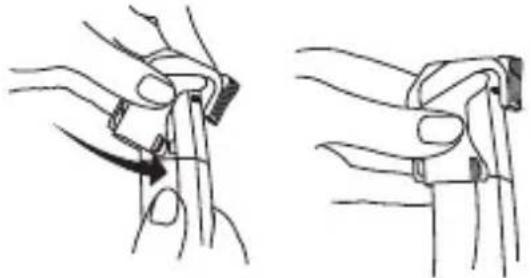

- Select one of the two comb attachments and attach it to the device as shown. Make sure that you hear and feel the comb attachment click into place. We recommend that you start with the comb attachment with the longest cutting length initially so you can then slowly work your way up to your desired length.

Illustration of two hand positioning techniques (no text or symbols)

Line drawing of a mechanical tool or component with hands operating it (no text or symbols present)

- In order to adjust the cutting length on the comb attachment, slide the sliding switch on the rear of the comb attachment to the desired cutting length as shown.

- Press the ON/OFF switch to switch on the device. The operation display begins to light up.

- Guide the device slowly through the hair. Ensure that the comb attachment sits as flat on the head as possible.

• Always only trim small areas.

- Cut the hair against the direction of growth. If the hair grows in different directions, use the device in multiple directions.

- Press the ON/OFF switch again to switch off the device after use. The operating display turns off.

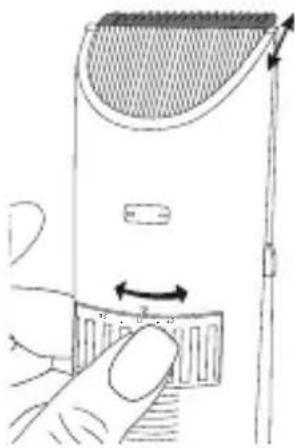

Cutting hair without the comb attachment

If you want to cut your hair very short (0.5 mm to 2.5 mm), you can use the device without a comb attachment.

• If a comb attachment is attached to the device, pull the comb attachment upwards off the device.

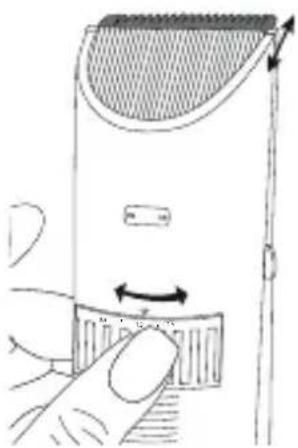

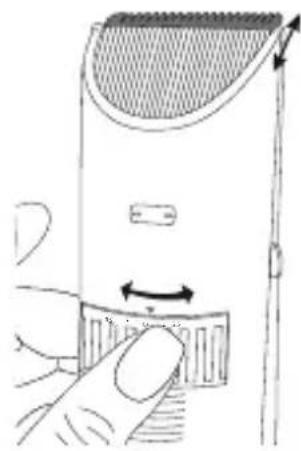

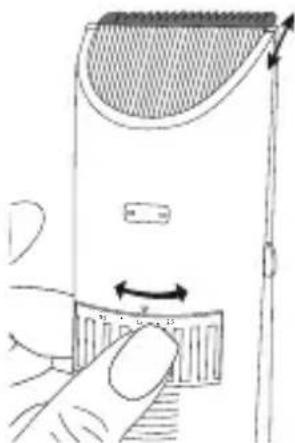

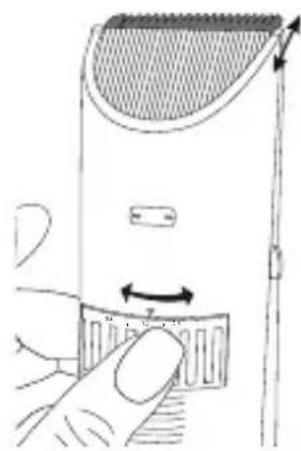

• To set the precision adjustment level, use the dial for precision adjustment on the rear of the device. You can now set the desired cutting length to between 0.5 and 2.5 mm.
• Start the application.

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

Hand holding a device with a mesh grille and directional arrow indicating rotation (no text or symbols)

Thinning hair

The device has a thinning function. The thinning function can be used to reduce the volume of hair as only some of the hair is gathered and cut.

- In order to use the thinning function, slide the sliding switch for the thinning function on the front of the device to the left.

1 0

Cutting precise contours (e.g. sideburns or neck hair)

You can also use the device to cut particularly precise contours, such as sideburns or neck hair.

• If a comb attachment is attached to the device, pull the comb attachment upwards off the device.
• Turn the device so that the front side of the device is facing your head.
• Move the device slowly from the top downwards.

9. Cleaning and maintenance

Cleaning the device

WARNING

• Always pull the mains adapter out of the socket before cleaning the device. Risk of electric shock!
- Only clean the housing of the device with a soft cloth dampened with warm water or the cleaning brush supplied.
- Do not clean the device with highly flammable liquids. Risk of fire!
- Do not clean the device in the dishwasher!
- Clean the stainless steel blade after each use to prevent lots of hair getting jammed inside it, which could otherwise impede flawless operation.

Cleaning the stainless steel blade

Blow on the stainless steel blade after the application in order to clean it of hair. You can also carefully remove wet hair with your fingers.

WARNING

When cleaning with your fingers, make sure that you do not injure yourself on the sharp edges of the stainless steel blade. To clean the stainless steel blade very thoroughly, you can also rinse it under running water. How to do this:

1. Push the stainless steel blade upwards using your thumb and remove it.
2. Hold the stainless steel blade under running water so that the jet of water runs through the stainless steel blade from the inside out.
3. Leave the stainless steel blade to dry completely before you reattach it to the device. Ensure that no water gets inside the device! Risk of electric shock!

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

Line drawing of a steamship or steam turbine component with visible exhaust plume (no text or symbols)

Oiling the stainless steel blade

In order to achieve consistently optimum cutting results, you occasionally need to oil the stainless steel blade. Apply a drop of cutting oil to the stainless steel blade when the oil indicator symbol lights up in the LED display.

10. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its

useful life. Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with the EC Directive on Waste Electrical and Electronic Equipment (WEEE). If you have any questions, please contact the local authorities responsible for waste disposal.

WARNING

The integrated battery cannot be removed for disposal. Risk of explosion and injury. The lithium-ion battery used in this device must not be disposed of in household waste, but must be disposed of correctly. For information on disposal, please contact the authorised seller or a municipal collection point.

During disposal, it must be pointed out that the device contains a battery.

Discharge the battery before disposal. Take the device and switch the hair clippers on until the battery is flat.

If it is not possible to discharge the battery due to a fault or damage, please consult your waste collection point.

11. Technical specifications

Model HR 5000
Weight 154 g
Device dimensions 17.5 x 5.1 x 4.9 cm
Device protection type IPX6
Device input 5 V	---1 A

Adapter protection type IP20
Adapter protection class II
Voltage supply(TPA-97050100BU)	Input: 100-240 V~, 50/60 Hz, 0.15 AOutput: 5.0 V ——1.0 A, 5.0 W
Average active efficiency ≥ 73.98 %
No-load power consumption ≤ 0.07 W

Battery:
Capacity	600 mAh
Nominal voltage	3.2 V
Type designation	Lithium-ion

Subject to technical changes

12. Warranty/service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller's statutory warranty obligations which ensue from the sales agreement with the buyer.

The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

Beurer guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use.

German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with

– a copy of the invoice/purchase receipt, and
– the original product.

The following are explicitly excluded from this warranty:

– deterioration due to normal use or consumption of the product;

• accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);
• products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer;
  – damage that arises during transport between manufacturer and customer, or between service centre and customer;
  – products purchased as seconds or as used goods;
  – consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.

FRANÇAIS

Remarques relatives aux batteries

Labeled diagram of a hair salon brush kit with numbered parts and a digital display showing 100% usage.

Line drawing of a soldering iron with a pointed tip (no text or symbols)

Charge rapide

Illustration of two hands adjusting a clip or clip assembly (no text or symbols present)

Technical line drawing of a mechanical component with hands operating it (no text or symbols)

Illustration of hands performing a manual tool with directional arrows indicating rotation (no text or symbols)

Diagram of a hand pressing down on a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

Line drawing of a steam drop with steam rising above a mechanical component (no text or symbols)

Huiler la lame en acier inoxydable

Labeled diagram of a hair salon brush kit with numbered parts and a 100% discount display

Line drawing of a medical or laboratory device with a pointed tip and connector (no text or symbols)

Carga rápida

Illustration of two hands adjusting a cable or clamp (no text or symbols present)

Illustration of a hand holding a tool or device with no visible text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

Simple line drawing of a cleaning or cleaning device with no text or symbols

Labeled diagram of a hair styling tool with numbered parts and a 100% display screen showing various accessories.

Line drawing of a medical or laboratory procedure with a tool and connector (no text or symbols)

Ricarica rapida

Illustration of two hands holding a tool, showing the application of a grip or grip mechanism (no text or symbols present)

Technical line drawing of a mechanical component with hands and joints (no text or symbols)

Illustration of a hand holding a small electronic device with directional arrows indicating rotation (no text or symbols)

Diagram of a hand pressing down on a mechanical component with a curved arrow indicating rotation (no text or symbols)

Sfoltire i capelli

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

Line drawing of a cleaning or cleaning device with a chimney and spray bubbles (no text or symbols)

Line drawing of a mechanical device with a tool and connector (no text or symbols)

Illustration of two hands adjusting a clip or clip device (no text or symbols present)

Illustration of a hand operating a mechanical tool with no visible text or symbols

Illustration of hands holding a handheld device with directional arrows indicating rotation (no text or symbols)

Diagram of a device with a handle and lever mechanism, showing no text or symbols

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

UYARI

Labeled diagram of a hair styling tool with numbered parts and a 3D preview showing various accessories and parts.

Line drawing of a medical or laboratory device with a pointed tip and connector (no text or symbols)

Быстрая зарядка

Illustration of two hands adjusting a clip or clip (no text or symbols present)

Technical line drawing of a mechanical component with hands operating (no text or symbols)

Illustration of a hand using a hairpin to trim a tooth, showing step-by-step adjustment (no text or symbols)

Филировка волос

Line drawing of a hand holding a finger with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a boat hull with steam rising from its side (no text or symbols)

Labeled diagram of a hair styling tool with numbered parts and a 100% display screen

Line drawing of a mechanical device with a handle and connector (no text or symbols)

Szybkie ładowanie

Illustration of two hands holding a clip, showing a hand pressing a clip (no text or symbols present)

Technical line drawing of a mechanical component with hands operating (no text or symbols)

Illustration of hands holding a tool with directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow indicating direction (no text or symbols)

Line drawing of a cleaning or dust removal device with a chimney and spray particles (no text or symbols)
