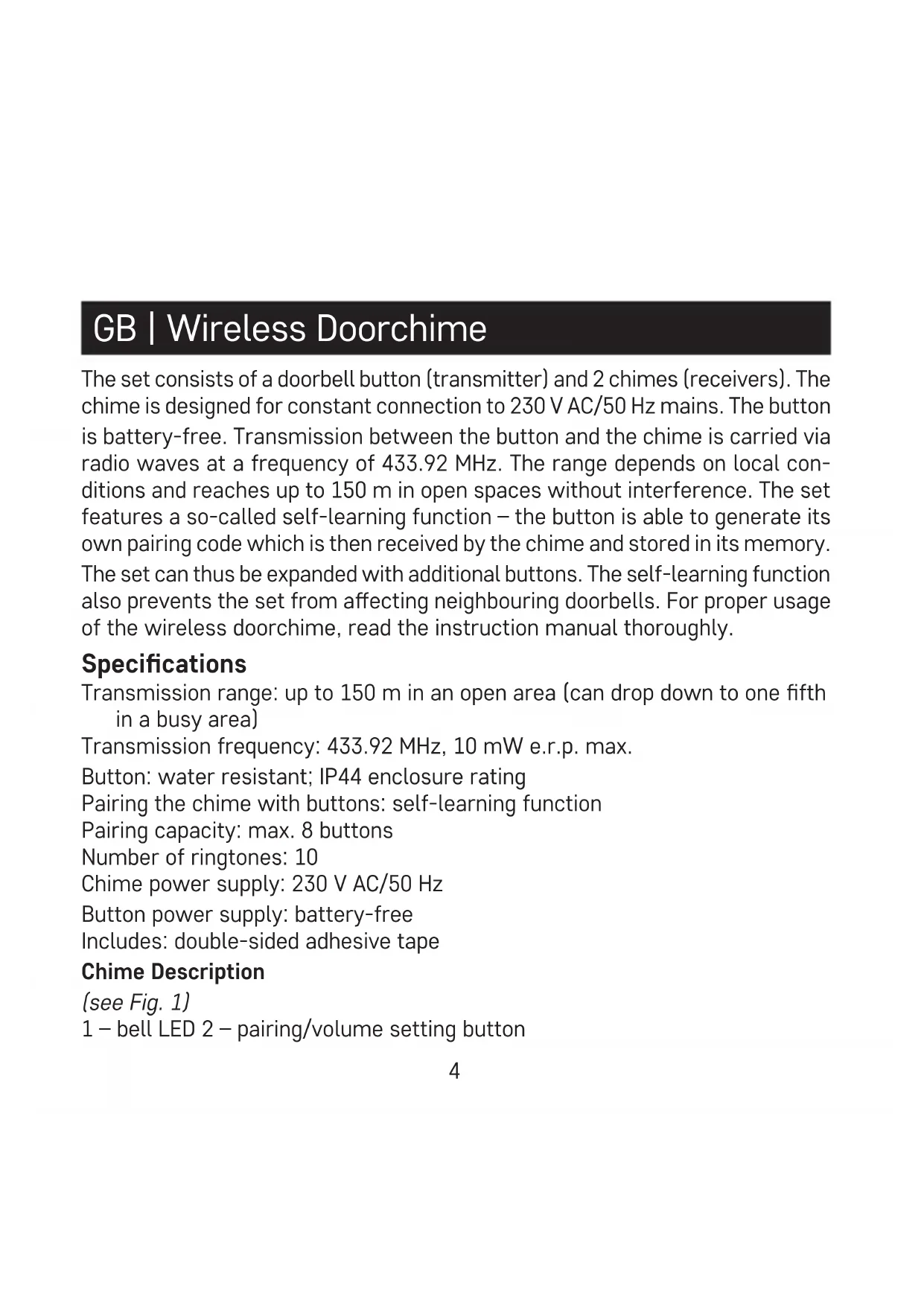

GB | Wireless Doorchime The set consists of a doorbell button (transmitter) and 2 chimes (receivers). The chime is designed for constant connection to 230 V AC/50 Hz mains. The button is battery-free. Transmission between the button and the chime is carried via radio waves at a frequency of 433.92 MHz. The range depends on local con- ditions and reaches up to 150 m in open spaces without interference. The set features a so-called self-learning function – the button is able to generate its own pairing code which is then received by the chime and stored in its memory. The set can thus be expanded with additional buttons. The self-learning function also prevents the set from aecting neighbouring doorbells. For proper usage of the wireless doorchime, read the instruction manual thoroughly. Specications Transmission range: up to 150 m in an open area (can drop down to one fth in a busy area) Transmission frequency: 433.92 MHz, 10 mW e.r.p. max. Button: water resistant; IP44 enclosure rating Pairing the chime with buttons: self-learning function Pairing capacity: max. 8 buttons Number of ringtones: 10 Chime power supply: 230 V AC/50 Hz Button power supply: battery-free Includes: double-sided adhesive tape Chime Description (see Fig. 1) 1 – bell LED 2 – pairing/volume setting button5 3 – ringtone change 4 – speaker Button Description (see Fig. 2) 1 – button LED 2 – ring button 3 – hole for opening the battery cover 4 – openings for mounting onto a wall Pairing the Button with the Chime

1. Plug the chime(s) into a socket.

2. Then, long-press the pairing button on the chime for ca. 5 seconds.

3. The chime LED will light up; release the button. The chime will switch

to self-learning pairing mode which lasts for 25 seconds. During this time, press the ring button. The chime will ring and the button is now paired with the chime. This automatically ends self-learning mode (chime LED turns o).

4. To pair multiple buttons, repeat the process for each button from step 1.

Note: The chime has an internal memory where it stores the codes of the currently paired buttons for the event of a power failure. There is thus no need to pair buttons again after a power failure. Erasing the Memory of Paired Buttons Press and hold the pairing button on the chime. Plug the chime into a socket. The LED of the chime will light up after ca. 5 seconds. Release the button. The LED will turn o. The memory of all paired buttons will be erased. Ringtone Selection

1. Repeatedly press the or ringtone change button located on the chime.6

2. Each press of the button will play a dierent ringtone. The last ringtone

played is the one that will be used. Setting Dierent Ringtones when Using Multiple Buttons

1. Plug the chime into a socket and long-press the pairing button for

approximately 5 seconds.

2. The chime LED will light up. Release the button. The chime will switch

to self-learning pairing mode which lasts for 25 seconds.

3. Repeatedly press the ringtone change button or on the chime.

4. Each press of the button will play a dierent ringtone. The last ringtone

played is the one that will be used.

5. Press the ring button. The chime will ring.

Repeat this process for each paired button. Setting Ringtone Volume You can set 5 volume levels. Repeatedly press the button on the chime. Each press changes the volume (100 % – 75 % – 50 % – 25 % – 0 %). When set to 0 %, only the chime LED will light up when the bell is rung. Installing the Doorbell Button (Transmitter)

1. First, pair the button with the chime.

2. Before installation, check that the pair works reliably in the chosen spot.

3. Remove the rear cover by inserting a screwdriver into the hole on the

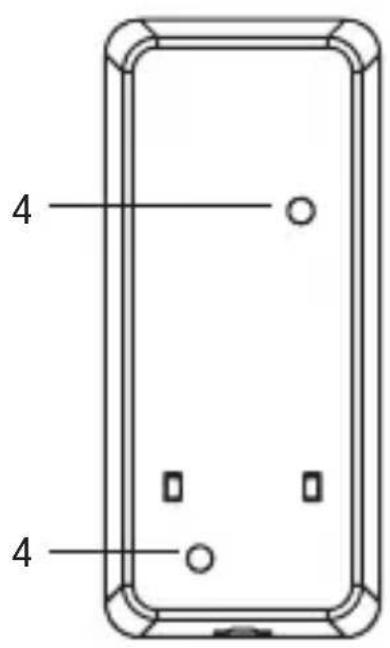

4. Use the double-sided adhesive tape (included) or two screws to x the rear

portion of the cover to the wall. Although the button is weather-resistant, choose a location where it is protected, e.g. in a wall recess.

5. Re-assemble the button.7

6. Press the button to ring the chime. Pressing is accompanied by ashing of

an LED, indicating the button has sent a radio signal. The chime will play the selected ringtone and its LED will ash. Note: The doorbell button (transmitter) can be placed on wood or brick walls without issue. However, never place the button directly onto metal objects or materials containing metal, such as plastic windows or doors that have a metal frame. In such cases, the transmitter will not work properly. Installing the Chime (Receiver)

1. The doorbell is intended for indoor use only. When running, it must be

plugged in a 230 V AC/50 Hz socket and with free space around it so that it is always accessible.

2. The transmission range (max. 150 m) is inuenced by local conditions,

such as the number of walls through which the signal passes, metal door frames and other elements which aect the transmission of radio signals (presence of other radio devices operating at a similar frequency, such as wireless thermometers, gate controls etc.). Transmission range can decrease drastically due to these factors. Troubleshooting The chime does not ring:

• The chime may be out of range. - Change the distance between the button and the chime; the range may be aected by local conditions. - Do not mount the button onto metal materials – reduces range. Place the button elsewhere or use an isolating plate made of plastic or wood.8

• The chime has no power. - Make sure the chime is properly inserted in the socket and that the power is running or the fuse/circuit breaker for the electric network section is on. Upkeep and Maintenance The wireless digital doorchime is a sensitive electronic device. Therefore, it is necessary to observe the following precautions:

• The chime (receiver) is designed for indoor use in dry environments only.

• The chime must be located in an easily accessible location for ease of handling and unplugging.

• Periodically check the functionality of the doorbell button and replace the battery in time.

• Do not expose the button or chime to excessive vibrations and shocks.

• Do not expose the button or chime to excessive heat and direct sunlight or moisture.

• When cleaning the chime, unplug it from the socket.

• To clean the device, use a slightly moistened cloth with a small amount of detergent; do not use aggressive cleaning agents or solvents.
