USER MANUAL VideoScope One Laserliner

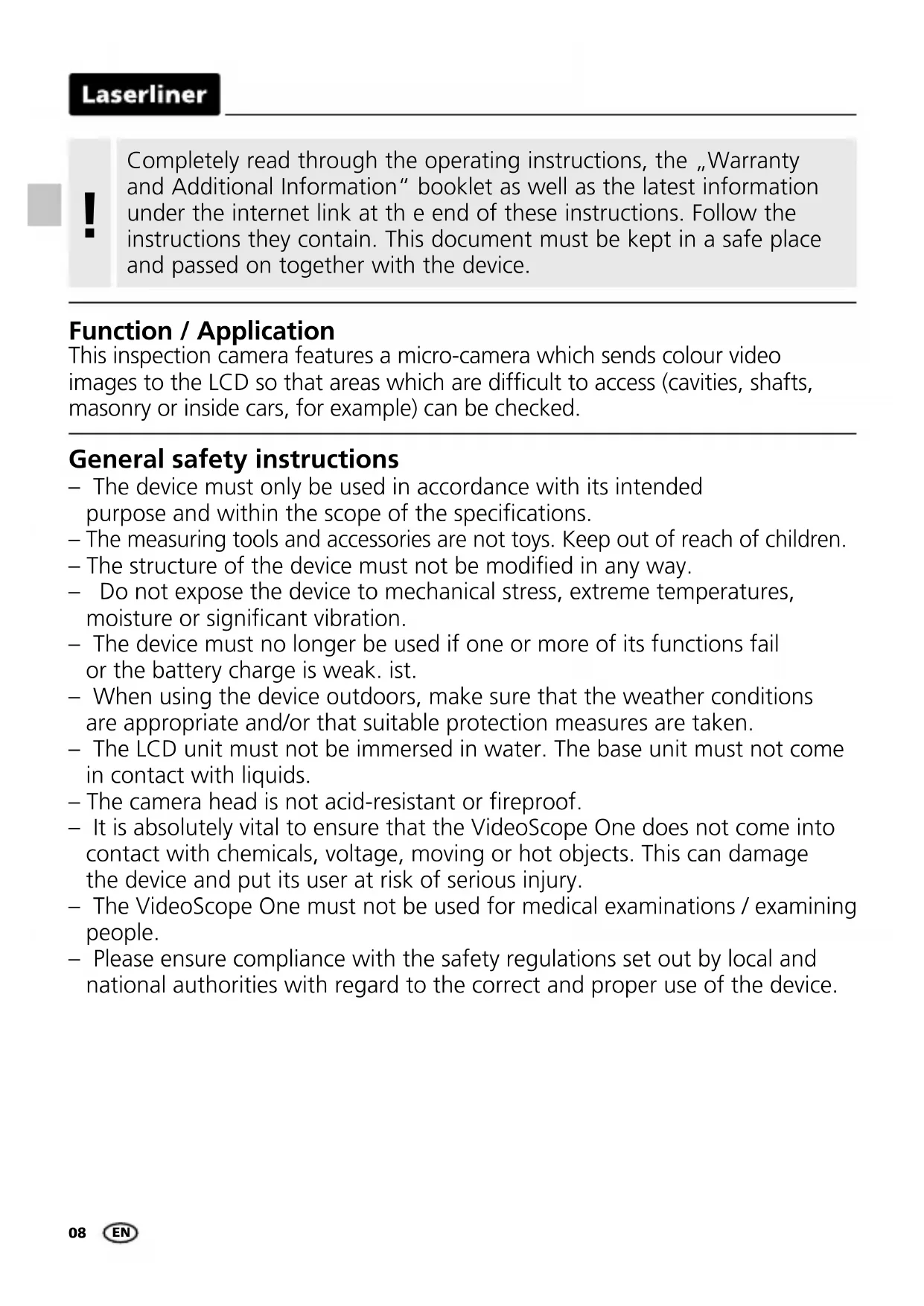

General safety instructions – The device must only be used in accordance with its intended purpose and within the scope of the specications.

The measuring tools and accessories are not toys. Keep out of reach of children. – The structure of the device must not be modied in any way. – Do not expose the device to mechanical stress, extreme temperatures, moisture or signicant vibration. – The device must no longer be used if one or more of its functions fail or the battery charge is weak. ist. – When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken. – The LCD unit must not be immersed in water. The base unit must not come in contact with liquids. – The camera head is not acid-resistant or reproof. – It is absolutely vital to ensure that the VideoScope One does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury. – The VideoScope One must not be used for medical examinations / examining people. – Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device. Function / Application This inspection camera features a micro-camera which sends colour video images to the LCD so that areas which are difcult to access (cavities, shafts, masonry or inside cars, for example) can be checked. Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at th e end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device. !VideoScope One

Safety instructions Dealing with electromagnetic radiation – The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU. – Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference. – The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff). – When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin. LED outlet Safety instructions Using articial, optical emission (OStrV) – The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.10

Functions during transmission of images Line up the camera head on the ex cable and move it to the required position. If lighting conditions are poor, switch on the LED lighting. Zoom in on distant or small objects. The manual image rotation function enables the image to be rotated by 180° on the monitor.

Battery status Zoom Intensity of LED lighting (5 brightness levels) LCD ON/OFF LED lighting Image rotation Zoom external monitor socket Operation indicator Battery compartment Camera head LED LenseVideoScope One

Open the battery compartment and insert batteries (4 x typ AA) according to the symbols. Be sure to pay attention to polarity. Inserting batteries 1x = Horizontal mirroring 2x = Original image From the original image Press button Press button Press button Zoom (5 steps) Brightness (5 steps) Image rotation ON/OFF12

< 3 cm > 7 cm Objects far outside this range may appear blurred.

Information on maintenance and care Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place. Camera head / Focus The VideoScope One delivers sharp images in a range between 3 and 7 cm from the camera head.VideoScope One

EU directives and disposal This device complies with all necessary standards for the free movement of goods within the EU. This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment. Further safety and supplementary notices at: www.laserliner.com/info Technical data Technical revisions reserved. 21W38 Camera head diameter ø 9 mm Screen type 2,7" TFT colour display Display resolution 320 x 240 Pixel Camera probe protection class IP 68 Camera resolution 320 x 240 Pixel Connections RCA video output Field of view (FOV) 53° Depth of focus (DOF) 3 … 7 cm Probe length 1,5 m Power supply 4 x 1,5V LR6 (AA) Operating time approx. 4 hours Operating conditions 0°C … 45°C, max. humidity 20 … 85% rH, no condensation, max. working altitude 4000 m above sea level Storage conditions -10°C … 60°C, max. humidity 80% rH Dimensions (W x H x D) 100 x 200 x 130 mm (without flexible tubing) Weight 510 g (incl. batteries)14
