Product Type	Planer
Brand	DeWalt
Model	DW678 / DW678E
Supply Voltage	230 V
Power Input	DW678: 850 W, DW678E: 1,010 W
No-Load Speed	DW678: 12,000 min⁻¹, DW678E: 10,000 min⁻¹
Speed Under Load	10,000 min⁻¹
Sole Length	320 mm
Planing Width Capacity	82 mm
Maximum Rebate Depth	25 mm
Maximum Cut Depth	4 mm
Weight	DW678: 3.8 kg, DW678E: 3.9 kg
Double Insulation	Yes (class II)
Sound Pressure Level (LpA)	DW678: 93 dB(A), DW678E: 91 dB(A)
Sound Power Level (LWA)	DW678: 101 dB(A), DW678E: 99 dB(A)
Vibration Value	< 2.5 m/s²
Soft Start (E model)	Yes (DW678E)
Electronic Brake (E model)	Yes (DW678E)
Constant Speed Control (E model)	Yes (DW678E)
Chip Ejection	Right or left (with cassette)
Included Accessories	Parallel guide, depth stop, wrench, dust extraction adapter, dust bag (K models), metal case (K models)
Warranty	30-day satisfaction guarantee, 1 year free maintenance, 1 year against manufacturing defects
Maintenance	Regular cleaning of air vents, no lubrication needed

Frequently Asked Questions - DW678 DEWALT

How to adjust the planing depth?

Turn the adjustment knob (4): one complete turn corresponds to a depth of 4 mm, and one graduation corresponds to 0.1 mm. Perform this adjustment when the tool is unplugged.

How to mount the parallel guide?

Insert the parallel guide (13) into the slot (6) from the right or left, then tighten the wing screw (14). To dismount, reverse the order. Always unplug the tool before assembly.

How to change the blades?

Loosen the three screws (21) with the provided wrench, raise the side guard (9), slide the blade (22) out of the drum. Reverse or replace both blades simultaneously. Insert the new blade aligning it with the sole, then tighten the screws.

How to use left chip ejection?

Push the cassette with its head (23) into the left opening (24) until it clicks. Connect the dust extraction adapter (25) to a vacuum to prevent clogging. Right ejection can be done without cassette or with cassette for extraction.

How to start and stop the planer?

To start: press the unlock button (2) then press the ON/OFF switch (1). Release the unlock button. To stop: release the switch. Always stop the tool before unplugging.

What accessories are included with the planer?

The planer comes with: a parallel guide, a depth stop for rebating, two wing bolts, a wrench, a dust extraction adapter, a dust bag (K models) and a metal case (K models), as well as an instruction manual and an exploded view diagram.

How to maintain the planer?

Regularly clean the air vents with a soft cloth to prevent overheating. No additional lubrication is necessary. Periodically check the condition of the power cable and blades.

What is the warranty for the DeWalt DW678 planer?

DeWalt offers a 30-day satisfaction guarantee (refund or exchange), free maintenance for 1 year (parts and labor), and a 1-year warranty against manufacturing defects. Keep the proof of purchase.

How to use the planer in stationary mode?

Mount the planer on the stationary support (DE6661, optional). Open the guard (17), place the planer, tighten the star knob (16). Lock the switch with the lock-off key (19). Use a push stick (20) to guide the workpiece.

What safety precautions are essential?

Wear safety goggles and a dust mask. Use rubber gloves and non-slip shoes for outdoor use. Keep children away. Unplug the tool before any adjustment or maintenance. Do not wear loose clothing or jewelry.

USER MANUAL DW678 DEWALT

Technical diagram of a manual power tool with numbered parts labeled for identification.

A1

Technical diagram of a power tool with numbered parts labeled 1 through 11

A2

Diagram of a mechanical device with a knob and rotating arrow, no text or symbols present

B

13 14

C

16 17 13-20 18 15 19

D

13

E

1 MM 21 9 22

F

23 24 3 25

G

ELH∅VL DW678/DW678E OG

Tillykke!

EINHANDHOBEL DW678/DW678E

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

EC-Declaration of conformity en - 1

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 3

Mains plug replacement (U.K. & Ireland only) en - 3

Using an extension cable en - 4

Assembly and adjustment en - 4

Instructions for use en - 5

Maintenance en - 6

Guarantee en - 6

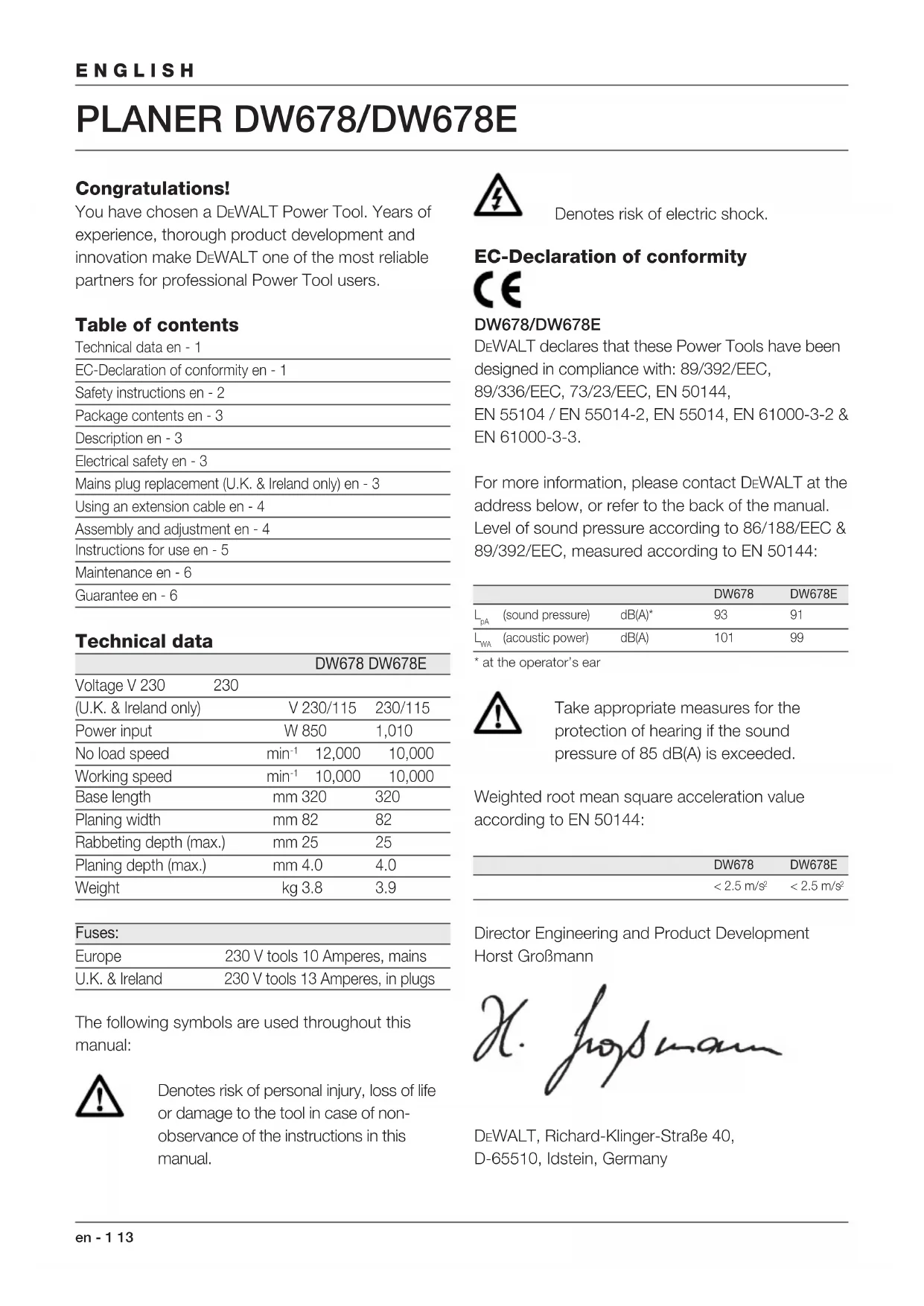

Technical data

	DW678 DW678E
Voltage V 230 230
(U.K. & Ireland only)	V 230/115	230/115
Power input	W 850	1,010
No load speed	min ^-1 12,000	10,000
Working speed	min ^-1 10,000	10,000
Base length	mm 320	320
Planing width	mm 82	82
Rabbeting depth (max.)	mm 25	25
Planing depth (max.)	mm 4.0	4.0
Weight	kg 3.8	3.9

Fuses:
Europe	230 V tools 10 Amperes, mains
U.K. & Ireland	230 V tools 13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

EC-Declaration of conformity

DW678/DW678E

DeWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55104 / EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DeWALT at the address below, or refer to the back of the manual. Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to EN 50144:

			DW678	DW678E
L_pA	(sound pressure)	dB(A)*	93	91
L_wA	(acoustic power)	dB(A)	101	99

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

	DW678	DW678E
	< 2.5 m/s ^2	< 2.5 m/s ^2

Director Engineering and Product Development Horst Großmann

X. Jopman

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity.

Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DeWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function.

Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

20 Have your tool repaired by an authorized DeWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Package contents

The package contains:

1 Planer
1 Parallel fence
1 Rabbeting depth stop
2 Wing bolts
1 Spanner
1 Dust extraction adapter
1 Dustbag (K-models only)
1 Metal case (K-models only)
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

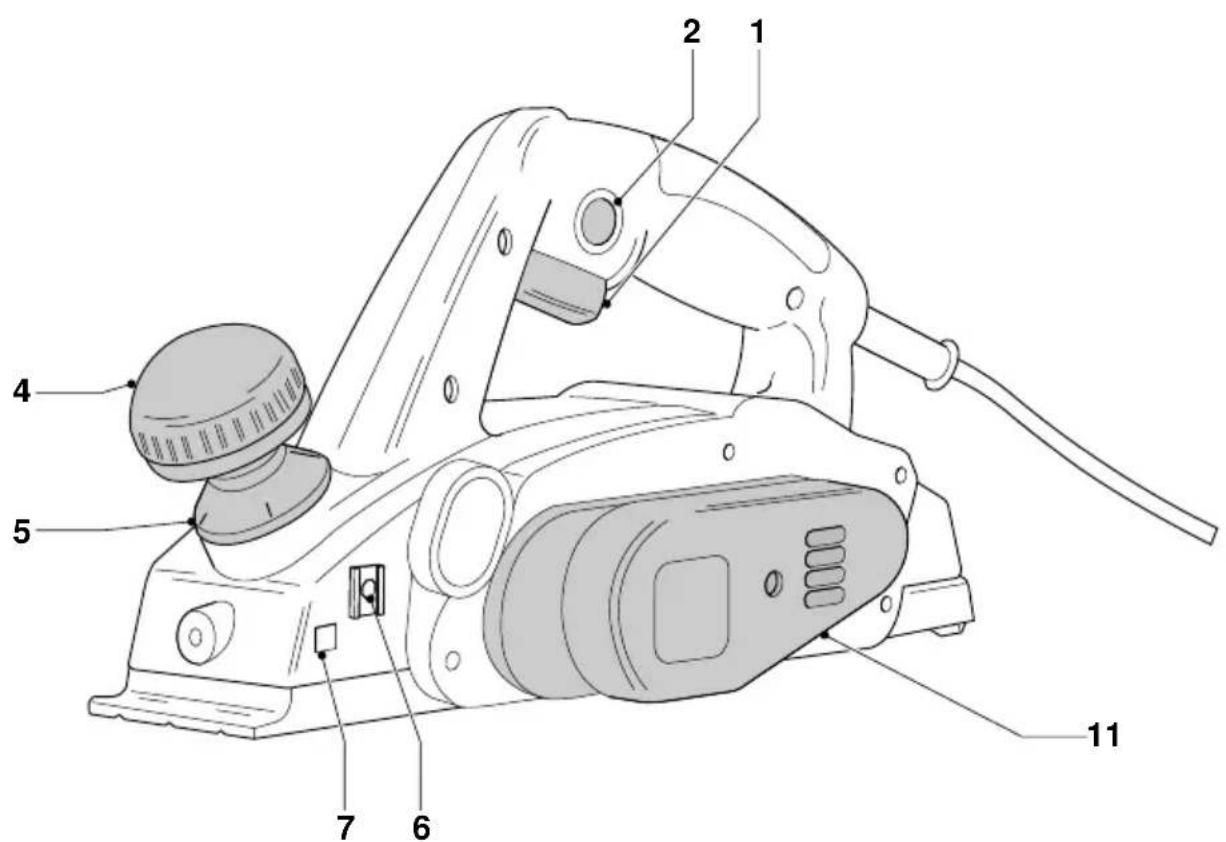

Description (fig. A)

Your high performance Planer has been designed for professional planing of wood.

1 ON/OFF-switch
2 Lock-off button
3 Right/Left shavings discharge cassette
4 Planing depth adjustment knob
5 Planing depth graduation
6 Threaded hole for parallel fence
7 Hole for stationary stand
8 Rabetting depth stop
9 Side guard
10 Motor cover
11 Drive belt cover
12 Parking shoe

DW678E - Soft start feature

The soft start feature allows the cutting speed to build up slowly, thus reducing the immediate torque reaction transmitted to the belt drive and the operator.

DW678E - Constant speed feature

The constant speed feature maintains the cutting speed under load. This means less noise and a constant cutting speed. Moreover the speed will not increase dramatically when lifting the tool off the workpiece.

DW678E - Electronic brake

his model is equipped with an electronic brake which immediately stops the cutters upon releasing the ON/OFF-switch.

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DeWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

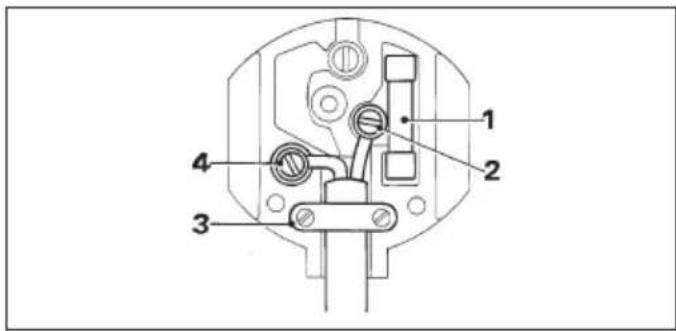

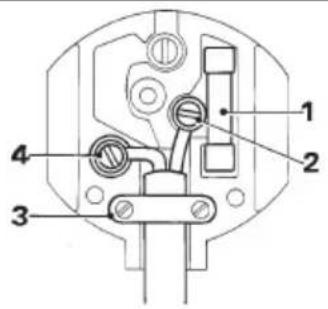

Technical diagram of an electrical socket with numbered components for identification

1 2 3 4

- Never use a light socket.

- Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

For 115 V units with a power rating exceeding 1500 W, we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 . When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
115	0 -	2.0	6	6	6	6	6	10
	2.1 -	3.4	6	6	6	6	15	15
	3.5 -	5.0	6	6	10	15	20	20
	5.1 -	7.0	10	10	15	20	20	25
	7.1 -	12.0	15	15	20	25	25	-
	12.1 -	20.0	20	20	25	-	-	-
230	0 -	2.0	6	6	6	6	6	6
	2.1 -	3.4	6	6	6	6	6	6
	3.5 -	5.0	6	6	6	6	10	15
	5.1 -	7.0	10	10	10	15	15
	7.1 -	12.0	15	15	15	20	20
	12.1 -	20.0	20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

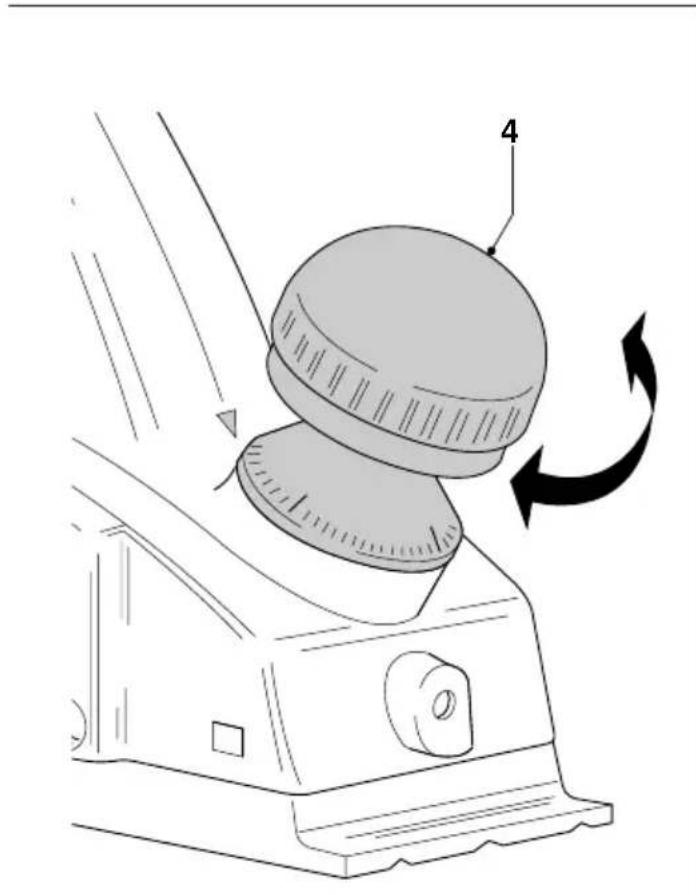

Adjusting the depth of cut (fig. B)

- Turn the planing depth adjustment knob (4). One revolution of the adjustment knob equals a 4.0 ~mm change in depth. One graduation corresponds to a depth of cut of 0.1 ~mm .

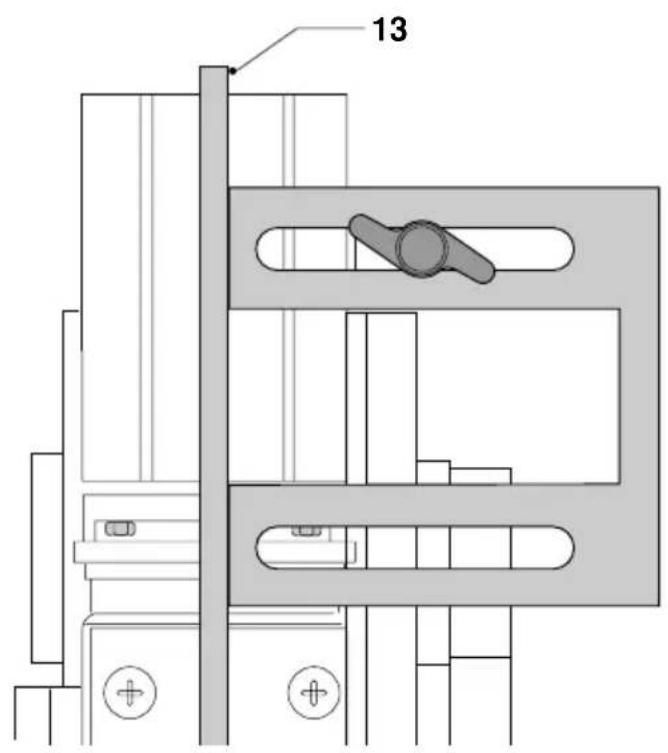

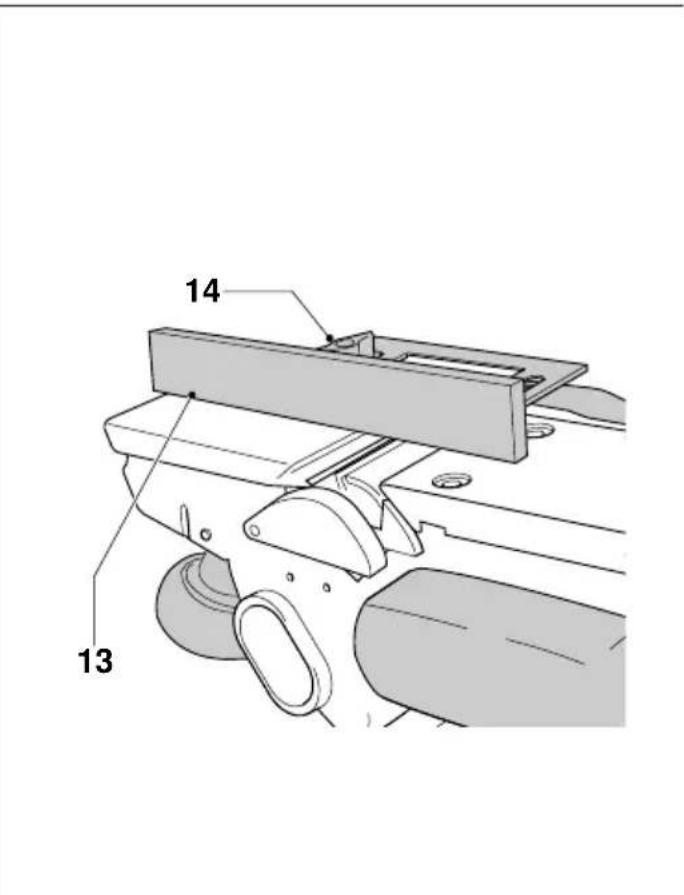

Attaching and removing the parallel fence (fig. A & C)

The parallel fence (13) is used for optimum tool control on narrow workpieces.

• Fit the parallel fence (13) to the threaded hole (6) from either side.
• Tighten the wing bolt (14).
• To remove the parallel fence, proceed in reverse order.

Attaching, removing and adjusting the rabbeting depth stop (fig. A)

• Install the depth stop (8).
- Tighten the wing bolt at the desired height in the threaded hole using the scale.
- To remove the depth stop, proceed in reverse order.

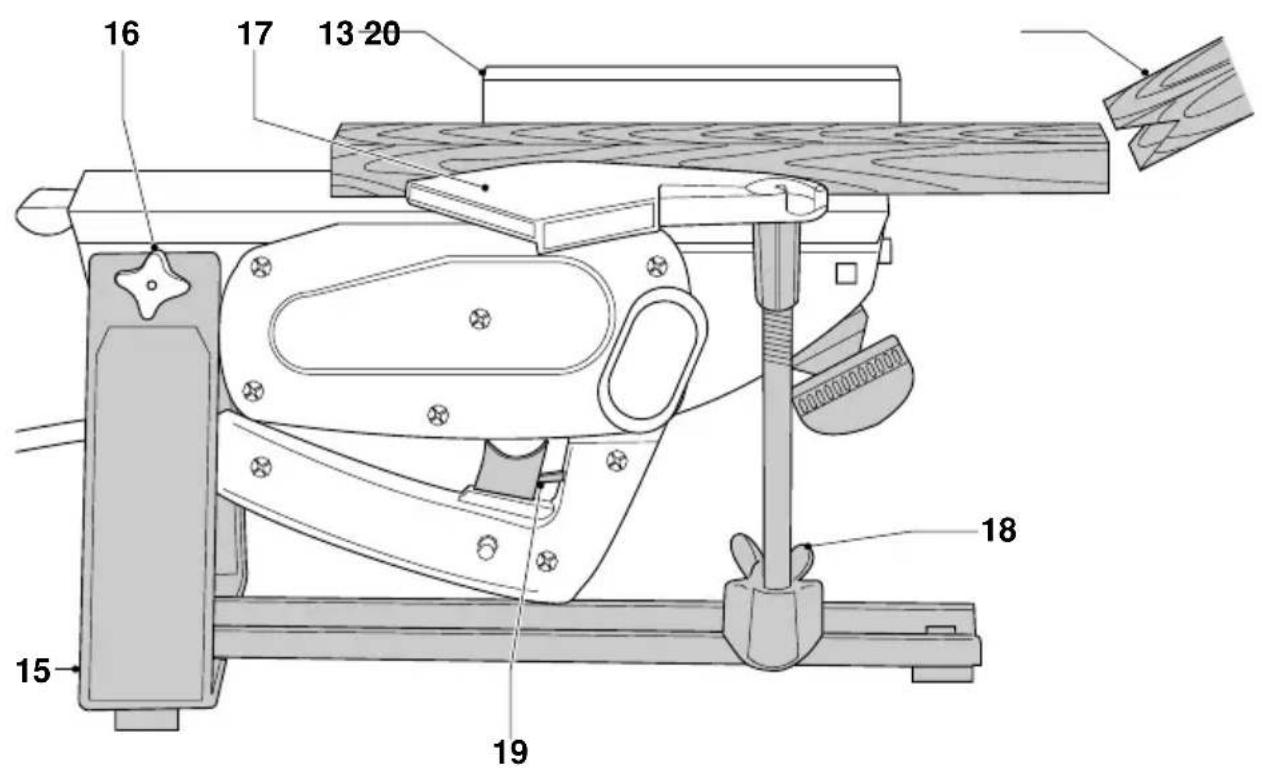

Attaching and removing the stationary stand (DE6661) (fig. D & E)

The stationary stand in figure D is the DE6661. This stand is available as an option as well as the thicknessing and surfacing stand DE80.

• Open the guard (17) on the stationary stand.
• Place the planer on the stationary stand (15).
• Tighten the star knob (16).
• Attach the parallel fence (13) as described.
• To remove the stationary stand, proceed in reverse order.

The part of the cutter that is not being used must always be covered by the guard (17) or by the parallel fence (13).

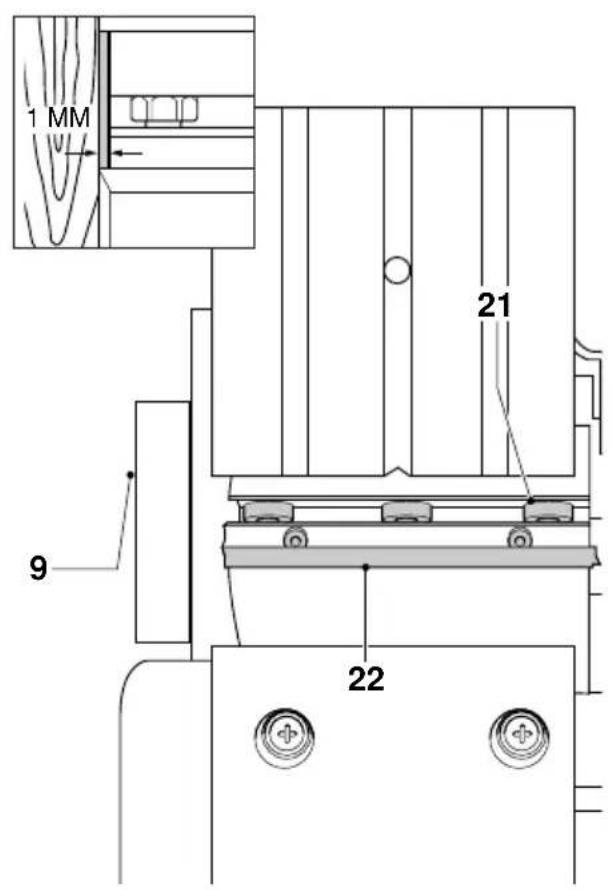

Removing reversible cutters (fig. F)

• Loosen the three bolts (21) using the spanner supplied.

• Flap the side guard (9) up.

• Slide the cutter (22) out of its holder.

• Reverse the cutter or replace it.

Always replace both cutters.

• Slide the cutter into the holder. At the rabbeting side (i.e. the side where the side guard is mounted), the cutter must be flush with the planing shoe.
• Tighten the three bolts (21).

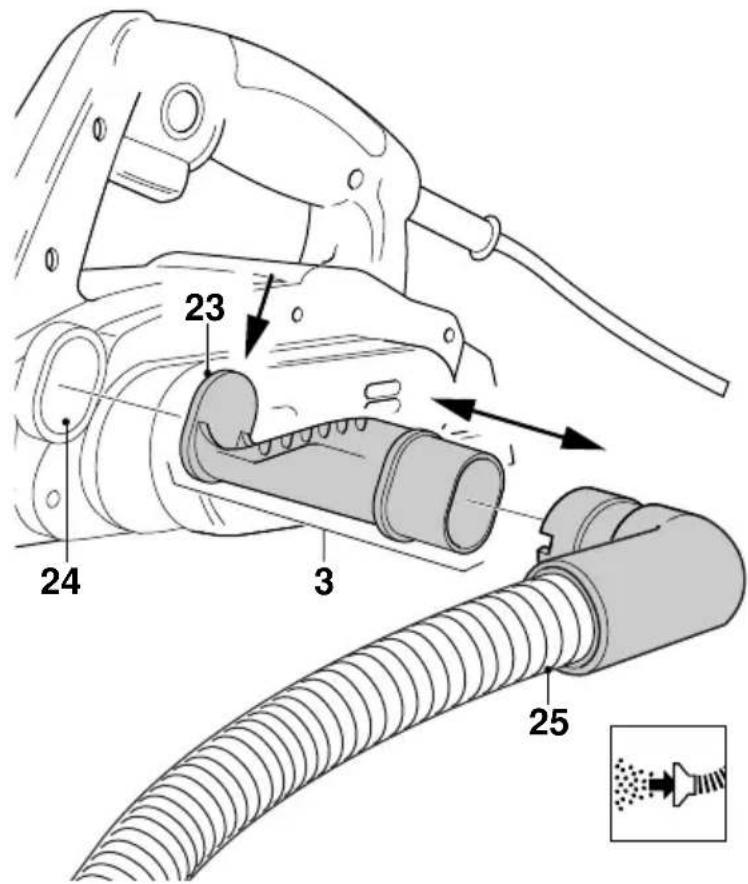

Fitting the shavings discharge cassette (fig. G)

Although this planer was primarily designed for right-hand side shavings discharge, it can also be used for left-hand side shavings discharge.

For right-hand side shavings discharge, the planer can be used with or without the cassette.

The cassette must be used in combination with the dust extraction adaptor when connecting a vacuum extractor.

- Push the cassette with its head end (23) into the right-hand side shavings discharge outlet (24) until it clicks in place. Please note that the figure shows the left-hand side of the tool.

For left-hand side shavings discharge, the cassette must always be used.

When using left-hand side shavings discharge, always use the dust extraction adaptor and a vacuum extractor as described below to prevent clogging. See fig. G.

• Push the cassette with its head end (23) into the left-hand side shavings discharge outlet (24) until it clicks in place.
• Connect the adaptor (25) to a vacuum extractor.
• To remove the cassette, depress the head end (23) and pull out the cassette.

Instructions for use

Always observe the safety instructions and applicable regulations.

Prior to operation:

• Adjust the depth of cut.
• If necessary, fit and adjust the parallel fence.
• Attach the shavings discharge cassette.

Use sharp cutters only.

Switching ON and OFF (fig. A)

Your Planer is equipped with a safety switch to prevent inadvertent operation.

• Switching ON: press the lock-off button (2) and subsequently press the ON/OFF-switch (1).
• Release the lock-off button (2).
• Switching OFF: release the ON/OFF-switch (1). Always switch OFF the tool when work is finished and before unplugging.

Dust extraction

Since woodworking with a planer produces dust, always install a dustbag or connect a vacuum extractor designed in compliance with the applicable Directives regarding dust emission.

Your planer is supplied with an adapter for connecting a dustbag or a vacuum extractor.

The dustbag is standard for K-models and available as an option for all other models.

• Attach the dustbag to the shavings discharge cassette using the adaptor for right-hand side ejection only.
• Alternatively, for either left-hand or right-hand side ejection, connect the planer to a vacuum cleaner using the adaptor (25).

When using left-hand side shavings discharge, always connect the planer to a suitable vacuum extractor to prevent clogging.

Planing (fig. A)

• Switch the tool ON as described.
• Slowly move the Planer over the workpiece.

- The feed speed should not be too high, especially when using the maximum depth of cut and planing width.

• Remember that several shallow cuts are better than one deep cut.
• Switch the tool OFF.

Your planer is equipped with a parking shoe (12). After switching OFF the tool can be put down without waiting for the cutters to come to a standstill. The parking shoe can be locked in horizontal position when this feature is not needed.

Stationary use (fig. A & D)

• Switching ON: press the lock-off button (2) and subsequently press the ON/OFF-switch (1).
• Place the locking wedge (19) to lock the ON/OFF-switch.
• Release the lock-off button (2).
• Switching OFF: remove the locking wedge (19) off the ON/OFF-switch.

Always use a pusher rod (20).

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.

CEPILLO DW678/DW678E

¡Enhorabuena!

Director Engineering and Product Development Horst Großmann

X. fopmann

L'emballage contient:

Director Engineering and Product Development Horst Großmann

X. Jopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Duitsland

Director Engineering and Product Development Horst Großmann

X. Jopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Sikkerhetsforskrifter

Director Engineering and Product Development Horst Großmann

X. Jopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Alemanha

15 Tire as chaves de aperto

Director Engineering and Product Development Horst Großmann

X. Jopman

Director Engineering and Product Development Horst Großmann

X. fopmann

DeWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Säkerhetsinstruktioner
