USER MANUAL DCP580 DEWALT

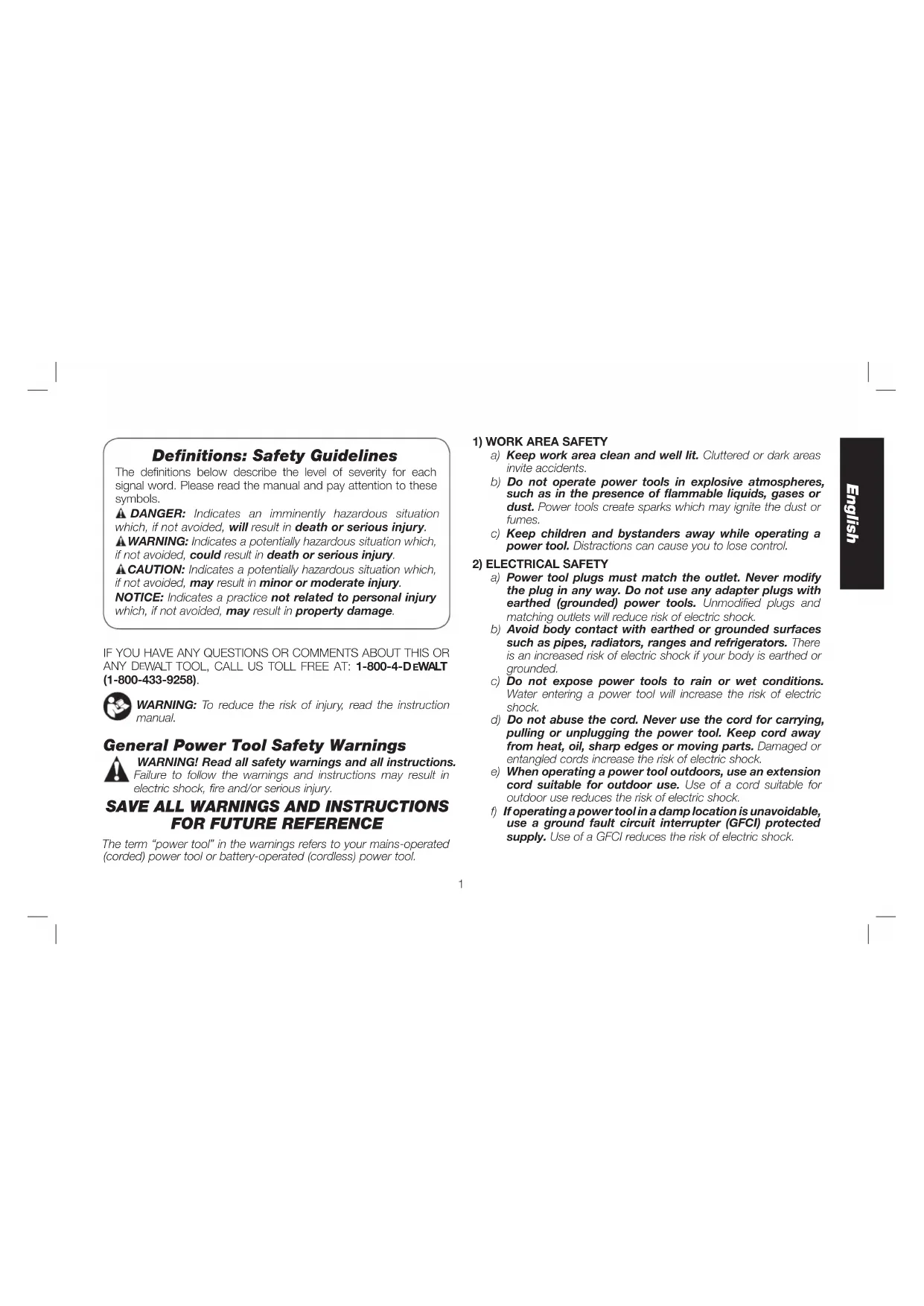

WALT • www.dewalt.com FINAL PRINT SIZE: HALF PAGE (5.5 X 8")Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D

WARNING: To reduce the risk of injury, read the instruction

manual. General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock. English

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. English 2c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Additional Safety Instructions for Planers

• Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the surface leading to possible loss of control and serious injury.

• Hold the power tool by insulated gripping surfaces only, because the cutter may contact hidden wiring. Cutting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

• Make certain that the switch is in the off position before installing the battery.

• Be sure to switch OFF immediately if tool is jammed in work.

• Be sure tool is set for correct depth before turning switch to ON.

• Be sure to maintain tool with care. Follow instructions for lubricating and changing accessories.

• Be sure that the blades are mounted as described in the instruction manual and check that all screws are firmly tightened before installing the battery.

• Keep air vents unobstructed for proper motor cooling.

• DO NOT lay tool down on shoe when the blades are exposed. This can chip the blades.

• Keep side discharge chute unobstructed at all times.

• Never reach under the tool for any reason unless it is turned off and BATTERY IS REMOVED. BLADES ARE EXPOSED AND EX TREMELY SHARP.

• Use this tool for working with wood and wood products only.

• Always make sure the work surface is free from nails and other foreign objects.

• Always operate planer with two hands. Never operate without securely holding the front handle.

• Planer blades are extremely sharp. Handle with great care.

• Clean out your tool often, especially after heavy use.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are

NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

WARNING: Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: English 3• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust,

which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection

that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

• The label on your tool may include the following symbols. The symbols and their definitions are as follows: V ................... volts A ....................... amperes Hz ................ hertz W ......................watts min ............... minutes or AC ........... alternating or DC .. direct current ......................... current ................. Class I Construction or AC/DC ... alternating ..................... (grounded) ......................... or direct ................ Class II Construction ......................... current ..................... (double insulated)

o .....................no load …/min ........... per minute ......................... speed BPM............. beats per minute n .......................rated IPM .............. impacts per minute ......................... speed RPM ............. revolutions per ...................... earthing ..................... minute ......................... terminal sfpm............. surface feet ...................... safety alert ..................... per minute ......................... symbol SPM ............. strokes per minute ..................... visible radiation Important Safety Instructions for All Battery Packs When ordering replacement battery packs, be sure to include the catalog number and voltage. Consult the chart at the end of this manual for compatibility of chargers and battery packs. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non- compatible charger as battery pack may rupture causing English 4serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

• Charge the battery packs only in designated D

• DO NOT splash or immerse in water or other liquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

WARNING: Fire hazard. Never attempt to open the battery pack

for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

WARNING: Fire hazard. Do not store or carry the battery

pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (e.g., packed in suitcases and carry-on luggage) UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-Ion)

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if

exposed to spark or flame. The RBRC

(Rechargeable Battery Recycling Corp oration) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by D

WALT. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle

program provides an environmentally conscious alternative. Call 2 Recycle, Inc., in cooperation with D

WALT and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized D

WALT English 5service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC

is a registered trademark of Call 2 Recycle, Inc. Important Safety Instructions for All Battery Chargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for battery chargers.

• Before using the charger, read all instructions and cautionary markings on the charger, battery pack and product using the battery pack.

WARNING: Shock hazard. Do not allow any liquid to get inside the

charger. Electric shock may result. CAUTION: Burn hazard. To reduce the risk of injury, charge only

WALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage. NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.

• These chargers are not intended for any uses other than charging D

WALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose the charger to rain or snow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord. English 6Minimum Gauge for Cord Sets Ampere Rating Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6)

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

• Do not operate the charger with a damaged cord or plug.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together.

• The charger is designed to operate on standard 120 V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger. Chargers Your tool uses a D

WALT charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and battery packs. Charging Procedure (Fig. 1)

1. Plug the charger into an

appropriate outlet before inserting the battery pack.

2. Insert the battery pack (N)

into the charger, as shown in Figure 1, making sure the pack is fully seated in charger. The red (charging) light will blink continuously, indicating that the charging process has started.

3. The completion of charge will be

indicated by the red light remaining ON continuously. The pack is fully charged and may be used at this time or left in the charger. Indicator Light Operation

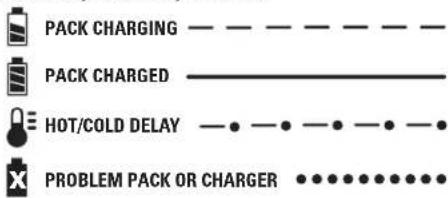

Charge Indicators This charger is designed to detect certain problems that can arise. Problems are indicated by the red light flashing at a fast rate. If this occurs, re-insert the battery pack into the charger. If the problem persists, try a different battery pack to determine if the charger is working properly. If the new pack charges correctly, then the original pack is defective and should be returned to a service center or other collection site for recycling. If the new battery pack elicits the same trouble indication as the original, have the charger and the battery pack tested at an authorized service center.

These chargers have a hot/cold delay feature. When the charger detects a battery that is too hot or too cold, it automatically starts a delay, suspending charging. The red light flashes long, then short while in the hot/cold delay mode. Once the battery has reached an optimum temperature, the charger will automatically resume the charging procedure. This feature ensures maximum battery life.

DCB107, DCB112, DCB113, DCB115

These chargers have a hot/cold delay feature. When the charger detects a battery that is too hot or too cold, it automatically starts a delay, suspending charging. The red light will continue to blink, but a yellow indicator light will be illuminated during this suspension. Once the battery has reached an optimum temperature, the yellow light will turn off and the charger will automatically resume the charging procedure. This feature ensures maximum battery life. LEAVING THE BATTERY PACK IN THE CHARGER The charger and battery pack can be left connected with the charge indicator showing Pack Charged. WEAK BATTERY PACKS: Weak batteries will continue to function but should not be expected to perform as much work.

These chargers will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light or by displaying problem pack or charger. NOTE: This could also mean a problem with a charger.

DCB107, DCB112, DCB113, DCB115

These chargers will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light. NOTE: This could also mean a problem with a charger. Wall Mounting

DCB107, DCB112, DCB113, DCB115

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet. Mount the charger securely using drywall screws at least 1" (25.4 mm) long, screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Important Charging Notes

1. Longest life and best performance can be obtained if the battery

pack is charged when the air temperature is between 65°F and English 875 °F (18° – 24 °C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to the touch

while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.

3. A cold battery pack will charge at about half the rate of a warm

battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.

4. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65 °F – 75 °F (18° – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local service center.

5. The battery pack should be recharged when it fails to produce

sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.

6. Foreign materials of a conductive nature such as, but not limited

to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

7. Do not freeze or immerse the charger in water or any other liquid.

WARNING: Shock hazard. Don’t allow any liquid to get inside the

charger. Electric shock may result.

WARNING: Burn hazard. Do not submerge the battery pack in

any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling. Storage Recommendations

1. The best storage place is one that is cool and dry, away from

direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully charged

battery pack in a cool dry place out of the charger for optimal results. NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

SAVE THESE INSTRUCTIONS FOR

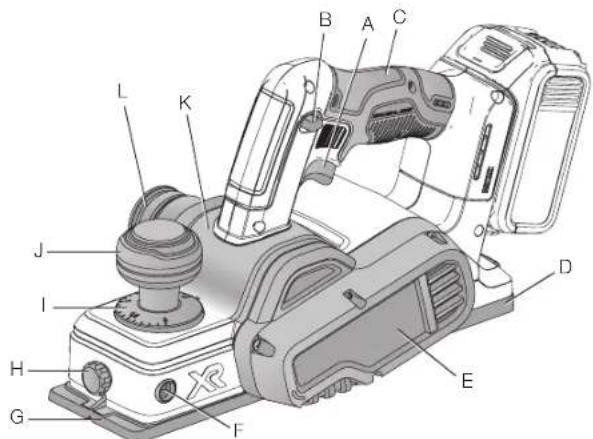

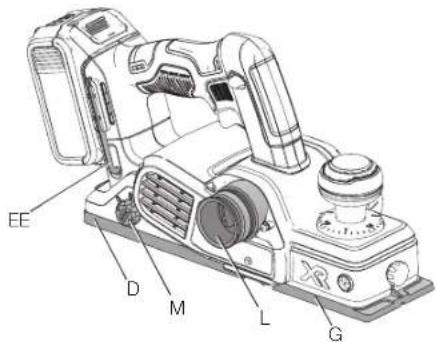

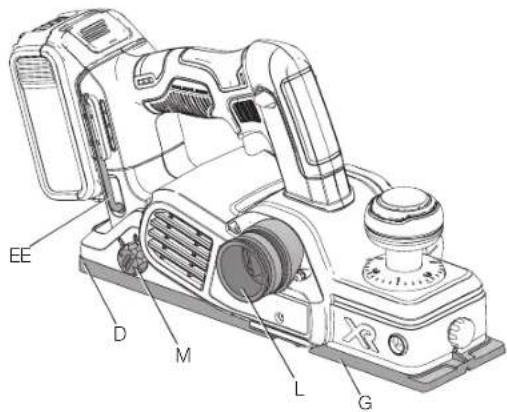

FUTURE USE COMPONENTS (FIG. 2)

WARNING: Never modify the power tool or any part of it. Damage

or personal injury could result. A. Trigger switch H. Rabbet fence tightening knob B. Lock-off button I. Planing depth graduation C. Main handle J. Planing depth adjustment knob/ D. Rear shoe front handle E. Drive belt cover K. Chip discharge chute F. Hole for rabbet fence L. Dust adapter G. Front shoe M. Blade storage knob English 9INTENDED USE This planer is designed for professional planing applications of wood and wood products. DO NOT use under wet conditions or in presence of flammable liquids or gases. This planer is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool. OPERATION

WARNING: To reduce the risk of serious personal injury,

turn tool off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. Installing and Removing the Battery Pack (Fig. 3)

FIG. 3 NOTE: For best results, make sure your battery pack is fully charged. To install the battery pack (N) into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage. To remove the battery pack from the tool, press the release button (O) and firmly pull the battery pack out of the FIG. 2

EEFor more information regarding fuel gauge battery packs, please call 1-800-4-D

WARNING: This tool has no provision to lock the switch in the

ON position and should never be locked ON by any other means. Release the trigger switch lock-off button (B) by pressing the button. CAUTION: Allow the tool to reach full speed before touching tool to the work surface. Lift the tool from the work surface before turning the tool off. To start the planer, depress the trigger switch (A). To turn the planer off, release the trigger switch. Adjusting the Planing Depth (Fig. 2) To adjust the depth of cut, turn the planing depth adjustment knob (J). Each click is equal to 0.1 mm of depth up to the maximum depth of cut of approximately 5/64" (2.0 mm). It is recom mended that test cuts be made in scrap wood after each re-adjustment to make sure that the desired amount of wood is being removed by the planer. Several shallow passes (rather than one deep one) will produce a smoother finish. tool handle. Insert it into the charger as described in the charger section of this manual. Squeeze the tool trigger for three seconds to dissipate the slight electric charge that may still be in the tool. The worklight may come on for a brief moment. FUEL GAUGE BATTERY PACKS (FIG. 4) Some D

WALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack. The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the following indicators: 75–100% charged 51–74% charged < 50% charged Pack needs to be charged To actuate the fuel gauge, press and hold the fuel gauge button (P). A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged. NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application. English 11Planing (Fig. 2, 5–7) CAUTION: Allow the tool to reach full speed before touching tool to the work surface. Lift the tool from the work surface before turning the tool off. Hold the planer in the correct position with one hand on the front handle (J) and the other hand on the main handle (C) as shown in Figure 2. Place the front shoe (G) on the surface to be planed, making certain that the cutting blades are not touching the surface. Push down firmly on the front handle of the planer so that the front shoe is ABSOLUTELY FLAT on the work surface. Squeeze the trigger switch and allow the motor to reach full speed before touching the planer blades to the work surface. Move the tool slowly into the work and maintain downward pressure to keep the planer flat. Be particularly careful to keep the tool flat at the beginning and the end of the work surface. Planing Tip: For a smoother appearance, fasten a piece of scrap wood to the end of the piece you are planing. Don’t stop planing until the cutting blades of the planer are past your workpiece and into the scrap material. FIG. 5 CORRECT FIG. 6 FIG. 7 INCORRECT Rabbet Fence (Fig. 8, 9)

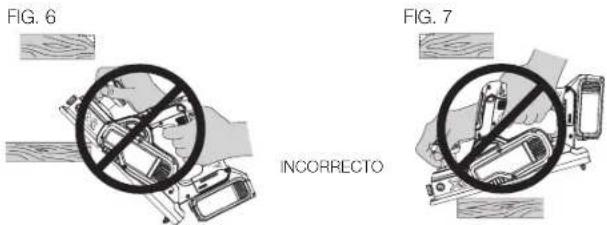

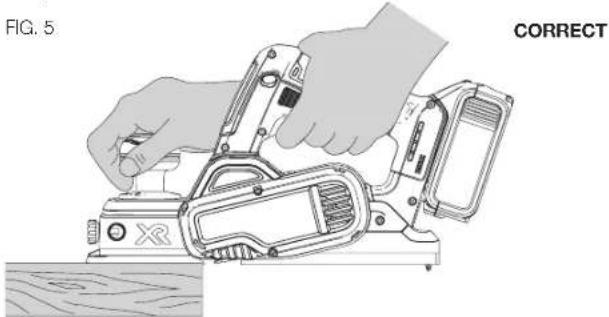

WARNING: Allow the tool to reach full speed before touching tool

to the work surface. Lift the tool from the work surface before turning the tool off. The rabbet fence (Q) is used for optimum tool control on narrow workpieces and can be installed on either side of your planer. The planer makes rabbet cuts up to 23/64" (9 mm).

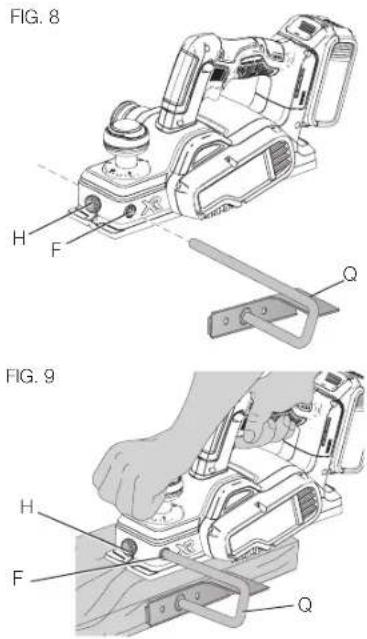

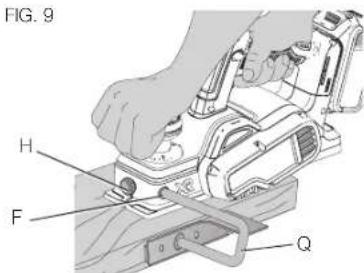

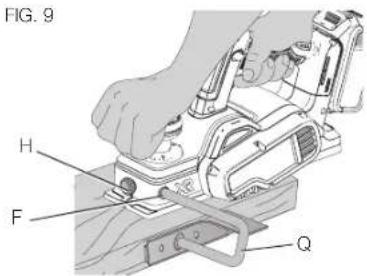

2. Slide the crossbar on the rabbet fence (Q) into the hole (F) on the

side of the planer as shown in Figure 8.

3. Set the width of cut by adjusting the edge guide across the width

4. Securely tighten rabbet fence tightening knob (H).

NOTE: The rabbet fence should be below the planer when installed correctly as shown in Figure 9.

TO MAKE A RABBET CUT

1. Turn the rabbet fence tightening knob (H) to adjust the desired

2. Make several cuts until the desired depth is reached.

English 12NOTE: It will be necessary to make quite a few cuts for most rabbet applications. To Change Blades (Fig. 10, 11)

WARNING: To reduce the risk of serious personal injury,

turn tool off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. CAUTION: Planer blades are extremely sharp. Handle with great care. The planer is capable of using high-speed steel and carbide blades. Be sure to check the planer to verify which blade it is fitted with. BLADE STORAGE (FIG. 10) FIG. 10 Your planer is equipped with blade storage for two additional blades. To store or remove additional blades, turn the blade storage knob (M) counter clockwise to open.

1. To Remove Blade from Planer

(Fig. 11B) a. Loosen and remove the three star head screws (R) with the T25 star head key (EE) provided. Remove the drum cover (S) from the drum (T). b. Remove the guide bar/high-speed steel blade assembly (U, V, W).

2. To Adjust Blade Using Gauge Plate (provided with tool) (Fig. 11C)

a. Place the guide bar/high-speed steel blade assembly on the gauge plate (X) with the cutting edge of the high-speed steel blade flush against the gauge plate inside wall (Y). The heel of the guide bar (W) will overlap the end of the gauge plate (X). b. Loosen the two cross-shaped screws (V) with a screwdriver. c. Simultaneously hold the blade edge (U) against the gauge plate inside wall (Y) and the heel of the guide bar (W) against the back edge of the gauge plate. Securely tighten the cross shaped screws (V). FIG. 9

a. Cautiously remove the adjusted guide bar/high-speed steel blade assembly from the gauge plate (X) and place the heel of the guide bar (W) into the groove in the drum (T). b. Set the drum cover (S) over the adjusted guide bar/high-speed steel blade assembly and securely tighten the three star head screws (R) to the drum.

4. Repeat procedure for the other blade.

NOTE: In order to use high-speed steel blades with this planer, the sharpening holder (BB) is required to sharpen high- speed steel blades and is available at additional cost from your local D

WALT authorized service center.

1. To Remove Blade from Planer

(Fig.12B) a. Loosen and remove the three star head screws (R) with the T25 star key (EE) provided. Remove the drum cover (S) from the drum (T). b. Remove the blade carrier/guide bar assembly (V, W, Z). Carefully remove the carbide blade (Z).

2. To Adjust Blade Using Gauge Plate

(provided with tool) (Fig. 12C) a. Cautiously place the sharp edge of the carbide blade (Z) on the gauge

English 14plate (X) with the grooved side of the carbide blade facing up. Either edge of the reversible carbide blade can be set flush against the gauge plate inside wall (Y). b. Place the blade carrier/guide bar assembly on the blade so that the rib on the blade carrier (AA) fits into the groove on the carbide blade (Z). The heel of the guide bar (W) will over-hang the end of the gauge plate (X). c. Loosen the two cross-shaped screws (V) with a screwdriver. d. Simultaneously hold the blade carrier (AA) and blade (Z) against the gauge plate inside wall (Y) while holding the heel of the guide bar (W) against the back edge of the gauge plate. Securely tighten the cross shaped screws (V).

3. To Replace the Blade (Fig. 12A, 12B)

a. Remove the adjusted blade carrier/guide bar assembly from the gauge plate (X) and place the heel of the guide bar (W) into the groove on the drum (T). b. Place the drum cover (S) over the blade carrier/guide bar assembly. Loosely screw the three star head screws (R) into the drum (T) so that there is a small gap between the drum and the blade carrier (AA). c. Slide the carbide blade between the drum (T) and the blade carrier (AA) from the side so that the rib on the blade carrier sets into the groove in the blade. d. Center the carbide blade (Z) under the blade carrier (AA) making sure the blade is clear of the tool housing on both sides. e. Securely tighten the three star head screws (R) to the drum.

4. Repeat procedure for the other blade.

NOTE: If your planer is not fitted with carbide blades, the blade carrier (AA) required for carbide blades is available at additional cost from your local D

WALT authorized service center. Sharpening High-

Speed Steel Blades (Fig.13) CAUTION: Planer blades are extremely sharp. Handle with great care. NOTE: Carbide blades cannot be sharpened.

1. Fasten the blades to the

sharpening holder (BB). Make sure both blade edges (U) are facing the same direction.

2. Place the blade edges so they

rest flat on the grinding stone (not included).

3. Firmly grip the sharpening holder and move it back and forward

Your planer is equipped with a kickstand (CC) that automatically lowers when the tool is lifted from the work surface allowing the planer to set on the work surface without the blade touching it. When planing, the kickstand raises as the tool is pushed forward through the material. If the kickstand obstructs special planing work, it can be stored and locked out of the way. CAUTION: Be sure that the kickstand is correctly extended when setting the planer on a work surface. English 15Edge Chamfering (Fig. 15) Your planer has a precision machined FIG. 15

chamfering groove (DD) in the front shoe for planing along a corner of the wood. The width of the groove is 4.5 to 8 mm. It’s a good idea to try a piece of scrap wood before doing finish work. Dust Extraction (Fig.2, 16) Your planer has a built-in dust extraction port (L) which allows either a dust bag or a shop vacuum to be connected. The built-in outlet utilizes the D

WALT AirLock connection system making it compatible with the D

While holding the planer, slide the dust bag collar onto the dust extraction port (L) as shown in Figure16.

TO EMPTY THE DUST BAG

1. While holding the planer,

remove the dust bag by sliding it off the dust extraction port (L).

2. Gently shake or tap the dust

onto the outlet. You may notice that all the dust will not come free from the bag. This will not affect planing performance but will reduce the planer’s dust collection efficiency. To restore your planer’s dust collection efficiency, depress the spring inside the dust bag when you are emptying it and tap it on the side of the trash can or dust receptacle.

WALT AirLock Adapter (DWV9000) can be purchased separately to connect a shop vacuum or D

WALT dust extractor to your planer. CAUTION: Never operate these tools unless the dust collector is in place. Planing dust exhaust may create a breathing hazard. MAINTENANCE

WARNING: To reduce the risk of serious personal injury,

turn tool off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air

at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for

cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

CHARGER CLEANING INSTRUCTIONS

WARNING: Shock hazard. Disconnect the charger from the AC

outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. English

16CHIP DISCHARGE CHUTE CLEANING INSTRUCTIONS

If the unit is clogged with dust or chips, use a non-metallic stick to push the obstruction out of the chip discharge chute (K). Never stick your finger into the chute. Accessories

WARNING: Since accessories, other than those offered by

WALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only D

WALT recommended accessories should be used with this product. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact D

WALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call 1-800-4-D

WALT (1-800-433-9258) or visit our website: www.dewalt. com. Repairs The charger and battery pack are not serviceable. To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by a D

WALT factory service center, a D

WALT authorized service center or other qualified service personnel. Always use identical replacement parts. Register Online Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase. Three Year Limited Warranty

WALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-D

WALT (1-800- 433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces. In addition to the warranty, D

WALT tools are covered by our:

WALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.

DC9071, DC9091, DC9096, DC9280, DC9360, DC9180, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207

Product warranty voided if the battery pack is tampered with in any way. D

WALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your

WALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked. English 17LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-D

WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286 (NOV15) Part No. N452460 DCP580 Copyright © 2010, 2014, 2015 D

WALT The following are trademarks for one or more D

WALT power tools: the yellow and black color scheme; the “D” shaped air intake grill; the array of pyramids on the handgrip; the kit box configuration; and the array of lozenge-shaped humps on the surface of the tool.

• Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

WALT Battery and Charger Systems Chargers/Charge Time (Minutes) – Chargeurs/Durée de charge (Minutes) – Cargadores de baterías/Tiempo de carga (Minutos)BatteryCat #Output Voltage120 Volts 12 Volts DC011 DC022 DC9000 DC9310 DC9320 DCB095 DCB101 DCB102 DCB103 DCB107 DCB112 DCB113 DCB114 DCB115 DW911 DW9106 DW9107 DW9108 DW9116 DW9117 DW9118 DW9216 DW9226 DCB119 DW0249 DW9109 DC9319 DCB404 40 X X X X X X X X X X X X 90 X X X X X X X X X X X X X X DCB406 40 X X X X X X X X X X X X 130 X X X X X X X X X X X X X X DC9360 36 X X 45 X X X X X X X X X X X X X X X X X X X X X X X X DCB361 36 X X 45 X X X X X X X X X X X X X X X X X X X X X X X X DC9280 28 X X 60 X X X X X X X X X X X X X X X X X X X X X X X X DW0242 24 X X X X X X X X X X X X X X X X X X X X X X X X 60 X X DCB200 20 X X X X X X 60 60 60 140 90 67 X 45 X X X X X X X X X 90 X X X DCB201 20 X X X X X X 30 30 30 70 45 35 X 22 X X X X X X X X X 45 X X X DCB203/BT* 20 X X X X X X 35 35 35 90 60 45 X 30 X X X X X X X X X 60 X X X DCB204/BT* 20 X X X X X X 70 70 70 185 120 90 X 60 X X X X X X X X X 120 X X X DCB205 20 X X X X X X 90 90 90 240 150 112 X 75 X X X X X X X X X 150 X X X DCB207 20 X X X X X X 30 30 30 60 40 30 X 22 X X X X X X X X X X X X X DC9096 18 60 60 X 60 60 X X X 60 X X X X X 60 X X 60 60 20 X 60 130 X X 60 60 DC9099 18 45 45 X 45 45 X X X 45 X X X X X 45 X X 45 45 15 X 45 95 X X 45 45 DC9182 18 X X X 40 40 X X X 40 X X X X X X X X X X X X X X X X X 40 DW9096 18 60 60 X 60 60 X X X 60 X X X X X 60 X X 60 60 20 X 60 130 X X 60 60 DW9098 18 30 30 X 30 30 X X X 30 X X X X X 30 X X 30 30 12 X 30 60 X X 30 30 DW9099 18 45 45 X 45 45 X X X 45 X X X X X 45 X X 45 45 15 X 45 95 X X 45 45 DC9091 14.4 60 60 X 60 60 X X X 60 X X X X X 60 90 60 60 60 20 115 60 115 X X 60 60 DC9094 14.4 45 45 X 45 45 X X X 45 X X X X X 45 60 45 45 45 15 90 45 90 X X 45 45 DW9091 14.4 45 45 X 45 45 X X X 45 X X X X X 45 60 45 45 45 15 90 45 90 X X 45 45 DW9094 14.4 30 30 X 30 30 X X X 30 X X X X X 30 45 30 30 30 12 60 30 60 X X 30 30 DCB120 12 X X X X X X 30 30 30 60 45 35 X 20 X X X X X X X X X 45 X X X DCB127 12 X X X X X X 35 35 35 90 60 50 X 30 X X X X X X X X X 60 X X X DC9071 12 60 60 X 60 60 X X X 60 X X X X X 60 90 60 60 60 20 115 60 115 X X 60 60 DW9050 12 X X X X X X X X X X X X X X X 40 X X X X X X X X X X X DW9071 12 45 45 X 45 45 X X X 45 X X X X X 45 60 45 45 45 15 90 45 90 X X 45 45 DW9072 12 30 30 X 30 30 X X X 30 X X X X X 30 45 30 30 30 12 60 30 60 X X 30 30 DW9048 9.6 X X X X X X X X X X X X X X X 40 X X X X X X X X X X X DW9061 9.6 45 45 X 45 45 X X X 45 X X X X X 45 60 45 45 45 15 90 45 90 X X 45 45 DW9062 9.6 30 30 X 30 30 X X X 30 X X X X X 30 45 30 30 30 12 60 30 60 X X 30 30 DCB080 8 X X X X X 60 X X X X X X X X X X X X X X X X X X X X X DW9057 7.2 30 30 X 30 30 X X X 30 X X X X X 30 45 30 30 30 12 60 30 60 X X 30 30 *BT - Bluetooth® NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DEWALT is under license. Other trademarks and trade names are those of their respective owners. “X” Indicates that the battery pack is not compatible with that specific charger. All charge times are approximate. Actual charge time may vary. Read the instruction manual for more specific information. “X” indique que le bloc-piles n’est pas compatible avec ce chargeur. Les durées de charge sont approximatives; la durée de charge rélle peut varier. Lire le manuel d’utilisation pour obtenir des renseignements plus précis. Una “X” indica que el paquete de baterías no es compatible con ese determinado cargador. El tiempo de duración de carga es aproximado; la duración de carga real puede variar. Lea el manual de instrucciones para obtener información más precisa.
