USER MANUAL Avanza series 600 MELITTA

Exterior view of a modern coffee machine with two glass cups and a milk carton, no visible text or symbols on the main subject.

Inhaltsverzeichnis

DE

1 Geräteübersicht 5

Labeled diagram of a coffee machine with numbered parts for identification

Technical diagram of a coffee machine with numbered parts labeled for identification.

Diagram of a portable kitchen appliance with labeled parts including a lid, vent, and control panel

Technical diagram of a portable kitchen appliance with labeled parts 1 and 2

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components 25 and 27, showing control panel, fan, and base unit.

Technical diagram of a coffee maker with labeled parts including control panel, fan, and base components

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model view.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and mounting bracket (no text or symbols)

Labeled diagram of a mechanical device with numbered parts, showing internal components like a handle, valve, and housing.

1 Overview of the appliance....33

1.1 Appliance at a glance ....33
1.2 Overview of the control panel....34
1.3 The Cappuccinatore at a glance ....35

2 For your safety....35

2.1 Proper use....35
2.2 Danger from electric current....35
2.3 Risk of burns and scalds....36
2.4 Other dangers 36

3 First steps....37

3.1 Unpacking the appliance 37
3.2 Checking the delivery contents....37
3.3 Installing the appliance....37
3.4 Connecting the appliance....37
3.5 Connecting the Cappuccinatore ....37
3.6 Switching on the appliance for the first time....37

4 Basic operation....38

4.1 Switching the appliance on and off 38
4.2 Filling coffee beans into the bean container....39
4.3 Filling with water....40

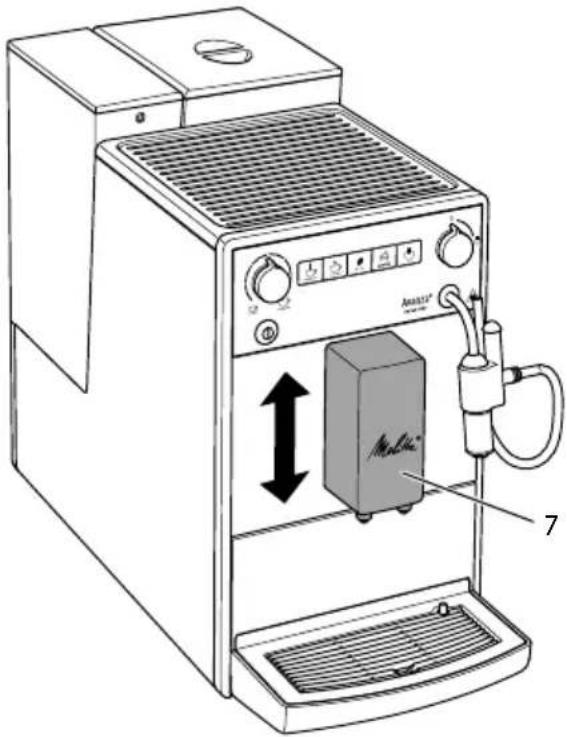

4.4 Adjusting the outlet for coffee beverages ....40

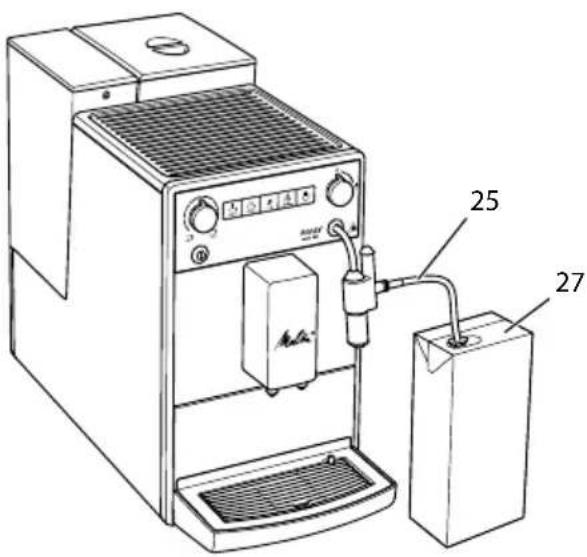

4.5 Using milk 40

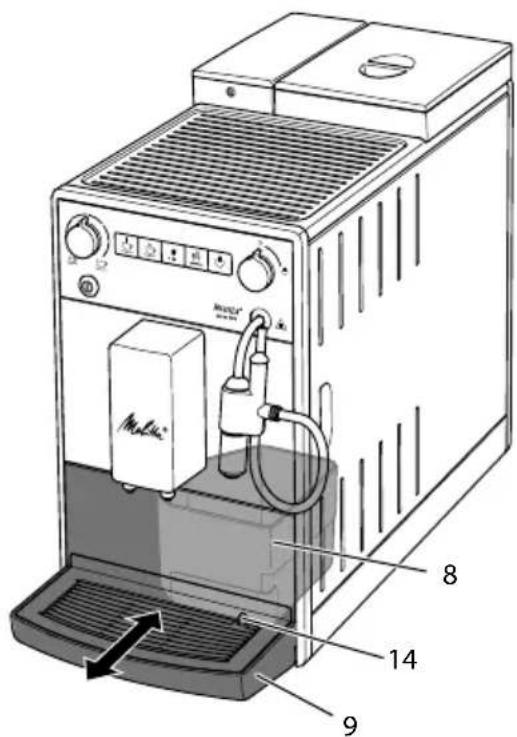

4.6 Emptying the drip tray and coffee grounds container....41

5 Preparing beverages 41

5.1 Setting the coffee strength....41
5.2 Setting the coffee quantity....42
5.3 Preparing the coffee beverage....42
5.4 Stopping coffee preparation....42
5.5 Preparing two coffee beverages simultaneously....42
5.6 Preparing milk foam....43
5.7 Preparing hot water 44

6 Changing basic settings....44

6.1 Service mode 1....44
6.2 Setting Auto OFF 44
6.3 Setting the water hardness....45
6.4 Activating/deactivating switch-off rinsing 45
6.5 Setting the brewing temperature....46
6.6 Service mode 2....46

6.7 Resetting the appliance to the factory settings....47
6.8 Setting the grinding fineness....47

7 Care and maintenance....47

7.1 General cleaning....48
7.2 Cleaning the Cappuccinatore....48
7.3 Cleaning the brewing unit....48
7.4 Running the cleaning programme ....49
7.5 Running the descaling programme ....50
7.6 Using a water filter....52

8 Transport, storage and disposal 54

8.1 Venting the appliance ....54
8.2 Transporting the appliance 55
8.3 Disposing of the appliance....55

9 Technical data....55

10 Trouble shooting....56

1 Overview of the appliance

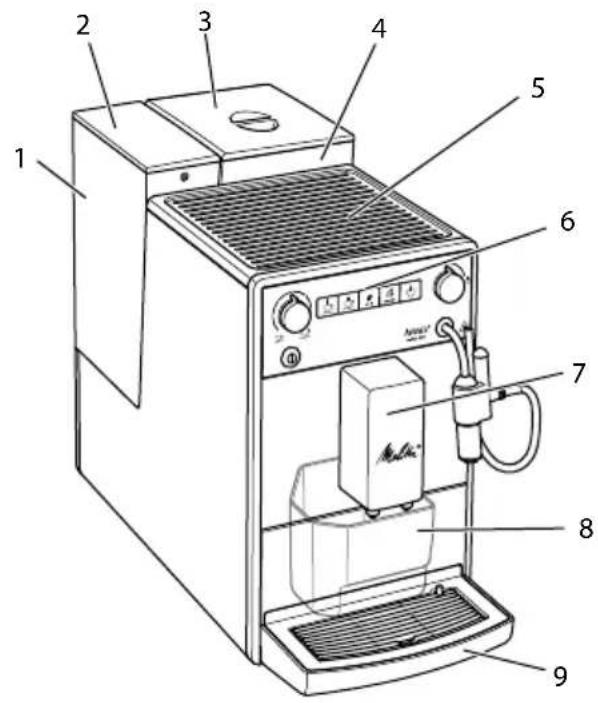

1.1 Appliance at a glance

Labeled diagram of a coffee maker with numbered parts for identification

Fig. 1: Front left of the appliance

Technical diagram of a milk tea machine with numbered components labeled for identification.

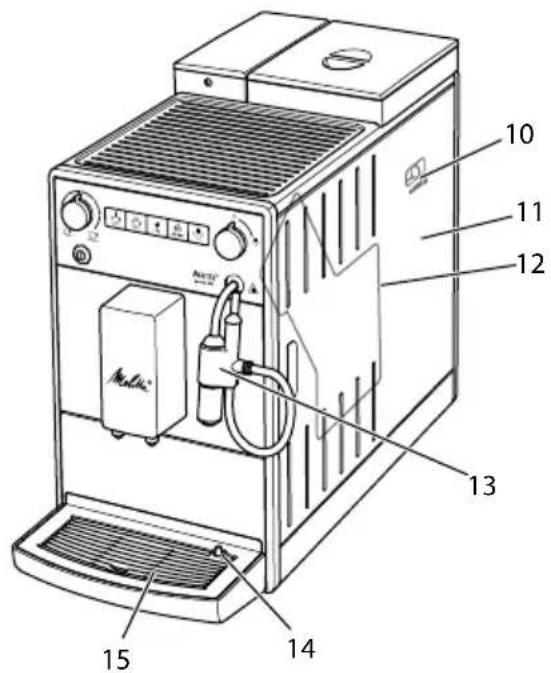

Fig. 2: Front right of the appliance

1 Water tank
2 Water tank lid
3 Lid of the bean container
4 Bean container
5 Cup rest
6 Control panel
7 Outlet with 2 coffee nozzles for coffee beverages
8 Coffee grounds container (inner)
9 Drip tray

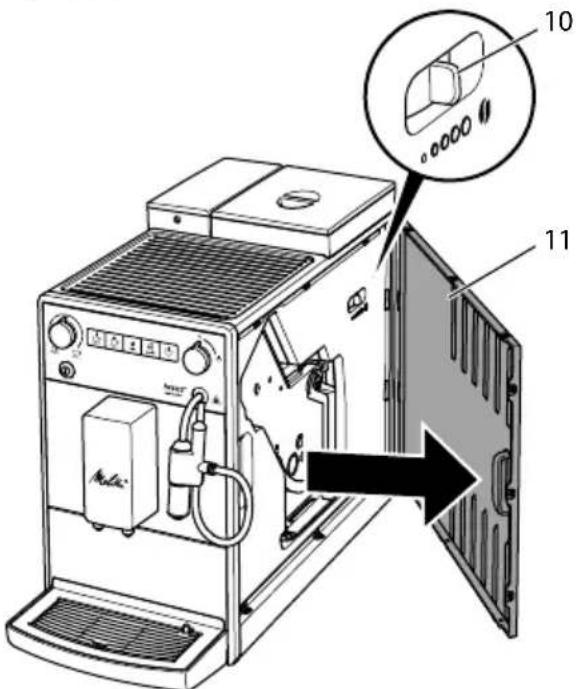

10 "Grinding fineness adjustment" lever (inner)
11 Cover
12 Brewing unit (inner)
13 Cappuccinatore
14 Float
15 Cup plate

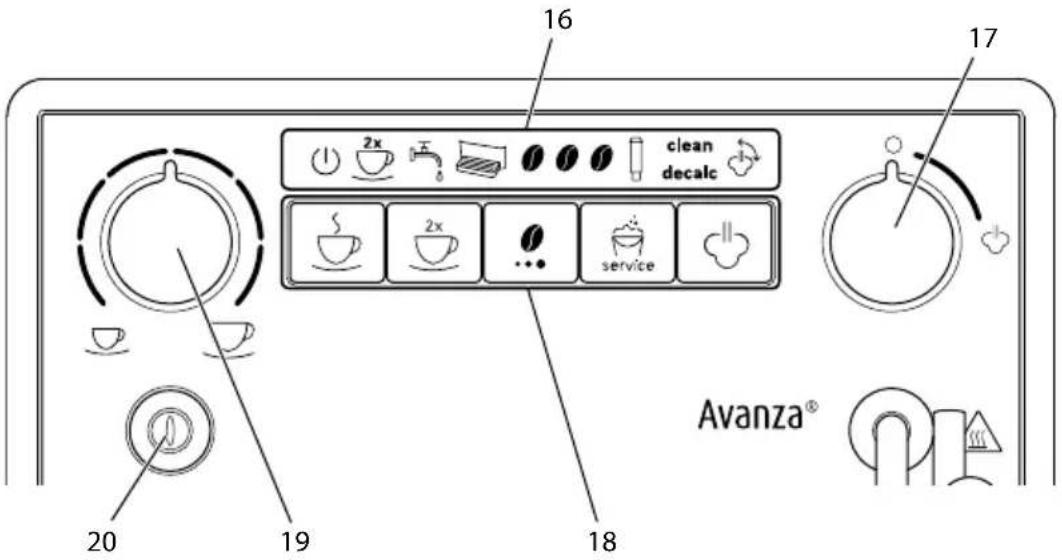

1.2 Overview of the control panel

16 17 2x clean decalc 2x service Avanza® 19 18 20

Fig. 3: Control panel

16 Indications
17 "Valve"
18 Buttons
19 "Coffee quantity" rotary regulator
20 ON/OFF button

Display Designation

Ready display

2 cups display

Water display

Drip tray display

Coffee beans display

Filter display

clean

Clean display

decalc

Descaling display

Steam display

Control Designation

"Coffee" direct key

"2 cups" button

"Coffees strength" button

"Service" button

"Steam dispenser" button

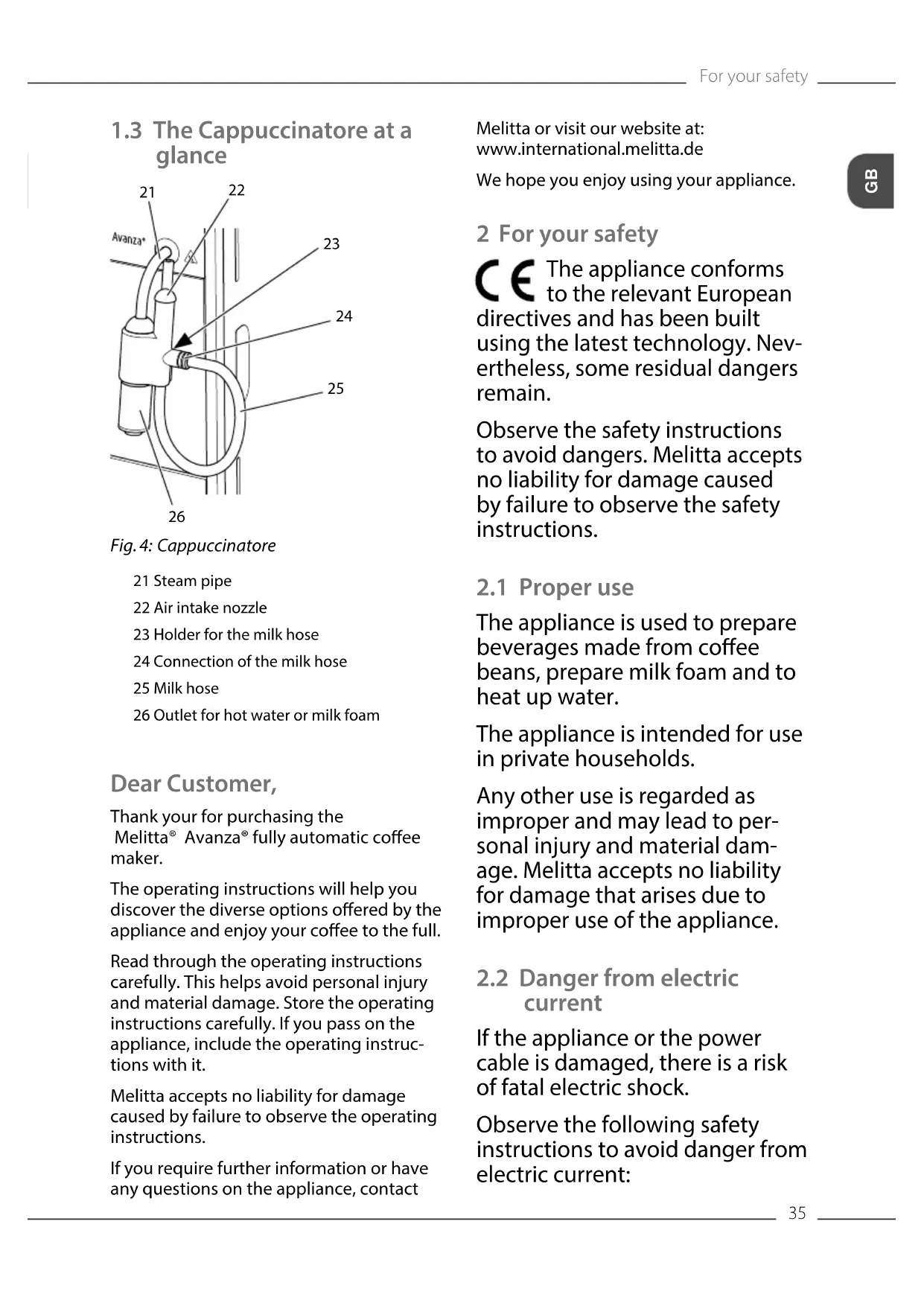

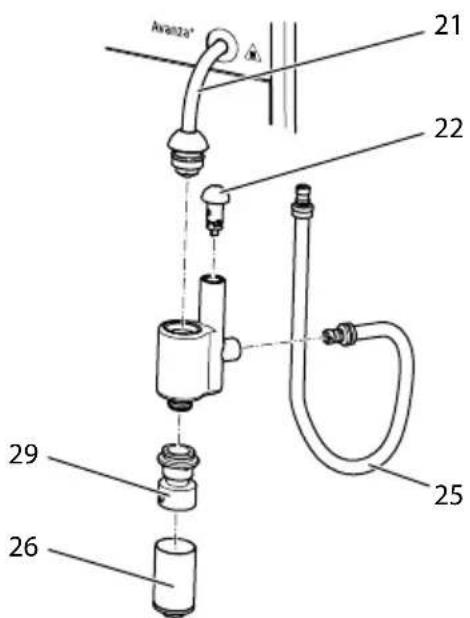

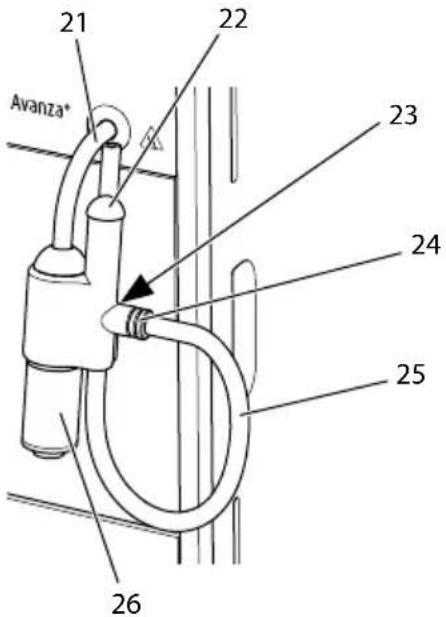

1.3 The Cappuccinatore at a glance

Avanza* 21 22 23 24 25 26

21 Steam pipe
22 Air intake nozzle
23 Holder for the milk hose
24 Connection of the milk hose
25 Milk hose
26 Outlet for hot water or milk foam

Dear Customer,

Thank your for purchasing the Melitta® Avanza® fully automatic coffee maker.

The operating instructions will help you discover the diverse options offered by the appliance and enjoy your coffee to the full.

Read through the operating instructions carefully. This helps avoid personal injury and material damage. Store the operating instructions carefully. If you pass on the appliance, include the operating instructions with it.

Melitta accepts no liability for damage caused by failure to observe the operating instructions.

If you require further information or have any questions on the appliance, contact

Melitta or visit our website at: www.international.melitta.de

We hope you enjoy using your appliance.

2 For your safety

CE The appliance conforms to the relevant European directives and has been built using the latest technology. Nevertheless, some residual dangers remain.

Observe the safety instructions to avoid dangers. Melitta accepts no liability for damage caused by failure to observe the safety instructions.

2.1 Proper use

The appliance is used to prepare beverages made from coffee beans, prepare milk foam and to heat up water.

The appliance is intended for use in private households.

Any other use is regarded as improper and may lead to personal injury and material damage. Melitta accepts no liability for damage that arises due to improper use of the appliance.

2.2 Danger from electric current

If the appliance or the power cable is damaged, there is a risk of fatal electric shock.

Observe the following safety instructions to avoid danger from electric current:

ū Do not use a damaged power cable.

ū A damaged power cable may only be replaced by the manufacturer or its customer service or service partner.

ū Do not open any covers firmly screwed onto the appliance housing.

ū Only use the appliance when it is in a technically flawless condition.

ū A defective appliance may only be repaired by an authorised workshop. Do not repair the appliance yourself.

ū Do not make any changes to the appliance, its components or its accessories.

ū Do not immerse the appliance in water.

ū Do not let the power cable come into contact with water.

2.3 Risk of burns and scalds

Escaping fluids and steam may be very hot. Parts of the appliance can also become very hot.

Observe the following safety instructions to avoid scalds and burns:

ū Avoid escaping fluids and steam coming into contact with the skin.

ū Do not touch the nozzles on the outlet and the steam pipe during and immediately after dispensing a beverage. Wait until the components have cooled down.

2.4 Other dangers

Observe the following safety instructions to avoid personal injury and material damage:

ū Do not operate the appliance in a cabinet or similar.

ū Do not reach into the interior of the appliance during operation.

ū Keep the appliance and its power cable out of the reach of children under 8 years of age.

ū This appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in using the appliance safely and understand the resulting risks.

ū Children must not play with the appliance. Cleaning and maintenance must not be undertaken by children younger than 8 years of age. Children over 8 years of age must be supervised during cleaning and maintenance.

ū Disconnect the appliance from the power supply when left unsupervised for a long time.

ū The appliance must not be operated at altitudes over 2000 m.

ū Please observe the instructions in the corresponding section when cleaning the appliance and its components (Care and maintenance on page 47).

3 First steps

This chapter describes how to prepare your appliance for use.

3.1 Unpacking the appliance

• Unpack the appliance. Remove the packaging material, the adhesive strips and the protective films from the appliance.
• Keep the packaging material for transport and any return shipments.

i Information

The appliance may contain traces of coffee and water. The appliance has been tested in the factory to ensure that it functions perfectly.

3.2 Checking the delivery contents

Check the completeness of delivery using the following list. If parts are missing, contact your retailer.

ū Cappuccinatore
ū Milk hose
ū Screw-in aid for the water filter
ū Test strip for determining the water hardness.

3.3 Installing the appliance

Observe the following instructions:

ū Do not install the appliance in damp rooms.
ū Install the appliance on a stable, flat and dry surface.
ū Do not install the appliance in the vicinity of sinks or the like.
ū Do not install the appliance on hot surfaces.
ū Install the appliance at a sufficient distance (approx. 10 cm) from the wall and other objects. The space above the appliance should be at least 20 cm.
ū Route the power cable so it cannot be damaged by edges or hot surfaces.

3.4 Connecting the appliance

Observe the following instructions:

ü Check that the supply voltage matches the operating voltage specified in the technical data (see table Technical data on page 55).
ū Only connect the appliance to a properly installed earthing contact socket. If in doubt, consult a specialist electrician.
ū The earthing contact socket must have a fuse of at least 10 A.

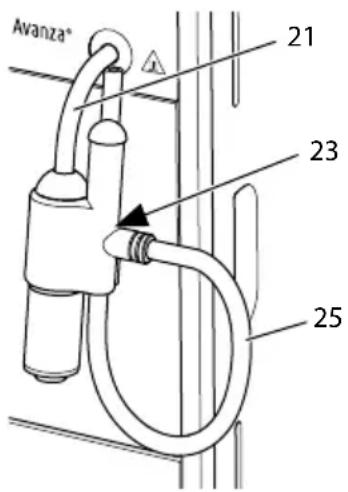

3.5 Connecting the Cappuccinatore

You can prepare hot water and milk foam with the Cappuccinatore.

Avanza* 21 23 25

Fig. 5: Connecting the Cappuccinatore

1. Connect the Cappuccinatore to the steam pipe (21). Slide the connection of the Cappuccinatore to the stop of the steam pipe.
2. Connect the milk hose (25) to the Cap-puccinatore.
3. If you do not want to use milk, clamp the milk hose in the holder (23).

3.6 Switching on the appliance for the first time

Once you switch on the appliance for the first time, the appliance performs automatic rinsing. Hot water first flows out of the Cappuccinatore, then out of the outlet. The appliance is vented.

CAUTION

Hot water and hot steam flowing out of the pipe

• Do not reach into the outflowing hot water.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

i Information

ū We recommend pouring away the first two cups of coffee after initial start-up. ū If you want to use a water filter, only insert this after starting up for the first time.

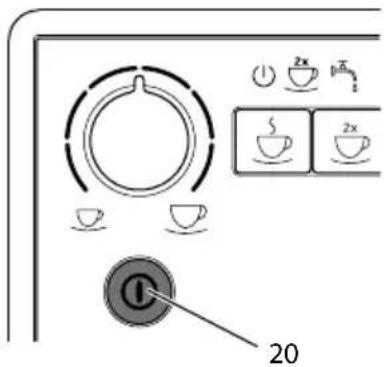

Diagram showing coffee cup and teacup icons with a numbered label '20' pointing to a circular icon containing the number 1.

Fig. 6: ON/OFF button

Requirement: The appliance has been installed and connected.

1. Place a vessel beneath the Cappuccinatore.
2. Press the ON/OFF button (20).

» The Ready display lights up briefly.

» The Water display lights up and requests you to fill the water tank.

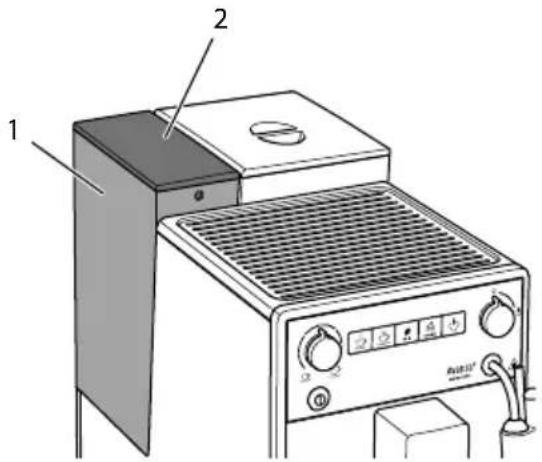

1. Open the lid of the water tank and pull the water tank upwards out of the appliance by the handle.

2. Rinse out the water tank with clean water. Fill the water tank with fresh water.

3. Insert the water tank into the appliance from above and close the lid.

» The Steam display lights up and requests you to open the "valve".

1. Open the "valve".

» Hot water first flows out of the Cap-puccinatore.

1. Once no more water flows out of the Cappuccinatore, close the "valve".

» Hot water flows out of the outlet. » The appliance is vented.

1. Fill coffee beans into the bean container (see section 4.2 Filling coffee beans into the bean container on page 39).
2. As required, you can now either

a) set the water hardness (see section 6.3 Setting the water hardness on page 45) or

b) screw in a water filter (see section 7.6 Using a water filter on page 52).

4 Basic operation

4.1 Switching the appliance on and off

Before switching on after starting up the appliance for the first time, read section 3.6 Switching on the appliance for the first time on page 37.

i Information

ū When switched on and off, the appliance performs automatic rinsing. ū During rinsing, rinsing water is also conducted into the drip tray.

Switching on the appliance

1. Place a vessel beneath the outlet.
2. Press the "ON/OFF" button (20).
   » The appliance heats up and performs automatic rinsing.
   » The appliance is ready for operation.

i Information

If the appliance was only switched off briefly, there is no automatic rinsing after switching on.

Switching off the appliance

1. Place a vessel beneath the outlet.
2. Press the "ON/OFF" button (20).

» The appliance performs automatic rinsing.
» The appliance switches off.

i Information

ū The appliance switches off automatically when it is not operated for a long time. Automatic rinsing is also carried out in this case.
ū You can set the off time in Service mode 1 (see section 6.2 Setting Auto OFF on page 44).
ū If no beverage has been prepared since switching on or if the water tank is empty, no rinsing takes place.

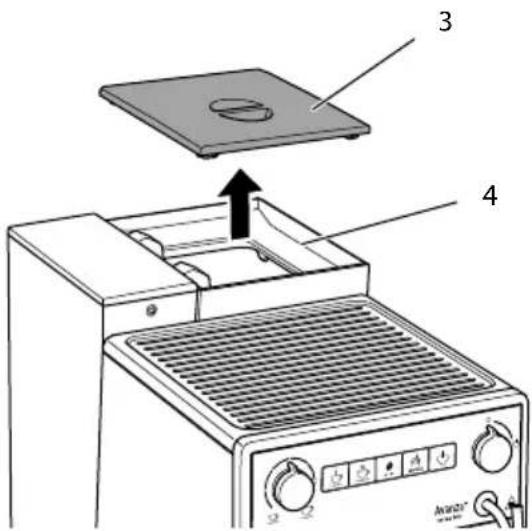

4.2 Filling coffee beans into the bean container

Roasted coffee beans lose their aroma. Only fill the bean container with as many coffee beans as you will consume over the next 3 to 4 days.

ATTENTION

The use of unsuitable types of coffee can lead to clogging of the grinder.

• Do not use freeze-dried or caramelised coffee beans.
• Do not use any coffee powder or instant products.

i Information

When changing the type of beans, remains of the old type of beans can still be in the grinder.

Even if the bean container runs empty and a new type of bean is filled in, there

are still remains of the old type of bean in the grinder. For this reason, the first two coffees dispensed can contain remains of the old type of bean.

The flashing Coffee bean display requests you to refill coffee beans.

Diagram of a kitchen appliance with labeled parts including a lid, fan, and control panel

Fig. 7: Opening the lid of the bean container

1. Open the lid (3) of the bean container (4).
2. Fill coffee beans into the bean container.
3. Close the lid of the bean container. The next time a coffee is dispensed, the display no longer flashes.

If the bean container runs empty during beverage preparation, output is interrupted and the Coffee bean display flashes. When you fill the bean container with coffee beans, the display will initially continue to flash. After pressing the "Coffee" direct key, coffee beans fall into the grinder. Coffee is prepared and the display stops flashing. The Ready display and the Coffee beans display light up.

4.3 Filling with water

Only use fresh, cold water without carbon dioxide for optimum coffee enjoyment. Change the water daily.

i Information

The quality of the water largely determines the flavour of the coffee. Therefore, use a water filter (see section 6.3 Setting the water hardness on page 45 and section 7.6 Using a water filter on page 52).

The Water display lights up and quests you to refill water.

Technical diagram of a portable kitchen appliance with labeled parts 1 and 2

Fig. 8: Removing the water tank

1. Open the lid (2) of the water tank (1) and pull the water tank upwards out of the appliance by the handle.
2. Fill the water tank with water.
3. Insert the water tank into the appliance from above and close the lid.

4.4 Adjusting the outlet for coffee beverages

The outlet (7) is height-adjustable. Set the greatest possible distance between the outlet and the vessel. Depending on the vessel, push the outlet up or down.

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Fig. 9: Adjusting the outlet for coffee beverages

4.5 Using milk

Use cooled milk for optimum coffee enjoyment.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Fig. 10: Commercial milk pack

1. Remove the milk hose (25) from the holder.
2. Insert the milk hose into a conventional milk pack (27) or into a vessel filled with milk.

To ensure that sufficient milk can be drawn in, the end of the hose must not touch the bottom of the vessel.

4.6 Emptying the drip tray and coffee grounds container

When the drip tray (9) and the coffee grounds container (8) are full, the Drip tray display lights up and requests you to empty the container The display appears after preparing approx. 8 beverages.

The projecting float (14) also indicates that the drip tray is full.

Always empty both containers. When the drip tray is pulled out, the Drip tray display flashes.

Technical diagram of a coffee maker with labeled parts including control panel, evaporator, and water level indicators

Fig. 11: Emptying the drip tray and coffee grounds container

1. Pull the drip tray (9) forwards out of the appliance.
2. Remove the coffee grounds container (8) and empty it.
3. Empty the drip tray.
4. Insert the coffee grounds container.
5. Push the drip tray into the appliance up to the stop.

Information

If you empty the drip tray and the coffee grounds container while the appliance is switched off, the appliance does not register this process. Therefore, it is possible that you are requested to empty the containers although the drip tray and the coffee grounds container are not yet full.

5 Preparing beverages

There are two options for preparing beverages:

ū Preparing coffee beverages at the outlet for coffee beverages or
ū Preparation of hot water and milk foam at the Cappuccinatore.

Please note:

ū There should always be sufficient water in the water tank. If the filling level is too low, the appliance requests you to refill it.
ū There should always also be sufficient coffee beans in the bean container. If there are no longer any coffee beans present, the appliance stops the preparation of a coffee beverage.
ū The appliance does not indicate a lack of milk.
ū The vessels for the beverages should be sufficiently large.
The maximum coffee quantity is 220 ml.

5.1 Setting the coffee strength

As soon as the appliance is ready for operation, it displays the current setting of the coffee strength.

The following settings for the coffee strength are possible:

Display Coffee strength
	Mild
	Normal
	Strong

You can adjust the coffee strength by pressing the "Coffee strength" button one or more times.

You can adjust the coffee strength before the beverage is dispensed or during the grinding process.

i Information

When switching off the appliance, the last set coffee strength is stored.

5.2 Setting the coffee quantity

19

Fig. 12: Setting the coffee quantity

You can set the coffee quantity with the "Coffee quantity" (19) rotary regulator.

You can adjust the coffee quantity before the beverage is dispensed or during the grinding process.

Coffee quantities are continuously adjustable between 25 ml and 220 ml.

5.3 Preparing the coffee beverage

Requirement: The appliance is ready for operation.

1. Place a vessel beneath the outlet.

2. Press the "Coffee" direct key.

» The grinding process and beverage dispensing start.

» Beverage dispensing ends automatically.

1. Remove the vessel.

5.4 Stopping coffee preparation

If you want to stop the preparation of a coffee beverage prematurely, press the direct key again.

5.5 Preparing two coffee beverages simultaneously

You can prepare two coffee drinks simultaneously with the "2 cups" button. For two-cup dispensing, the appliance carries out two grinding processes.

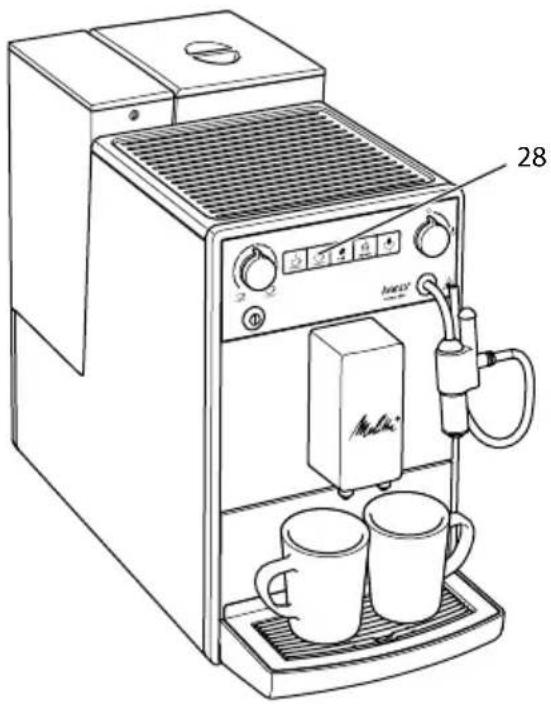

Line drawing of a coffee machine with two cups and a milk carton, labeled with number 28 (no text or symbols on the device itself)

Fig. 13: Two-cup dispensing

1. Place two vessels beneath the outlet.

2. Press the "2 cups" button (28). The 2 cups display lights up.

3. Press the "Coffee" direct key. » The grinding process and beverage dispensing start. » Beverage dispensing ends automatically.

4. Remove both vessels.

i Information

ū The setting only applies to the single beverage that is prepared.

ū If a coffee beverage is not prepared within 1 minute, the appliance switches to single-cup dispensing.

5.6 Preparing milk foam

You prepare milk foam on the Cappuccinatore. Steam is required for the preparation of milk foam.

CAUTION

Outflowing steam and hot steam pipe

• Do not reach into the steam that is flowing out.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Requirement: The appliance is ready for operation. The Cappuccinatore is connected to the appliance and milk is connected.

1. Place a vessel beneath the Cappuccinatore.
2. Press the "Steam dispenser" button.

» the flashing Steam display indicates that the appliance is heating up for the steam dispenser.

» Afterwards, the lit Steam display indicates that the steam dispenser is ready.

1. Open the "valve".

» Beverage dispensing starts.

1. Close the "valve".

» Beverage dispensing stops.

1. Remove the vessel.
2. Prepare further beverages or rinse the Cappuccinatore:

a) Prepare further beverages and rinse the Cappuccinatore later.

b) Rinse the Cappuccinatore as described below.

i Information

After 30 seconds the appliance automatically switches from steam mode to ready mode. Press the "Steam dispenser", button to switch to ready mode beforehand.

Rinsing the Cappuccinatore

1. Fill a vessel with clear water.

2. Immerse the milk hose in the filled vessel.
   To ensure that sufficient water can be drawn in, the end of the hose must not touch the bottom of the vessel.

3. Place an empty vessel beneath the Cappuccinatore.

1. Press the "Steam dispenser" button.

» The flashing Steam display indicates that the appliance is heating up for the steam dispenser.
» Afterwards, the lit Steam display indicates that the steam dispenser is ready.

1. Open the "valve".

1. As soon as a clean water/steam mixture flows into the empty vessel, close the "valve".

» The Cappuccinatore is rinsed.

i Information

We recommend:

ū Not only rinsing the Cappuccinatore, but dismantling and cleaning it at regular intervals (see section 7.2 Cleaning the Cappuccinatore on page 48).

ū Rinsing the Cappuccinatore each week with the Melitta® PERFECT CLEAN milk system cleaning agent for fully automatic coffee makers. Use the milk system cleaning solution instead of fresh water.

5.7 Preparing hot water

You prepare hot water on the Cappuccinatore.

CAUTION

Hot water and hot steam flowing out of the pipe

• Do not reach into the hot water that is flowing out.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Requirement: The appliance is ready for operation. The Cappuccinatore is connected.

1. Place a vessel beneath the Cappuccinatore.

1. Open the "valve".

» Beverage dispensing starts.

1. Close the "valve".

» Beverage dispensing stops.

1. Remove the vessel.

6 Changing basic settings

You can change the basic settings of the appliance with several functions. The functions are divided into two service modes.

6.1 Service mode 1

Each function is assigned a display.

Service mode 1
Display function
	Auto OFF
	Water hardness
	Switch-off rinsing
	Filter programme
clean	Cleaning programme

Service mode 1

Display function

decalc

Descaling programme

Brewing temperature

To call up Service mode 1, proceed as follows:

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
   » The Ready display flashes rapidly and the 2 cups button lights up.

1. Press the "Service" button one or more times to access the desired function.

» A display lights up according to the function selected, see Service mode 1 table.
» The number of lit bean symbols indicates the current setting of the function.

Press the "Coffee" direct key to exit the service mode without saving the settings.

Information

If no further input is made within 1 minute, the appliance returns to Ready mode.

6.2 Setting Auto OFF

If you do not operate the machine for a long time, it initially switches to energy save mode. After a further preset time, the appliance switches off.

The following settings are possible:

Display Energy save mode after:		Switch off after:
	3 minutes	30 minutes
	10 minutes	1 hour
	20 minutes	4 hours

Display Energy save mode after:	Switch off after:
flash	30 minutes 8 hours

i Information

Press any button to exit Energy Save mode.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. Press the "Service" button repeatedly until the display for the Auto Off function appears.
3. Press the "Coffee strength" button repeatedly until the desired time is set.
4. You can call up the next function or exit Service mode:
   a) Briefly press the "Service" button to navigate to the next function.
   b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.3 Setting the water hardness

Setting the water hardness regulates how frequently you are requested to descale the appliance. The harder the water, the more frequently the appliance has to be descaled.

Information

Water hardness cannot be set while using a water filter (see section 7.6 Using a water filter on page 52). If a water filter is used, the water hardness is set to soft.

Determine the water hardness with the enclosed test strip. Observe the instructions on the test strip packaging and in the table Water hardness range on page 56.

The following settings are possible:

Display Water hardness
	soft, descale after 150 litres
	medium, descale after 100 litres
	hard, descale after 70 litres
	very hard, descale after 30 litres
no coffee beans	A water filter is used. No adjustment is possible.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. Press the "Service" button repeatedly until the display for the Water hardness function appears.
3. Press the "Coffee strength" button repeatedly until the desired water hardness is set.
4. You can call up the next function or exit Service mode: a) Briefly press the "Service" button to navigate to the next function. b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.4 Activating/deactivating switch-off rinsing

Rinsing is always carried out immediately after switching on the coffee system. Only switch-off rinsing can be activated or deactivated. If it is activated, the coffee system is rinsed after being switched off.

i Information

We recommend that you do not permanently deactivate switch-off rinsing, because switch-off rinsing cleans the coffee system.

The following settings are possible:

Display Switch-off rinsing

activated

no coffee beans deactivated

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

1. Press the "Service" button repeatedly until the display for the Switch-off rinsing function appears.

1. Press the "Coffee strength" button repeatedly until switch-off rinsing is activated or deactivated.

1. You can call up the next function or exit Service mode:

a) Briefly press the "Service" button to navigate to the next function.

b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.5 Setting the brewing temperature

The brewing temperature influences the flavour of the coffee beverage.

The following settings are possible:

Display Brewing temperature

Low

Medium

High

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

1. Press the "Service" button repeatedly until the display for the Brewing temperature function appears.

1. Press the "Coffee strength" button repeatedly until the desired brewing temperature is set.

1. You can call up the next function or exit Service mode:

a) Briefly press the "Service" button to navigate to the next function.

b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.6 Service mode 2

Each function is assigned a display.

Service mode 2

Display function

Factory settings

Venting

To call up Service mode 2, proceed as follows:

Requirement: The appliance is ready for operation.

1. Press the "Service" button as well as the "Coffee" direct key for more than 2 seconds to enter Service mode 2.

» ⏻ 2x The Ready display and the 2 cups display flash rapidly.

1. Press the "Service" button one or more times to access the desired function.

» A display lights up according to the function selected, see Service mode 2 table.

» The number of lit bean symbols indicates the current setting of the function.

Press the "Coffee" direct key to exit the service mode without saving the settings.

i Information

If no further input is made within 1 minute, the appliance returns to Ready mode.

6.7 Resetting the appliance to the factory settings

The appliance can be reset to the factory settings. When resetting, your settings in the functions will be lost.

Requirement: The appliance is ready for operation.

1. Press the "Service" button as well as the "Coffee" direct key for more than 2 seconds to enter Service mode 2.

2. Press the "Service" button repeatedly until the display for the Factory settings function appears.

3. Press the "Coffee strength" button repeatedly until the display of one coffee bean appears.

4. Press the "Service" button for more than 2 seconds to reset the appliance to the factory settings and exit the service mode.

6.8 Setting the grinding fineness

The grinding fineness of the coffee powder influences the flavour of the coffee.

If the grinding fineness is set finer, the coffee flavour is stronger.

ATTENTION

Very finely ground coffee powder can clog the brewing unit.

The grinding fineness has been optimally set prior to delivery. Adjust grinding fineness at the earliest after about 100 coffees are dispensed (after

approx. 1 month, depending on coffee consumption).

- Do not set the grinding fineness too fine. The grinding fineness is optimally set when the coffee flows evenly out of the outlet and a fine, dense crema appears.

Adjust the grinding fineness while the grinder is running.

Requirement: The appliance is ready for operation.

Technical diagram of a coffee machine with labeled parts and an arrow indicating assembly or operation

Fig. 14: Setting the grinding fineness

1. Open the cover (11). To do this, reach into the recess on the right of the appliance and pull the cover off sideways.
2. Prepare any coffee beverage.
3. Move the lever (10) to the left or right while the grinder is running.
   To the left = grinding fineness finer To the right = grinding fineness coarser
4. Insert the cover (11) sideways until it engages.

7 Care and maintenance

Regular care and maintenance of the appliance ensure the consistent high quality of your beverages.

7.1 General cleaning

Clean the appliance regularly. Immediately remove external soiling caused by milk and coffee.

ATTENTION

The use of unsuitable cleaning agents may lead to scratched surfaces.

- Do not use any abrasive cloths, sponges or cleaning agents.

Requirement: The appliance is switched off.

- Clean the outside of the appliance with a soft, damp cloth and normal washing-up liquid. - Rinse off the drip tray, the coffee container and the cup plate. Use a soft, damp cloth and normal washing up liquid for this.

The coffee container is dishwasher-safe.

- Clean the bean container with a soft, dry cloth.

7.2 Cleaning the Cappuccinatore

To avoid damage to the appliance, we recommend regularly cleaning the Cappuccinatore and the milk hose.

Avanza* 21 22 29 25 26

Fig. 15: Dismantling the Cappuccinatore

1. Detach the Cappuccinatore from the steam pipe (21).
2. Detach the following individual parts from the Cappuccinatore: ū Milk hose (25) ū Air intake nozzle (22), ū Outlet for milk foam (26) ū Insert outlet (29).
3. Clean the Cappuccinatore and the individual parts with warm water.
4. Re-assemble the Cappuccinatore.
5. Connect the Cappuccinatore to the appliance (see section 3.5 Connecting the Cappuccinatore on page 37).

7.3 Cleaning the brewing unit

To avoid damage to the appliance, we recommend cleaning the brewing unit once a week.

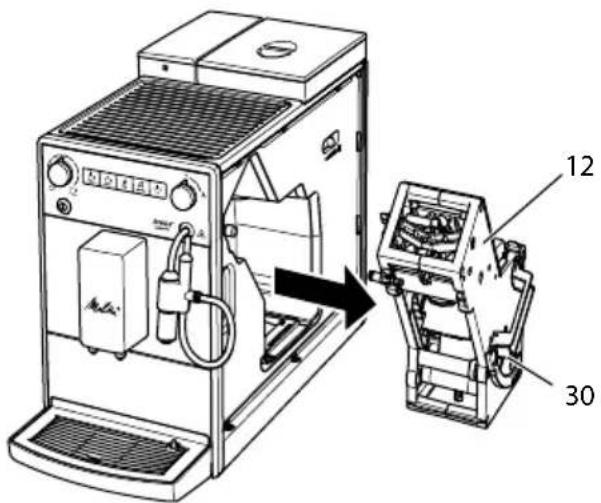

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Fig. 16: Removing the brewing unit

31

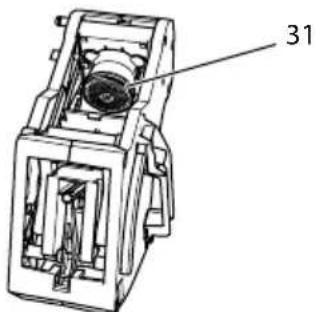

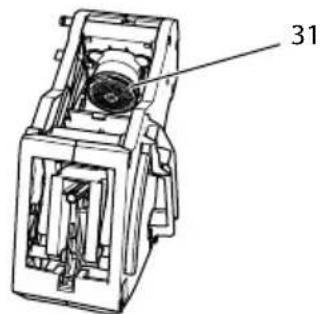

Fig. 17: Cleaning the brewing unit

Requirement: The appliance is switched off.

1. Open the cover (11). To do this, reach into the recess on the right of the appliance and pull the cover off sideways.
2. Press and hold the red lever (30) on the brewing unit handle (12) and turn the handle clockwise until it engages at the stop.
3. Pull the brewing unit out of the appliance by the handle.
4. Rinse the entire brewing unit thoroughly from all sides under running water. In particular, make sure that coffee residues are removed from the sieve (31).
5. Allow the brewing unit to drip dry.
6. Use a soft, dry cloth to remove coffee residues from the surfaces inside the appliance.
7. Insert the brewing unit into the appliance. Press and hold the red lever on the handle of the brewing unit and turn the handle anticlockwise until it engages at the stop.
8. To do this, insert the cover sideways until it engages.

When the appliance is switched on, an alternating flashing of the Ready display and the Clean display indicates a missing brewing unit. After the brewing unit has been inserted, the appliance switches to Ready mode.

7.4 Running the cleaning programme

This cleaning programme is used to remove residues and coffee oil residues with the aid of fully automatic coffee maker cleaning agents.

To avoid damage to the appliance, we recommend running the cleaning programme every 2 months or as requested by the appliance.

clean The Clean display light requests you to clean the unit.

CAUTION

Contact with fully automatic coffee maker cleaning agent may lead to eye and skin irritation.

- Observe the processing instructions on the packaging of the fully automatic coffee maker cleaning agent.

ATTENTION

The use of unsuitable fully automatic coffee maker cleaning agent can damage the appliance.

- Only use Melitta® PERFECT CLEAN cleaning tablets for fully automatic coffee machines.

The cleaning programme takes approx. 15 minutes and should not be interrupted.

The cleaning programme runs in several stages. Progress is indicated by the number of coffee beans displayed.

The appliance performs several rinsing operations during the cleaning programme. The drip tray is also rinsed.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

2. Press the Service" button repeatedly until the display for the cleaning programme appears.

3. Press the "Service" button for more than 2 seconds to start the cleaning programme.

» clean/ean display flashes until the cleaning programme is finished.

The first stage of the cleaning programme starts. One coffee bean lights up.

» The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray without the coffee grounds container.
3. Place the coffee grounds container beneath the outlet.

» The appliance rinses twice.

» clean clean display flashes rapidly and requests you to remove the brewing unit and insert a cleaning tablet.

1. Remove the brewing unit. Do not switch off the appliance.
2. Rinse the brewing unit under running water (see section 7.3 Cleaning the brewing unit on page 48).
3. Place a cleaning tablet in the brewing unit. Insert the brewing unit into the appliance.

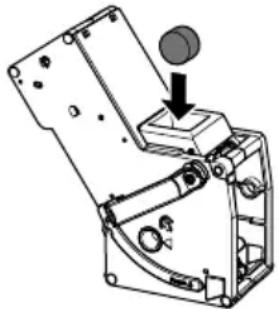

Mechanical assembly diagram showing a rotating component with a circular head and shaft (no text or symbols)

Fig. 18: Placing a cleaning tablet in the brewing unit.

The second stage of the cleaning programme starts. Two coffee beans light up.

» The appliance performs several rinsing operations.
» The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

- the third stage of the cleaning programme starts. Three coffee beans light up.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray without the coffee grounds container.

The fourth stage of the cleaning programme starts. The three coffee beans flash.

1. Place the coffee grounds container beneath the outlet.

» The appliance performs several rinsing operations.
» The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray and the coffee grounds container.

» The cleaning programme is finished.
» The Clean display goes out.
» The appliance is ready for operation.

i Information

If the cleaning programme has been interrupted, e.g. because you unintentionally switched off the appliance, you must switch the appliance on again and follow the instructions from step 10. The appliance is then ready for operation, even if it has not been completely cleaned. For complete cleaning, you must run the cleaning programme from the beginning.

7.5 Running the descaling programme

The descaling programme is used to remove limescale deposits in the interior of the appliance with fully automatic coffee maker descaling agents.

To avoid damage to the appliance, we recommend running the descaling programme every 3 months or as requested by the appliance, unless you regularly use a water filter.

decalc The Descaling display light requests you to descale the appliance.

CAUTION

Contact with descaling agent may lead to eye and skin irritation.

- Observe the processing instructions on the packaging of the descaling agent.

CAUTION

Hot water and hot steam flowing out of the pipe

• Do not touch the steam pipe during and immediately after use.
• Wait until the steam pipe has cooled down.

ATTENTION

Use of unsuitable descaling agents and failure to observe the processing instructions may damage the appliance.

• Only use Melitta® ANTI CALC liquid descaling agent for fully automatic coffee machines.
• Observe the processing instructions on the packaging of the descaling agent.

ATTENTION

A water filter may be damaged if it is screwed in during the descaling programme.

■ Remove the water filter (see Fig. 19 on page 53).
- Place the water filter into a vessel filled with tap water during the descaling programme.
- The water filter can be reinserted and reused when the descaling programme is complete.

The descaling program lasts approx. 25 minutes and should not be interrupted.

The descaling programme runs in several stages. Progress is indicated by the number of coffee beans displayed.

The appliance performs several rinsing operations during the descaling programme. The drip tray is also rinsed.

Requirement: The appliance is ready for operation.

Press the "Service" button for more than 2 seconds to call up Service mode 1.
Press the Service"
button repeatedly unit the display for the descaling programme appears.
3. Press the "Service" button for more than 2 seconds to start the descaling programme.

» decalscaling display flashes until the descaling programme is finished.

The first stage of the descaling programme starts. One coffee bean lights up.

Drip tray display lights and requests you to empty the tray and the coffee grounds ainer.

1. Empty the drip tray and the coffee grounds container.

2. Insert the drip tray without the coffee grounds container.

3. Place the coffee grounds container beneath the Cappuccinatore.

The Water display lights up and guests you to fill the water tank with descaling fluid.

1. Remove the water tank.

2. Fill 0.5 litres of descaling fluid into the water tank. Observe the corresponding instructions for use of the fully automatic coffee maker descaling agent.

3. Insert the water tank again.

The second stage of the descaling programme starts. Two coffee beans light up.

The descaler needs approx. 20 minutes to take effect, Several rinsing operations are carried out during this time.

The Steam display then lights and requests you to open the alve".

1. Open the "valve".

» The Steam display flashes. The appliance performs several rinsing operations.
» The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray without the coffee grounds container.
3. Place the coffee grounds container beneath the Cappuccinatore.

» The Water display lights up and requests you to fill the water tank.

1. Remove the water tank.
2. Thoroughly rinse out the water tank and fill it with fresh water.
3. Insert the water tank.

- the third stage of the descaling programme starts. Three coffee beans light up.

» Hot water flows into the coffee grounds container.
» The Steam display flashes.

1. Once the Steam display lights up, close the "valve".

» The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray and the coffee grounds container.

» The descaling programme is finished.
» The Descaling display goes out.
» The appliance is ready for operation.

i Information

If the descaling programme has been interrupted, e.g. by unintentionally switching the appliance off, you must switch the appliance on again and follow the instructions from step 11. The appliance is then ready for operation, even if it has not been completely descaled. For complete descaling, you must run the descaling programme from the beginning.

7.6 Using a water filter

The use of a water filter extends the service life of the appliance and the appliance has to be descaled less frequently. The water filter filters calcium and other pollutants out of the water.

Only use Melitta® Pro Aqua filter cartridges for fully automatic coffee machines. Observe the processing instructions on the packaging of the water filter.

i Information

When using and regularly replacing the Melitta® Pro Aqua filter cartridge, the appliance only needs to be descaled once a year.

This information is based on an average of 6 coffee beverages with 120 ml per day and 6 filter changes per year.

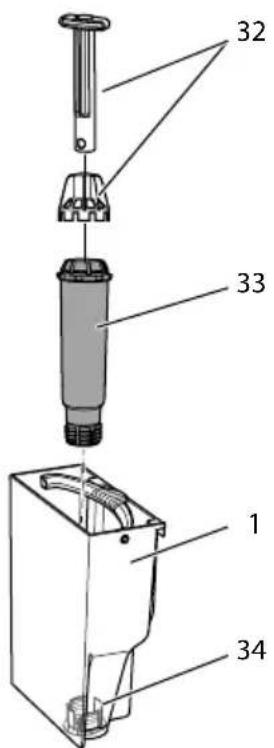

32 33 1 34

Fig. 19: Screwing/Unscrewing the water filter

The water filter (33) is screwed in and unscrewed from the thread (32) on the base of the water tank (1) using the screwing aid (32).

i Information

The water filter should not be left standing dry for a long period of time. When it is not used for a long time, we recommend storing the water filter in a vessel filled with tap water in the refrigerator.

Inserting the water filter

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

2. Press the "Service" button repeatedly unit the display for the filter programme appears.

3. ⚠️ Press the "Coffee strength" button until one bean lights up.

4. Follow the instructions from step 3 in section Changing the water filter.

Changing the water filter

In order to maintain a constant effect of the water filter, we recommend changing the water filter every 2 months – or when the device requests you to do so.

The Filter display light requests you to change the water filter.

i Information

ū The water hardness cannot be set if you use a water filter. The water hardness is automatically set to soft (see section 6.3 Setting the water hardness on page 45).

ū Place the water filter into a vessel filled with fresh tap water for a few minutes before inserting it.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

2. Press the "Service" button repeatedly unit the display for the filter programme appears.
   » One bean lights up.

3. Press the "Service" button for more than 2 seconds to start the filter programme.

» The Filter display flashes until the filter programme is finished.

» The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.

2. Insert the drip tray without the coffee grounds container.

3. Place the coffee grounds container beneath the Cappuccinatore.

» The Water display lights up and requests you to remove the water tank and insert the water filter.

1. Remove the water tank.
2. Empty the water tank.
3. Insert a new filter in the water tank (see Fig. 19).
4. Fill the water tank.
5. Insert the water tank again.

» The Steam display lights up and requests you to open the "valve".

1. Open the "valve".

If the appliance requests you to fill the water tank during this procedure, close the "valve" first. Fill the water tank and afterwards open the "valve".

» The filter is rinsed with water.
» Water flows into the vessel beneath the Cappuccinatore.
» The Steam display lights up and requests you to close the "valve".

1. Close the "valve".

» The filter programme is finished.
» The Filter display goes out.
» The appliance is ready for operation.

Permanently de-registering the water filter

If you have removed an inserted water filter and want to continue operating the appliance without a water filter, deactivate the water filter on the appliance:

1. Remove the water tank.
2. Empty the water tank.
3. Fill the water tank.

4. Insert the water tank again.

5. Remove the water filter (see Fig. 19).

6. Press the "Service" button for more than 2 seconds to call up Service mode 1.

7. Press the "Service" button repeatedly until the display for the Filter function appears.
8. Press the "Coffee strength" button repeatedly until no coffee beans are lit.
9. Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.
   » The water filter is de-registered.
   » The water hardness is reset to the water hardness that the appliance had stored prior to inserting a water filter.
10. Adjust the water hardness if necessary (see section. 6.3 Setting the water hardness on page 45).

8 Transport, storage and disposal

8.1 Venting the appliance

We recommend venting the appliance when it is not used for a long period, prior to transport and when there is a risk of frost.

During venting, residual water is removed from the appliance.

If you put the appliance back into operation, automatic rinsing is carried out after switching on and the appliance vented (see section 3.6 Switching on the appliance for the first time on page 37).

CAUTION

Outflowing steam and hot steam pipe

• Do not reach into the steam that is flowing out.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Requirement: The appliance is ready for operation.

1. Press the "Service" button as well as the "Coffee" direct key for more than 2 seconds to enter Service mode 2.
2. Press the "Service" button repeatedly until the display for the Venting function appears.
3. Press the "Service" button for more than 2 seconds to start venting.

» The Ready display flashes until venting is ready to start.

» The Water display lights up and requests you to remove the water tank.

1. Remove the water tank and empty it.

» The Steam display lights up and requests you to open the "valve".

1. Open the "valve".

» Water and steam escape from the Cappuccinatore.
» The Steam display flashes.
» The Steam display lights up and requests you to close the "valve".

1. Close the "valve".

» The appliance is vented and switches off automatically.

8.2 Transporting the appliance

ATTENTION

Freezing residual water can damage the appliance.

- Prevent the appliance from being exposed to temperatures below 0 °C.

Transport the appliance in the original packaging. This avoids damage in transit.

Before transporting the appliance, carry out the following activities:

1. Vent the appliance (see section 8.1 Venting the appliance on page 54).
2. Empty the drip tray and the coffee grounds container.
3. Empty the water tank.
4. Empty the bean container.
5. Clean the appliance (see section 7.1 General cleaning on page 48).
6. Package the appliance.

i Information

ū When sending the appliance to Melitta's service centres, it is not necessary to send in the cup plate. This prevents scratches during transport.
ū Do not use commercially available adhesive and packing tapes to attach loose parts. When detached, adhesive residues remain on the appliance which are difficult to remove.

8.3 Disposing of the appliance

Appliances marked with this symbol are subject to European Directive 2002/96/EC for WEEE (Waste Electrical and Electronic Equipment).

Electrical appliances do not belong in domestic waste.

Dispose of the appliance in an environmentally friendly manner via suitable collection systems.

9 Technical data

Technical data
Operating voltage	220 V – 240 V, 50 Hz – 60 Hz
Power consumption	1450 W
Pump pressure	max. 15 bar
Dimensions
Width	200 mm
Depth	460 mm
Height	353 mm
Capacity
Bean container	250 g
Water tank	1.5 l
Weight (empty) 8.1 kg
Ambient conditions
Temperature	10 °C – 32 °C
Relative humidity	30 % – 80 % (non-condensing)

Water hardness range	°dH °e °fH
Soft 0 to 10 0 to 13 0 to 18
Medium 10 to 15 13 to 19 18 to 27
Hard 15 to 20 19 to 25 27 to 36
Very hard	>20 >25 >36

10 Trouble shooting

If the actions listed below fail to rectify the problems or other problems not listed here occur, contact our hotline (local rate).

You will find the hotline number in the lid of the water tank or in the Service section on our website.

ProblemCauseAction
Coffee only emerges from the outlet in drips.	Grinding fineness is too fine.	Set a coarser grinding fineness (see section 6.8 on page 47).
	Appliance is soiled.	Clean the brewing unit (see section 7.3 on page 48).Run the cleaning programme (see section 7.4 on page 49).
	Appliance is covered inside with limescale.	Run the descaling program (see section 7.5 on page 50).
Coffee does not flow. Water tank is not filled or is not correctly inserted.		Fill the water tank and ensure it is positioned correctly (see section 4.3 on page 40).
		Brewing unit is clogged. Clean the brewing unit (see section 7.3 on page 48).
When foaming milk, there is not enough milk foam.	Cappuccinatore is soiled.	Clean the Cappuccinatore (see section 7.2 on page 48).
Although the bean container is full, the appliance indicates that coffee beans must be filled.	Coffee beans do not drop into the grinder.	Press a direct key.Tap lightly on the bean container.Clean the bean container.Coffee beans are too oily. Use different coffee beans.
Loud grinder noise. Foreign objects in the grinder.		Contact the hotline.
Brewing unit cannot be inserted after removing.	Handle for the locking mechanism of the brewing unit is not in the correct position.	Check that the handle for the locking mechanism is correctly engaged (see section 7.3 on page 48).
	Drive is not in the correct position.	Press the "Coffee" direct key and the "2 cups" button simultaneously for more than 2 seconds.The appliance initialises.
Rapid alternate flashing of the displays:	Software problem.	Switch the appliance off and on again (see section 4.1 on page 38).Contact the hotline.
Rapid alternate flashing of the displays:clean	Brewing unit is not inserted.	Insert and lock the brewing unit.
The display lights up without having been activated:	Appliance is not fully vented.	Vent the appliance, turn the rotary regulator clockwise to the stop for this. Once the Steam display lights up permanently, turn the rotary regulator anti-clockwise up to the stop.Clean the brewing unit (see section 7.3 on page 48).

Sommaire

Labeled diagram of a coffee machine with numbered parts for identification

Diagram of a kitchen appliance with labeled parts including a lid, fan, and control panel

Technical diagram of a portable oven with labeled parts including a control panel and fan.

Technical diagram of a coffee maker with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Technical diagram of a coffee machine with labeled parts including control panel, water level sensor, and speaker output ports.

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D cube model with dimensions.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and adjustment knob (no text or symbols)

Labeled diagram of a coffee machine with numbered parts for identification

Technical diagram of a coffee machine with numbered components labeled for identification.

www.melitta.nl of www.melitta.be

Diagram showing kitchen utensils and a circular badge with number 20, likely indicating a safety or safety feature.

Afb. 6: "Aan/Uit"-knop

Diagram of a kitchen appliance with labeled parts including a lid, fan, and control panel

Technical diagram of a portable oven with labeled parts including a grater and control panel

Technical diagram of a coffee maker with labeled components and directional arrows indicating movement or flow.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and two numbered parts (25 and 27)

Afb. 10: Normale melkverpakking

Technical diagram of a coffee maker with labeled parts including control panel, water level sensor, and base components

Afb. 11: Lekbakje en residubak legen

Line drawing of a coffee machine with two cups and a milk dispenser, labeled with number 28 (no text or symbols on the device itself)

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model view.

Afb. 14: Maalgraad instellen

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Labeled diagram of a coffee machine with numbered parts for identification

Fig. 6: Tasto "ON/OFF"

Diagram of a portable appliance with labeled parts including a lid, fan, and control panel

Diagram of a portable appliance with labeled parts, showing front panel, side panel, and control panel.

Technical diagram of a coffee machine with labeled components and directional arrow indicating flow or movement

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

28 Mollic

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model view.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Technical diagram of a coffee machine with numbered parts for identification

Diagram showing kitchen utensils and a circular button labeled '20' with icons for coffee cups, water drop, and a timer.

Diagram of a kitchen appliance with labeled parts including a lid, fan, and control panel

Technical diagram of a portable oven with labeled parts including a grater and control panel

Technical diagram of a coffee maker with labeled components and directional arrows indicating flow or movement.

Fig. 9: Ajustar la válvula de salida de café

4.5 Utilizar leche

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Fig. 10: Envase de leche comercial

Technical diagram of a coffee machine with labeled parts including control panel, water level, and air vent

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model of a container.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and mounting bracket (no text or symbols)

Labeled diagram of a coffee machine with numbered parts for identification

Fig. 1: Maskinen set forfra, venstre side

Technical diagram of a coffee machine with numbered parts labeled for identification.

Diagram showing kitchen appliance control panel with icons for cup, teacup, and coffee cup, plus a circular badge labeled '20' pointing to one.

Fig. 6: "Tænd-/sluk"-knap

Diagram of a microwave oven with labeled parts including a lid, fan, and control panel

Technical diagram of a portable appliance with labeled parts, showing front panel, side panel, and control panel.

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and two numbered parts (25 and 27)

Milk tea 8 14 9

Line drawing of a coffee machine with two cups and a digital display (no text or symbols)

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model of coffee beans.

Technical diagram of a coffee machine with labeled parts, showing internal components and assembly steps

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

(Waste Electrical and Electronic Equipment).

Labeled diagram of a coffee machine with numbered parts for identification

Technical diagram of a coffee machine with numbered components labeled for identification.

Diagram showing kitchen appliance control panel with icons for cup, teacup, and coffee cup, plus a numbered dial indicator.

Bild 6: PÅ/AV-knapp

Diagram of a portable appliance with labeled parts including a lid, vent, and control panel

Technical diagram of a portable coffee machine with labeled components and control panel

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Technical diagram of a self-service kitchen machine with labeled components and a magnified inset showing internal components.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Bild 16: Demontera bryggenheten

31

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Labeled diagram of a coffee maker with numbered parts for identification

Diagram of a microwave oven with labeled components including a lid, fan, and control panel

Technical diagram of a portable kitchen appliance with labeled parts 1 and 2

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Fig. 10: Vanlig melkeemballasje

1. Ta melkeslangen (25) ut av holderen.
2. Stikk melkeslangen inn i en vanlig melkepakke (27) eller en beholder fylt med melk.
   For at det kan suges inn nok melk, må slangeenden ikke berøre beholderbunnen.

Line drawing of a coffee machine with two cups and a digital display unit (no text or symbols)

Technical diagram of a coffee machine with labeled parts and an arrow indicating assembly or operation

Fig. 14: Stille inn malegrad

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Fig. 16: Demontere kokegruppe

31

Mechanical assembly diagram showing a rotating component with a circular head and shaft (no text or symbols)

Sette inn vannfilter

Forutsetning: Apparatet er driftsklart.

Labeled diagram of a coffee maker with numbered parts for identification

Technical diagram of a milk tea machine with numbered components labeled for identification.

Diagram showing a kitchen control panel with icons for coffee cup, teacup, and coffee cup, plus a numbered button labeled '20'

Diagram of a portable appliance with labeled parts including a lid, fan, and control panel

Technical diagram of a portable appliance with labeled parts including a base, top panel, and control panel.

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and two numbered parts (25 and 27)

Technical diagram of a coffee maker with labeled parts including control panel, water level, and air vent

Line drawing of a coffee machine with two cups and a digital display (no text or symbols)

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model view.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Labeled diagram of a coffee machine with numbered parts for identification

Diagram of a portable kitchen appliance with labeled parts including a lid, vent, and control panel

Technical diagram of a gas stove with labeled components and control panel

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Technical diagram of a coffee maker with labeled parts including control panel, fan, and base components

Line drawing of a coffee machine with two cups and a water dispenser (no text or symbols)

Technical diagram of a coffee machine with labeled parts and an arrow indicating assembly or operation

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Exploded view diagram of a device with numbered parts labeled 1, 32, 33, and 34

Labeled diagram of a coffee maker with numbered parts for identification

Diagram of a portable kitchen appliance with labeled parts including a lid, fan, and control panel

Technical diagram of a stainless steel kitchen appliance with labeled parts 1 and 2

Technical diagram of a coffee machine with labeled components and directional arrow indicating flow or movement

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Technical diagram of a coffee maker with labeled parts and control panel

Technical diagram of a coffee machine with labeled parts and an inset showing a cross-section view of the device.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and directional arrow (no text or symbols)

Exploded view diagram of a mechanical device with numbered parts labeled 1, 32, 33, and 34

Labeled diagram of a coffee maker with numbered parts for identification

Technical diagram of a milk tea machine with numbered components labeled for identification.

Diagram showing kitchen utensils and a circular button labeled '20' with icons for cup, teacup, and coffee cup.

Diagram of a microwave oven with labeled parts including a lid, fan, and control panel

Technical diagram of a portable appliance with labeled parts including a base, top panel, and control panel.

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components 25 and 27, showing control panel and water level indicators.

Line drawing of a coffee machine with two cups and a water dispenser (no text or symbols)

Technical diagram of a coffee machine with labeled parts and an arrow indicating assembly or operation

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and shaft (no text or symbols)

Exploded view diagram of a mechanical device with numbered parts labeled 1, 32, 33, and 34

Labeled diagram of a coffee machine with numbered parts for identification

Technical diagram of a coffee machine with numbered components labeled for identification.

Diagram of a microwave oven with labeled parts including lid, tray, and control panel

Technical diagram of a portable kitchen appliance with labeled parts 1 and 2

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and two numbered parts (25 and 27)

Line drawing of a coffee machine with two cups and a milk carton, labeled with number 28 (no text or symbols on the device itself)

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D object with dimensions 10 and 11.

Pav. 14: Malimo smulkumo nustatymas

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a knob and housing (no text or symbols)

Labeled diagram of a coffee machine with numbered parts for identification

Diagram showing kitchen control panel with icons for fan, cup, and coffee, plus a circular button labeled '20' pointing to the button.

Joon. 6: "Sisse/välja" nupp

Diagram of a kitchen appliance with labeled parts including a lid, fan, and control panel

Joon. 7: Ubade mahuti kaane avamine

Technical diagram of a portable oven with labeled parts including a grater and control panel

Technical diagram of a coffee machine with labeled components and directional arrow indicating movement or flow.

Technical diagram of a coffee machine with labeled components including control panel, water level meter, and base unit.

Technical diagram of a coffee maker with labeled parts and control panel

Technical diagram of a coffee machine with labeled parts and an inset showing a 3D model of the container.

Joon. 14: Jahvatusastme seadistamine

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Joon. 18: Puhastustableti panemine tömbekambrisse.

Exploded view diagram of a mechanical device with numbered parts labeled 1, 32, 33, and 34

Joon. 19: Veefiltri paigaldamine/eemaldamine

Labeled diagram of a coffee machine with numbered parts for identification

Technical diagram of a coffee machine with numbered components labeled for identification.

Diagram showing kitchen appliance control panel with icons for fan, cup, and coffee, plus a numbered button labeled '20'

Att. 6: Taustiņš "lesl./lzsl."

Diagram of a microwave oven with labeled parts including lid, fan, and control panel

Technical diagram of a portable kitchen appliance with labeled parts 1 and 2

Att. 8: Ūdens tvertnes iznemšana

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and base unit.

Att. 10: Veikalā pieejama piena paka

Technical diagram of a coffee maker with labeled parts and control panel

Line drawing of a coffee machine with two cups and a milk carton, labeled with number 28 (no text or symbols on the device itself)

Technical diagram of a device with labeled parts and an inset showing a component with dimensions 10 and 11, likely illustrating a mechanical or electronic assembly.

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Mechanical assembly diagram showing a rotating component with a circular head and arrow indicator (no text or symbols)

Technical diagram of a device with numbered parts, likely an electrical or mechanical assembly.

Labeled diagram of a coffee machine with numbered parts for identification

Diagram showing coffee cup and teacup icons with a numbered label '20' pointing to a circular icon.

Diagram of a kitchen appliance with labeled parts including a lid, fan, and control panel

Technical diagram of a portable appliance with labeled parts, showing front panel, side panel, and control panel.

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and two numbered parts (25 and 27)

Technical diagram of a coffee maker with labeled parts including control panel, water level sensor, and air vent.

Line drawing of a coffee machine with two cups and a water dispenser (no text or symbols)

Technical diagram of a device with labeled parts and an arrow indicating direction, showing internal components and component callouts.

Technical diagram of a coffee machine with labeled parts, showing internal components and assembly steps

Mechanical assembly diagram showing a rotating component with a circular head and adjustment knob (no text or symbols)

Labeled diagram of a coffee machine with numbered parts for identification

Technical diagram of a coffee machine with numbered components labeled for identification.

Diagram showing kitchen appliance control panel with icons for cup, teacup, and coffee cup, plus a numbered button labeled '20'

Obr. 6: tlačidlo "zap/vyp"

Diagram of a microwave oven with labeled parts and an upward arrow indicating motion or assembly.

Technical diagram of a portable kitchen appliance with labeled parts 1 and 2

Technical diagram of a coffee machine with labeled components and directional arrows indicating flow or movement.

Technical diagram of a coffee machine with labeled components including control panel, water level sensor, and two numbered parts (25 and 27)

Line drawing of a coffee machine with two cups and a digital display (no text or symbols)

Technical diagram of a coffee machine with labeled parts and an inset showing a cross-section view of the device.

Obr. 14: Nastavenie stupňa mletia

Technical diagram of a coffee machine with labeled parts and directional arrow indicating assembly or operation

Obr. 16: Vymontovanie sparovacej jednotky

31

Obr. 17: Čistenie sparovacej jednotky

Mechanical assembly diagram showing a rotating component with a circular head and shaft (no text or symbols)

Obr. 18: Vloženie čistiacej tablety do sparovacej jednotky.

Division Household Products

Ringstr. 99

D-32427 Minden

Germany

www.melitta.de

Editorial department:

ZINDEL AG

www.zindel.de
