USER MANUAL ME 3673 CLATRONIC

Compartment de rangement

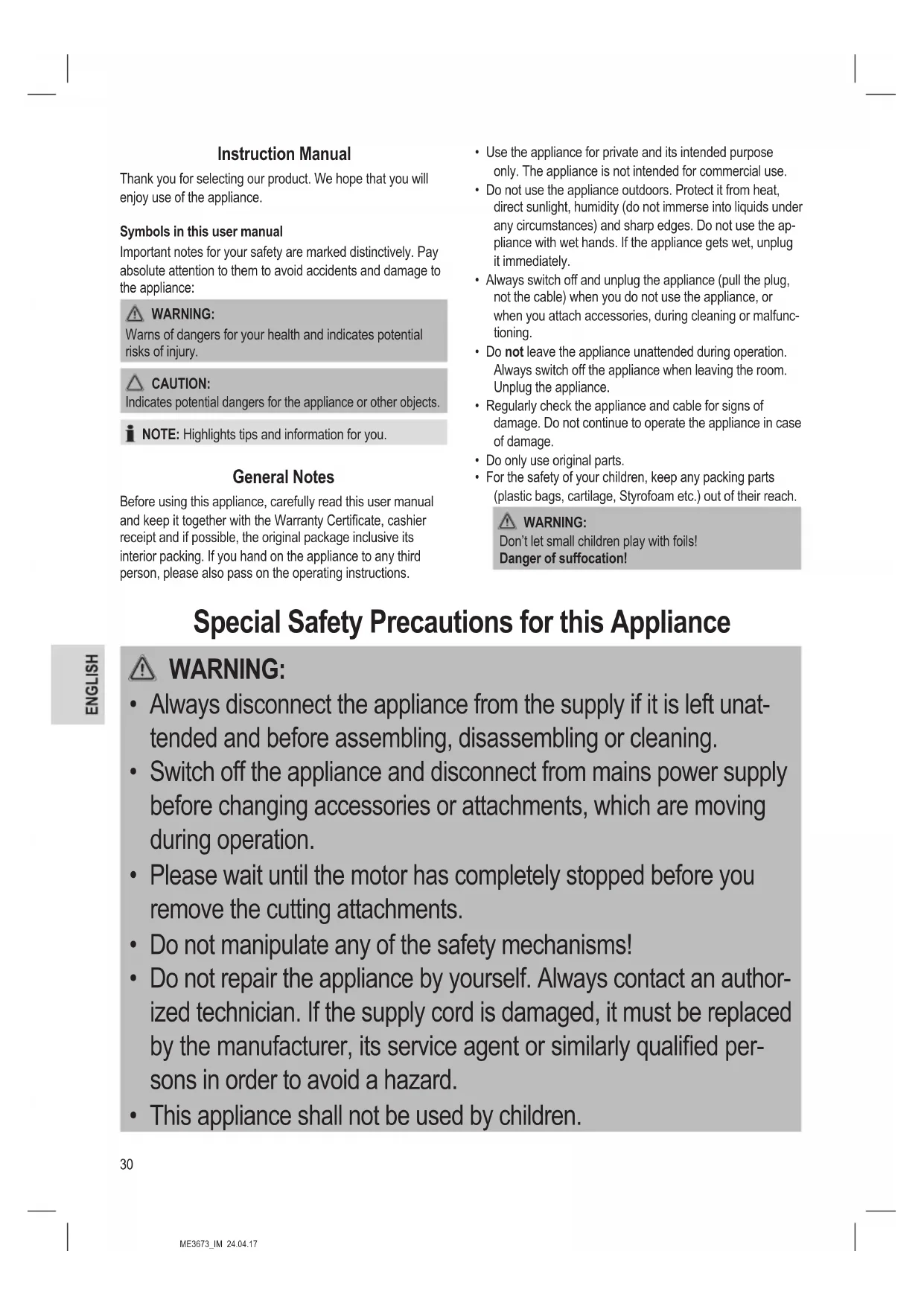

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the appliance:

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the appliance or other objects.

NOTE: Highlights tips and information for you.

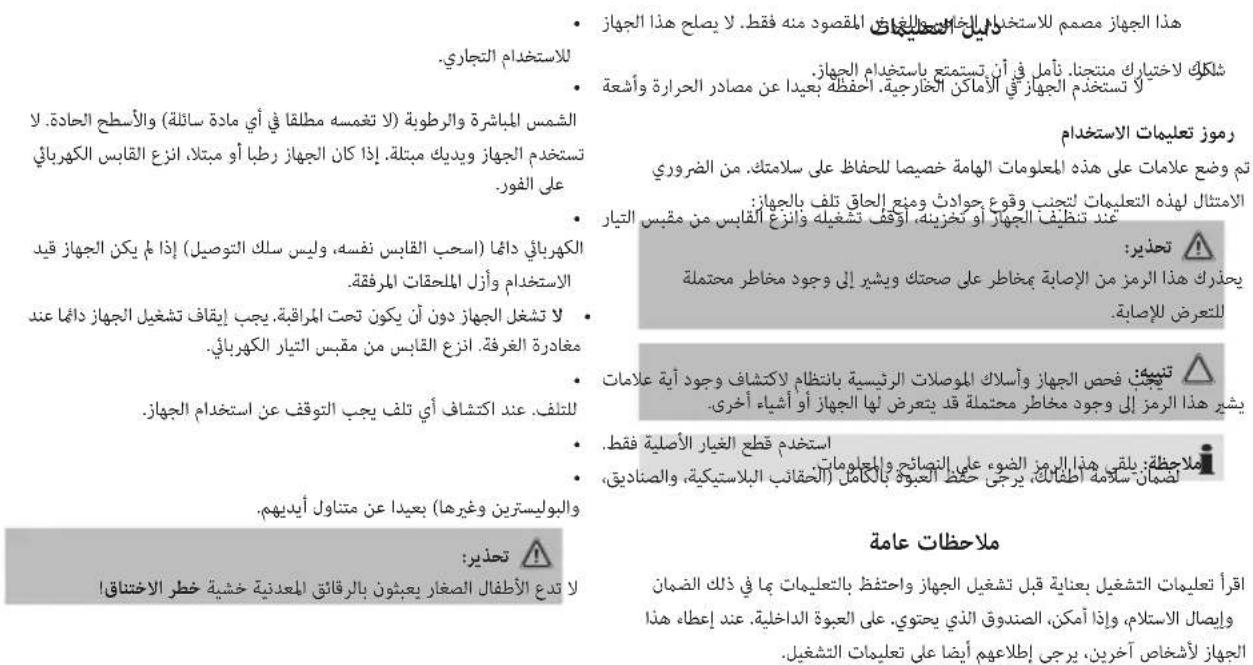

General Notes

Before using this appliance, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the appliance to any third person, please also pass on the operating instructions.

• Use the appliance for private and its intended purpose only. The appliance is not intended for commercial use.
• Do not use the appliance outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the appliance with wet hands. If the appliance gets wet, unplug it immediately.
• Always switch off and unplug the appliance (pull the plug, not the cable) when you do not use the appliance, or when you attach accessories, during cleaning or malfunctioning.
• Do not leave the appliance unattended during operation. Always switch off the appliance when leaving the room. Unplug the appliance.
• Regularly check the appliance and cable for signs of damage. Do not continue to operate the appliance in case of damage.
• Do only use original parts.
• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING:

Don't let small children play with foils! Danger of suffocation!

Special Safety Precautions for this Appliance

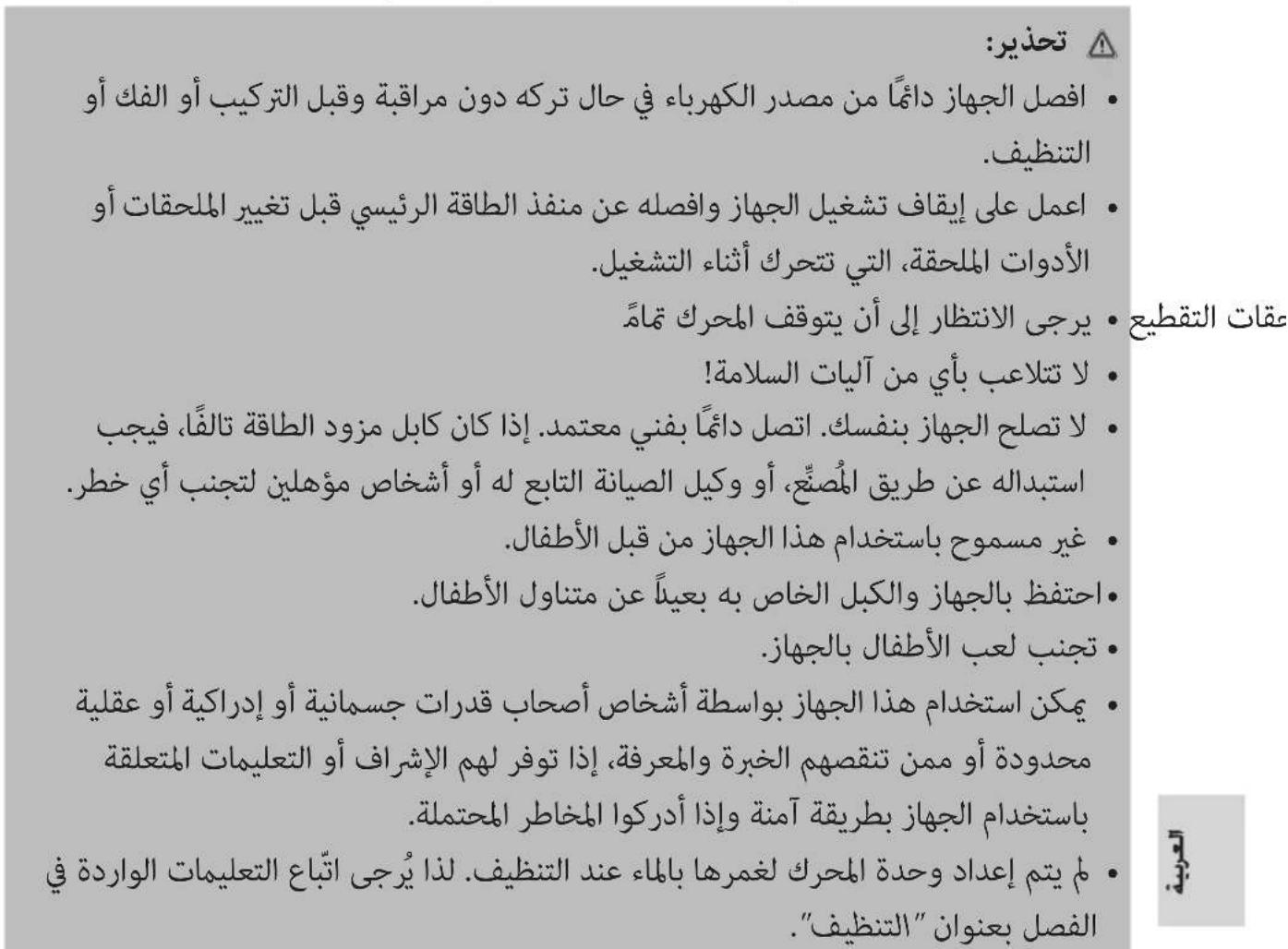

WARNING:

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Switch off the appliance and disconnect from mains power supply before changing accessories or attachments, which are moving during operation.
• Please wait until the motor has completely stopped before you remove the cutting attachments.
• Do not manipulate any of the safety mechanisms!
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance shall not be used by children.

WARNING:

• Keep the appliance and its cord out of reach of children.
  Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• The motor block is not intended for insertion into water for cleaning. Please observe the instructions that we have included for you in the chapter "Cleaning".

WARNING: Risk of injury!

• The blades of the cutting attachments are very sharp! When fitting and removing the inserts and during cleaning you will come into contact with these accessories. Use these accessories with the necessary caution to prevent injuries. Only touch the inserts on the plastic.
• Always only use the pusher to press down the food and not your fingers, a fork or other objects.

Overview of the Components / Delivery Scope

1 Pusher
2 Feed neck
3 Cutting attachments

a Attachment for coarse cutting (55 mm)
b Attachment for medium sized cuttings (10 mm)
c Attachment for fine cutting (5 mm)

4 Insert holder

5 Switch (On / Off)
6 Motor block
7 Storage compartment for accessories
8 Container

Intended Use

This appliance can be used to cut solid food into "spirals." (e. g. Carrots, potatoes, zucchini, red beets, cucumbers, apples, radish, pears, etc.)

It is only designed for this use and should only be used for this intended purpose.

It cannot be used to chop soft food such as bananas or aubergine.

Only use this appliance as instructed in this user manual. Do not use this appliance commercially.

No other use is intended and can cause damage or personal injuries.

The manufacturer is not responsible for any damages incurred due to improper use.

Unpack Appliance

1. Take the appliance out of its packaging.
2. Remove all packaging materials, such as foils, filling materials, cable ties and cartons.
3. Check that all accessories are included in the box.
4. If the contents of the box are incomplete or if damage is found, do not operate the appliance. Return it to the dealer immediately.

NOTE:

Clean manufacturing residues and dust from the appliance as described under "Cleaning".

Notes on Use

Your new appliance is perfect if you want to prepare healthy and tasty meals. Just exchange pasta with crisp vegetables.

Advantages: More nutrients, more fibers, and more energy! You food does not only taste good, but it also looks appealing!

• Please peel carrots before using the appliance. The smoother the surface of the food is, the better is the result in terms of continuous spirals.
• Put your food as upright as possible into the feed neck.

NOTE:

CAUTION! The vertical insertion has a considerable influence on the result.

• Individual vegetable noodle servings can be prepared better if the noodles are not too long. Avoid continuous spirals by reducing the pressure applied to the food pusher periodically.
• Food with a diameter of more than 60~mm cannot be processed. Please trim the food at the sides to process it with this appliance.

Assembly/Preparations

1. Place the appliance on an even work surface.

2. Select a suitable attachment. Insert this attachment into the opening of the insert holder. It has to lock into place audibly.

3. Attachment for coarse cutting

4. Attachment for medium sized cuttings

5. Attachment for fine cutting

6. Install the insert holder in the motor by turning it into the "CLOSE" direction. Please make sure that the insert holder is locked into the motor.

7. Install the feed neck on the motor housing and lock it in clockwise direction. Pay attention to the guiding pins. The feed neck has to lock in place audibly.

NOTE:

The appliance is equipped with a safety switch. If the feed neck does not lock into place audibly, the appliance does not turn on.

1. Put the container into the appliance.

Power Cord

Completely unwind the power cord from the bottom of the device.

Storage Compartment

Take the accessories out of the storage compartment.

Electric Connection

1. Before you plug the mains plug into the outlet, check whether the system voltage that you want to use, matches the one of the appliance. You will find information about it on the type plate.
2. Connect the appliance to a correctly installed grounded outlet.

Short-term Operation

Do not operate the appliance for longer than 2 minutes and then allow the appliance to cool down for 2 minutes.

Operation

1. Turn on the appliance with the button.
2. Put your food as upright as possible into the feed neck.

WARNING:

• The tip of the food pusher has sharp edges. Risk of injuries!
• Never put your fingers or tools into the feed neck!

NOTE:

CAUTION! The vertical insertion has a considerable influence on the result.

1. If the container is full or your food is used up, turn off the appliance with the button.
2. Pull out the food pusher from the feed neck.

NOTE:

A bit of food will remain onto the food pusher.

End of Operation

Disconnect the plug from the outlet.

Recipes

Raw Vegetable Salad

Ingredients for 4 people:

2 peeled, thick carrots

2 peeled parsley roots

1 cucumber

1 peeled radish

12 orange slices

8 cherry tomatoes

1 banana

1 red apple

4 tbs. sour cream

1 / 2 tbs.freshdill tips

2 tbs. chopped walnuts

1/2 tbs chili flakes

Marinade:

6 tbs. white balsamic vinegar

4 tbs. white balsamic syrup

6 cl clear apple juice

4 tbs. olive oil

Salt, pepper

Preparation:

Process the carrots, radish, cucumber, and parsley roots with the spiral cutter and put them into separate bowls. Put some of the sauce prepared with all of the marinade ingredients onto the carrots. Add walnuts, apple slices, and curry. Stir well.

Mix the cucumber spaghetti with sour cream, dill, salt, and pepper. Season with some of the marinade. Add to the parsley roots, orange slices, and chili flakes and refine with marinade.

Pickle the radish with marinade as well and garnish with banana slices. Let the prepared salads sit for approx. 20 minutes and arrange afterwards.

Kohlrabi & Apple Spiral Salad with Goat Cheese and Cranberries

Ingredients for 2 people:

For the salad:

1 medium-sized kohlrabi

1 green apple

60 g goat cheese

2 tbs. chopped walnuts

2 tbs. cranberries

A handful of arugula

For the dressing:

2 tbs. honey

2 tbs. red wine vinegar

3 tbs. olive oil

1 tbs. Dijon mustard

Salt, pepper

Preparation:

To prepare the dressing, put all ingredients into a bowl and mix well with a whisk. Season with salt and pepper.

Wash arugula and the apple for the salad. Peel the kohlrabi and cut off the ends. Process the kohlrabi and the apple with the spiral cutter to make fine strings and mix with the arugula.

Coarsely chop the walnuts and crumble the goat cheese.

Arrange the salad on two plates. Pour dressing on the salad and arrange with the walnuts, goat cheese, and cranberries.

Sweet Potato French Fries Spirals

Ingredients for 2 people:

1 big sweet potato

2 tbs. olive oil

Salt

50 g sour cream

Preparation:

Preheat the oven to 210^ Cover the baking tray with baking paper.

Process the sweet potatoes with the spiral cutter to make thin spirals. Use the cutting attachment with the finer blades.

Mix the sweet potato spirals with olive oil and salt. Spread on the baking tray and bake in the oven for approx. 25 minutes until crispy. Briefly allow to cool and serve together with sour cream.

Refer to other recipe books or the internet for more recipes.

Cleaning

WARNING:

Always remove the power cord before cleaning.
- Never immerse the motor block in water. It could result in an electric shock or fire.
- The cutting surfaces of the inserts are sharp. Injury may occur! Always touch the inserts on the plastic.

CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.
• Do not use aggressive or abrasive cleaning agents.

NOTE:

Color residues from vegetables (e.g. carrots) could be removed best with a cloth and cooking oil.

Immediately clean the appliance after each use.

Accessories

1. For opening, turn the feed neck counterclockwise.
2. Remove the insert holder by turning it into the "OPEN" direction and pull it out upwards.
3. Remove the attachment from the insert holder by pressing the lock button. (See the figure on the right.)
4. For easy cleaning, the blades can be removed from the attachments.
5. You may rinse the accessories in a bowl of hot water and then dry them.

Housing

1. Clean the housing with a moist towel.
2. Remove any residual water with a dry cloth.

Storage

• Clean the appliance as described.
• You can wind up the power cord underneath the device.
• Store the accessories in the storage compartment.
• We recommend storing the appliance in the original packaging if you do not use it for an extended period of time.
  Always keep the appliance at a well-ventilated and dry location, out of reach of children.

Technical Data

Model: ME 3673

Power supply: 220-240V\~,50/60Hz

Power consumption: 80 W

Protection class: II

Short-term operation: 2 minutes

Net weight: approx. 1.80kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
