AM-530-EUR Digital Multimeter User Manual 10/2017, Rev.4 ©2017 Amprobe Test Tools. All rights reserved. Printed in China EnglishLimited Warranty and Limitation of Liability Your Beha-Amprobe product will be free from defects in material and workmanship for three years from the date of purchase unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on the behalf of Beha-Amprobe. To obtain service during the warranty period, return the product with proof of purchase to an authorized Beha-Amprobe Service Center or to an Beha-Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you. Repair All Beha-Amprobe tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company’s name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Beha-Amprobe. In-Warranty Repairs and Replacement – All Countries Please read the warranty statement and check your battery before requesting repair. During the warranty period, any defective test tool can be returned to your Amprobe distributor for an exchange for the same or like product. Please check the “Where to Buy” section on amprobe.com for a list of distributors near you. Additionally, in the United States and Canada, in-warranty repair and replacement units can also be sent to an Amprobe Service Center (see address below). Non-warranty Repairs and Replacement – Europe European non-warranty units can be replaced by your Beha-Amprobe distributor for a nominal charge. Please check the “Where to Buy” section on beha-amprobe.com for a list of distributors near you. Beha-Amprobe Division and reg. trademark of Fluke Corp. (USA) Germany* United Kingdom The Netherlands - Headquarters** In den Engematten 14 52 Hurricane Way Science Park Eindhoven 5110 79286 Glottertal Norwich, Norfolk 5692 EC Son Germany NR6 6JB United Kingdom The Netherlands Phone: +49 (0) 7684 8009 - 0 Phone: +44 (0) 1603 25 6662 Phone: +31 (0) 40 267 51 00 beha-amprobe.de beha-amprobe.com beha-amprobe.com

(Correspondence only – no repair or replacement available from this address. European customers please contact your distributor.) **single contact address in EEA Fluke Europe BVAM-520-EUR / AM-530-EUR Digital Multimeter

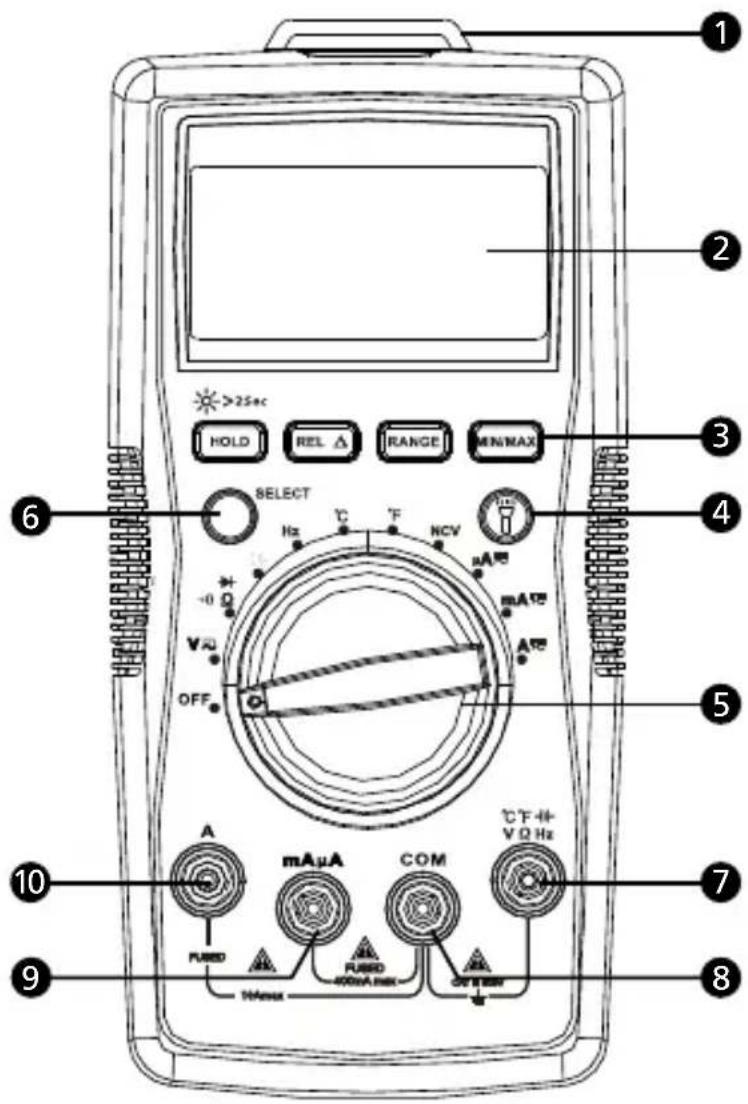

Input Terminal for voltage, diode, capacitance, Resistance, continuity and temperature measurement

COM (return) terminal for all measurements

The Meter selects the range with best resolution

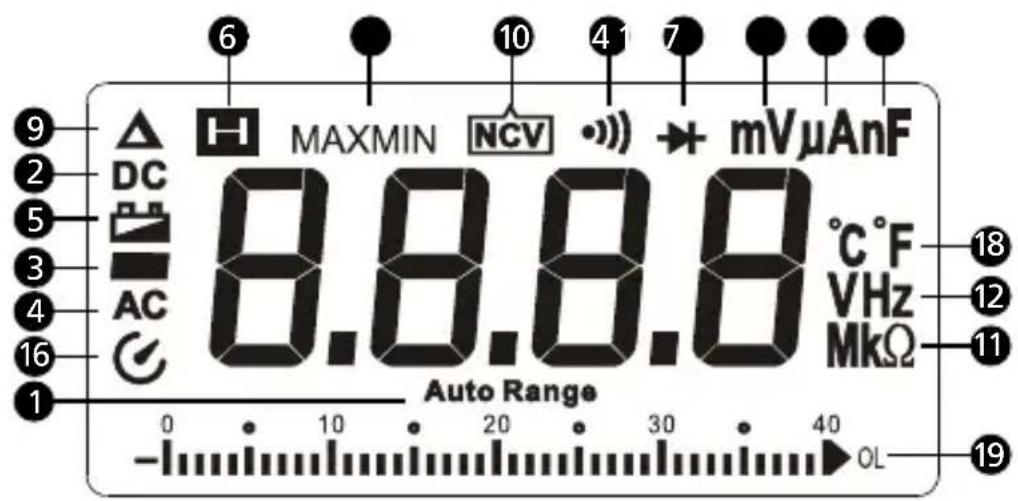

Low battery indicator

Measurement units for Resistance

Measurement units for Frequency

Measurement units for Voltage

Measurement units for Current

Maximum / minimum reading memory

Measurement unit for Temperature

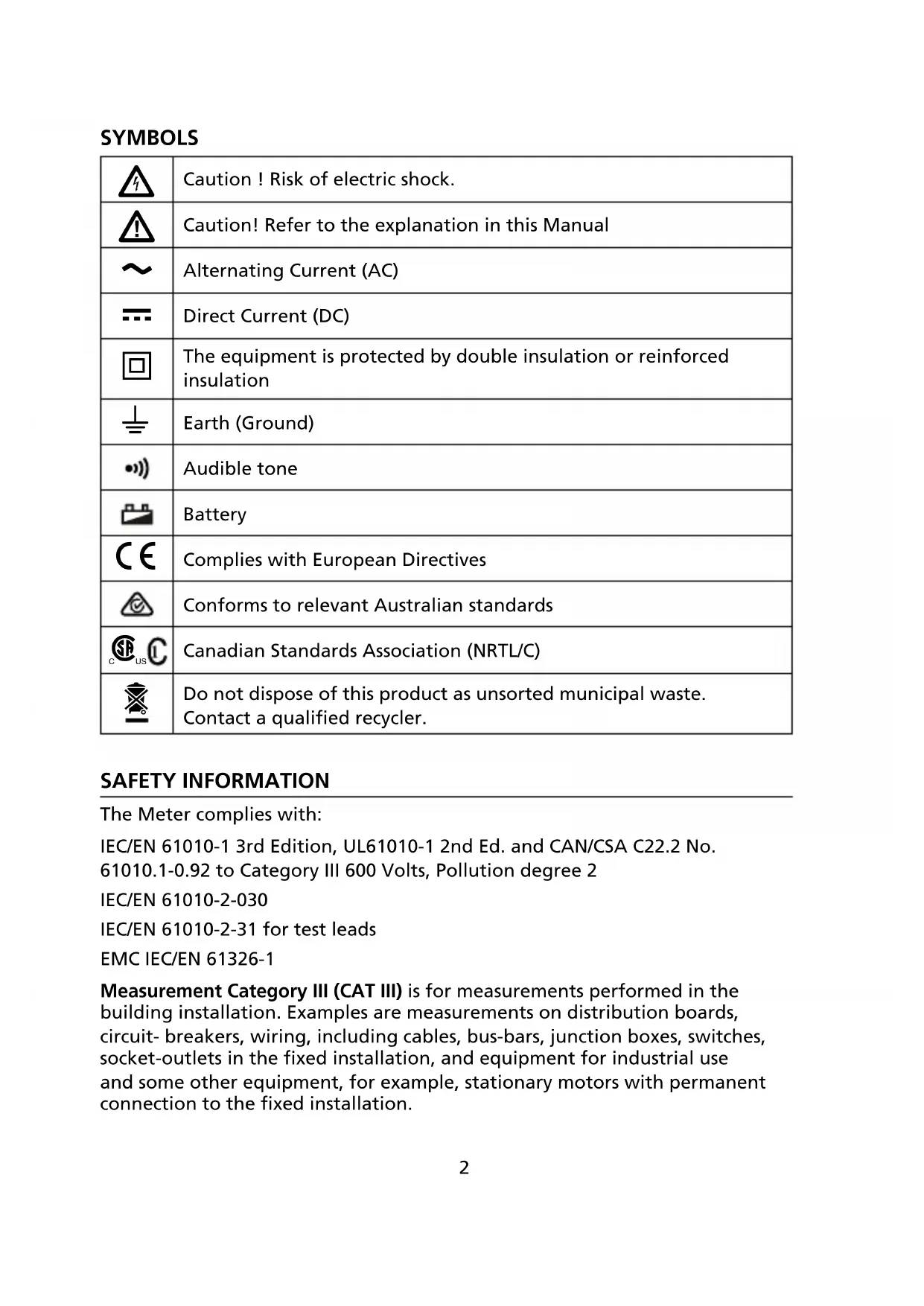

Caution ! Risk of electric shock.

Caution! Refer to the explanation in this Manual

The equipment is protected by double insulation or reinforced insulation

Earth (Ground) Audible tone Battery

Complies with European Directives Conforms to relevant Australian standards

Canadian Standards Association (NRTL/C)

Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler.

SAFETY INFORMATION The Meter complies with: IEC/EN 61010-1 3rd Edition, UL61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010.1-0.92 to Category III 600 Volts, Pollution degree 2

IEC/EN 61010-2-31 for test leads

Measurement Category III (CAT III) is for measurements performed in the building installation. Examples are measurements on distribution boards, circuit- breakers, wiring, including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed installation, and equipment for industrial use and some other equipment, for example, stationary motors with permanent connection to the fixed installation.3 Measurement Category II (CAT II) iis for measurements performed on circuit directly connected to low voltage installation. Examples are measurements on household appliances, portable tools and similar equipments. XWarning: Read Before Using

• To avoid possible electrical shock or personal injury, follow these instructions and use the Meter only as specified in this manual.

• Do not use the Meter or test leads if they appear damaged, or if the Meter is not operating properly. If in doubt, have the Meter serviced.

• Always use the proper function and range for measurements.

• Before rotating the function range selection switch, disconnect test probe from circuit under test.

• Verify the Meter’s operation by measuring on a known voltage source.

• Do not apply more than the rated voltage, as marked on the Meter, between the test probe or between any test probe and earth ground.

• Use the Meter with caution for voltages above 30 Vac rms, 42 Vac peak, or 60 Vdc. These voltages pose electrical shock hazards.

• Disconnect circuit power and discharge all high-voltage capacitors before testing resistance.

• Do not use the Meter around explosive gas or vapor.

• When using the test leads, keep your fingers behind the finger guards.

• Remove test leads from the Meter before opening the Meter case or battery door.

UNPACKING AND INSPECTION

Your shipping carton should include: 1 AM-520-EUR or AM-530-EUR 1 Pair of test leads 1 Temperature probe 1 Velcro strap 1 9V (6F22) battery (installed) 1 User manual 1 Carrying case If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.4 FEATURES AM-520-EUR is designed for HVAC applications with key functions such as temperature, micro amps used for flame sensor troubleshooting, as well as and capacitance to check the motor startup capacitors. The AM-520-EUR measures a complete range of electrical parameters and features a built in flashlight, a “third hand” probe holder and VoltTect non-contact voltage detection. Safety rated to CAT III 600V. AM-530-EUR is the fully-featured multimeter of choice for the professional electrical contractor. Measure and verify presence of voltage in order to connect equipment or to perform repairs, run new wiring, check continuity of electrical connections, identify blown fuses, troubleshoot motors or check transformers. The AM-530-EUR features Truerms sensing to accurately measure voltage on systems affected by harmonics, a built in flashlight to detect wire colors in the dark, a “third hand” probe holder and non-contact voltage detection. Safety rated to CAT III 600V.

• Measurements: Voltage up to 600VAC and 600VDC, AC/DC current, Resistance, Frequency, Capacitance, Temperature.

• Frequency, Capacitance, Duty Cycle for troubleshooting applications

• Special Functions: - Non-contact Voltage Detection - Audible continuity - Diode Test

• Built in work light (flashlight)

• Built in test leads storage and “third hand holder”

• Auto and Manual ranging

1. Use the proper function and range for measurements.

2. To avoid possible electrical shock, personal injury or damages to the

Meter, disconnect circuit power and discharge all high-voltage capacitors before testing resistance and diode.

3. Connecting test leads:

• Connect the common (COM) test lead to the circuit before connecting the live lead;

• After measurement, remove live lead before removing the common (COM) test lead from the circuit

4. Symbol “OL” is displayed on LCD when the measurement is out of range.

Rotary Switch Positions Switch Position Measurement Function

Resistance measurement

Voltage measurement of diode PN junction Continuity measurement

Capacitance measurement Hz Frequency measurement °C °F Temperature measurement NCV Non-contact voltage

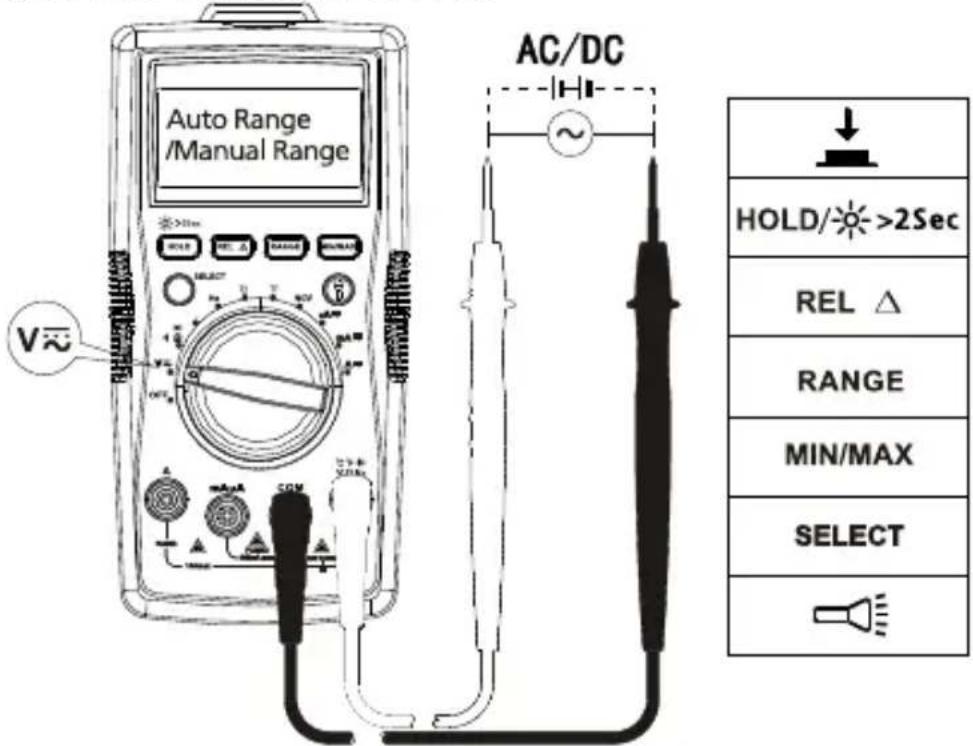

mA A AC or DC current measurement (use SELECT button for switching to AC or DC). Function Buttons Button Measurement Function SELECT Switching AC or DC. Press the yellow SELECT button to select alternate measurement functions on the rotary switch. HOLD / Display freezes present reading / press 2 sec to turn on LCD backlight.6 REL Relative zero mode RANGE Manual or Auto range switching. The default setting is Auto ranging, press to switch to manual ranging (selectable resolutions). Press for 2 sec to return to auto ranging. MAX/MIN Maximum / minimum reading memory. Flash light Press to enable the function when at relevant rotary switch function. Auto Power OFF Auto power off: approx. 15 minutes. When the Meter is in auto power off mode, press any button to resume normal operation. Measuring AC and DC Voltage Press SELECT button to select AC/DC voltage measurement function. XTo avoid personal injury or damage to the Meter, do not apply voltage higher than 600Vac and 600Vdc.7 Measuring AC and DC Current Press SELECT button to select AC or DC current measurement function. XTo avoid personal injury or damage to the Meter:

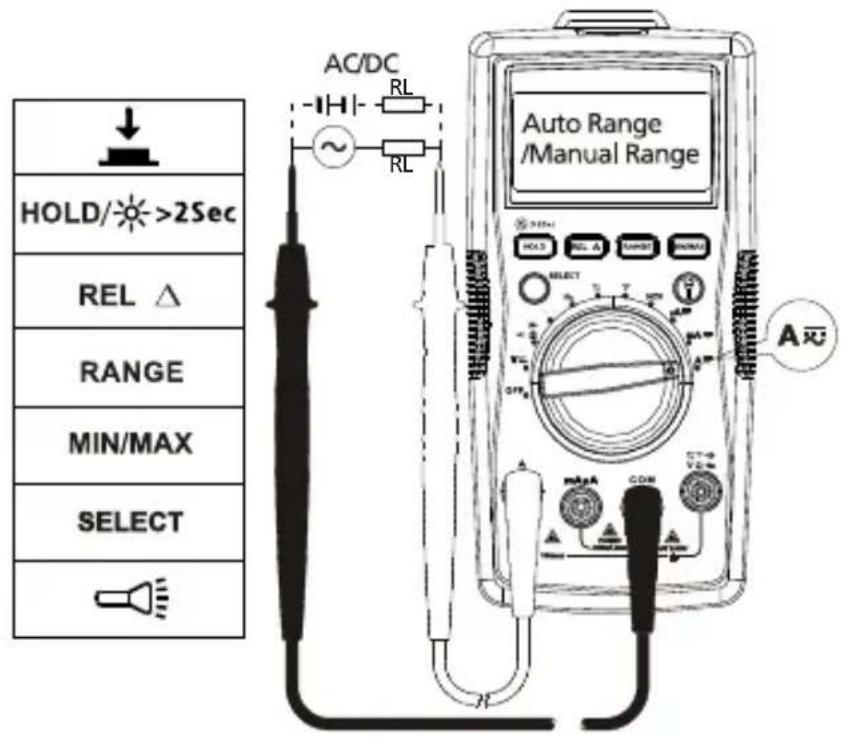

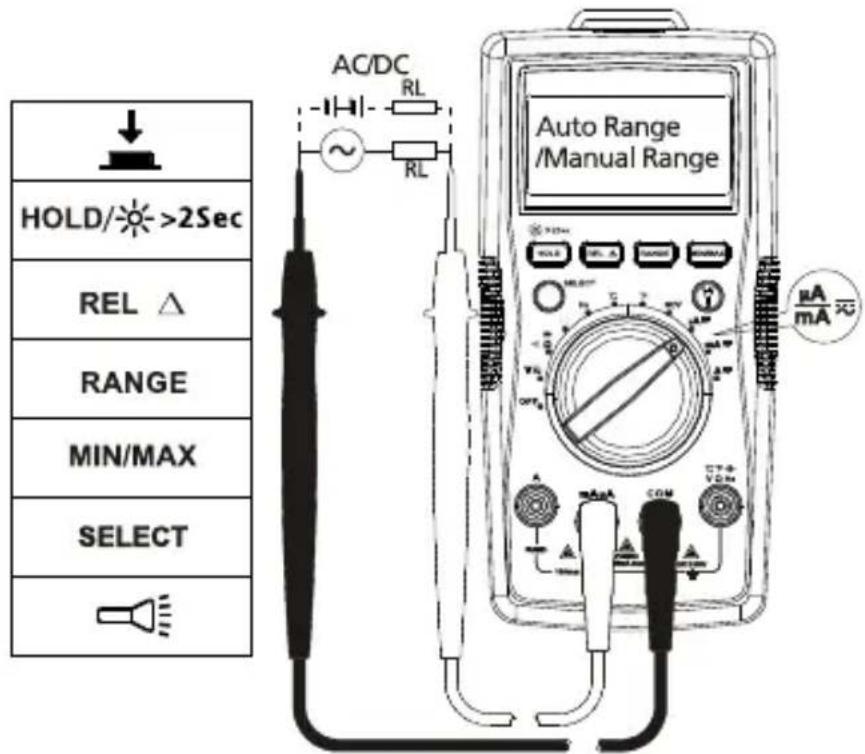

1. Do not attempt to make an in-circuit current measurement when the

open-circuit potential to earth ground exceeding AC 600V or DC 600V

2. Switch to proper function and range for your measurement.

3. Do not place the test probe in parallel with a circuit when the test leads

are connected to the current terminals.

4. Connect the test leads to the correct input A/mA μA current terminal and

to the circuit before powering the circuit under test.

5. For current range from 8-10A, do not measure current for more than 20

minutes. Wait for 10 minutes before taking another measurement

6. After measurement, switching OFF the circuit’s power before removing

test leads from the circuit.8

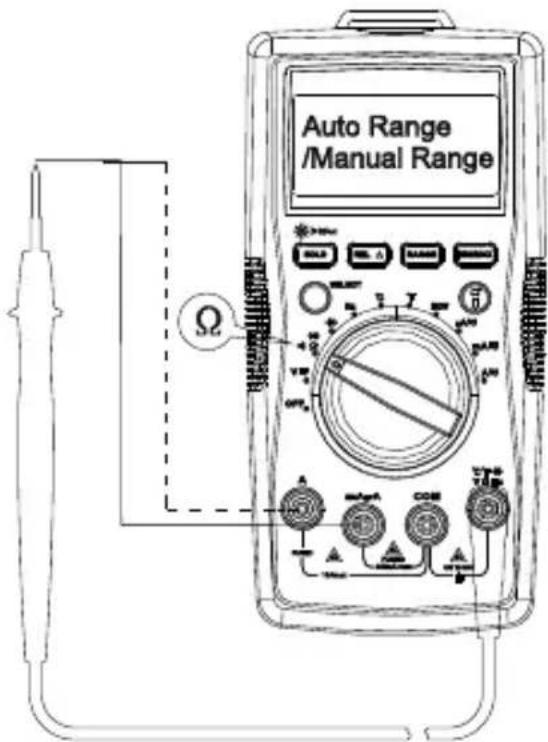

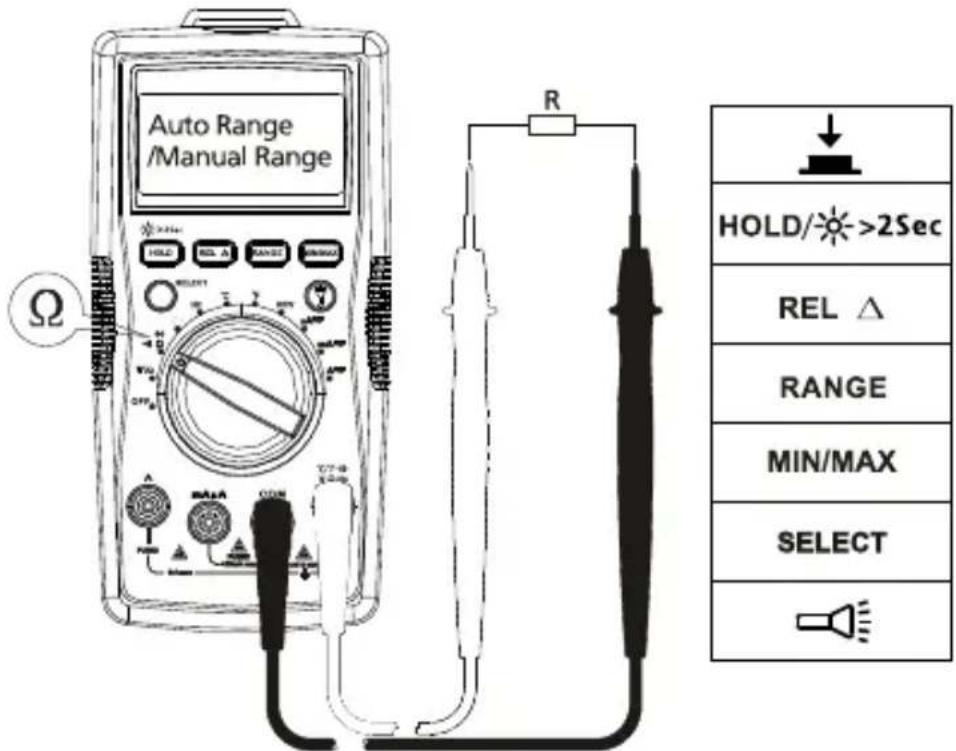

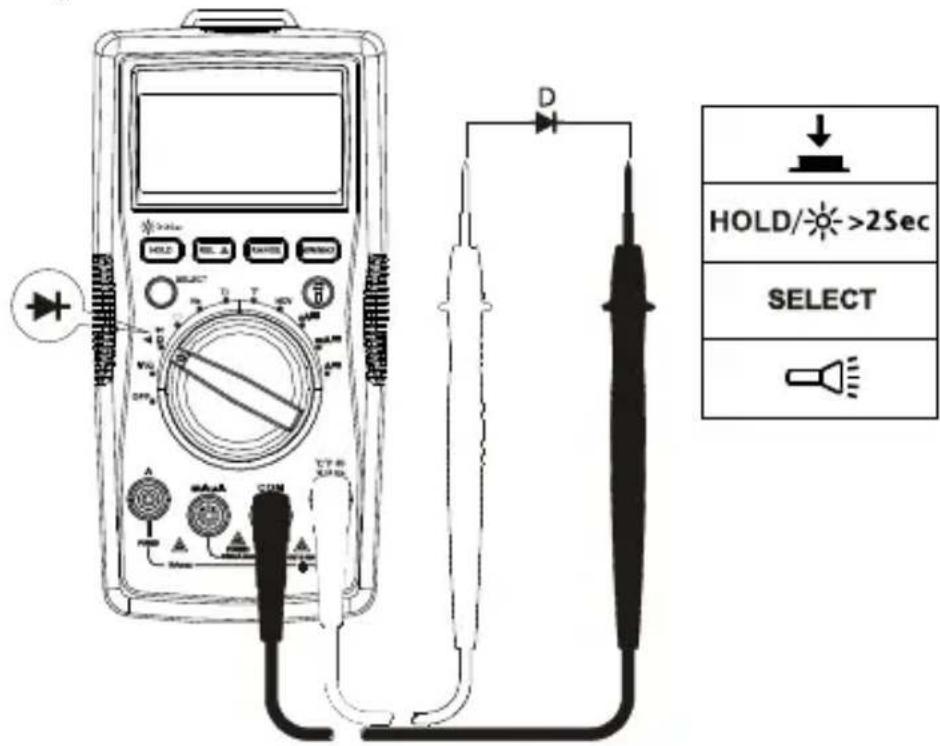

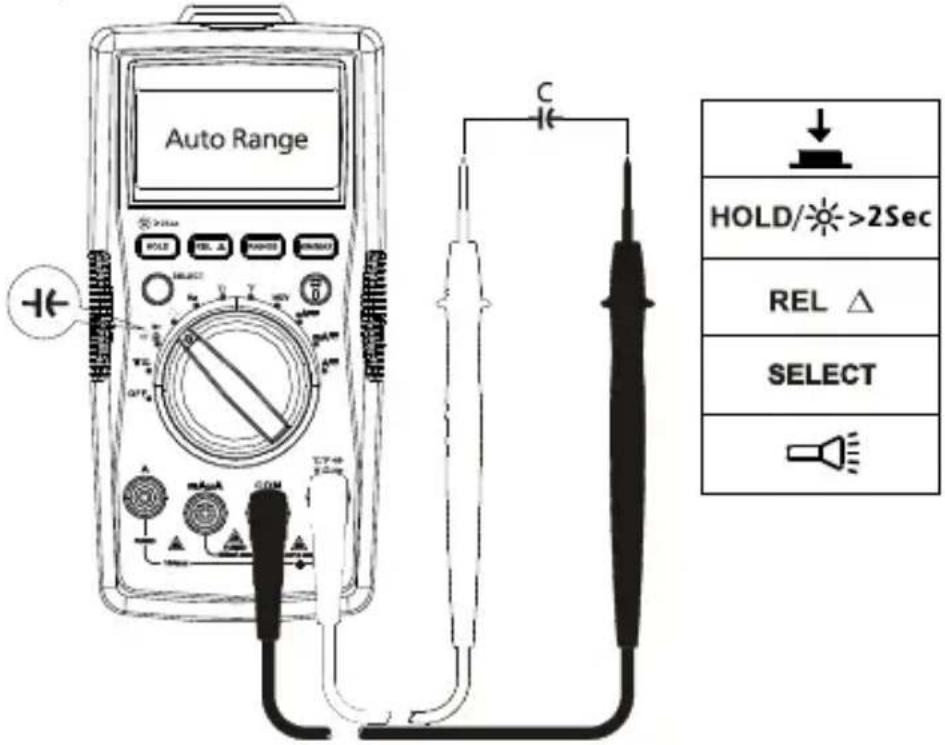

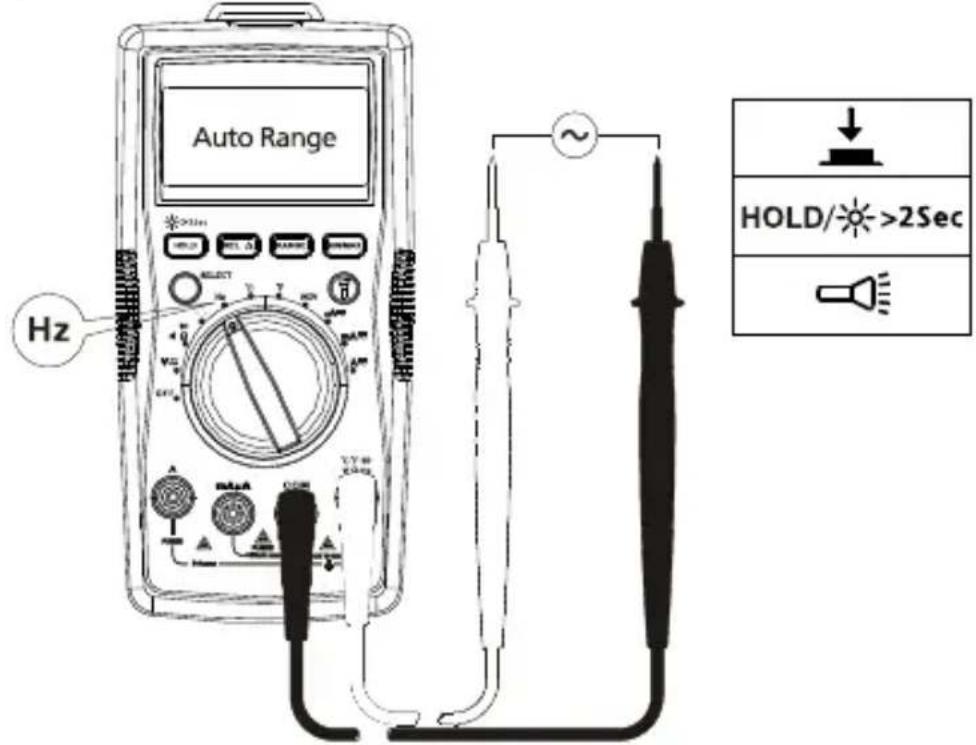

Measuring Resistance XDisconnect circuit power and discharge all high-voltage capacitors before testing resistance. Note: On a higher resistance measurement (>1Me), the measurement may take a few seconds to get stable reading. Over range or open circuit indication: OL9 Measuring Continuity XDisconnect circuit power and discharge all high-voltage capacitors before testing continuity. Measuring Diode XDisconnect circuit power and discharge all high-voltage capacitors before testing diode.10 Measuring Capacitance XDisconnect circuit power and discharge all high-voltage capacitors before testing capacitance. Measuring Frequency XTo avoid personal injury or damage to the Meter, do not apply voltage higher than 600V.11 Measuring Temperature °C / °F

1. To avoid personal injury or damage to the Meter, do not apply

thetemperature probe to any live conductive parts.

2. Temperature sensor K type (nickel-chromium/nichrosi) thermocouple is

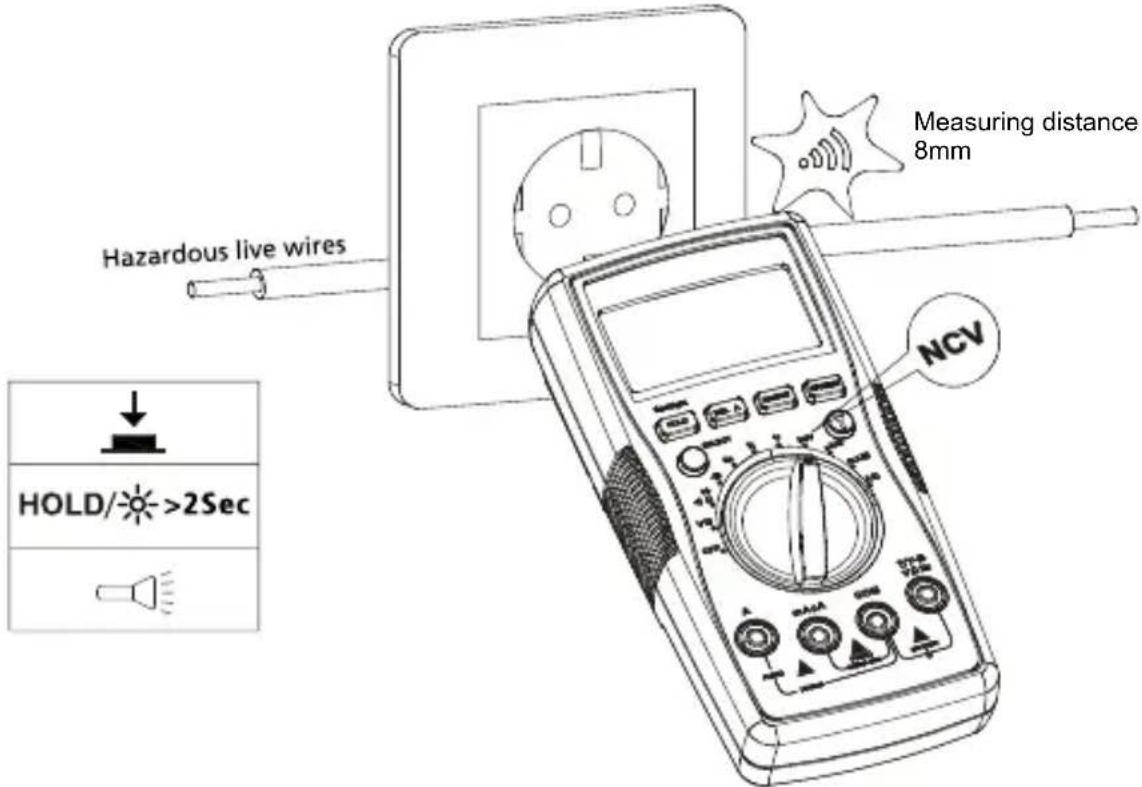

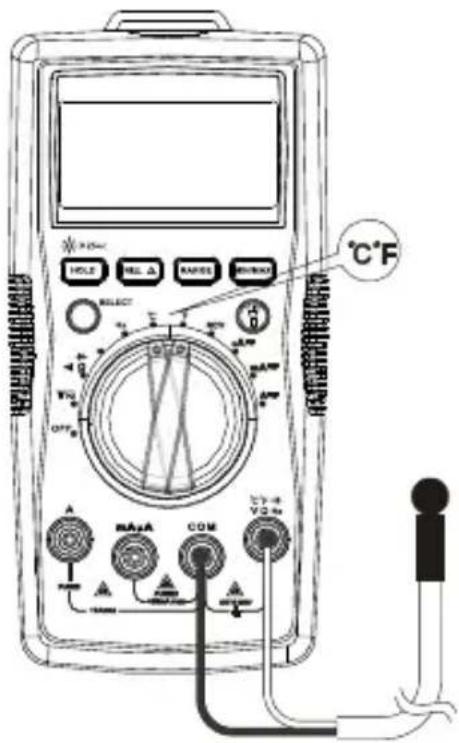

suitable for temperature measurement below 230°C (446°F). Measurement steps: Step 1: Turn the rotary switch to °C or °F position. The display will show “OL”. Step 2: Connect the temperature probe (K type) to the Meter and to the surface to be measured.12 Non-Contact Voltage Sensing

1. To avoid personal injury or damage to the Meter, do not test on un-

insulated high voltage wires.

2. Buzzer will sound and screen will display “OL” when sensing AC voltage

between 90V and 600V

3. Do not test on hazardous live wires higher than AC 600V

4. Before and after hazardous voltage measurements, test the Meter by

approaching to a known source such as a line AC voltage or outlet to determine proper operation. See below figure. Measuring distance 8mm Buzzer will sound when the detected voltage is ≥90V, and the buzzer will be on.The distances between the wire and the meter should be ≤8mm.

At NCV mode, LCD will display OL. No test lead connection are required for NCV measurement.13 SPECIFICATION Ambient temperature: 73.4°F ±9 (23°C ±5°C); Relative temperature: ≤75% Accuracy: ±(% of reading + digits) Maximum voltage between input terminal and earth ground: AC 600Vrms or DC 600V Fuse for mA µA input: F1 fuse, 0.5A H 1000V fast-fuse, (6.3×32)mm Fuse for 10A input: F2 fuse, 11A H 1000V fast-fuse, (10×38)mm Maximum display: Digital 3999 counts, updates 3/sec. Frequency: 9999 counts. Analog pointer display: 41 segments, updates 30 times/sec. Over-range indication: OL Range: Automatic and Manual Altitude: Operating 2000m Operating temperature: 0°C ~ +40°C (32°F ~ 104°F) Relative humidity: 0°C ~ +30°C (32°F ~ 86°F) ≤75%; +30°C ~ +40°C (86°F ~ 104°F) ≤50% Storage temperature: -10°C ~ +50°C (14°F ~ 122°F) Electromagnetic compatibility: In an RF filed of 1V/m = Specified accuracy 5% Battery: 9V, 6F22, NEDA1604 or equivalent Low battery indication: Dimensions (L x W x H): 182 mm x 90 mm x 45 mm (7.2 in x 3.5 in x 1.8 in) Weight: Approx. 354g (0.78lb) with batteries installed

Range Resolution Accuracy 0.1Ω Open circuit voltage is around 0.5V. Resistance >150Ω, buzzer will not sound. Resistance ≤10Ω, buzzer will sound.15

1mV Display range is 0V to 2.0V. Normal voltage is around 0.5V to 0.8V for silicon PN junction. Overload protection: 600V

7. DC Current Measurement

Range Resolution Accuracy

Range Resolution Accuracy

If the Meter fails to operate, check battery, test leads, etc., and replace as necessary. Double check the followings:

1. Replace the fuse or battery if the meter does not work.

2. Review the operating instructions for possible mistakes in operating

procedure. Quick check on 0.5A FUSE: Step 1: Turn the rotary switch to Ω function. Step 2: short-circuit E/V/Ω/Hz terminal and mA/μA terminal. Resistance reading ≤ 1MΩ: the fuse is OK Resistance reading “OL”: the fuse is open. Replace the fuse as specified. Quick check on 10A FUSE: Step 1: Turn the rotary switch to Ω function. Step 2: short-circuit E/V/Ω/Hz terminal and A terminal. Resistance reading ≤ 0.5Ω: the fuse is OK. Resistance reading “OL”: the fuse is open. Replace the fuse as specified.18 Except for the replacement of the battery, repair of the meter should be performed only by a Factory Authorized Service Center or by other qualified instrument service personnel. The front panel and case can be cleaned with a mild solution of detergent and water. Apply sparingly with a soft cloth and allow to dry completely before using. Do not use aromatic hydrocarbons, Gasoline or chlorinated solvents for cleaning.

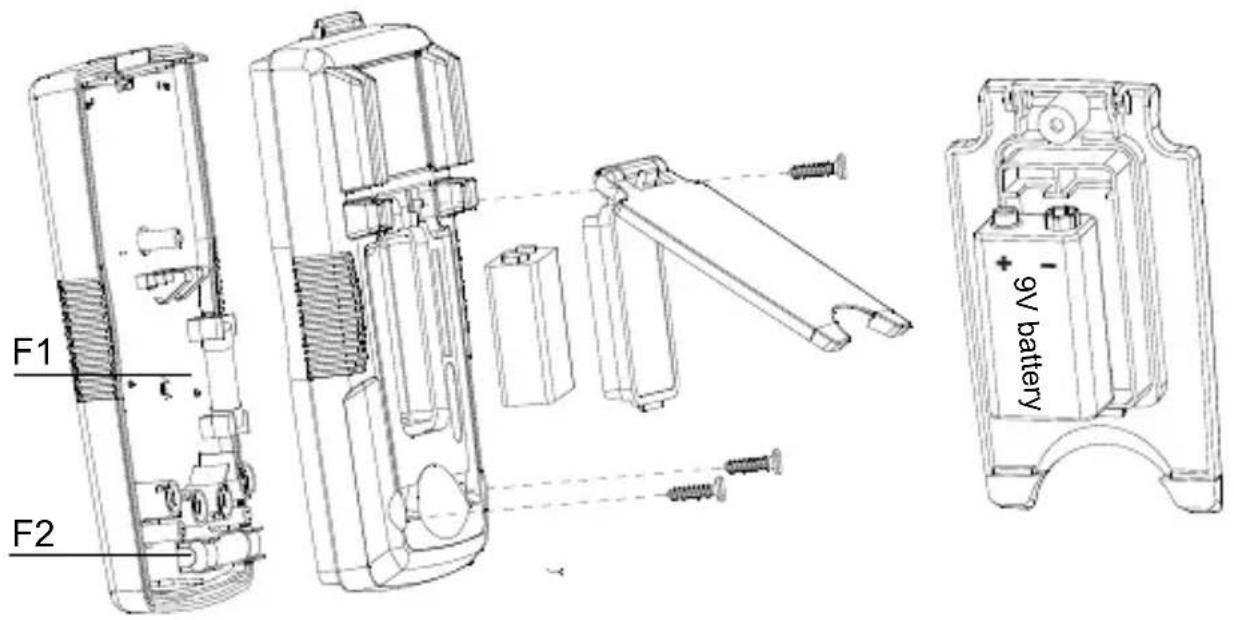

BATTERY AND FUSE REPLACEMENT

XWARNING To avoid shock, injury, or damage to the Meter: Disconnect test leads before opening case. Use ONLY fuses with the amperage, interrupt, voltage, and speed ratings specified. Replacing BATTERY follow below steps:

1. Disconnect the test lead probe from measuring circuit.

2. Turn the Meter to OFF position.

3. Remove the screws from the battery cover and open the battery cover

4. Remove the batteries and replace with one 9V (6F22) or equivalent. The

battery cover provides the correct polarity fitting construction design. Install the battery in the battery cover.

5. Put the battery cover back and re-fasten the screw.

Battery: 9V (6F22) Battery or equivalent Replacing FUSE follow below steps:

1. Disconnect the test lead probe from measuring circuit.

2. Turn the Meter to OFF position.

3. Remove the screws from the enclosure and open the enclosure.

4. Remove the broken fuse and replace with new specified fuse.

5. Put the enclosure back and re-fasten the screw.
