Product Type	Portable Battery
Brand	Samsung
Model	Battery Pack EBP3020
Output Port	Charging USB (type A)
Input Port	Micro-USB
Battery Level Indicator	4 LED indicator lights
Control Button	Battery Level Button
Remaining Battery (display)	Four levels: 70-100%, 40-70%, 20-40%, 5-20%, 0-5% (flashing)
Operating Temperature	0 °C to 35 °C
Storage Temperature	-20 °C to 50 °C
Power Supply	Samsung-approved USB charger (sold separately)
Charging Cable	Not included (use a standard USB cable)
Compatibility	Mobile devices with micro-USB or USB-C connector (adapter not included)
Safety	Do not disassemble, avoid shocks, use approved accessories
Maintenance	Clean with a dry cloth, avoid any contact with liquids
Disposal	Recycling according to the WEEE directive and battery regulations
Warranty	Consult local legislation and the Samsung website
Country of Origin	Not specified

Frequently Asked Questions - Battery Pack EBP3020 SAMSUNG

How to charge the Battery Pack EBP3020 for the first time?

Connect the battery pack to a Samsung-approved USB charger via the micro-USB port. Use only Samsung-approved chargers. The first charge may take several hours.

How to check the remaining battery level?

Press the Battery Level button. The four LED lights indicate remaining battery: 4 lights = 70-100%, 3 = 40-70%, 2 = 20-40%, 1 = 5-20%, 1 flashing = 0-5%.

Which devices are compatible with this battery pack?

The battery pack can charge any mobile device with a micro-USB or USB-C port (with a suitable cable not included). Ensure the connector is compatible.

Can I use a charger other than the recommended one?

It is strongly recommended to use only Samsung-approved chargers to avoid any risk of damage or fire.

How to clean the Battery Pack EBP3020?

Disconnect all cables and wipe the device with a soft, dry cloth. Do not use chemicals or liquids.

What to do if the battery pack does not charge?

Check that the charger and cable are working and that the micro-USB port is not blocked. Try another power outlet. If the problem persists, contact Samsung customer service.

Can I use the battery pack while it is being charged?

The manual does not specify, but it is generally not recommended to use a device while charging. For safety, avoid charging another device while the pack is being charged.

What is the battery capacity?

The exact capacity is not indicated in the manual. It may vary depending on the current and output. Check the technical specifications on the Samsung website.

How to properly dispose of this product?

Do not dispose of the battery pack with household waste. Follow local regulations for recycling electrical equipment and batteries. The WEEE symbol on the product indicates it should be recycled separately.

What to do in case of contact with water?

Do not touch the device with wet hands and avoid any contact with liquids. If liquid enters, disconnect immediately and dry completely before reuse. Consult a professional if necessary.

USER MANUAL Battery Pack EBP3020 SAMSUNG

Color palette bar with a central crosshair symbol (no text or labels)

QUICK START GUIDE

EB-P3000

EB-P3020

Battery Pack

SAMSUNG

Printed in Korea

A00596 Rev.1.2

EU/ASIA Type 08/2017

000 Cover.indd 2

Color palette bar with a central crosshair symbol (no text or labels)

QUICK

START

GUIDE

EB-P3000

EB-P3020

Battery Pack

SAMSUNG

000 Cover.indd

3

2017-06-15

오전 9:57:07

Contents

English......4

Français....11

Deutsch 16

Italiano 20

Español....24

Magyar 29

Polski....33

Română 38

Български 42

Hrvatski....47

Srpski....51

Português 55

2

Latviešu....59

Lietuvių kalba 63

Eesti 67

Nederlands 71

Svenska 75

Norsk 80

Suomi 85

Dansk....90

Ελληνικά......95

Slovenščina....100

Slovenčina ....104

Čeština....108

Türkçe....112

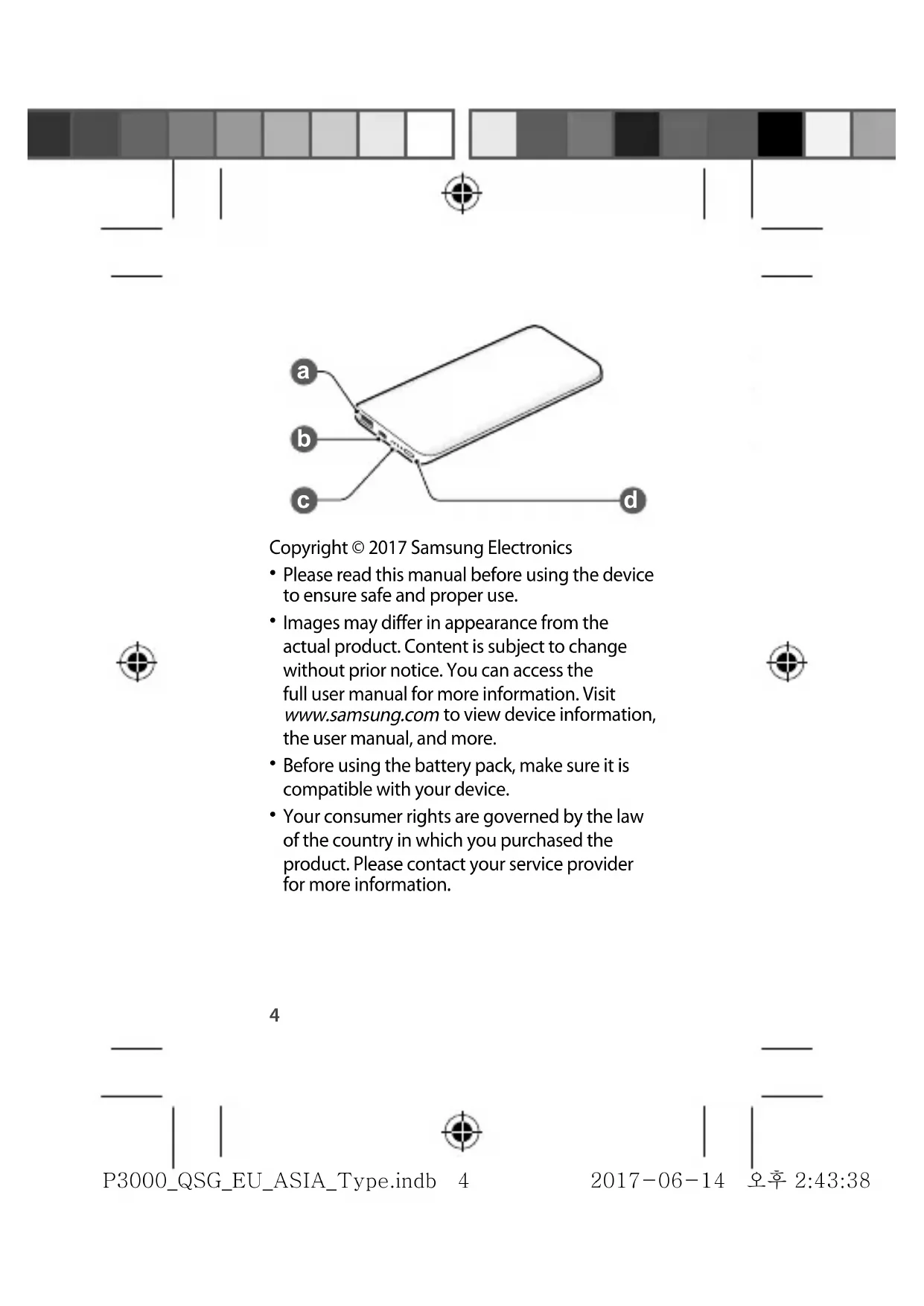

a b c d

Copyright © 2017 Samsung Electronics

• Please read this manual before using the device to ensure safe and proper use.
• Images may differ in appearance from the actual product. Content is subject to change without prior notice. You can access the full user manual for more information. Visit www.samsung.com to view device information, the user manual, and more.
• Before using the battery pack, make sure it is compatible with your device.
• Your consumer rights are governed by the law of the country in which you purchased the product. Please contact your service provider for more information.

Abstract grayscale color gradient bar with a central crosshair symbol (no text or labels)

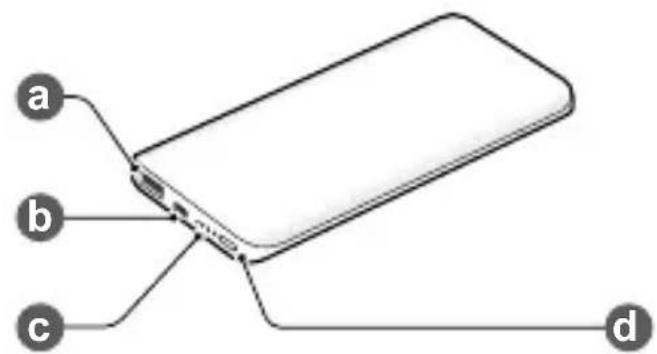

Device layout

a	USB charger port Indicator light
b	Charger port	Battery level button

English

Charging the battery

Before using the battery pack for the first time, you must charge the battery.

Connect the battery pack to a charger.

Use only Samsung-approved chargers.

5

5

Two grayscale color swatches with gradient shading, no text or symbols present

• You can charge the battery pack using the charger (sold separately).
- Depending on the type of charger you are using, you may need to use the Micro USB connector.
- The actual capacity (Wh) is measured based on the battery's output current and voltage. It may differ from the capacity (Wh) indicated on the device, depending on the output power condition, the connected device's circuit configuration, and the operation environment.
- The charger should remain close to the electric socket and easily accessible while charging.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.

Checking the remaining battery power

Check the remaining battery power by pressing the Battery level button.

The indicator lights alerts you to the remaining battery power.

Remaining battery power	Indicator light status
70–100 % Four indicator lights on
40–70 % Three indicator lights on
20–40 % Two indicator lights on
5–20 % One indicator light on
0–5 % One indicator light blinking

English

Using the battery pack

1. Connect one end of the USB cable to the battery pack's USB charger port. Then, plug the other end of the USB cable into the mobile device's multipurpose jack.

2. After the mobile device is fully charged, disconnect the USB cable from both devices.

Color gradient bar with a central crosshair symbol, no text or labels present

Depending on your mobile device's multipurpose jack, you may need to use the Micro USB connector.

Safety information

Read all safety information before using the device to ensure safe and proper use. To view the full safety information, refer to the Samsung website.

Use manufacturer-approved batteries, chargers, accessories, and supplies

Do not touch the device with wet hands

Do not drop or cause an impact to the charger or the device

The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery's lifespan

Abstract color gradient bar with a central crosshair symbol (no text or labels)

Prevent the multipurpose jack and the small end of the charger from contact with conductive materials, such as liquids, dust, metal powders, and pencil leads

Do not allow children or animals to chew or suck the device

Do not disassemble, modify, or repair your device

Correct disposal

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.

This product is RoHS compliant.

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste.

English

9

Abstract grayscale color gradient bar with a central crosshair symbol (no text or labels)

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

Samsung Electronics (UK) Ltd, Euro QA Lab. Blackbushe Business Park. Saxony Way, Yateley, Hampshire, GU46 6GG, United Kingdom
