USER MANUAL PTBM 500 E5 PARKSIDE

Translation of the original instructions

• your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it repre- sents no cause for concern. Translation of the original EC declaration of conformity p. 134

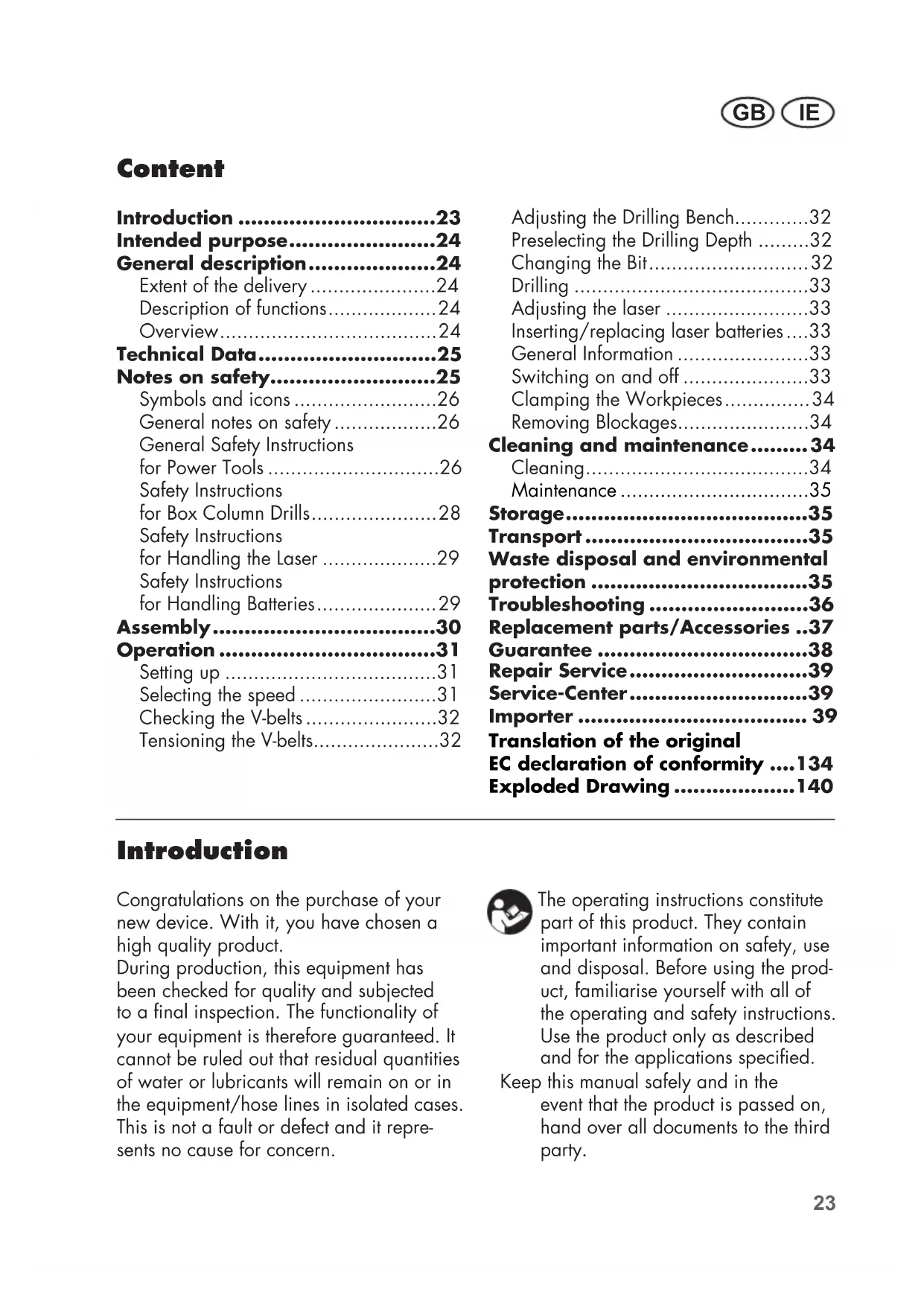

• Exploded Drawing p. 140
• Symbols and icons p. 26
• General notes on safety p. 26
• General Safety Instructions for Power Tools p. 26
• Safety Instructions for Box Column Drills p. 28
• Safety Instructions for Handling the Laser p. 29
• Safety Instructions for Handling Batteries p. 29
• Assembly p. 30
• Operation p. 31
• Adjusting the Drilling Bench p. 32
• Preselecting the Drilling Depth p. 32
• Changing the Bit p. 32
• Drilling p. 33
• Adjusting the laser p. 33
• Inserting/replacing laser batteries p. 33
• General Information p. 33
• Switching on and off p. 33
• Clamping the Workpieces p. 34
• Removing Blockages p. 34
• Cleaning and maintenance p. 34
• Cleaning p. 34
• Maintenance p. 35
• Storage p. 35
• Transport p. 35
• Waste disposal and environmental protection p. 35
• Troubleshooting p. 36
• Replacement parts/Accessories p. 37
• Guarantee p. 38
• Repair Service p. 39
• Service-Center p. 39
• Importer The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the prod- uct, familiarise yourself with all of the operating and safety instructions. Use the product only as described p. 39

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party

• Setting up p. 31

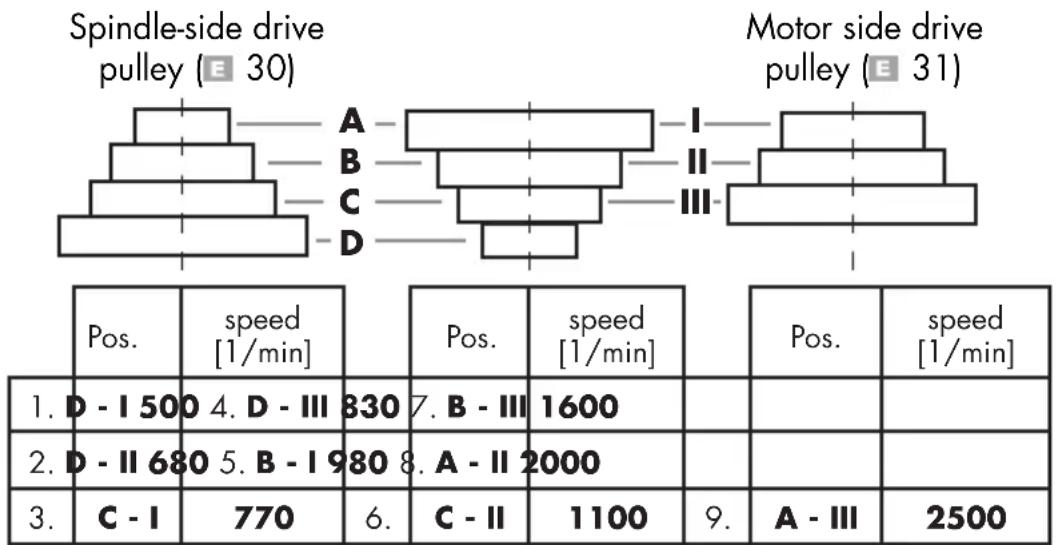

• Selecting the speed p. 31
• Checking the V-belts p. 32
• Tensioning the V-belts GB IE Intended purpose The bench drill is designed for drilling in metal, wood, plastic and tiles. Straight shank drills with a drilling diameter from 1.5 mm to 16 mm can be used.The device is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The tool is not to be used by persons. under the age of 16. Children over the age of 16 may use the tool except under supervision. The manufacturer is not liable for damage caused by an improper use or incorrect operation of this device. General description The illustration of the principal functioning parts can be found on the front and back foldout pages. Extent of the delivery Carefully unpack the appliance and check that it is complete. Dispose of the pa-ckaging material correctly.- Baseplate- Drilling bench - Column tube- Motor unit- 3 drill lifting arms- Safety device- Drill chuck- Drill chuck key- Allen key- Vice- 2 x 1.5 V batteries, AAA size- Mounting material- Instruction Manual Description of functions Please refer to the descriptions below for information about the operating devices. Overview p. 3224

1 Off switch 2 On switch 3 Gear cover 4 Drill chuck 5 Emergency stop switch 6 Safety device 7 Drill spindle 8 Locking screw of the depth stop 9 Hand spindle guide with 3 drill lifting arms 10 Holder for drill chuck key 11 Locking screw for gear cover 12 Retaining screws for motor unit 13 Motor unit 14 Column tube 15 Locking handle 16 3 Assembly screws 17 Baseplate 18 Angle scaling 19 Retaining screw for drilling bench inclination 20 Drilling bench 21 Depth stop with scale 22 Vice mounting material 23 Vice 24 Chuck jaws 25 Allen key 26 Drill chuck key 27 Clamping screws for motor unit

28 Clamping screw for safety device

29 V-belt 30 Spindle-side drive pulley 31 Motor side drive pulley25

34 On/Off switch, laser 35 Controller, laser

36 Battery compartment, laser

37 Middle drive pulley 38 Intake, middle drive pulley 39 Bearing points, intake 40 Bearing points, intake

= 3 dB Sound power level (L

measured ............. 84 dB(A); K

• After continuous operation of 15 minutes the drill stops until the device temperature devi-ates by less than 2 K (2°C) from the room temperature. Levels of noise and vibration were determi- ned according to the norms and regulati- ons in the declaration of conformity. The vibration emission value has been measured according to a standardised testing method and may be used for com- parison with another electric tool. The indicated vibration emission value may also be used for an introductory assess- ment of the exposure.

The vibration emission value whilst actually using the electrical tool may vary from the given values in- dependently of the type and way in which the electric tool is used. Try to keep the exposure to vib- rations as low as possible. An example of a measure to reduce vibration exposure is limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load). Notes on safety Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and ire. Please read all these instructions before using this electric tool and please keep the safety instructions.26 GB IE Precaution symbol with information on prevention of harm / damage. Connect the machine to the power supply. Pull out the mains plug. Notice symbol with information on how to handle the device properly. Steel Wood General notes on safety Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury

General Safety Instructions for Power Tools WARNING! Read all safety instructions and guidelines carefully. Failure to follow the sa- fety instructions and guidelines may

serious injuries. Save all safety instructions and gui- delines for the future. The term „power tool“ used in the safety inst- ructions refers to mains-operated electric tools (with a mains cable) and to battery-operated electric tools (without a mains cable). Safe working

• Keep your work area tidy. An untidy workplace can lead to accidents. Symbols and icons Symbols on the device: Warning! Warning! Electric shock hazard. Always unplug the device before working on it. Read the manual! Wear ear protection Wear eye protection Do not wear long hair uncovered. Use a hair net. Do not wear gloves. Caution! Risk of injury from rotating parts! Caution! Hot surface. There is a risk of burns. Electrical machines do not belong with domestic waste Caution! - Laser beam Do not look into the beam! Laser class 2 Symbols used in the instructions: Hazard symbols with in- formation on prevention of personal injury and property damage.27

• Considerenvironmentinluences - Do not expose power tools to rain. - Do not use power tools in damp or wet surroundings. - Ensure the work area is adequately lit. - Do not use power tools where there

• Protect yourself against elec- tric shock. Avoid body contact with earthed parts (e.g. pipes, radiators, electric cookers, refrigerators).

• Keep other people away. Do not allow other people, especially children, to touch the power tool or cable. Keep them away from your work area.

• Store unused power tools safely. Unused power tools should be stored in a dry, high or locked place, out of the reach of children.

• Do not overload your power tool. They work better and more safely

• Use the correct power tool. - Do not use low-performance machi- nes for heavy work. - Do not use the power tool for purpo- ses for which it is not intended. For ex- ample, do not use use a circular hand saw for cutting tree branches or logs.

• Wear suitable clothing - Do not wear loose clothing or jewel- lery that might become caught in moving parts. - When working outdoors, non-slip footwear is recommended. - Wear a hair net to contain long hair.

• Use protective equipment - - Wear safety goggles. - Use a dust mask for work which ge- nerates dust.

• Connect a dust extraction device. If connections are available for dust extrac- tion and collection devices, make sure that these are connected and properly used.

• Do not use the cable for purpo- ses for which it is not intended. Do not use the cable to pull the plug from the socket. Protect the cable from heat, oil and sharp edges.

• Secure the workpiece. Use jigs or a vice to hold the workpiece securely. This is safer than using your hand.

• Avoid abnormal body postures. Ensure secure footing and keep your balance at all times.

• Maintain tools with care - Keep cutting tools sharp and clean for better and safer working. - Follow the instructions for lubrication and changing tools. - Regularly check the connection cable of the power tool and, if it is dama-

specialist. - Check extension cords periodically and replace them if they are damaged. - Keep handles dry, clean and free from oil and grease.

• Remove the plug from the mains socket when the power tool is not in use, before maintenance and when changing tools such as saw blades, drill bits, cutters.

• Do not allow any tool keys to remain inserted. Check, before swit- ching on, that keys and adjusting tools have been removed.

• Avoid unintentional starting. Make sure that the switch is off when inserting the plug into the socket.

• Use extension cables outdoors. Only use approved and appropriately marked extension cables outdoors.

• Pay attention at all times. Pay attention to what you are doing. Work using common sense. Do not use the power tool if you cannot concentrate.

• Check the power tool for possib- le damage28 GB IE - Before further use of the power tool, safety devices or slightly damaged parts must be carefully examined in respect of their proper and intended function. - Check that the moving parts are wor- king properly and are not jammed or whether parts are damaged. All

satisfy all conditions to ensure the proper operation of the power tool. - Damaged safety equipment and parts must be repaired properly or replaced by an authorised specialist workshop unless otherwise indicated in the instructions. - Damaged switches must be replaced at a customer service workshop. - Do not use power tools if the switch cannot be turned on and off.

• CAUTION! The use of other bits and other accessories can result in a risk of personal injury.

• Have your power tool be re-

- This power tool complies with the relevant safety regulations. Repairs

electrician, using original spare parts; otherwise accidents involving the user may result. Service:

• Have your power tool repaired

only with original spare parts. This will ensure that the power tool re- mains safe. Safety Instructions for Box Column Drills

• Never make the warning labels on the power tool illegible.

• Attach the power tool to a solid, If the power tool can slip or wobble, the bit may not be guided smoothly and safely.

• Keep the work area clean ex- cept for the workpiece to be machined. Sharp-edged drilling chips and objects can cause injury. Material mixtures are particularly dangerous. Light metal dust can burn or explode.

• Set the correct speed before starting work. The speed must be appropriate for the drill dia- meter and the material to be drilled. At an incorrectly set speed the bit may get jammed in the workpiece.

• Only when the device is turned on should the bit be moved against the work piece. Otherwise there is a danger that the bit will get jammed in the workpiece and the workpiece will rota- te with the bit. This can lead to injuries.

• Do not put your hands in the area of the drill while the power tool is running. Upon contact with the bit is a risk of injury.

• Never remove drilling chips from the drilling area while the pow- er tool is running. Always put the drive mechanism in the standby positi-

• Do not remove accumulated drill chips with your bare hands. There is a risk of injury due to hot and sharp metal shavings in particular.

• Break up long drilling chips by interrupting the drilling opera- tion with a short backward ro-29

tation of the rotary wheel. Long drilling chips may cause injury.

• Keep handles dry, clean and free from oil and grease. Greasy, oily handles are slippery and lead to loss of control.

• Use clamps to hold the workpie- ce in place. Do not work on any workpieces that are too small for clamping. If you hold the workpiece by

ly against rotation and may hurt yourself.

• Switch the power tool off imme- diately if the bit jams. The bit jams when: - the power tool is overloaded or - the workpiece to be machined is jammed.

• Do not touch the bit after wor- king before it has cooled down. The bit is very hot during use.

• Inspect the cable regularly and have a damaged cable repaired only by an authorised customer service centre. Replace damaged extension cables. This will ensure that the power tool remains safe.

• Store unused power tools in a safe place. The storage place should be dry and lockable. This prevents the power tool from being damaged as a result of being stored or operated by inexperienced people.

• Never leave the tool before it has come to a complete standstill. After-running bits can cause injury.

• Do not use the power tool with a damaged cable. Do not touch the damaged cable and pull the mains plug if the cable is da- maged while working. Damaged cables increase the risk of electric shock.

• The device is unsuitable for processing of foods.

• Edit not work pieces that you can not sure retain. Especially round or uneven workpieces.

• Avoid abnormal body postures. Ensure secure footing and keep your balance at all times. Safety Instructions for Handling the Laser – Caution: Laser radiation - Do not look into the beam - Laser class 2

– Markings and warnings are located next to the hand spindle guide (9). Safety Instructions for Handling Batteries

• Ensure at all times that the batteries are inserted with the correct polarity (+ and –), as shown on the battery itself.

Do not charge non-rechargeable batteries.

• Do not overcharge batteries!

• Do not mix old and new batteries or batteries of a different type or from different manufacturers! Replace all bat- teries of a set at the same time.

• Remove used batteries immediately from the device and dispose of them correctly!

• Do not heat the batteries!

• Do not carry out any welding or solde- ring work directly on the batteries!

• Do not take the batteries apart!

• Do not deform the batteries!

• Store the batteries out of the reach of children.

• Do not allow children to replace the batteries without supervision!

cookers or other sources of heat. Do not30 GB IE place the battery in direct sunlight and do not use or store it in motor vehicles in hot weather.

• Store used batteries in the original pa- ckaging and keep them away from me- tal objects. Do not mix (up) unpacked batteries! Otherwise this may cause the battery to short-circuit, resulting in da-

• Remove batteries from the device if this is not going to be used for a prolonged period, unless it is to be used in emer- gencies!

• NEVER touch batteries which have leaked without appropriate protection. If the leaked liquid comes into contact with the skin, you should rinse off this area of the skin immediately under run- ning water. Make sure at all events that your eyes and mouth do not come into contact with the liquid. If they do, seek medical advice immediately.

• Clean the battery contacts and the equivalent contacts in the device before inserting the batteries. Assembly The bench drill is supplied disassembled. Clean the column tube (14), baseplate (17), drilling bench (20), vice (23) and the drill chuck (4) beforehand, with a dry cloth.

1. Place the column tube (14) on the ba-

seplate (17). Bolt the column tube (14) to the baseplate (17) with the three as- sembly srews (16) supplied. Tighten the assembly srews (16) moderately tight so that the threads in the baseplate (17) do not strip.

2. Place the drilling bench (20) on the co-

lumn tube (14). Push the drilling bench (20) into a lower position. Use the

bench (20) in a lower position.

3. Place the vice (23) on the drilling

the drilling bench (20) by means of the enclosed assembly screws (22) together with the washer and the lock washer in the order as shown.

the column tube (14). Secure the motor unit (13) with the two clamping screws (27) on the side using the enclosed Allen key (25).

5. Bolt the three drill lifting arms

into the spindle guide (9). Tigh- ten the three hole lifting arms with a spanner (AF 6 mm).

6. Release the clamping screw from

7. Mount the laser on the motor unit

Make sure that the battery com- partment (36) is on the side of the hand spindle guide (9).

8. Put the safety device (6) on the

upper part of the drill spindle (7).

9. Secure the safety device (6) with

the clamping screw (28).

10. Fold the safety device (6) up-

wards. Insert the chuck (4) on the taper of the drill spindle (7). Push the drill chuck onto the drill chuck tip with a few light taps. Use a plastic hammer for this purpose.31

Operation Caution! Risk of injury!

space in which to work and that you do not endanger other peo- ple. - All hoods and protective devices must be assembled properly be- fore commissioning. - Disconnect the mains plug be- fore changing the setting on the device. Setting up Place the bench drill on a solid surface. Ideally, bolt the drill to the surface. Use the four holes in the baseplate (17) for this. Selecting the speed

1. Release the locking bolt (11) on the

3. Release the retaining screw (12) on the

unit (13) forwards a little to release the load on the V-belts (29).

5. Place the V-belts (29) on the desired

The gear cover (3) is equipped with a interlock switch (32). If the gear cover (3) is not closed correctly, the device cannot be switched on.

6. Using the lever (33), slide the motor

unit (13) backwards to re-tighten the V- belts (29).

7. The V-belts (29) are correctly tensioned

when they give way slightly when pressed.

8. Re-tighten the retaining screw (12) on

locking bolt (11) on the gear cover .32 GB IE Recommended speeds for different drill sizes and materials: [mm] [mm] [1/min]

Checking the V-belts

1. Release the locking bolt (11) on the

3. Check the tension of the V-belts (29).

4. The V-belts (29) are correctly tensioned

when they give way slightly when pressed.

5. Check the V-belts (29) for tears, cuts or

locking bolt (11) on the gear cover (3). Tensioning the V-belts

1. Release the locking bolt (11) on the

3. Release the retaining screw (12) on the

unit (13) backwards to tighten the V- belts (29).

5. The V-belts (29) are correctly tensioned

when they give way slightly when pressed.

6. Re-tighten the retaining screw (12) on

locking bolt (12) on the gear cover (3). Adjusting the Drilling Bench

1. Release the locking handle (15).

2. Push the drilling bench (20) to the desi-

3. Pivot the drilling bench (20) to the desi-

4. Fasten the drilling bench (20) again

with the locking handle (15).

5. You can also adjust the tilt angle of the

drilling bench (20). To do this, release the retaining screw (19) (AF 19 mm) under the drilling bench (20). Tilt the drilling bench (20) as desired to the right or left up to a max. of 45° and se- cure the drilling bench (20) again with the retaining screw (19). Preselecting the Drilling Depth

1. Release the locking screw from the

2. Lower the drilling spindle (7) with the

mounted tool on to the workpiece.

3. Turn the scale until the red marking

arrow attached to the motor unit (13) is pointing to the zero line of the scale.

4. Now turn the scale to the desired

drilling depth and tighten the locking screw (8) again.

5. Turn the drilling spindle (7) back to its

starting position. Changing the Bit Remove the plug from the mains socket before changing the bit. This will prevent an accidental start-up.

1. Fold the safety device (6) up.

2. Release the retaining jaws of the drill

chuck (4) with the drill chuck key (26)

5. Tighten the retaining jaws of the drill

chuck (4) with the drill chuck key (26).

7. Check that the bit is centred.

8. Fold the safety device (6) down again.

9. Carry out a brief trial run in order to

check the drill for true running. Under no circumstances must you lea- ve the drill chuck key (26) inserted. Drilling

1. Turn the appliance on.

2. Turn one of the drill lifting arms antic-

3. The drill chuck (4) is lowered.

4. Drill into the workpiece at the appropri-

ate feed rate and to the desired depth.

5. Be aware of any necessary chip brea-

king on the way to the desired depth.

6. Move the bit slowly back to the stop

Adjusting the laser Caution! - Laser beam. Do not look into the beam. Turn your head away or close your eyes to prevent looking into the laser beam. Dan- ger of eye injury!

1. Spot-drill the clamped workpiece. Do

not make any further changes to the position of the workpiece until the laser has been adjusted.

2. Turn the laser (34) on at the on/off

3. Set the laser cross to where the workpi-

ece has been spot-drilled by turning the two controllers (35).

1. Turn the laser off.

2. Open the battery compartment of the

laser (36) by sliding the lock upwards and opening the compartment.

3. Insert the batteries according to the po-

larity indicated on the cover.

4. Close and lock the battery compartment

(36). General Information The feed rate and spindle speed are decisive for the service life of the bit. - The cutting speed is determined by the speed of the drill spindle and by the diameter of the bit. - In principle, therefore, the larger the bit diameter, the lower the speed that should be selected. - For workpieces of greater strength, the cutting pressure must be higher. - Repeated withdrawal of the bit enables easier chip removal.

deep holes. Reduce the feed rate and speed in this case. - To avoid excessive wear on the cutting surface of the bit, for drill holes over

drill with a bit with a smaller diameter. Switching on and off Make sure that the power supply voltage matches the voltage rating indicated on the device‘s type plate. Connect the machine to the power supply.34 GB IE Caution! Fold the protective device (6) down before you switch on the machine. Switching on: Press the on switch (2). Switching off: Press the off switch (1). Emergency stop: Press the emergency stop button (5). After pressing the emergency stop button, the emergency stop button (5) must be activated again by turning it. Press the on switch (2) to restart the device. Clamping the Workpieces Only work with workpieces that can be securely clamped. The workpiece must not yield too much. Otherwise it is nor possib- le to apply adequate tension. The workpiece must not be too small or too large either. Removing Blockages - You should always select a suitable feed rate which allows trouble-free chip breaking. - If the bit is jammed in the workpiece, turn off the power and unplug the po- wer cord. Turn the bit on the drill chuck anticlockwise with a little jerk to break the chip and release the bit again. - If a fragment is produced during the processing of the workpiece, turn off the power and unplug the power cord. Use a pair of pliers and remove the fragment to prevent it lying off in an uncontrolled way. Cleaning and maintenance Pull the mains plug before any ad- justments, maintenance or repair. Have any work on the device that is not described in this instruction guide performed by a professional. Only use original parts. Allow the de- vice to cool off before any maintenance or cleaning is undertaken. There is a risk of burning! Always check the device before using it for obvious defects such as loose, worn or damaged parts, correct the positioning of screws or other parts. Exchange the dama- ged parts. Cleaning Do not use any cleaning agents or solvents. Chemical substances can etch the plastic parts of the device. Never clean the device under run- ning water.

• Thoroughly clean the device after every use.

• Clean the ventilation openings and the surface of the device with a soft brush or cloth.

• Remove chips, dust and dirt with a va- cuum cleaner if necessary.

• Lubricate moving parts regularly.

• Do not allow lubricants to come into contact with switches, V-belts, pulleys and drill lifting arms.35

Maintenance Repeat the maintenance after every 5 hours of operation.

1. Release the locking bolt (

3. Release the retaining screw (

13) forwards a little to release

the load on the V-belts (

5. Remove both V-belts (

6. Remove the middle drive disc (37) and

7. Clean the bearing point retainer

(39+40) and grease this with a commercially available multi-purpose grease.

8. Re-insert the retainer (38) and the drive

disc (37). Tighten the V-belts (

13) backwards to re-tighten the

oned when they give way slightly when pressed. 11.Re-tighten the retaining screw (

11) on the gear cover .

• Store the appliance in a dry place well out of reach of children.

• The device can be relocated over a short distance with two people. Reloca- ting the device over a longer distance generally has to take place with a trans- port aid. Transport Do not carry the bench drill holding it on the motor unit. Caution! Hot surface. There is a risk of burns. Only transport the machine when the motor unit

13) has cooled down com-

pletely. If possible, carry the bench drill together with another person. Grip the baseplate

17) with one hand and stabilise the

machine on the drive cover (

other hand. Waste disposal and environmental protection Be environmentally friendly. Remove the battery from the device and take the de- vice, battery, accessories and packaging for environmentally friendly recycling. Electrical machines do not belong with domestic waste.

• Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmen- tally friendly manner. For information about this, ask your local waste manage- ment company or our service centre.

• Defective units returned to us will be disposed of for free.36 GB IE Troubleshooting Problem Possible Cause Error correction Device doesn‘t start Emergency stop switch (5) has been triggered Reactivate the emergency stop switch (5) by turning it. Press the on switch (1) to restart the device No mains voltage Main circuit breaker is tripped Check the socket, mains supply cable, cord, mains plug; if necessa- ry, have them repaired by a quali-

Check the main fuse On/off switch (1/2) is broken Repair by Customer Care Motor faulty Repair by Customer Care Strong vibrations

place Check V-belt tension and tighten the locking screw (12) Bit not centrally clamped Check the bit in the drill chuck (4) Laser does not work Batteries empty Replace batteries (see “Replacing laser batteries”) Loud squeaking noise V-belt tension is too high Check V-belt tension Damaged V-belts (29) Check V-belts (29) Damaged pulley Check pulleys37

Replacement parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” page 39). Please have the order number mentioned below ready. Position Position Description Ordernumber Manual drawing 6 11-22 Safety device, complete 91103336 20 5-10 Drilling bench, complete 91104522 1/2 44,46-51,54 On-/Off switch, complete 91103339 5 31-36 Emergency stop switch 91104503 9 67,68 Drill lift arm 91104525 23 79-83 Vice 91103342

29 102 V-belt, set 91104508 4 23 Drill chuck 91104502 120,121 Hinge of the gear cover 91104509 8 65 Screw for depth limiter 91104506 37 Spring for spindle return 91104504 26 70 Drill chuck key 91104510 27 52 Clamping screws 91104523 14 2,4 Column tube 9110452138 GB IE Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. V-belts, batteries) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of

manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee

please follow the directions below:

• Please have the receipt and item num- ber (IAN 304520) ready as proof of purchase for all enquiries.

• Should functional errors or other de- fects occur, please initially contact the

telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint. Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable.39

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci-

and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the ad- dress communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: grizzly@lidl.ie IAN 304520 Importer Please note that the following address is not a service address. Please initially con-

Translation of the original EC declaration of conformity We hereby conirm that the Bench pillar drill Design Series PTBM 500 E5 Serial Number 201808000001 - 201808310601 conforms with the following applicable relevant version of the EU guidelines : 2006/42/EC • 2014/30/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied:

stances in electrical and electronic appliances.135
