USER MANUAL HS 20 BEURER

Silver Beuner brand hairpin with a circular button and metal clip, shown against a plain background (no text or symbols on the device itself)

EN Cordless hair straightener Instructions for use.... 15

Illustration of a closed book with a geometric arrow pointing to its open pages (no text or symbols present)

EN Unfold page 3 before reading the instructions for use.

Illustration of a person styling long hair with a curling iron, labeled 'B' in the corner (no text or symbols on the figure itself)

DEUTSCH

Simple line drawing of an open book with no text or symbols visible

Simple line drawing of an open book with no text or symbols visible

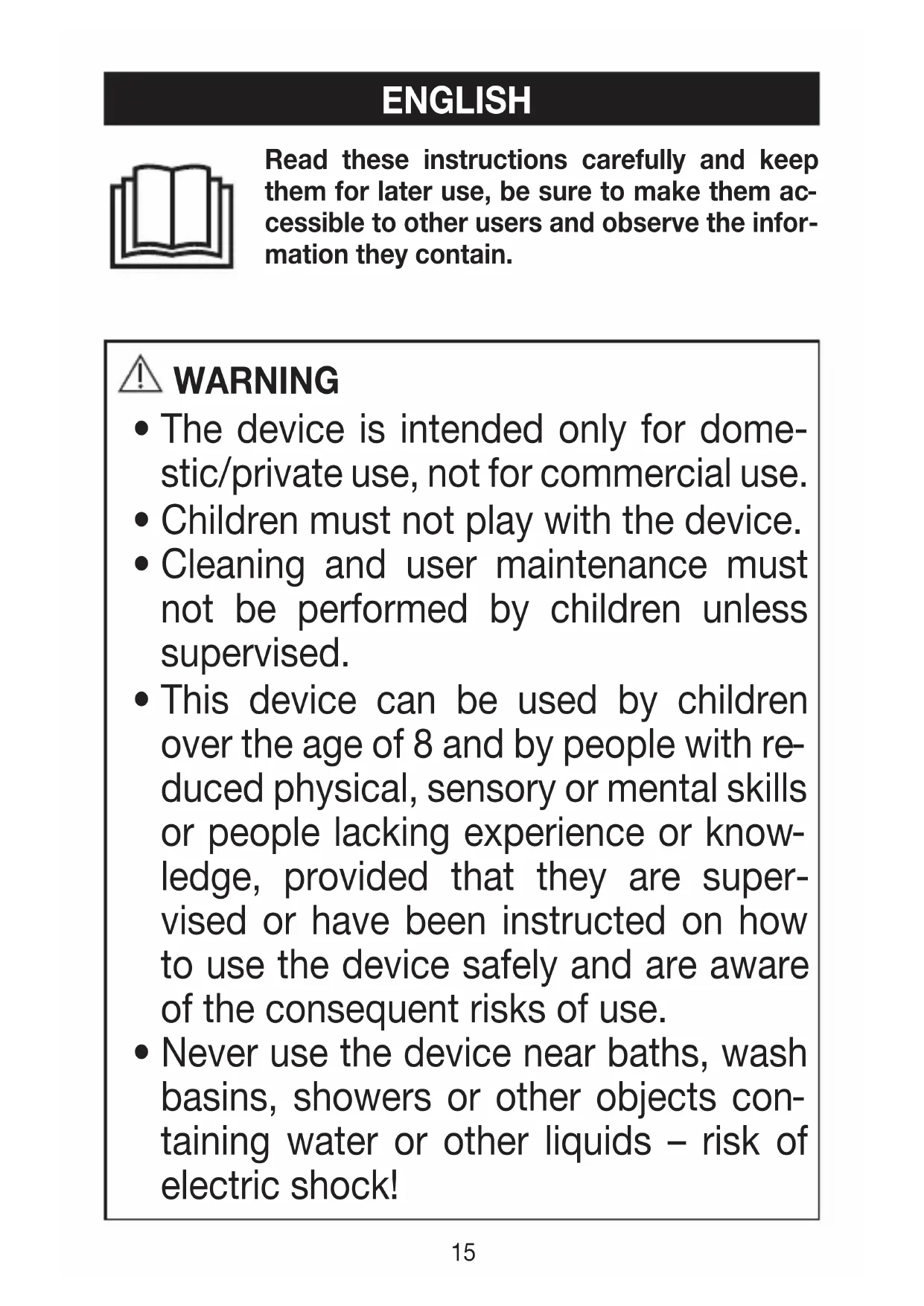

Read these instructions carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• The device is intended only for domestic/private use, not for commercial use.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This device can be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or people lacking experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely and are aware of the consequent risks of use.
• Never use the device near baths, wash basins, showers or other objects containing water or other liquids – risk of electric shock!

- As an additional safety measure, we recommend the installation of a residual-current-operated protective device (RCD) with a rated operational current not exceeding 30 mA in the bathroom circuit. Your local electrical specialist can provide you with the relevant information.

Getting to know your device

The beurer HS 20 Cordless hair straightener can be used to quickly and gently straighten and style hair.

The hair straightener glides through hair particularly smoothly thanks to the ceramic-coated hot plates with tourmaline crystals. Tourmaline crystals are semi-precious stones that release negative ions when heated, meaning they prevent static charging of the hair, thereby enabling smooth hair with a silky shine. The cordless hair straightener has a lithium-ion battery, and can be used cable-free for up to 30 minutes. This makes the Cordless hair straightener the perfect travel companion for when you're out and about.

Thanks to built-in fast heating, this cordless hair straightener is ready to use in just a few minutes. Three variable temperature settings (approx. 160–200°C) facilitate professional styling of different hair types. The LED readiness indicator flashes while the device heats up. When the hot plates have reached the required temperature, the LED readiness indicator lights up steadily.

Table of contents

1. Included in delivery 17
2. Signs and symbols....17
3. Intended use....19
4. Safety notes .... 19
5. Device description....21
6. Initial use 21
7. Usage 21
8. Cleaning and maintenance....23
9. Technical specifications ...... 23
10. Disposal....24
11. Warranty/service....24

1. INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

• 1x cordless hair straightener
- 1x mini USB cable
• 1x set of instructions for use
• 1x heat-resistant protective cap

2. SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

	DangerThe device must not be used near to water or in water (e.g. in a wash basin, or in the shower or bath) – risk of electric shock!
	WarningWarning instruction indicating a risk of injury or damage to health
	ImportantSafety note indicating possible damage to the device/accessory
	Product informationNote on important information
	Read the instructions for use
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE
	Marking to identify the packaging material.A = Material code, B = Material number:1-7 = Plastics, 20-22 = Paper and cardboard
	Separate the packaging elements and dispose of them in accordance with local regulations.
	This product satisfies the requirements of the applicable European and national directives
	Protection class
	Manufacturer
	No protection against water ingress
	Separate the product and packaging elements and dispose of them in accordance with local regulations.
	Importer symbol
	United Kingdom Conformity Assessed Mark

3. INTENDED USE

The cordless hair straightener must only be used for private use to straighten and style human hair.

WARNING

The device is suitable only:

• for external use
• for the intended purpose and as specified in these instructions for use.

Any form of improper use can be dangerous.

4. SAFETY NOTES

WARNING

To avoid damage to health, we strongly advise against using the device in the following situations:

• Never submerge the device in water or other liquids! Risk of electric shock!
• If, despite all precautionary measures, the device falls into water, do not reach into the water! Risk of electric shock!
• Have the device checked by an authorised specialist workshop before using it again. Danger to life due to electric shock!
• If the device has been dropped or has suffered any other damage, it must no longer be used. Risk of electric shock and injury!
• If there is visible damage to the device, USB charging cable, or accessories. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address. Risk of electric shock!
• Keep packaging material away from children – risk of suffocation!

WARNING

To avoid damage to health, please note the following:

• Ensure that no highly flammable liquids are located near the device. Risk of fire!
• Place the device on non-flammable surfaces only. Risk of fire!
• The device must not be covered – risk of fire!
• Do not use the device on synthetic hair – risk of fire!

i Note

• Remove all packaging material before using the device.
• To charge, only connect the device to a socket that has the voltage shown on the type plate.
• Only remove the mini USB charging cable from the socket by the mini USB adapter.
• Do not use any additional parts that are not recommended by the manufacturer or offered as equipment.
• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply with this instruction will void the warranty.
• In the event of a fault or damage, have the device repaired by a certified specialist workshop.
• Never leave the device unattended during use.
• Do not use the device outdoors.
• If you pass on the device to someone else, make sure to also pass on these instructions for use.

WARNING

Notes on handling batteries

• If your skin or eyes come into contact with fluid from a battery cell, flush out the affected areas with water and seek medical assistance.
• Protect batteries from excessive heat.
• Risk of explosion! Never throw batteries into a fire.
• Do not disassemble, split or crush the batteries.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.
• Fully charge the battery prior to initial use (see Chapter "6. Initial use").
• In order to achieve as long a battery useful life as possible, fully charge the battery at least twice per year.

5. DEVICE DESCRIPTION

	5 Safety switch
	6 Locking mechanism
	7 USB charging cable

6. INITIAL USE

Charging the battery

Note

Before using the cordless hair straightener for the first time, let it charge for a minimum of 2 hours. To do so, proceed as follows:

1. Connect the cordless hair straightener to the supplied USB charging cable 7 and a compatible USB connection (output: max. 5 V / 2 A).
2. The LED readiness indicator 4 will now light up in red. The LED readiness indicator 4 is lit up in red throughout the charging process. As soon as the battery is fully charged, the LED readiness indicator 4 lights up in green.

Note

It is not possible to use the device during the charging process.

1. As soon as the LED readiness indicator 4 lights up in green, remove the USB charging cable 7 from the cordless hair straightener and the USB connection 2.

7. USAGE

Straightening/styling hair

1. To unlock the straightener, slide the locking mechanism 6 to the position.

2. To switch on the hair straightener, slide the safety switch 5 to "I". Now press and hold the ON/OFF button ⏻ 1 for 3 seconds. The LED readiness indicator 4 now starts to flash.

3. Press the ON/OFF button ⏻ 1 to select your preferred temperature (160°C, 180°C or 200°C). The LED readiness indicator 4 for the selected temperature starts to flash white. As soon as the LED readiness indicator 4 is steadily lit up in white, the set temperature has been reached. If the LED readiness indicator 4 flashes red, you need to charge the battery.

We recommend the following temperature settings:

160°C 180°C	200°C
for fine hair	for normal hair for professional styling

1. Comb your hair with a wide-toothed comb to get rid of any tangles. Dry your hair thoroughly before using the cordless hair straightener. The hair should be clean and free from styling products. The exception to this is special products designed to help straighten hair.

2. Part the hair into individual sections of approximately 1 to 2 ~cm . Hold a section taut and place it between the hot plates 3 at the roots.

3. Slowly move the hair straightener from the roots to the tips in a fluid motion. Do not hold the hair straightener in one place for more than two seconds. This will achieve the best results without subjecting your hair to excess stress or damage.

4. You can style the ends of your hair by turning the cordless hair straightener inwards or outwards before the tips of the hair through them.

After use

1. To switch off the cordless hair straightener, press and hold the ON/OFF button ⏻ 1 for 3 seconds. The LED readiness indicator 4 turns off.

2. Place the hair hair straightener on a non-flammable surface.

3. Slide the safety switch 5 to "O". The straightener can now no longer be switched on accidentally.

4. Leave the device to completely cool down!

5. Store the device in a dry place out of the reach of children.

8. CLEANING AND MAINTENANCE

Cleaning

WARNING

• Allow the device to cool completely before cleaning it. Ensure that no water gets inside the device! Risk of electric shock!
• Do not clean the device with highly flammable liquids. Risk of fire!

Note

• Your device is maintenance-free.
• Protect the device from dust, dirt and humidity.
• Do not clean the device in a dishwasher.
• Do not use any aggressive, caustic, abrasive or corrosive cleaning products or hard brushes.
• The housing of the hair straightener and the hot plates 3 may be cleaned with a soft cloth dampened with warm water.

9. TECHNICAL SPECIFICATIONS

Weight 245 g
Voltage supply 5 V	— — —, 2 A max.
Power consumption 25 W
Temperature 160–200°C
Protection class
Ambient conditions Only approved for indoors
Permissible temperature range -10 to +40°C(ambient temperature)
Battery:CapacityNominal voltageType designation	4000 mAh3.65 VLithium-ion
Dimensions 21.8 x 4.8 x 3.5 cm

Subject to technical changes.

WARNING

The integrated battery cannot be removed for disposal. Risk of explosion and injury. The lithium-ion battery used in this device must not be disposed of in household waste, but must be disposed of correctly. For information on disposal, please contact the authorised seller or a municipal collection point. When disposing of the device, you must point out that it contains a battery. Discharge the battery before disposal. Take the device and keep the hair straightener switched on until the battery is flat.

Note

If it is not possible to discharge the battery due to a fault or damage, please consult your waste collection point.

10. DISPOSAL

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life.

Dispose of the device at a suitable local collection or recycling point in your country.

Please dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal.

11. WARRANTY/SERVICE

Further information on the guarantee and guarantee conditions can be found in the guarantee leaflet supplied.
