USER MANUAL ROC1117LG THOMSON

Replacement Remote for

LG SERIES: TV/LCD/LED/HDTV

Thank you for your decision for aThomson product. Take your time and read the following instructions and information completely. Please keep these instructions in asafe place for future reference. This remote control can by default control 90% models of LG brand, there´s no need to set it up. lf the remote doesn‘t work, please choose one of the setup methods described in chapter 5. The keys

2. Turn ON /OFF 3D –LED Indicator

(if supported by the TV)

16. Show the Electronic Program Guide

(if supported by the TV)

18. Use when watching TV to see what‘s on

other channels or to highlight/Select On-screen options

22. Return to previous page

28. Suspends play and stops on an image

1. Explanation of the Note and Warning

symbol Warning This symbol is used to indicate safety instructions or to draw your attention to specic hazards and risks. Note This symbol is used to indicate additional information or important notes.

• This operating instructions incl. Code List

• Donot use the Universal Remote Control in moist or wet environments and avoid spray- water contact.

• Donot expose the Universal Remote Control to heat sources or direct sunlight.

• Donot drop the Universal Remote Control.

• Never open the Universal Remote Control. It contains no user-serviceable parts.

• Aswith all electrical devices, keep the Universal Remote Control away from children. Warning

• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly.Failureto do so could result in the batteries leaking or exploding.

• Donot short-circuit batteries.

• Donot charge batteries.

• Donot throw batteries in are.

• Keep batteries out of the reach of children.

• Donot allow children to change batteries without supervision.

• Remove the batteries from products that arenot being used for an extended period.

4. Getting started –installing the Batteries

• Remove the battery cover from bottom of remote.

• Check the +/- polarity on the batteries and inside the compartment.

• Insert the batteries.

• Slide the battery holder back into the remote until the clips locate. Note – Code Memory This remote control saves the settings during battery change.

This remote control can by default control 90% models of LG brand, there´s no need to set it up. lf it doesn‘t work, please choose one of the following setup methods 5.1 or 5.2.

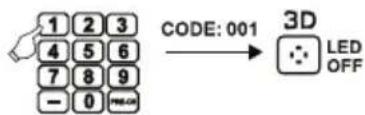

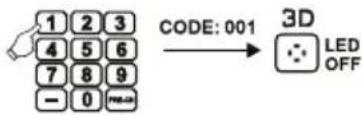

1. Press and hold the key [MUTE] and

[POWER] until the LED will be lit, then release keys.3

2. Enter the three codes from code Iist.

When the code input is nished, the LED will turn off.

3. Please try to use the remote control.

lf it doesn‘t work well, please try other codes: [002], [003], [004] ... Note lf the code is invalid, the LED ashes twice and then lights up permanently.Toexit the setup, please press [MUTE].

1. Press and hold the key [MUTE] and

[POWER] until the LED will be lit, then release keys.

2. Press the key [CH+]. Each time you

press, the remote will search once. When the code changes, you can test if [POWER], [VOL+],[MENU],[0-9] keys work well. If ok ,please press [MUTE] to save the code and exit.

3. lf it doesn‘t work well, repeat the fast

search by pressing [CH+].

Use the following method to nd out which code is currently set:

1. Press and hold [MUTE], then press

[POWER] until the LED will be lit, then release keys.

2. Input [9].[9].[0] with number keys. The

LED will ash twice and goes off.

3. Press the number key 1for the 1st digit

of the code. The LED will start to ash. Count the LED ashes. The number of ashes resemble the code‘s rst digit. Repeat this procedurefor the 2nd and 3rddigit of the code: 2nd digit -> enter 2->count LED ashes 3rddigit -> enter 3->count LED ashes lf code number is [0] the LED will not ash.

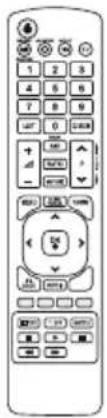

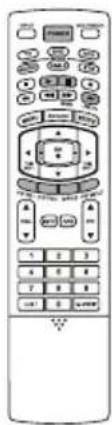

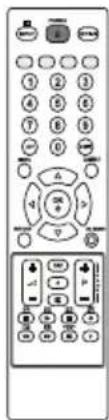

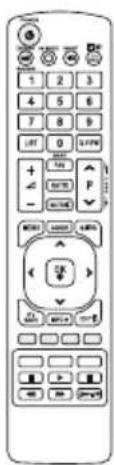

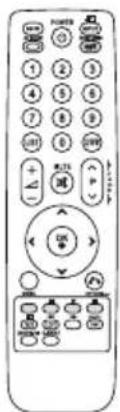

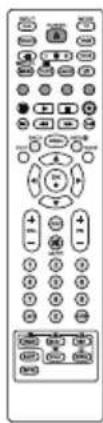

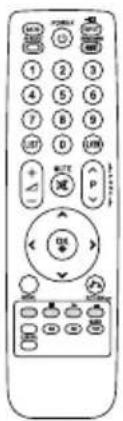

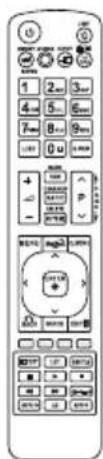

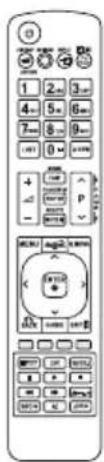

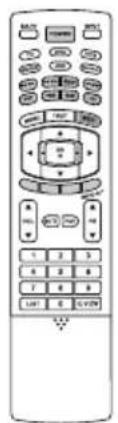

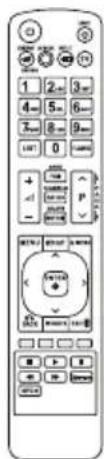

5.4 Compatible Remote Control Model

Due to too many Remote Control models, we only Iist some of them below. lf your remote control is similar to the drawing, the replacement remote can control your TV (Page 74).

This remote control is equipped with alearning function. Thus, you could learn functions of your original remote to this remote control.

6.1 BEFORE STARTING LEARN MODE

• The batteries in the two remote controls have to be in good condition. Replace them if necessary

• Place the remote controls with the infrared diodes so that they point towards each other.

• Wherenecessary adjust the height of both remotes so that infrared diodes areproperly aligned.

• The distance between the remote controls should be about 3cm. Note

• Donot move the remote controls during the learning procedure.

consumption lamps since such light sour ces could interfer

• The 2remotecontrols must be at least 1meter away from any light source.

• During learning mode, if no key is selected for morethan 15 seconds, the learning mode will exit automatically or if no other remote signal is received.

• Each function key will hold only one command. Anew command to be learned will automatically replace the previous one.

6.2 ENTER LEARN MODE

1. Press and hold the [MUTE] and [VOL+]

keys for approx. 5seconds until the LED will be lit.

2. Enter the code [9] [8] [0], the LED will ash

2times and then remain on.

3. The remote control is now ready to learn

6.3 LEARNING OF KEYS

1. Press and release the desired key on the

original remote control which you want the command to be learned. The LED at your replacement remote will ash to conrm that the information has been received.

2. Then press and release the target key on

the remote control you want learned.

3. If the LED ashes 3times and then remain

on, the command has been learned successfully.

4. Repeat these steps to learn other key

5. Please press the [OK] key to save the code

Note While replacing the batteries, the remote control will keep the functions of the learned keys.

6.4 CLEARING OF LEARNED KEYS

Press and hold [MUTE] and [VOL+] keys for 5seconds until the LED will be lit.

2. Enter the code [9] [8] [1], the LED will

ash 2times and then remain on.

3. Press and release the desired key at the

replacement remote control which you want to clear the learned command. If the LED ashes 3times, the learned command has been cleared successfully.

6.4.2 CLEARING OF ALL LEARNED KEYS

1. Press and hold [MUTE] and [VOL+] keys

for 5seconds until the LED will be lit.

2. Enter the code [9] [8] [2], the LED will ash

2times and then remain on.

3. Press and release the [OK] key at the

replacement remote control. If the LED ashes 3times, all commands have been cleared successfully.

This remote control is equipped with an SIMPLE Mode.Thus you could reduce the functionality of the remote control to its basic functions. It avoids that the TV Settings are changed by mistake. During the SIMPLE Mode you still could use following keys: Power TV ON /OFF Volume UP/DOWN Turn your TV sound ON/OFF Channel UP/DOWN 0-9 Numeric keys 0–9toenter channel numbers Teletext On Use to select avariety of on screen options GUIDE Show the Electronic Program Guide (if supported by the TV) Input Signal source Exit TV Menu Switch TV or Radio mode

7.1 Enter SIMPLE Mode

1. Press and hold [MUTE] and [VOL+] keys for

5seconds until the LED will be lit.

2. Enter the code [9] [7] [0], the LED will ash

two times and then remain on.

3. Press and release the [OK] key,ifLED ash

3times, you have entered the SIMPLE Mode successfully

7.2 Exit SIMPLE Mode

1. Press and hold [MUTE] and [VOL+]

for 5seconds until the LED will be lit.

2. Enter the code [9] [7] [0], the LED will ash

two times and then remain on.

3. Press and release the [EXIT] key,ifLED

ash 3times, you have exit the SIMPLE Mode. Note While the SIMPLE Mode is activated only the keys mentioned in chapter 7will work. If one of these keys is pressed the LED will be lit until the key is released. If one key is pressed during the normal mode, the LED will ash.

• Donot mix new and used batteries for powering the Universal Remote Control, as old batteries tend to leak and may cause power drain.

• Donot use corrosive or abrasive cleansers on your Universal Remote Control.

• Keep the Universal Remote Control dust free by wiping it with asoft, dry cloth.

Q. My Universal Remote Control does not work at all! A. Check your TV. If the TV main switch is turned off, your Remote cannot operate your TV. A. Check whether your batteries are inserted properly and are in the correct +/- position. A. If the batteries are low, replace the batteries. Q. My TV responds only to some of the commands. A. Try other codes until most keys work properly. Q. Some keys of the Remote Control do not work anymore? A. Maybe the SIMPLE Mode had been activated. Deactivate the SIMPLE Mode as explained in chapter 7.2.

10. Warranty Disclaimer

The manufacturer assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes. TEXT5

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product. Hotline: +49 9091 502-115 (German/English) Further support information can be found here: www.hama.com

12. Recycling Information

Note on environmental protection: After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that aproduct is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.6
