USER MANUAL IGate Reer

max. 62mm max. 62mm

Mechanical assembly diagram showing a pin inserted into a housing with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a knob and arrow indicator (no text or symbols)

Close-up of a mechanical component with labeled parts (9 and g), no readable text or symbols present.

10 g

Mechanical assembly diagram showing components like gears, shafts, and levers (no text or labels)

Abbildungsverzeichnis // Illustration directory // Table des illustrations // Elenco delle illustrazioni // Tabla de ilustraciones // Overzicht van de afbeeldingen // Afbildningsliste // Bildförteckning // Spis ilustracji // Seznam obrázků

DE Klemmgitter I-Gate, Auto-Close
EN Clamped gate I-Gate, Auto-Close
FR Barrière de sécurité à serrage I-Gate, Auto-Close
⑪ Barriera a fissaggio I-Gate, Auto-Close
ES Rejas de sujeción I-Gate, Auto-Close
NL Klemhekje I-Gate, Auto-Close
DA Klemgitter I-Gate, Auto-Close
sv Klämgrind I-Gate, Auto-Close
PL Rozporowa bramka I-Gate, Auto-Close
cz Upínací mříž I-Gate, Auto-Close // Art.Nr. 46302

Close-up of a wall-mounted pipe fitting inserted into a window (no text or symbols visible)

Close-up of a black cylindrical device with a green indicator light, no visible text or symbols

Close-up of a mechanical lever or lever with pivot point (no visible text or symbols)

Gebrauchsanleitung // Instructions // Mode d'emploi // Istruzioni per l'uso // Manual de instrucciones // Gebruiksaanwijzing // Brugsvej-ledning // Bruksanvisning // Instrukcja obsługi // Návod k použití

Simple line drawing of a metal safety cage with vertical bars and connectors (no text or symbols)

	Seite		Seite
Inhaltsverzeichnis	Teileliste	03	Aufbauanleitung	05
	Produktinformationen	04	Zubehör	07
	Sicherheitshinweise	04
Table of contents	page		page
	Parts list	08	Installation instructions	10
	Product information	09	Accessories	12
	Safety notes	09
Table des matières	page		page
	Liste des pièces	13	Notice de montage	15
	Informations sur le produit	14	Accessoires	17
	Consignes de sécurité	14
Sommario	pagina		pagina
	Lista delle parti	18	Istruzioni di montaggio	20
	Informazione sul prodotto	19	Accessori	22
	Precauzioni per l'uso	19
Índice	pagina		pagina
	Lista de las piezas	23	Instrucciones de montaje	25
	Información del producto	24	Accesoris	27
	Advertencias de seguridad	24
Inhoudsopgave	pagina		pagina
	Lijst met onderdelen	28	Montage-instructies	30
	Productinformatie	29	Accessoires	32
	Veiligheidsinstructies	29
Indholds-fortegnelse	side		side
	Deleliste	33	Opbygningsanvisning	35
	Produktinformationer	34	Tilbehör	37
	Sikkerhedshenvisninger	34
Innehålls-förteckning	sidan		sidan
	Stycklista	38	Monteringsinstruktion	40
	Produktinformation	39	Tillbehör	42
	Säkerhetsanvisningar	39
Spis treści	strona		strona
	Lista części	43	Instrukcja montażu	45
	Informacje o produkcie	44	Akcesoria	47
	Wskazówki bezpieczeństwa	44
Obsah	stránka		stránka
	Seznam dílů	48	Návod k montáži	50
	Informace k výrobku	49	Příslušenství	52
	Bezpečnostní upozornění	49

Teileliste

2x a

Schrauben- gehäuse

3D rendered image of a gray mechanical bolt or nut (no text or symbols visible)

C

d

3D rendered mechanical part with a flanged end and central bore (no text or symbols)

efgh

Simple line drawing of a metal fence with vertical bars (no text or symbols)

1 x Türgitter 1 x Stopper

[Non-Text]

3D rendered mechanical part with no visible text or symbols

Schraubenschlüssel

benötigte Werkzeuge

Illustration of a screwdriver with a metallic tip (no text or symbols)

Abstract grayscale image with vertical bars and a horizontal bar, no text or symbols present

3D diagram of a metal fence with a red X-shaped symbol on top, labeled (A) (no text or symbols on the diagram itself)

Simple horizontal line with two vertical supports at both ends (no text or symbols)

3D rendered mechanical component with threaded end and flange (no text or symbols)

StairFlex

Art. Nr. 46906

Information

Architectural line drawing of a balcony with metal railing and support pillars (no text or symbols)

See illustration on cover page!

Parts list

2 x a

bodies of the fastening screws

3D rendered image of a gray mechanical component with flanged ends and a central hole (no text or symbols)

C

3D rendered mechanical part with no visible text or symbols, labeled 'green, yellow' below (text is illegible)

d

3D rendering of a mechanical component with flanged ends and a rectangular body (no text or symbols)

efgh

Mechanical component with a flanged end and bolted shaft (no visible text or symbols)

2 x Adjustment screws with lock wheel

[Non-Text]

3D rendered image of a metallic screw with threaded shaft (no text or symbols)

2 x Adjustment screws with nuts

C

4 x Wall shells

[Non-Text]

4 x Screws

j

k

Exterior view of a metal-framed safety railing with vertical bars (no text or symbols)

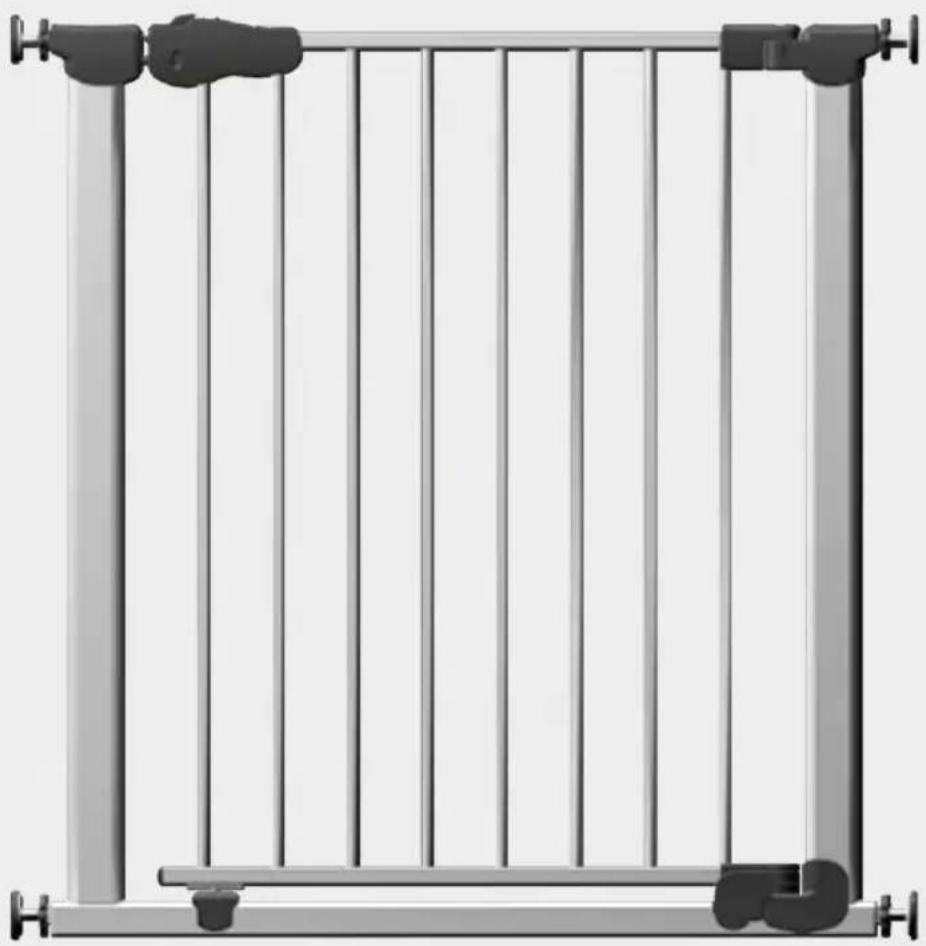

1 x Door gate 1 x Stopper

I

3D rendered mechanical part with no visible text or symbols

Wrench

Necessary tools

3D rendered image of a screwdriver with a pointed tip (no text or symbols)

m

Abstract grayscale image with vertical bars and a bright horizontal bar at the bottom (no text or symbols)

1 x Night-Safe (page 11)

IMPORTANT! PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE!

Product Information Art.No. 46302

• Material: Steel, Plastic
- Variable adjustment of the gate width from 77,5 - 83,5 cm
• Height mounted: 77 cm
• The gate closes automatically.
- Expandable with maximum 3 extensions per side

Opening width with mounted extension

1x Extension 83,5 cm - 90,5 cm
2x Extension 90,5 cm - 97,5 cm
3x Extension 97,5 cm - 104,5 cm
4x Extension 104,5 cm - 111,5 cm
5x Extension 111,5 cm - 118,5 cm
6x Extension 118,5 cm - 125,5 cm

If the safety gate is installed between two clean and structurally sound surfaces according to the instructions, it corresponds to the requirements of the directive EN 1930:2011.

WARNING: Incorrect installation may be dangerous.

WARNING: The child safety gate may not be used if damaged or if individual parts are missing.

WARNING: The child safety gate may not be used on windows.

WARNING: Never fasten without the wall fastening regulators! These are adhered or screwed on for surfaces that are not suitable for adhesion as described in the instructions.

ATTENTION:

• The safety gate is only suitable for children up to the age of 24-months.
• If you determine that your child is able to open the gate alone, respectively able to climb over it (individual child development), please do not continue to use the gate.
• Ensure that no objects are located near the safety gate, which your child could use as a climbing support.
• For older children, there is the risk that they will climb over it.
• Adults should also always open the door gate when wanting to pass and not step over it.
• The door gate should always be closed and locked and only opened when passing through.
• Older children may not swing on the gate door.
• After installation of the safety gate, please read the instructions again to ensure that the gate is installed and mounted properly.
• Check the gate for secure mounting and static stability on a regular basis. If necessary, adjust according to the indications in the instructions subsequently.
• Only spare parts and accessories supplied by the manufacturer may be used.
• Only use the item for the intended purpose and observe the safety notes.
• Upon indication of defects, discontinue use.
• Toys may not be hung on the safety gate.
• The child safety gate is suitable for household use only.

The safety gate is not a toy. It does not replace the proper supervision of an adult!

Cleaning: Do not use any harsh cleaning agents or abrasive materials. Clean the safety gate on a regular basis with a damp cloth and a little dishwashing liquid.

Note for installation in connection with extensions:

If you would like to install the door gate in connection with extensions, please start on page 11 and follow the instructions "Installation of Extensions".

English (EN)	Installation	ATTENTION: The gate must always open in the direction away from the hazard zone!In order to limit the opening direction, installation of the stopper (j) III. 1 is optional.
	____ Step 1	Insert the 4 screw housings (a, c, d) together with the adjusting screws (e) and (f) into the 4 corners of the gate. Please follow the instructions of III. 2 - 5 exactly when inserting the parts (a, c, d).Push the screw housings (c) only slightly in, so that the colours remain visible, III. 4.Push the screw housings (a) and (d) in completely, III. 2, III. 3, III. 5.Attention! The screw housings (a, c, d) do not have an inside thread. The screws are merely pushed in or pulled out.
	____ Step 2	Place the safety gate on the floor and make sure the gate stands upright in the middle of the doorway so that there is no more than 62mm between the safety gate and the door frame. III. 6.Pull the lower adjusting screws out evenly until they touch the mounting areas, III 7 and 8.Mounting the wall shells (g)

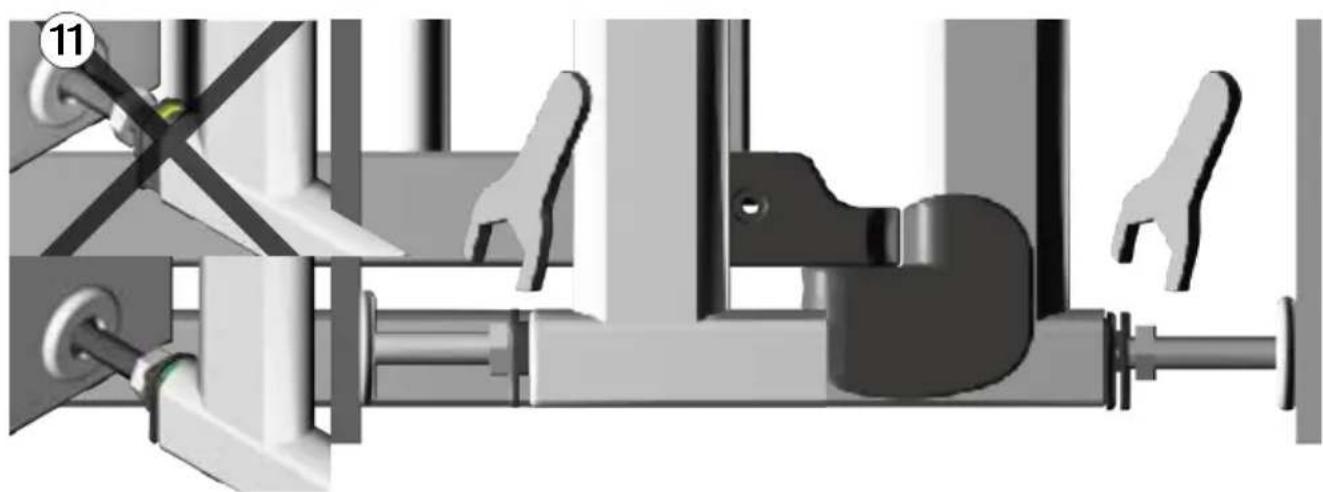

	ATTENTION!When is the screw connection of the wall shells necessary?	When is the screw connection of the wall shells (g) absolutely necessary?On a wooden surface -> with the included wood screws (h)On plaster or soft surfaces -> with suitable screws and wall anchors 1)Remove the protective foil on the adhesive surface on the back of the wall shells and place these between the adjustment screws and the mounting surface, III. 09 and 10.Tip: Make the mounting easier by only turning back the adjustment screw slightly on one side of the door gate whilst the opposite adjustment screws of the gate provide support on the mounting surface.
	adjusting the lower adjustment screws	Using the key tighten the nuts on the lower part evenly until the screw housing (c) is pressed into the frame so that only the green stripe is visible, III. 11.

1) not included in scope of delivery

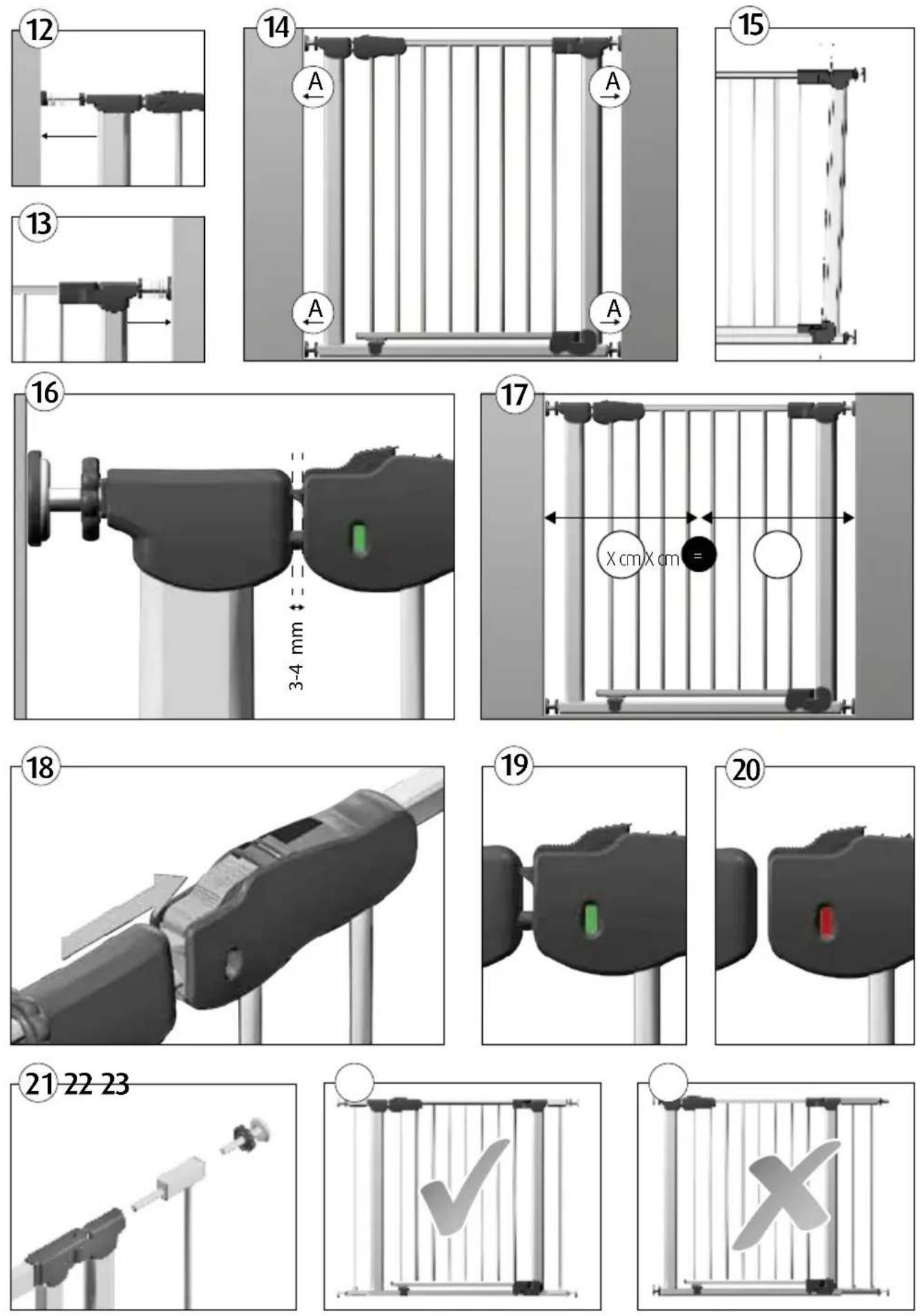

Step 3

Pull out the adjustment screw on the upper side of the door gate on the hinge side III. 13 until the distance between the wall and the gate frame is identical at the top and the bottom III. 14.

(The vertical rod of the door gate frame is equipped with a slight angle deviation in order to fit the door gate in the mounting opening under tension), III. 15.

Pull the adjustment screw at the top on the closure side of the gate until III. 12 the distance between the frame end cap of the frame and the handle mechanism is 3 - 4 mm, III. 16.

After tightening, check to ensure that the distance from the middle rod to the attachment surface is the same so that the rod is vertical, III.17.

Opening /Closing the gate

In order to open the door, press the release button of the closure lightly and push it back until the metal closure bolt withdraws from the bolt opening of the frame casing, III. 18.

To open, lift the gate element slightly. After passing, let go of the door. It swings back from any position and closes automatically.

Green indicator: Door securely closed, III. 19.

Red indicator: Danger - door not locked! Ill. 20.

When passed, ensure that the display is green.

Installation on stairs

ATTENTION!

Always open the gate away from the dangerous position! In order to limit the opening direction, installation of the stopper is optional.

(A) If the safety barrier is used at the bottom of the stairs, it should be positioned in the front of the lowest tread possible.

3D diagram of a metal fence with a red X-shaped symbol on top, labeled (A), against a gray background (no text or symbols beyond label)

Installation of the extensions (max. 6 pieces)

Usage of several extensions

Remove adjusting screws (e) and (f) and attach the extension part(s) to each side of the safety gate. Insert the adjusting screws into the extension(s). III. 21

When using several extension parts, divide them equally between the two gate sides, III. 22.

Never use the extensions only on one side! Ill. 23

Interlock the extensions. Insert the adjusting screws (e) and (f) into the last segment. Continue to assemble as described on page 10.

The fluorescent light rail Night-Safe that is glued to the bottom of the frame ensures safety in the dark. 30 minutes of daylight power it for 9 - 12 hours.

Accessories // optionally available

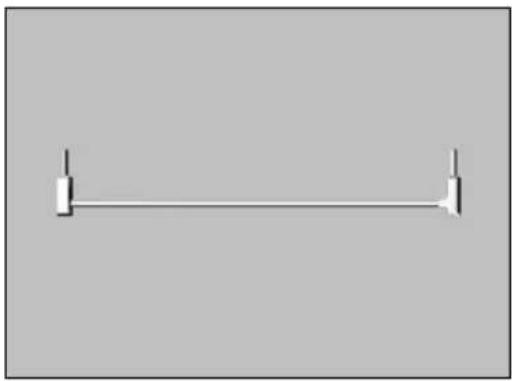

Extension

7 cm //Art.No. 46900/46901

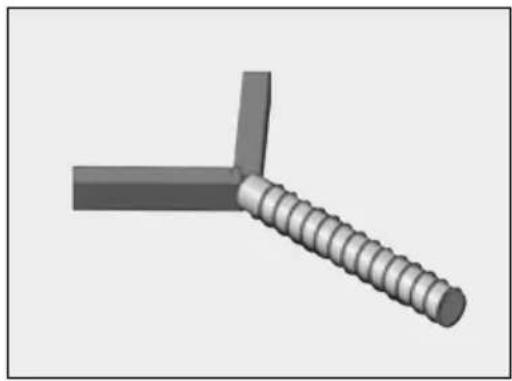

Y-Spindle

Art.No. 46905

Information

Suitable for the following clamping gates: 46730, 46302, 46340 and 46402. Available in the colours white and grey

Suitable for the following clamping gates: 46302, 46320, 46340 and 46402. The Y-Spindle allows for the installation of the clamping gate on round railing struts with a circumference of 0 - 80 mm.

Simple horizontal line with two vertical supports at both ends (no text or symbols)

3D rendered mechanical component with threaded end and flange (no text or symbols)

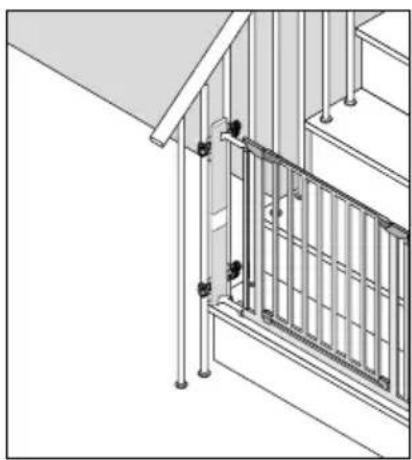

StairFlex

Art.No. 46906

Information

Suitable for all clamping and screwed gates. Solves almost every installation problem with stair railings. Installation on round or angular railing struts possible.

Architectural line drawing of a balcony with metal railing and support pillars (no text or symbols)

Please keep the sales receipt, operating manual and article number in a safe place. All claims based on warranty or guarantee are to be directed solely towards the retailer.
