USER MANUAL WX174.9 WORX

Technical line drawing of a handheld device with labeled components (no readable text or symbols)

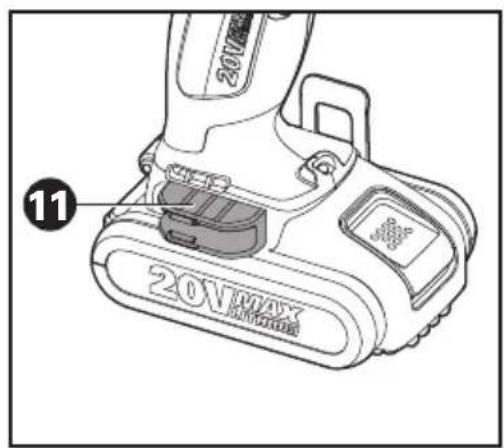

20V MAX 11

A1 100% 0%

A2 ① 20V MAX SINHON ②

A3

A4 20V MAX Schematic

B1 ① ② ③

B2 ① ② ③

C1 201

Line drawing of a person wearing a pants-wear device, no text or symbols present

C3 20V MAX MVR100

Line drawing of a 20V max vacuum cleaner device with labeled components (no text or symbols beyond branding)

D1

Technical line drawing of a mechanical component with a lock and concentric circular features (no text or symbols)

D3

E WORX

F1 WX174 : 1~15 WX367 : 1~18

F2 WX174 WX367

F3 WX367 20N4

G WORX 20N HTRX

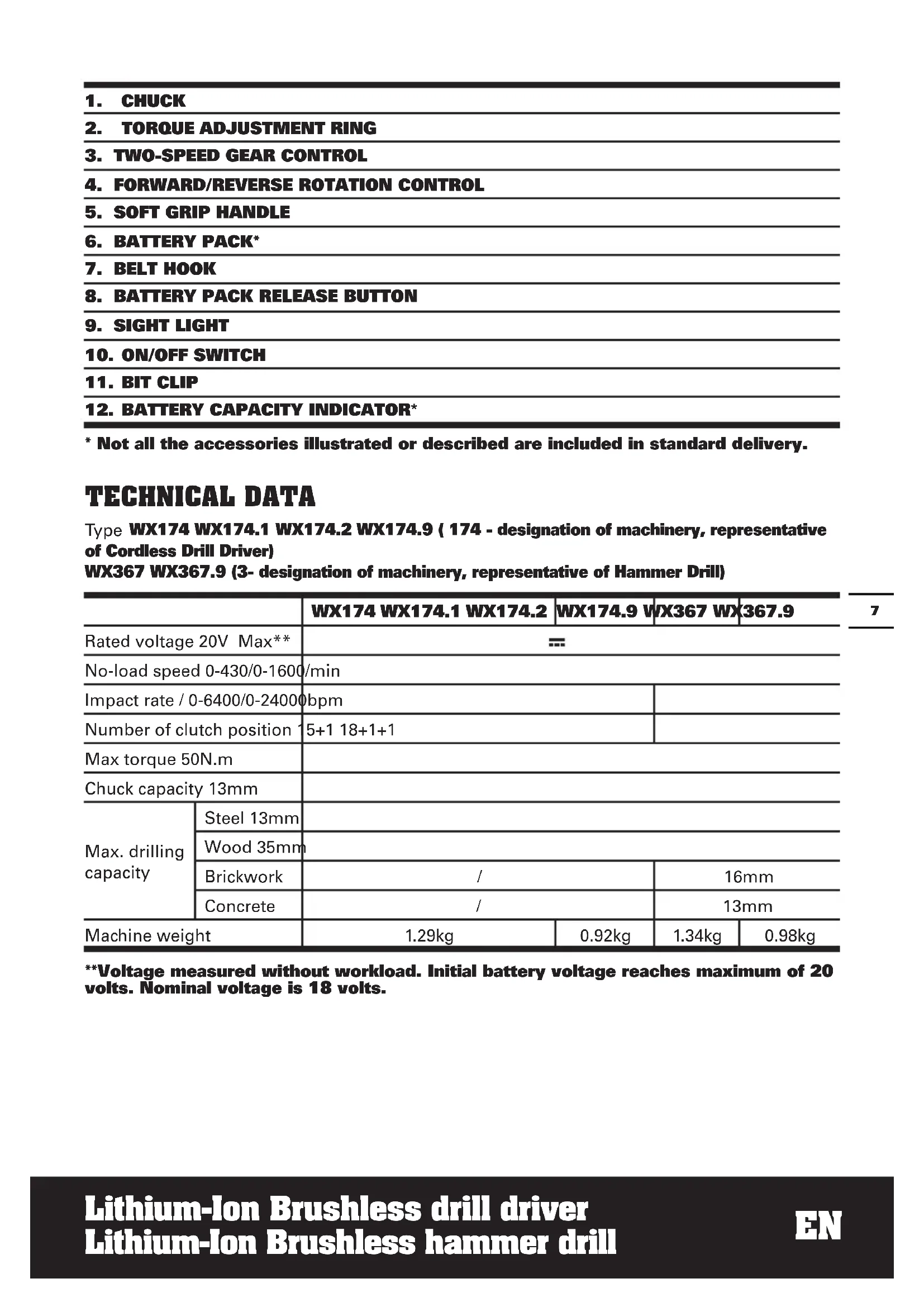

1. CHUCK

2. TORQUE ADJUSTMENT RING

3. TWO-SPEED GEAR CONTROL

4. FORWARD/REVERSE ROTATION CONTROL

5. SOFT GRIP HANDLE

6. BATTERY PACK*

7. BELT HOOK

8. BATTERY PACK RELEASE BUTTON

9. SIGHT LIGHT

10. ON/OFF SWITCH

11. BIT CLIP

12. BATTERY CAPACITY INDICATOR*

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX174 WX174.1 WX174.2 WX174.9 (174 - designation of machinery, representative of Cordless Drill Driver)

WX367 WX367.9 (3- designation of machinery, representative of Hammer Drill)

		WX174 WX174.1 WX174.2	WX174.9	WX367 WX	367.9
Rated voltage 20V Max**		==
No-load speed 0-430/0-1600/min
Impact rate / 0-6400/0-24000bpm
Number of clutch position 15+1 18+1+1
Max torque 50N.m
Chuck capacity 13mm
Max. drilling capacity	Steel 13mm
	Wood 35mm
	Brickwork	/		16mm
	Concrete	/		13mm
Machine weight		1.29kg	0.92kg	1.34kg	0.98kg

**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE INFORMATION

A weighted sound pressure L	_pA : xxdB(A)
A weighted sound power L	_wA : xxdB(A)
K_PA & K_WA	3.0dB(A)
Wear ear protection when sound pressure is over	80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Drilling into metal	Vibration emission value a_h = xxm/s^2
	Uncertainty K = 1.5m/ s^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool

is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ C or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX174	WX174.1	WX174.2	WX174.9	WX367	WX367.9
Charger 1 1 1 / 1 /
Battery Pack 2 2 1 / 2 /
Double Ended Bit 1 1 / 1 1 1
Hook	1 1 1	1 1 1
Bit clip	1 1 1	1 1 1
158pc accessories	/	/	1	/	/	/

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

DRILL SAFETY WARNINGS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws

or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at

normal room temperature (20°C ± 5°C).

m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.

n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Wear protective gloves

	Do not expose to rain or water.
	Do not burn
	Do not dispose of batteries, Re-turn exhausted batteries to your local collection or recycling point.
	Hammer drilling
	Screwdriving
[ZX5]	Drilling
	Wood
	Metal
	Brick
[A550]	High speed
	Low speed

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE (FOR WX174 WX174.1 WX174.2 WX174.9)

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

INTENDED USE (FOR WX367 WX367.9)

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION

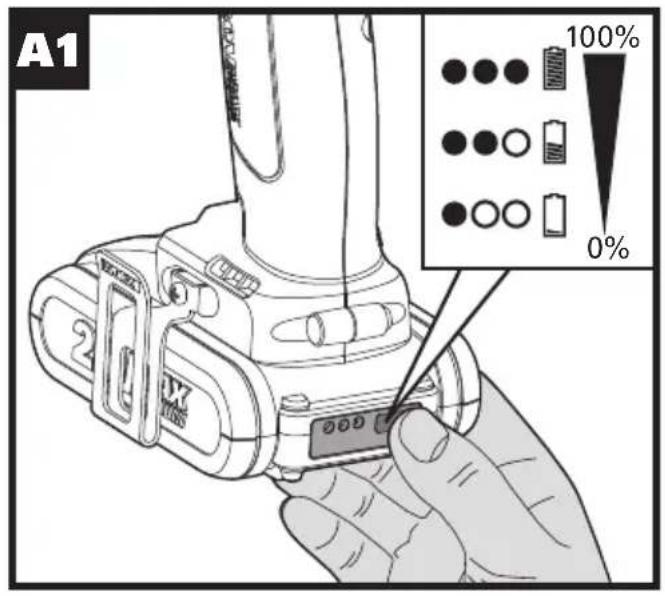

Checking the battery charge condition See Fig. A1

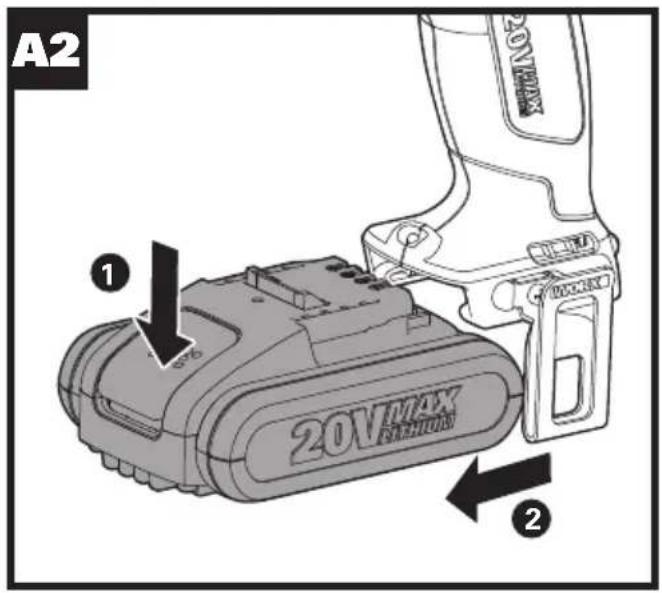

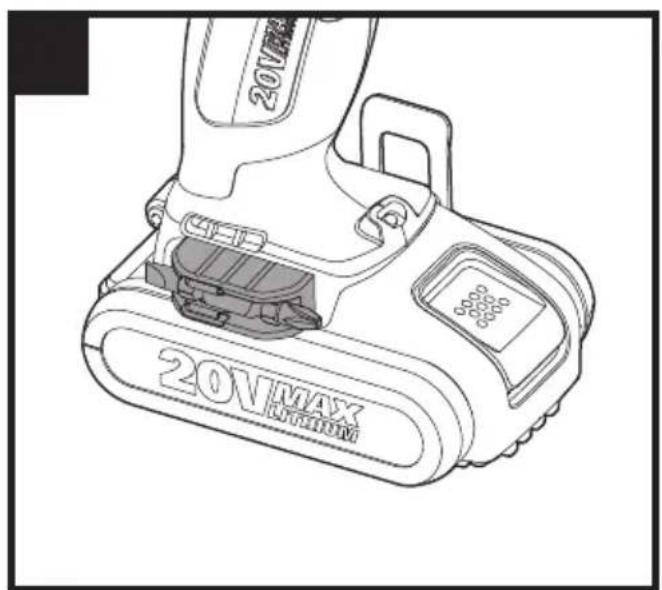

Removing the battery pack See Fig. A2

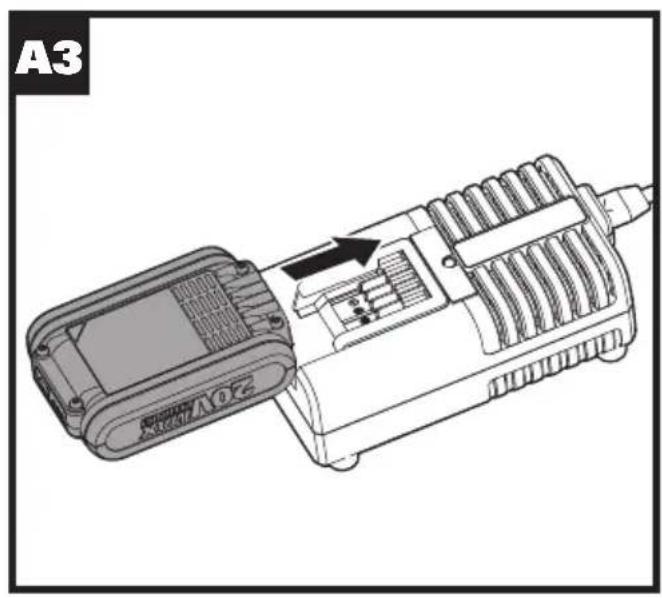

Charging the battery See Fig. A3

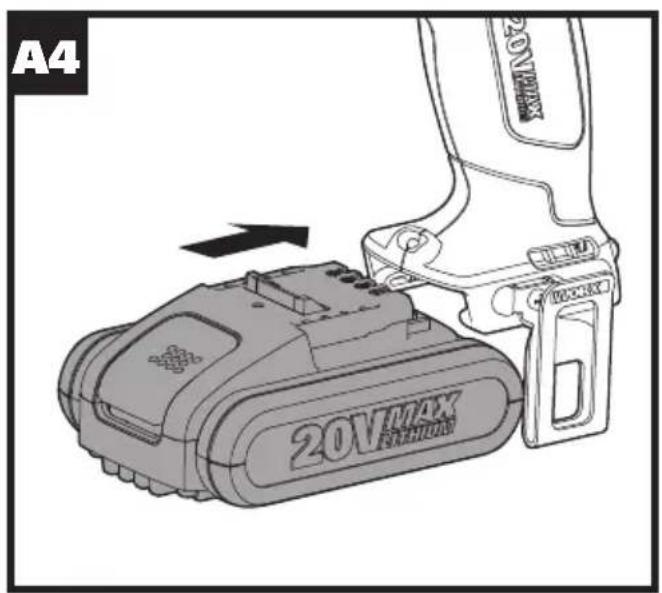

Installing the battery pack See Fig. A4
ASSEMBLY

CHUCK ADJUSTMENT

WARNING: Always lock off trigger switch and disconnect tool from power source when changing accessories. Always ensure the bit is secure before starting the tool. Damage to the k or a loose bit may cause possible personal injury.

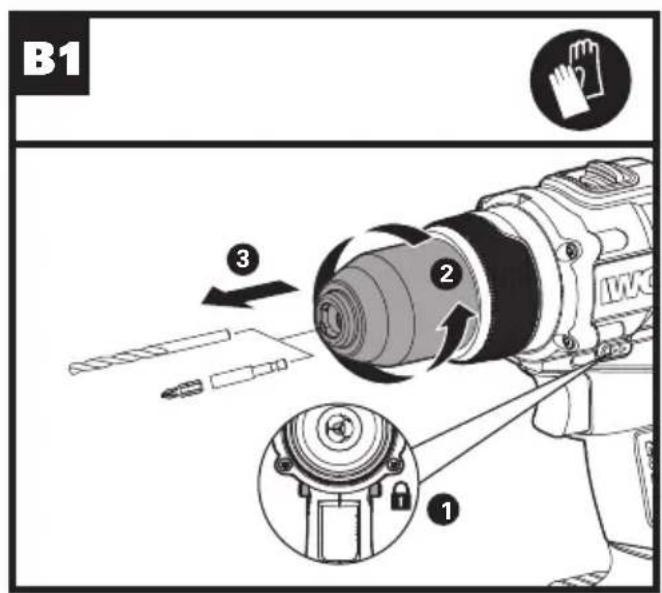

-- Removing the bits See Fig. B1

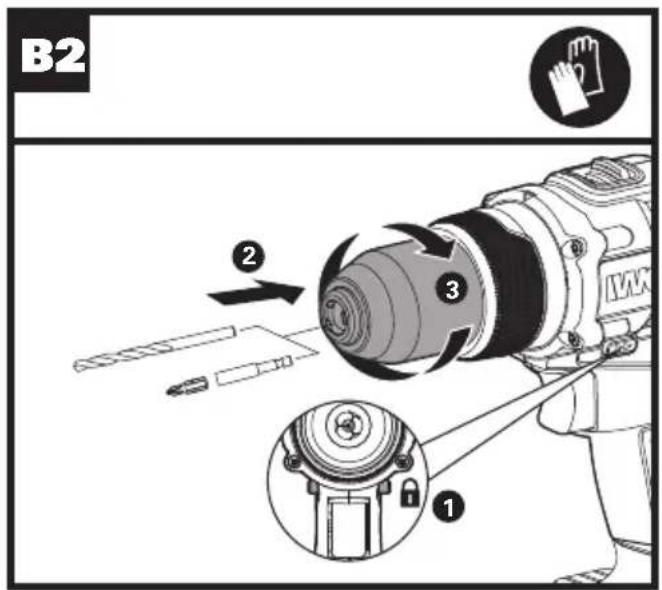

-- Inserting the bits See Fig. B2

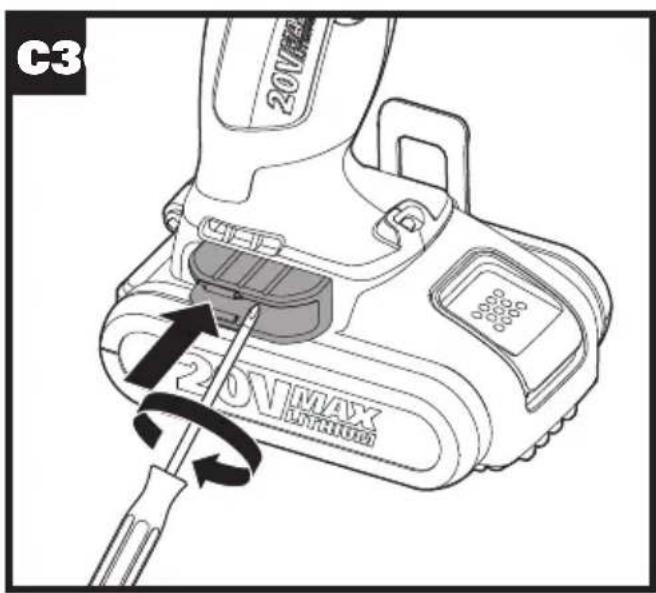

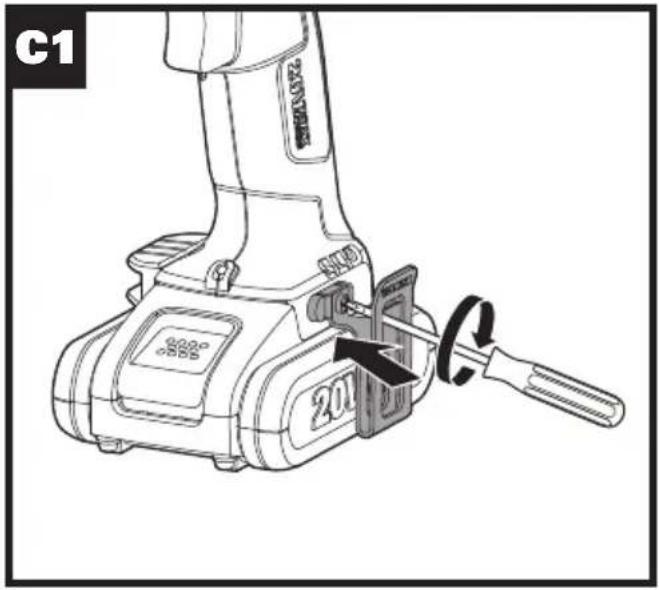

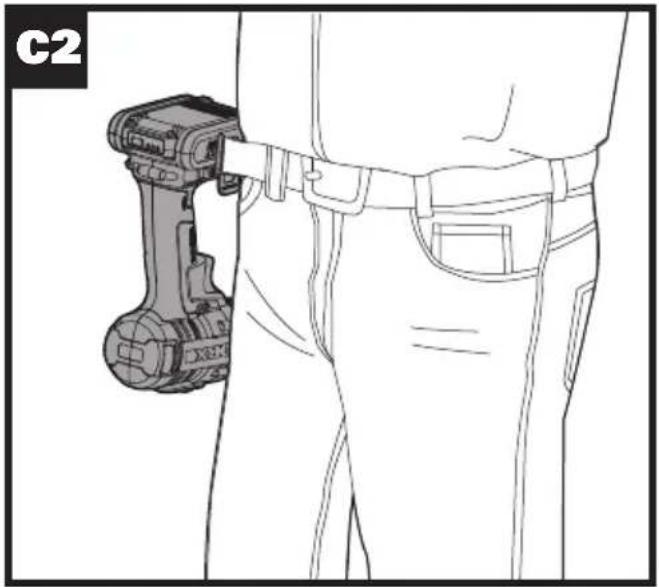

Assembling the belt hook and bit clip See Fig. C1, C2, C3, C4
OPERATION

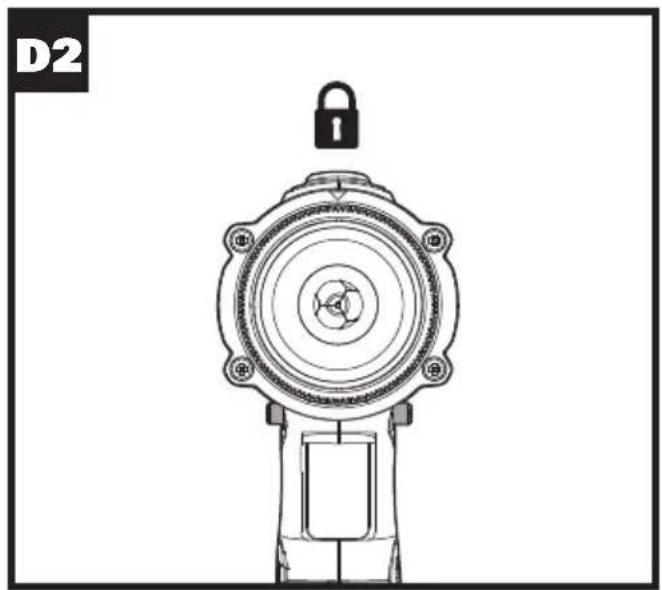

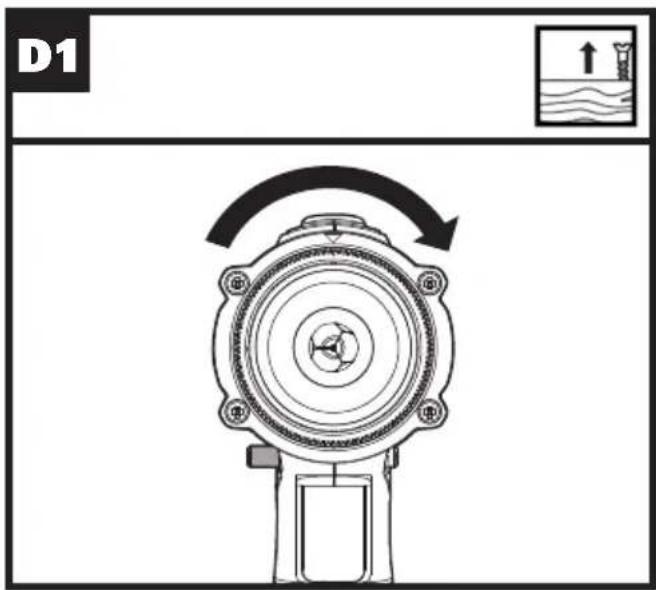

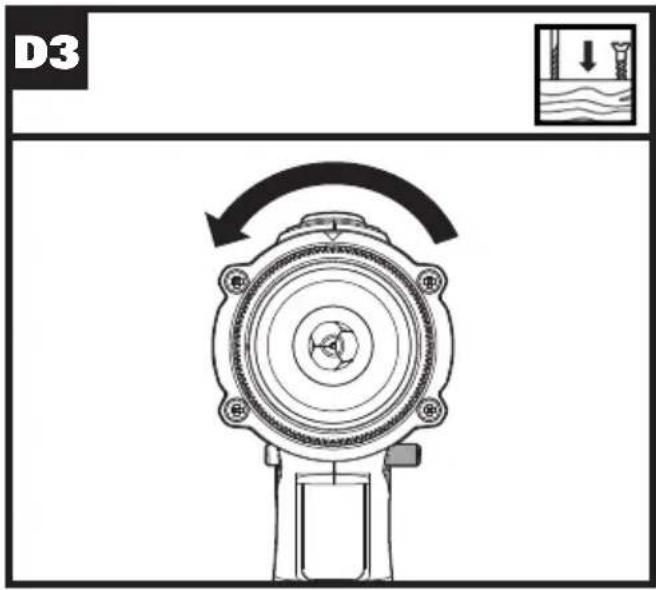

FORWARD/REVERSE ROTATION CONTROLWARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!	See Fig.D1, D2, D3

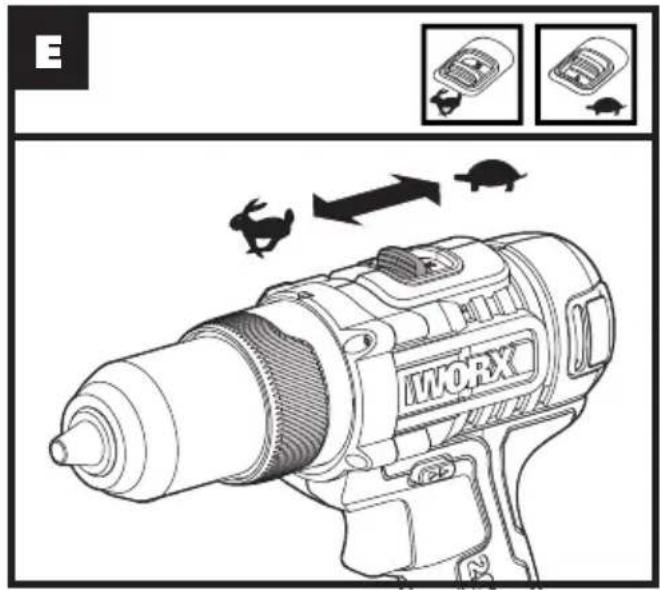

TWO-SPEED GEAR CONTROL	See Fig. E

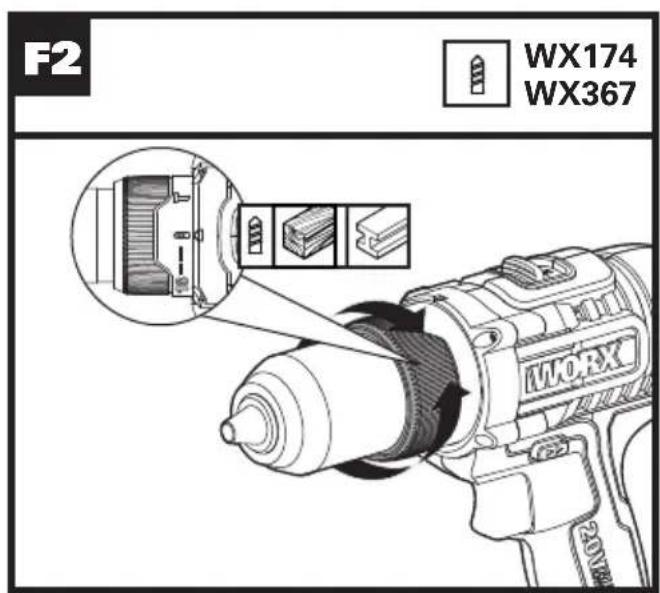

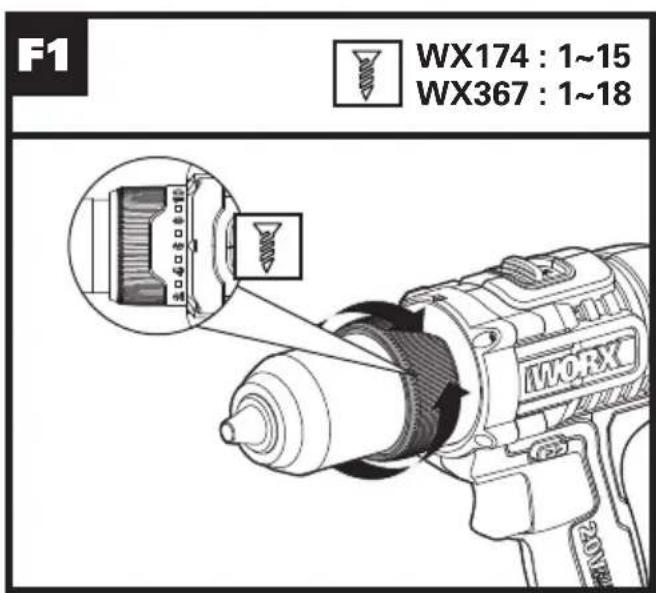

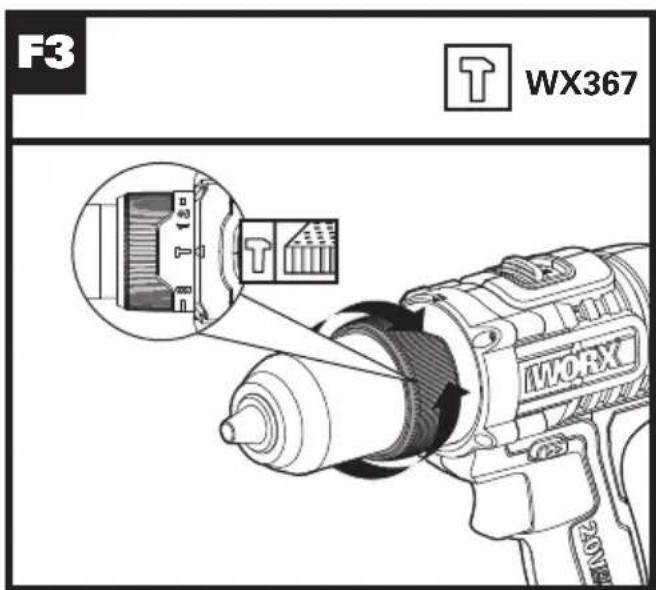

TORQUE ADJUSTMENT SCREWDRIVING, DRILLING, HAMMER DRILLING	See Fig. F1, F2, F3

WARNING: Do not operate for long periods at low speed because excess heat will be produced internally.

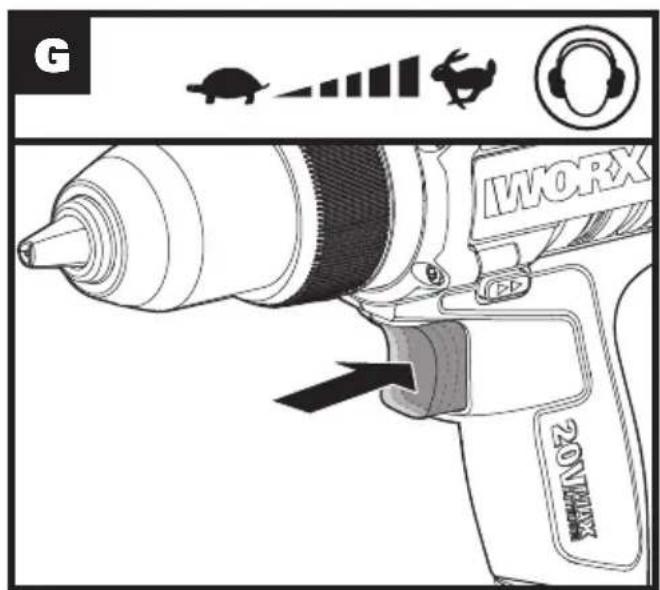

See Fig. G

LED LIGHT INDICATOR

Before operation, the LED light will be activated when the On/Off switch is slightly depressed, and will automatically turn off 20 seconds after the On/Off switch is released.

The tool and battery are equipped with a protection system. When the LED Light is quickly flashing and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.
• Overheated: Under the condition above, if the tool does not start, the Tool and Battery are overheated. In this situation, let the Tool and Battery cool before pulling the Trigger Switch again.
- Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

WARNING: To turn on the light, press the On/Off switch and make sure the Forward/Reverse Rotation Control is on right/left position.

PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The Forward and Reverse Switch, which is on top of the trigger, is positioned in the lock function. Unlock the Forward and Reverse Switch putting it into the required rotation position. Push the trigger and the drill will start to rotate (See Fig. B).

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the Torque Adjustment Ring, you can find the Torque Adjustment Ring between the Chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 15 (WX174)/position 18 (WX367) is the highest torque (screw driving force). Position 1 is for drill operation. Position 1 is for hammer drill operation. Regulate the Torque Adjustment Ring to a higher position to reach the best result (See Fig. E).

3. I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED Light should turn on when the battery is charging.

4. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a Battery Pack for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C and above 45°C as this will affect performance.

MAINTENANCE

Remove the Battery Pack from the tool before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description Battery-powered Drill

Type WX174 WX174.1 WX174.2

WX174.9 (174 - designation of

machinery, representative of Cordless Drill Driver)

WX367 WX367.9 (3- designation of machinery, representative of Hammer Drill)

Function Drilling/ Tightening and loosening screws, nuts

Complies with the following Directives,

2006/42/EC

2004/108/EC

2011/65/EU

Standards conform to:

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-1

EN 60745-2-2

The person authorized to compile the technical file,

Name: Russell Nicholson

Address: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#

C€

Suzhou 2015/06/11

Allen Ding

Deputy Chief Engineer, Testing & Certification

1. BOHRFUTTER

Name: Russell Nicholson

Adresse: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A# C E

Suzhou 2015/07/09

Allen Ding

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#o

CE

Suzhou 2015/07/09

Allen Ding

USO CONFORME ALLE NORME (PER WX174 WX174.1 WX174.2 WX174.9)

USO CONFORME ALLE NORME (PER WX367 WX367.9)

Codice WX174 WX174.1 WX174.2

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#

C€

Suzhou 2015/07/09

Allen Ding

VEILIGHEIDSWAARSCHUWINGEN VOOR BOOR

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#o

C€

Suzhou 2015/07/09

Allen Ding

PO Box 152, Leeds, LS10 9DS, UK

A##

C€

Suzhou 2015/07/09

Allen Ding

	WX174	WX174.1	WX174.2	WX174.9	WX367	WX367.9
Încărcător 111/1/
Acumulator 221/2/
Capete Duble 11/1	1	1
Cârlig	1	1	1	1	1	1	1
Clemă de burghiu	1	1	1	1	1	1	1
158 accesorii	/	/	1	/	/	/	/

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A##

C€

Suzhou 2015/07/09

Allen Ding

Adjunct Inginer şef, Testare si certificare

1. SKLÍČIDLO
2. KLUZNÁ SPOJKA
3. OVLÁDÁNÍ PŘEVODŮ
4. PŘEPÍNAČ SMĚRU OTÁČENÍ, BLOKOVÁNÍ SPÍNAČE
5. RUKOJEŤ PRO UCHOPENÍ NÁŘADÍ
6. AKUMULÁTOR*
7. HÁČEK NA ŘEMEN
8. ZÁPADKA JEDNOTKY BATERIÍ
9. OSVĚTLENÍ LED
10. VYPÍNAČ
11. PŘÍCHYTKA NÁSTROJŮ
12. INDIKÁTOR KAPACITY BATERIE*

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#o

CE

Suzhou 2015/07/09

Allen Ding

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A#

C€

Suzhou 2015/07/09

Allen Ding

ÂMBITO DE UTILIZAÇÃO (PARA WX174 WX174.1 WX174.2 WX174.9)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

A# C E

Suzhou 2015/07/09

Allen Ding

Ltd, PO Box 152, Leeds, LS10 9DS, UK

M C

Suzhou 2015/07/09

Allen Ding

NAMEN UPORABE (ZA WX367 WX367.9)

Ime: Russell Nicholson

Naslov: Positec Power Tools (Europe) Ltd,

PO Box 152, Leeds, LS10 9DS, UK

M C E

Suzhou 2015/07/09

Allen Ding

you've got the power

www.worx.com

Copyright © 2015, Positec. All Rights Reserved.
