USER MANUAL CDI 5153E10S CANDY

Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability.

Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers.

Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher.

For future reference please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE

Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical breakdown excluding:

A. Any faults which occur due to bad installation or misuse of the machine.
B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service.
C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts.
D. Any faults arising from non-domestic use or unusual or abnormal use of the machine.
E. Any faults arising from operation at incorrect voltage.
F.Any faults arising from incorrect operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number:

GIAS Service

Tel: [phone]

Support Service

(Eire 018301 666)

CONTENTS

Description of the control panel pag. 13

Technical data pag. 13

Programme selection and special functions pag. 14

Programme guide pag. 18

The Waterblock system pag. 20

Water softener unit pag. 21

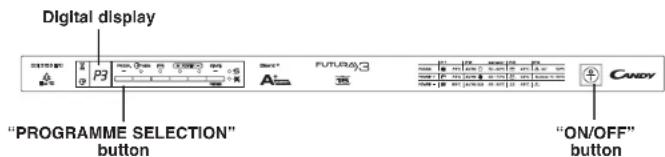

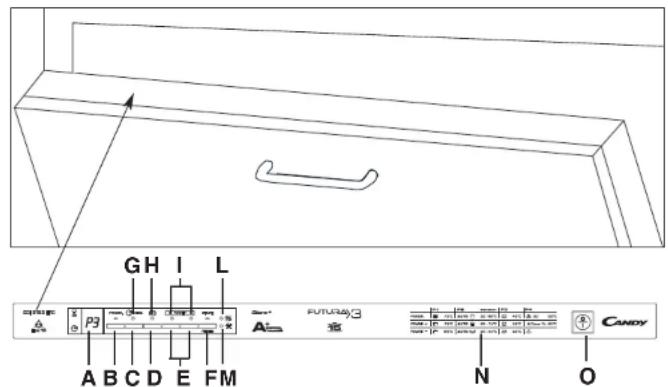

DESCRIPTION OF THE CONTROL PANEL

A DIGITAL DISPLAY G "DELAY START" indicator light
B "PROGRAMME SELECTION" button H "OPTION SELECTION" light
C "DELAY START" button "DEGREE OF SOILING" lights
D "ALL in 1" option button L "SALT EMPTY" light
E "DEGREE OF SOILING" buttons M "RINSE AID EMPTY" light
F "START"/"RESET" button (start/cancelling programme)

DIMENSIONS:

Height cm 82÷90
Depth cm 55
Width cm 59,8
Depth with door open cm 117

TECHNICAL DATA:

EN 50242 place load 15
Capacity with pans and dishes 9 persons
Water supply pressure Min. 0,08 - Max 0,8 MPa
Fuse (see rating plate)
Power input (see rating plate)
Supply voltage (see rating plate)

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use In conjunction with programme guide)

IMPORTANT

The dishwasher has two very practical functions:
- the "recommended" programme (which is set in the factory and is ideal for full-load daily use) for quick and accurate selection;
the memory function which saves the last programme used, so that if you regularly use the same washing cycle, you do not have to re-set the programme every time, thereby saving time and effort.

"DEGREE OF SOILING" buttons

+ POWER -

These buttons allow to modify the wash intensity, according to how dirty the dishes are. The wash time and temperature will be modified.

Pressing the button + the intensity of wash will be increased, pressing the button - the intensity of wash will be reduced and the wash time will be remarkably shorter.

The combination of the buttons with the 4 main wash programmes enable to have 8 additional wash cycles.

IMPORTANT

When the dishwasher is switched on, the "DEGREE OF SOILING" last used will be indicated.

Programme settings

• Open the door and place the dirty dishes inside the appliance.
  Press the "ON/OFF" button. The display will show the recommended programme, or the last programme used.
  To set another programme, press the "PROGRAMME SELECTION" button ("PROGR").

If you wish to choose the "DEGREE OF SOILING", press the corresponding button.
If you wish to select an option, press the option button (the corresponding indicator light will light up).

The option button can be selected or deselected WITHIN one minute of the programme commencing.

Press the "START" button.
The length of the program will be shown on the display alternating hours with minutes [i.e.: 1 h (1 hour) / 25 (25 minutes)].
- Close the door (after an audible signal has sounded, the programme will start automatically).

WHITIN one minute of the programme commencing, another programme can be selected, by pressing the "PROGRAMME SELECTION" button (it is also possible to change the "DEGREE OF SOILING" setting).

"AUTOMATIC" programmes

The dishwasher is equipped with a dirt sensor, able to analyse water murkiness during all "AUTOMATIC" programme phases (see programme list); thanks to this sensor the washing cycle parameters are automatically adapted to the real quantity of dirt on dishes. Thus excellent washing results are guaranteed while optimising water and energy consumption.

"IMPULSE" programmes

The "IMPULSE" programmes use an impluse washing technology, which reduces consumption, noise and increases performances.

IMPORTANT

The "Intermittent" working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the Impulse washing so must be considered a normal function of the programme.

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running programme:

Open the door.
Hold the "RESET" button down for at least 5 seconds (the running programme will be cancelled).
The display will show the "recommended" programme.
At this point a new programme can be set.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser.
If necessary, top up the dispenser.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.
Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for a new cycle.

Option buttons

"ALL in 1" button

This option optimises the use of "ALL in 1" ("3 in 1"/ "4 in 1"/"5 in 1", etc.) combined detergents. By pressing this button, the selected washing programme is modified to get the best performance from combined detergents; furthermore, the salt and rinse aid shortage lights are de-activated.

WARNING!

Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again.

IMPORTANT

When this option is selected, the "RAPID" cycle Is 10 minutes longer.

"DELAY START" button 1-23h

Dishwasher start time can be set with this button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

Press the "DELAY START" button ("00" will appear on the display).
Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23). The "DELAY START" indicator light will turn on.
To start the countdown press the START button (the DELAY START indicator light will start to flash). At the end of the countdown, the programme will automatically start (the DELAY START indicator light will turn off).

If you wish to see which programme has been selected, press the "PROGRAMME SELECTION" button.

Proceed as follows to cancel a delayed start:
Hold the "RESET" button down for at least 5 seconds.
The delayed start and the selected programme will be cancelled. The display will show the "recommended" programme.
At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

IMPORTANT The dishwasher must be ALWAYS off before start this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time, 2 audible signals will sound).
3. Release the button when the second audible signal sounds ("b") will appear on the display to indicate that the alarm is on).
4. Press the same button again ("bo" will appear on the display to indicate that the alarm is off).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

The dlshwasher Is able to signal a series of faults in the display.

AUTOMATIC FAULT SIGNALS

FAULTS CAUSE SOL	UPTION
E2 appears on the display and the alarm sounds.	No water (inlet hose closed).	Turn off the dishwasher, open the inlet hose and reset the cycle.
E3 appears on the display and the alarm sounds.	The machine cannot drain water.	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E4 appears on the display and the alarm sounds.	Water leak	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E5,E6,E7,Ef or EL appears on the display and the alarm sounds.	Electronic control fault.	Contact Customer Service.
E8 or EI appear on the display and the alarm sounds.	The water heating element is not working correctly or the filter plate is clogged.	Clean the filter plate.If the problem persists, contact Customer Service.

PROGRAMME GUIDE

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

/ 巧 = "AUTOMATIC" PROGRAMMES ARE OPTIMISED THANKS TO THE DIRT SENSOR THAT ADAPTS WASHING PARAMETERS TO DISH DIRT LEVELS.

POWER +	-	Hygienic 75°C	An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies' bottles etc.
PROGR. P1	-	INTENSIVE 75°C	Once a day - for heavily soiled pans and any other items that have been left all day for washing.
POWER -	-	Strong & Fast 65°C	Intended for rapid washing of very dirty dishes.
POWER +	-	AUTO Universal plus 65 - 75°C	Intended for everyday dishwashing. Two final rinses ensure a high level of hygiene and cleanliness.
PROGR. P2	-	AUTO UNIVERSAL 50 - 60°C	("RECOMMENDED" PROGRAMME) Once a day - for normal soiled pans and any other items that have been left all day for washing.
POWER -	-	AUTO Daily 45 - 55°C	Fast cycle, for "normally" dirty dishes - Intended for frequent washes and normal loads.
POWER +	-	Night 55°C	Quietest washing cycle. Ideal for functioning by night and for taking advantage of reduced energy fares.
PROGR. P3	ECO	ECO 45°C	Energy Saving Programme suitable for normal soiled items. Using detergents with enzyme. Programme standardised to EN 50242.
POWER -	-	Delicate 45°C	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.
POWER +	Class	A Class 1h 65°C	Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load). - WASHING CLASS A-
PROGR. P4	R	RAPID 32' 50°C	Quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons.
POWER -	-	Pre-wash	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

Check list				Programme contents				Average duration in minutes	Special function buttons available
Detergent for soaking (Prewash)	Detergent for washing	Clean filter	Check rinse aid dispenser	Hot pre-wash	Cold pre-wash	Main wash	First cold rinse	Second cold rinse	With cold water (15°C)*-Tolerance ± 10%	"DELAY START" button
										"ALL in 1" button

* WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLY DISPLAYED WHILE THE PROGRAMME IS RUNNING. "IMPULSE"programmes = "AUTOMATIC"programmes

THE WATERBLOCK SYSTEM

The waterblock system has been designed to improve the safety of your appliance, particularly when the machine is left unattended.

The waterblock system actually prevents flooding which might be caused by a machine malfunction or as a result of a fracture on the pipes.

How does waterblock work

The sump located in the base of the appliance collects any possible water leakage and operates a sensor which subsequently activates a valve placed under the water tap and stops any water from the supply even with the tap fully opened. If the box containing the electrical parts is damaged, remove the plug from the socket immediately.

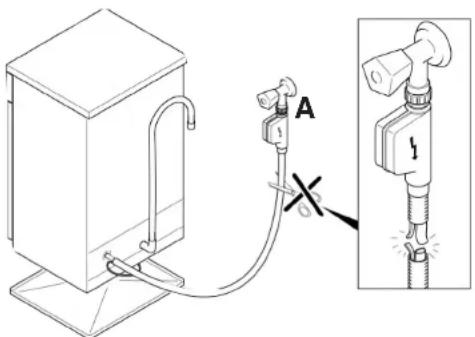

To ensure perfect operation of the safety system, box "A" with the hose, should be connected to the tap as shown in figure "1". The inlet hose should not be cut, as it contains parts under load. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent.

This dishwasher is also equipped with an anti-overflow safety device which, if water exceeds normal levels due to malfunctions, automatically blocks water flow and/or drains excess quantities.

Fig. 1

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

The water softener can treat water with a hardness level of up to 90^ (French grading) or 50^ (German grading) through 8 settings.

The settings are listed in the table below:

Level	Water hardness		Use of reagent	Water softener setting
	%H (French)	%H (German)
0	0-5	0-3	NO	d0
1	6-10	4-6	YES	d1
2	11-20	7-11	YES	d2
3	21-30	12-16	YES	d3
*4	31-40	17-22	YES	d4
5	41-50	23-27	YES	d5
6	51-60	28-33	YES	d6
7	61-90	34-50	YES	d7

• The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users.

Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

IMPORTANT

The dishwasher must be ALWAYS off before start this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL a brief audible signal sounds. The current water softener setting level will be shown on the display.
3. Press the same button again to select the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Enhorabuena,

Programmes "IMPULSE"

Touche "DEPART DIFFERE" 1-23h

These Option options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These option versions are available in the following sections. These option options are available in the following sections. These optionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.These optionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Theseoptionversionsareavailableinthefollowingsections.Thetechnical information on these options is provided at www.mcc.com/News/News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News-News

ACHTUNG

Program overslgt slide 58

Waterblock slide 60

Blodgrolingsanlagget slide 61

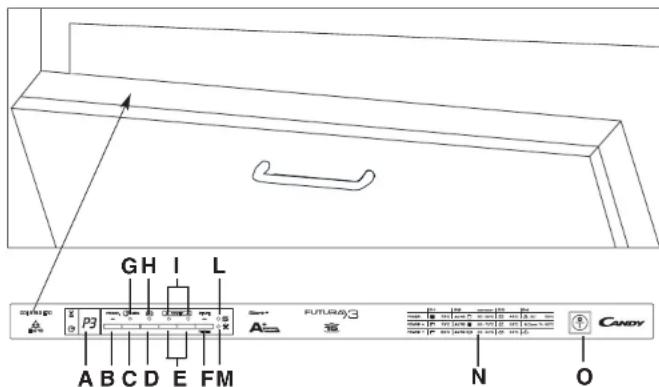

BESKRIVELSE AF BETJENINGSPANEL

A DIGITALT DISPLAY

B "PROGRAMVALG"-knappen
C "UDSKUDT START"-knappen
D "ALL in 1"-funktionsknappen
E "TILSMUDSNINGSGRAD"-knapper
F "START"/"RESET"-knappen (programigangsæting/-annullering)

G "UDSKUDT START"-indikator
H "FUNKTIONSVALG"-indikator
"I"TILSMUDSNINGSGRAD"-indikatorer
L Kontrollampe for "MANGLER SALT"
M Kontrollame for "MANGLER AFSPENDINGSMIDDEL"
N Programvejledning
O "T/END/SLUK"-knappen

DIMENSIONER:

LiSta over program slda 68

Waterblock slda 70

Vattenavhardsida 71

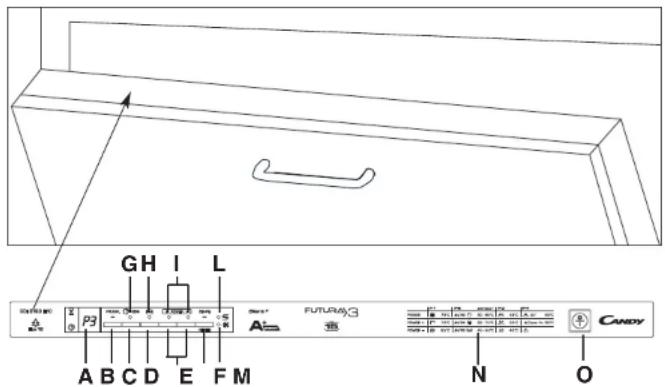

BESKRIVNING AV PANEL
