WELCOME

This installation manual is intended for kitchen manufacturers who will accommodate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children.

NOTE: The features and images contained in this document are for reference only and may change without notice.

Index

1 safety notices for installation

2 Where to install the dishwasher p.3

3 Dishwasher dimensions p.4-5

4 Step-by-step installation video p.6

5 installation tools p.6

6 Built-in dimensions p.7

7 Instructions for dishwasher installation p.8 - 17

7.1 Installation of the anti-steam strip 7.2 Height adjustment 7.3 Adjustment of the rear foot 7.4 Adjustment of the front feet height 7.5 Tilt adjustment 7.6 Insertion into the built-in compartment 7.7 Fixing the front feet 7.8 Preparation of the panel 7.9 Installation of the panel 7.10 Fixing the machine to the kitchen

8 Connection to water and electrical network p.18 - 19

8.1 Connection diagram

8.2 Safety devices

9 Delivery to the user p.19

10 Dishwasher disassembly p.19

1 Safety warnings for installation

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

  • The installation must be carried out by a qualified technician who must be aware of and comply with the laws in force in the country of installation and the manufacturer's instructions;
  • If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the fix;
  • Remove the packaging material before operating the appliance;
  • After unpacking the product, check that it is not damaged and, in case of problems, contact the service center before proceeding with installation and do not connect it to the power supply;
  • A damaged product can cause a short circuit, electric shock, fire hazard, and other dangers;
  • Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;
  • Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
  • Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
  • During installation, the appliance must not be connected to the power supply;
  • It is recommended to wear protective gloves during installation to avoid cut injuries;
  • In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
  • Make sure that when the product's power supply cable is completed, it is not accessible; • After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stresses;
  • When delivering the product to the end user, the technician must ensure that it has been installed correctly;
  • Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard; • Take care during transport, the product is heavy;
  • Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;
  • Make sure the installation area is stable and solid;
  • Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity;
  • Be careful when opening and closing the product;
  • Incorrect installation can cause the product to tip over;
  • The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

2

• Install and use this product in a closed, covered, dry, and well-ventilated environment; - Do not install the product in open environments exposed to atmospheric agents; • Install the product near an electrical outlet; - Use the product only when placed in a recessed compartment, otherwise you risk injury and burns; - Do not install the dishwasher under a cooktop; - Do not install the product near heat sources (radiators, stoves, etc.); - Do not place the product on carpets or similar surfaces; - Place the product on a clean, level, and stable surface.

3 Dishwasher dimensions

Dimensions in mm

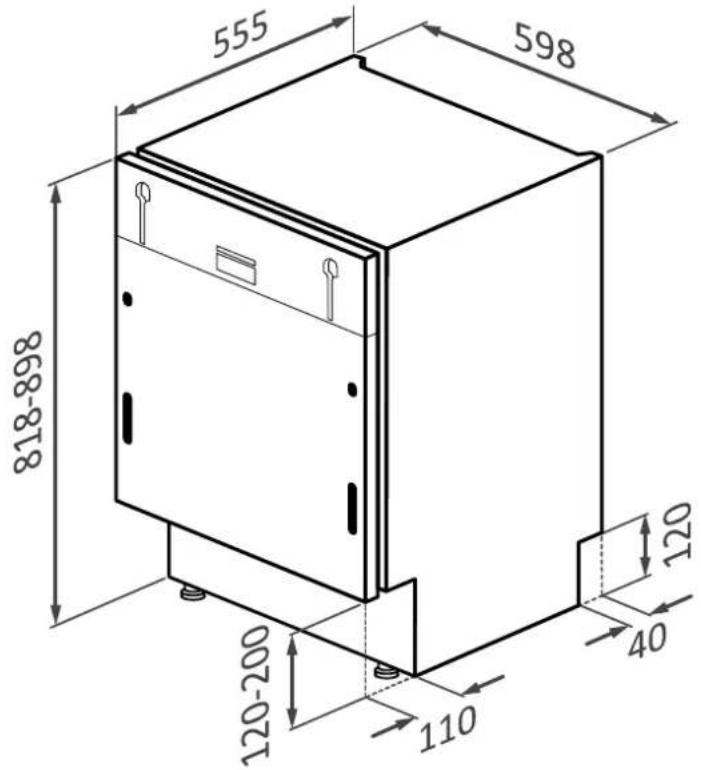

Front axonometric view of the product

555, 598, 818-898, 120-200, 110, 40, 120

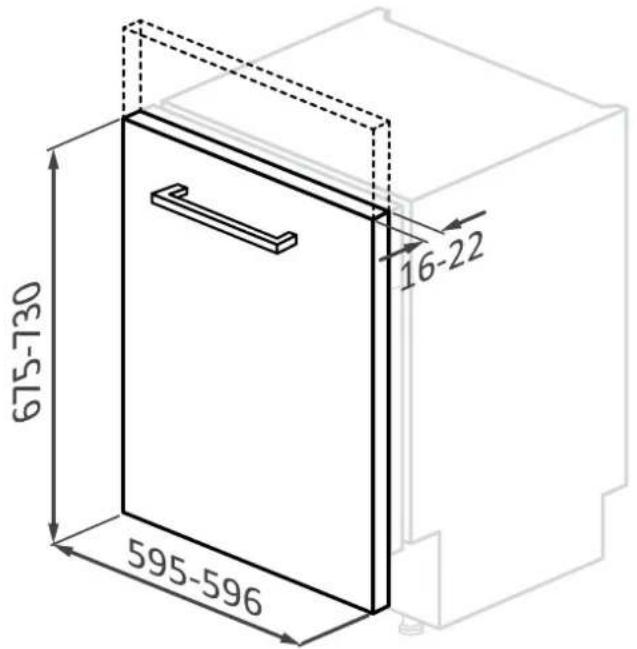

Front axonometric view with kitchen door

675-730, 595-596, 16-22

CANDY CI 4B4F1A - Dishwasher dimensions - 3

⚠ WARNING: if the kitchen panel weighs more than 9 kg contact customer service.

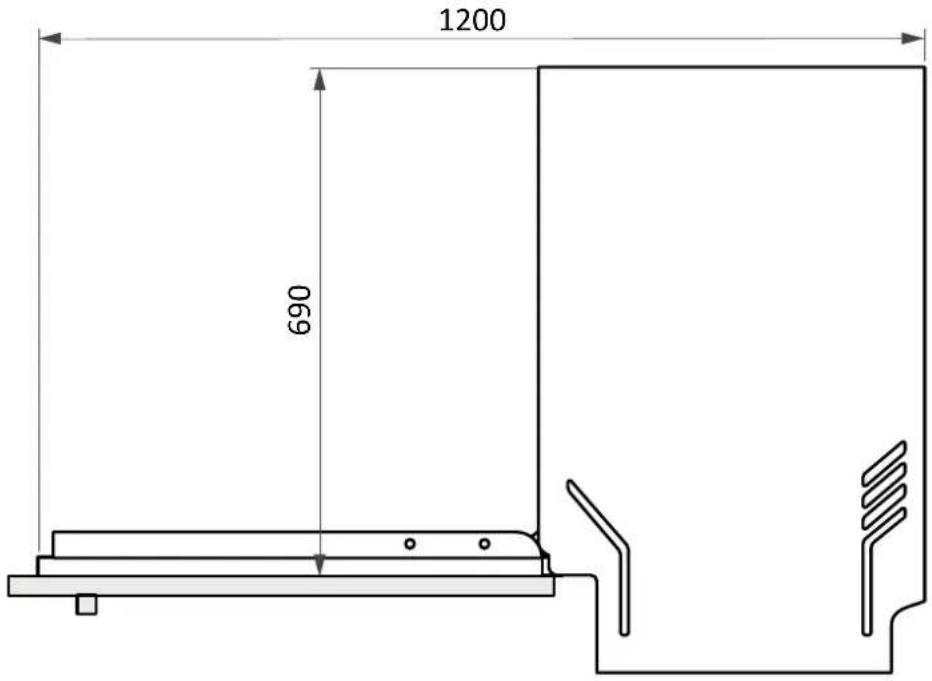

Dimensions in mm

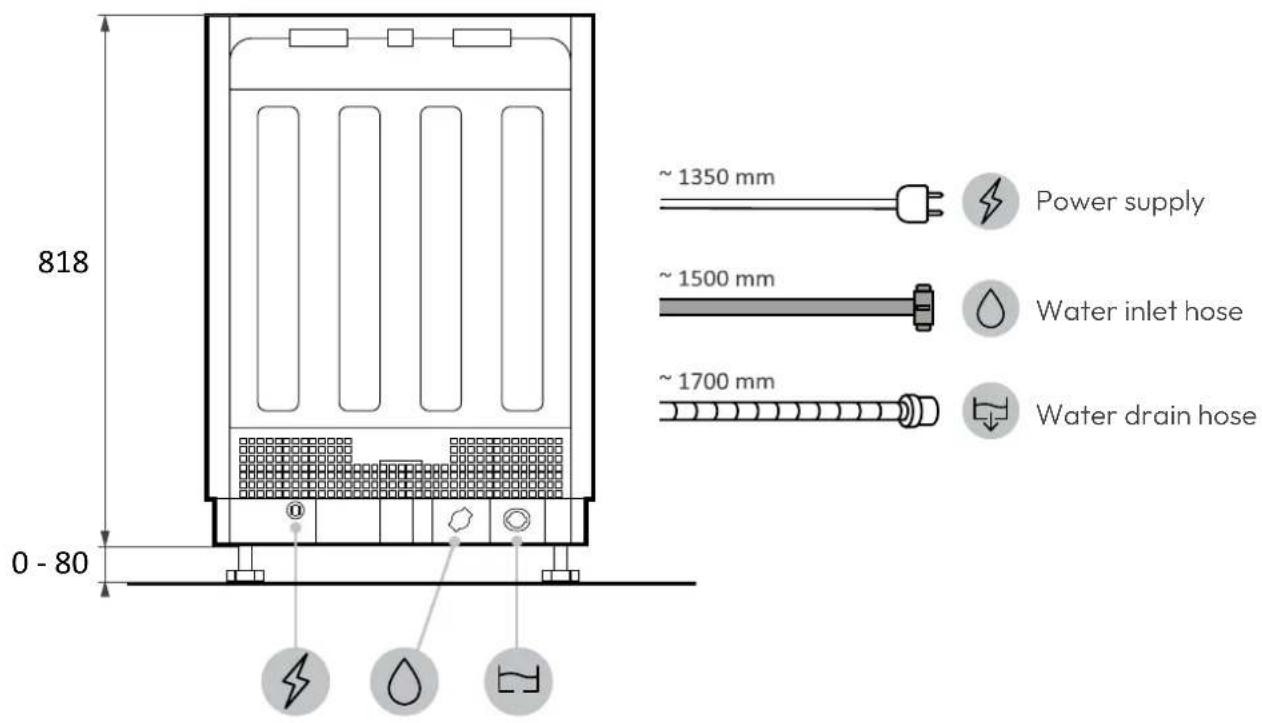

Back view818, 0-80, ~1350 mm, Power supply, ~1500 mm, Water inlet hose, ~1700 mm, Water drain hose

Side view1200, 690

4 Step-by-step installation video

You can watch the product installation video by scanning the QR Code:

QR code image containing encoded data, no visible human-readable text

or by clicking thisCANDY CI 4B4F1A - Step-by-step installation video - 2

2-3h

5 Installation tools

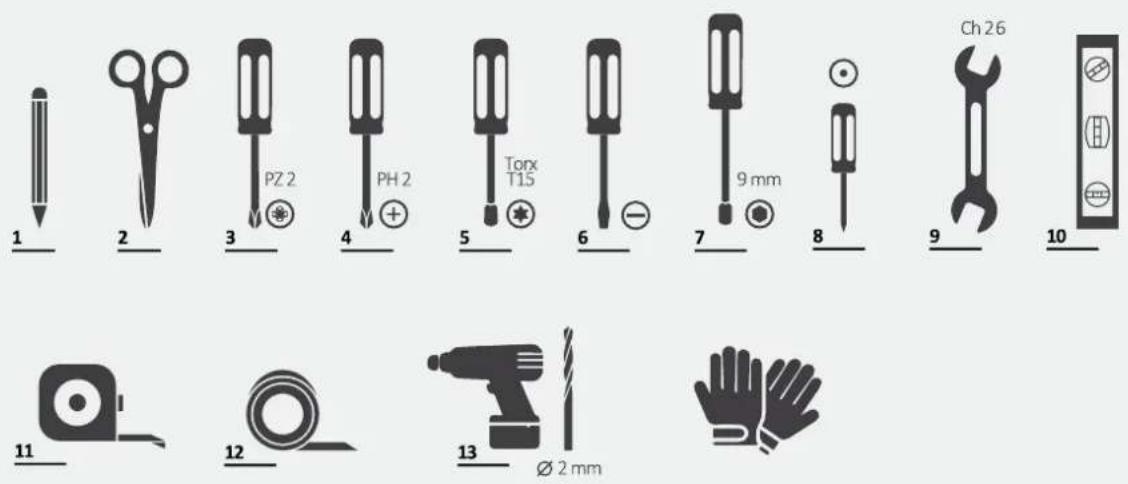

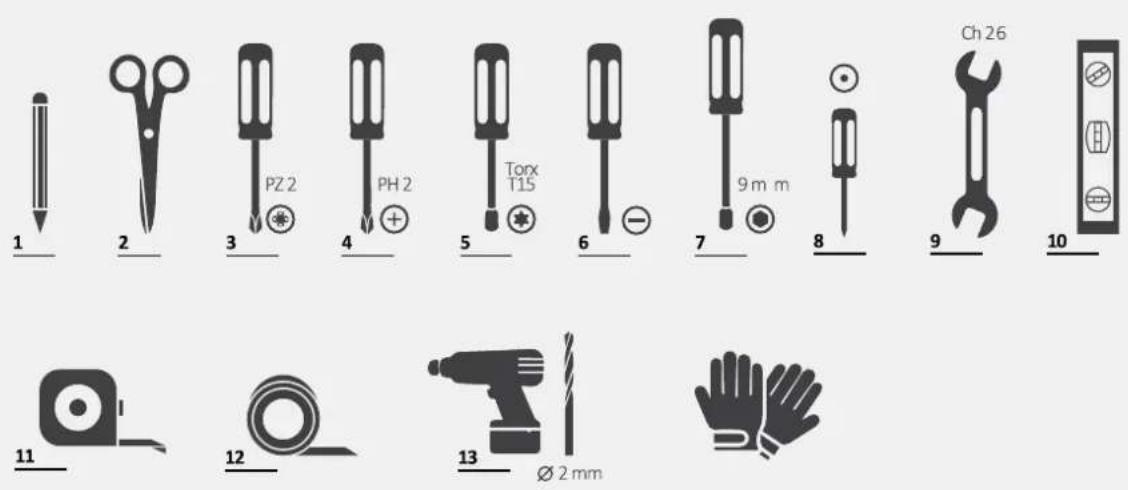

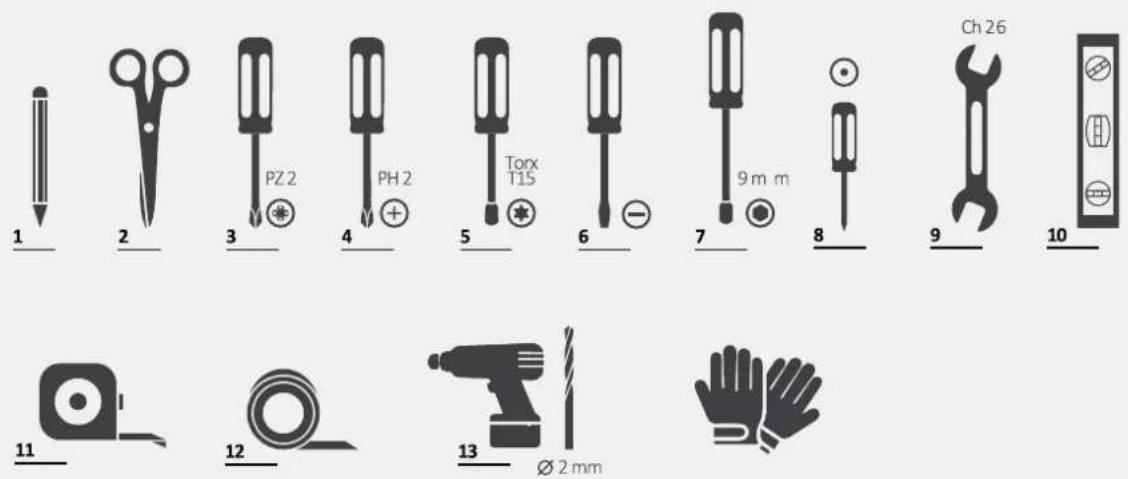

Required tools1, 2, 3, 4, 5, 6, 7, 8, 9, 10, Ch 26, PZ 2, PH 2, Torx T15, 9 mm, 11, 12, 13, Ø 2 mm, Gloved

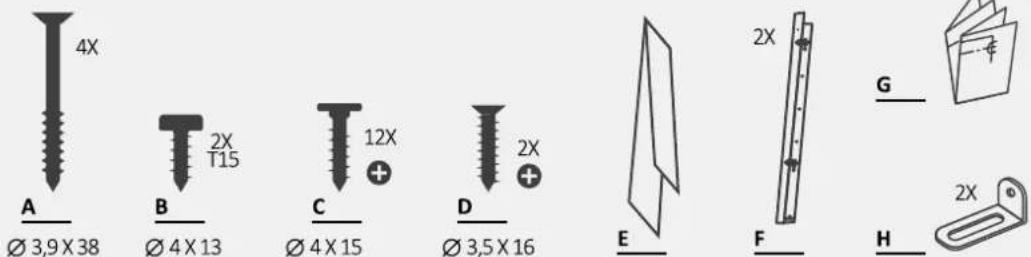

Tools provided with the product4X, A, Ø 3.9 X 38, B, Ø 4 X 13, 2X, T15, C, Ø 4 X 15, 12X, +, D, Ø 3.5 X 16, 2X, +, E, 2X, F, G, H, 2X

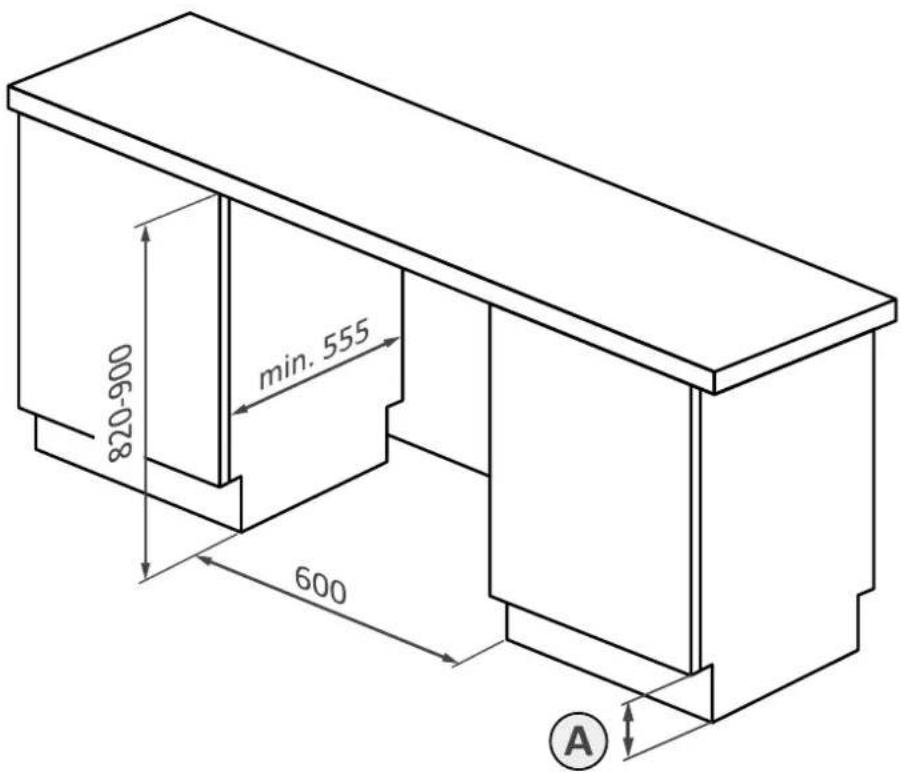

Dimensions in mm

Axonometric view

min. 555, 820-900, 600, A

A

Pure technical line drawing of a door or cabinet with a circular inset detail (no text or symbols)

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present)

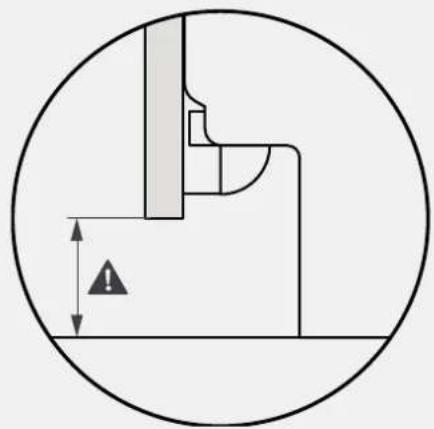

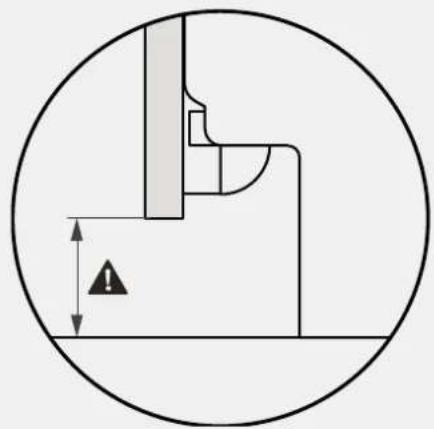

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 170 and 200 mm.

7 Instructions for dishwasher installation

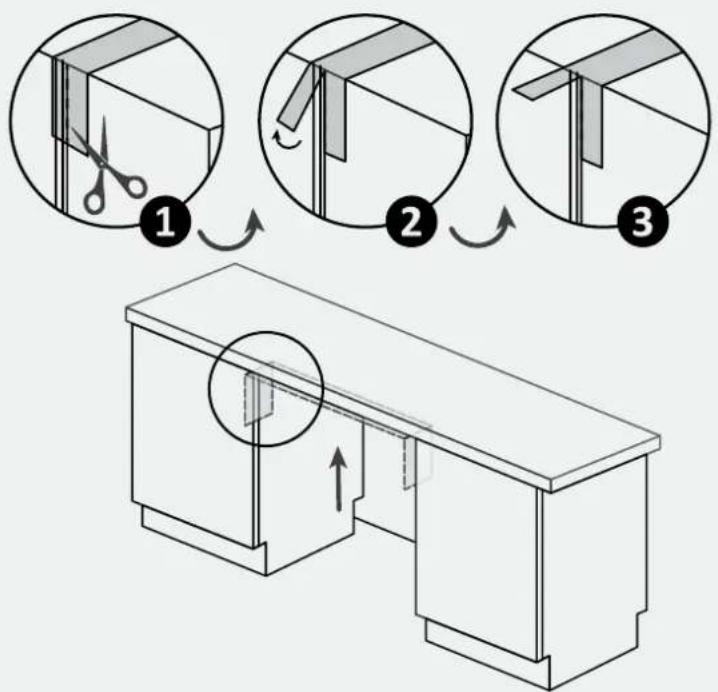

7.1 Steam band installation

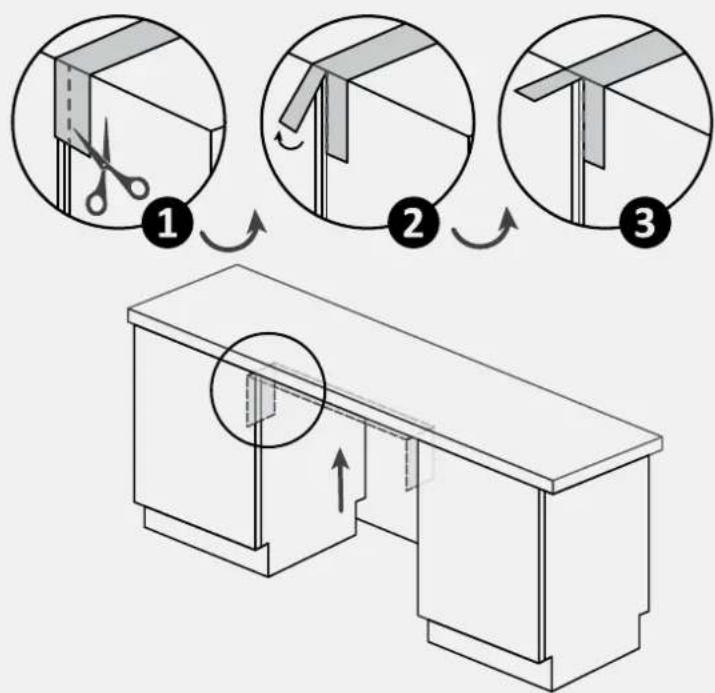

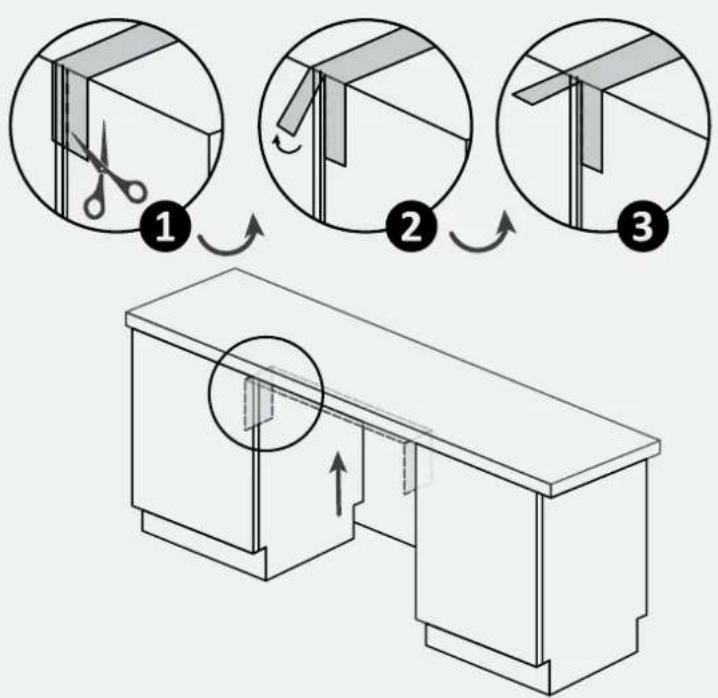

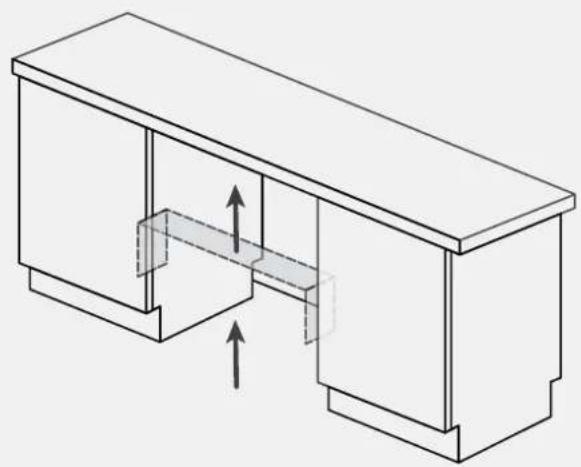

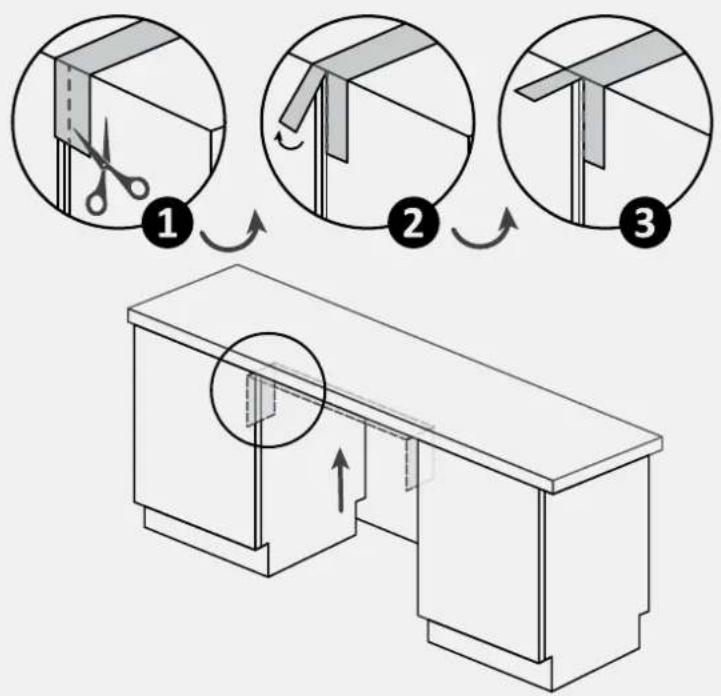

Apply the sticker band under the worktop and to the sides of the adjacent furniture;

  1. CANDY CI 4B4F1A - Steam band installation - 1
  1. CANDY CI 4B4F1A - Steam band installation - 2
  1. CANDY CI 4B4F1A - Steam band installation - 3

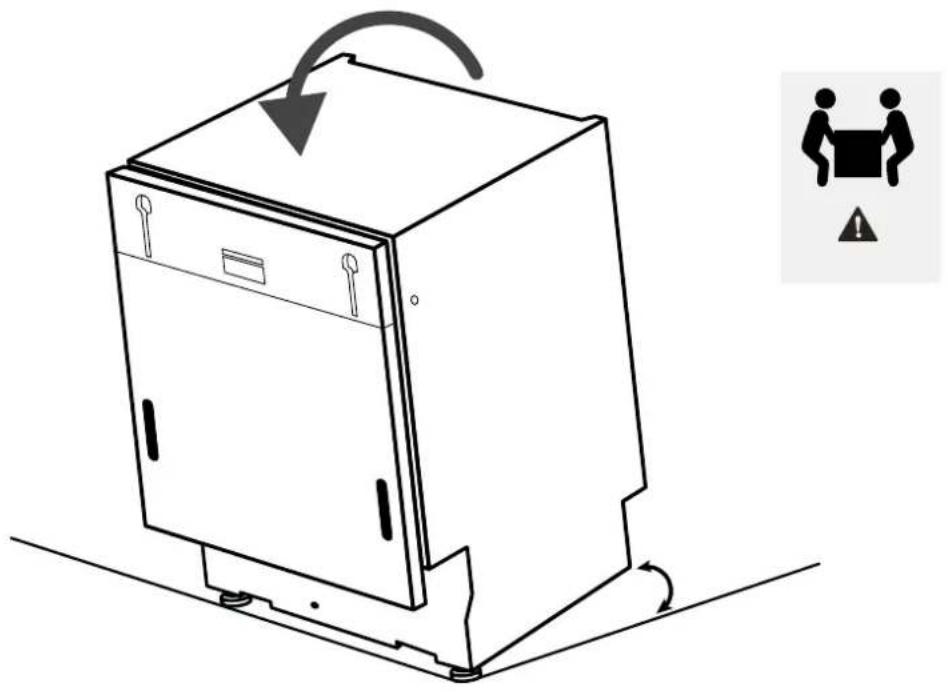

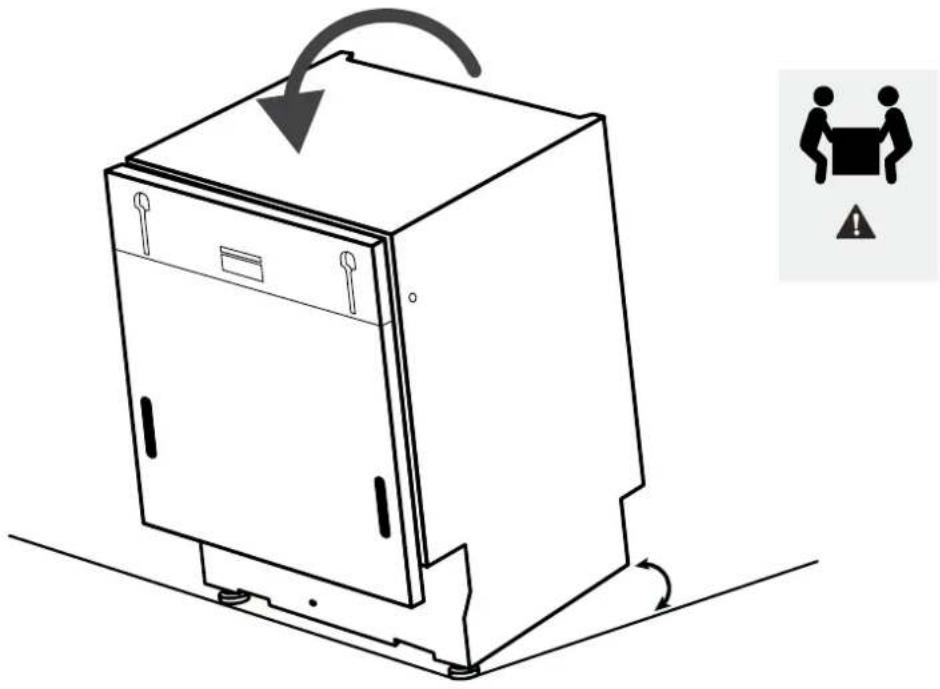

7.2 Height adjustment

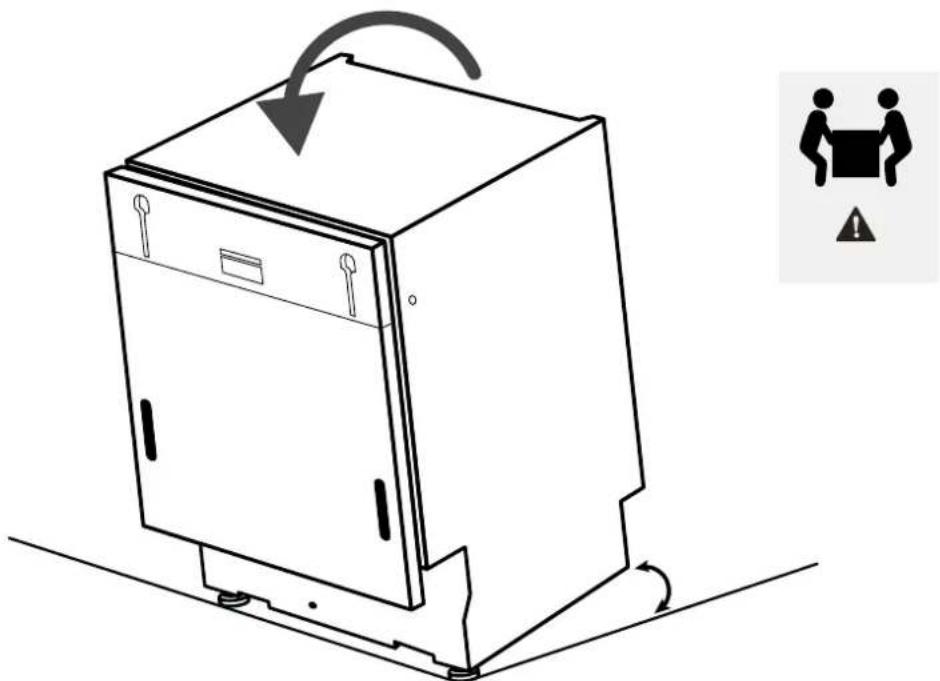

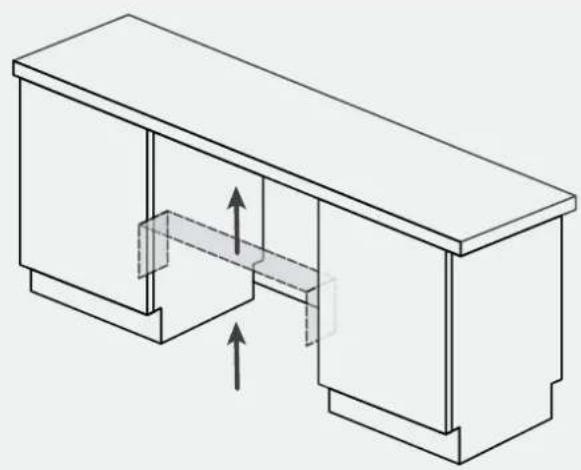

Incline the dishwasher by raising the back about 10 cm.

Line drawing of a kitchen appliance with directional arrows indicating motion, accompanied by a warning symbol (no text or labels).

7.3 Rear foot adjustment

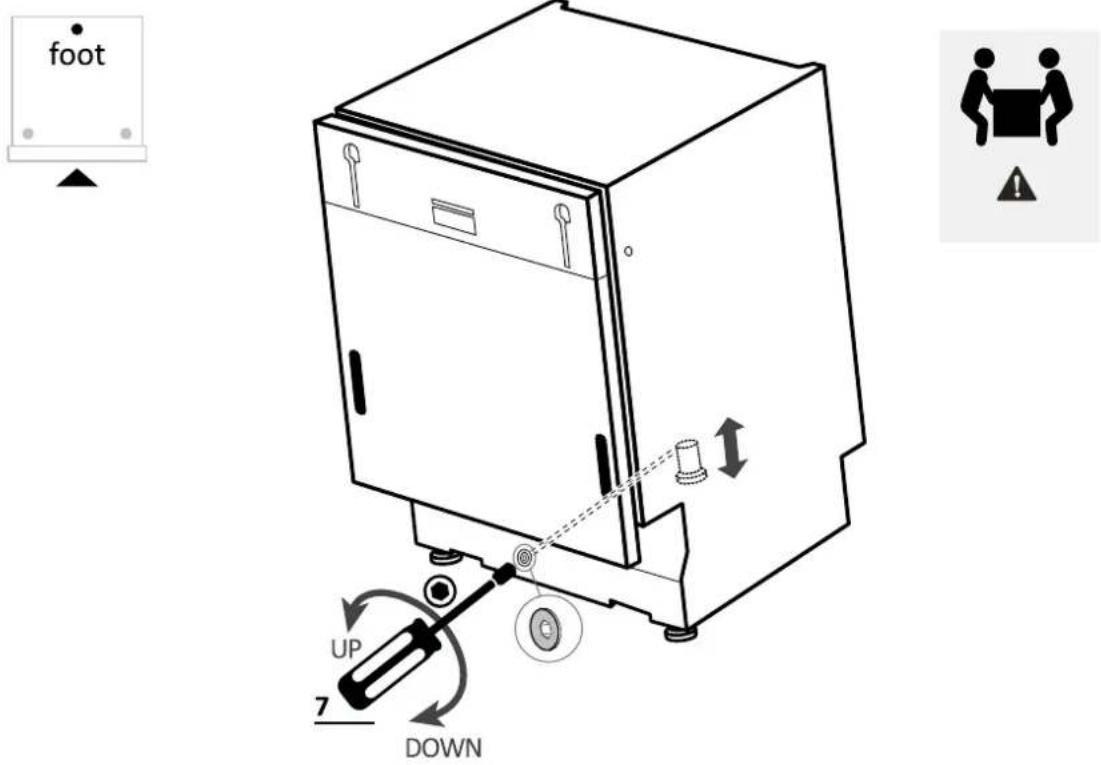

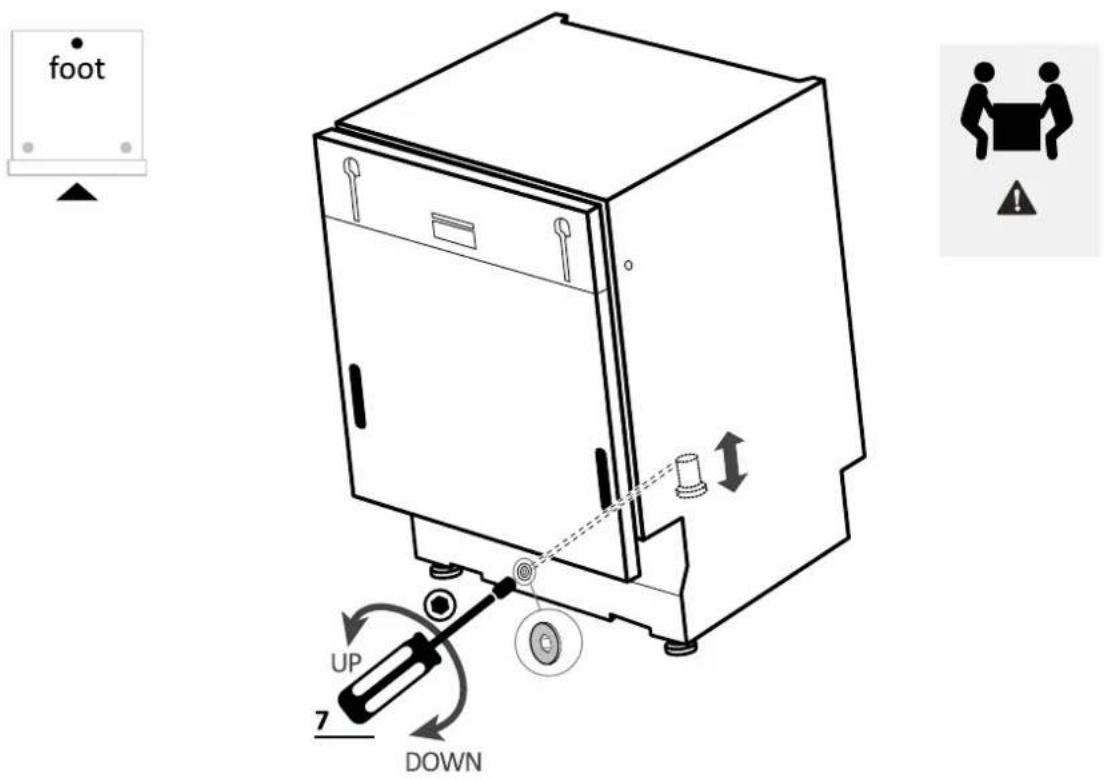

Adjust the rear foot height by operating from the front of the machine as indicated below.

Foot, up, 7, down.

7 Instructions for dishwasher installation

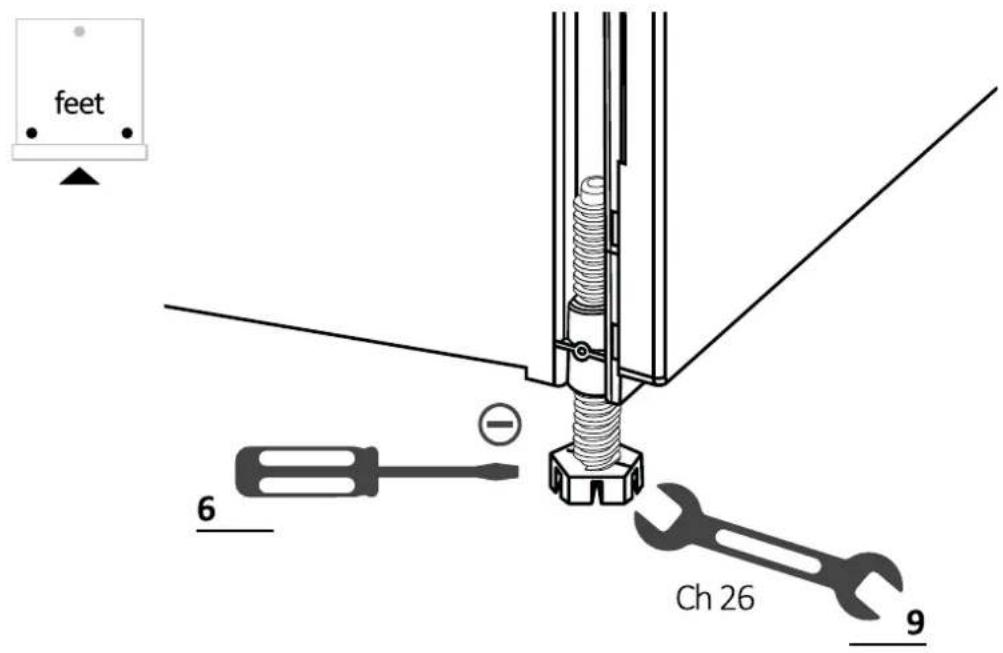

7.4 Front feet adjustment

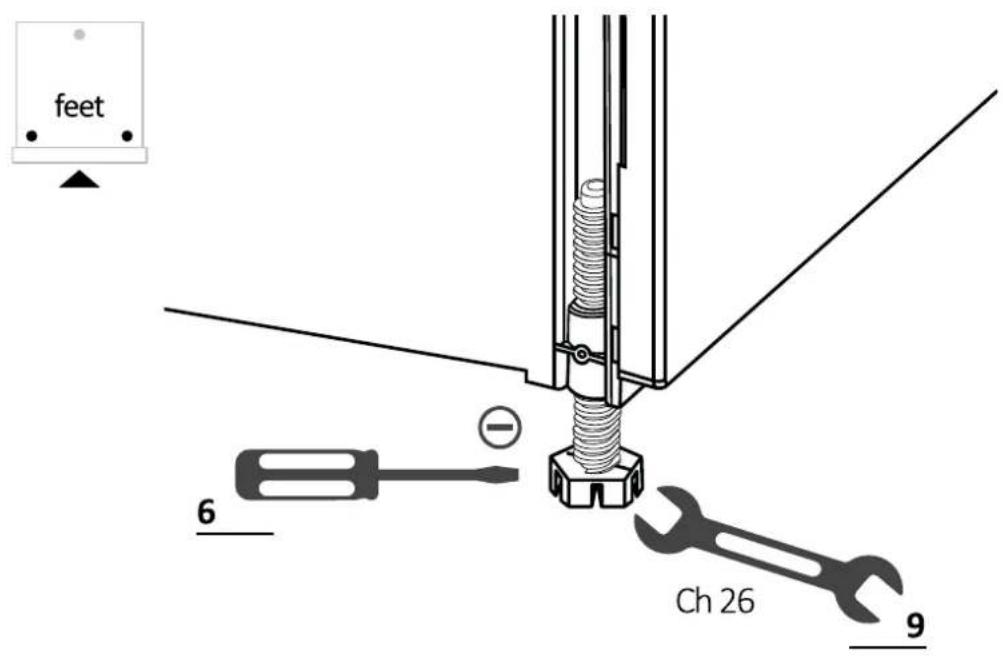

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

Feet, 6, Ch 26, 9.

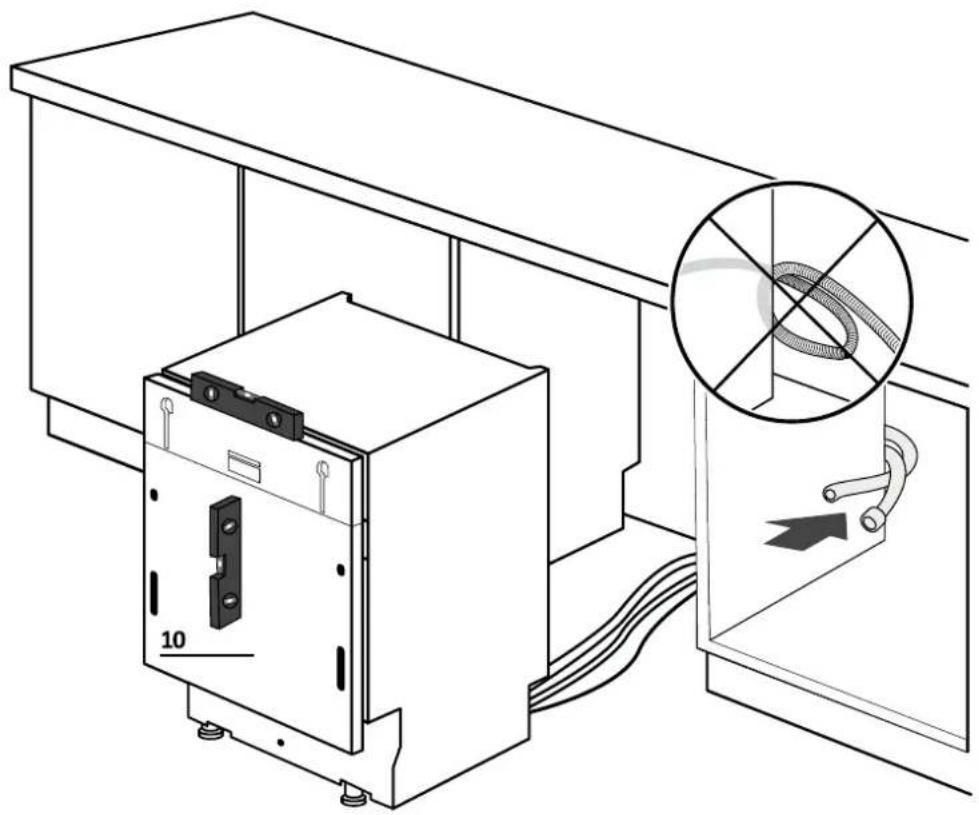

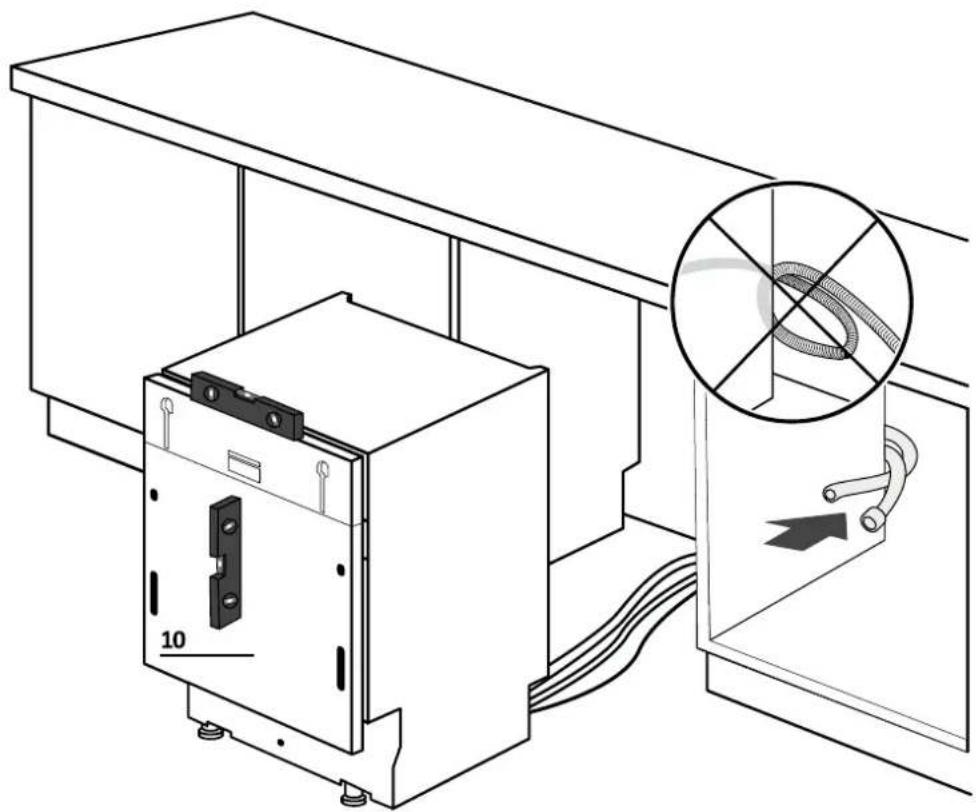

7.5 Tilt adjustment

Level the dishwasher by the vertical and horizontal planes.

Technical line drawing of an electrical enclosure with wiring and a magnified inset showing internal components (no text or symbols).

7.6 Insertion into the built-in compartment

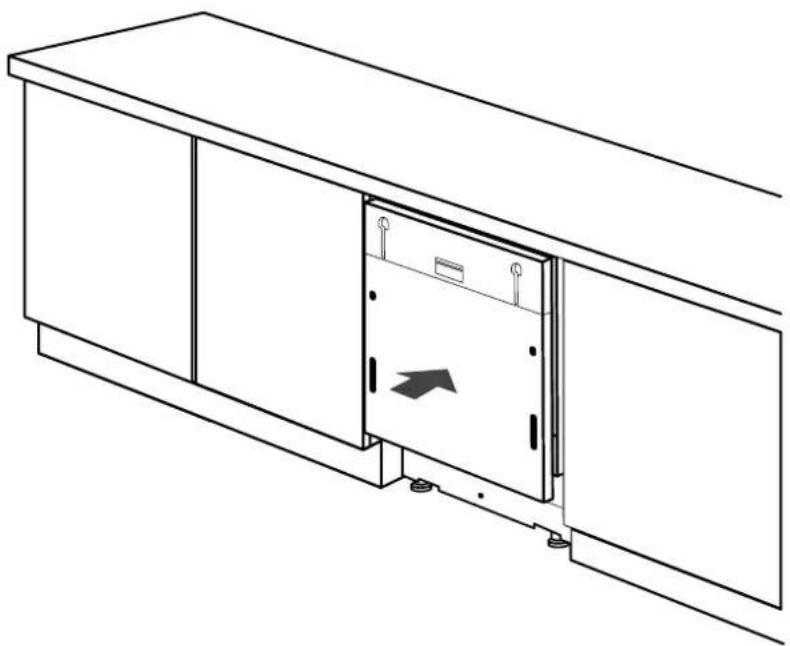

Insert the dishwasher into the built-in compartment and check measurements and tolerances.

Line drawing of a cabinet with an open door and directional arrow indicating movement (no text or symbols).

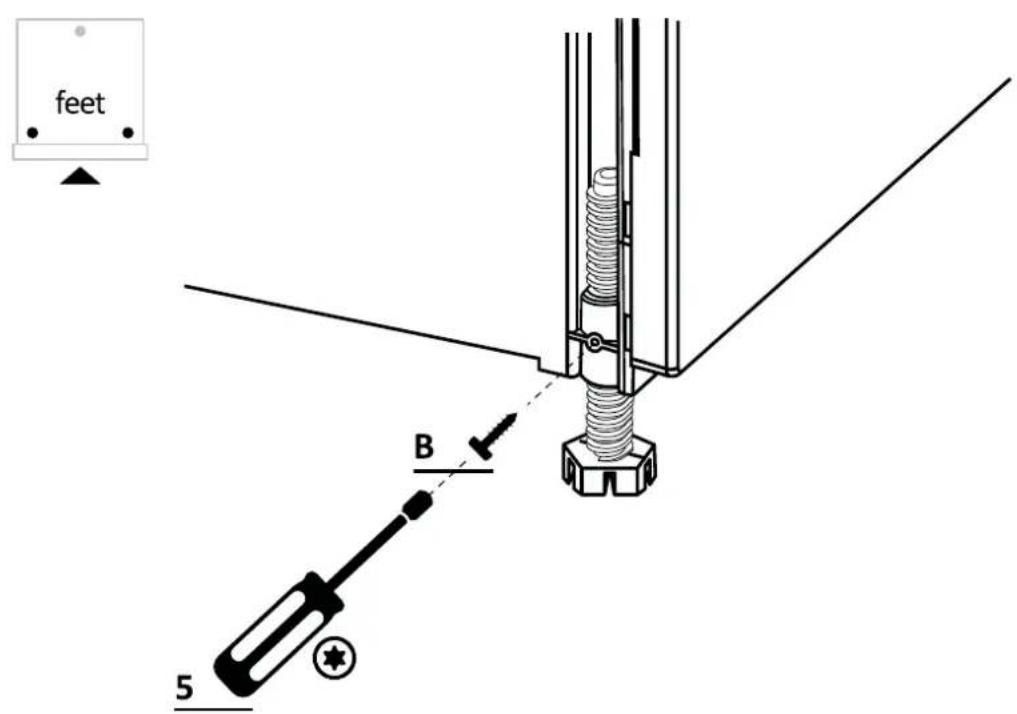

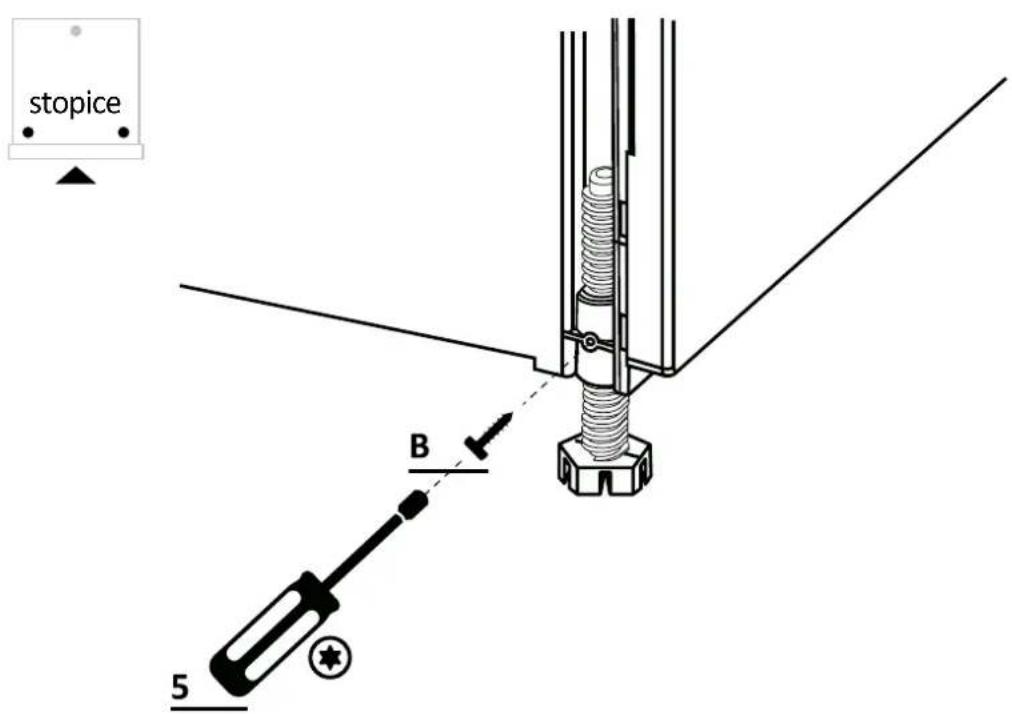

7.7 Fixing the front feet

After checking all measurements, permanently fix the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.

Feet, B, 5.

7 Instructions for dishwasher installation

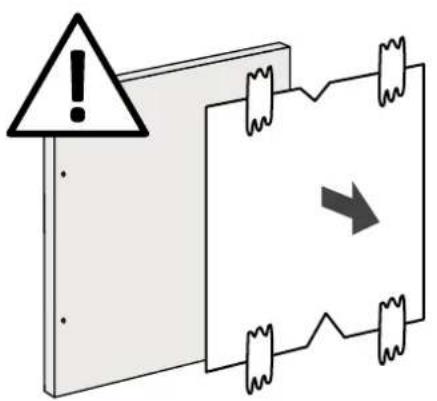

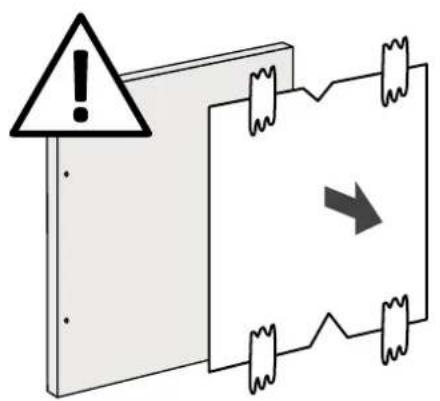

7.8 Panel preparation

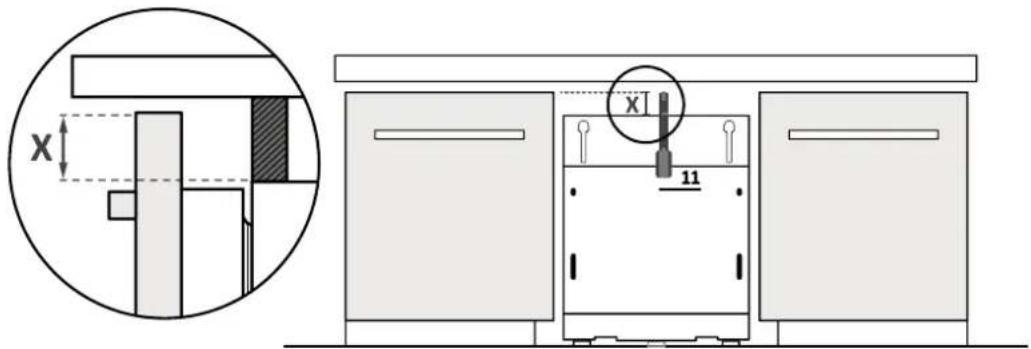

1.

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a mechanical assembly with cross-sectional view and labeled dimension 'X' and reference number '11'.

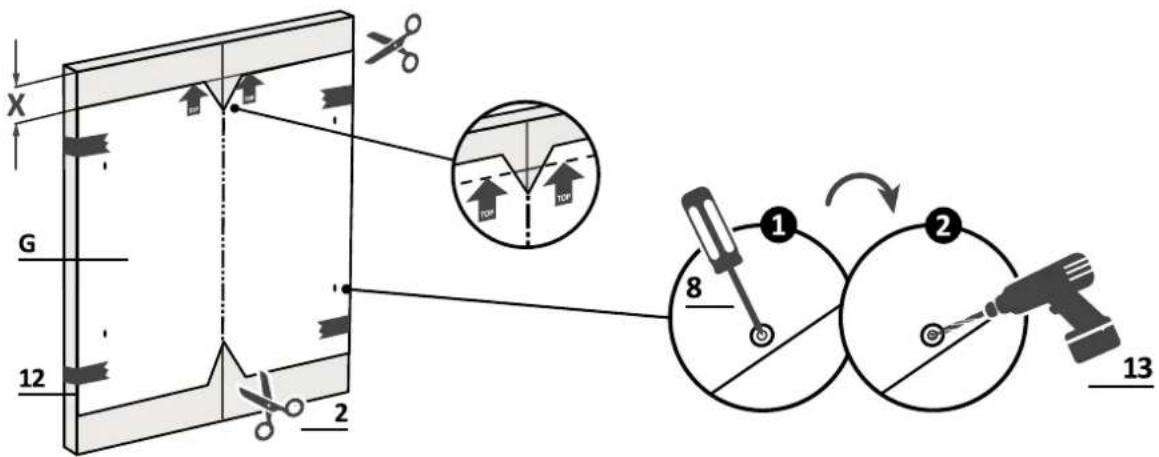

2.

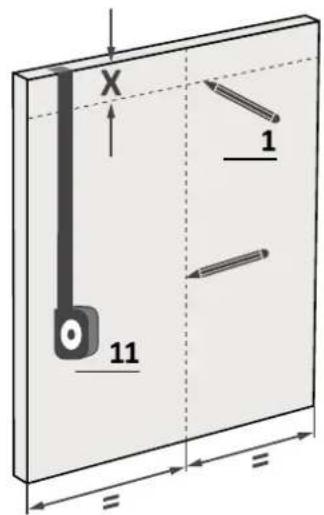

Transfer the measurement onto the kitchen panel and locate the center;

X, 1, 11.

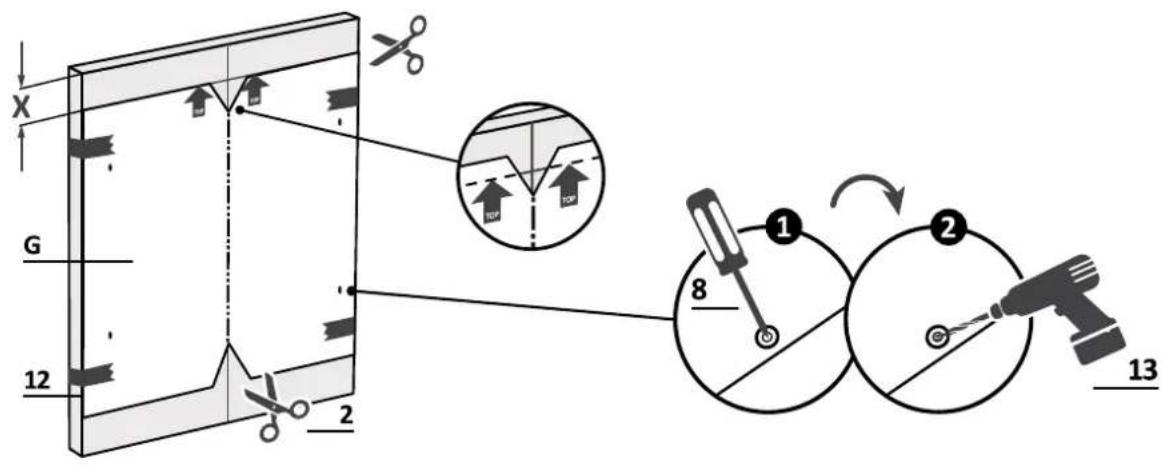

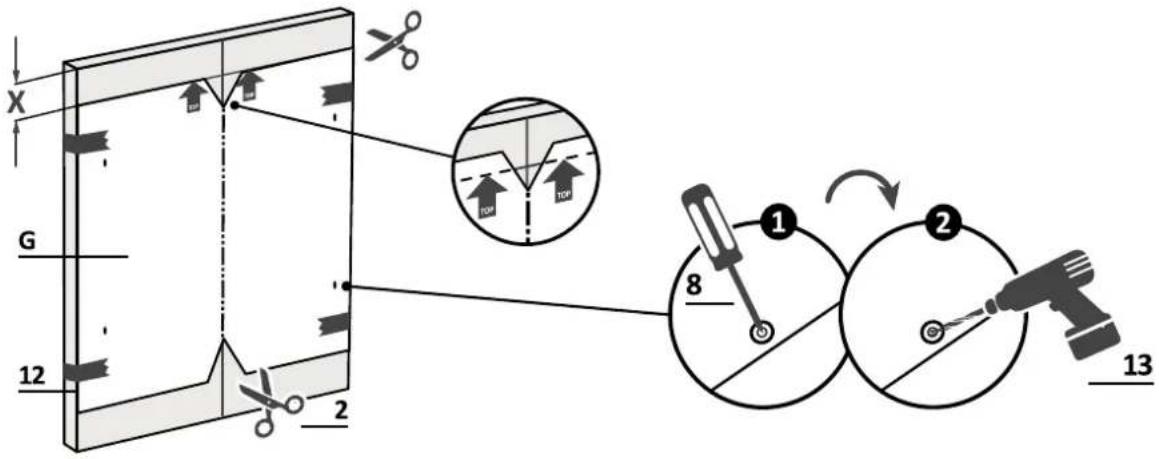

3.

Apply the drilling template and follow the instructions provided.

Diagram illustrating a mechanical assembly with labeled parts and tool paths, including cutting, assembly, and disassembly steps.

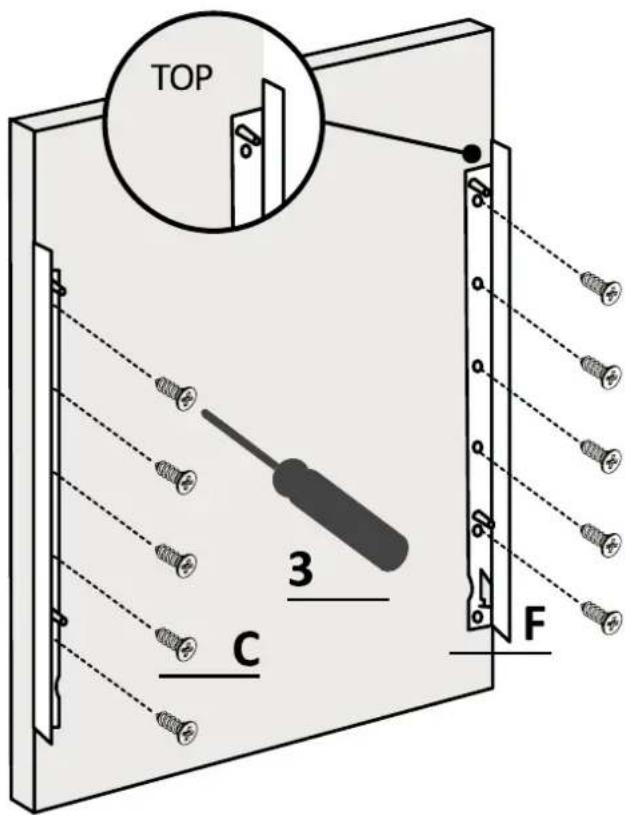

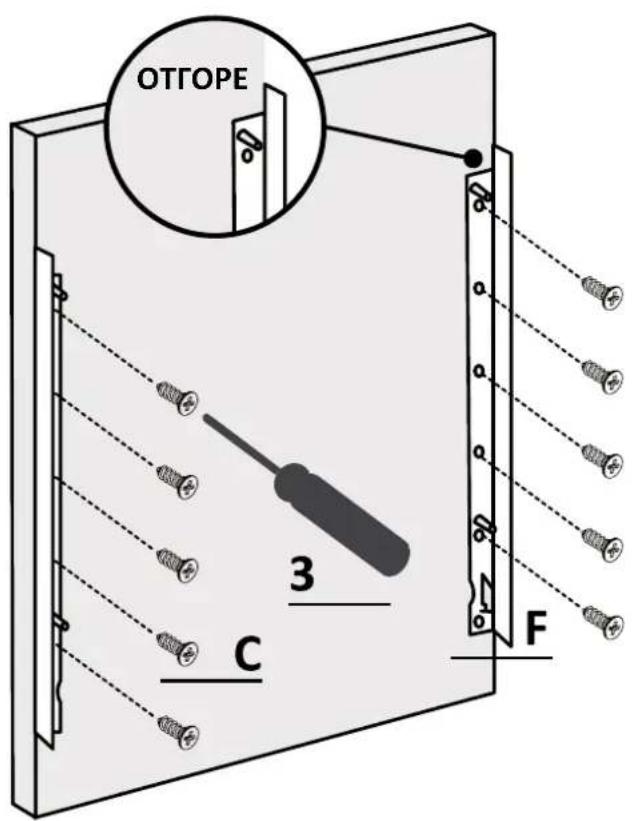

7.8 Panel preparation

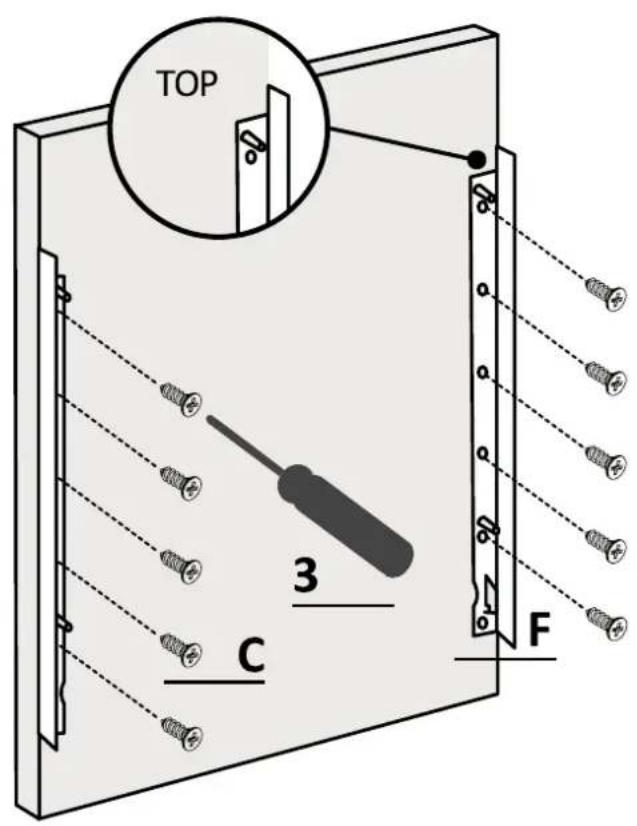

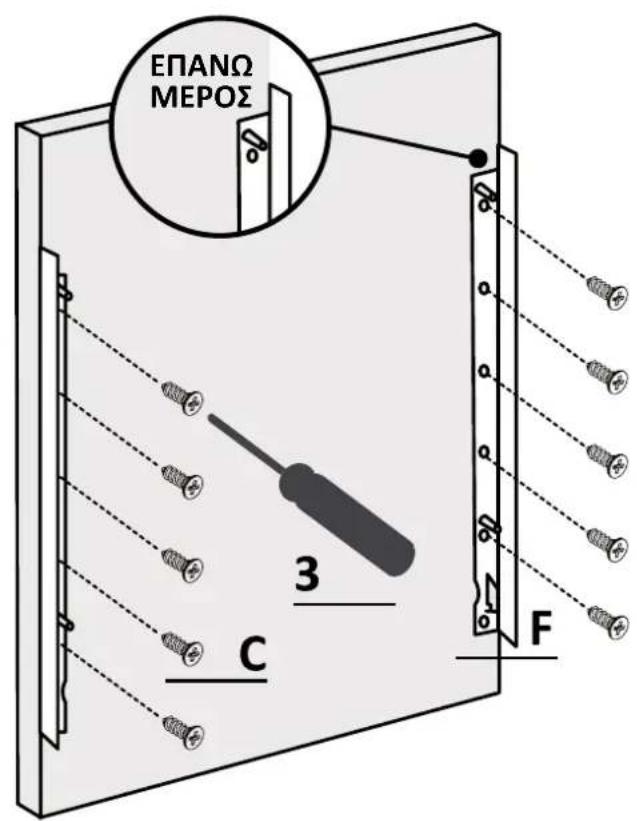

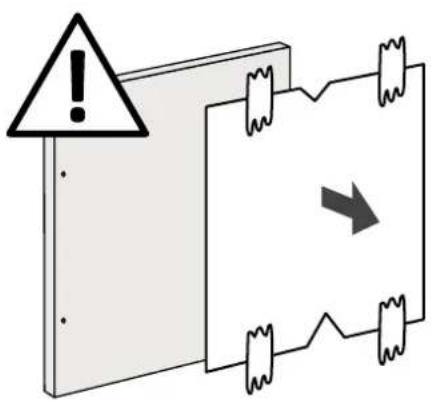

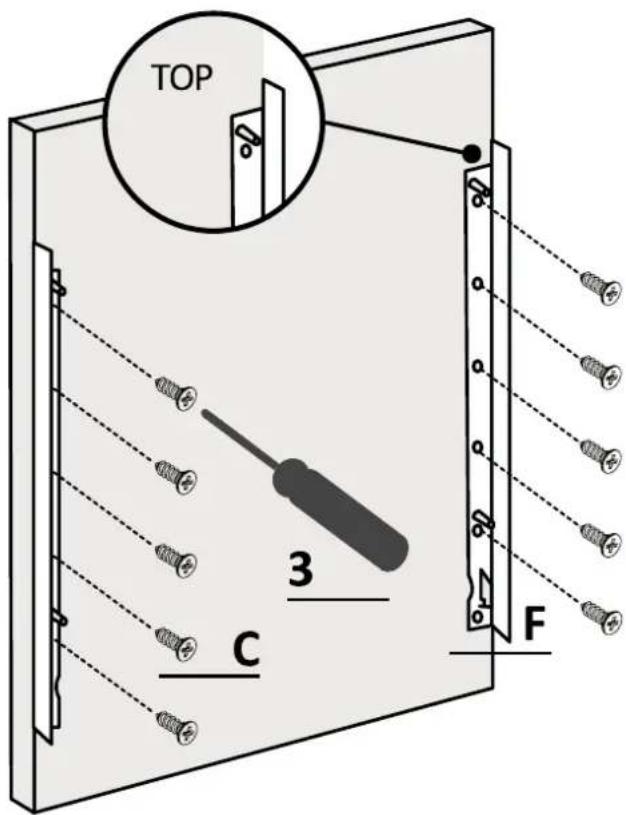

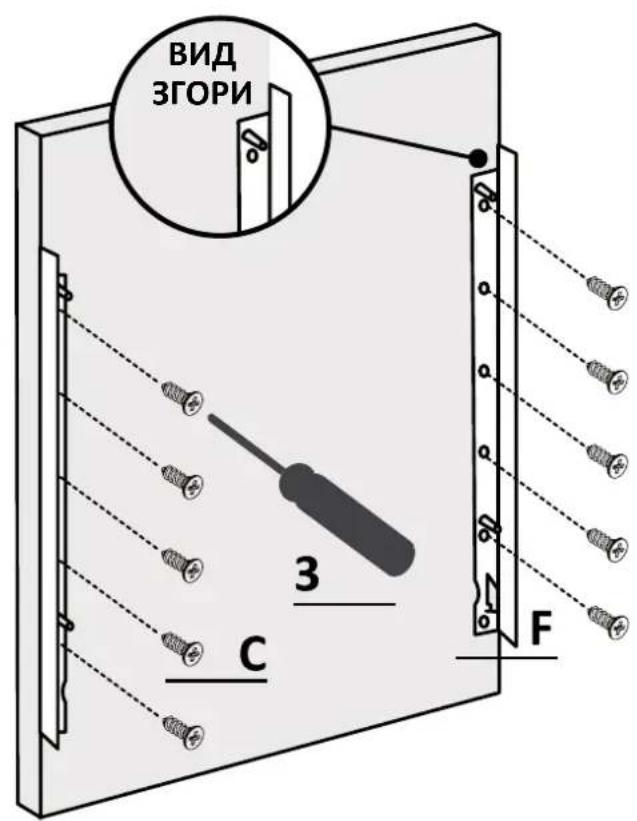

4.

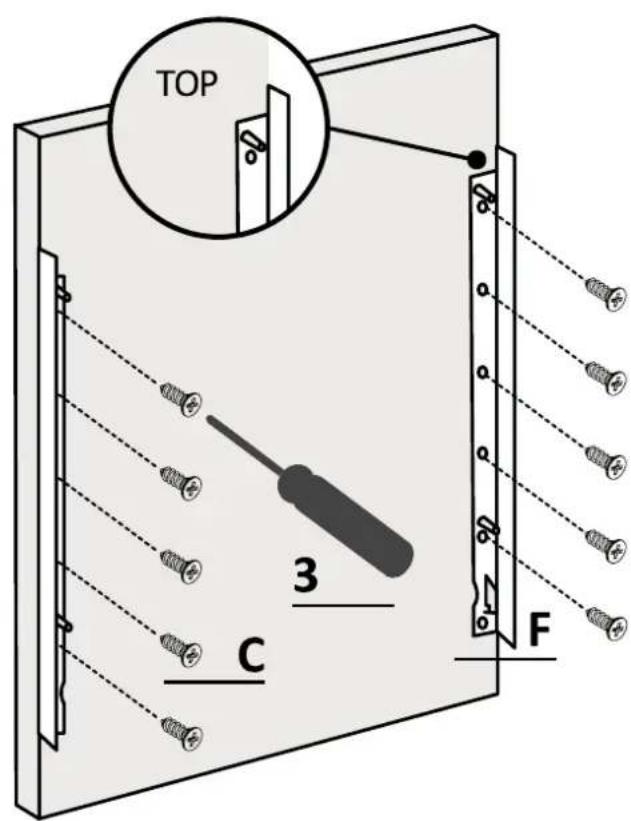

Remove the drilling template and apply the accessories.

Diagram showing a warning sign with an exclamation mark and directional arrow, likely indicating an alert or warning in a technical or mechanical context.

Top, 3, C, F.

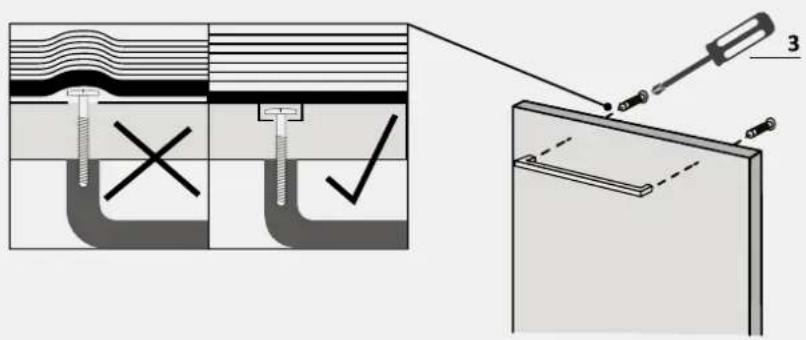

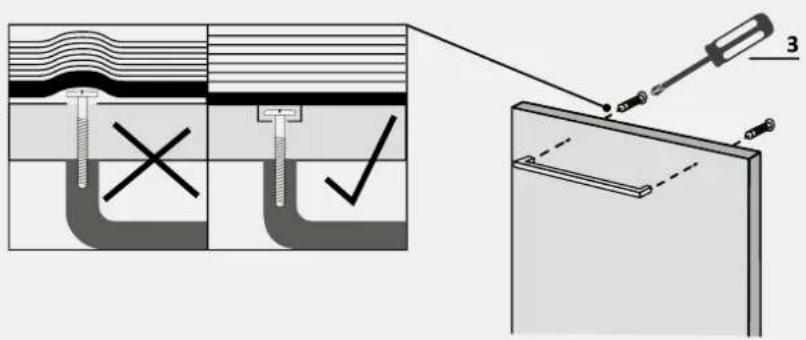

⚠ WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

Technical diagram showing installation steps with screwdriver and checkmark indicators, including a magnified view of mechanical components.

7 Instructions for dishwasher installation

Installation of the panel 7.9

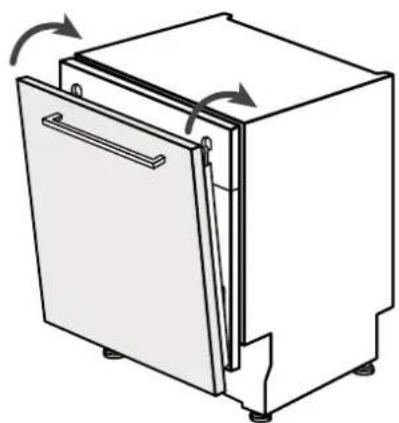

1.

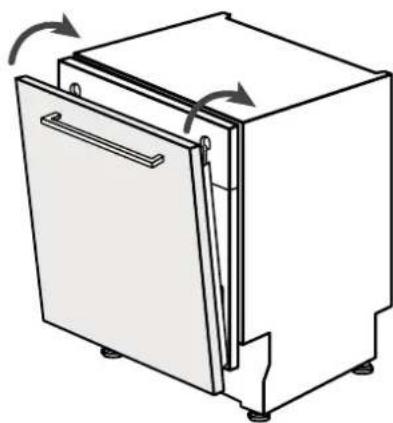

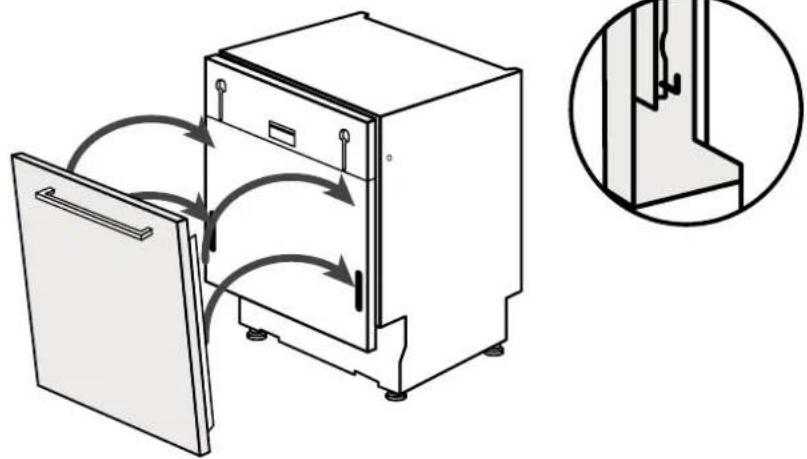

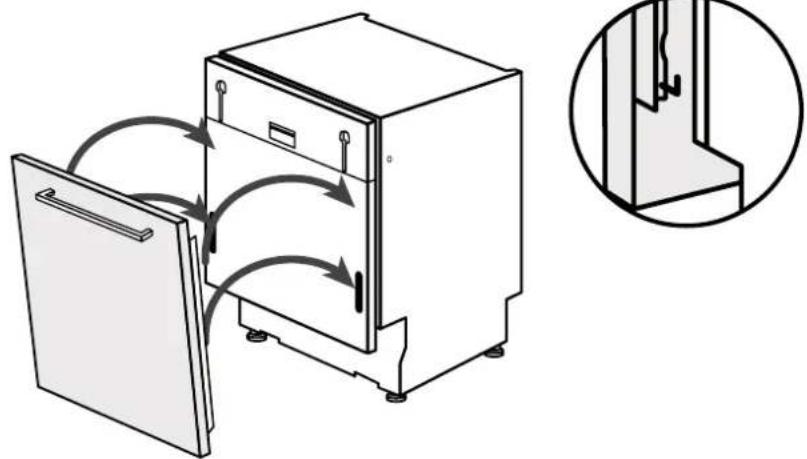

Attach the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in two views (no text or symbols).

2.

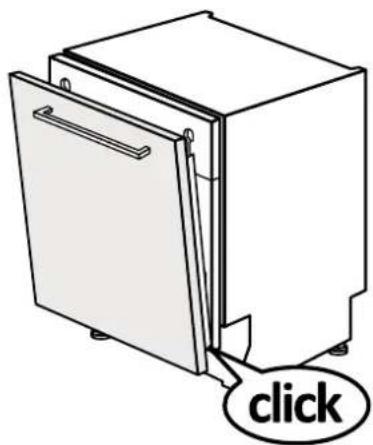

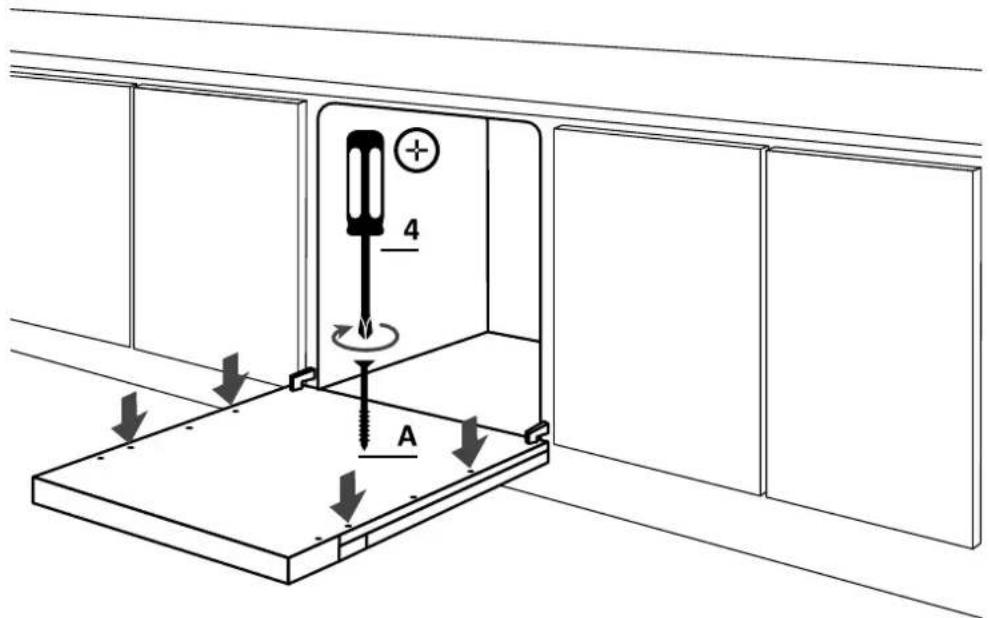

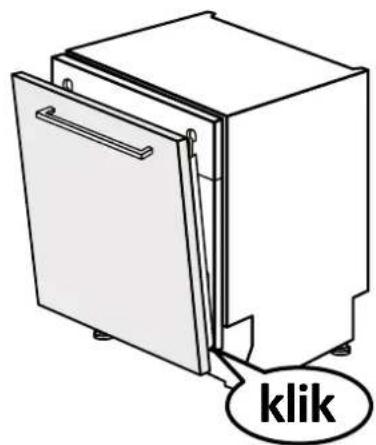

Fix the panel to the lower part of the dishwasher;

Click.

3.

Fix the panel to the upper part of the dishwasher;

Line drawing of a refrigerator with doors and door, showing internal structure and rotation arrows (no text or symbols)

7.9 Installation of the panel

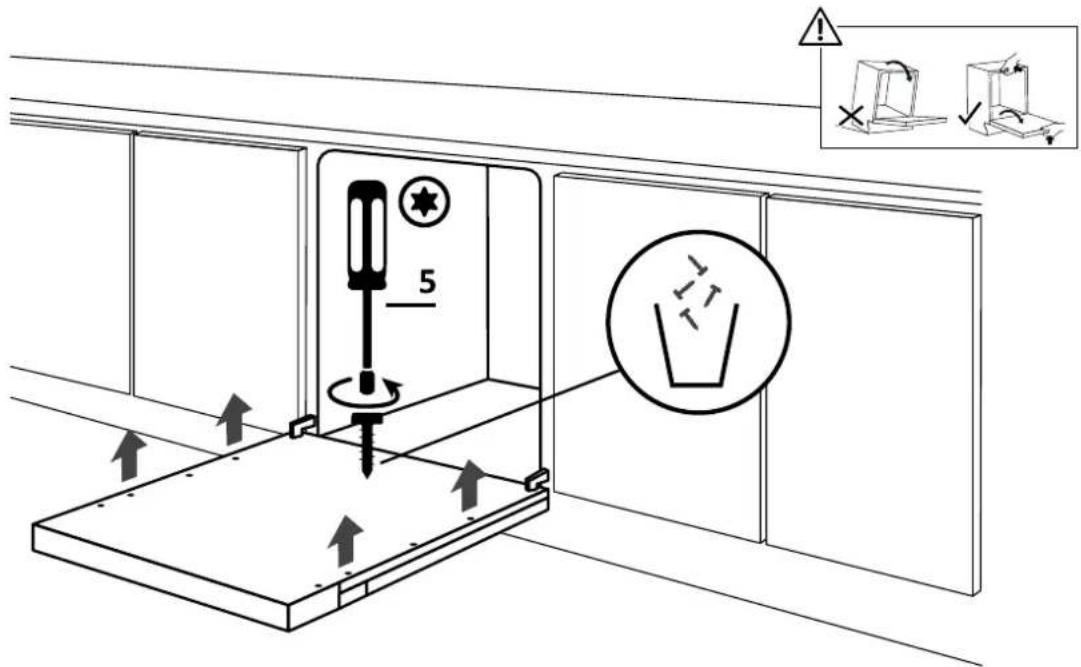

4.

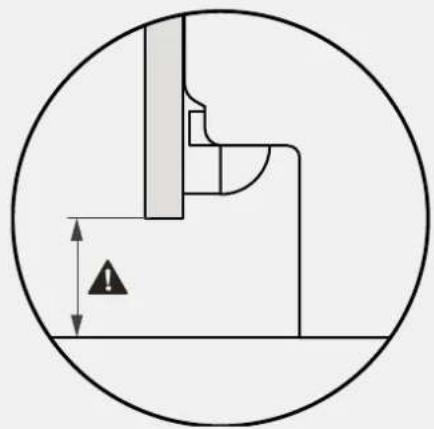

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

Technical diagram showing a screwdriver pressing a component on a platform, with instructional annotations and directional arrows.

5.

Make sure the panel is fully inserted; fix the kitchen panel to the dishwasher using the supplied screws.

4 A

7 Instructions for dishwasher installation

CANDY CI 4B4F1A - Instructions for dishwasher installation - 1

⚠ WARNING: Connect the dishwasher now to the water and electrical network, following the instructions in chapter 8.

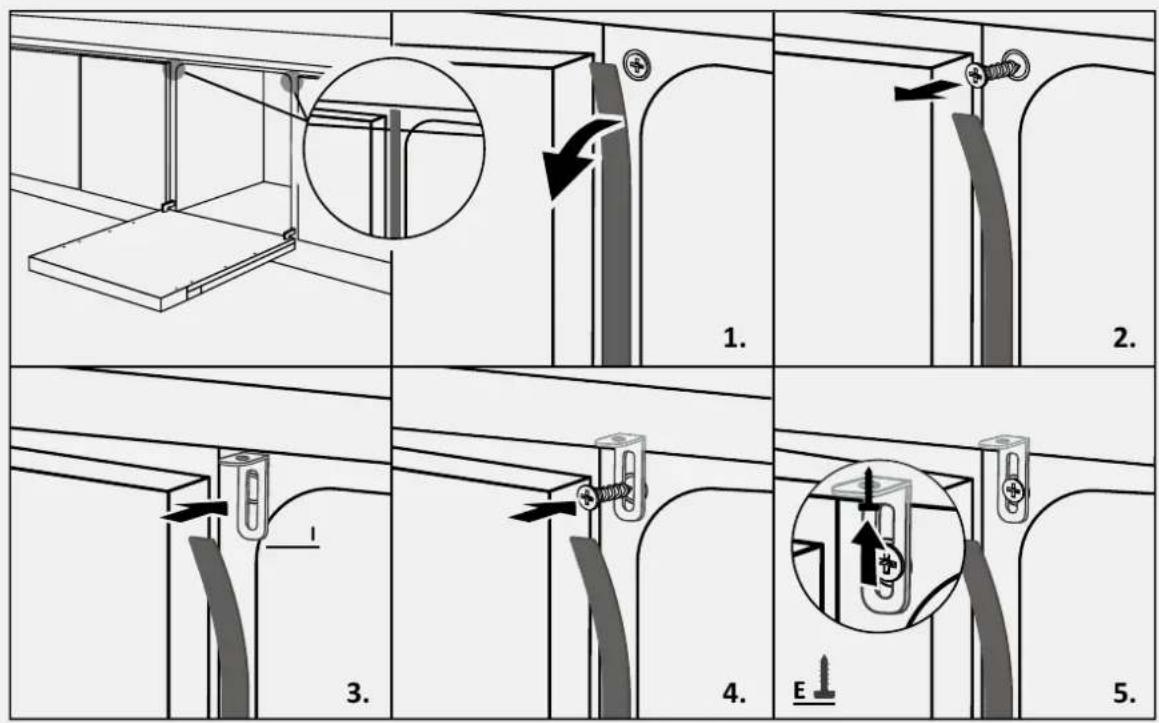

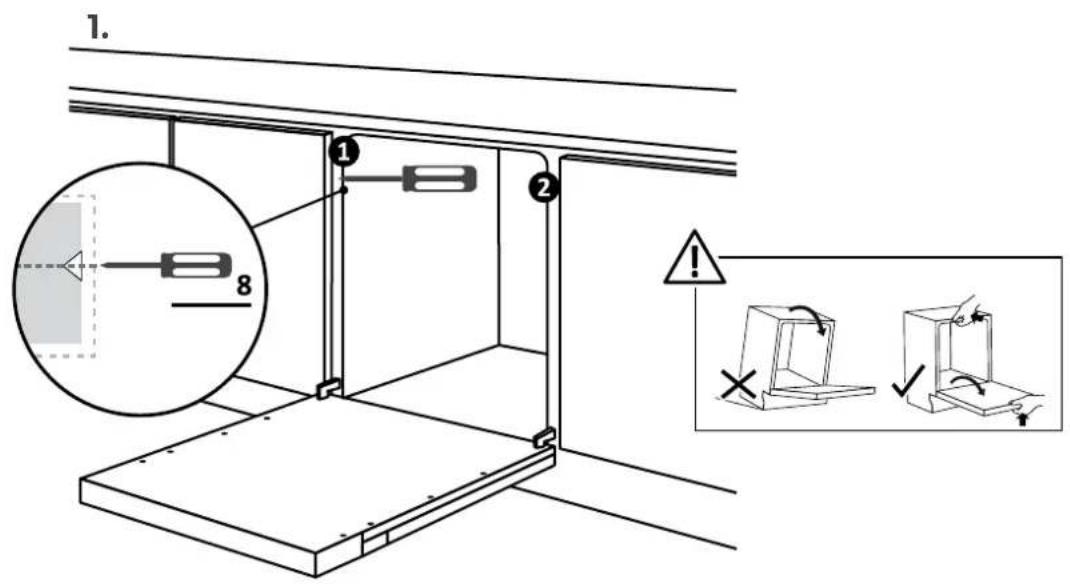

7.10 Fixing the machine to the kitchen

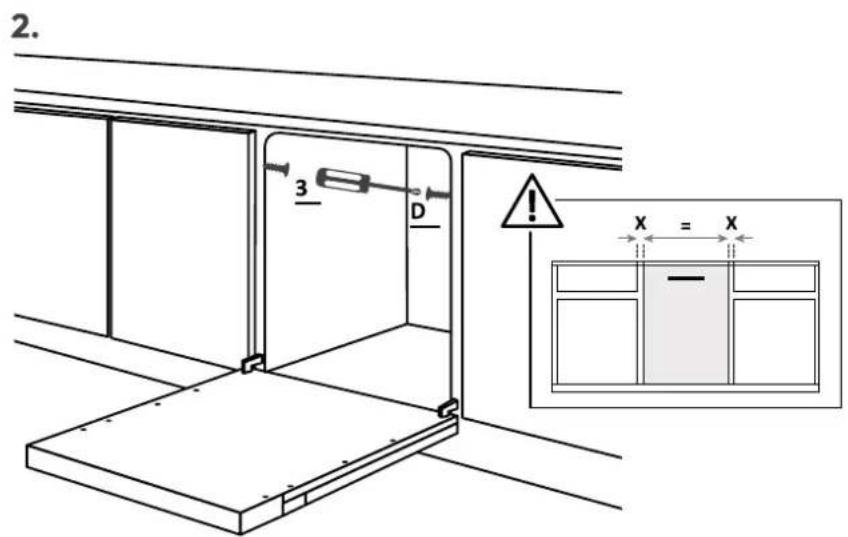

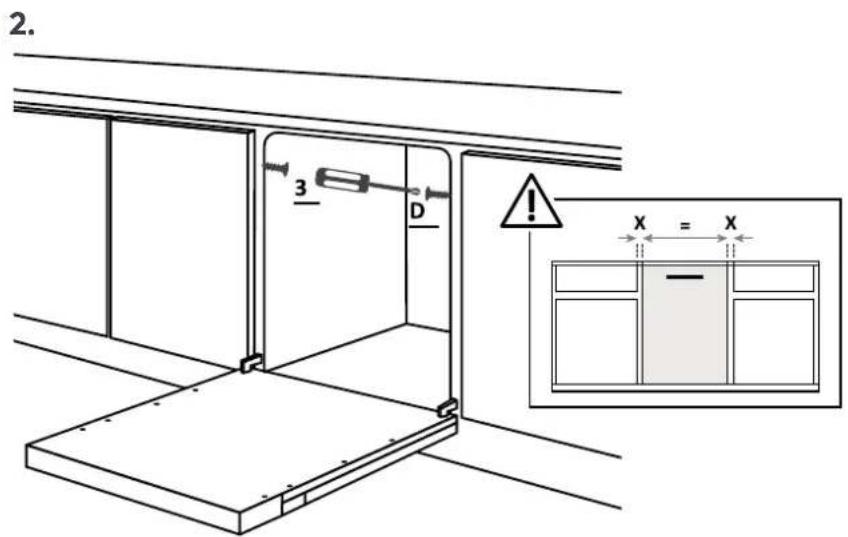

Instructions for fixing the dishwasher laterally to the adjacent cabinets.

1. ① ② 8 ! X

2. 3 D ! X = X

CANDY CI 4B4F1A - Fixing the machine to the kitchen - 3

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

⚠ WARNING: If it is not possible to fix the dishwasher laterally, use the supplied brackets and fix it to the worktop; pay attention if the latter is not made of wood.

Technical diagram illustrating five-step installation or assembly process for a cabinet or enclosure, with labeled steps and component views.

8 Drain water and electricity connection

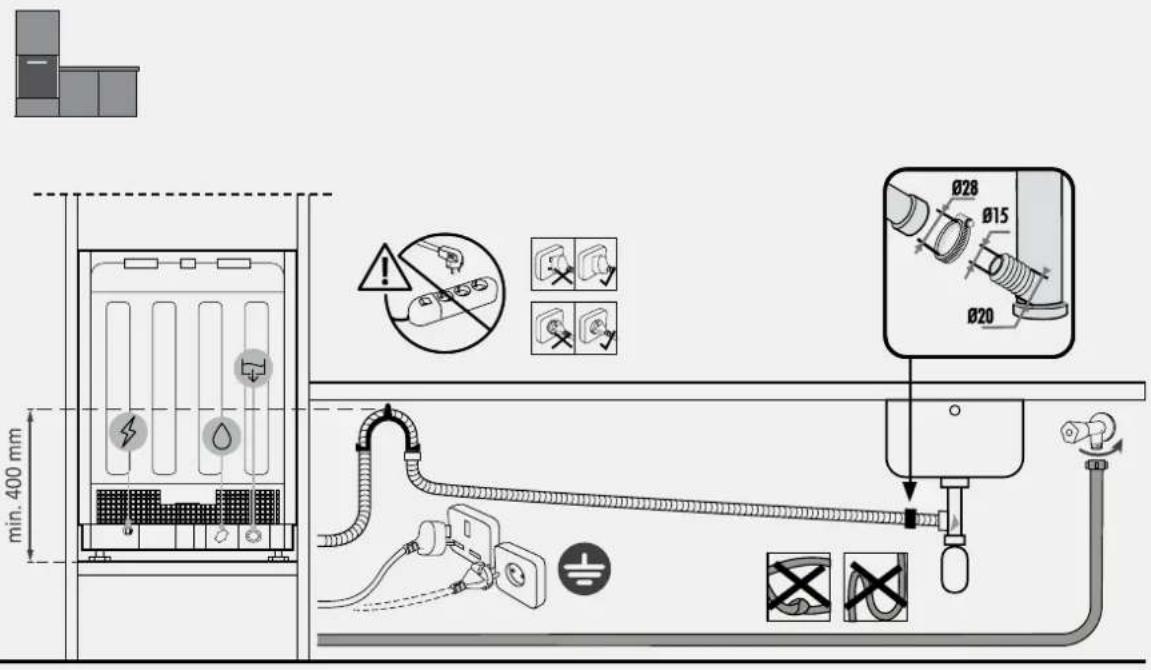

8.1 Connection diagram

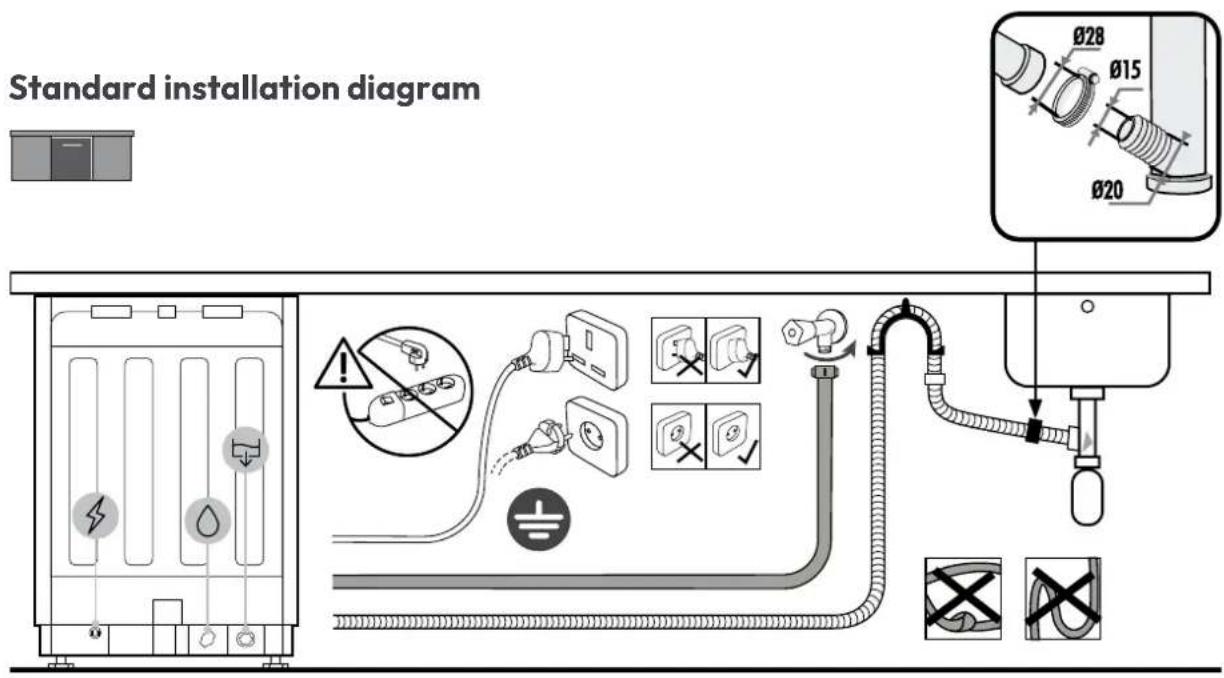

Standard installation diagram Ø28 Ø15 Ø20

Column installation diagrammin. 400 mm Ø28 Ø15 Ø20

CANDY CI 4B4F1A - Connection diagram - 3

WARNING: Ensure that the water pressure is between 0.08 Mpa and 1 Mpa.

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user

9

At the end of installation:

  • Inform the user about essential functions;
  • Inform the user about all aspects relevant to safe use and handling;
  • Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

CANDY CI 4B4F1A - Delivery to the user - 1

NOTE: The actual appearance of the product depends on the model chosen.

Dishwasher disassembly

10

  • Disconnect the product from the electrical and water supply;
  • Unscrew the fastening screws;
  • Slightly lift the product and pull it out completely;
  • This product does not damage the furniture, which can also be used with a new appliance.

Interior view of a multi-level kitchen appliance with green and blue plastic fixtures, no visible text or symbols on main components.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

BENVENUTI

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present)

  1. CANDY CI 4B4F1A - BENVENUTI - 2

2.

TOP, 3, C, F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible.

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot. No visible text or symbols.

WELCOME

5 Installation tools

Necessary tools1 2 3 4 5 6 7 8 9 10 Ch 26 PZ 2 PH 2 Torx T15 9 mm 11 12 13 Ø 2 mm

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A'. No text or symbols present.

  1. CANDY CI 4B4F1A - Installation tools - 3

2.

TOP 3 C F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

  1. CANDY CI 4B4F1A - WELCOME - 2

2.

Top, 3, C, F

2.

7.9 Plate installation

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding process of a cabinet with scissors, showing step 1 to step 3 with arrows and a magnified view.

7.3 Adjusting the rear foot

2.

TOP 3 C F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the main subject).

WELCOME

3.

Diagram illustrating a three-step folding process of a cabinet with scissors, showing steps 1 to 3 with arrows and magnified views.

7.2 Height adjustment

2.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

2.

2. 3 D ! X = X

CANDY CI 4B4F1A - 2. - 3

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

  1. CANDY CI 4B4F1A - WELCOME - 2

7.2 Height adjustment

7.5 Tilt adjustment

Level the dishwasher with respect to the vertical and horizontal plane.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols).

2.

TOP, 3, C, F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot. No visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A'. No text or symbols present.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

Top 3 C F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.5 Setting the tilt

7.8 Preparing the panel

4.

TOP 3 C F

2.

5.

2. 3 D ! X = X

CANDY CI 4B4F1A - 5. - 2

Pure diagram of a device interior with two circular annotations highlighting the components (no text or symbols).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

TOP 3 C F

2.

7.9 Mounting the panel

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D schematic below.

7.2 Height adjustment

2.

7.8 Panel preparation

4.

Top, 3, C, F

2.

7.9 Panel installation

4.

5.

2. 3 D ! X = X

CANDY CI 4B4F1A - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

TOP 3 C F

2.

5.

2. 3 D ! X = X

CANDY CI 4B4F1A - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

2.

Top, 3, C, F

2.

5.

2. 3 D X = X

CANDY CI 4B4F1A - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

⚠ CAUTION: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance between the door and the floor must increase proportionally up to a maximum of between 170 and 200 mm.

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

Transfer the measurement to the kitchen panel and determine the center;

X 1 11

3.

Install the drilling template and follow the included instructions;

Diagram illustrating a mechanical or electrical procedure with labeled components and tool paths, including cutting, assembly, and disassembly steps.

7.8 Preparing the panel

4.

Remove the template and install the accessories;

Warning symbol and diagram showing a warning sign, directional arrow, and electrical components

TOP 3 C F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five steps of a door assembly or lifting process, with labeled diagrams and directional arrows indicating movement.

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

This installation instruction is intended for kitchen manufacturers who will install these products. To ensure safety and achieve the best results, carefully read this instruction, including the safety instructions, and keep it for future reference. Before proceeding with the installation, note the serial number, as it may be needed in case of repairs. Check for transport damage and consult a technician if you are in doubt before use. Always keep all packaging materials out of reach of children.

i NOTE: The functions and images contained in this document are for reference only and may change without prior notice.

Index

1 Safety notices for installation p. 2-3 2 Where to install the dishwasher p. 3 3 Dimensions of the dishwasher p. 4-5 4 Video for detailed installation p. 6 5 Tools for installation p. 6 6 Installation dimensions p. 7 7 Installation instructions for the dishwasher p. 8–17 7.1 Mounting the anti-condensation strip 7.2 Adjusting the height 7.3 Adjusting the rear foot 7.4 Adjusting the height of the front feet 7.5 Adjusting the tilt 7.6 Inserting into the built-in kitchen element 7.7 Securing the front feet 7.8 Preparing the panel 7.9 Installing the panel 7.10 Securing the machine to the kitchen 8 Connection to the water and electrical supply p. 18–19 8.1 Connection diagram 8.2 Safety devices 9 Message to the user p. 19 10 Dismantling the dishwasher p. 19

or by clicking on this

CANDY CI 4B4F1A - Index - 1

2-3 h

5 Installation tools

Required tools1 2 3 PZ 2 PH 2 5 Torx T15 6 9 mm 7 8 9 Ch26 10 11 12 13 Ø 2 mm Gloved Hand

⚠WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance from the door to the floor must also increase proportionally, up to a maximum of 170 and 200 mm.

7 Installation instructions for the dishwasher

7.1 Installing the anti-condensation strip

  1. CANDY CI 4B4F1A - Installing the anti-condensation strip - 1

7.2 Adjusting the height

Tilt the dishwasher by lifting the rear part by about 10 cm.

Line drawing of a washing machine with directional arrows indicating motion, accompanied by a warning symbol (no text or labels).

7.7 Securing the front feet

After checking all measurements, permanently secure the front feet to prevent them from loosening over time. This operation can also be performed after installing the kitchen worktop.

stopice B 5

7 Installation instructions for the dishwasher

7.8 Preparing the worktop

1.

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a mechanical assembly with cross-sectional view and labeled component 'X' and dimension '11'.

2.

Transfer the measurement to the kitchen worktop and locate the center;

X 1 11

3.

Apply the drilling template and follow the provided instructions.

Technical diagram illustrating a cutting process with labeled components and tool paths, including a 3D panel view and two circular tool paths.

7.8 Panel preparation

4.

VRH 3 C F

⚠ WARNING: Make sure that the screw heads do not protrude from the back of the panel, especially if you are installing a handle.

Technical diagram showing installation of a mechanical component with cross and check marks, alongside a close-up view of a panel with screwdriver.

7 Installation instructions for the dishwasher

7.9 Panel installation

1.

Attach the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in two views (no text or symbols).

2.

Attach the panel to the bottom of the dishwasher;

klik

3.

Attach the panel to the top of the dishwasher;

Line drawing of a refrigerator with doors and side panels, showing airflow direction arrows (no text or symbols).

7.9 Panel installation

4.

Open the dishwasher door while holding the lower part of the kitchen countertop, then unscrew the lower screws;

5

5.

Check that the countertop is fully inserted; secure the kitchen countertop to the dishwasher using the provided screws.

Technical diagram showing a screwdriver inserted into a mounting bracket with labeled parts A and 4, indicating assembly or installation.

7 Installation instructions for the dishwasher

CANDY CI 4B4F1A - Installation instructions for the dishwasher - 1

⚠ WARNING: Now connect the dishwasher to the water supply and electrical network, in accordance with the instructions in chapter 8.

7.10 Securing the dishwasher to the kitchen

Instructions for securing the dishwasher laterally to adjacent kitchen units.

1. ① ② 8 ! X ✓

2. 3 D ! X = X

Installation instructions for the dishwasher

CANDY CI 4B4F1A - Installation instructions for the dishwasher - 1

CANDY CI 4B4F1A - Installation instructions for the dishwasher - 2

Diagram of a device with two circular arrows pointing to a central screen (no text or symbols).

⚠ WARNING: If it is not possible to secure the dishwasher laterally, use the supplied brackets and secure it to the worktop; pay attention if it is not made of wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps 1 through 5.

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.5 Leveling adjustment

2.

TOP 3 C F

7 Installation instructions for the dishwasher

7.9 Installing the panel

1.

2.

7.9 Installing the panel

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot (no visible text or symbols).

TERE TULEMAST

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.5 Adjusting the corner

7.7 Attaching the front legs

2.

7.8 Preparing the panel

4.

TOP 3 C F

2.

7.9 Panel installation

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy plastic tray inside a grocery store (no visible text or symbols on the tray or background).

OPEN THE DOOR

or by clicking on this link

CANDY CI 4B4F1A - OPEN THE DOOR - 1

2-3h

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

TOP 3 C F

2.

7.9 Panel installation

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a schematic diagram below.

2.

OTTOPE 3 C F

2.

CANDY CI 4B4F1A - WELCOME - 3

Pure diagram of a device with two circular arrows pointing to a central rectangular block. No text or symbols.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

or by clicking on the next

CANDY CI 4B4F1A - WELCOME - 1

2-3h

5 Installation tools

Required tools1 2 3 4 5 6 7 8 9 10 Ch 26 PZ 2 PH 2 Torx T15 9 mm 11 12 13 Ø 2 mm Gloved

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), this distance must also be increased proportionally, up to a maximum of between 170 and 200 mm.

7 Dishwasher installation instructions

7.1 Installing the steam strip

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Adjusting the height

7.3 Adjusting the rear foot

Adjust the height of the rear foot from the front of the machine according to the instructions.

foot UP DOWN

7 Dishwasher installation instructions

7.4 Adjusting the height of the front feet

Act directly on the front feet. If necessary, slightly lift the dishwasher.

feet 6 Ch 26 9

7.5 Adjusting the tilt

Align the dishwasher vertically and horizontally.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols)

7.6 Inserting into the built-in space

2.

7.8 Preparing the panel

4.

Remove the template and install the accessories.

Diagram showing a warning sign with an exclamation mark and directional arrow, likely indicating an alert or warning in a technical or electrical context.

TOP 3 C F

⚠️ ATTENTION: Avoid having screw heads protrude on the back of the panel when installing the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

7 Installation instructions for the dishwasher

7.9 Installing the panel

1.

Attach the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in two views (no text or symbols).

2.

Attach the panel to the lower part of the dishwasher;

click

3.

Attach the panel to the upper part of the dishwasher;

Line drawing of a refrigerator with doors, showing internal compartments and directional arrows indicating rotation (no text or symbols).

7.9 Panel installation

4.

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

Technical diagram showing a screwdriver pressing a component labeled '5' into a storage tray, with instructional annotations and warning symbols.

5.

Check that the panel is fully inserted; attach the kitchen panel to the dishwasher using the provided screws.

4 A

7 Installation instructions for the dishwasher

1. 2. 3 D X = X

CANDY CI 4B4F1A - Installation instructions for the dishwasher - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the provided brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five steps of a mechanical assembly or mounting process, labeled 1 to 5 with directional arrows and component illustrations.

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

TOP, 3, C, F

7.9 Installation of panelet

1.

2.

7.9 Installation of panelet

4.

5.

2. 3 D X = X

CANDY CI 4B4F1A - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

Tilt the dishwasher by lifting the rear about 10 cm.

Line drawing of a refrigerator with directional arrows indicating motion, accompanied by a warning sign (no text or symbols on the diagram itself)

7.3 Rear foot adjustment

2.

TOP 3 C F

2.

7.9 Panel installation

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations highlighting a central component (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

TOP, 3, C, F

2.

5.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, with numbered steps and a 3D model view.

7.5 Angle adjustment

2.

TOP 3 C F

2.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME!

or by clicking this

CANDY CI 4B4F1A - WELCOME! - 1

2-3 rod

  1. CANDY CI 4B4F1A - WELCOME! - 3
  1. CANDY CI 4B4F1A - WELCOME! - 4

2.

View from above, 3, C, F

2.

2. 3 D ! X = X

CANDY CI 4B4F1A - 2. - 3

Pure diagram of a device with two circular arrows pointing to a central rectangular block (no text or symbols).

CANDY

Hand holding a blue candy tray inside a grocery store (no visible text or symbols on the tray or background)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Tilt adjustment

2.

TOP, 3, C, F

2.

7.9 Panel mounting

4.

5.

CANDY CI 4B4F1A - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CANDY

Model : CI 4B4F1A

Category : Dishwasher
