Product typeBuilt-in dishwasher
BrandCandy
ModelCI 4B2F0SA
Dimensions (W x D x H)598 x 555 x 818-898 mm
Minimum height818 mm
Maximum height898 mm
Weight (approx.)40 kg
Power supply220-240 V, 50 Hz
Power cord length~1350 mm
Water inlet hose length~1500 mm
Drain hose length~1700 mm
Required water pressure0.08 - 1 MPa
Capacity12 place settings
Anti-vapor stripIncluded
Anti-overflow safety deviceYes
Height adjustment of feetYes
InstallationBuilt-in
Requires kitchen panelYes
Tools suppliedScrews, drilling template
Energy classNot specified

Frequently Asked Questions - CI 4B2F0SA CANDY

What are the dimensions of the Candy CI 4B2F0SA dishwasher?
The dimensions are: width 598 mm, depth 555 mm, adjustable height from 818 to 898 mm.
What is the minimum installation height?
The minimum installation height is 818 mm, with a distance between the kitchen door and the floor of 90 to 120 mm.
How to adjust the height of the feet?
Tilt the dishwasher by lifting the rear, adjust the rear foot from the front, then adjust the front feet directly. Make sure the appliance is level.
What accessories are supplied with the appliance?
The installation kit includes screws (A, B, C, D), a drilling template, an anti-vapor strip (E), and mounting brackets.
How to install the anti-vapor strip?
Apply the strip under the worktop and on the sides of adjacent cabinets to protect from moisture.
What is the required water pressure?
The water pressure must be between 0.08 MPa and 1 MPa.
Does this dishwasher have an anti-overflow system?
Yes, it has an anti-overflow safety device that stops the water supply or drains the excess in case of malfunction.
What is the approximate weight of the appliance?
The weight is approximately 40 kg, be careful during transport.
Do I need to fix the dishwasher to adjacent cabinets?
Yes, it is recommended to fix it laterally to the cabinets. If not possible, use the supplied brackets to fix it to the worktop.
Can I use the appliance without a kitchen panel?
No, the dishwasher must be built-in with a kitchen panel for safety and performance reasons.

User questions about CI 4B2F0SA CANDY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Dishwasher in PDF format for free! Find your manual CI 4B2F0SA - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CI 4B2F0SA by CANDY.

USER MANUAL CI 4B2F0SA CANDY

Double movement hinges

Less washing time, more washing space

EN | IT | FR | DE | ES | GR | NL | PT | SK | PL | CZ | RO | HU

SL | SR | LT | EE | LV | BG | HR | DA | FI | NO | SV | UA | TR

Woman cleaning a modern kitchen with open oven, stainless steel counter, and green wall art (no visible text or symbols)

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

This installation manual is intended for kitchen manufacturers who will accommodate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children.

NOTE: The features and images contained in this document are for reference only and may change without notice.

Index

1 Safety notices for installation

2 Where to install the dishwasher p.3

3 Dishwasher dimensions p.4-5

4 Step-by-step installation video p.6

5 Installation tools p.6

6 Built-in dimensions p.7

7 Instructions for dishwasher installation p.8 - 17

7.1 Installation of the anti-steam strip 7.2 Height adjustment 7.3 Adjustment of the rear foot 7.4 Adjustment of the front feet height 7.5 Tilt adjustment 7.6 Insertion into the built-in compartment 7.7 Fixing the front feet 7.8 Preparation of the panel 7.9 Installation of the panel 7.10 Fixing the machine to the kitchen

8 Connection to water and electrical network p.18 - 19

8.1 Connection diagram

8.2 Safety devices

9 Delivery to the user p.19

10 Dishwasher disassembly p.19

1 Safety warnings for installation

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

  • The installation must be carried out by a qualified technician who must be aware of and comply with the laws in force in the country of installation and the manufacturer's instructions;
  • If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the fix;
  • Remove the packaging material before operating the appliance;
  • After unpacking the product, check that it is not damaged and, in case of problems, contact the service center before proceeding with installation and do not connect it to the power supply;
  • A damaged product can cause a short circuit, electric shock, fire hazard, and other dangers;
  • Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;
  • Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
  • Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
  • During installation, the appliance must not be connected to the power supply;
  • It is recommended to wear protective gloves during installation to avoid cut injuries;
  • In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
  • Make sure that when the product's power supply cable is completed, it is not accessible;
  • After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stresses;
  • When delivering the product to the end user, the technician must ensure that it has been installed correctly;
  • Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard; • Take care during transport, the product is heavy;
  • Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;
  • Make sure the installation area is stable and solid;
  • Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity;
  • Be careful when opening and closing the product;
  • Incorrect installation can cause the product to tip over;
  • The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

2

  • Install and use this product in a closed, covered, dry, and well-ventilated environment;
  • Do not install the product in open environments exposed to atmospheric agents; • Install the product near an electrical outlet;
  • Use the product only when placed in a recessed compartment, otherwise you risk injury and burns;
  • Do not install the dishwasher under a cooktop;
  • Do not install the product near heat sources (radiators, stoves, etc.);
  • Do not place the product on carpets or similar surfaces;
  • Place the product on a clean, level, and stable surface.

3 Dishwasher dimensions

Dimensions in mm

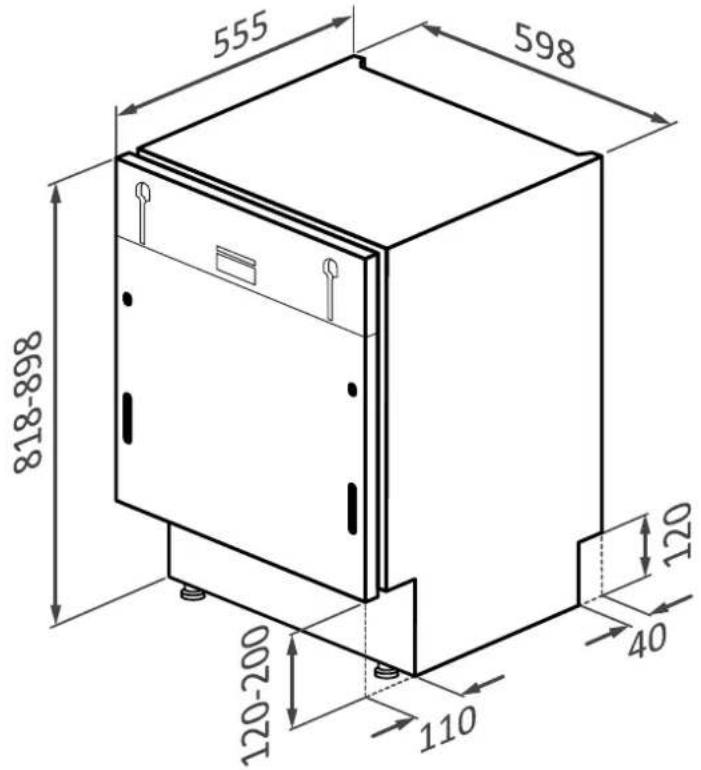

Front axonometric view of the product

555 598 818-898 120-200 110 40 120

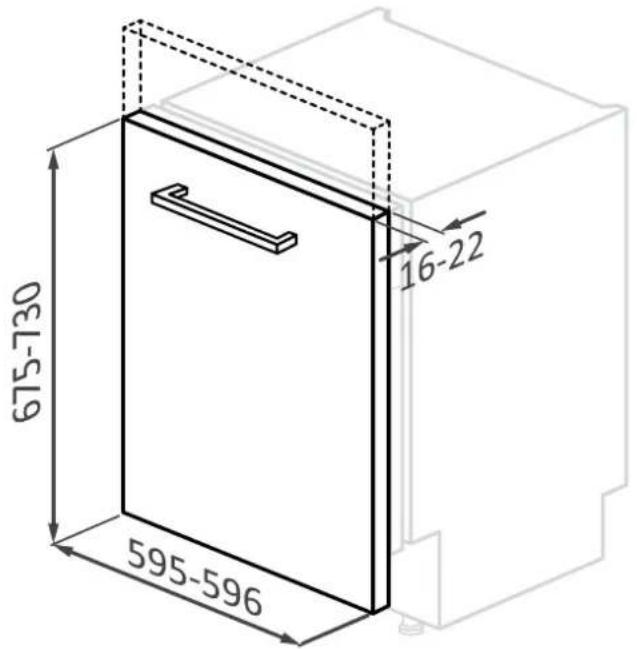

Front axonometric view with kitchen door

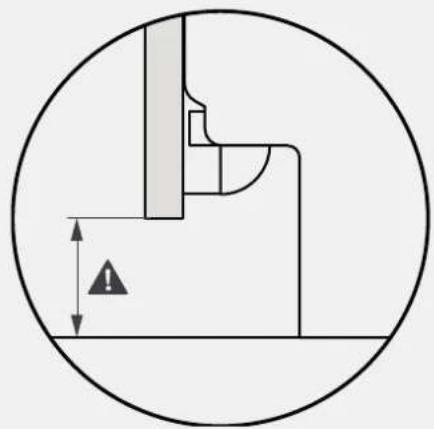

675-730 595-596 16-22

CANDY CI 4B2F0SA - Dishwasher dimensions - 3

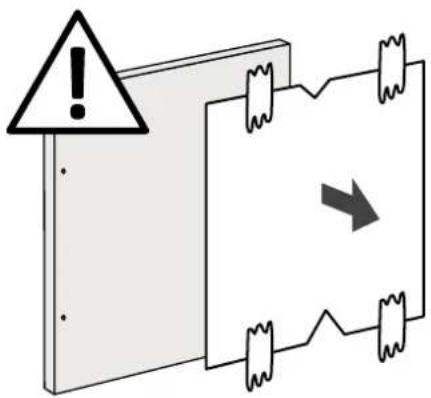

⚠ WARNING: if the kitchen panel weighs more than 9 kg contact customer service.

Dimensions in mm

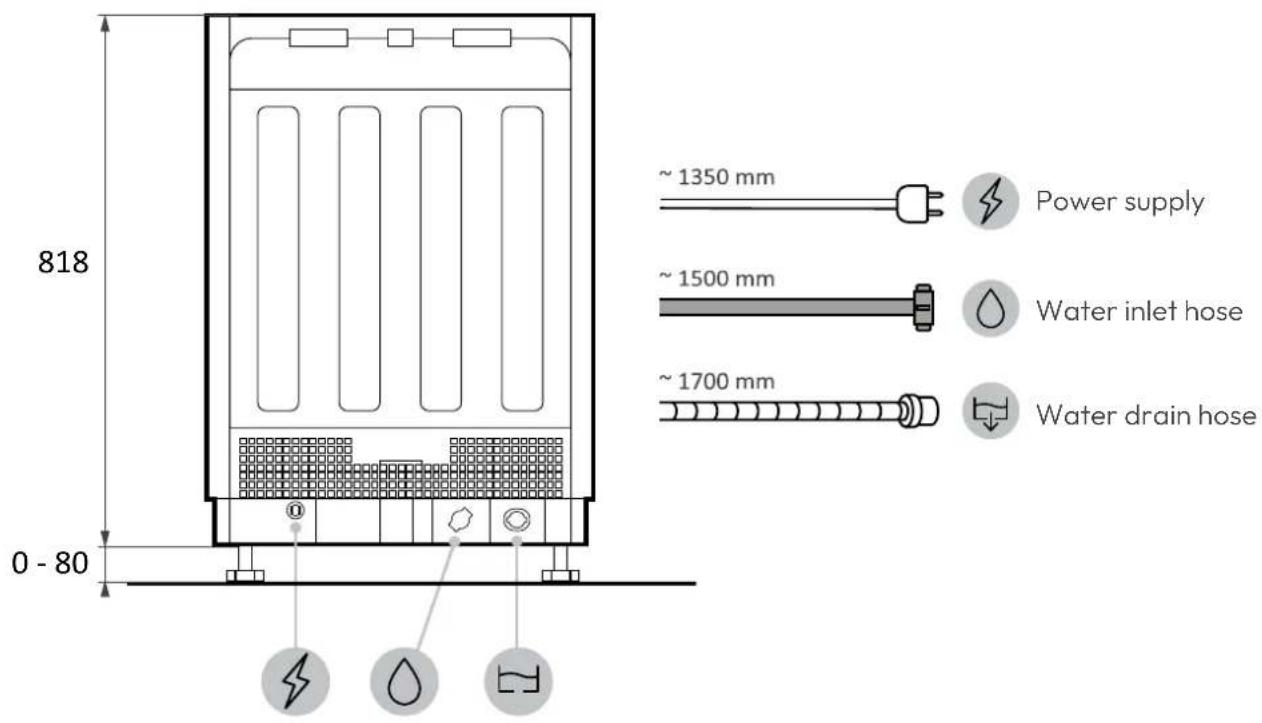

Back view818 0 - 80 ~ 1350 mm Power supply ~ 1500 mm Water inlet hose ~ 1700 mm Water drain hose

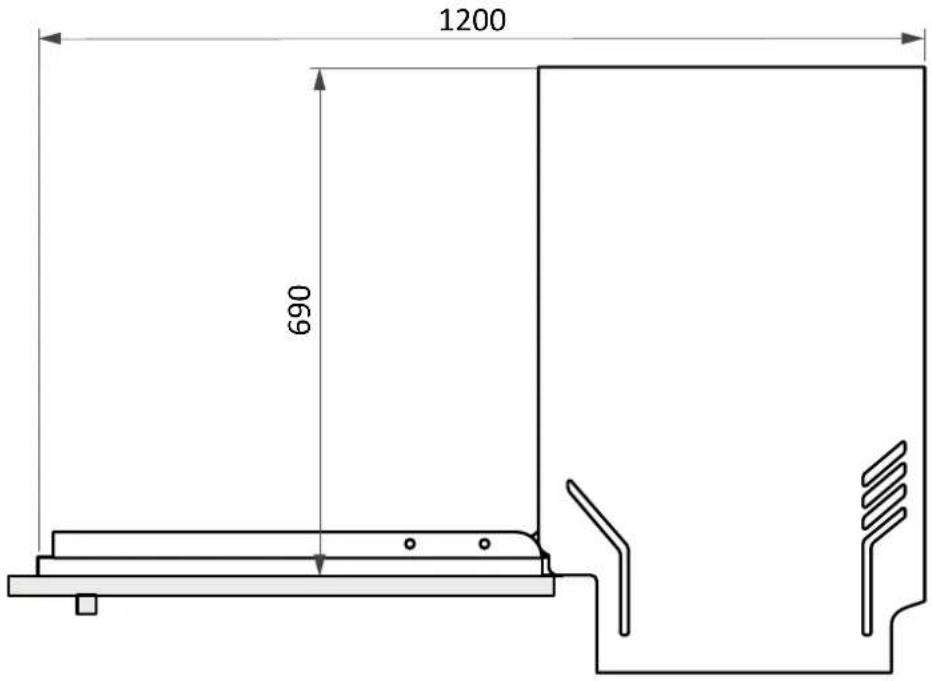

Side view1200 690

4 Step-by-step installation video

You can watch the product installation video by scanning the QR Code:

QR code image containing encoded data, no visible human-readable text

or by clicking thisCANDY CI 4B2F0SA - Step-by-step installation video - 2

2-3h

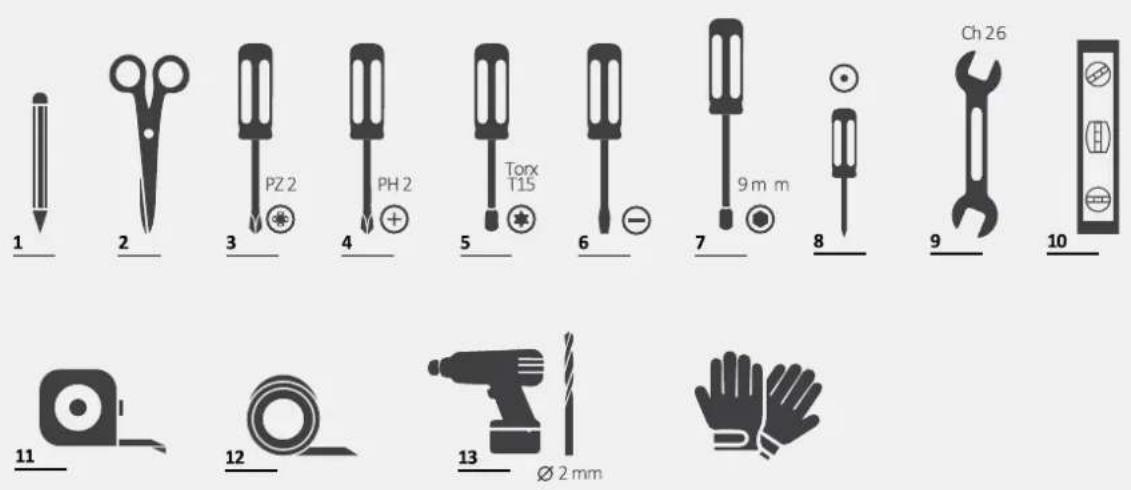

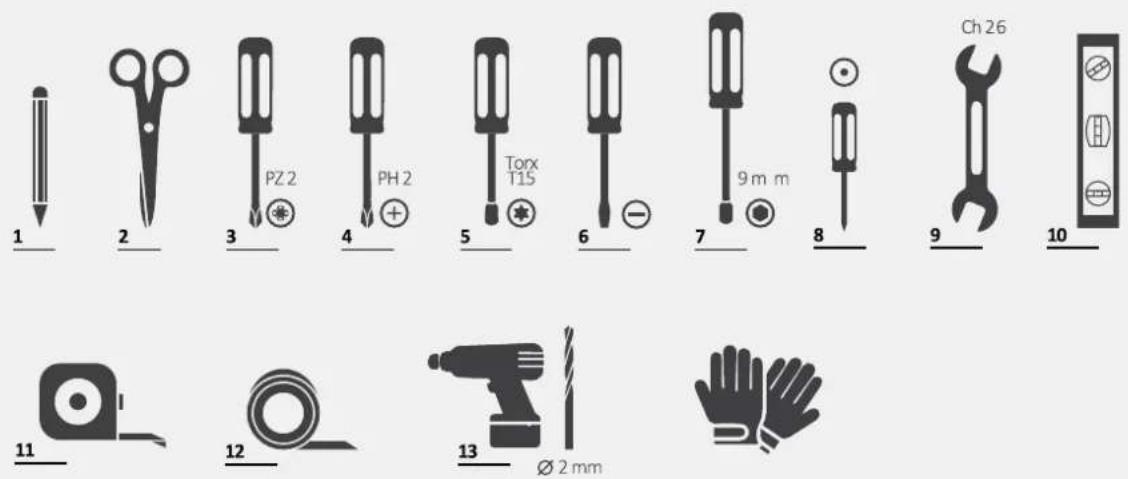

5 Installation tools

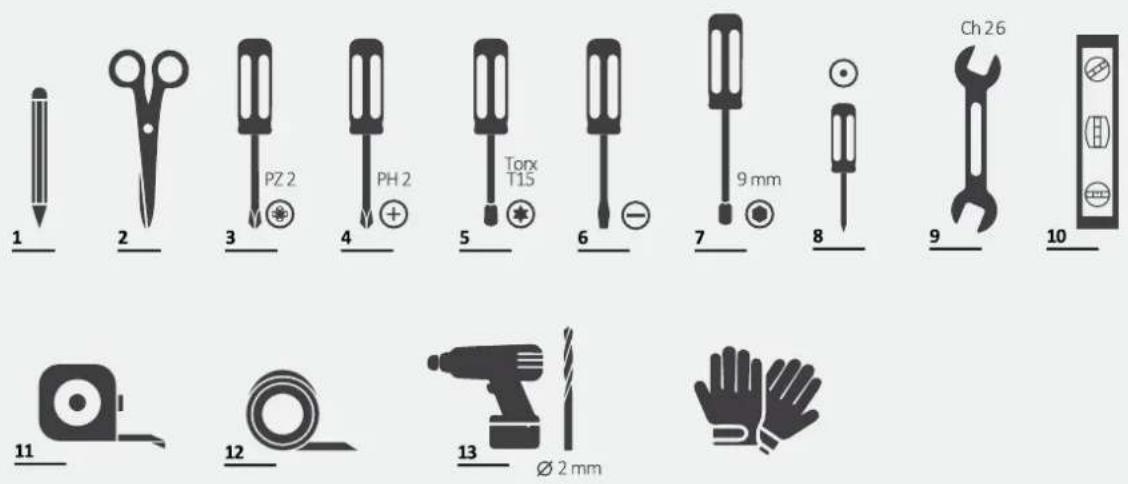

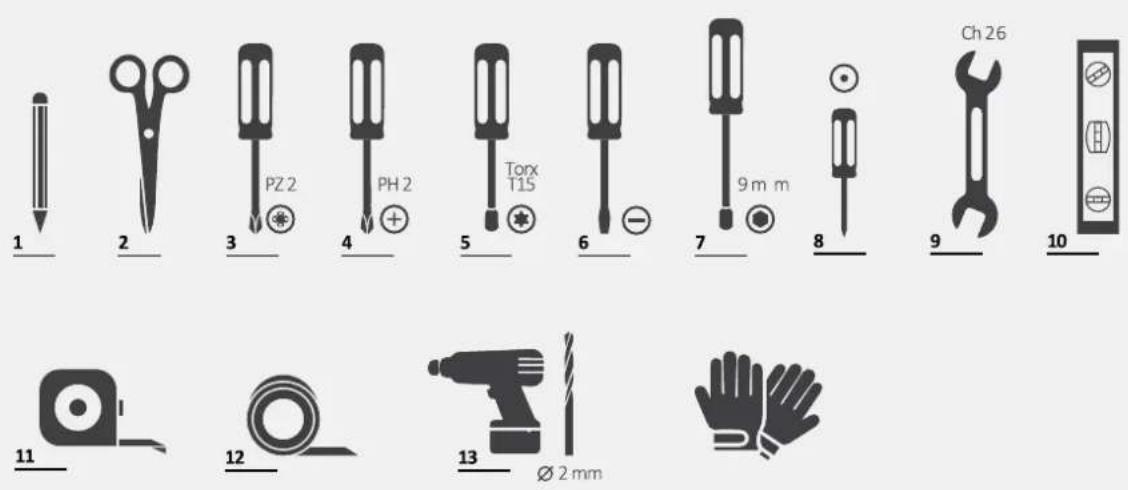

Required tools1 2 3 PZ 2 PH 2 5 Torx T15 6 9 mm 7 8 9 Ch 26 10 11 12 13 Ø 2 mm Gloved Hand

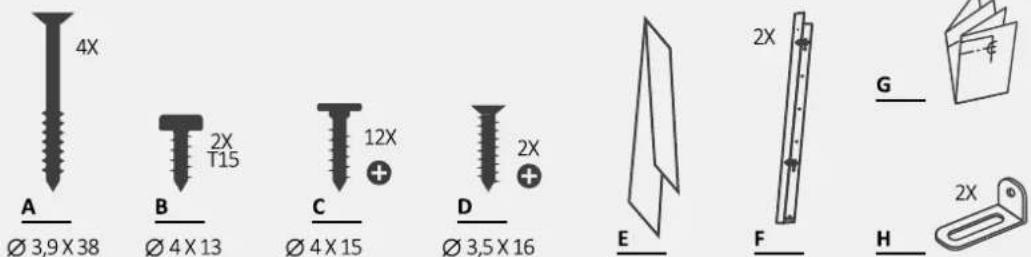

Tools provided with the product4X A Ø 3.9 X 38 B Ø 4 X 13 2X T15 C Ø 4 X 15 12X + D Ø 3.5 X 16 2X + E 2X F G H 2X

Dimensions in mm

Axonometric view

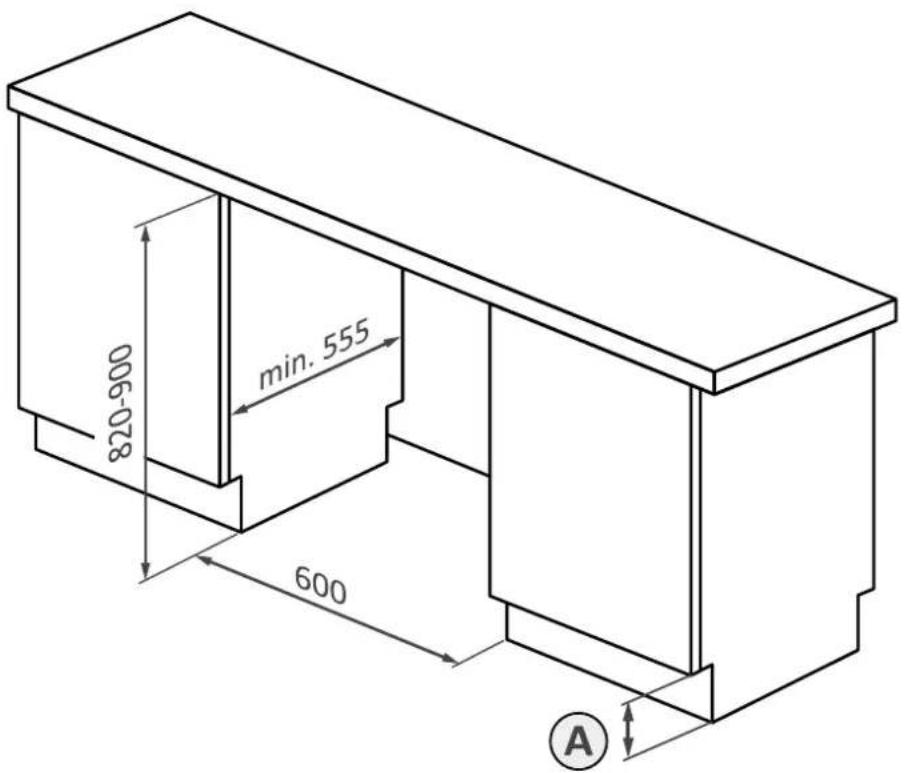

min. 555 820-900 600 A

A

Pure technical line drawing of a door or cabinet with a circular inset detail (no text or symbols)

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

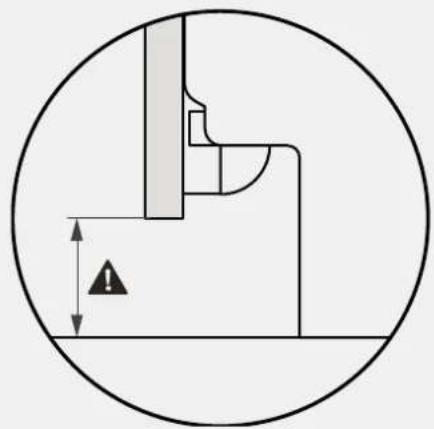

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 170 and 200 mm.

7 Instructions for dishwasher installation

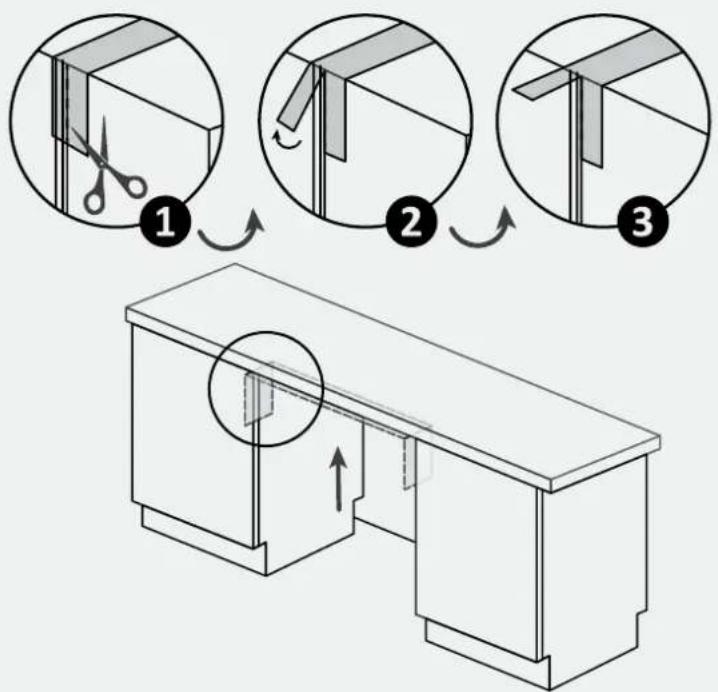

7.1 Steam band installation

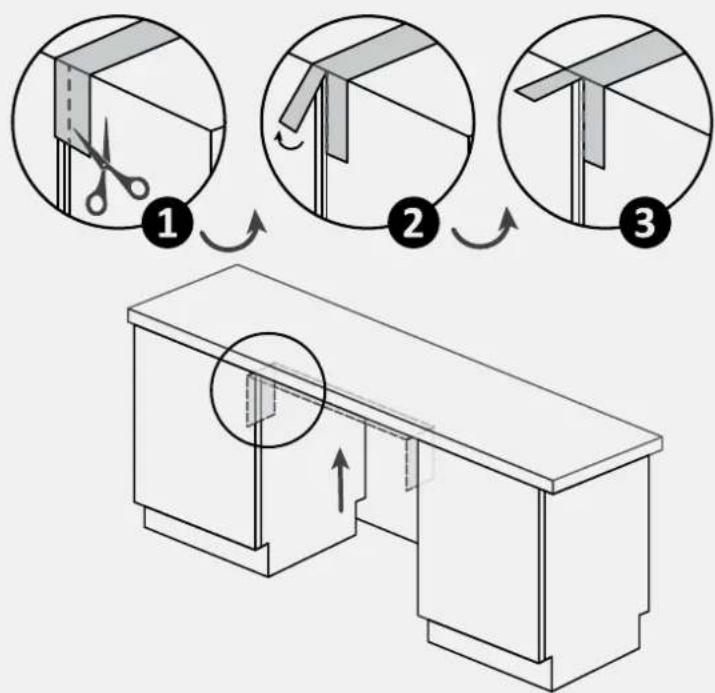

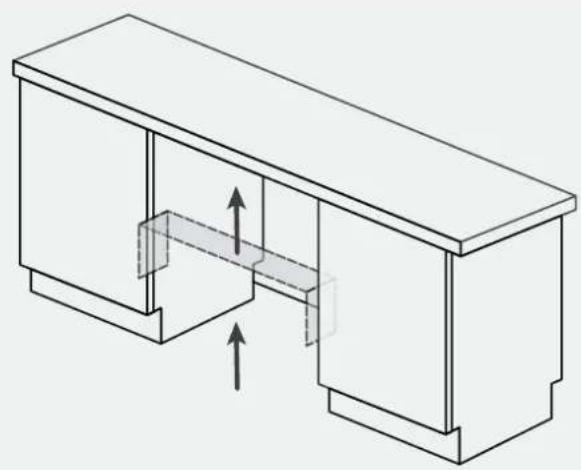

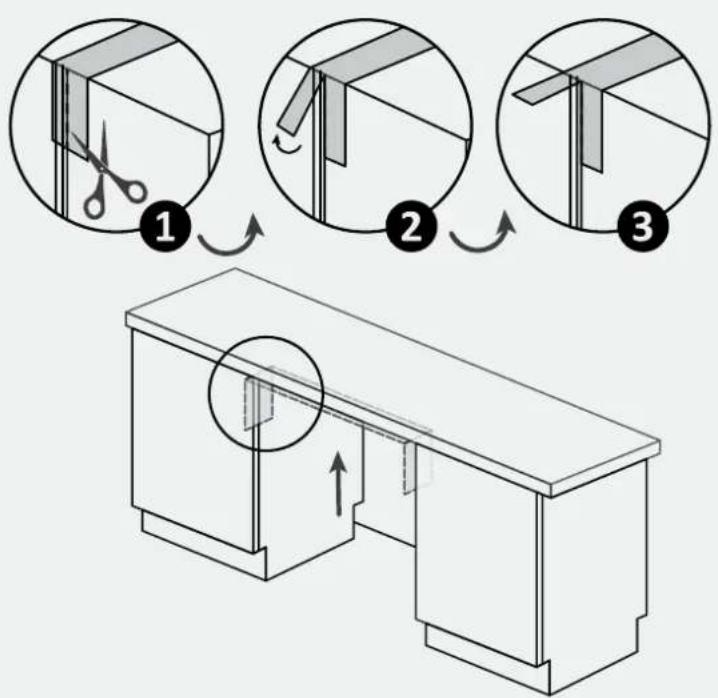

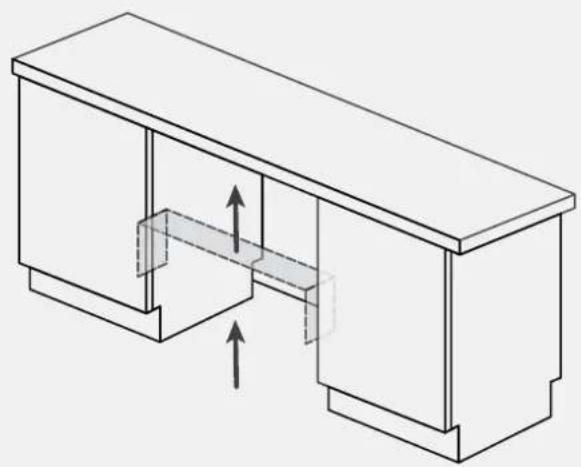

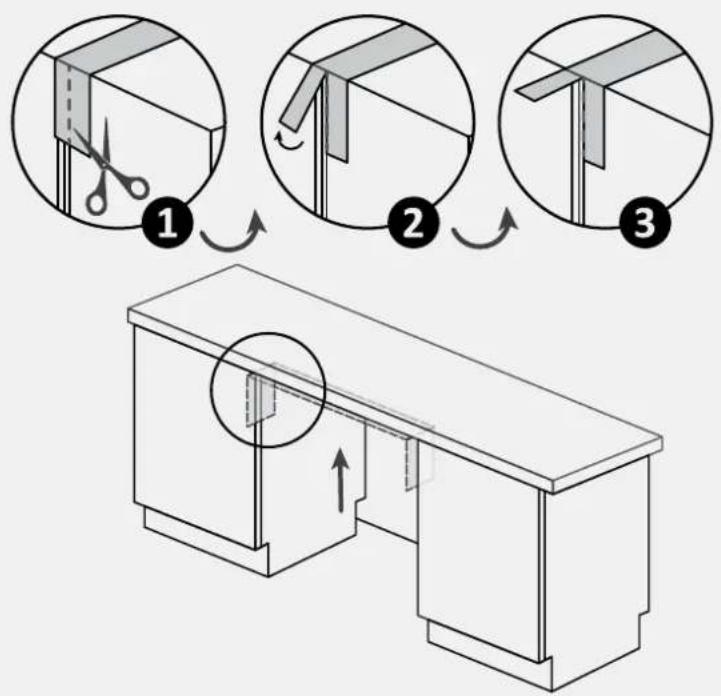

Apply the sticker band under the worktop and to the sides of the adjacent furniture;

  1. CANDY CI 4B2F0SA - Steam band installation - 1
  1. CANDY CI 4B2F0SA - Steam band installation - 2
  1. CANDY CI 4B2F0SA - Steam band installation - 3

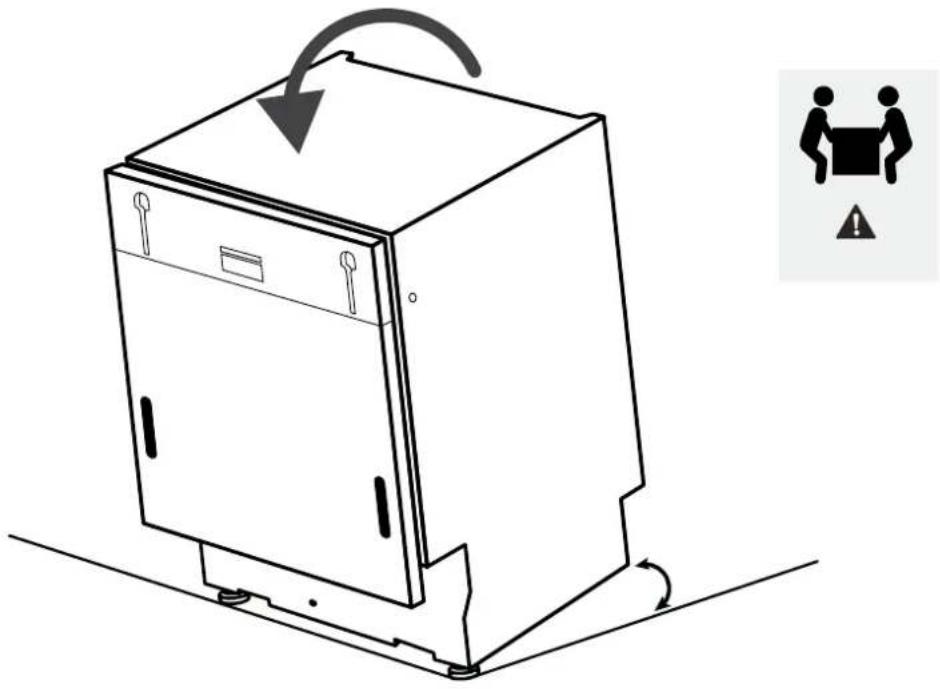

7.2 Height adjustment

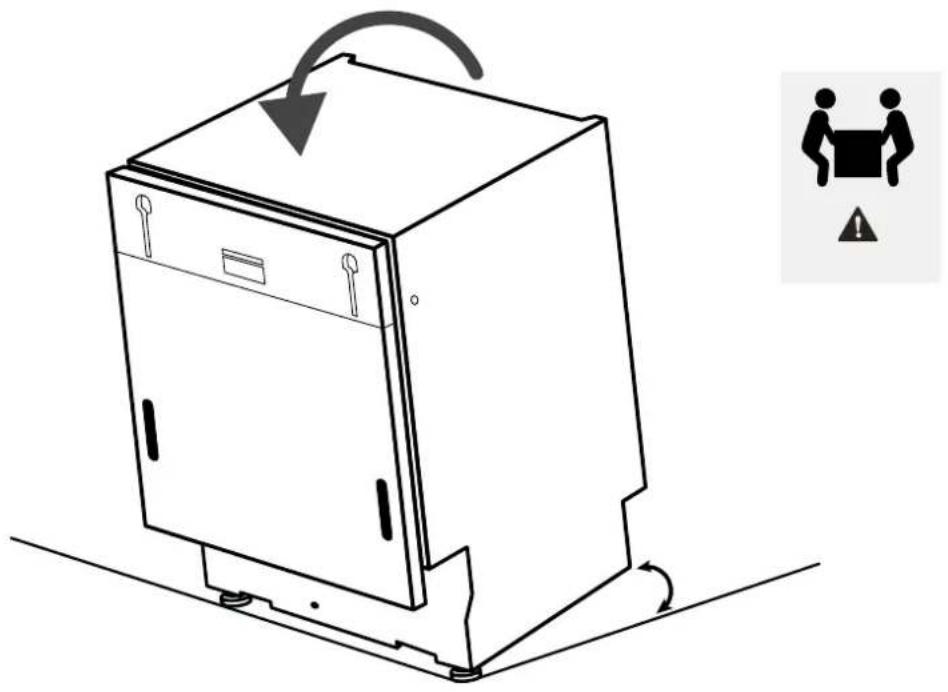

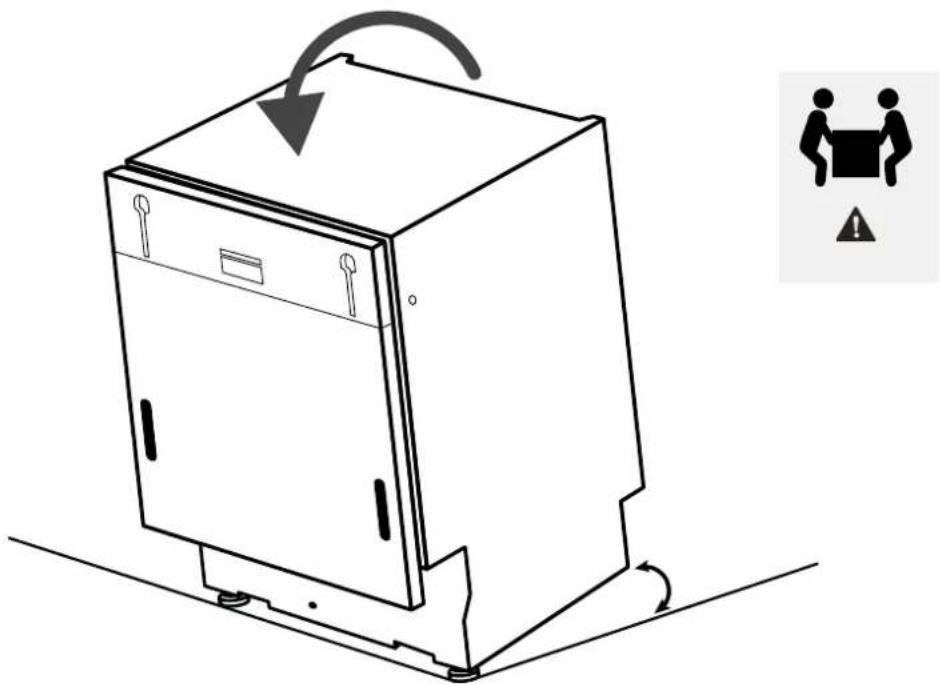

Incline the dishwasher by raising the back about 10 cm.

Line drawing of a kitchen appliance with directional arrows indicating motion, accompanied by a warning symbol (no text or labels).

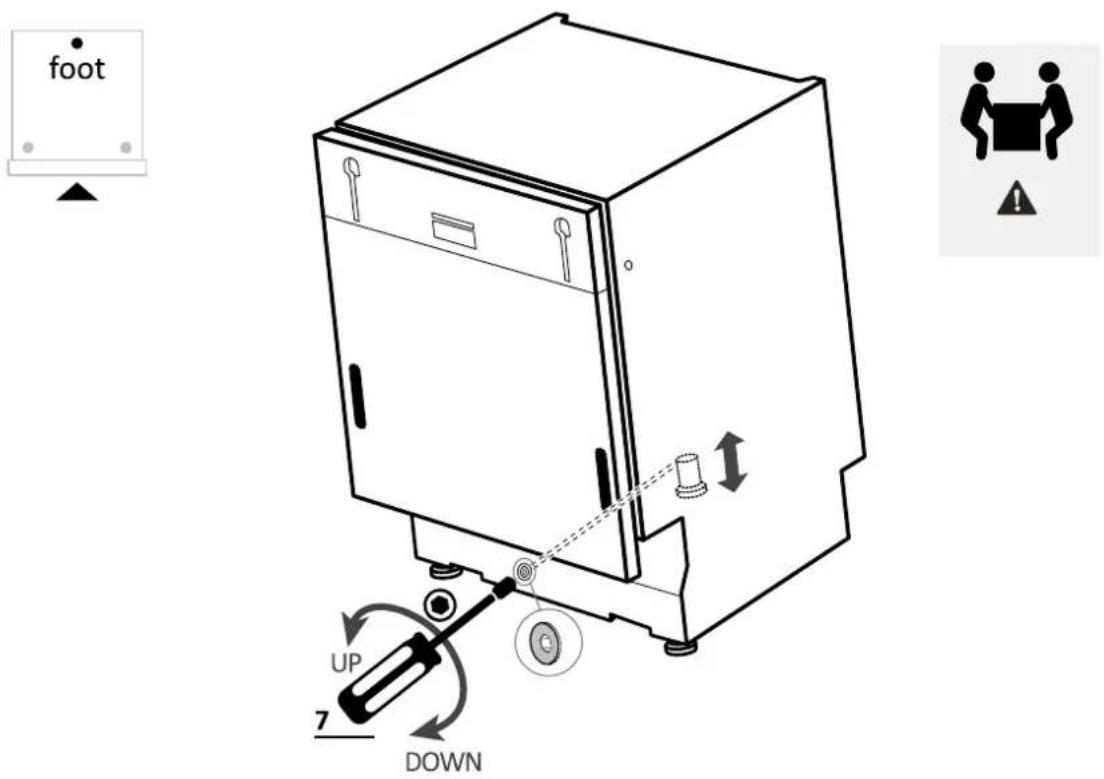

7.3 Rear foot adjustment

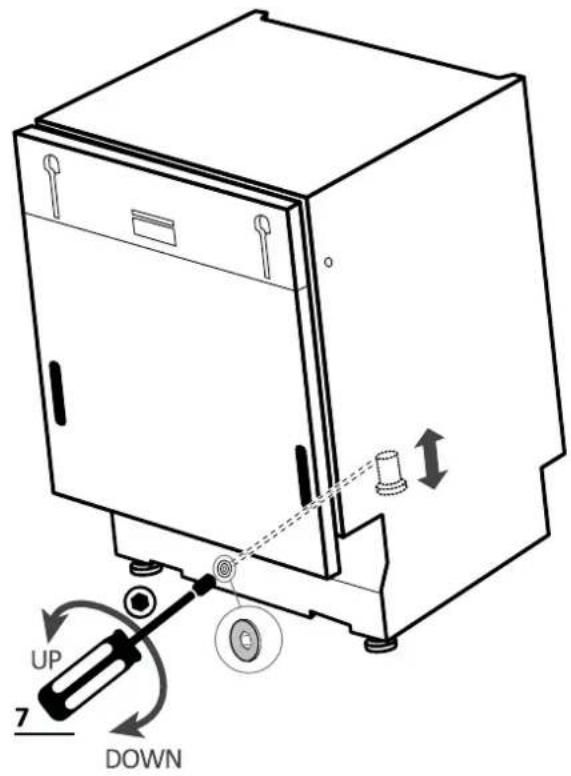

Adjust the rear foot height by operating from the front of the machine as indicated below.

CANDY CI 4B2F0SA - Rear foot adjustment - 1

UP 7 DOWN

CANDY CI 4B2F0SA - Rear foot adjustment - 3

7 Instructions for dishwasher installation

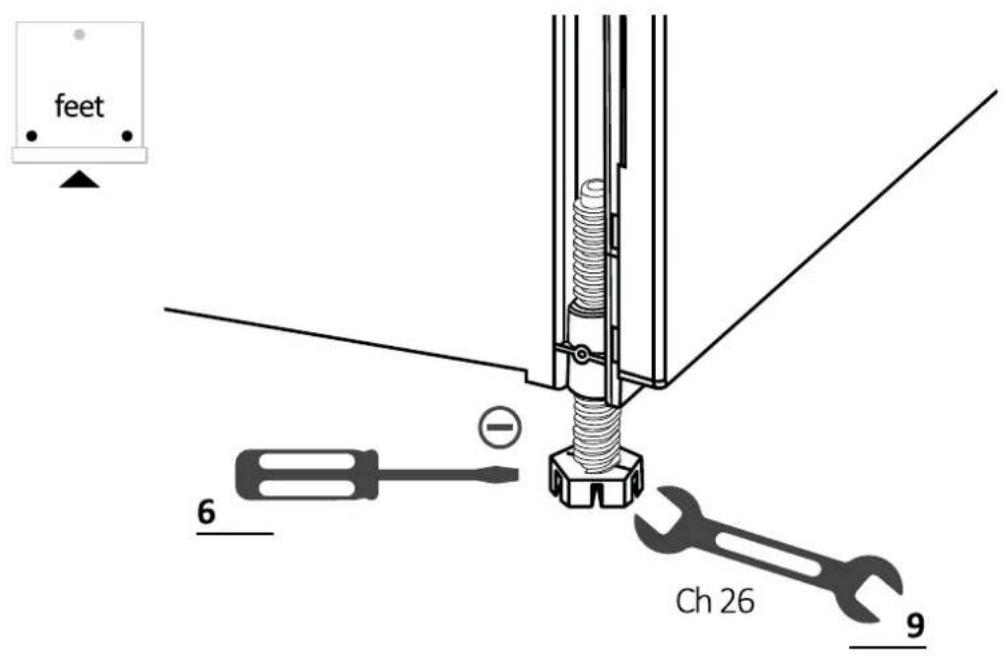

7.4 Front feet adjustment

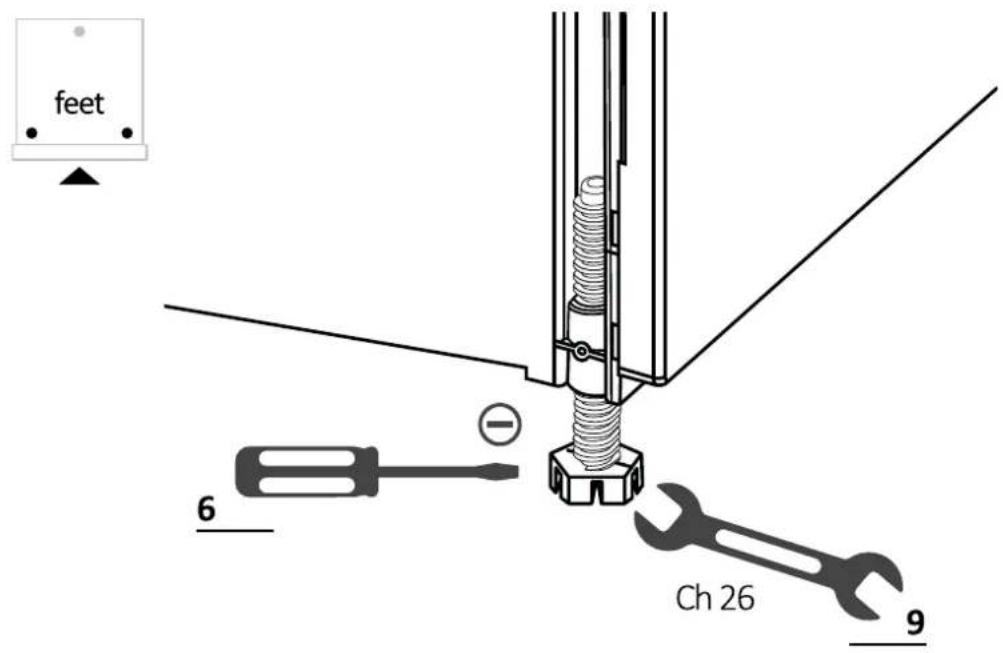

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

feet 6 Ch 26 9

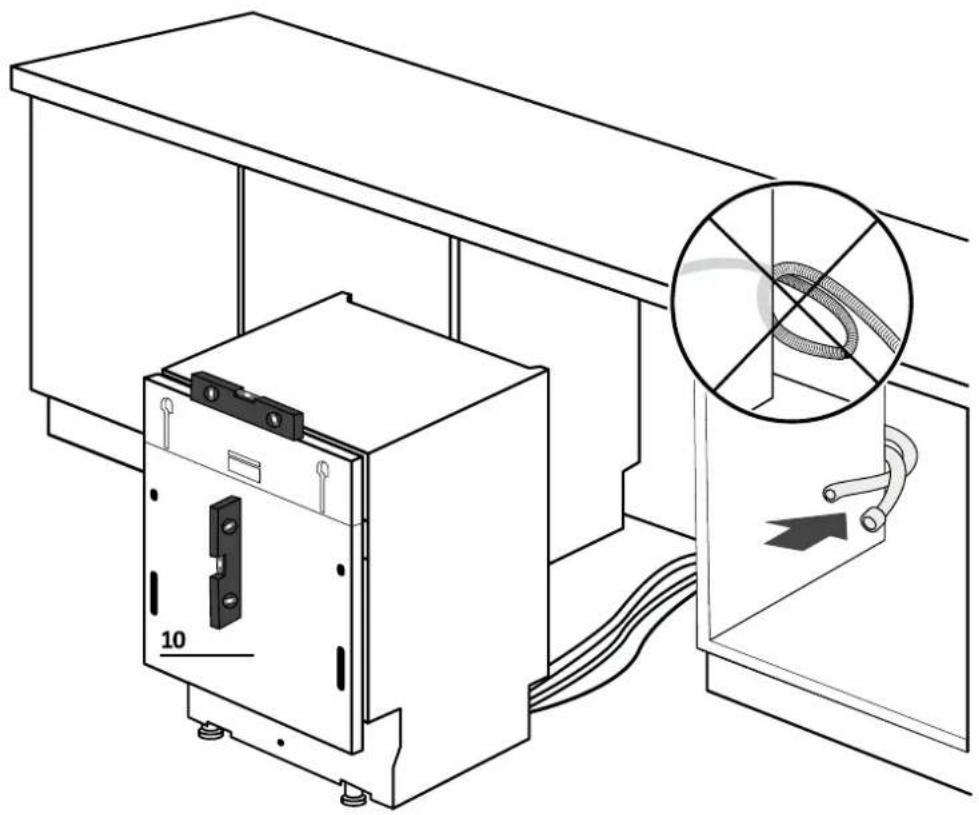

7.5 Tilt adjustment

Level the dishwasher by the vertical and horizontal planes.

Technical line drawing of an electrical enclosure with wiring and a magnified inset showing internal components (no text or symbols).

7.6 Insertion into the built-in compartment

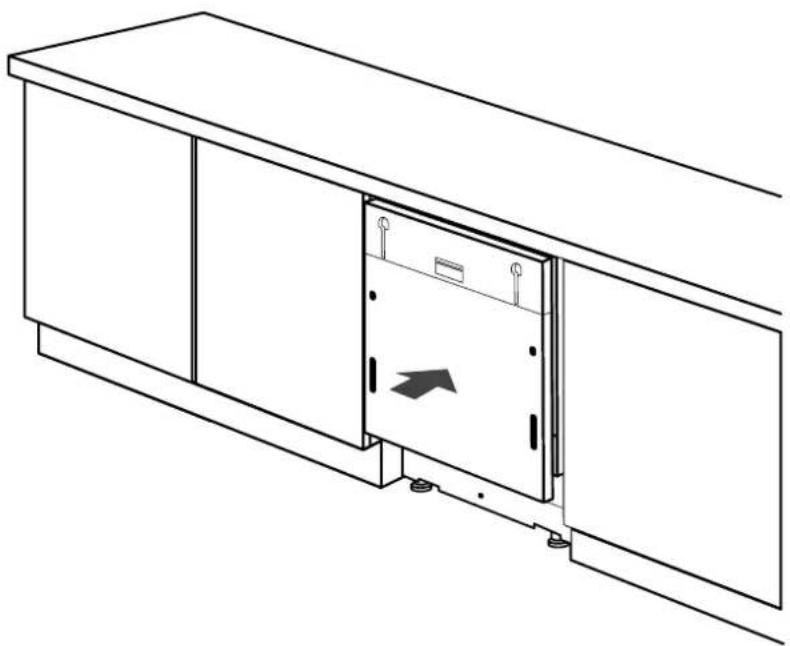

Insert the dishwasher into the built-in compartment and check measurements and tolerances.

Line drawing of a cabinet with an open door and directional arrow indicating movement (no text or symbols).

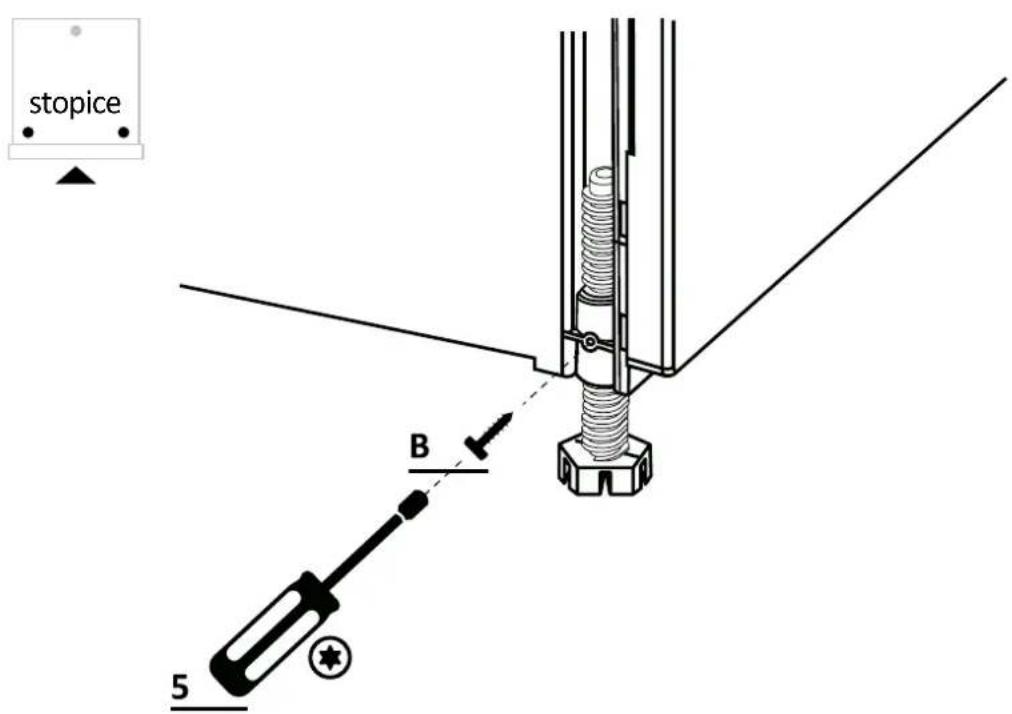

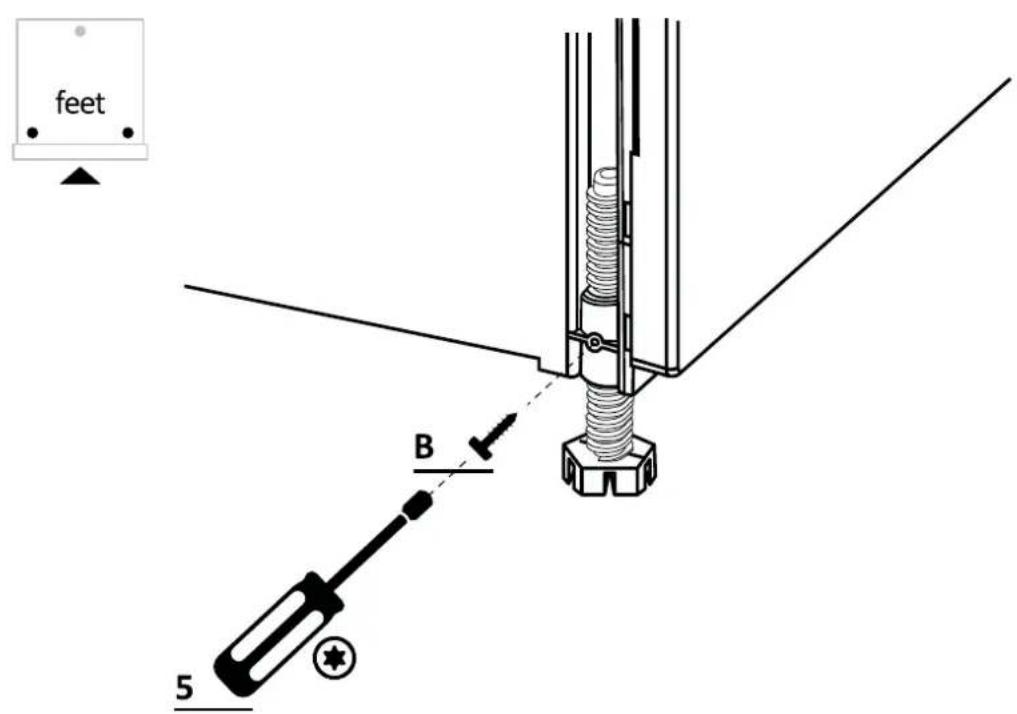

7.7 Fixing the front feet

After checking all measurements, permanently fix the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.

feet B 5

7 Instructions for dishwasher installation

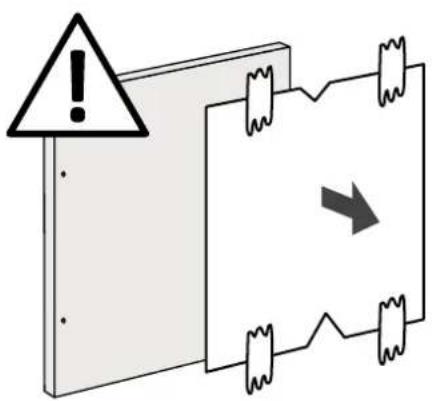

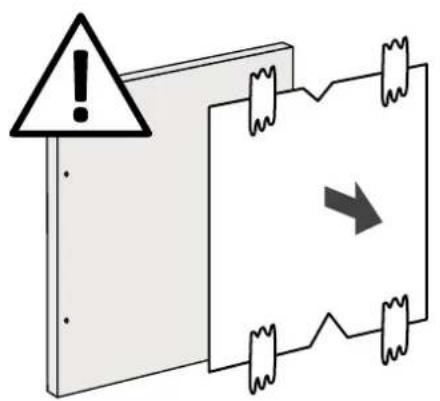

7.8 Panel preparation

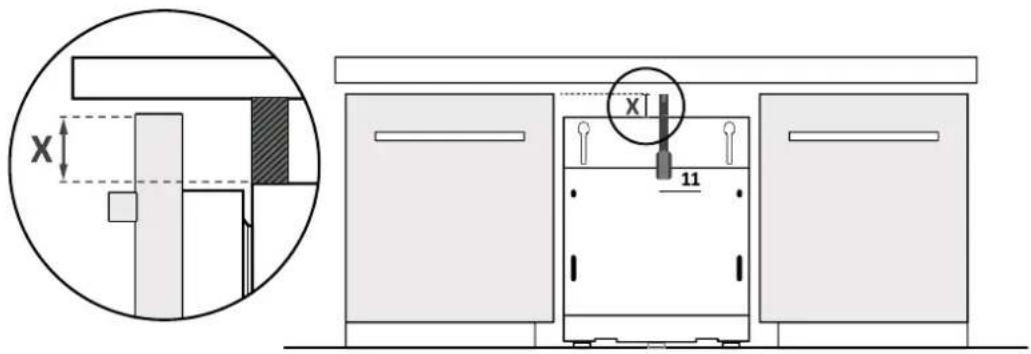

1.

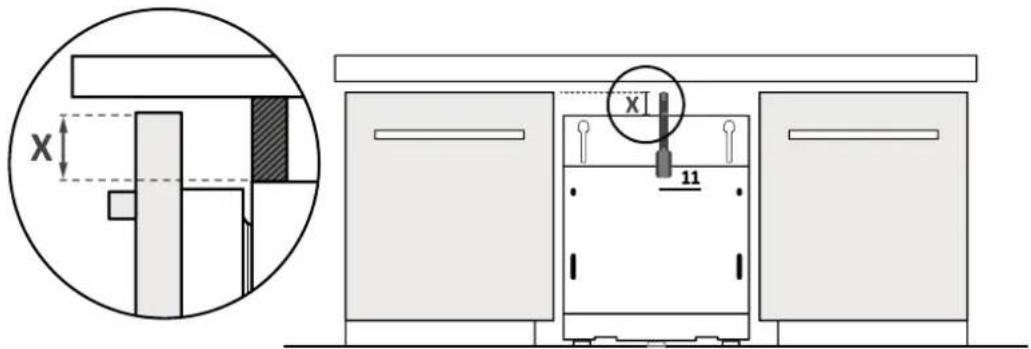

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a mechanical assembly with cross-sectional view and labeled dimension 'X' and reference number '11'.

2.

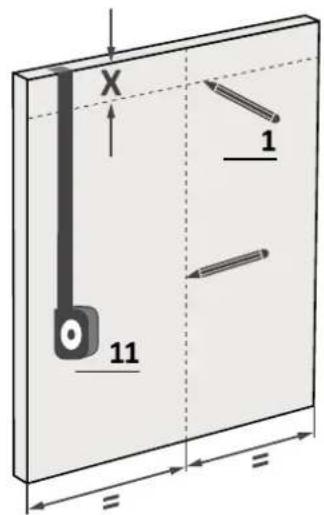

Transfer the measurement onto the kitchen panel and locate the center;

X 1 11

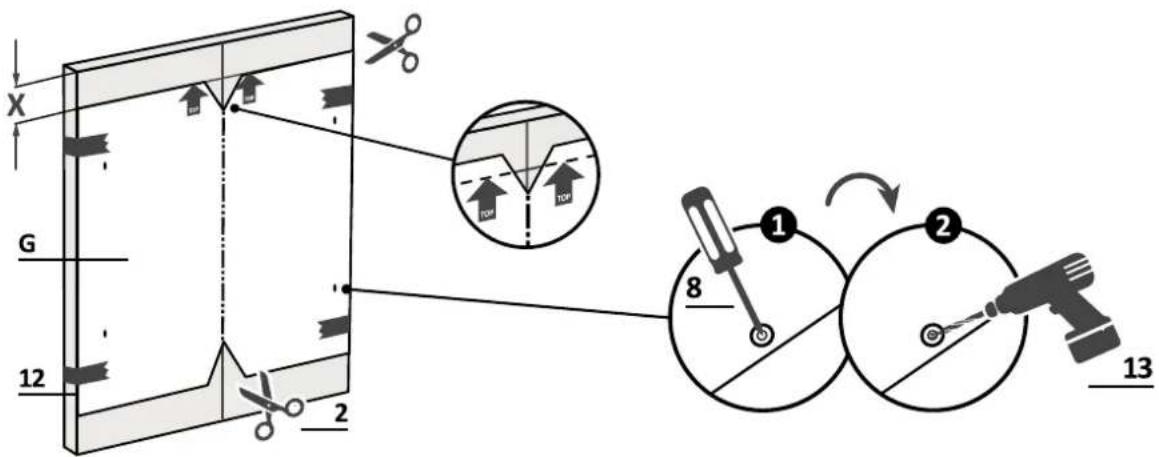

3.

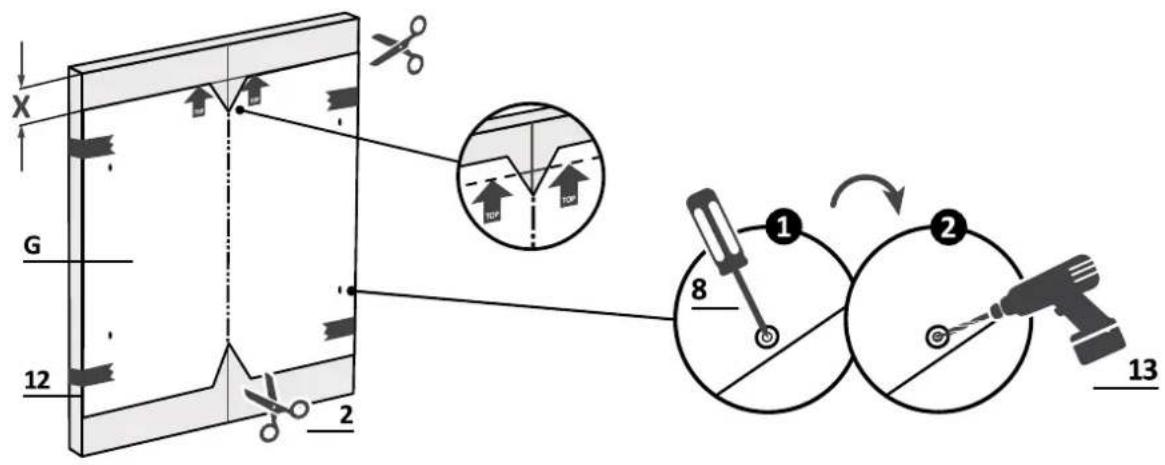

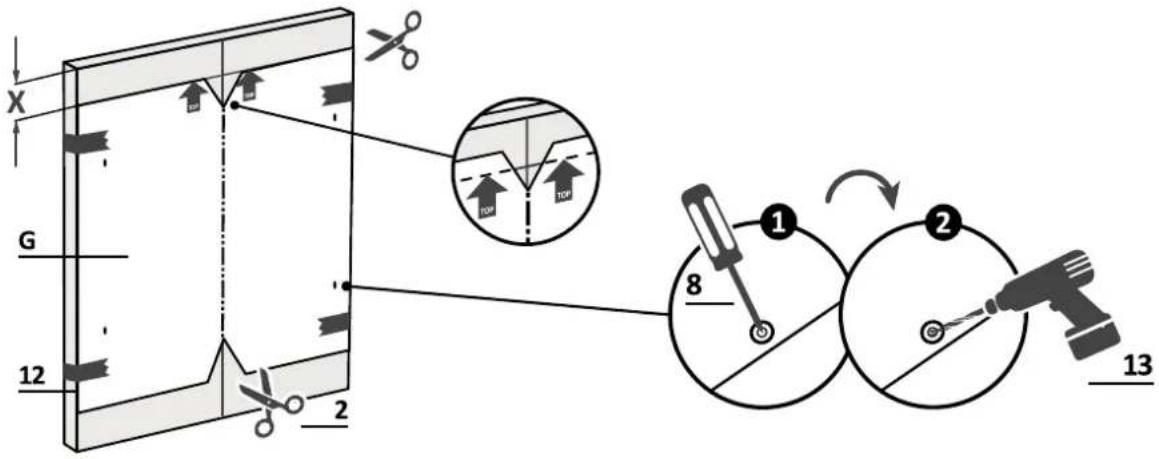

Apply the drilling template and follow the instructions provided.

Diagram illustrating a mechanical assembly with labeled parts and tool paths, including cutting, assembly, and disassembly steps.

7.8 Panel preparation

4.

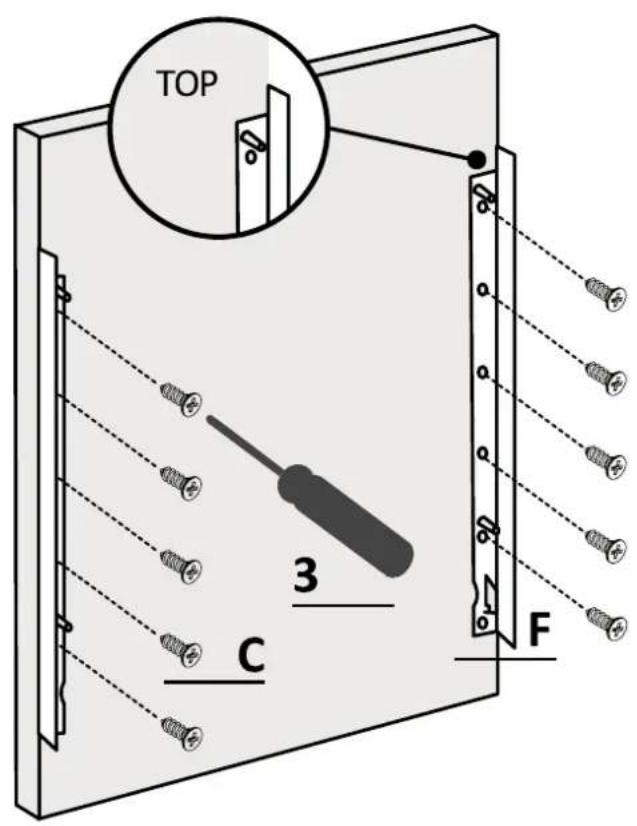

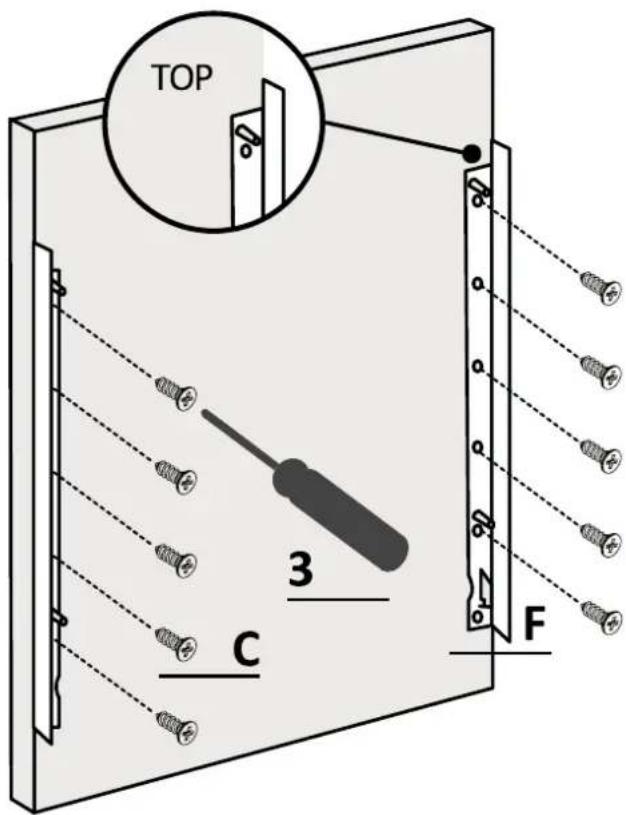

Remove the drilling template and apply the accessories.

Diagram showing a warning sign with an exclamation mark and directional arrow, likely indicating an alert or warning in a technical or mechanical context.

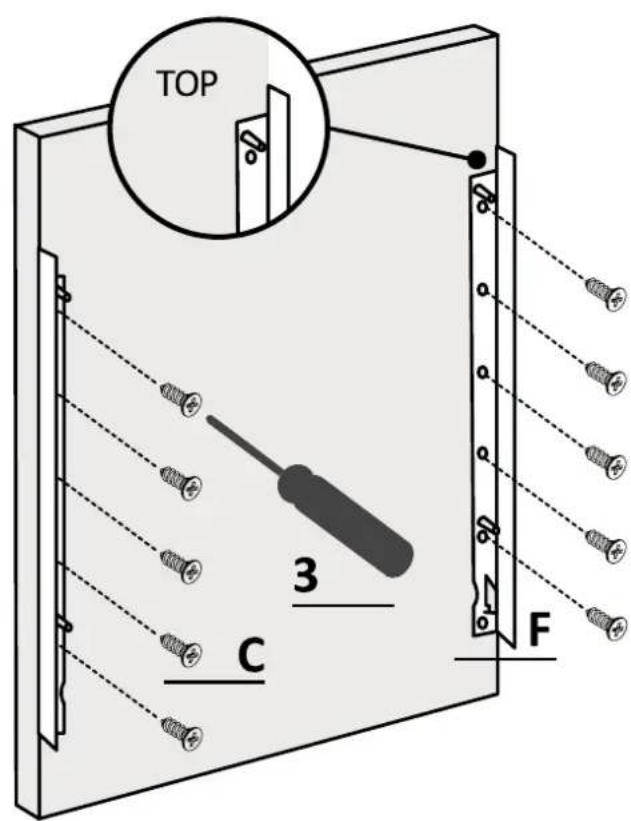

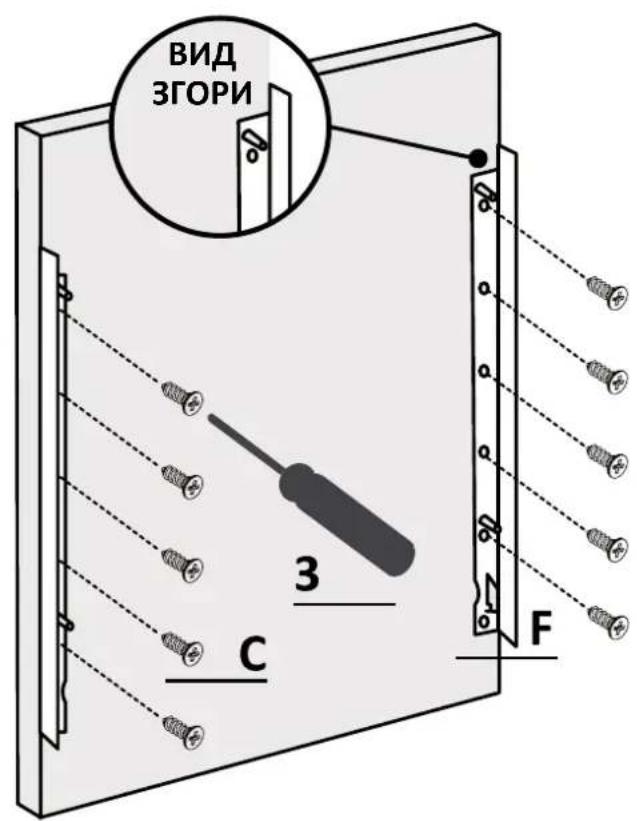

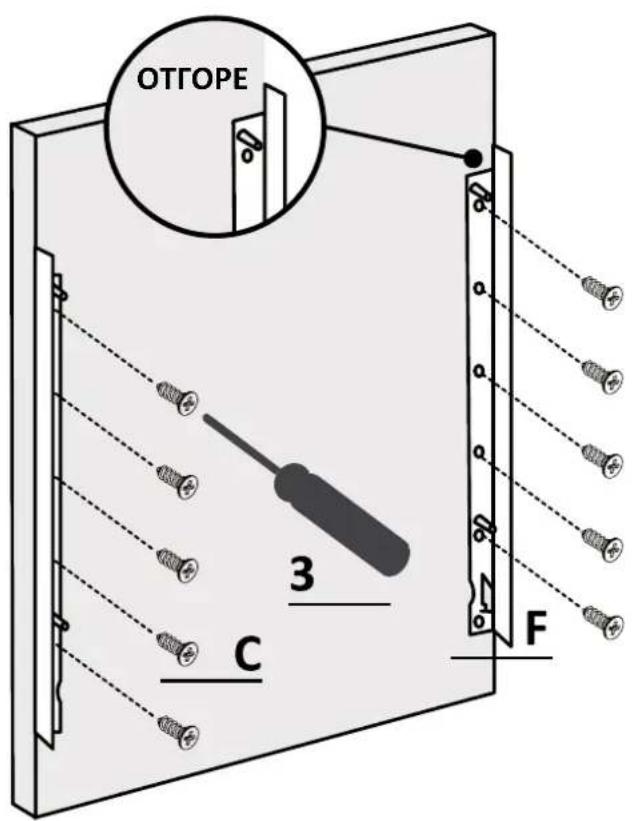

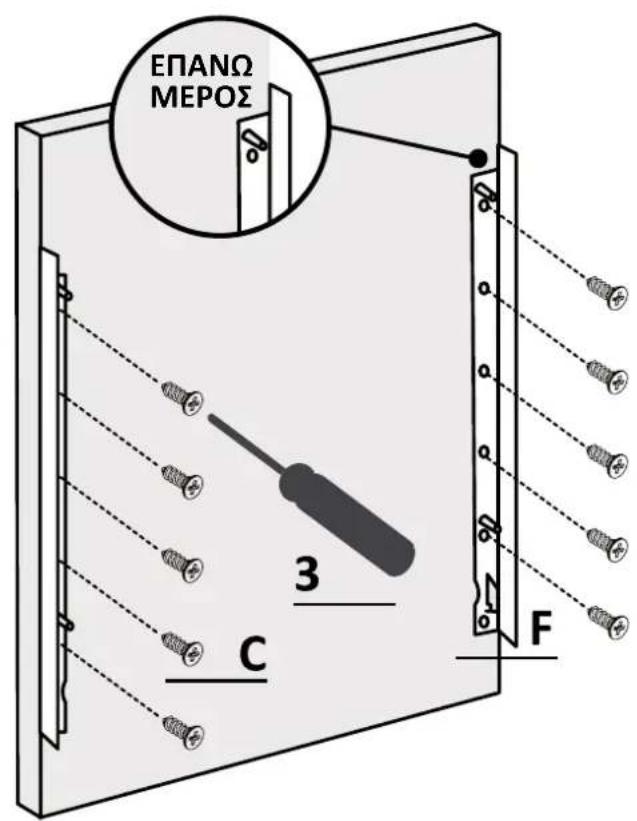

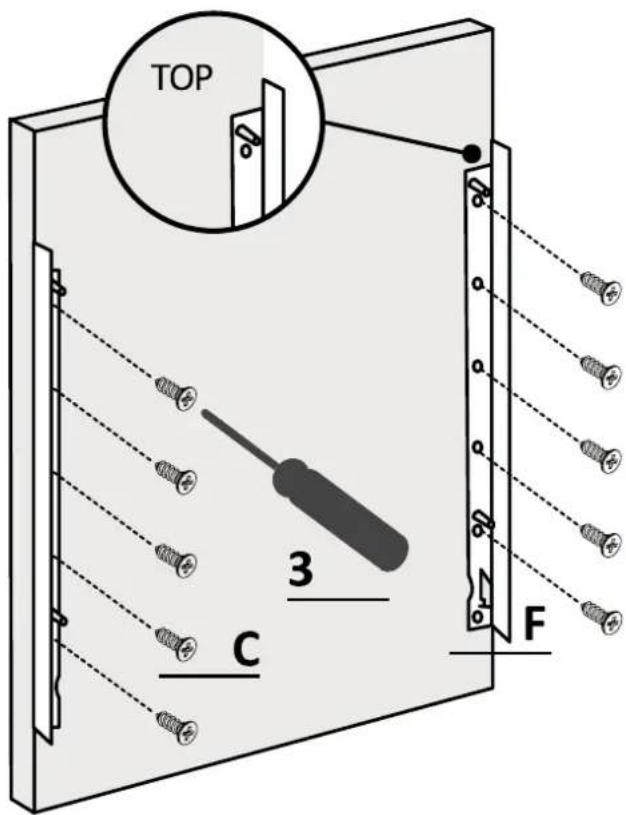

TOP 3 C F

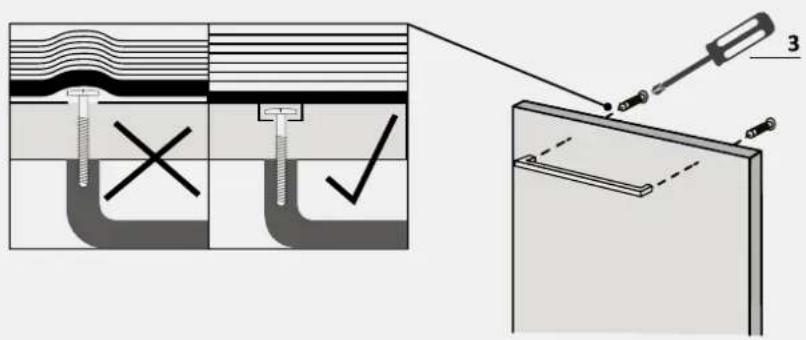

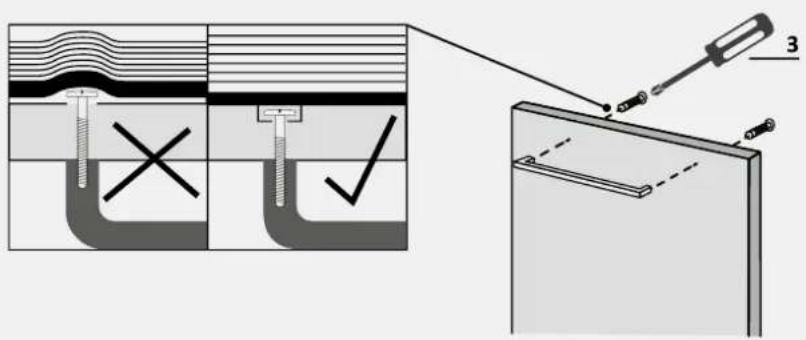

⚠ WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

7 Instructions for dishwasher installation

Installation of the panel 7.9

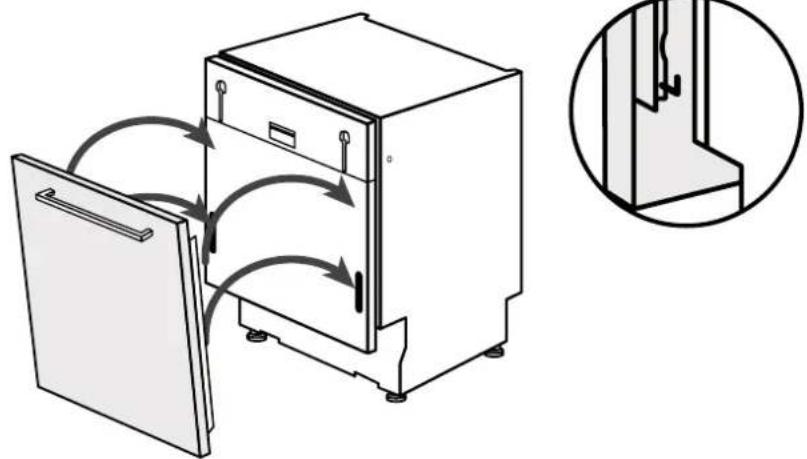

1.

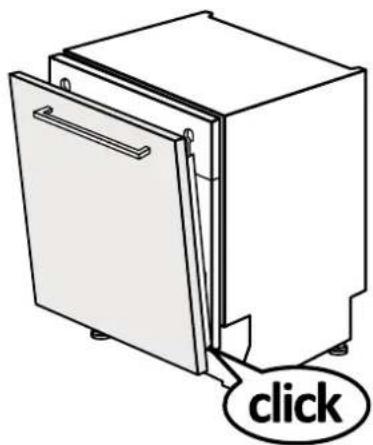

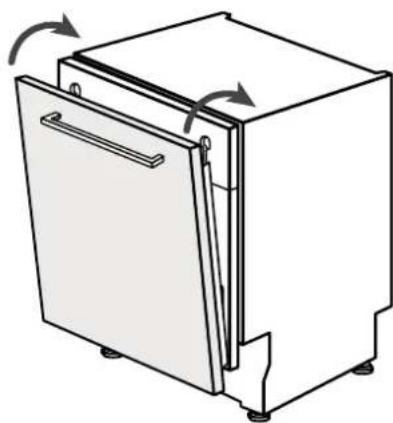

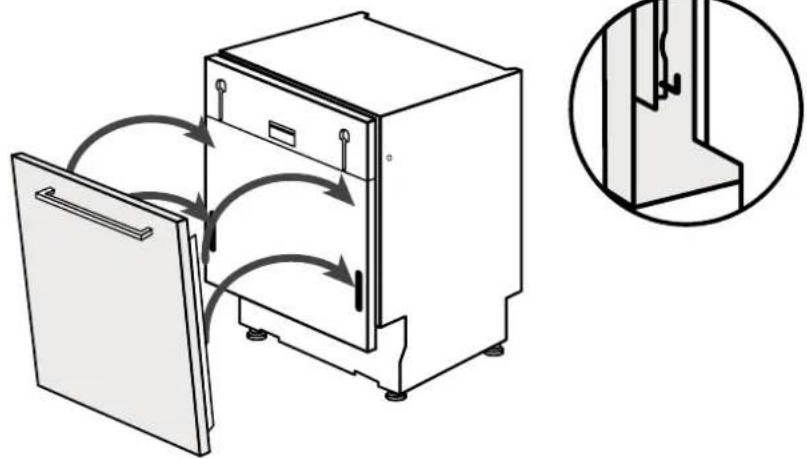

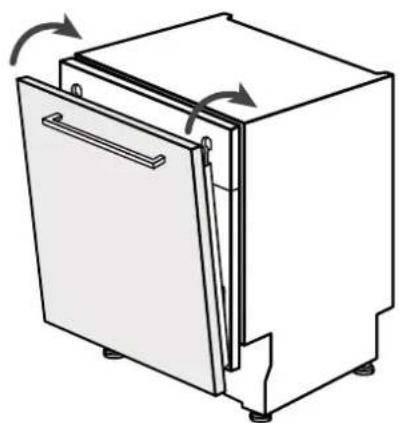

Attach the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in two views (no text or symbols).

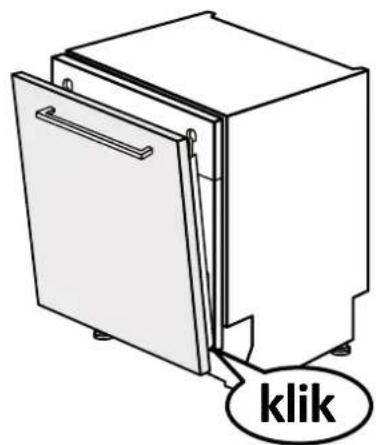

2.

Fix the panel to the lower part of the dishwasher;

click

3.

Fix the panel to the upper part of the dishwasher;

Line drawing of a refrigerator with doors, showing internal compartments and directional arrows indicating rotation.

7.9 Installation of the panel

4.

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

Technical diagram showing a screwdriver pressing a component on a platform, with instructional annotations and directional arrows.

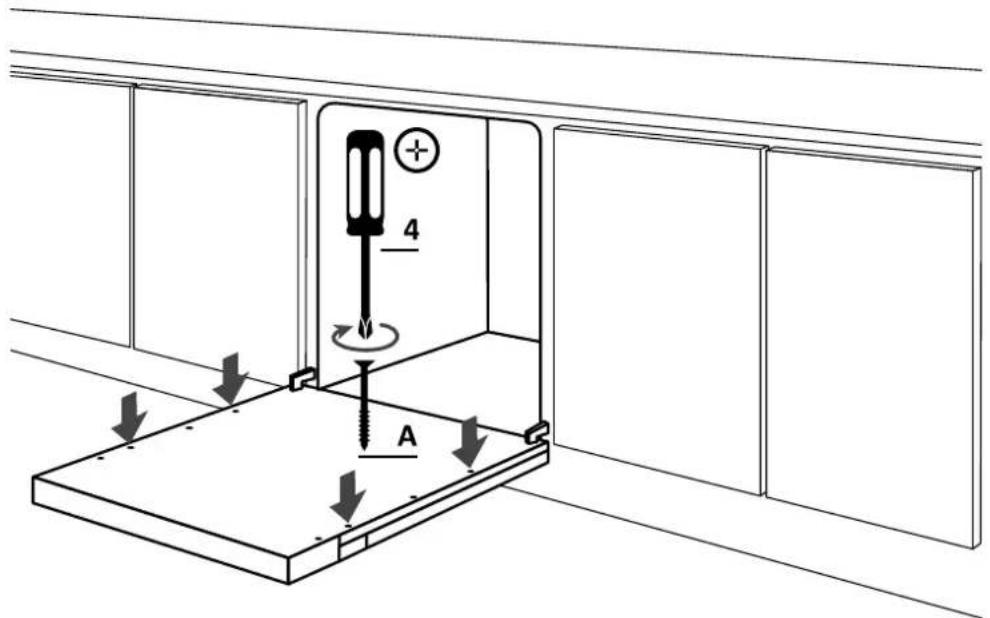

5.

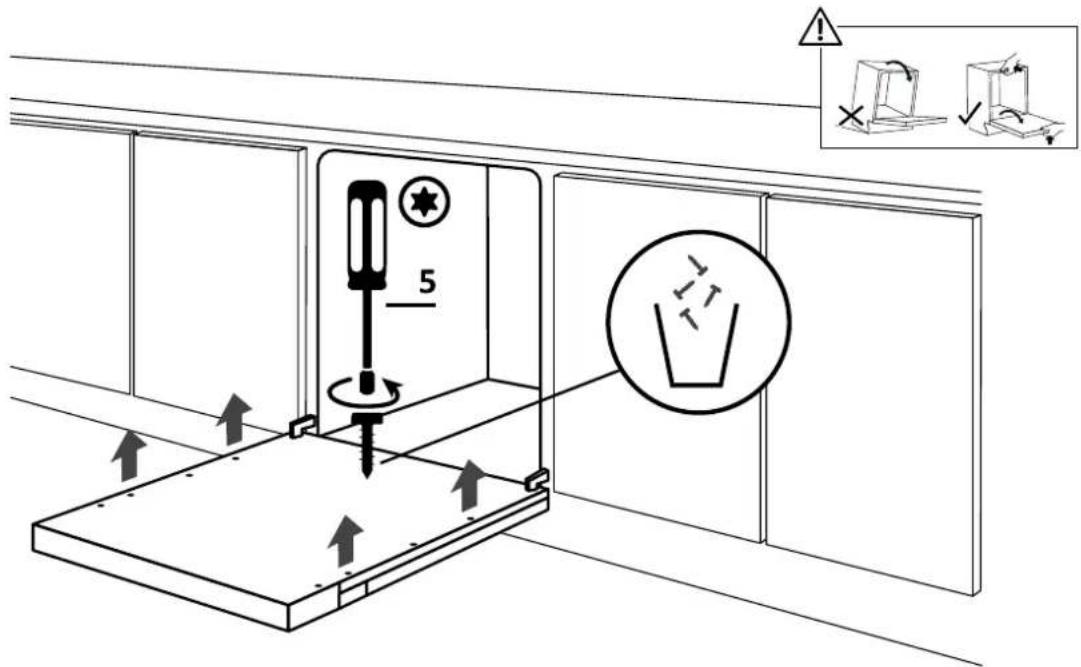

Make sure the panel is fully inserted; fix the kitchen panel to the dishwasher using the supplied screws.

4 A

7 Instructions for dishwasher installation

CANDY CI 4B2F0SA - Instructions for dishwasher installation - 1

⚠ WARNING: Connect the dishwasher now to the water and electrical network, following the instructions in chapter 8.

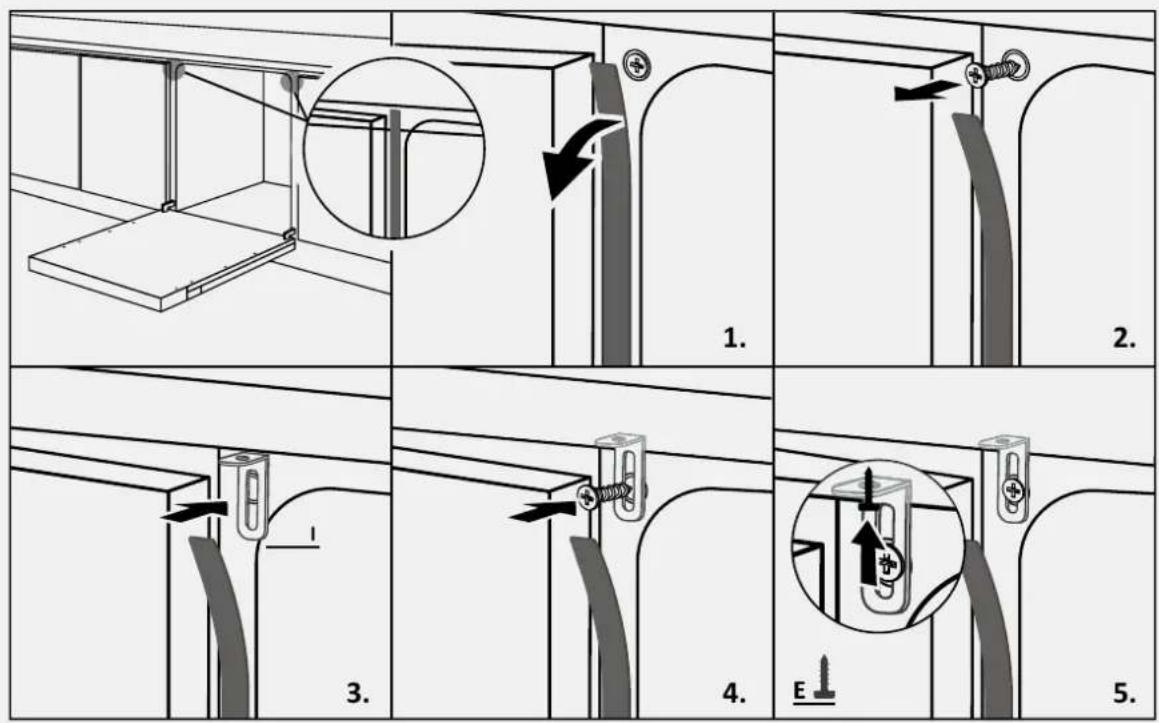

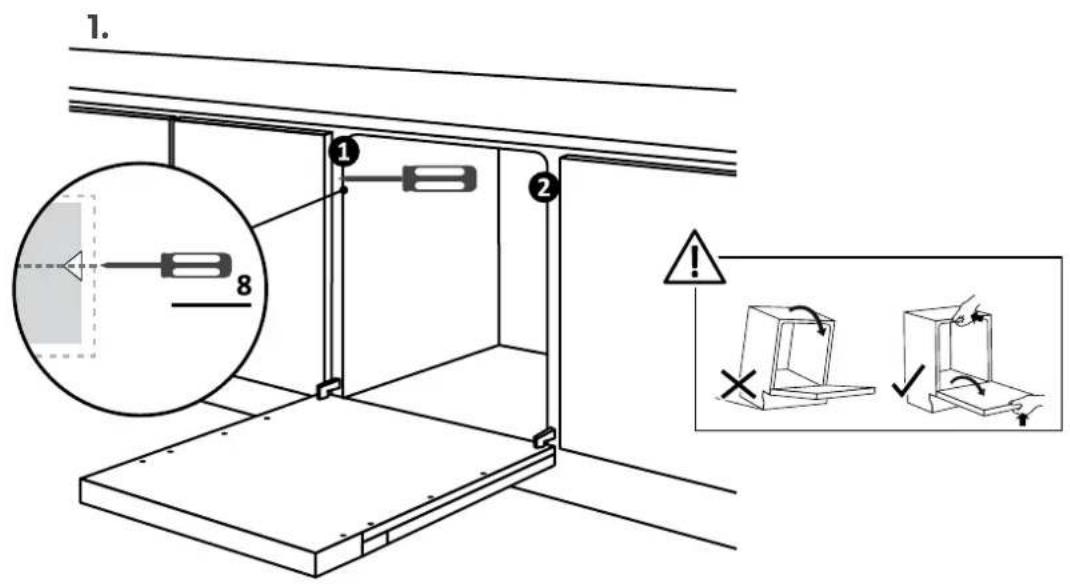

7.10 Fixing the machine to the kitchen

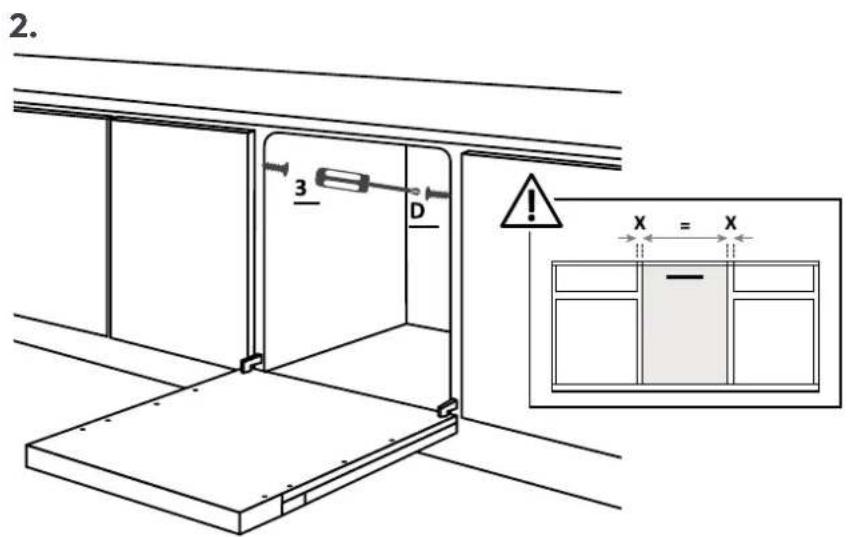

Instructions for fixing the dishwasher laterally to the adjacent cabinets.

1. ① ② 8 ! X

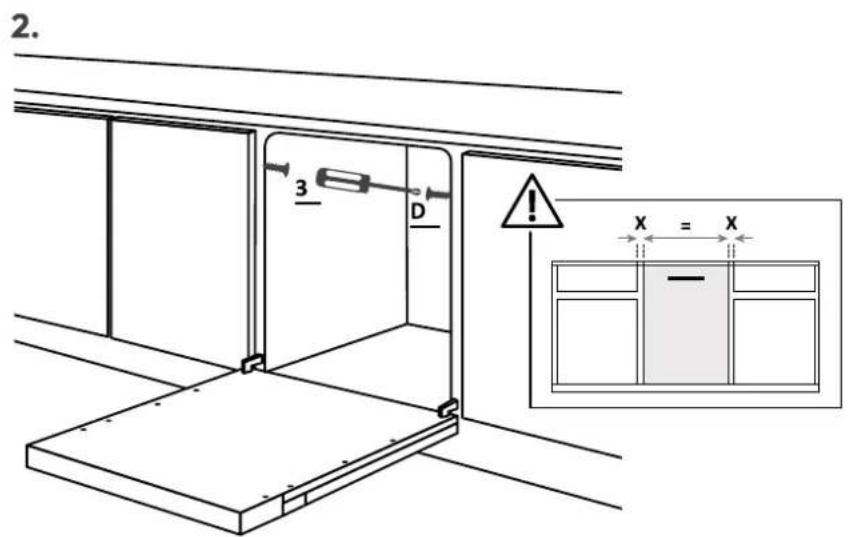

2. 3 D ! X = X

CANDY CI 4B2F0SA - Fixing the machine to the kitchen - 3

Diagram of a device with two circular annotations pointing to a central screen.

⚠ WARNING: If it is not possible to fix the dishwasher laterally, use the supplied brackets and fix it to the worktop; pay attention if the latter is not made of wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps and component views.

8 Drain water and electricity connection

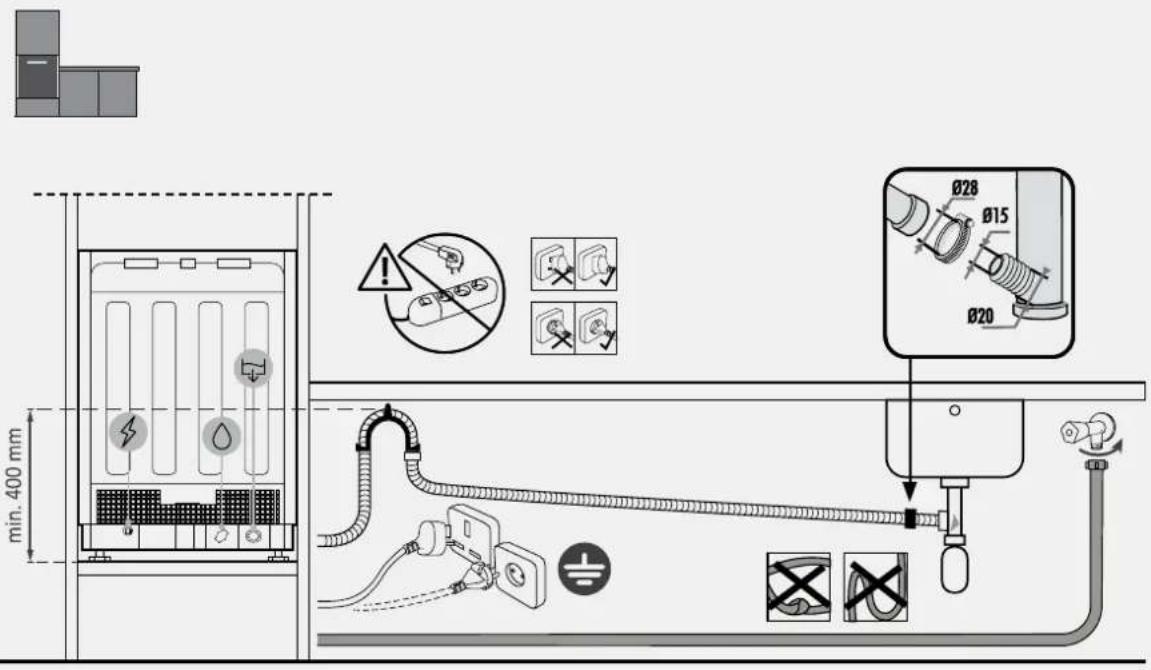

8.1 Connection diagram

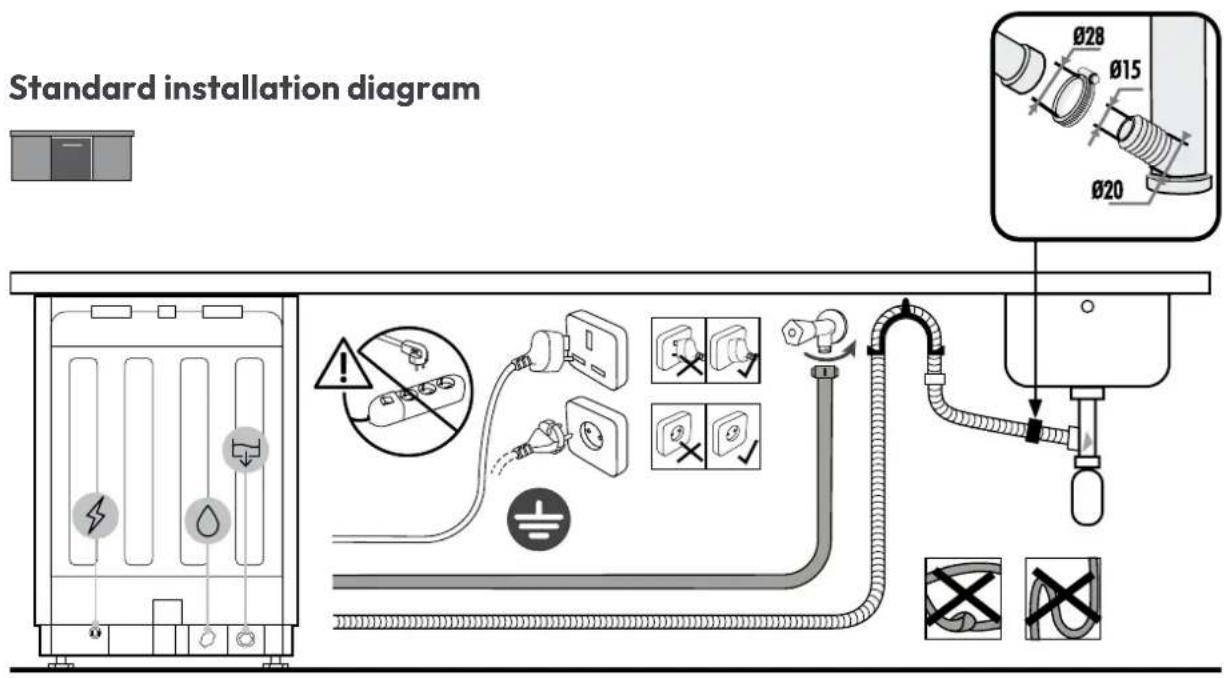

Standard installation diagram Ø28 Ø15 Ø20

Column installation diagrammin. 400 mm Ø28 Ø15 Ø20

CANDY CI 4B2F0SA - Connection diagram - 3

WARNING: Ensure that the water pressure is between 0.08 MPa and 1 MPa.

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user

9

At the end of installation:

  • Inform the user about essential functions;
  • Inform the user about all aspects relevant to safe use and handling;
  • Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

CANDY CI 4B2F0SA - Delivery to the user - 1

NOTE: The actual appearance of the product depends on the model chosen.

Dishwasher disassembly

10

  • Disconnect the product from the electrical and water supply;
  • Unscrew the fastening screws;
  • Slightly lift the product and pull it out completely;
  • This product does not damage the furniture, which can also be used with a new appliance.

Interior view of a multi-level kitchen appliance with green and blue plastic fixtures.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents.

BENVENUTI

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A'.

  1. CANDY CI 4B2F0SA - BENVENUTI - 2

2.

TOP, 3, C, F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

BIENVENUE

5 Installation tools

Outils nécessaires1 2 3 PZ 2 PH 2 4 Torx T15 6 9 mm 7 8 9 Ch 26 10 11 12 13 Ø 2 mm Gloved Hand

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

  1. CANDY CI 4B2F0SA - Installation tools - 3

2.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

  1. CANDY CI 4B2F0SA - WELCOME - 2

2.

TOP 3 C F

2.

7.9 Plate installation

4.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations highlighting a central screen area (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot. No visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'. No text or symbols beyond the label.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.3 Adjustment of the rear foot

2.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

3.

Diagram illustrating three-step folding process of a cabinet with scissors, showing step 1 to 3 with arrows and magnified views.

7.2 Height adjustment

2.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

2.

2. 3 D ! X = X

CANDY CI 4B2F0SA - Height adjustment - 3

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols.

CANDY

Hand holding a candy tray inside a grocery store with glassware and a green pot.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

  1. CANDY CI 4B2F0SA - WELCOME - 2

7.2 Height adjustment

7.5 Tilt adjustment

Level the dishwasher with respect to the vertical and horizontal plane.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols)

2.

TOP 3 C F

2.

5.

2. 3 D ! X = X

CANDY CI 4B2F0SA - 5. - 2

Diagram of a device with two circular annotations highlighting a central screen area (no text or symbols present)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.5 Setting the tilt

2.

Transfer the dimension to the kitchen panel and determine the center;

X 1 11

3.

TOP 3 C F

2.

5.

2. 3 D ! X = X

CANDY CI 4B2F0SA - 5. - 2

Pure diagram of a device interior with two circular annotations highlighting areas of interest (no text or symbols)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

TOP 3 C F

2.

7.9 Panel installation

4.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model view.

7.2 Height adjustment

2.

7.8 Panel preparation

4.

TOP, 3, C, F

2.

7.9 Panel installation

4.

5.

2. 3 D ! X = X

CANDY CI 4B2F0SA - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy plastic tray inside a grocery store (no visible text or symbols on the tray or background).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

2.

TOP, 3, C, F

2.

5.

2. 3 D X = X

CANDY CI 4B2F0SA - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy plastic tray inside a grocery store (no visible text or symbols on the tray or background).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance between the door and the floor must be proportionally increased up to a maximum of between 170 and 200 mm.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

Transfer the measurement to the kitchen panel and determine the center;

X 1 11

3.

Install the drilling template and follow the enclosed instructions;

Diagram illustrating a mechanical or electrical procedure with labeled components and tool paths, including cutting, assembly, and disassembly steps.

7.8 Panel preparation

4.

Remove the template and install the accessories;

Warning symbol and diagram showing a warning sign, directional arrow, and electrical components.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and fix it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five steps of a door or cabinet installation procedure, with labeled diagrams and directional arrows indicating movement.

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

This installation manual is intended for kitchen manufacturers who will install these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with the installation, note down the serial number, as it may be needed in case of repairs. Check for any transport damage and consult a technician if you are in doubt before use. Always keep all packaging materials out of reach of children.

NOTE: The functions and images contained in this document are for reference only and may be subject to change without prior notice.

Index

or click on thisCANDY CI 4B2F0SA - Index - 1

2-3 h

5 Installation tools

Required tools1 2 3 PZ 2 PH 2 5 Torx T15 6 9 mm 7 8 9 Ch26 10 11 12 13 Ø 2 mm Gloved Hand

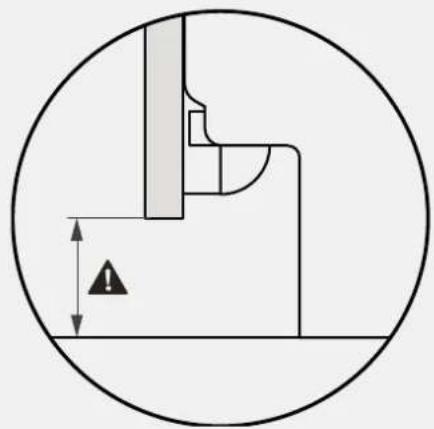

WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance from the door to the floor must also increase proportionally, up to a maximum of 170 and 200 mm.

7 Dishwasher installation instructions

7.1 Installation of the anti-condensation strip

  1. CANDY CI 4B2F0SA - Installation of the anti-condensation strip - 1

7.2 Height adjustment

Tilt the dishwasher by lifting the rear part by about 10 cm.

Line drawing of a washing machine with directional arrows indicating motion, accompanied by a warning symbol (no text or labels)

7.7 Securing the front feet

After checking all measurements, permanently attach the front feet to prevent them from loosening over time. This can also be done after installing the kitchen countertop.

stopice B 5

7 Dishwasher installation instructions

7.8 Preparing the panel

1.

Measure the distance between the top edge of the adjacent door and the dishwasher;

Technical diagram showing a cross-sectional view of a mechanical assembly with labeled dimensions X and 11, alongside an inset schematic.

2.

Transfer the measurement to the kitchen panel and locate the center;

X 1 11

3.

Apply the drilling template and follow the provided instructions.

Technical diagram illustrating a cutting process with labeled components and tool paths, including a 3D panel view and two circular tool paths.

7.8 Preparing the panel

4.

VRH 3 C F

⚠ WARNING: Make sure the screw heads do not protrude from the back of the panel, especially if you are installing a handle.

Technical diagram showing installation of a mechanical component with cross and check marks, alongside a close-up view of a panel with screwdriver.

7 Dishwasher installation instructions

7.9 Installing the panel

1.

Attach the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in two views (no text or symbols)

2.

Attach the panel to the lower part of the dishwasher;

klik

3.

Attach the panel to the upper part of the dishwasher;

Line drawing of a refrigerator with doors and ventilation slots, showing airflow direction (no text or symbols).

7.9 Panel installation

4.

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

5

5.

Check that the panel is fully inserted; attach the kitchen panel to the dishwasher using the provided screws.

4 A

7 Dishwasher installation instructions

CANDY CI 4B2F0SA - Dishwasher installation instructions - 1

⚠ WARNING: Now connect the dishwasher to the water supply and electrical network, according to the instructions in chapter 8.

7.10 Securing the machine to the kitchen

Instructions for securing the dishwasher laterally to adjacent kitchen elements.

1. ① ② 8 ! X ✓

2. 3 D ! X = X

Dishwasher installation instructions

CANDY CI 4B2F0SA - Dishwasher installation instructions - 1

CANDY CI 4B2F0SA - Dishwasher installation instructions - 2

Diagram of a device with two circular arrows pointing to a central screen (no text or symbols).

⚠ WARNING: If it is not possible to attach the dishwasher laterally, use the supplied brackets and fix it to the worktop; pay attention if it is not made of wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps and directional arrows.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.5 Adjusting the feet

2.

TOP, 3, C, F

7 Installation instructions for the dishwasher

7.9 Installing the panel

1.

2.

7.9 Installing the panel

4.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

THANK YOU

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

7.5 Adjusting the tilt angle

7.7 Attaching the front legs

2.

7.8 Preparing the panel

4.

TOP 3 C F

2.

7.9 Installing the panel

4.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols).

LAIPNI LÜGTI

or by clicking on this link

CANDY CI 4B2F0SA - LAIPNI LÜGTI - 1

2-3h

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

2.

Top, 3, C, F

2.

7.9 Panel installation

4.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a schematic diagram below.

2.

OTTOPE 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Pure diagram of a device with two circular arrows pointing to a central rectangular block (no text or symbols)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

or by clicking on the next

CANDY CI 4B2F0SA - WELCOME - 1

2-3h

5 Installation tools

Required tools1 2 3 4 5 6 7 8 9 10 Ch 26 PZ 2 PH 2 Torx T15 9 mm 11 12 13 Ø 2 mm Gloveda

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), this distance must also be increased proportionally, up to a maximum of between 170 and 200 mm.

7 Installation instructions for the dishwasher

7.1 Installing the steam barrier

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Adjusting the height

7.3 Adjusting the rear foot

Adjust the height of the rear foot from the front of the machine according to the instructions.

foot UP DOWN

7 Installation instructions for the dishwasher

7.4 Adjusting the height of the front feet

Act directly on the front feet. If necessary, slightly lift the dishwasher.

feet 6 Ch 26 9

7.5 Adjusting the tilt

Align the dishwasher vertically and horizontally.

Technical line drawing of a cabinet with an electrical enclosure and cable, showing wiring and a magnified inset (no text or symbols).

7.6 Inserting into the built-in space

2.

7.8 Preparing the panel

4.

Remove the template and install the accessories.

Diagram showing a warning sign with an exclamation mark and a directional arrow, likely indicating an alert or warning about electrical hazard.

TOP 3 C F

⚠️ WARNING: Avoid having the screw heads protrude from the back of the panel when installing the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

7 Dishwasher installation instructions

7.9 Panel installation

1.

Attach the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in two views (no text or symbols).

2.

Attach the panel to the lower part of the dishwasher;

Click.

3.

Attach the panel to the upper part of the dishwasher;

Line drawing of a refrigerator with doors, showing internal compartments and directional arrows indicating rotation (no text or symbols).

7.9 Panel installation

4.

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

Technical diagram showing a screwdriver pressing a component labeled '5' into a storage tray, with instructional annotations and warning symbols.

5.

Check that the panel is fully inserted; attach the kitchen panel to the dishwasher using the provided screws.

4 M A

7 Installation instructions for the dishwasher

1. 2. 3 D X = X

CANDY CI 4B2F0SA - Installation instructions for the dishwasher - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the provided brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps and component views.

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

TOP 3 C F

7.9 Installation of the panel

1.

2.

7.9 Installation of the panel

4.

5.

2. 3 D X = X

CANDY CI 4B2F0SA - 5. - 2

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present)

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.2 Height adjustment

Tilt the dishwasher by lifting the rear about 10 cm.

Line drawing of a refrigerator with directional arrows indicating motion, accompanied by a warning sign (no text or symbols on the diagram itself)

7.3 Rear foot adjustment

2.

Top, 3, C, F

2.

7.9 Panel installation

4.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations highlighting a central component.

Hand holding a candy tray inside a grocery store with glassware and a green pot (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and reassembly steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations highlighting a central screen area (no text or symbols present).

CANDY

Hand holding a candy tray inside a grocery store with glassware and green pot (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

TOP 3 C F

2.

5.

CANDY CI 4B2F0SA - 5. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Hand holding a candy bar inside a grocery store aisle filled with green and black containers (no visible text or symbols on the product itself).

WELCOME!

or by pressing this

CANDY CI 4B2F0SA - WELCOME! - 1

2-3 rod

  1. CANDY CI 4B2F0SA - WELCOME! - 3
  1. CANDY CI 4B2F0SA - WELCOME! - 4

2.

View from above, 3, C, F

2.

2. 3 D ! X = X

CANDY CI 4B2F0SA - 2. - 3

Pure diagram of a device with two circular arrows pointing to a central rectangular block (no text or symbols)

CANDY

Hand holding a candy tray inside a grocery store with glassware and green contents (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and folding steps with numbered annotations.

7.2 Height adjustment

7.5 Tilt adjustment

2.

TOP 3 C F

2.

7.9 Panel installation

4.

CANDY CI 4B2F0SA - 4. - 1

Diagram of a device with two circular annotations pointing to a central screen (no text or symbols present).

CANDY

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CANDY

Model : CI 4B2F0SA

Category : Dishwasher
