GB|IE|NI|CY|MT Operating and safety instructions

Table of contents

Table of contents 53
Introduction 55
Intended use 55
Trademark notices 55
Package contents 55
Technical specifications 56
Information on button cell battery SR626SW 57
Explanation of signal words 58
Explanation of sign 58
Important safety instructions 61

Safety instructions for the user 61
Button cell battery safety instructions 62
Do not place the product in the hands of small children 64

Initial setup 65

Bracket shortening 65
Setting Time and Date 66
Battery replacement (SR626SW) 66

Water resistance 66
Cleaning instructions 67
Storage 67
Disposal 68

Disposal of the electrical device 68
Disposal of batteries 70

Simplified EU declaration of conformity 71

The digi-tech gmbh warranty 71

Warranty terms 72

Warranty period and statutory claims for defects 72

Scope of warranty 72

Processing in the event of a warranty claim 73

Service 75

Supplier 75

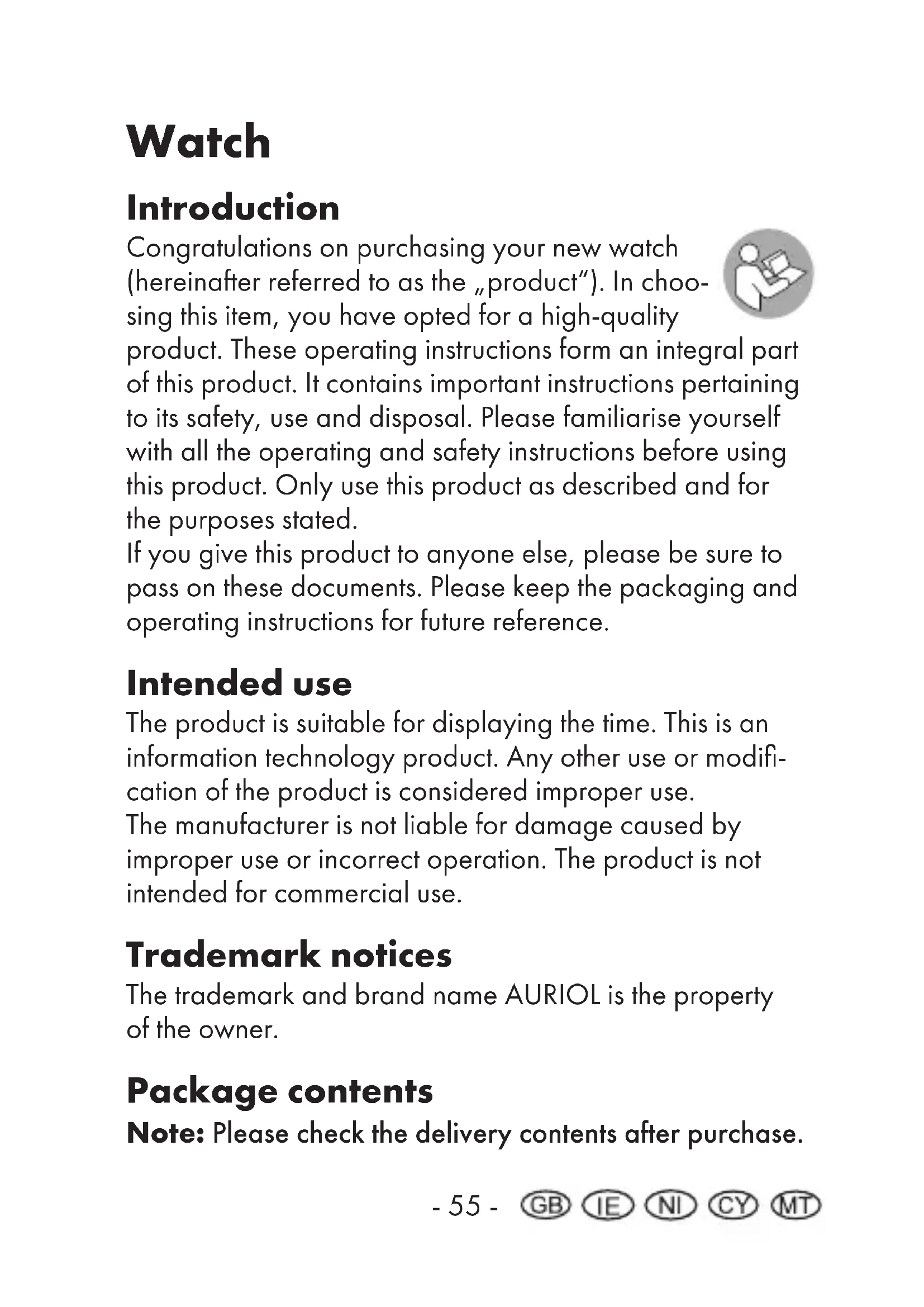

Watch

Introduction

Congratulations on purchasing your new watch (hereinafter referred to as the "product"). In choosing this item, you have opted for a high-quality

product. These operating instructions form an integral part of this product. It contains important instructions pertaining to its safety, use and disposal. Please familiarise yourself with all the operating and safety instructions before using this product. Only use this product as described and for the purposes stated.

If you give this product to anyone else, please be sure to pass on these documents. Please keep the packaging and operating instructions for future reference.

Intended use

The product is suitable for displaying the time. This is an information technology product. Any other use or modification of the product is considered improper use.

The manufacturer is not liable for damage caused by improper use or incorrect operation. The product is not intended for commercial use.

Trademark notices

The trademark and brand name AURIOL is the property of the owner.

Package contents

Note: Please check the delivery contents after purchase.

Check that all parts are present and not defective. If the delivery is incomplete and/or parts are damaged, do not use the product. Contact the service department (see „Processing in the event of a warranty claim“).

1 x watch including button cell battery and battery saver
1 x tape shortening tool
2 x additional links
1 x operating instructions

Technical specifications

Quartz movement PC32J
Size: approx. 40 × 47 × 9.5 mm ,
- Bracelet inner circumference: 185 - 195 mm,
- Bracelet width: 21 ~mm
Weight:app.100g
- Operation with 1 × 1.55 ~V SR626SW button cell battery

indicator for DC voltage

Information on button cell battery SR626SW

Manufacturer: Seiko Instruments Inc.

Micro-Energy Division

Place of production 45-1, Aza Matsubara,

Kamiayashi, Aoba-ku, Sendai-shi, Miyagi, 989-3124 Japan

Labelling: SR battery, SEIZAIKEN

Date of production: For details, see embossing

on the button cell battery

Weight: approx. 3 g

Capacity: For details, see embossing

on the button cell battery

Chemical composition: Zinc manganese dioxide,

silver oxide

Hazardous substances

None

contained in the battery:

Fire extinguishing agent any fire class (no restriction)

to be used:

critical raw materials: Manganese, graphite, nickel

Explanation of signal words

WARNING!	This symbol/word indicates a hazard with a medium level of risk, which, if not avoided, could result in death or serious injury.
CAUTION!	This symbol/word indicates a hazard with a low degree of risk which, if not avoided, can result in minor or moderate injury.
ATTENTION:	This signal word warns against potential damages to property.
Note:	This signal word is used to indicate additional information.

Explanation of sign

AURIOL*	The trademark and brand name AURIOL is the property of the owner.
	Improper use of the batteries/recharge-able batteries may result in explosion and leakage of the battery fluid.
Battery included Incl.	Button cell battery included 1 x SR626SW 1.55 V
=	DC voltage label
	Read these operating instructions!
CE	With this CE marking, digi-tech gmbh shows compliance with the applicable EU directives.
	Inner circumference of the bracelet
	Waterproof up to 5 bar.
	Always keep batteries out of the reach of children.
	Do not throw batteries into the fire or place them near fire.
	Batteries must always be inserted with the correct polarity.

Do not deform or damage batteries.

Do not open or disassemble batteries.

Do not mix batteries of different brands and types.

Do not mix new and used batteries.

Do not charge batteries.

Protect batteries from moisture and keep them away from liquids.

Do not short-circuit batteries.

Always insert the batteries with the correct polarity.

Protective gloves must be worn!

Important safety instructions

Safety instructions for the user

WARNING!

Danger of death and accidents for toddlers and children!

Children frequently underestimate the risks. Always keep children away from the product.

• This product may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the hazards involved. Children are not allowed to play with the product. Cleaning and user maintenance is not to be carried out by children without supervision.

• The packaging material is not a toy. Children can get caught in it and suffocate while playing.

• Do not operate the product if it is damaged.
• Do not expose the product to moisture.
• Only use the product indoors.
• This product does not contain any parts that can be serviced by the consumer.

Button cell battery safety instructions

WARNING! Danger of death!

Do not ingest the battery, risk of burns due to hazardous substances. This product contains a button cell. Swallowing the button cell can result in severe burns within just 2 hours and cause death.

• Keep batteries/rechargeable batteries out of the reach of children. If swallowed, seek medical attention immediately!
• Ingestion can result in burns, perforation of soft tissue and death. Severe burns can occur within 2 hours after swallowing.
• Do not use rechargeable batteries.
• Never recharge non-rechargeable batteries.
• Do not short-circuit batteries/rechargeable batteries and do not open them. This can result in overheating, fire hazards or explosions.
• Never throw batteries/rechargeable batteries into fire or water.
• Do not subject batteries/rechargeable batteries to mechanical stress.

Risk of battery/rechargeable battery leakage

CAUTION! Risk of injury!

Leaking or damaged batteries/rechargeable batteries can cause burns if they come into contact with skin. Therefore, wear suitable protective gloves in such cases.

• Avoid extreme conditions and temperatures that may affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
• If batteries/rechargeable batteries leak, prevent chemicals from coming into contact with skin, eyes and mucous membranes. Rinse any affected areas immediately with clear water and seek medical attention.
• In case of leakage from the batteries/rechargeable batteries, remove them from the product immediately to avoid damage.
• Remove the batteries/rechargeable batteries if the product will not be used for a prolonged period.

ATTENTION: Damage to the product

• Only use the specified type of battery/rechargeable battery.
• Insert batteries according to the polarity markings (+) and (-) into the battery/rechargeable battery and the product.

• Clean the contacts on the battery/rechargeable battery and in the battery compartment with a dry, lint-free cloth or cotton swab before inserting them.

• Remove discharged batteries/rechargeable batteries from the product immediately.

RISK! Damage to the product!

• Do not operate the product if it shows visible signs of damage or defects.
• Do not open the housing or make any changes to the product. Leave the repairs to specialists. To do this, contact the specified service address. Liability and warranty claims are excluded if repairs are carried out independently or in the event of incorrect operation.

Do not place the product in the hands of small children

WARNING! DANGER TO HEALTH/LIFE!

This product is not a toy for children!

WARNING! CHOKING HAZARD!

The product contains small parts that can be swallowed and lead to injuries.

Never let small children over 5 years of age use the device unsupervised. Small children cannot always correctly identify possible dangers.

Also keep the packaging films away from children.

There is a danger of suffocation!

Initial setup

Note: Remove all packaging material from the product. Remove all protective films and the battery protector on the crown before using the product for the first time. Check whether the product or the individual parts are damaged. If this is the case, do not use the product. Please contact the service.

Bracket shortening

1.

2.

3.

The shortening can be done by removing individual links.

• Unlock your locking device.
• Open the buckle. The wristband is held in place by a spring bar. Fig. 1. You can press the spring bar together with a pointed tool and remove it.
• Then place the watch flat on a soft surface with the dial facing downwards. Fig. 2. The links that can be removed are marked with an arrow.

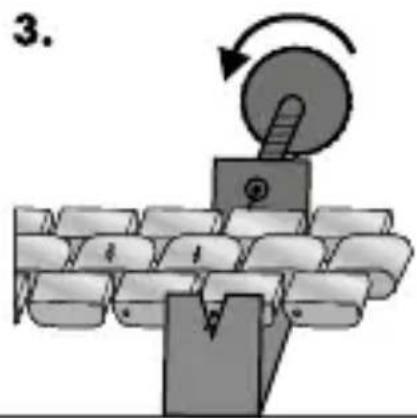

• Fig. 3. Clamp the wristband on the changer so that the tip of the tool points exactly to the cotter pin.
• Now turn the screw in the direction of the arrow until the cotter pin protrudes a little out of the links.
• Pull out the cotter pin (if necessary with fine pliers).

Now take the wristband apart. You can remove additional links as needed.
Put the wristband back together.
- Insert the cotter pin counter to the direction of the arrow and press it in.
- Reconnect the wristband and attach to the spring bar.

A replacement tip is included in the bottom of the tool.

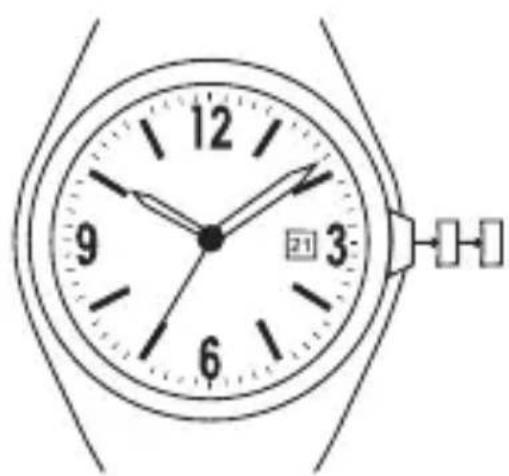

Setting Time and Date

• Remove the battery protector on the crown.
  To set the time, gently pull the crown all the way out.
• Rotate the crown clockwise or counterclockwise to set the time.
  Now gently push the crown back halfway and set the date by turning the crown.
  Finally, press the crown firmly back onto the case.

Battery replacement (SR626SW)

A battery replacement must be carried out by a watch specialist. This will prevent damage to the housing and the sealing rings. You can also send your product to the address provided under „Service“ to have the battery replaced for a fee.

Water resistance

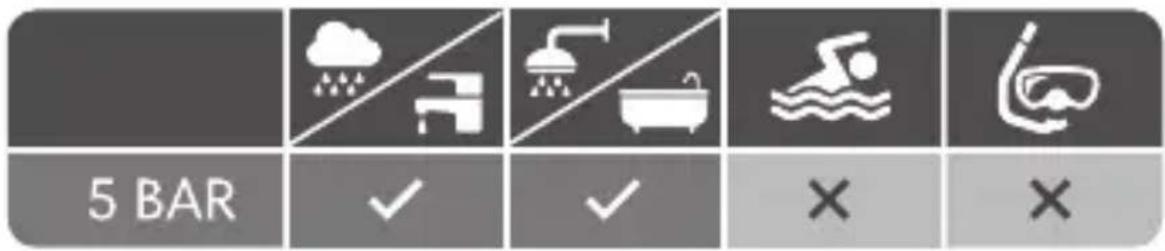

Waterproof up to 5 bar. The bar specification refers to the

excess air pressure that is applied during the water resistance test (DIN 8310).

Water resistance can only be guaranteed if the crown is pressed firmly against the case.

Cleaning instructions

Improper cleaning can damage the product. Do not immerse the product in water or other liquids. Avoid any aggressive cleaning agents, brushes with metal or nylon bristles, or any sharp or metallic cleaning objects such as knives, hard spatulas and the like. These can damage the surface. Clean the product with a soft, dry, lint-free cloth, such as that used for cleaning glasses lenses.

Storage

If the product is not used for a long time, remove the batteries, clean and store the product away from sunlight in a dry, cool place, preferably in the original packaging.

Disposal

The product and packaging material are recyclable. Please dispose of them separately for better waste management. To learn options for disposal of the used product, please contact your municipal or city administration.

Check the labelling on the packaging material when separating waste - they are marked with abbreviations (a) and numbers (b) with the following meaning:

1-7: Plastics

20-22: paper and cardboard

80-98: Composites.

Disposal of the electrical device

The symbol with the crossed-out dustbin means that electrical and electronic equipment must not be disposed of together with household waste. Consumers are legally obliged to dis

pose of electrical and electronic equipment at the end of their life separately from assorted municipal waste. This is to ensure environmentally friendly and resource-saving recycling. Batteries and rechargeable batteries that are not an integral part of the electrical or electronic device and can be removed without being destroyed, must be separated from the device before handing it in at a collection point for designated disposal. The same applies to lightbulbs that can be removed from the device without being destroying. Owners of electrical and electronic equipment who are private individuals can hand them in

at the collection points operated by the public waste disposal agencies or at the collection points set up by manufacturers or distributors. Returning used devices is free of charge. This free take-back obligation applies both to purchases in shops and to home deliveries. The place of performance of the obligation to take back is the same as the place of performance of the delivery. Transport costs may not be charged for returned equipment. In general, distributors have the obligation to ensure the free return of used devices by providing suitable return facilities within a reasonable distance. Consumers have the option to return an old device free of charge to a distributor who is obliged to take it back if they purchase an equivalent new device with essentially the same function. This option is also available for deliveries to a private household. In the case of distance selling retailers, the option of free collection when purchasing a new device is limited to heat exchangers, display screen devices, and large devices that have at least one outer edge with a length of more than 50~cm . The distributor must ask the consumer at the time of concluding the sales contract about any corresponding intention to return the product. Beyond this, consumers can hand in up to three old devices of one type free of charge at a distributor's collection point without this being linked to the purchase of a new device. However, the edge lengths of the respective devices must not exceed 25~cm . Remove the battery without destroying it before disposal and dispose of it separately (see Disposal of batteries).

Disposal of batteries

This symbol indicates that batteries and rechargeable batteries must not be disposed of with normal household waste. You are legally obli

ged to hand them in free of charge at the end

of their service life at a public collection point or at the collection points set up by distributors for recycling.

Batteries and rechargeable batteries that are not firmly enclosed by the device and can be removed non-destructively must be separated and disposed of as intended when discharged. Recycling waste equipment and batteries is an important contribution to the protection of our environment. If disposed of improperly, toxic ingredients that have harmful effects on the health of humans, animals and plants can enter the environment.

Below are some best practices and recommendations to extend the life of your single-use or rechargeable batteries and allow them to be reused:

• Charge your rechargeable batteries correctly and completely to maximize their life. If necessary, completely discharge them with a suitable charger before recharging them.

• Consider the possibility of using rechargeable batteries. These can be reused and recharged several times, reducing the amount of battery waste.

• Always use the correct type of batteries for your

devices. Improper use can shorten the lifespan of the batteries and potentially have harmful effects.

Always follow the safety instructions when handling used batteries. Used batteries containing lithium (Li = lithium) have a higher risk of fire. Therefore, special attention must be paid to the proper disposal of used batteries and rechargeable batteries containing lithium. Incorrect disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and can have serious consequences for humans and the environment. To avoid a short circuit, tape off the poles or contacts of the battery before disposal.

Simplified EU declaration of conformity

Digi-tech gmbh hereby declares that the watch 2-LD6734-1, 2-LD6734-2, 2-LD6734-3, 2-LD6734-4 complies with directives RoHS 2011/65/EU, EMC 2014/30/EU and the Battery Regulation 2023/1542/EU.

You can download your operating instructions and declaration of conformity here:

www.digi-tech-gmbh.com/downloads

Then click on the magnifying glass and enter the produce code 476179_2401.

The digi-tech gmbh warranty

This product has a 3-year warranty valid from the date of purchase. In the event of defects in this product, you have

legal rights against the seller of the product. These statutory rights are not limited by our warranty set out below.

Warranty terms

The warranty period begins on the date of purchase. Please keep the receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace the product – at our choosing – free of charge. This warranty is subject to the condition that the defective product and the proof of purchase (receipt) are presented within the three-year period and that a brief written description is provided outlining the nature of the defect and when it occurred. If the defect is covered by our warranty, we will either repair your product or send you a replacement. The repair or replacement of the product does not restart the warranty period.

Warranty period and statutory claims for defects

Statutory warranty rights do not extend the warranty period. This also applies to replaced and repaired parts. Any damage or defects already present at the time of purchase must be reported immediately after unpacking. After the warranty has expired, any repairs are subject to a charge.

Scope of warranty

The product was carefully manufactured according to strict quality guidelines and carefully checked before delivery. The warranty applies to material or manufac

turing defects. This warranty does not cover parts of the product that are subject to normal wear and tear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g., slide switches, batteries or parts made of glass. This warranty is voided if the product gets damaged or has been improperly used or maintained. All instructions given in the manual must be strictly observed to use the product properly. Any use or action that is advised against or warned against in the operating instructions must be avoided at all costs.

The product is designed exclusively for private and not for commercial use. The warranty expires if incorrect or improper handling occurs, force is used or repairs were carried out by someone other than our authorised service branch.

Processing in the event of a warranty claim

To ensure that your request is processed quickly, please follow the instructions below:

• Please have the receipt and the item number (476179_2401) ready as proof of purchase for all inquiries.
• For the product code, please refer to the type plate, the engraving (if present), the title page of your manual (bottom left), or the sticker on the back or underside.
• If functional errors or other defects occur, please contact the following service department by phone or email in the first instance.

You can download these instructions and many other manuals, product videos and software at www.lidl-service.com.

This QR code takes you directly to the Lidl service page (www. lidl-service.com), where you can open your operating instructions by entering the product code (476179_2401).

Service

Inter-Quartz GmbH

Valterweg 27A, 65817 Eppstein, GERMANY

Email: [e-mail]

Telephone: [phone]

GB 10080055156616

CY 80094403 80062851

Supplier

Please note that the following address is not a service address. Contact the Service Office named above first. digi-tech gmbh, Valterweg 27A, 65817 Eppstein, GERMANY

Year of manufacture: 2024

IAN 476179_2401

Prod.no.: 2-LD6734-1, 2-LD6734-2, 2-LD6734-3, 2-LD6734-4

Producent: Seiko Instruments Inc.

Micro-Energy Division

Markering: SR Battery, SEIZAIKEN

Producent: Seiko Instruments Inc.

Micro-Energy Division

www.digi-tech-gmbh.com/downloads

Potom kliknite na lupu a zadajte cislo vyrobku

476179_2401.

Micro-Energy Division

Lugar de produccion: 45-1, Aza Matsubara,

Kamiayashi, Aoba-ku, Sendai-shi, Miyagi, 989-3124
Japon

Etiquetado: SR Battery, SEIZAIKEN

Producent: Seiko Instruments Inc.

Micro-Energy Division

www.digi-tech-gmbh.com/downloads

Klik derefter på forstørrelsesglasset, og indtast articelnummeret 476179_2401.

Micro-Energy Division

www.digi-tech-gmbh.com/downloads

Micro-Energy Division
