ZHC92352X - Range hood ZANUSSI - Free user manual and instructions

Product type	Extractor/recirculation hood
Brand	Zanussi
Model	ZHC92352X
Approximate width	90 cm
Power supply	220-240 V, 50 Hz
Motor power	Not specified
Number of speeds	3
Lighting	Yes, LED spotlight (replacement by professional)
Grease filters	Washable (every 2 months, dishwasher safe)
Carbon filter	Replace every 4 months (not washable)
Minimum distance from hob	65 cm
Installation mode	Extraction (external venting) or recirculation (recycling)
Material	Stainless steel (probable)
Noise level	Not specified
Weight	Not specified
Safety	Automatic shutdown in case of overheating (implicit), child safety
Repairability	Original parts only, approved service
Warranty	Not specified

Frequently Asked Questions - ZHC92352X ZANUSSI

What is the difference between extraction and recirculation mode?

In extraction mode, air is expelled outside via a duct. In recirculation mode, air is filtered by a carbon filter and then released into the room. Extraction mode is more efficient.

How often should I clean the grease filters?

Grease filters must be cleaned every 2 months at minimum, by hand with a mild detergent or in the dishwasher. Clogging can increase fire risk.

When should I replace the carbon filter?

The carbon filter must be replaced every 4 months (or more often with heavy use). It cannot be cleaned and is essential in recirculation mode.

Can I install the hood myself?

Installation must be carried out by a qualified person due to electrical risks and the weight of the appliance. Always follow the installation manual.

What to do if the hood does not turn on?

First check the power supply and fuse. If the problem persists, contact an approved service for diagnosis and repair.

How to replace the lighting?

The LED spotlight can only be replaced by the manufacturer, its technician, or a qualified person to avoid any danger. Do not attempt to do it yourself.

What is the minimum distance between the hood and the hob?

The minimum distance is 65 cm. If your hob requires a greater distance, follow the one indicated in its manual.

Can I use the hood without a carbon filter?

Yes, if installed in extraction mode. In recirculation mode, the carbon filter is essential to purify the air.

Is the hood noisy?

Noise level depends on speed. Use the lowest speed for quiet operation. The 3 speeds allow you to adjust the airflow.

Where to find spare parts?

Only use original parts supplied by the manufacturer or an approved service center. Do not use non-conforming parts.

USER MANUAL ZHC92352X ZANUSSI

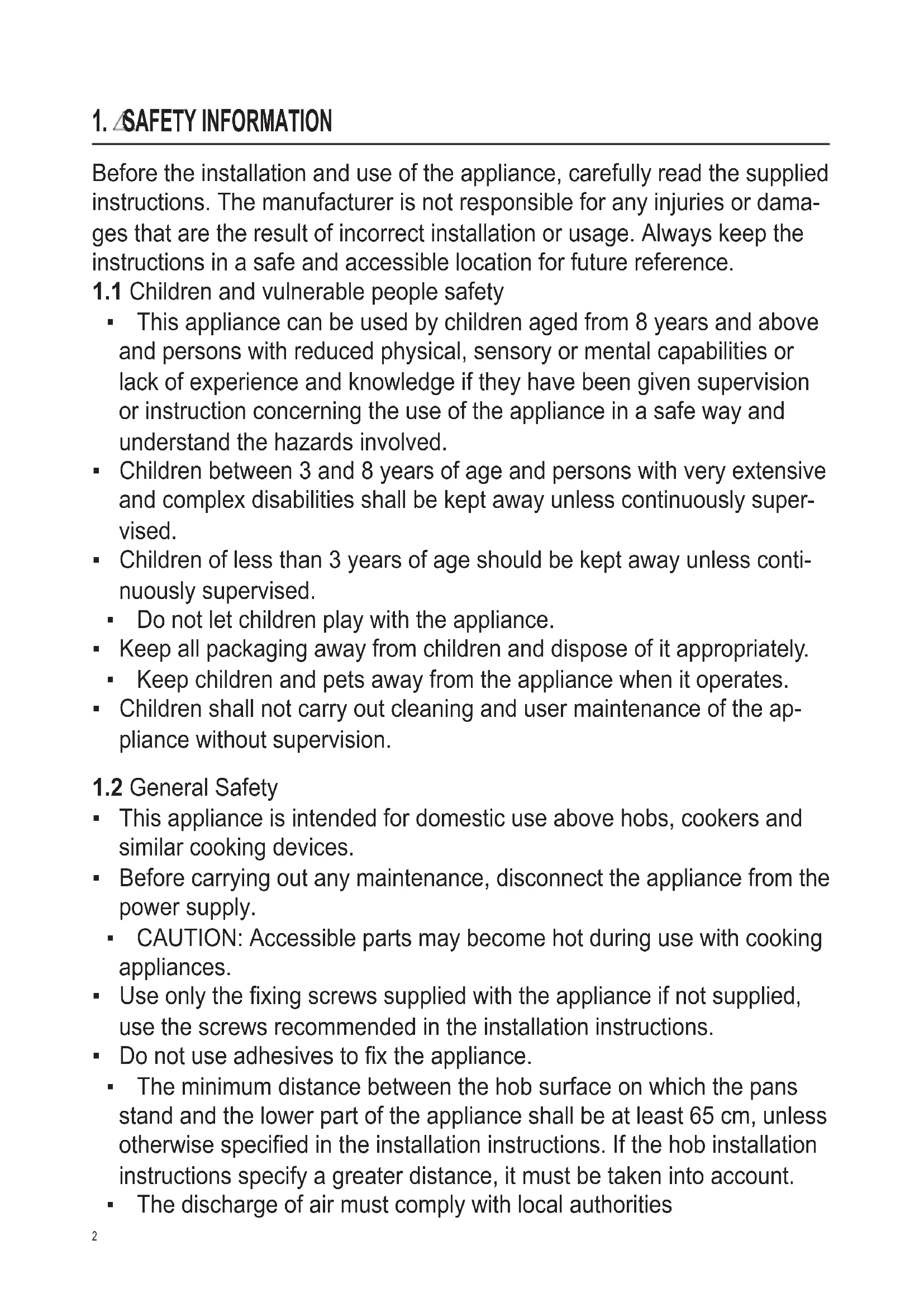

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance. If not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The discharge of air must comply with local authorities regulations.
• regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).
• When the appliance operates with other appliances, the maximum vacuum generated in the room should not exceed 0.04 mbar.
• Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows disconnection of the appliance from the mains at all poles. Complete disconnection must comply with the conditions specified for overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flambé under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly to prevent deterioration of the surface material.
• Clean the appliance with a soft cloth regularly.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners, or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Risk of injury, electric shock, fire, burns, or damage to the appliance.

Only a qualified person must install this appliance. - Do not install or use a damaged appliance. - Follow the installation instructions supplied with the appliance. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. - Before installing the appliance, remove all packaging, labelling, and protective film. - Do not exhaust air into a wall cavity unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol () is not printed on the rating plate, the appliance must be earthed. Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING! Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purposes.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

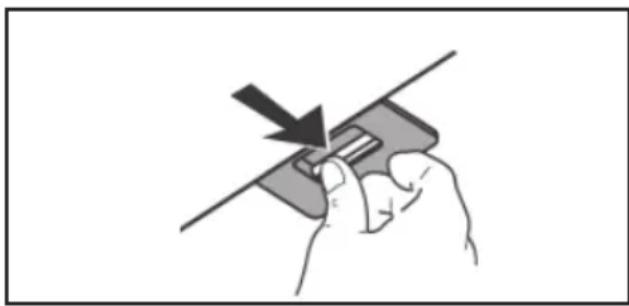

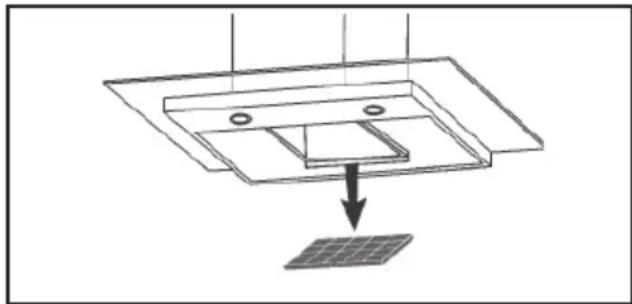

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.

Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

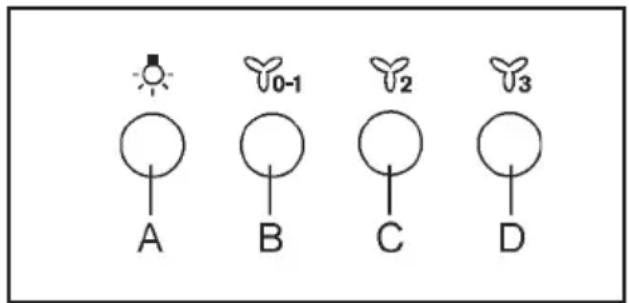

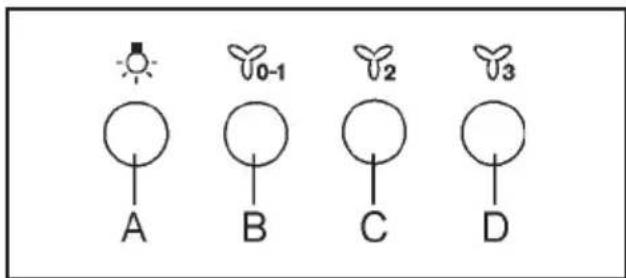

4. CONTROLS

Key A: light switch.

Key B: first speed motor ON/OFF switch.

Key C: second speed switch.

Key D: third speed switch.

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION?

The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed. For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifies the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifies the air and recycles the clean air back into the room.

6. LIGHTING

If the light spot is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

1.1 Use by persons with reduced physical, sensory or mental capabilities

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow children to use the appliance as a toy.
• Keep the packaging away from children and dispose of it properly.
• Children and pets must not have access to the operating appliance.
• Children should not perform cleaning or user maintenance of the appliance without supervision.

1.2 General safety rules

Oil must not come into contact with flames or hot objects.

Do not use bare electrical wires. Do not use the appliance as a base for storing other items. Do not use lenses, magnifying glasses or similar optical devices to look directly at the light source of the appliance.

2.4 Service

For repairs, please contact an authorized service center. Use only original spare parts.

2.5 Disposal

WARNING! Risk of injury.

Information on correct disposal of the device can be obtained from local authorities. Disconnect the device from the power supply. - Cut the power cord close to the device housing and dispose of it.

3. Maintenance

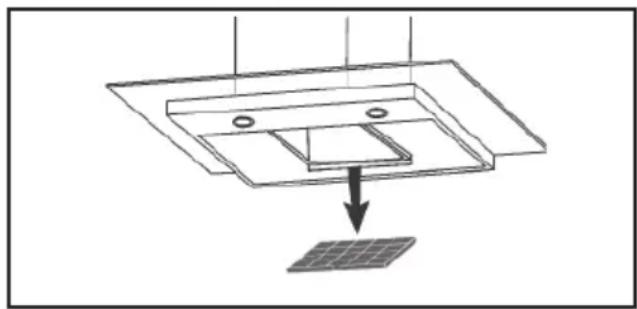

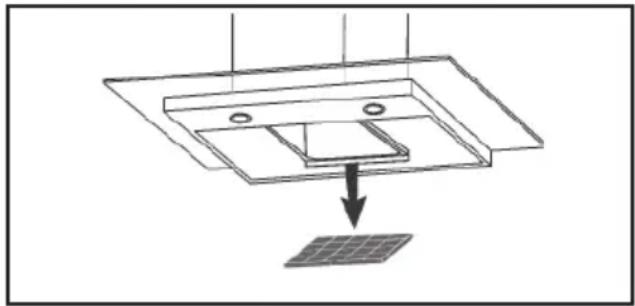

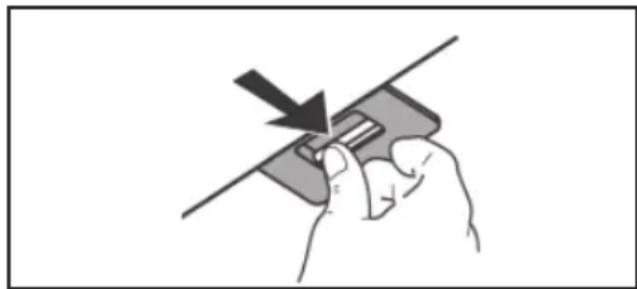

Cleaning the pre-filters.

Clean the filters at least every 2 months to avoid the risk of fire.

Wash with mild detergent by hand or in a dishwasher. In case of using a dishwasher, the filters may become discolored, which does not affect their functionality.

The HEPA filter is not suitable for cleaning, cannot be renewed, and should be replaced approximately every 4 months of use or more often in case of intensive use.

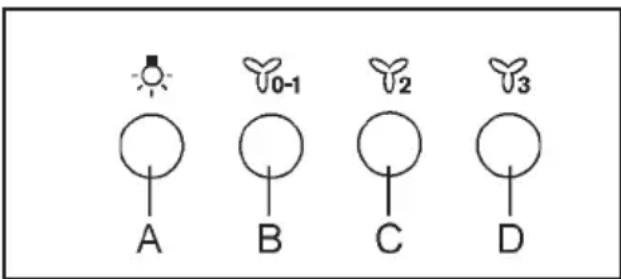

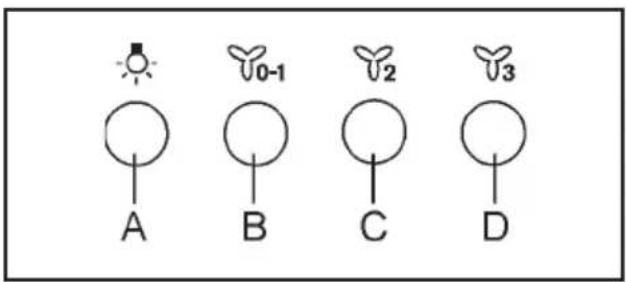

4. CONTROL ELEMENTS

Button A: Light switch.

Button B: ON/OFF switch for the motor at speed I.

Button C: Speed switch II.

Button D: Speed switch III.

5. INSTALLATION METHODS

EXHAUST FAN WITH FILTER?

Choose the exhaust fan type from the very beginning. We recommend installing an exhaust fan type with maximum performance (if possible).

Exhaust fan

The exhaust fan draws in air and expels it outside through the exhaust duct.

Filter fan

The exhaust fan draws in air and returns it to the room.

6. LIGHTING

If the reflector is damaged, it can only be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid danger.

7. CARE FOR THE ENVIRONMENT

Materials bearing the symbol must be recycled.

To facilitate recycling, place packaging materials in the containers provided for them.

Waste from electrical and electronic equipment must be recycled to protect the environment and human health.

Devices with the symbol

must not

be disposed of with household waste.

The product must be sent to a local waste processing station or returned to local authorities.

The production date of this product is indicated in the serial number (Serial Number), where

the first digit of the number corresponds to the last

digit of the year of production, the second

and third digits correspond to the serial number of the week.

For example, serial number 71012345

means that the product was manufactured in the tenth week of 2017.

Importer authorized by the manufacturer: LLC "Electrolux Rus",

Kozhevnichesky proezd 1, 115114, Moscow; tel.: [phone].

The device must not be disposed of with unsorted waste.

The product must be sent to a local waste processing facility or returned to local authorities.

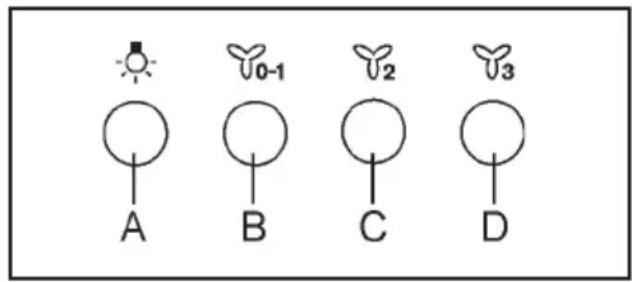

Button: ON/OFF switch for motor speed

I.

5. INSTALLATION METHODS

EXTRACTOR OR FILTER VERSION?

The hood can be in filter or ducted version. It is necessary to decide on the version to be installed. Given the better efficiency, we recommend installing the hood in the ducted version (if possible).

Ducted version

The hood purifies the air and expels it outside through a duct.

Filter version

The hood purifies the air and recirculates it back into the room.

6. LIGHTING

If the reflector is damaged, it must be replaced, for safety reasons, by the manufacturer, its service agent, or by qualified personnel.

7. CARE FOR THE ENVIRONMENT

Materials with the symbol should be recycled. To send packaging materials for recycling, they should be placed in prepared waste containers. Waste from electrical and electronic equipment should be recycled to protect the environment and human health. Appliances with the symbol must not be disposed of with household waste. The product should be sent to a local waste treatment facility or contact local authorities.

5. INSTALLATION METHODS

FILTER OR DUCTED? The hood must be either ducted or filtered. Decide from the start on the installation type. For better performance, we recommend installing the hood in the ducted version (if possible).

Ducted version

The hood purifies the air and expels it outside through an exhaust duct.

Filter version

The air is drawn in and expelled clean into the duct at 10.

6. LIGHTING

If the light is damaged, it can only be replaced by the manufacturer, their service agent, or a similarly qualified person to avoid danger.

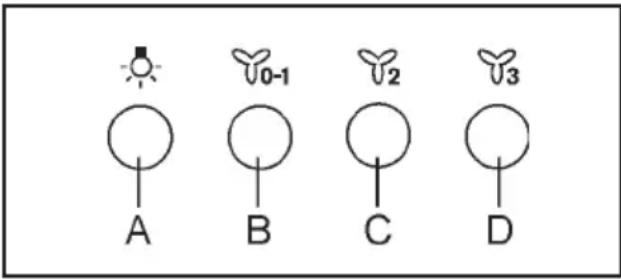

Speed C: second speed of the motor.

Speed D: third speed of the motor.

5. INSTALLATION METHODS

Ducted version

The hood can be with filter or ducted version. It must be decided which one needs to be installed.

For better effect, we recommend installing the ducted version (if possible).

Ducted version

The hood draws in air and expels it outside through an exhaust duct.

Filter version

The hood draws in air and returns it purified back into the room.

6. LIGHTING

If the lamp is damaged, it can only be replaced by the manufacturer, their service agent, or a similarly qualified person to avoid danger.

7. DISPOSAL OF WASTE ENVIRONMENT

Materials marked with the symbol must be sent for recycling.

To dispose of packaging materials for recycling, place them in the appropriate waste containers. Electrical and electronic equipment must be sent for recycling to help protect the environment and human health. Do not dispose of items marked

with the symbol with household waste.

Return the product to your local waste processing company or contact local authorities.

The device may contain substances hazardous to health and the environment. Improper disposal of the device may lead to environmental pollution and health risks. Please dispose of the device in accordance with local regulations.

1.1 Safety of children and vulnerable persons

• This device can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children between 3 and 8 years of age and persons with very extensive and complex disabilities may use the device only if they have been given appropriate supervision. Children under 3 years of age must not use the device unless they are under constant supervision.
• Children must not play with the device.
• Keep the device and its cord out of reach of children under 8 years of age.
• Children and pets must be kept away from the device while it is in operation.
• Do not allow children to clean or perform maintenance on the device without supervision.

1.2 General safety instructions

The device is intended for use on stovetops, ovens, and other similar surfaces. Before performing any technical maintenance, always disconnect the device from the power supply. CAUTION: The device may become hot during use. Keep the device away from flammable materials; if they are present, remove them from the vicinity.

Remove flammable materials from the vicinity.

Safety instructions for installation. - If the head is not installed correctly, the gas pressure may be too high, and the burner nozzles must be replaced with nozzles of a different diameter, and the distance between the electrodes must be adjusted to 65 cm. If the head is not installed correctly, it must be corrected. - The removed parts must be stored in a clean place, protected from dust and moisture. - The gas or other fuel must be completely burned, and the combustion products must not contain harmful substances, so the burner must be adjusted correctly. - Do not place other devices or objects that emit heat or are intended for heating in the immediate vicinity of the burner (such as central heating boilers, thermosiphons, water heaters, etc.). When the burner is used together with other devices, the maximum vacuum must be 0.04 mbar. You must be careful when closing the gas valve. To close the gas valve, contact our service center or your electrician. If the burner is connected to the gas line, the electrical connections must be disconnected from the power supply before any work. To ensure complete disconnection, follow the specified procedures. The burner must be connected to the gas supply with rigid pipes. Do not bend the pipes under the burner. Do not use the burner without a filter or with damaged materials, and do not use them for other purposes. - To prevent damage to the gasket material, the burner must be cooled gradually. Keep the burner away from drafts. To clean the burner surface, use only mild detergents and water.

Do not use abrasive cleaners, solvents, or sharp objects. Only use soft cloths.

• To prevent the risk of fire, clean the burner regularly (at least every 2 months) and remove any debris from the burner. Use water or a mild detergent to clean the inside of the burner.

2. INSTALLATION INSTRUCTIONS

2.1 Installation

WARNING! Risk of electric shock, gas leakage, or burner damage.

The burner must be installed only by a qualified technician. Do not install or modify the burner yourself. Keep the installation instructions that come with the burner. Be careful not to damage the burner during installation, and if necessary, handle it with care. - Do not use damaged or worn parts. After installing the burner, remove all packaging materials, protective covers, and any loose parts. Check the gas supply pressure and adjust it if it is not suitable for the intended use.

2.2 Electrical connection

WARNING! Risk of electric shock and gas leakage

• Do not use the device for purposes other than its intended use. Check the device parameters before each use. If the device is used in a technical cabinet, it must be connected to the mains.
• Connect the device to a grounded and properly functioning socket. Do not cover the device during operation.

Do not connect other devices to the same socket. - If the socket is free, connect the device to it. Do not pull the device by the cord. Pull the plug out of the socket. To protect against electric shock and fire, the device must be installed in accordance with the installation instructions. Do not operate the device without the cord. It is possible that the device may be damaged if the cord is pinched. Do not use the device after it has been dropped. After dropping, do not touch the device with wet hands.

2.3 Connection

CAUTION! The device has a high voltage.

The device is intended only for smoking tobacco. Do not use it for any other purpose. Do not modify the technical specifications of the device. Do not use the device with wet hands or in a humid environment. Do not use the device with flammable or explosive substances. If the device is hot or burning, it must be handled with care. Do not use the device with wet hands. Do not use the device for anything other than its intended purpose. Do not use the device with accessories, spare parts, or other components not intended for use with the device.

2.4 Maintenance

Contact the service center for maintenance of the device. Only use original spare parts.

2.5 Storage

CAUTION! The device contains a battery.

The device must be disposed of in accordance with local regulations. Do not dispose of the device with household waste. Remove the battery from the device and dispose of it separately.

3. TECHNICAL MAINTENANCE

To avoid any danger, do not disassemble the device. If the device is damaged, dispose of it.

Do not use the device with wet hands or in a humid environment. If the device gets wet, dry it thoroughly before use.

Do not use the device with a damaged cord, and do not repair it yourself. If the cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person.

4. BACKUP ELEMENTS

A version: Dry oblique. B version: The oblique is the first stage of the connector. C version: The second stage of the connector. D version: The third stage of the connector.

5. FITTING INSTRUCTIONS

WHICH NOZZLE FOR GERMAN OR FRENCH?

The correct nozzle for German or French must be selected according to the type of fitting.

The fitting is done by inserting the nozzle into the connector (if possible).

French nozzle

The nozzle is inserted into the hole and secured with the locking clip.

German nozzle

The nozzle is inserted into the hole and the hole is closed with a cap.

5. INSTALLATION METHOD

FRENCH OR CANADIAN VERSION?

The aspirator can be installed in the French or Canadian version. The type must be selected during installation.

For better performance, we recommend installing the aspirator in the Canadian version (if possible).

Kahancka Bep3nja

Acnipatopot ro npocntyBa Bo3dyxot n ro nccpna HaBOP npeky N3dyBHNOT KaHaJ.

Фицпрацьca Верзида

Acnipatopot ro npouncTyBa BO3dyxOT n ro Bpaka Beke npouncTeHNOT BO3dyx NOBTOPOBO npocTOPnja.

6.EDINHILA 3A OCBETJYBAJIe

Ako peΦnEeToPTe oUTeTn, nCTnOT MoKe da To 3aMeHn NCKnyuBO npOn3BOAnTEoT, HeROB cepBncep nnI Iue Co CnUHn KBaIINΦnKaun, 3a Da ce n36erHe onaChOcT.

7.ΓP涅KA 3A XNBOTHATA CPEДиHA

MaTePnJaIInTe ITo ITo Hocat Cm6oJIoT TpeBa da ce peuKJIpaaT.

Co ceI da ce peuKnnpaat MaepNJannte OJ ONAKOBAbata, Tne Tpe6a Da ce CTabAT BO cneuJaHN KOHejHepN 3a OTnaDOU. EneKtpnHnot n eNEKTPoHCKnOT OTnad Tpe6a Da ce peuKNnpa 3a Da ce 3aWHTTN JINBOTHaT cpeINHa n 3dpaBjeTo

Ha NyfeTo. YpeDnTe O3NaYeHn CO CmboJOT He CMeat Da Ce MeShaAT N φpNaAT CO DomaWeH OTnAd. Ppon3BODOT Tpe6a Da ce npeJaDe BO JokalnaNoCTpojka 3a TpeTMaH Ha OTnAd IIn Da Ce KOHTaKTIpaAT JOKaJIHnTe Bnactn.

5. MÉNYRATE MONTIMIT

VERSIONI FILTRUES OSE KANALI?

Aspiratori mund te yete ne version fi Itrues ose kanali. Duhet te vendosni, cili version do te installohet.

Pér veprim mé tê mire rekomandojmé installim te aspiratorit né version kanali (nèse kjoèshte e mundshme).

Version kanali

5. INSTALLATION METHODS

DRAIN OR FILTER VERSION?

Remove the cover

Remove the cover

was

and

2.2

a

Remove the screws

.

Lift the cover and set aside

y

y()j()

J

logan

C

.

.

1

J

y

.

.

i 1

4

J 1

a) 11
