USER MANUAL Airfryer AF100EU NINJA

TEMP pile:Brug TEMP-pline f@ at justere temperaturen, bace for og under bilbocreding.

TIME plie: Brug TIM- piilene (G) 1. juste vargheden vele funktoner.

for purchasing the NInJa' Air Fryer

REGISTER YOUR PURCHASE

ninjakitchen.eu

an QR code using mobile device

RECORD THIS INFORMATION

Model Number

Serial Number:

Date of Purchase:

(Keep receipt)

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 220-240V, 50-60Hz

Watts: 1550W

PLEASE READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE.

If you have any questions

please call customer service on 0800 000 9063.

TIP: You can find the model and serial numbers on the QR code label located on the back of the unit by the power cable.

This marking indicates this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

CONTENTS

Important Safeguards 35

Parts 38

Before First Use 39

Getting to Know Your Air Fryer 39
Function Buttons 39

Operating Buttons 39

Using Your Air Fryer 40
Using the Cooking Functions. 40
Air Fry 40

Roast 42

Rheate 43
Dehydrate 44

Cleaning & Maintenance 45

Cleaning Your Air Fryer 45

Helpful Tips 45

Troubleshooting Guide 46

Product Registration. 47

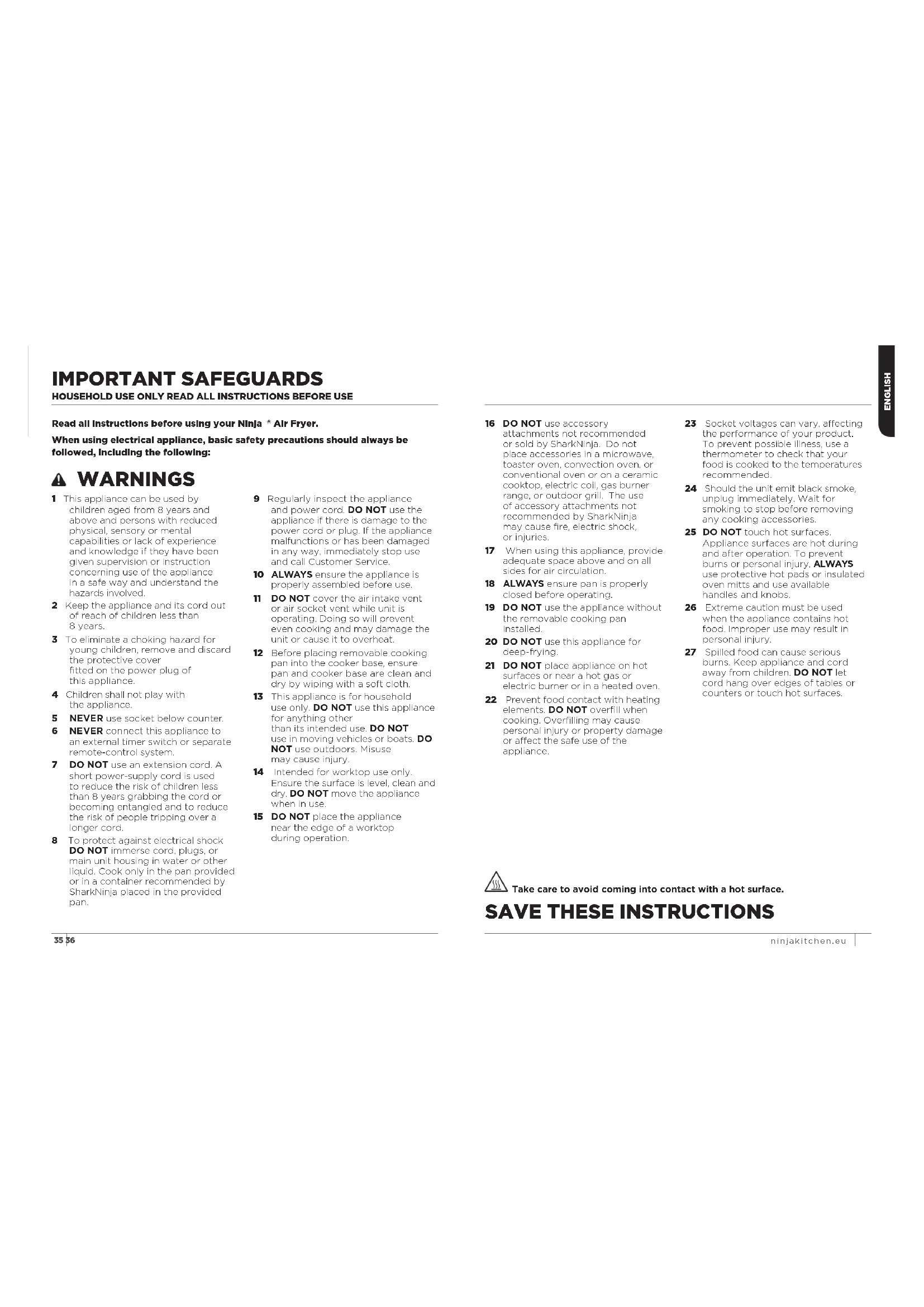

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY READ ALL INSTRUCTIONS BEFORE USE

Read all Instructions before using your Ninja Air Fryer.

When using electrical appliance, basic safety precautions should always be followed, including the following:

WARNINGS

1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2 Keep the appliance and its cord out of reach of children less than 8 years.
3 To eliminate a choking hazard for young children, remove and discard the protective cover fitted on the power plug of this appliance.
4 Children shell not play with the appliance.
5 NEVER use socket below counter.
6 NEVER connect this appliance to an external timer switch or separate remote-control system.
7 DO NOT use an extension cord. A short power-supply cord is used to reduce the risk of children less than 8 years grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord.
8 To protect against electrical shock DO NOT immerse cord, plugs, or main unit housing in water or other liquid. Cook only in the pan provided or in a container recommended by SharkNinja placed in the provided pan.

9 Regularly inspect the appliance and power cord. DO NOT use the appliance if there is damage to the power cord or plug. If the appliance malfunctions or has been damaged in any way, immediately stop use and call Customer Service.
10 ALWAYS ensure the appliance is properly assembled before use.
11 DO NOT cover the air intake vent or air socket vent while unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat.
12 Before placing removable cooking pan into the cooker base, ensure pan and cooker base are clean and dry by wiping with a soft cloth.
13 This appliance is for household use only. DO NOT use this appliance for anything other than its intended use. DO NOT use in moving vehicles or boats. DO NOT use outdoors. Misuse may cause injury.
14 Intended for worktop use only. Ensure the surface is level, clean and dry. DO NOT move the appliance when in use.
15 DO NOT place the appliance near the edge of a worktop during operation.

16 DO NOT use accessory attachments not recommended or sold by SharkNinja. Do not place accessories in a microwave, toaster oven, convection oven, or conventional oven or on a ceramic cooktop, electric coil, gas burner range, or outdoor grill. The use of accessory attachments not recommended by SharkNinja may cause fire, electric shock, or injuries.
17 When using this appliance, provide adequate space above and on all sides for air circulation.
18 ALWAYS ensure pan is properly closed before operating.
19 DO NOT use the appliance without the removable cooking pan installed.
20 DO NOT use this appliance for deep-frying.
21 DO NOT place appliance on hot surfaces or near a hot gas or electric burner or in a heated oven.
22 Prevent food contact with heating elements. DO NOT overfill when cooking. Overfilling may cause personal injury or property damage or affect the safe use of the appliance.

23 Socket voltages can vary, affecting the performance of your product. To prevent possible illness, use a thermometer to check that your food is cooked to the temperatures recommended.
24 Should the unit emit black smoke, unplag immediately. Wait for smoking to stop before removing any cooking accessories.
25 DO NOT touch hot surfaces.
Appliance surfaces are hot during and after operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven mitts and use available handles and knobs.
26 Extreme caution must be used when the appliance contains hot food. Improper use may result in personal injury.
27 Spilled food can cause serious burns. Keep appliance and cord away from children. DO NOT let cord hang over edges of tables or counters or touch hot surfaces.

Take care to avoid coming into contact with a hot surface.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY

The pan and crisper plate become extremely hot during the cooking process. Avoid physical contact while removing the pan or plate from the appliance. ALWAYS place pan or plate on a heat-resistant surface after removing. DO NOT touch accessories during or immediately after cooking.
29 Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
30 Unplug from socket when not in use and before cleaning. Allow to cool before cleaning, disassembly, putting in or taking off parts and storage.
31 DO NOT clean with abrasive cleaners, steel wool or scouring pads.
32 Please refer to the Cleaning & Maintenance section for regular maintenance of the appliance.

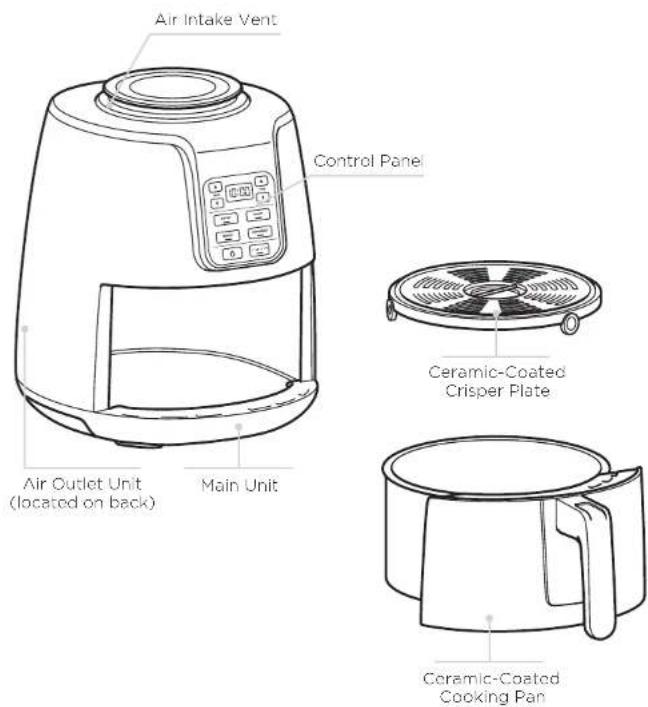

PARTS

Take care to avoid coming into contact with a hot surface. SAVE THESE INSTRUCTIONS

To order additional parts and accessories, visit ninjakitchen.eu or contact Customer Service on 0800 000 9063.

BEFORE FIRST USE

1 Remove and discard any packaging material, promotional labels and tape from the unit.
2 Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings and important safeguards to avoid any injury or property damage.
3 Wash the ceramic-coated pan and crisper plate in hot, soapy water, then rinse and dry thoroughly. The pan and crisper plate are also dishwasher safe. NEVER clean the main unit in the dishwasher.

GETTING TO KNOW YOUR AIR FRYER

When setting time, the digital display shows HH:MM. Display currently reads 23 minutes.

FUNCTION BUTTONS

AIR FRY: Use this function to give your food crispness and crunch with little to no air.
ROAST: Use the unit as a roaster oven for tender meats, baked treats and more.
DEHYDRATE: Dehydrate meats, fruits and vegetables for healthy snacks.
REHEAT: Revive leftovers by gently warning them, leaving you with crispy results.

OPERATING BUTTONS

TEMP arrows: Use the up and down
TEMP arrows to adjust the cook temperature before or during cooking.

TIME arrows: Use the up and down TIME arrows to adjust the cook time in any function.
START/STOP button: After selecting the time and temperature start cooking by pressing the START/STOP button. You can stop cooking at any time by pressing this button again.
(6) button: The Power button shuts off the unit and stops all cooking modes.

STANDBY MODE

After 10 minutes with no interaction with the control panel, the unit will enter standby mode. The Power button will be dimly lit.

USING YOUR AIR FRYER

To turn on the unit, first plug the power cord into a wall socket. Press the power button.

AIR FRY

1 Ensure the crisper plate is in the pan.

2 Press Air Fry button. The default temperature setting will display. Use the TEMP up and down arrows to set your desired temperature.

NOTE: It is recommended to let the unit pracheat for 3 minutes before adding ingredients. If preheating, skip step 4, insert the empty pan and press the START/STOP button to begin.

3 Press the TIME Up and down arrow buttons to set your desired cook time.

4 Add ingredients to the pan. Insert the pan in the unit.

5 Press START/STOP to begin cooking.

NOTE: To loss the ingredients during cooking, remove the pan and snake back and forth. Reinsert the pan and cooking will resume.

USING YOUR AIR FRYER - CONT.

6 When cooking is complete, the unit will beep and END will appear on the control panel display.

7 Remove ingredients by tipping them out or by using oven gloves or silicone-tipped Longs/ulcersils.

ROAST

1 Ensure the crisper plate is in place if needed. If you are using a baking dish, the crisper plate is not needed.

2 Press the ROAST button. The default temperature setting will display. Use the EMP up and down arrow buttons to set your desired temperature.

NOTE: It is recommended to let the unit preheat for 3 minutes before adding ingredients. If preheating, skip step 4, insert the empty pan and press the START/STOP button to begin.

3 Press the TIME up and down arrows to set your desired cook time.

4 Add ingredients to the pan. Insert the pan in the unit.

5 Press START/STOP to begin cooking.

6 When cooking is complete, the unit will keep and FND will appear on the control panel display.

7 Remove ingredients by tipping them out or by using oven gloves or silicon- tipped tongs/utensils.

USING YOUR AIR FRYER - CONT.

REHEAT

1 Ensure the crispper plate is in the pan.

2 PresssthreEHIEAT button. The default temperature setting will display. Use the TEMP UP and down arrow buttons set your desired temperature.

NOTE: It is recommended to let the unit preheat for 3 minutes before adding ingredients. If preheating, skip step 4, insert the empty pan and press the START/STOP button to begin.

3 Press the TIME up and down arrows to set your desired cook time.

4 Add ingredients to the pan. Insert the pan in the unit.

5 Press the START/STOP button to begin cocking.

6 When cooking is complete, the unit will beef and FND will appear on the control panel display.

7 Remove ingredients by tipping them out or by using oven gloves or silicone-tipped tongs/utensils.

DEHYDRATE

1 Place your first layer of ingredients in the bottom of the pan. Then install the crisper plate inside the pan and set a second layer of ingredients on the crisper plate.

2 Insert the pan in the unit.

3Press:heDEHYDRATE button. The default temperature will display. Use the TFMP up and down arrow buttons to set your desired temperature.

4 Press the TIME up and down arrow buttons to set your desired cook time.

5 Press the START/STOP button to start dehydrating.

6 When denygrating is complete, the unit will make a beert sound and END will appear on the control panel display.

NOTE: You can increase your dehydrating capacity with the multi-layer rack. If the rack is not included with your model, it is available for purchase at ninakitchen.cn.

CLEANING & MAINTENANCE

CLEANING YOUR AIR FRYER

NOTE: NEVER immerse the main unit in water or any other liquid. NEVER clean the main unit in a dishwasher.

The unit should be cleaned thoroughly after every use.

1 Unpig the unit from the wall socket before cleaning.
2 To clean the main unit and the control panel, wipe them clean with a damp cloth. Do not use a scouring pad.

HELPFUL TIPS

1 For consistent browning, make sure ingredients are arranged in an oven layer on the bottom of the pan with no overlapping. If ingredients are overlapping, make sure to shake them halfway through the set cook time.
2 Cook time and temperature can be adjusted at any time during cooking. Simply press the up and down TIME or TEMP arrows to adjust the time or temperature.
3 To convert recipes from your conventional oven, reduce the temperature of the Air Fryer by 10^ . Check food frequently to avoid overcooking.
4 We recommend 3 minutes of preheating. You can use the built-in timer to set a 3-minute countdown.
5 Occasionally, the fan from the air fryer will blow lightweight foods around. To alleviate this, secure foods (like the top slice of bread on a sandwich) with cocktail sticks.

3 The pan, crisper plate and any accessories can be washed in the dishwasher.
4 If food residue is stuck on the crisper plate or pan, place them in a sink filled with warm, soapy water and allow to soak.
5 Air-dry or towel-dry all parts after use.
6 When cleaning heating element or scrubbing is necessary use a non-abrasive cleaner or liquid detergent with a nylon pad or bristles.

6 The crispere plate elevates ingredients in the pan so air can circulate under and around them for even, crisp results.
7 After a cooking function is selected, you can press the START/STOP button to begin cooking immediately. The unit will run at the default temperature and time.
8 For best results, remove food immediately after the cook time is complete to avoid overcooking.
9 For best results with fresh vegetables and potatoes, use at least 1 tablespoon of oil. Add more oil as desired to achieve the preferred level of crispness.
10 For best results, check progress throughout cooking and remove food when desired level of brownness has been achieved. We recommend using an instant-read thermometer to monitor internal temp of foods. After the cook time is complete remove food immediately to avoid overcooking.

TROUBLESHOOTING GUIDE

• Why won't my temperature go any higher?

The max temperature is 210°C.

How long does it take to preheat and how will I know when it's done?

We recommend 3 minutes of preheating. You can use the built-in timer to set a 3-minute countdown.

Should I add my ingredients before or after preheating?

It is recommended to let the unit preheat for 3 minutes before adding ingredients.

• Do I need to defrost frozen foods before air frying?

It depends on the food. Follow package instructions.

How do I make the countdown pause?

Press START/STOP

Is the pan safe to put on my worktop?

The pan will heat during cooking. Use caution when handling and place on heat-safe surfaces only.

How do I know when to use the crisper plate?

Use the crisper plate when you want food to come out crispy. The crisper plate allows for food to be elevated in the pan allowing for air to go under the plate and evenly crisp ingredients.

My food didn't cook.

Make sure the pan is fully inserted during cooking. For consistent crowning, make sure ingredients are arranged in an oven layer on the bottom of the pan with no overlepping. Shake loose ingredients for even crispness. Cook time and temperature can be adjusted at any time during cooking. Simply press the up and down TIME or TEMP arrows to adjust the time or temperature.

My food is over-cooked.

For best results, check progress throughout cooking and remove food when desired level of brownness has been achieved. Remove food immediately after the cook time is complete to avoid overcooking.

• Why is my food blowing around when air frying?

Occasionally, the fan from the air fryer will slow lightweight foods around. To alleviate this, secure foods (like the top slice of bread on a sandwich) with cocktail sticks.

Can I air fry wet battered Ingredients?

Yes, but use the proper breading technique. It is important to coat foods first with flour, then with egg and then with bread crumbs. Be sure to press the bread crumbs onto the food with your hands. Because the air fryer has a powerful fan as part of its mechanism, breading can sometimes be blown off. Pressing the bread crumbs firmly on will help them adhere.

The unit is beeping.

Your food is done cooking.
The screen went black.
The unit is in standby mode. Press the power button to turn it back on.
An "E" message appears on display screen.

The unit is not functioning properly.

Please contact Customer Service at 0800 000 9063.

PRODUCT REGISTRATION

TWO (2) YEAR LIMITED GUARANTEE

When you buy a product in Germany as a consumer, you get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these statutory rights against your retailer. However, at Njna we are so confident about the quality of our products (the "Products") that we give you an additional manufacturer's guarantee of up to two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only - your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term.

The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, Kurt-Biaum-Platz 8, 63450 Hanau (Germany) ("us", "our" or "we"). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja.

Ninja Guarantees

A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Our customer service helpline (0800 000 9063) is open from 9.00am to 8:00pm Monday - Friday. It's free to call, and you'll be put straight through to a Ninja representative. You'll also find online support at www.ninjakitcheneu.

How do I register my guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

Model no.
Serial Number (only if available)
- Date of purchase of the Product (receipt or delivery note)

To register online, please visit www.ninjakitchen.eu

IMPORTANT

The guarantee covers your Product for 2 years starting on the date of purchase.
- Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee.

What are the benefits of registering my guarantee?

When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Ninja technology and launches. If you register your guarantee online, you'll get instant confirmation that we've received your details.

For details of our privacy policy please visit www.ninjakitchen.eu

How long are our Products guaranteed for?

Our confidence in our design and quality control means that your Product is guaranteed for a total of two years.

What is covered by the guarantee?

Repair or replacement (at Ninja's discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer.

What is not covered by the guarantee?

Normal wear and tear.
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja® Instruction Manual supplied with your machine.
Use of the kitchen appliance for anything other than normal domestic household purposes
- Use of parts not assembled or installed in accordance with the operating instructions.
Use of parts and accessories which are not Ninja® Genuine Components.
- Faulty installation (except where installed by Ninja®).
- Repairs or alterations carried out by parties other than Ninja or its agents. Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee.

What happens when my guarantee runs out?

Ninja does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their kitchen appliance after the guarantee has elapsed. In this case please contact our free phone customer service help line and ask about our guarantee program, on 0800 000 9063.

Where can I buy genuine Ninja spares and accessories?

Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You'll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjaikitchen.eu

Please remember that using non-Ninja spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

GRACIAS

Yes aliments sold cuits.

Dette market indikerer

atproduktetikkekal

BLI KJENT MED LUFTFRITYRKOKEREN

Ndu stiller inn tiden, viser displayed HHMM Her ser du at displayed viser 23 minutor.

FUNKSJONSKNAPPER

5 Tryk STARI/STOP for a begynne at stoo.

RENGJØRING OG VEDLIKEHOLD

SLIK RENG JDRDU LUTFRITYRKOKER

MERK: Hovedenheten ma ALDRI settes vanl eran andre vasker, Hovedenheter ma ALDRI vaskes ioppvaskmaskin.

Enheten ber rongüres grundig itter haverbruk.

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

NINJA is a registered trademark of SharkNinja Operating LLC.

PRINTED IN CHINA

ESPANOL
