USER MANUAL VCC 4750 A GRUNDIG

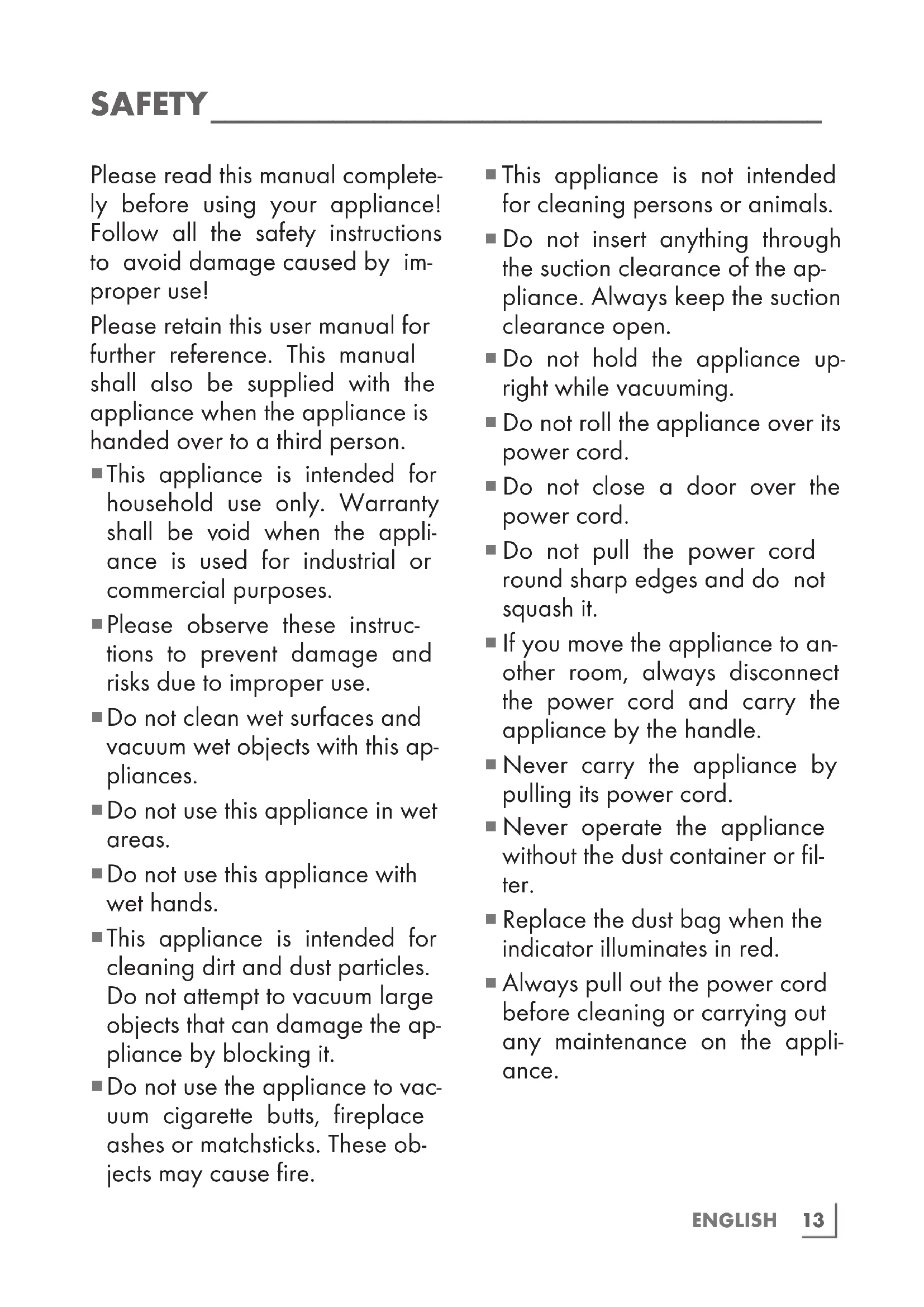

Please read this manual complete- ly before using your appliance! Follow all the safety instructions to avoid damage caused by im- proper use! Please retain this user manual for further reference. This manual shall also be supplied with the appliance when the appliance is handed over to a third person.

This appliance is intended for household use only. Warranty shall be void when the appli- ance is used for industrial or commercial purposes.

Please observe these instruc- tions to prevent damage and risks due to improper use.

Do not clean wet surfaces and vacuum wet objects with this ap- pliances.

Do not use this appliance in wet areas.

Do not use this appliance with wet hands.

This appliance is intended for cleaning dirt and dust particles. Do not attempt to vacuum large objects that can damage the ap- pliance by blocking it.

Do not use the appliance to vac- uum cigarette butts, fireplace ashes or matchsticks. These ob- jects may cause fire.

This appliance is not intended for cleaning persons or animals.

Do not insert anything through the suction clearance of the ap- pliance. Always keep the suction clearance open.

Do not hold the appliance up- right while vacuuming.

Do not roll the appliance over its power cord.

Do not close a door over the power cord.

Do not pull the power cord round sharp edges and do not squash it.

If you move the appliance to an- other room, always disconnect the power cord and carry the appliance by the handle.

Never carry the appliance by pulling its power cord.

Never operate the appliance without the dust container or fil- ter.

Replace the dust bag when the indicator illuminates in red.

Always pull out the power cord before cleaning or carrying out any maintenance on the appli- ance. SAFETY _____________________________________________ENGLISH

Whenever possible, insert the power cord plug directly into the socket. Avoid using exten- sion cables or multipoint con- nectors.

Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.

Never use the appliance if there is visible damage on the appli- ance or on the power cord. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

Our GRUNDIG Household Ap- pliances meet all the applicable safety standards; thus if the ap- pliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and au- thorised service person to avoid any danger arising. Faulty or un- qualified repair work may cause danger and risk to the user.

Always keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of ex- perience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and un- derstand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not open the appliance un- der any circumstances. No war- ranty claims are accepted for damage resulting from improper handling. SAFETY _____________________________________________ENGLISH

Dear Customers, Congratulations on your purchase of your new vacuum cleaner VCC 4750 A. Read the following user notes carefully to ensure full enjoyment of your quality GRUNDIG product for many years to come. Responsible approach! GRUNDIG focusses on contractually agreed social working conditions with fair wages for both inter nal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of sev eral tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years. For a future worth living. Grundig. Controls and parts See the figure on page 3.

Telescopic tube adjustment latch

Parquet/carpet brush

Parquet/carpet brush adjustment latch

Parquet/carpet brush parking groove

Suction power adjustment knob

Dust container release latch

Intended use The appliance has been designed for household use and is not suitable for industrial use. Attaching/removing the hose 1 To attach the hose

in the arrow direction in order to match it with the suction nozzle and rotate it clockwise. 2 To remove the hose

counter-clockwise and pull it. Attaching/removing the telescopic tube 1 Attach the telescopic tube

to remove it. 3 Push the telescopic adjustment latch

in the arrow direction and pull the telescopic tube

to adjust its length. Attaching/removing the parquet/carpet brush You can install/remove the narrow end of the telescopic tube

from/to the parquet/carpet brush

Adjusting the parquet/carpet brush Perform the following actions on the adjustment latch

located on the parquet/carpet brush

Use “ ” position for rugs and carpets. Operation 1 Plug in the appliance after pulling the power plug located at the back of the appliance. 2 Press the on/off button

to switch on your appliance. Adjusting the suction power 1 You can adjust the suction power using the suction power adjustment button

found on the appliance. Rotating in the clockwise direction will increase the suction power and in counterclockwise direction will decrease the suction power. 2 You can lower the suction power of the parquet carpet brush by pulling backward the vacuum adjustment control

located on the handle

without the need to use the suction power adjustment knob

found on the appliance. Dust indicator Dust indicator

Accessories Crevice tool Suitable for cleaning surfaces difficult to clean, such as areas under sofas and furniture. Warning

Do not perform cleaning tasks using the end part of the handle

Switching off and parking the appliance 1 Switch off the appliance with the on/off button

and unplug it. 2 Wind the power cable by pressing the power cable winding button

Vertical parking feature Insert the parking hook of the parquet/carpet brush into the parking groove located at the bottom section of the appliance. Horizontal parking feature Insert the parking hook of the parquet/carpet brush into the parking groove

located at the rear section of the appliance. USAGE _____________________________________________ENGLISH

Switch off and unplug the appliance before cleaning it. Warning

Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance. Replacing the dust bag 1 Open the top lid by pressing the dust container opening latch

2 Remove the full dust bag from its guide, sliding it in upwards direction. 3 Dispose the full dust bag. 4 Insert the new dust bag holding it in the arrow direction indicated on it. Ensure that it is fully seated. 5 Close the appliance’s top lid. Warning

Do not force the top lid to close it, otherwise the plastic sections can be damaged.

Dust bags purchased from locations other than the authorized dealers and services are not original. Unoriginal dust bags have a lesser quality and they become torn in a shorter period and render your appliance nonopera- tional. Faults caused due to using unauthentic dust bags are not covered within the warranty.

Do not wash the dust bag. Cleaning the filters Motor Protection Filter Foam filter EPA filter After each 5 dust bag replacement (may vary depending on the frequency and area of usage), clean the filters. Warning

Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get dam- aged.

Attach the filters into their places after they have dried. Motor protection filter 1 Open the top lid by pressing the dust container opening latch

2 Press down on the latch of the filter cassette to remove the cassette. 3 Remove the motor protection filter from the cassette inside. 4 After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum). INFORMATION ___________________________________ENGLISH

EPA filter 1 Raise the filter cap in the arrow direction to open it.2 Remove the EPA filter by pulling it from its handle.3 Shake off the EPA filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.4 If you wash the EPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry. Foam filter 1 Raise the filter cap in the arrow direction to open it.2 After removing the EPA filter, pull out and wash the foam filter located behind it.3 After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum). Storage

If you do not intend to use the appliance for a long time, store it carefully. Unplug the appliance. Keep the appliance out of the reach of chil-dren. Compliance with the WEEE Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. INFORMATION ___________________________________ENGLISH

, 50-60Hz Sound level : 76 dbA Dust capacity : 3.2 L Operating radius : 8 m Rights to make technical and design changes are reserved. INFORMATION
