USER MANUAL VCP 4230 GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

Two abstract geometric patterns: a woven bamboo design and a square with circular cutouts (no text or symbols)

VCP 4130 - VCP 4230

DE - EN - TR - FR - HR - SV - NO - FI - DA - RU

CONTENTS

DEUTSCH	4-20
ENGLISH	21-33
TÜRKÇE 34-51
FRANÇAIS	52-65
HRVATSKI	66-78
SVENSKA 79-91
NORSK 92-104
SUOMI 105-117
DANISH 118-130
RUSSIAN 131-155

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and assembly details.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with a wall socket connected to a power outlet (no text or symbols present)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a vertical device connected to an electrical outlet with a power plug (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a robotic device with a handle and base, showing a mechanical assembly (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram of a robotic arm pouring granular material into a container (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating assembly direction (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal parts (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with rotating components and directional arrows (no text or labels)

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

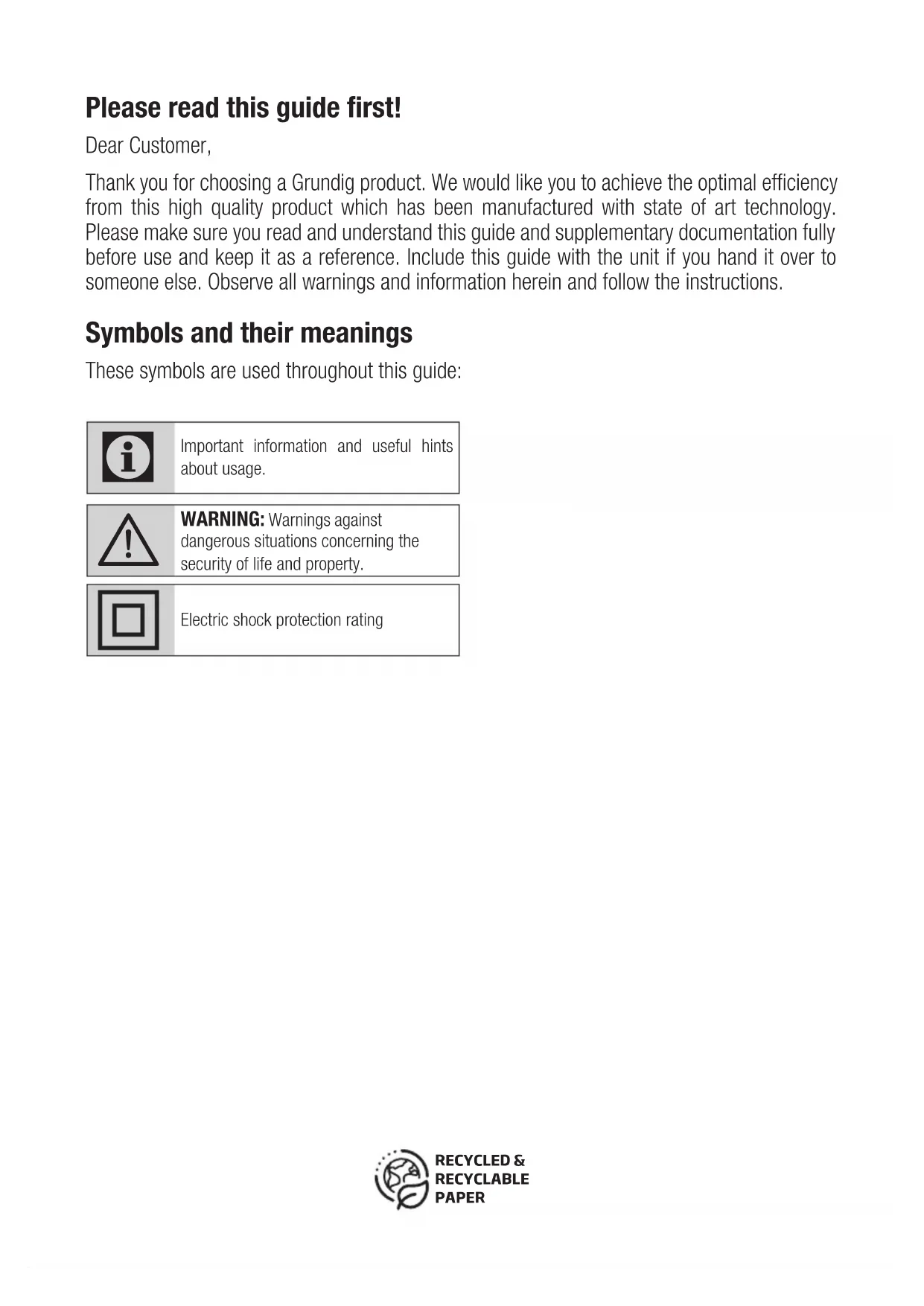

Please read this guide first!

Dear Customer,

Thank you for choosing a Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
• This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.

- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service. - Your mains power supply shall match the information shown on the rating plate label of the appliance.

• Do not use the appliance with an extension cord.
• To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.
• Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
• Do not pull on the cord while unplugging the appliance.
• Do not vacuum flammable materials and ensure that the cigarette ashes are cooled down before vacuuming them.
• Do not vacuum water and other fluids.
• Protect the appliance against precipitation, humidity and heat sources.
• Do not use the appliance in or near explosive or flammable environments and substances.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cord in water for cleaning.
• Do not disassemble the appliance.

1 Important safety and environmental instructions

• Use only original parts or parts recommended by the manufacturer.
• To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster or fragments of compressed paper.
• Use the appliance with the adapter delivered with the appliance only.
• Do not use the appliance without filters, it may get damaged.
• If you keep the packaging materials, keep them out of the reach of children.
• This appliance is not intended to be used by persons, including children, with physical, sensory and mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.

• Children shall be supervised to prevent them from playing with the appliance.

• Unplug the adaptor and remove the battery pack before any cleaning or maintenance procedure.

• To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer or a similarly qualified technician.
• Keep your fingers, hair and loose clothes away from moving parts or clearances while vacuuming.
• Batteries shall be removed from the appliance before discarding the appliance.
• Disconnect the appliance from power supply before removing the battery.
• Please discard used batteries in accordance with local laws and regulations.
• The batteries included in this appliance may only be replaced with qualified persons.
• Appliance is not intended to be operated for commercial purposes. This appliance is not designed for commercial use, it is intended for home use and in applications as follows:

1 Important safety and environmental instructions

- In the staff kitchens of t stores, offices and other working environments

- In farm houses;

- By customers in hotels, motels or other accommodation facilities

- In hostels or similar environments.

- WARNING: Use the HCX1501-3200450E (VCP 4230), HCX1501-2700500E (VCP 4130) removable supply unit delivered with the appliance to charge to the battery.

- This appliance shall not be operated by children and people with limited physical, sensory and cognitive skills or people with lack of experience and knowledge unless they are under supervision or they are provided with the relevant instructions.

- Children shall be supervised to prevent them from playing with the appliance.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol.

Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 What to do for energy saving

• When using your appliance, adjust the speed settings according to the surface, in order to save energy.
• Normally, lower speeds are used when cleaning hard surfaces, curtains and sofas, while high speeds are used in for cleaning carpets.

2 Overview

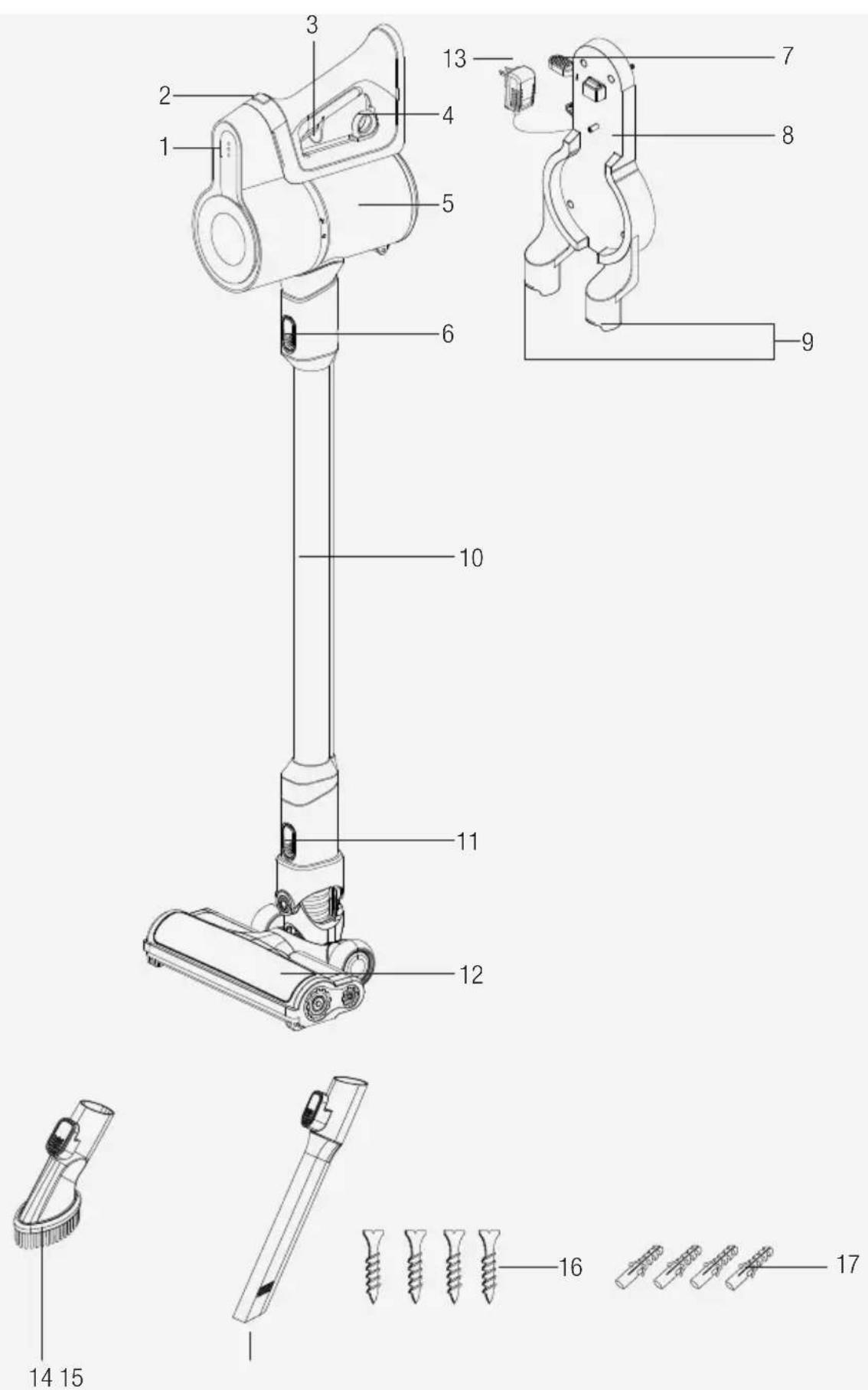

2.1 Controls and components

1. Charge indicator LED lights
2. Power Adjustment button
3. On/off button
4. Emptying dust container ring
5. Dust container
6. Tube release button
7. Appliance release button
8. Charging Dock
9. Accessory attachment parts
10. Tube
11. Brush release button
12. Electric turbo brush
13. Charging adaptor
14. Dust brush
15. Crevice attachment
16. Screw (4 pcs)
17. Dowel (4 pcs)

2.2 Technical data

	VCP 4230 VCP	4130
Nominal input power 150 W	110 W
Input 100 - 240 V~ 50-60 Hz	0,5 A
Output	32 V =0.45 A 27 V	0.5 A
Charging time 4-6 hours
Runtime at max. power 17 mins
Runtime at min. power 45 mins

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

External Power Supply Parameter

	VCP 4230 VCP 4130
Manufacturer: Guangdong Huachuangxing Power Supply Co.,Ltd
Model ID: HCX1501-3200450E		HCX1501-2700500E
Input Voltage: 100-240V~
Input Frequency: 50-60Hz
Input Current: 0.5A
Output Voltage 32.0V 27.0V
Output Current 0.45A 0.5A
Output Power: 14.4W 13.5W
Average active efficiency: 85.5% 84.39%
Efficiency at low load (10%):	83.33%	70.65%
Power consumption under no load:	0.041W	0.071W

3 Installation

3.1 Intended use

This appliance is intended for household use and it is not suitable for industrial use.

3.2 Installation of the charging dock

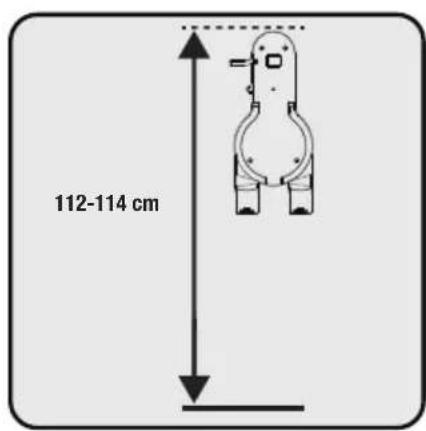

112-114 cm

Position the charging dock (8) at a height of 112-114 cm from the ground.

Technical line drawing of a mechanical assembly with no visible text or symbols

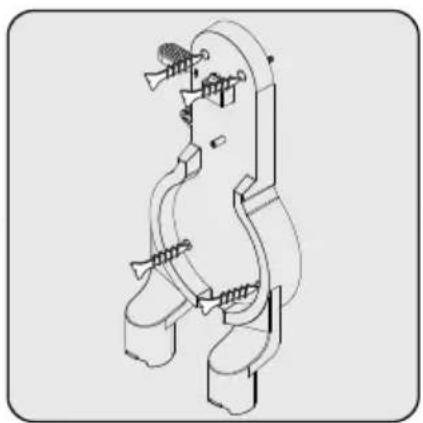

1- Fix four dowels (17) on the wall
2- Place four screws (16) into their locations on the charging dock (8) and mount on the dowels on the wall.

Diagram of a mechanical device with two switches and a wall-mounted socket, showing an electrical connection (no text or symbols)

Plug the charging adaptor (13) to the socket.

3.3 Installation of the body and the brush

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Push the tube (10) in the direction of arrow towards the body by pushing on the tube release button (6).

Diagram of a vacuum cleaner's internal components being processed, showing motion arrows (no text or symbols)

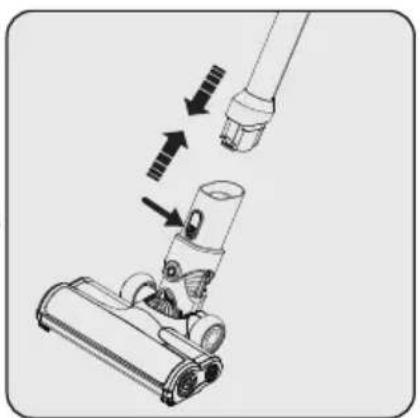

Press the electric turbo brush release button (11) on the electric turbo brush (12) and push it in the direction of arrow towards the tube.

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

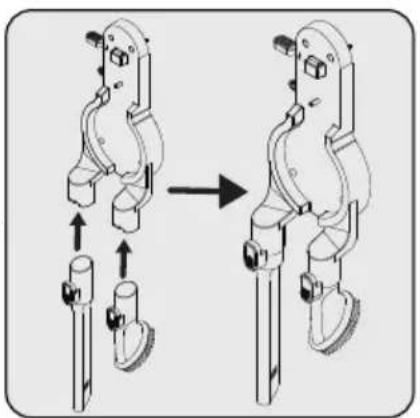

Attach crevice attachment (15) and dust brush (15) to the charging dock (8).

4 Operation

4.1 Charging the appliance

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

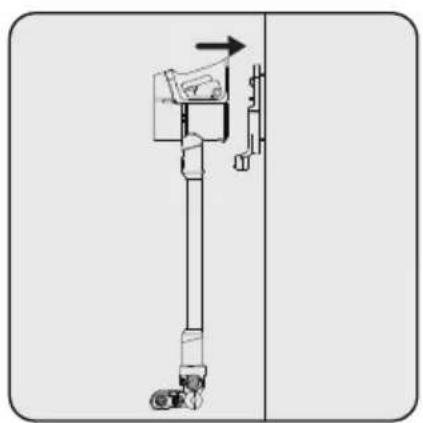

Place the appliance on the charging dock (8).

After placing dust container (5) on the charging dock (8), push the appliance towards the charging dock.

Diagram showing a vertical device connected to an electrical outlet with a power plug (no text or symbols)

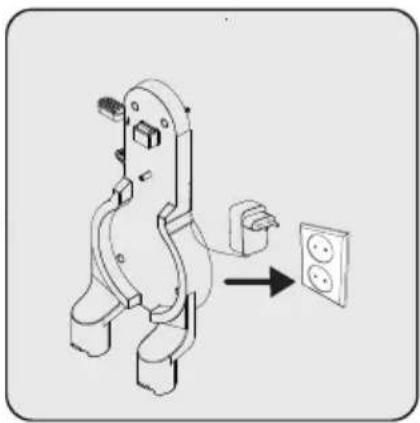

Plug the charging adaptor (13) to the socket.

Technical line drawing of a mechanical component with no visible text or symbols

Flashing of the charge indicator LEDs (1) in white colour indicates that the appliance is being charged.

- When all levels of the charge indicator LEDs (1) are illuminated, this indicates that the charging of the appliance is completed.

It takes up to 4 to 6 hours to charge the appliance completely. The appliance shall not be operated while charging.

If the appliance is placed on the charging dock (8) while it is being operated, it shall be stopped automatically.

4.2 Usage

Technical diagram of a mechanical device with labeled parts, showing two views (1 and 2) of the device's internal structure.

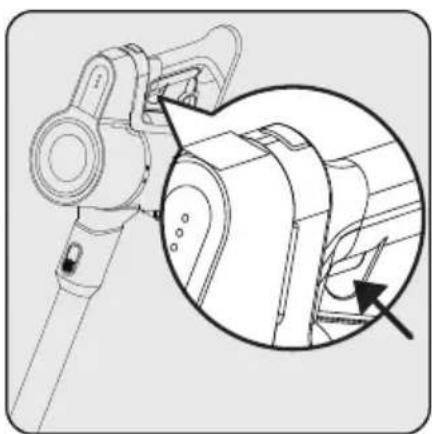

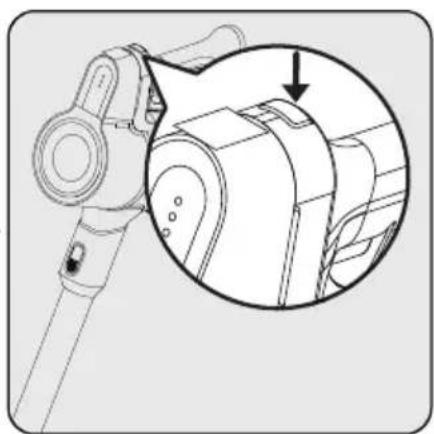

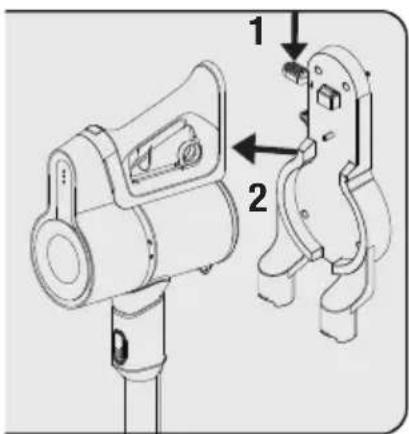

1- Push the appliance release button (7) on the charging dock (8) downward and pull the appliance towards yourself at the same time.

2- Remove the appliance from the charging dock (8).

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Press the on/off button (3) to operate the appliance. The appliance starts operating with the minimum power when the on/off button is pressed.

Technical line drawing of a mechanical device with an inset circular detail showing a component (no text or symbols)

To switch to the maximum power when operating in the minimum power, push the power adjustment button (2).

To switch to the minimum power when operating in the maximum power, push the power adjustment button (2) again.

4 Operation

The appliance may be placed for charging before the complete discharging of the battery. The appliance may be kept continuously as charging on the charging dock (8) until the next operation.

Technical line drawing of a mechanical component with no visible text or symbols

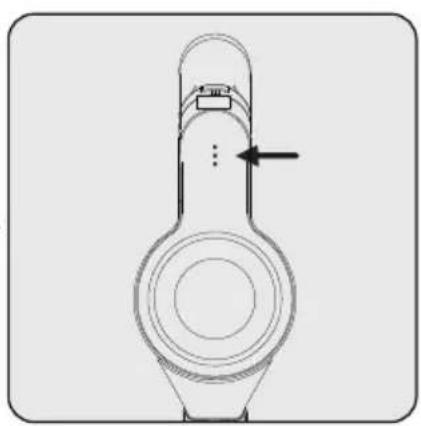

Pay attention to the power indicator LEDs (1) during operation. These indicators gradually turn off as the charge level is reduced, and when all indicators are turned off and only one indicator illuminates in red, then the charge of the appliance is about to run out. The appliance stops operating automatically after a short while when the red LED illuminates.

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

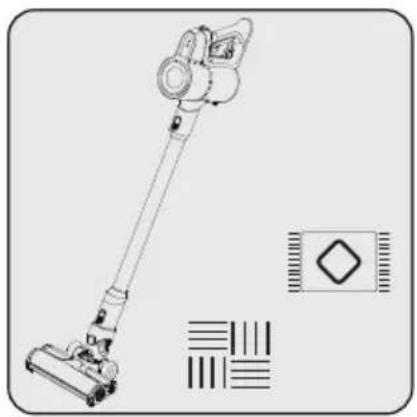

This appliance is suitable for use on carpets and hard floors.

4.3 Accessories

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Line drawing of a robotic device with a handle and cable, showing a step-down view (no text or symbols)

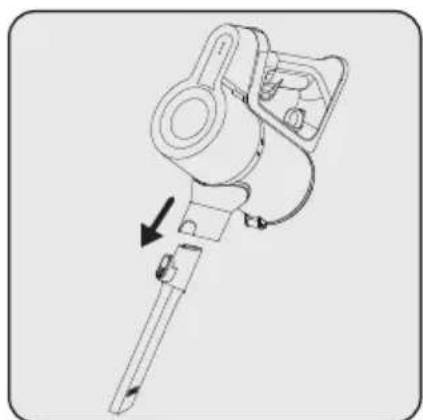

Crevice (15): Suitable for vacuuming the rear of the furnitures, hard to reach areas and narrow areas.

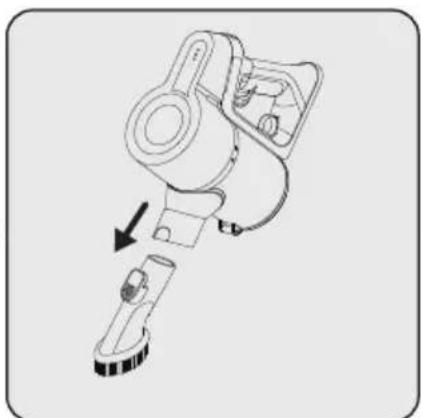

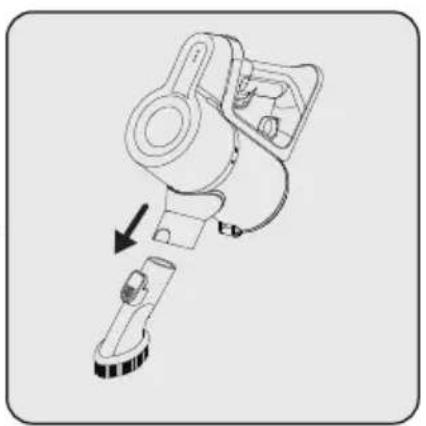

Dust brush (14): Suitable for vacuuming curtains, waxed furniture and delicate and fragile objects.

5 Cleaning and maintenance

Turn off and unplug the appliance before cleaning.

WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Deformation may occur on the filters within time as a result of usage. It shall be replaced with a new one to prevent loss of performance. Contact with the customer services to buy a new one.

5.1 Cleaning the Dust container and Filters

WARNING: Do not wash the filters.

We recommend you to clean the dustbin (5) after each operation.

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

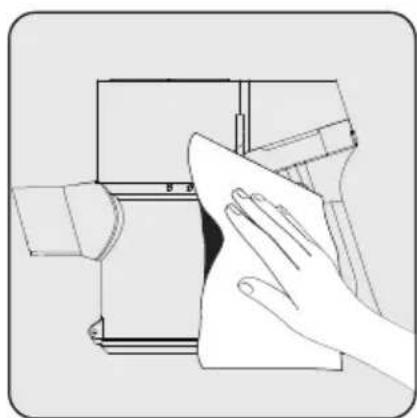

Wipe the surface of the body with a wet cloth.

Diagram of a robotic arm pouring liquid into a container with granular material (no text or symbols)

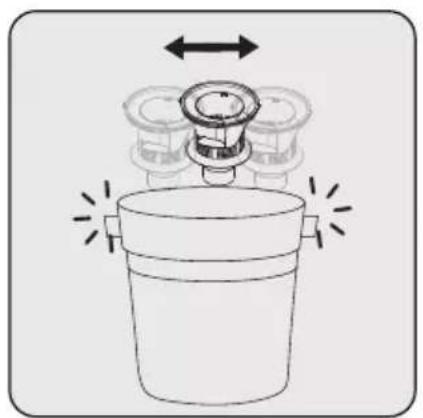

Pull the emptying dust container ring (4) to the last point. Dust container lid will be opened. Empty all the dust it contains.

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

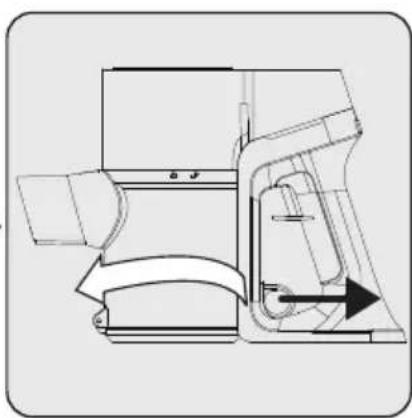

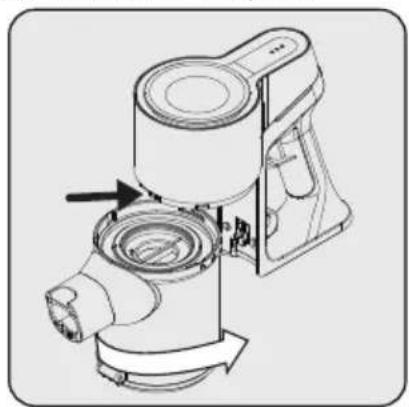

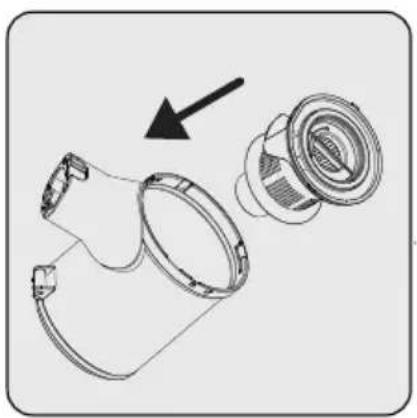

For a detailed cleaning of filters, remove the dust container by turning it clockwise while pulling dust container ring (4) lightly.

5 Cleaning and maintenance

Diagram of a mechanical component with an arrow indicating direction, showing internal parts and a final component (no text or symbols present)

Pull EPA E10 and plastic filter holding from the EPA E10 handle.

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

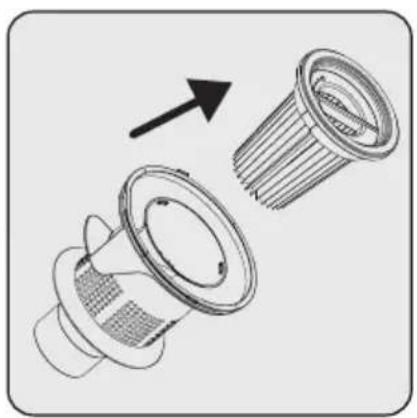

Seperate EPA E10 and plastic filter from each other.

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Remove the dust on the EPA E10 filter by tapping it on a hard surface such as a waste bin or by using a brush.

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Remove the dust on the plastic filter by tapping it on a hard surface such as a waste bin or by using a brush.

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

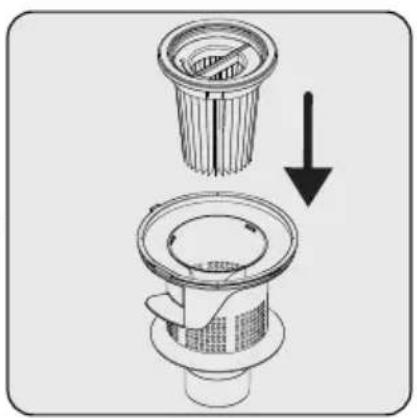

Attach EPA E10 filter to the plastic filter back.

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Attach plastic filter on the dustbin ring (5).

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Fix the connector of dustbin to the holes on the body, then fix the dustbin by turning counterclockwise until you hear the click sound.

5 Cleaning and maintenance

5.2 Cleaning of the brush

WARNING: Do not wash the turbo brush (8) and the main roller.

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

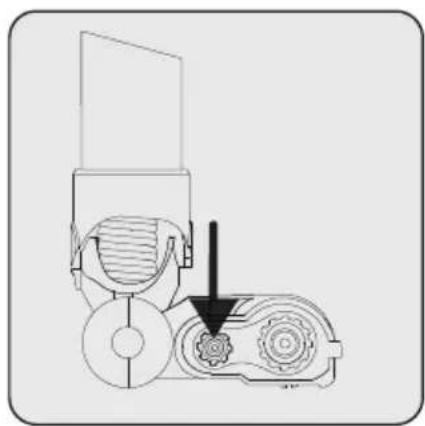

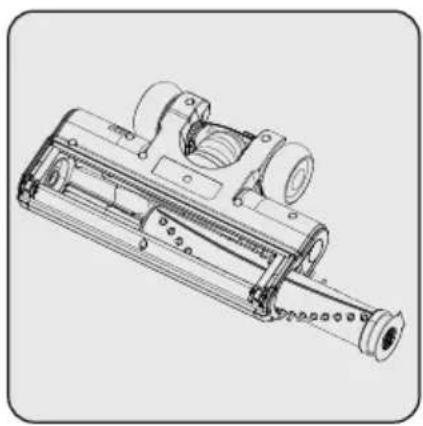

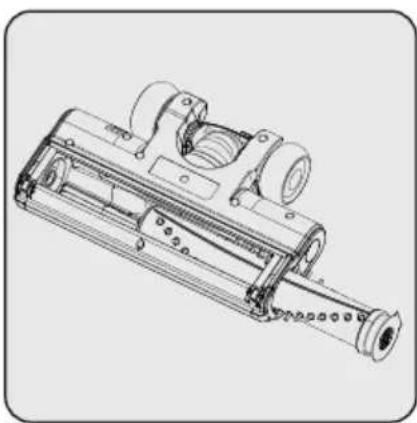

Press on the roller release button. Remove the dust on it by tapping it lightly to a hard surface or remove the dust with a brush. If any hair, etc. is tangled, remove it by cutting it off.

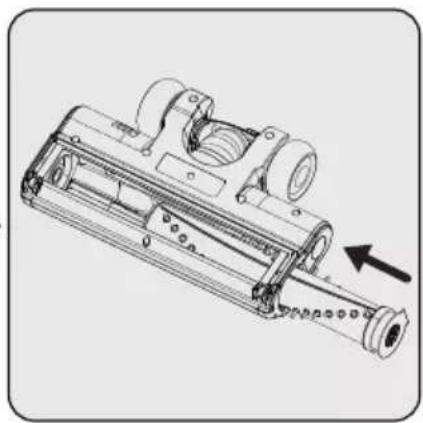

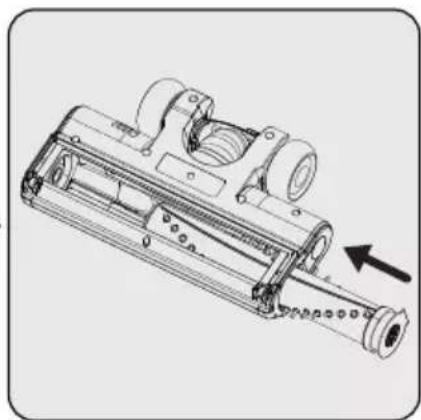

Fix the roller back to its place by pushing.

5.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Ensure that the appliance is kept out of reach of children.
• If you shall not be using the battery for a long period of time, please keep it in a cool and dry place at half charged condition. Do not charge or discharge completely.
• Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.

5.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

6 Troubleshooting

Common problem Possible	le reason Solution
Can't charge	1. The main unit is installed in the charging base and does not snap in place; 2. The battery life has expired, the battery is damaged or the battery pack program is wrong; 3. The correct charger is not used; 4. The charger is damaged.	1. Reinstall the host into the charging base; 2. Replace the battery pack with a new one; 3. Check whether the charger is used incorrectly, and use the correct matching charger; 4. Replace with a new charger.
Vacuum cleaner does not start	1. The power switch of the vacuum cleaner is not turned on; 2. The internal lead wire is loose; 3. The motor is burnt out; 4. The battery indicator light is off and the battery is dead.	1. Press the power switch again; 2. Reconnect the internal leads; 3. Repair or replace the new motor; 4. Connect the charging stand to charge.
less suction	1. Each suction head channel is blocked; 2. There is a problem with the motor; 3. The dust cup is full of dust; 4. The HEPA filter is blocked.	1. Clean the suction head channel; 2. Repair or replace the new motor; 3. Clean the dust in the dust cup; 4. Clean or replace the HEPA filter.
Electric floor brush does not turn	1. The connection of the floor brush and the body are not in place; 2. The roller brush of the floor brush is entangled and blocked by debris; 3. The dust cup is not fully buckled into the host when it is installed; 4. The protection device has been activated.	1. Insert the body into the floor brush connector until the buckle of the floor brush connector is firmly engaged; 2. Refer to the manual for cleaning the roller brush; 3. Remove the dust cup, re-install the dust cup, and rotate the dust cup to install 4. Restart the power switch after turning off the power.
The machine works normally, but suddenly the LED light of the battery pack flashes, the ground brush does not work, and the handset still works normally.	Floor brush lock protection	Clean up the hair and rubbish entangled and adhered to the roller brush before continuing to use it.

6 Troubleshooting

After the machine is turned on, the sub-machine works normally, but the floor brush assembly does not work	The internal wiring of the aluminum tube or the internal wiring of the floor brush assembly is damaged	Please contact customer service
When charging, the battery pack LED light flashes for 10 seconds and then turns off.	The battery pack overheats, triggering the overheat protection mechanism	Cancel charging and let the battery pack cool down before continuing to charge.
When discharging, the battery pack LED light flashes for 10 seconds, and the machine automatically shuts down.	The battery pack overheats, triggering the overheat protection mechanism	It is necessary to interrupt the operation of the machine, and leave the machine to wait for the battery pack to cool before continuing to use it.
The battery pack LED flashes 3 times and then turns off when charging	The charger is wrong and cannot match this model of vacuum cleaner.	Check whether the charger is used incorrectly, and use the correct matching charger.
The machine does not respond after pressing the power button	The battery pack or the internal wiring and parts of the vacuum cleaner are damaged, resulting in functional failure.	After excluding the above situation, please contact customer service.

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and assembly details.

2 Genel bakış,

The rights to make technical and design changes are reserved.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two switches and a wall-mounted socket, showing an electrical connection (no text or symbols present)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

Mechanical device diagram showing a lever mechanism with a directional arrow (no text or symbols)

Diagram showing a vertical device connected to an electrical outlet with a power plug, indicating installation or maintenance.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a robotic device with a handle and base, showing a mechanical assembly (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram of a robotic arm pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow and dimension lines (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

EPA E10 filtre ve plastik filtreyi EPA E10 filtre tutamağından tutarak çekin.

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and assembly details.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two switches and an electrical outlet, showing a right-hand rule for installation (no text or symbols present)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a mechanical device connected to an electrical outlet with a power plug, indicating installation or maintenance.

Diagram of a device with a handle and circular body, showing no text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical diagram of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a robotic device with a handle and base, showing a mechanical assembly (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram of a robotic arm pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a gear and pulley (no text or labels)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

1- Pričvrstite četiri tipla (17) na zid 2- Postavite četiri vijka (16) na njihova mjesta na stanicu za punjenje (8) i monitrajte tiple na zid.

Diagram of a mechanical device with a wall-mounted socket connected to a power outlet (no text or symbols present)

Technical line drawing of a mechanical device with arrows indicating assembly or motion (no text or symbols)

Diagram of a vacuum cleaner's internal components being processed with arrows indicating motion (no text or symbols present)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Pričvrstite uski nastavak (15) i četku za prašinu (14) na stanicu za punjenje (8).

4 Rukovanje

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a vertical device connected to an electrical outlet with a power plug (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

1- Gurnite gumb za otpušanje uređaja (7) na stanici za punjenje (8) prema dolje, a istovremeno povucite uređaj prema sebi.

2- Uredaj uklonite sa stanice za punjenje (8).

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Pritisnite prekidač uključeno/isključeno (3) za rukovanje uređajem. Uređaj počinje s radom s minimalnom brzinom kada se pritisne prekidač uključivanja/isključivanja.

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Za prebacivanja na maksimalnu brzinu tijekom rada pri minimalnoj brzini pritisnite gumb podešavanja brzine (2). Za prebacivanja na minimalnu brzinu tijekom rada pri maksimalnoj brzini pritisnite gumb podešavanja brzine (2).

4 Rukovanje

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Ovaj uređaj prikladan je za uporabu na tepisima i drvenim podnim oblogama.

4.3 Pribor

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Line drawing of a robotic device with a handle and cable, showing a step-down view (no text or symbols)

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

Line drawing of a robotic arm pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow and dimension lines (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Povucite filtar EPA E10 i plastični filtar držeći ručku filtra EPA E10.

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Uklonite prašinu s filtra EPA E10 laganim lupkanjem o tvrdu površinu poput kante za smeće ili četke.

Diagram of a mechanical valve or pump assembly with directional arrows indicating flow or movement (no text or symbols)

Uklonite prašinu s plastičnog filtra laganim lupkanjem o tvrdu površinu poput kante za smeće ili četke.

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a gear and pulley (no text or labels)

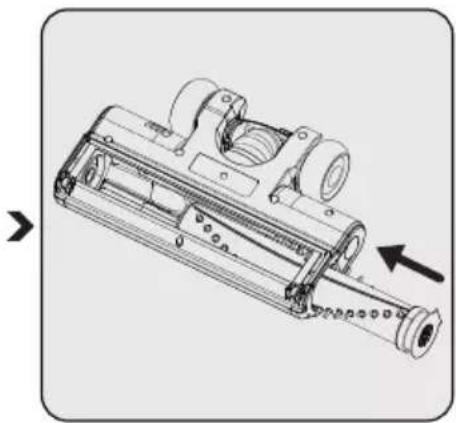

Pritisnite gumb za odvajanje okretne četke.

Technical line drawing of a mechanical device with cylindrical components and mounting holes (no text or symbols)

Uklonite prašinu s nje laganim lupkanjem o tvrdu površinu ili prašinu uklonite četkom. Ako su se zapetljale dlake, odrežite ih.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and assembly details.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two outlets and a power plug, showing connection to a wall (no text or symbols)

Anslut laddningsadaptern (13) i eluttaget.

Technical line drawing of a mechanical device with arrows indicating assembly or motion (no text or symbols)

Diagram of a vacuum cleaner's internal components being processed with arrows indicating motion (no text or symbols present)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a vertical device connected to an electrical outlet with a power plug (no text or symbols)

Anslut laddningsadaptern (13) i eluttaget.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing no text or symbols

Line drawing of a robotic device with a handle and cable, showing a step-down view (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Line drawing of a robotic arm pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow and dimension lines (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical clamp or bracket assembly with a wall-mounted socket connected to a switch (no text or symbols present)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a mechanical device connected to an electrical outlet with a power plug, indicating installation or maintenance.

Technical line drawing of a mechanical component with no visible text or symbols

Blinkende LED-lamper (1) i hvit farge indikerer at apparatet lades.

Technical diagram showing two mechanical components with numbered labels indicating assembly or identification.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Line drawing of a robotic device with a handle and base, showing a mechanical assembly (no text or symbols)

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram of a robotic arm pouring granular material into a container (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Fest EPA E10-filteret på plastfilteret. Fest plastfilter på støvbeholderen (5).

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

(5).

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Fjern støvet på den ved å banke den lett på en hard overflate eller fjerne støvet med en børste. Hvis hår eller lignende er floket, kan du fjerne den ved å klippe den av.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and assembly details.

2 Yleiskuva

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with a wall-mounted socket connected to a power outlet (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a vacuum cleaner's internal components being processed, showing motion arrows (no text or symbols)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a vertical device connected to an electrical outlet with a power plug (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels 1 and 2 indicating parts of a device.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing no text or symbols

Line drawing of a robotic device with a handle and base, showing a mechanical assembly (no text or symbols)

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

Line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and assembly details.

2.1 Styring og komponenter

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with a wall-mounted socket connected to a power outlet (no text or symbols present)

Diagram of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Tryk på den elektriske frigivelsesknap til turbobørsten (11) på den elektriske turbobørste (12) og skub den i retning af stangen.

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing a vertical device connected to an electrical outlet with a power plug (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating assembly or identification.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Line drawing of a robotic device with a handle and base, showing a mechanical assembly (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Illustration of a robotic arm pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Two abstract geometric patterns: a woven bamboo design and a square with circular cutouts (no text or symbols)

VCP 4130 - VCP 4230

RU

Technical line drawing of a mechanical device with multiple ports and connectors (no text or symbols)

Diagram of a mechanical device with a wall socket connected to a power outlet (no text or symbols present)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

Technical line drawing of a vertical mechanical device with directional arrows indicating motion (no text or symbols)

Diagram showing a vertical mechanical device connected to an electrical outlet with a power plug (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels 1 and 2 indicating parts of a device.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit board and indicator lights (no text or symbols)

Line drawing of a handheld device with a lever and cable, showing motion direction (no text or symbols)

Diagram of a robotic device with a valve and base, showing a step-down view (no text or symbols present)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Line drawing of a robotic arm pouring liquid into a container (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a water tap with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols
