VCH 9129 L - Vacuum Cleaner GRUNDIG - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Grundig
Model	VCH 9129 L
Power Consumption	700 W
Suction Power	Adjustable, up to 250 air watts
Dust Bag Capacity	3.5 L
Filter Type	HEPA 13 washable exhaust filter
Cord Length	6 m
Operating Radius	9 m
Noise Level	76 dB(A)
Dimensions (W x H x D)	260 x 220 x 400 mm
Weight	4.5 kg
Accessories Included	Combination floor nozzle, crevice tool, dusting brush, upholstery tool
Dust Bag Indicator	Electronic fullness indicator
Cord Rewind	Automatic cord rewind
Parking System	Horizontal and vertical parking
Maintenance	Washable HEPA filter, replace dust bag when full
Safety Features	Motor overload protection, thermal cut-off
Repairability	Spare parts available for up to 10 years
Energy Class	A

Frequently Asked Questions - VCH 9129 L GRUNDIG

How do I change the dust bag in my Grundig VCH 9129 L?

Open the front cover by pressing the release button. Remove the full dust bag and dispose of it. Insert a new bag ensuring the cardboard collar fits securely. Close the cover until it clicks.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-6 months or when the filter cleaning indicator lights up. Tap it gently or rinse under cold water and let it dry completely for 24 hours before reinstalling.

Why is the suction power weak?

Check if the dust bag is full, the filters are clogged, or the hose/nozzle is blocked. Also ensure the suction power regulator is set to maximum.

How do I rewind the power cord?

Press the cord rewind button with one hand while guiding the cord with the other to prevent whipping. The cord will automatically retract into the vacuum.

Can I wash the dust bag?

No, the dust bag is disposable. Replace it when full. Only the HEPA filter is washable.

What accessories are included?

The vacuum comes with a combination floor nozzle for carpets and hard floors, a crevice tool for tight spaces, a dusting brush for delicate surfaces, and an upholstery tool for furniture.

How do I store the vacuum?

You can park the floor nozzle on the back of the vacuum for vertical storage or use the parking slot on the side for horizontal storage during pauses.

Is the vacuum suitable for pet hair?

Yes, the combination floor nozzle is effective on pet hair. Additionally, the HEPA filter traps allergens.

What does the dust bag indicator mean?

When the indicator turns red or a light comes on, it means the dust bag is full or airflow is restricted. Replace the bag or clean the filters.

Where can I buy spare parts?

Spare parts such as dust bags, filters, and nozzles are available from authorized Grundig dealers or online retailers. Use the model number VCH 9129 L.

USER MANUAL VCH 9129 L GRUNDIG

2-in-1 Cordless Stick Vacuum Cleaner

User Manual

VCH 9129 L

DE - EN

DEUTSCH 07 - 14

ENGLISH 15 - 20

DE	BETRIEB WANDMONTAGE REINIGUNG UND PFLEGE
EN	OPERATION WALL HANG CLEANING AND CARE

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

■ This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments

- It is not fit for industrial use.

■ Warranty will be voided if the appliance is used for industrial or commercial purposes.

- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.

■ Do not use on wet surfaces and do not attempt to use on wet objects.

■ Do not use the appliance in wet surroundings.

■ Do not use the appliance with wet hands.

■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.

■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.

■ This appliance is not designed for cleaning people or animals.

■ Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.

■ Never operate the appliance without the filter.

SAFETY

- Keep the brush away from your hand when it is operated. Your hand can get stuck in the brush.

■ Clean the filter when necessary.

■ Only use original GRUNDIG accessories when replacing parts.

■ Check if the mains voltage on the rating label corresponds to your local mains supply.

Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

Avoid using extension cables or multipoint connectors. Plug the appliance directly into a wall socket if possible.

Do not attempt to dismantle the appliance.

Protect the appliance from rain, humidity, and heat sources.

For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.

Do not disconnect the plug by pulling on the cable.

Use the appliance only with the adapter supplied with it.

Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. In this case, please contact a service centre.

Our GRUNDIG Household Appliances meet all applicable safety standards; thus, if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre, or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

SAFETY

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

- Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

■ Only use the power cord provided.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 Cordless Stick Vacuum Cleaner VCH 9129 L.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

Extra accessories:

■ 2in1, Crevice and Dust Brush

• Dust brush suitable for the cleaning of fabrics, furniture, skirting boards or picture frames.
• Crevice tool for cleaning crevices and corners difficult to reach.

Wall hang accessory:

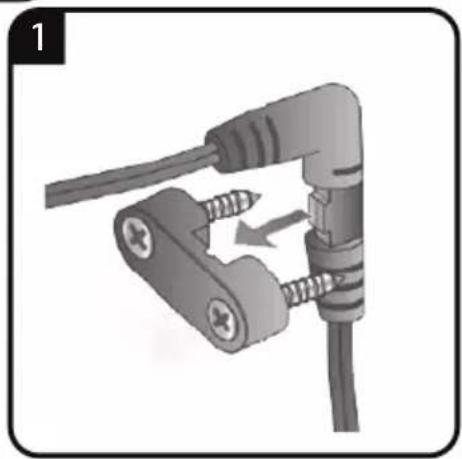

1 Punch a hole on the wall with the help of electric drill. 2 Hammer the rubber stopper into the hole. 3 Assemble the wall hang accessory correctly in terms of the following instruction photos

Controls parts

See image on page 3.

A Stick vacuum cleaner handle B Stick vacuum cleaner on/off button C Speed adjustment button D Handle collapsing button E Cordless vacuum cleaner removal button F Cordless vacuum cleaner handle G Cordless vacuum cleaner on/off button H Body Dust container removal button J Dust container K Brush removal button L Brush M LED light N Handheld vacuum cleaner Charging and power indicator P Dust brush Q Crevice Power supply plug

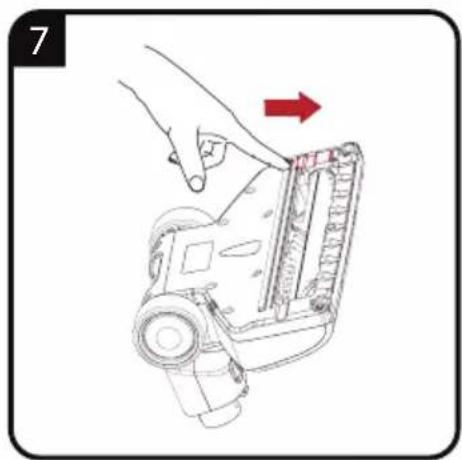

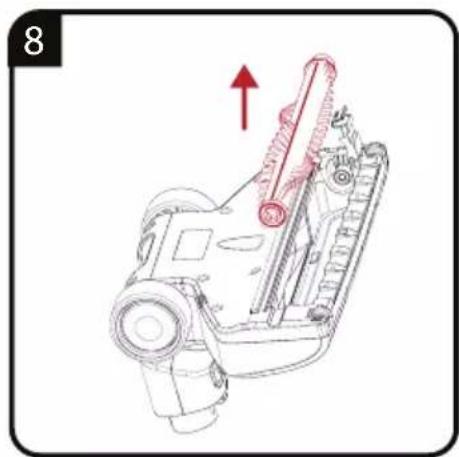

Cleaning and care

Switch off and unplug the appliance before cleaning it.

Warning

Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully. Unplug the appliance. Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages. Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged. Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular household rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0.0005% mercury or more than 0.004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Supply voltage	100-240V~ 50-60Hz
Power	18V, 100W
Product spec	DC 18V 2200mAh Li-on
Brush spec	14.4V, 5W
Charging time	4~6H

Parameter of External Power Supply
Manufacturer	Shenzhen Jodeway Technology Co.,Ltd
Model Identifier	JOD-S-220050GS
Input Voltage	100-240V~
Input Frequency	50/60Hz
Input Current	0.3A
Output Voltage	22.0V
Output Current	0.5A
Output Power	11.0W
Average active efficiency	83.24%
Efficiency at low load(10%)	66.06%
No-load power consumption	0.073W

Technical and design modification rights are reserved.

Protection class for electric shock.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.
