Product Type	Canister Vacuum Cleaner
Brand	Grundig
Model	VCP 3130 L
Power Consumption	800 W
Dust Capacity	2 L (bagged)
Filtration System	HEPA 13 washable filter
Cord Length	5 m
Weight of Main Unit	6 kg
Dimensions (L x W x H)	45 x 30 x 28 cm
Noise Level	78 dB(A)
Suction Control	Electronic slider on handle
Attachments Included	Crevice tool, dusting brush, upholstery nozzle
Floor Nozzle	Combination floor head for carpets and hard floors
Bag Full Indicator	Yes
Automatic Cord Rewind	Yes
Parking System	Horizontal and vertical parking positions
Handle Type	Ergonomic grip with controls
Power Cord Type	2-core, retractable
Wheels	4 swivel wheels for easy maneuverability
Manufacturer	Grundig
Warranty	2 years (EU)

Frequently Asked Questions - VCP 3130 L GRUNDIG

How often should I change the dust bag?

Replace the dust bag when the bag full indicator turns red, or at least every 2-3 months for optimal suction.

How do I clean the HEPA filter?

The washable HEPA filter can be rinsed under cold water. Let it dry completely for 24 hours before reinserting.

What is the noise level of the VCP 3130 L?

The noise level is approximately 78 dB(A), which is standard for a canister vacuum.

Does it have a cord rewind feature?

Yes, it has an automatic cord rewind button on top of the unit for easy storage.

Can I use it on hardwood floors?

Yes, the combination floor nozzle works on both carpets and hard floors. For delicate floors, consider using the dusting brush attachment.

What attachments are included?

The box includes a crevice tool, dusting brush, upholstery nozzle, and a combination floor head.

How do I replace the vacuum bag?

Open the front cover, remove the full bag by pulling the collar, and insert a new Grundig compatible bag until it clicks.

What is the suction control for?

The electronic slider on the handle lets you adjust suction power for different surfaces like curtains, carpets, or hard floors.

Is the vacuum bagless?

No, the VCP 3130 L uses disposable dust bags for hygienic disposal.

What should I do if the vacuum overheats?

If the thermal protection activates, turn off the vacuum and unplug it. Allow it to cool for at least 30 minutes before restarting.

USER MANUAL VCP 3130 L GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

VCP 3130 L

DE - EN - NL - PL - CS - IT - ES - LV - SL - RU

CONTENTS

DEUTSCH 3-20

ENGLISH 21-33

NEDERLANDS 34-48

POLSKI 49-62

CZECH 63-75

ITALIANO 76-90

SPANISH 91-107

LATVIAN 108-120

SLOVENIAN 121-133

RUSSIAN 134-159

Please read this guide first!

Dear Customer,

Thank you for choosing a Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
• This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.

- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service. - Your mains power supply shall match the information shown on the rating plate label of the appliance.

• Do not use the appliance with an extension cord.
• To prevent damage to the power cord, avoid pinching, crimping, or rubbing it against sharp edges.
• Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
• Do not pull on the cord while unplugging the appliance.
• Do not vacuum flammable materials, and ensure that cigarette ashes are cooled down before vacuuming them.
• Do not vacuum water or other fluids.
• Protect the appliance against precipitation, humidity, and heat sources.
• Do not use the appliance in or near explosive or flammable environments and substances.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cord in water for cleaning.
• Do not disassemble the appliance.

1 Important safety and environmental instructions

• Use only original parts or parts recommended by the manufacturer.
• To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster, or fragments of compressed paper.
• Use the appliance only with the adapter delivered with the appliance.
• Do not use the appliance without filters, it may get damaged.
• If you keep the packaging materials, keep them out of the reach of children.
• This appliance is not intended to be used by persons, including children, with physical, sensory and mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.
• Children shall be supervised to prevent them from playing with the appliance.
• Unplug the adaptor and remove the battery pack before any cleaning or maintenance procedure.
• To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer or a similarly qualified technician.
• Keep your fingers, hair and loose clothes away from moving parts or clearances while vacuuming.
• Batteries shall be removed from the appliance before discarding the appliance.
• Disconnect the appliance from power supply before removing the battery.
• Please discard used batteries in accordance with local laws and regulations.
• The batteries included in this appliance may only be replaced with qualified persons.
• Appliance is not intended to be operated for commercial purposes. This appliance is not designed for commercial use, it is intended for home use and in applications as follows:

- In the staff kitchens of stores, offices, and other working environments

- In farmhouses;

- By customers in hotels, motels, or other accommodation facilities where the electrical systems must be used

- In hostels or similar environments.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with the EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed of with other household waste at the end of its service life. The used device should be returned to an official collection point for recycling of electrical and electronic devices. To find these collection points, please contact your local authorities or the retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

Packaging information

- WARNING: Use the HCX1501-2700500E (VCP 3130 L) removable supply unit delivered with the appliance to charge the battery.

- This appliance shall not be operated by children or people with limited physical, sensory, or cognitive skills, or people with lack of experience and knowledge, unless they are under supervision or have been given relevant instructions.

- Children shall be supervised to prevent them from playing with the appliance.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together

with domestic or other waste. Take them to the packaging material collection points designated by the local authorities.

Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular household rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol.

Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0.0005% mercury or more than 0.004% lead.

Rechargeable batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 What to do for energy saving

• When using your appliance, adjust the speed settings according to the surface, in order to save energy.
• Normally, lower speeds are used when cleaning hard surfaces, curtains and sofas, while high speeds are used for cleaning carpets.

2 Overview

2.1 Controls and components

1. Charge indicator LED lights
2. Power Adjustment button
3. On/off button
4. Emptying dust container ring
5. Dust container
6. Tube release button
7. Appliance release button
8. Charging Dock
9. Accessory attachment parts
10. Tube
11. Brush release button
12. Electric turbo brush
13. Charging adaptor
14. Dust brush
15. Crevice attachment
16. Screw (4 pcs)
17. Dowel (4 pcs)

2.2 Technical data

	VCP 3130 L
Nominal input power 110 W
Input 100 - 240 V~ 50-60 Hz 0,5 A
Output	22 V =0.5 A
Charging time 3-5 hours
Runtime at max. power 17 mins
Runtime at min. power 45 mins

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

2 Overview

External Power Supply Parameter

	VCP 3130 L
Manufacturer: Guangdong Huachuangxing Power Supply Co.,Ltd
Model ID:	HCX1501-2700500E
Input Voltage: 100-240V~
Input Frequency: 50-60Hz
Input Current: 0.5A
Output Voltage 22.0V
Output Current 0.5A
Output Power: 13.5W
Average active efficiency: 84.39%
Efficiency at low load (10%): 70.65%
Power consumption under no load:	0.071W

3 Installation

3.1 Intended use

This appliance is intended for household use and is not suitable for industrial use.

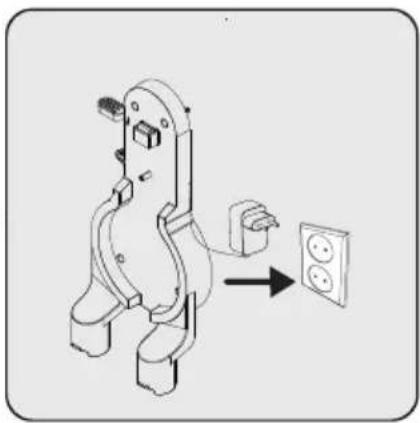

3.2 Installation of the charging dock

Position the charging dock (8) at a height of 104-106 cm from the ground.

1- Fix four dowels (17) on the wall. 2- Place four screws (16) into their locations on the charging dock (8) and mount on the dowels on the wall.

Plug the charging adaptor (13) into the socket.

3.3 Installation of the body and the brush

Push the tube (10) in the direction of the arrow towards the body by pressing the tube release button (6).

Press the electric turbo brush release button (11) on the electric turbo brush (12) and push it in the direction of the arrow towards the tube.

Attach the crevice attachment (15) and dust brush (15) to the charging dock (8).

4 Operation

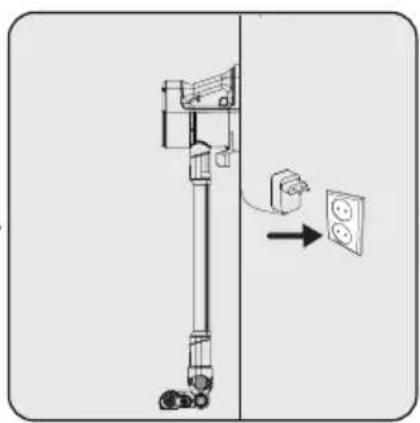

4.1 Charging the appliance

Place the appliance on the charging dock (8).

After placing the dust container (5) on the charging dock (8), push the appliance towards the charging dock.

Plug the charging adaptor (13) into the socket.

Flashing of the charge indicator LEDs (1) in white colour indicates that the appliance is being charged.

- When all levels of the charge indicator LEDs (1) are illuminated, this indicates that the charging of the appliance is completed.

It takes up to 4 to 6 hours to charge the appliance completely. The appliance shall not be operated while charging.

If the appliance is placed on the charging dock (8) while it is being operated, it shall be stopped automatically.

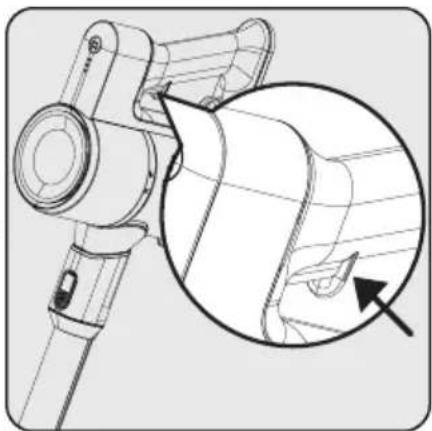

4.2 Usage

1- Push the appliance release button (7) on the charging dock (8) downward and pull the appliance towards yourself at the same time. 2- Remove the appliance from the charging dock (8).

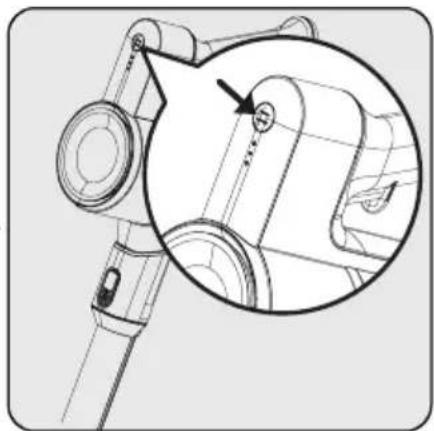

Press the on/off button (3) to operate the appliance. The appliance starts operating with the minimum power when the on/off button is pressed.

To switch to the maximum power when operating in the minimum power, push the power adjustment button (2).

To switch to the minimum power when operating in the maximum power, push the power adjustment button (2) again.

4 Operation

C The appliance may be placed for charging before the complete discharging of the battery. The appliance may be kept continuously as charging on the charging dock (8) until the next operation.

C

Pay attention to the power indicator LEDs (1) during operation. These indicators gradually turn off as the charge level is reduced, and when all indicators are turned off and only one indicator illuminates in red, then the charge of the appliance is about to run out. The appliance stops operating automatically after a short while when the red LED illuminates.

This appliance is suitable for use on carpets and hard floors.

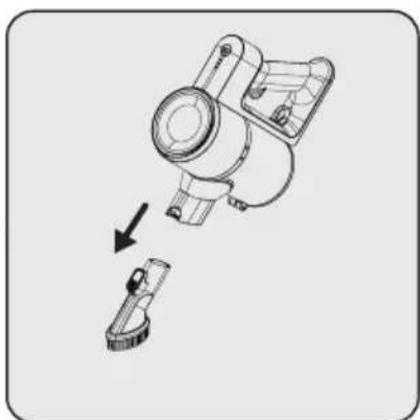

4.3 Accessories

Crevice (15): Suitable for Dust brush (14): Suitable for vacuuming the rear of the vacuuming curtains, waxed furnitures, hard to reach areas and furniture and delicate and fragile narrow areas. objects.

5 Cleaning and maintenance

Turn off and unplug the appliance before cleaning.

WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Deformation may occur on the filters within time as a result of usage. It shall be replaced with a new one to prevent loss of performance. Contact with the customer services to buy a new one.

5.1 Cleaning the Dust container and Filters

WARNING: Do not wash the filters.

We recommend you to clean the dustbin (5) after each operation.

Wipe the surface of the body with a wet cloth.

Pull the emptying dust container ring (4) to the last point. Dust container lid will be opened. Empty all the dust it contains.

For a detailed cleaning of filters, remove the dust container by turning it clockwise while pulling dust container ring (4) lightly.

5 Cleaning and maintenance

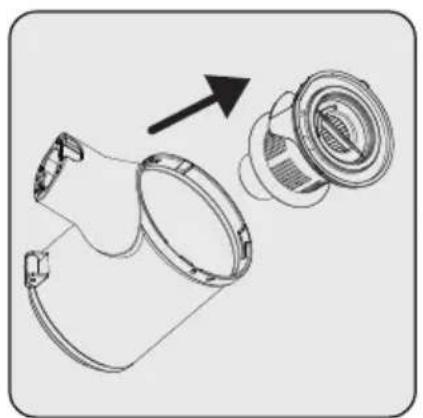

Pull EPA E10 and plastic filter holding from the EPA E10 handle.

Seperate EPA E10 and plastic filter from each other.

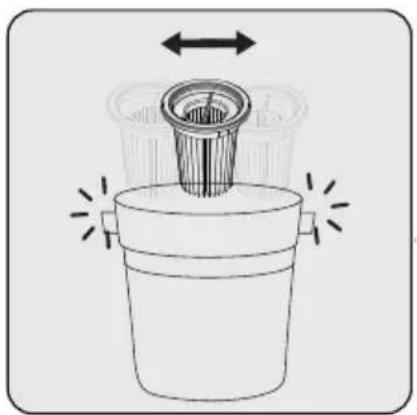

Remove the dust on the EPA E10 filter by tapping it on a hard surface such as a waste bin or by using a brush.

Remove the dust on the plastic filter by tapping it on a hard surface such as a waste bin or by using a brush.

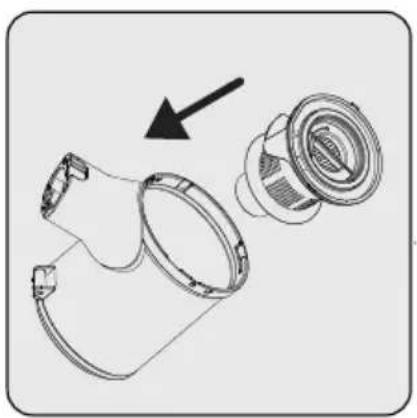

Attach the EPA E10 filter to the plastic filter back.

Attach the plastic filter to the dustbin ring (5).

Fix the connector of the dustbin to the holes on the body, then fix the dustbin by turning it counterclockwise until you hear a click sound.

5 Cleaning and maintenance

5.2 Cleaning of the brush

WARNING: Do not wash the turbo brush (8) and the main roller.

Press the roller release button. Remove the dust on it by tapping it lightly against a hard surface or remove the dust with a brush. If any hair, etc. is tangled, remove it by cutting it off.

Fix the roller back into its place by pushing.

5.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Ensure that the appliance is kept out of reach of children.
• If you shall not be using the battery for a long period of time, please keep it in a cool and dry place at half charged condition. Do not charge or discharge completely.
• Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.

5.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Insert the charging adapter (13) into the outlet.

Clean the surface of the body with a damp cloth.

Insert the charging adapter (13) into the outlet.

Insert the charging adapter (13) into the outlet.

Pull the EPA E10 and plastic filter, holding the EPA E10 handle.

Separate the EPA E10 from the plastic filter.

Remove dust from the EPA E10 filter by tapping it on a hard surface, such as a waste container, or using a brush.

Remove dust from the plastic filter by tapping it on a hard surface, such as a waste container, or using a brush.

Attach the EPA E10 filter back to the plastic filter.

Attach the plastic filter to the dust container ring (5).

2.1 Control buttons and components

Wipe the surface of the housing with a damp cloth.

Remove the EPA E10 filter and the plastic filter from the EPA E10 handle.

The EPA E10 and the plastic filter differ from each other.

Attach the EPA E10 filter back onto the plastic filter.
