Product Type	Canister Vacuum Cleaner
Model	VCH 9929 L
Brand	Grundig
Dimensions (L x W x H)	Approx. 400 x 260 x 280 mm (canister only)
Weight	Approx. 4.5 kg (including hose and accessories)
Power Supply	220-240 V, 50 Hz
Power Consumption	800 W (typical)
Dust Capacity	1.5 L (bagless cyclonic)
Filtration System	HEPA 12 washable filter
Noise Level	Approx. 78 dB(A)
Cord Length	6 m
Suction Control	Electronic slider on handle
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Tube Material	Stainless steel, telescopic
Wheels	360° swivel castors
Maintenance	Empty dust container after each use; wash HEPA filter every 3-6 months
Safety Features	Motor thermal overload protection; automatic shut-off when overheating
Spare Parts Available	Replacement HEPA filter, dust container, brush roll, seals
Reparability	Modular construction; user-replaceable filters and brush; professional repair for motor/electronics
Energy Efficiency Class	A (typical for this model range)

Frequently Asked Questions - VCH 9929 L GRUNDIG

How do I empty the dust container?

Press the release button on the dust container lid and lift it off. Empty the contents into a trash bin. Rinse the container with water if needed and let it dry completely before reinserting.

How often should I clean the HEPA filter?

We recommend cleaning the HEPA filter every 3 to 6 months, or when you notice reduced suction. Tap it gently to remove dust, or wash it under lukewarm water. Let it dry for 24 hours before reinstalling.

Why is the vacuum losing suction?

Common causes include a full dust container, clogged filter, blocked hose or nozzle. Check and clean the filter and remove any blockages in the hose or attachments.

Can I use the vacuum without a dust bag?

Yes, this model is bagless. It uses a cyclonic system to separate dirt and a dust container that you empty directly.

Is the vacuum suitable for pet hair?

Yes, the Grundig VCH 9929 L includes a turbo brush (optional accessory) that effectively removes pet hair from carpets and upholstery.

What does the red indicator mean?

A red indicator on the handle or the canister usually signals that the dust container is full or the filter needs cleaning. Check and address the issue.

How do I replace the HEPA filter?

Open the filter compartment cover (usually at the back of the canister). Remove the old filter and insert a new genuine Grundig filter. Close the cover securely.

What is the warranty period?

Grundig typically offers a 2-year warranty for this vacuum cleaner. Check your purchase receipt or contact Grundig customer service for details.

The vacuum overheats and shuts off. What should I do?

This indicates a blockage or full filter. Turn off and unplug the vacuum. Let it cool for 30 minutes, then clean the filter and check for blockages in the hose. Restart.

Where can I buy spare parts?

Genuine Grundig spare parts (filters, brushes, etc.) are available online through the Grundig website, authorized service centers, and major retailers.

USER MANUAL VCH 9929 L GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

VCH 9929 L

DE - EN - NO

DEUTSCH 07 - 15

ENGLISH 16 - 21

NORSK 22 - 27

DE	BETRIEB WANDMONTAGE REINIGUNG UND PFLEGE
EN	OPERATION WALL HANG CLEANING AND CARE
NO	DRIFT VEGGMONTERING: RENGJ∅RING OG PLEIE

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

■ This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments

- It is not fit for industrial use.

■ Warranty will be voided if the appliance is used for industrial or commercial purposes.

- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.

■ Do not use on wet surfaces and do not attempt to use on wet objects.

■ Do not use the appliance in wet surroundings.

■ Do not use the appliance with wet hands.

■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.

■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.

■ This appliance is not designed for cleaning people or animals.

- Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.

■ Never operate the appliance without the filter.

SAFETY

- Keep the brush away from your hand when it is operated. Your hand can get stuck in the brush.

■ Clean the filter when necessary.

■ Only use original GRUNDIG accessories when replacing parts.

Check if the mains voltage on the rating label corresponds to your local mains supply.

Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

Do not attempt to dismantle the appliance.

Protect the appliance from rain, humidity and heat sources.

For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.

Do not disconnect the plug by pulling on the cable.

Use the appliance only with the adapter supplied with.

Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

SAFETY

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

- Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

■ Only use the power cord provided.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 Cordless Stick Vacuum Cleaner VCH 9929 L.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

Extra accessories:

■ 2in1, Crevice and Dust Brush

- Dust brush suitable for the cleaning of fabrics, furniture, skirting boards or picture frames.

- Crevice tool for cleaning crevices and corners difficult to reach.

Wall hang accessory:

1 Punch a hole on the wall with the help of electric drill.

2 Hammer the rubber stopper into the hole.

3 Assemble the wall hang accessory correctly in terms of the following instruction photos

Controls parts

See image on page 3.

A Stick vacuum cleaner handle B Stick vacuum cleaner on/off button c Speed adjustment button D Handle collapsing button

E Cordless vacuum cleaner removal button

F Cordless vacuum cleaner handle

G Cordless vacuum cleaner on/off button

H Body

☐ Dust container removal button

J Dust container

K Brush removal button

L Brush

M LED light

N Handheld vacuum cleaner

Charging and power indicator

P Dust brush

Q Crevice

Power supply plug

Cleaning and care

Switch off and unplug the appliance before cleaning it.

Warning

Never use gasoline, solvent, abrasive cleaning agents, metal objects, or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully. Unplug the appliance. Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging protects it against physical damage. Do not place heavy loads on the appliance or on the packaging, as this may damage it. Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries or batteries, or on their packaging, indicates that they may not be disposed of with regular household rubbish. For certain rechargeable batteries or batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries or batteries contain more than 0.0005% mercury or more than 0.004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Supply voltage	100-240V~ 50-60Hz
Power	18V, 100W
Product spec	DC 18V 2200mAh Li-on
Brush spec	14.4V, 5W

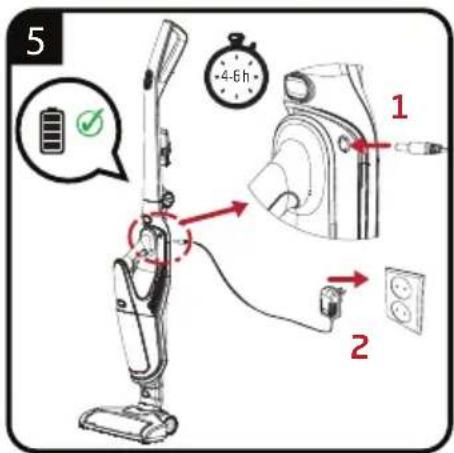

Charging time	4~6H

Parameter of External Power Supply
Manufacturer	Shenzhen Jodeway Technology Co.,Ltd
Model Identifier	JOD-S-220050GS
Input Voltage	100-240V~
Input Frequency	50-60Hz
Input Current	0.3A
Output Voltage	22.0V
Output Current	0.5A
Output Power	11.0W
Average active efficiency	83.24%
Efficiency at low load(10%)	66.06%
No-load power consumption	0.073W

Technical and design modification rights are reserved.

Protection class for electric shock.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.
