USER MANUAL VCP 8930 GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

Two abstract geometric patterns: a woven bamboo design and a square with circular cutouts (no text or symbols)

VCP 8930

Illustration of a vacuum cleaner with attached components and a box, no text or symbols present

2

Line drawing of a vacuum cleaner with attached circuit board (no text or symbols)

Diagram of a device with a cable and connector, showing no text or symbols

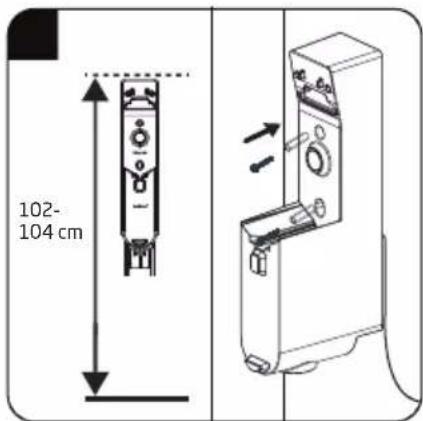

102- 104 cm

Technical line drawing of a mechanical device with a separate view showing a mounted bracket (no text or symbols present)

Illustration of a vacuum cleaner with three different parts, showing a step and assembly process (no text or symbols)

ON/OFF

TURBO ① + - ↓ ↑

10 I + - ←

Diagram of a vacuum cleaner connected to an electrical outlet, showing wiring and power source (no text or symbols)

Line drawing of a vacuum cleaner next to an electrical outlet, with no text or symbols present.

13

Illustration of a handheld battery pack with a hand holding it, showing internal components and a battery icon (no text or symbols)

Technical illustration of a battery assembly with an upward arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a small mechanical device with a cloth (no text or symbols)

Line drawing of a manual blender with a spool of seeds being poured into a container (no text or symbols)

Mechanical assembly diagram showing a motor with rotating shaft and housing, no text or symbols present

Diagram showing two mechanical components with an upward arrow, no text or symbols present

1 2 -24h

Diagram showing a mechanical assembly with a cylindrical component and a base, both with an arrow indicating transformation (no text or symbols present)

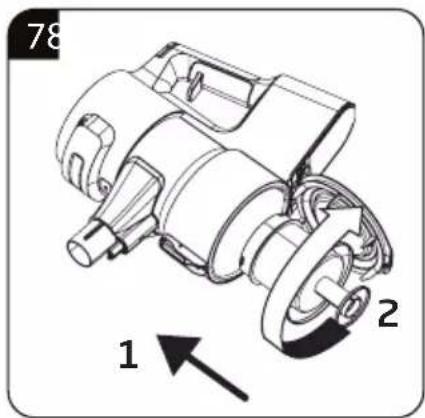

78 1 2

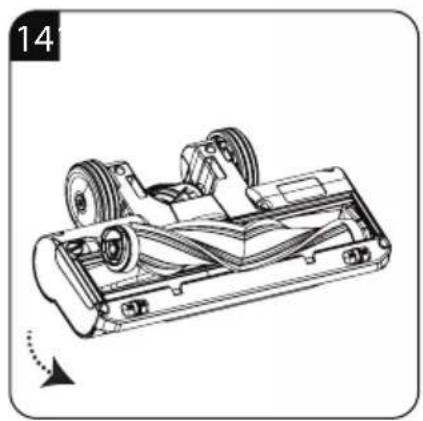

Technical illustration of a mechanical device with three views (1, 2), showing internal components and assembly (no text or symbols)

Diagram showing three steps of a mechanical device with labeled parts 1 and 2, indicating assembly or maintenance instructions.

10 1 2

11 1 2

12 1 2 -24h

Technical line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

Illustration of a broom with a broom and a small object above it (no text or symbols)

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
NO	DRIFT RENGJ∅RING OG PLEIE
FI	KÄYTTÖ ČIŠĆENJE I ODRŽAVANJE
DA	BETJENING RENG∅RING OG VEDLIGEHOLDELSE
RU	ЭКСПЛУАТАЦИЯ ЧИСТКА И УХОД

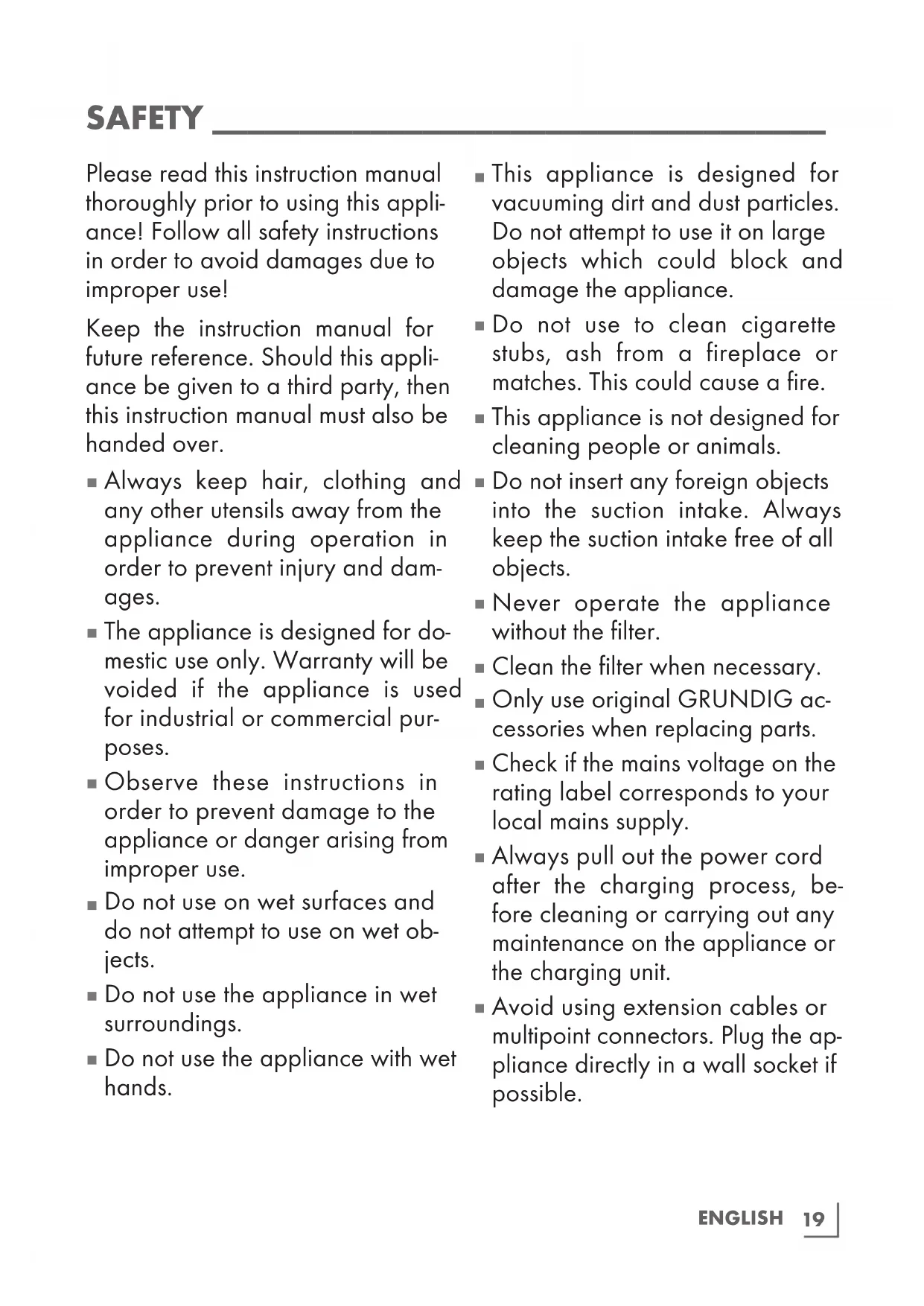

SICHERHEIT

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appli-ance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
■ The appliance is designed for domestic use only. Warranty will be voided if the appliance is used for industrial or commercial purposes.
- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.
■ Do not use on wet surfaces and do not attempt to use on wet objects.
■ Do not use the appliance in wet surroundings.
■ Do not use the appliance with wet hands.

■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.
■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.
■ This appliance is not designed for cleaning people or animals.
- Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
■ Never operate the appliance without the filter.
■ Clean the filter when necessary.
■ Only use original GRUNDIG accessories when replacing parts.
■ Check if the mains voltage on the rating label corresponds to your local mains supply.
■ Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.
- Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

SAFETY

■ For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.

■ Do not disconnect the plug by pulling on the cable.

■ Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

- Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

- Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

- Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

■ Only use the power cord provided.

SAFETY

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

■ Children should be supervised to ensure that they do not play with the appliance.

■ The appliance is only to be used with the power supply unit provided with the appliance.

■ The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance

■ If the adapter is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner

■ The battery must be removed from the appliance before it is scrapped;

■ The appliance must be disconnected from the supply mains when removing the battery;

■ Please dispose of used batteries according to local laws and regulations.

■ This appliance contains batteries that are only replaceable by skilled persons.

■ WARNING: For the purposes of recharging the battery, only use the detachable supply unit YLS0241A-E360060 provided with this appliance.

■ Please remove and insert the batteries according to UM.

■ Different types of batteries or new and used batteries are not to be mixed.

■ Batteries are to be inserted with the correct polarity.

■ Exhausted batteries are to be removed from the appliance and safely disposed of.

■ If the appliance is to be stored unused for a long period, the batteries should be removed.

■ The supply terminals are not to be short-circuited.

■ Only use with ZB1858 battery.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Cordless stick vacuum cleaner VCP 8930.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

Controls parts

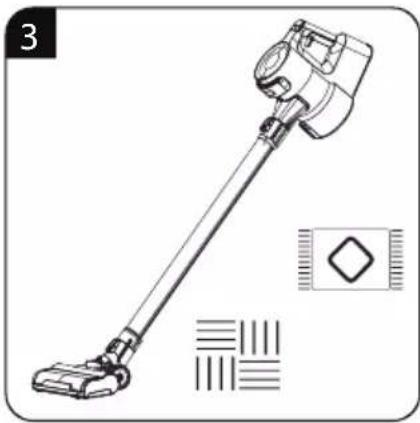

See image on page 3.

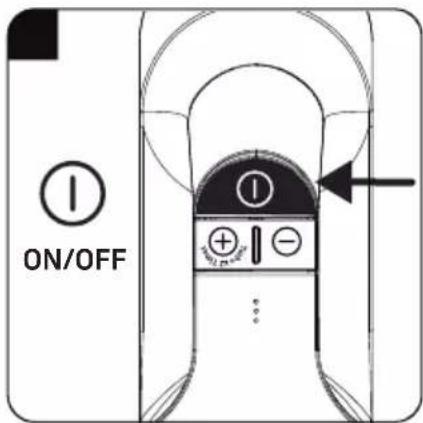

A On/off button

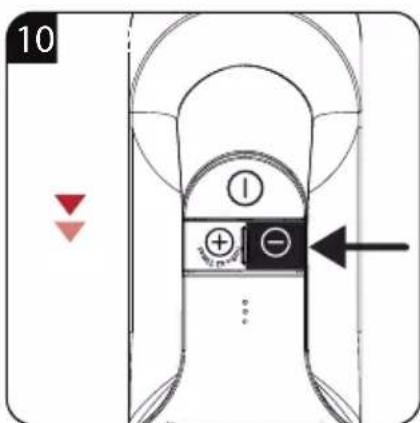

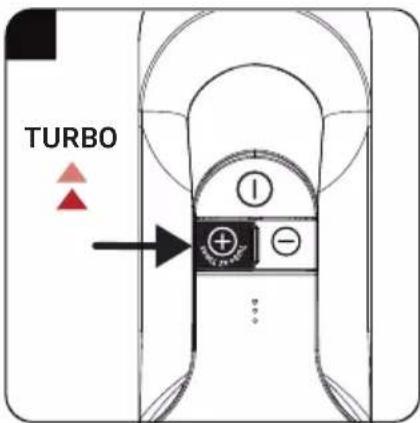

B Mode button +

c Mode button -

D Tube release button

E Brush release button

F Electrical turbo brush

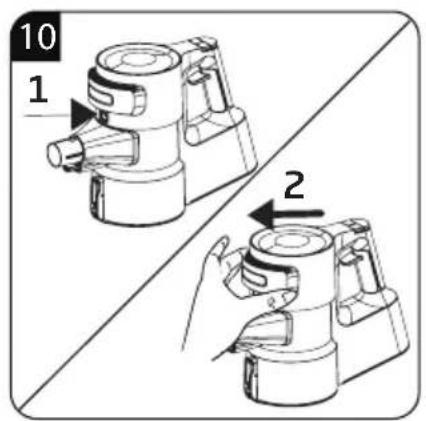

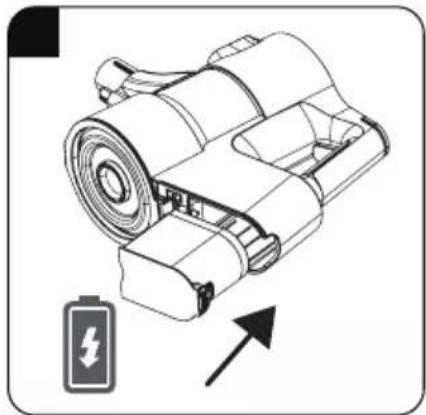

G Battery pack release button

H Machine body

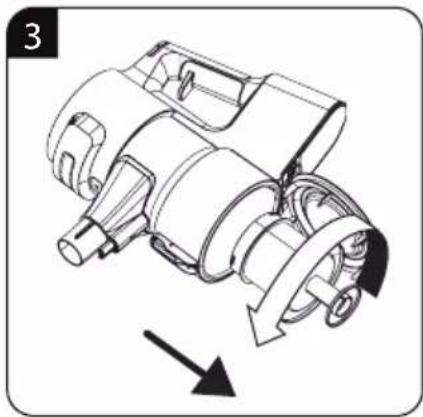

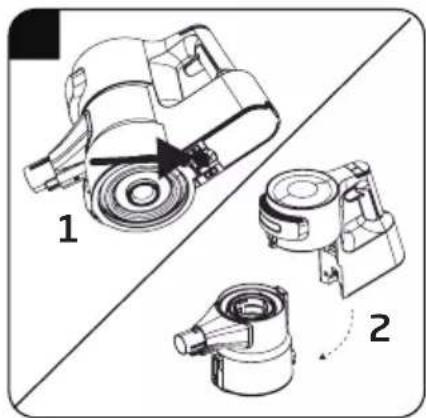

Dust cup

J Dust cup release button

K Charging station

Power supply plug

M Crevice

N Mini turbo brush

Soft brush

P Replacement filter

Crevice M and soft brush o

Push the round part of the accessory into the suction part until it clicks. Soft brush cleans your furniture without harming it (6-7).

Mini turbo brush N

Push the end of the Mini-brush into the suction part until it clicks.

Remove it by pulling the buttons (6).

USE

Charging indicator

Working Charging		Fully charged	Lower power
Persistent white light	Blinking white light	Persistent white light	Blinking red light

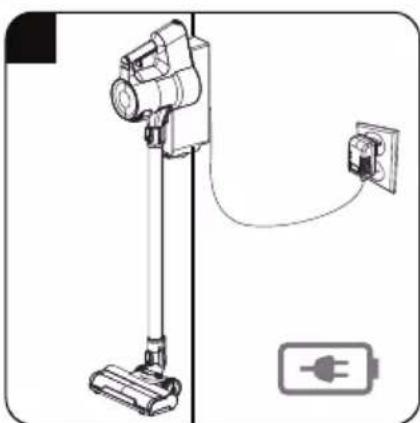

Charging station K

While charging the battery on the charging dock the charge indicator flashes white.

Note

• When you receive this product, please use the charger provided by our company to recharge the battery for 3 hours (no need to charge it full) and the charging frequency should be every 3 months.
• Do not place the battery on the charging base for a very long time.
• When the battery is not in use for a long time or it is over-discharged, you may find the working time is reduced at the first few times. We recommend you fully charge the battery (usually 6 hours) and discharge it. Repeat this action two times.

Hepa filter

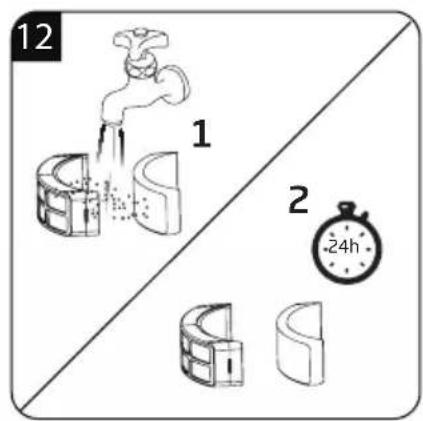

In order to ensure the performance of the product, we recommend you clean regularly, and replace one after 3-6 months. (Depending on usage)

Warning

- Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

- Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
■ Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

■ During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
■ Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Rated input power:

450 W

Input:

100 - 240 V\~ 50-60Hz 0.8 A (max)

Output: 36 V =0.6A

Charging time: 4-5 hours

Running time max. power: 7 min.

Running time min. power to up to:

45 min.

Technical and design modifications reserved!

Parameter of External Power Supply

Manufacturer :

Dongguan Yinli Electronics Co., Ltd

Model Identifier :

YLS0241A-E360060

Output Current : 0.6A

Output Power : 21.6W

Average active efficiency : 87.19%

Efficiency at low load

(10%) : 79.58%

No-load power consumption : 0.09W

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.

Common failure Possible cause Solutions
The vacuum doesn't work	Product is power off or battery is low	Please charge the product before use
	Product suction port is blocked. Cleaning product suction mouth
Suction is too weak	Dust barrel & filter assembly is dusty	Clean the dustbin and filter material

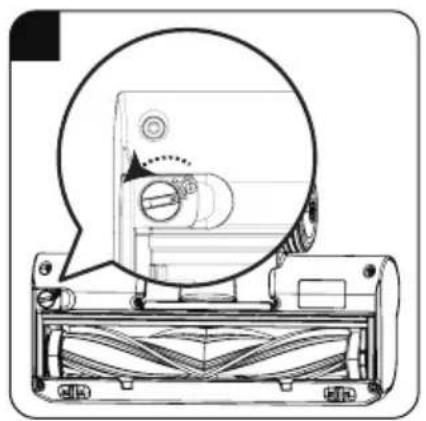

	Rolling brush is wrapped around the hair and other objects	Clean roller brush
	Situation still remains	Please contact with our after sales team
Different motor operation sound	The aluminum tube is blocked Clean up the obstacles
	Situation still remains	Please contact with our after sales team
Vacuum cleaner in trouble at work	Too many obstacles in the cleaning area	Manually remove obstacles
	Product suction port is blocked Clean product suction mouth
	Situation still remains	Please contact with our after sales team
Product can not be charged	Battery pack and charger interface not connected well	Please check and contact well
	Charger or receptacle is not fully charged or loose	Check it and put away
	Situation still remains Please contact with us
The red light flicker	Product is power off or battery is low	Please charge the product before use
The red light flash	Brush plugging and the main brush motor is working	Clean roller brush
	Overcharging current is too larger Change the correct adapter
The red and white light trading flash when the discharge process	The battery pack has a problem	Please contact with our after sales team
The red and white light trading flash when the charge process	The battery pack is not installed well	1- Remove adapter2- Installed the battery pack again3- Insert adapter
