English

Read this guide carefully before using your device.

Reading first - regulatory information

Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer to the "Downloading publications" section below. Some regulatory information is also available in Settings > About phone > Regulatory information on your device.

Getting support

To get support on network services and billing, contact your wireless network operator. To learn how to use your device and view its technical specifications, go to http://support.lenovo.com.

Downloading publications

Electronic versions of your publications are available from http://support.lenovo.com. To download the publications for your device, go to http://support.lenovo.com and follow the instructions on the screen.

Accessing your User Guide

Your User Guide contains detailed information about your device. To access your User Guide, go to http://support.lenovo.com and follow the instructions on the screen.

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both.

Other company, product, or service names may be trademarks or service marks of others.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

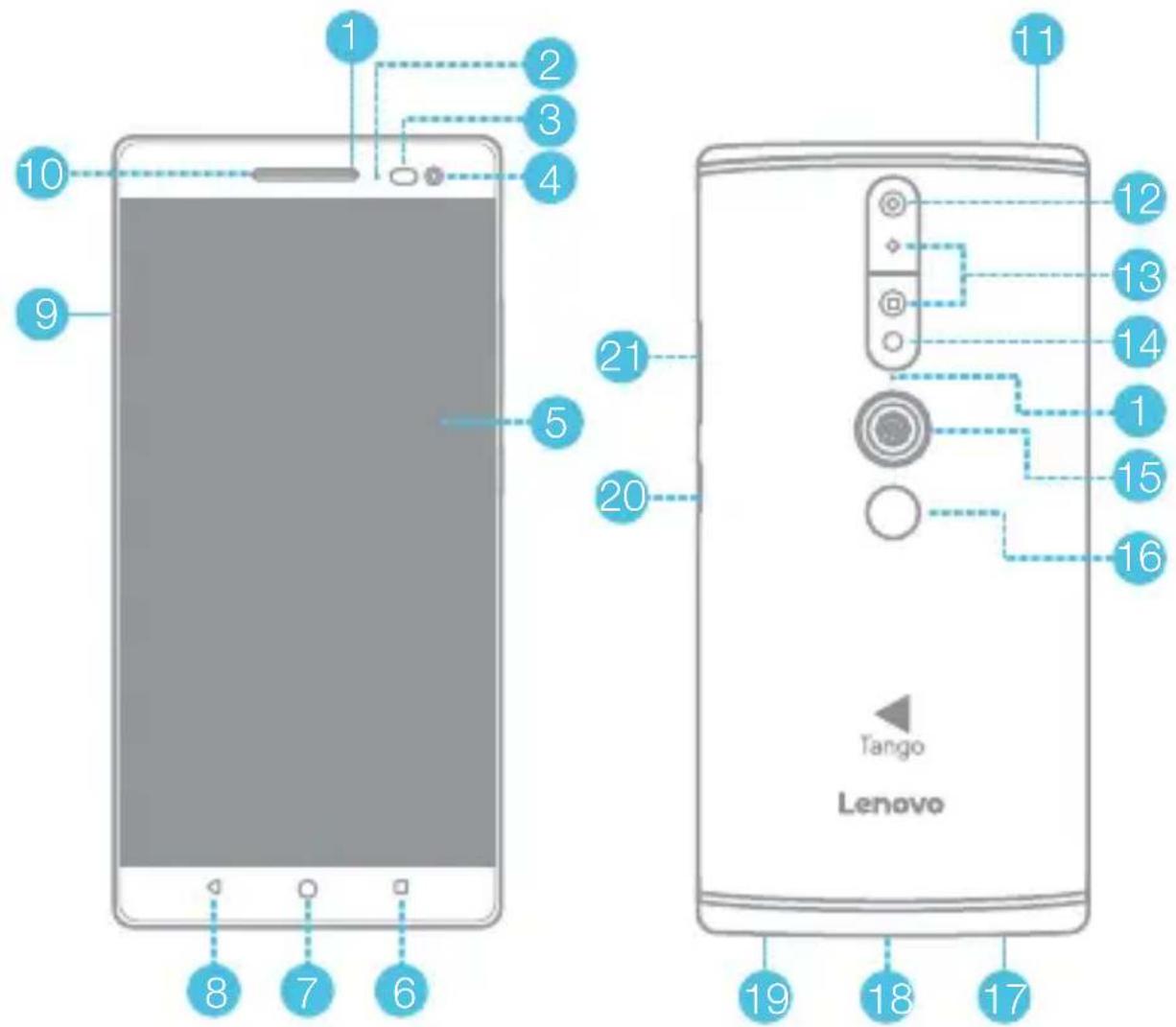

Lenovo PHAB2 Pro overview

Model Version
Lenovo PB2-690M WLAN + LTE (Voice)

1 Anti-noise microphone

2 Indicator

3 Light/Proximity sensor

4 Front-facing camera Touchscreen Multitask button

6

7 Home button Back button8

9 Card tray

10 11 Headset connector

12 Rear-facing cameraReceiver

13 Depth camera 14 Flash

15 Motion tracking camera

16 Fingerprint sensor 17 Microphone

18 Micro USB connector

19 Speaker 20 On/Off button

21 Volume buttons

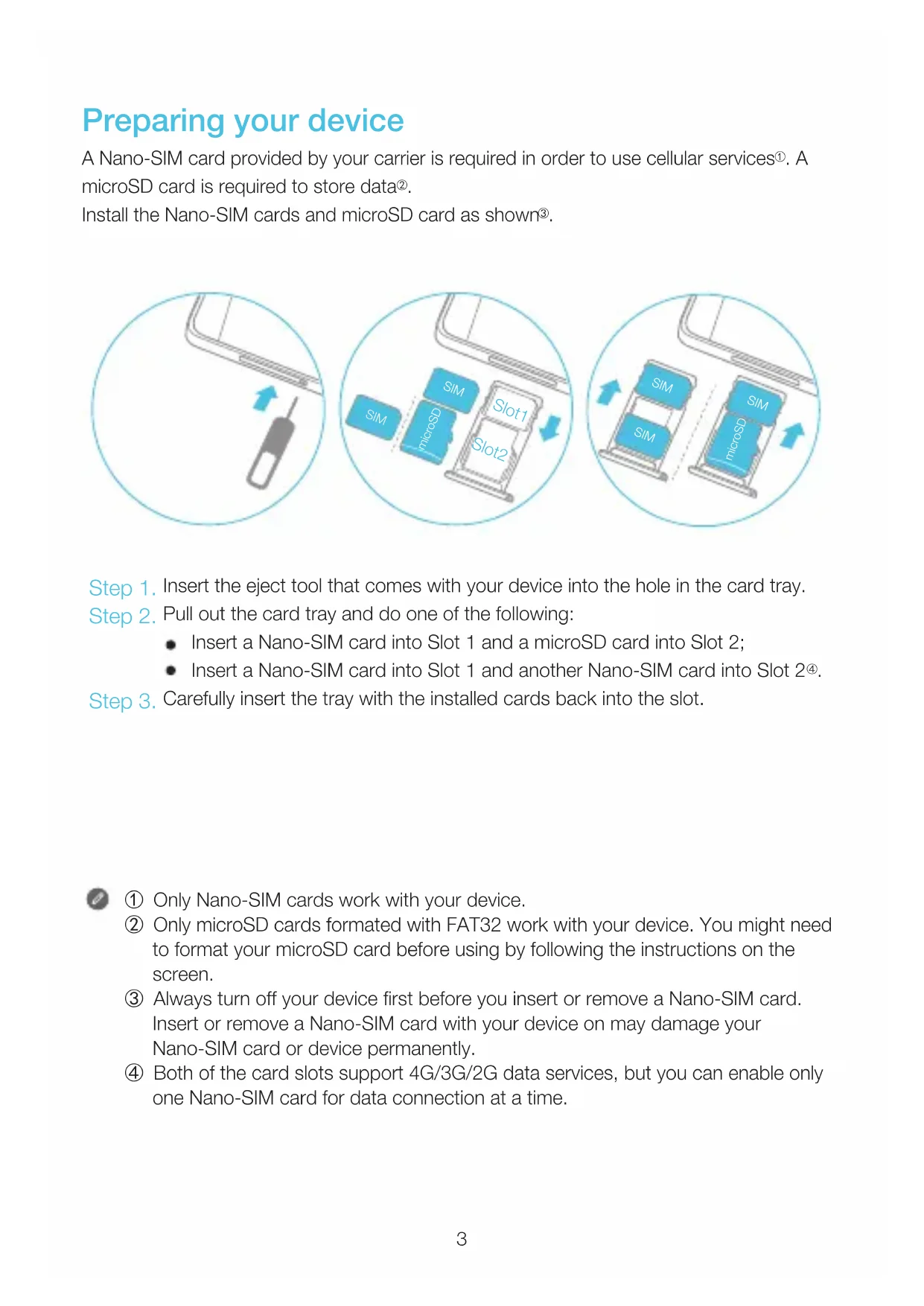

Preparing your device

A Nano-SIM card provided by your carrier is required in order to use cellular services^①. A microSD card is required to store data^②.

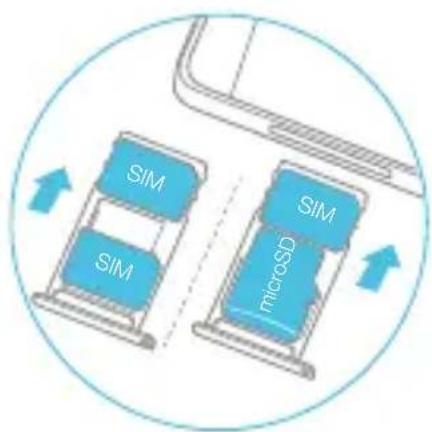

Install the Nano-SIM cards and microSD card as shown^③.

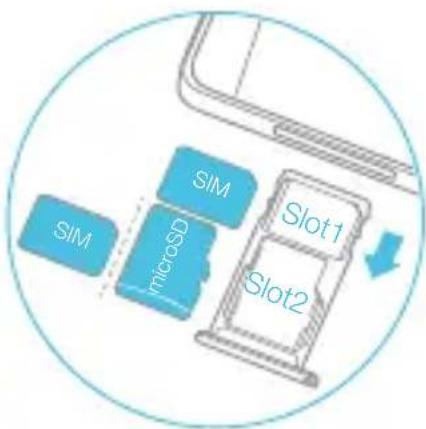

Step 1. Insert the eject tool that comes with your device into the hole in the card tray.

Step 2. Pull out the card tray and do one of the following:

• Insert a Nano-SIM card into Slot 1 and a microSD card into Slot 2;
• Insert a Nano-SIM card into Slot 1 and another Nano-SIM card into Slot 24

Step 3. Carefully insert the tray with the installed cards back into the slot.

① Only Nano-SIM cards work with your device.
② Only microSD cards formatted with FAT32 work with your device. You might need to format your microSD card before using by following the instructions on the screen.
③ Always turn off your device first before you insert or remove a Nano-SIM card. Insert or remove a Nano-SIM card with your device on may damage your Nano-SIM card or device permanently.
(4) Both of the card slots support 4G/3G/2G data services, but you can enable only one Nano-SIM card for data connection at a time.

Starting to use your device

You might need to charge the battery before using your device. Charge the battery as shown.

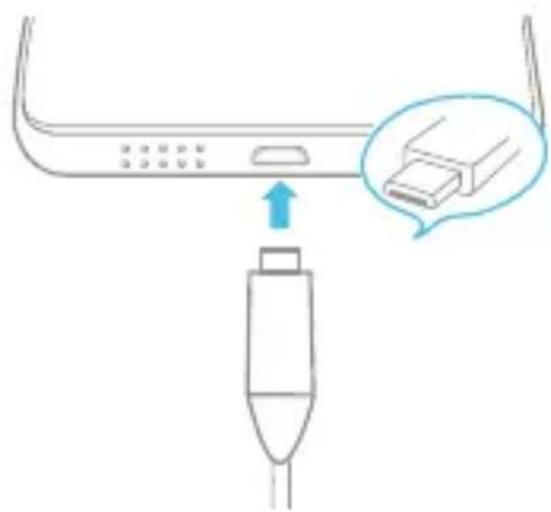

Connect your device to a power outlet using the cable and USB power adapter provided.

Turning on/off

Turn on: Press and hold the On/Off button until the Lenovo logo appears.

Tum off: Press and hold the On/Off button for a few seconds, then tap Power off.

Restart: Press and hold the On/Off button for about 12 seconds.

Taking screenshots

Press and hold the On/Off button and the Volume down button at the same time.
