USER MANUAL SF8715 UFESA

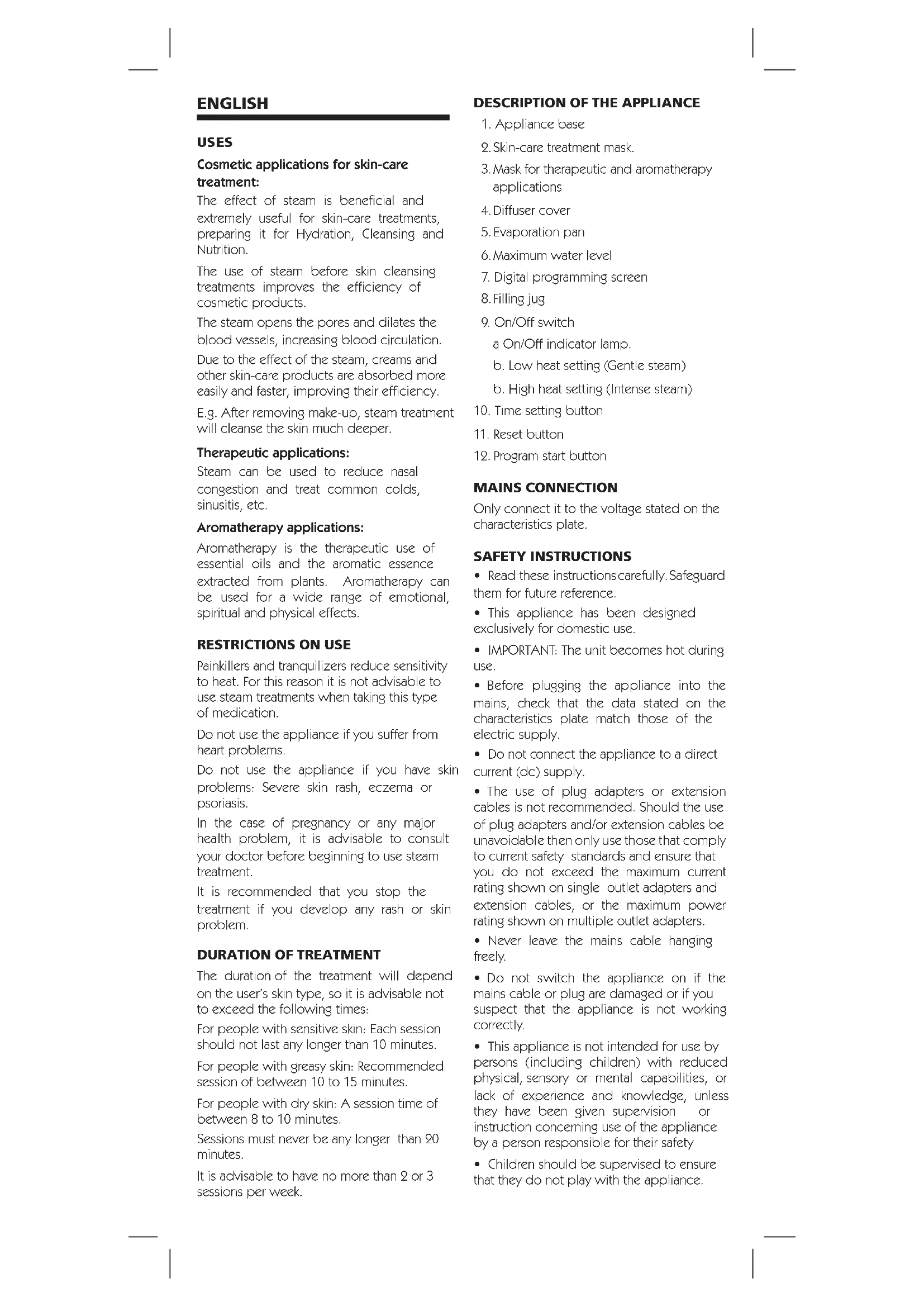

Cosmetic applications for skin-care treatment:

The effect of steam is beneficial and extremely useful for skin-care treatments, preparing it for Hydration, Cleansing and Nutrition.

The use of steam before skin cleansing treatments improves the efficiency of cosmetic products.

The steam opens the pores and dilates the blood vessels, increasing blood circulation.

Due to the effect of the steam, creams and other skin-care products are absorbed more easily and faster, improving their efficiency.

E.g. After removing make-up, steam treatment will cleanse the skin much deeper.

Therapeutic applications:

Steam can be used to reduce nasal congestion and treat common colds, sinusitis, etc.

Aromatherapy applications:

Aromatherapy is the therapeutic use of essential oils and the aromatic essence extracted from plants. Aromatherapy can be used for a wide range of emotional, spiritual and physical effects.

RESTRICTIONS ON USE

Painkillers and tranquilizers reduce sensitivity to heat. For this reason it is not advisable to use steam treatments when taking this type of medication.

Do not use the appliance if you suffer from heart problems.

Do not use the appliance if you have skin problems: Severe skin rash, eczema or psoriasis.

In the case of pregnancy or any major health problem, it is advisable to consult your doctor before beginning to use steam treatment.

It is recommended that you stop the treatment if you develop any rash or skin problem.

DURATION OF TREATMENT

The duration of the treatment will depend on the user's skin type, so it is advisable not to exceed the following times:

For people with sensitive skin: Each session should not last any longer than 10 minutes.

For people with greasy skin: Recommended session of between 10 to 15 minutes.

For people with dry skin: A session time of between 8 to 10 minutes.

Sessions must never be any longer than 20 minutes.

It is advisable to have no more than 2 or 3 sessions per week.

DESCRIPTION OF THE APPLIANCE

1.Appliance base

1. Skin-care treatment mask.

2. Mask for therapeutic and aromatherapy applications

3. Diffuser cover

4. Evaporation pan

5. Maximum water level

6. Digital programming screen

7. Filling jug

8. On/Off switch

a On/Off indicator lamp.
b. Low heat setting (Gentle steam)
b. High heat setting (Intense steam)

1. Time setting button

2. Reset button

3. Program start button

MAINS CONNECTION

Only connect it to the voltage stated on the characteristics plate.

SAFETY INSTRUCTIONS

• Read these instructions carefully. Safeguard them for future reference.
  This appliance has been designed exclusively for domestic use.
• IMPORTANT: The unit becomes hot during use.
• Before plugging the appliance into the mains, check that the data stated on the characteristics plate match those of the electric supply.
• Do not connect the appliance to a direct current (dc) supply.
• The use of plug adapters or extension cables is not recommended. Should the use of plug adapters and/or extension cables be unavoidable then only use those that comply to current safety standards and ensure that you do not exceed the maximum current rating shown on single outlet adapters and extension cables, or the maximum power rating shown on multiple outlet adapters.
• Never leave the mains cable hanging freely.
• Do not switch the appliance on if the mains cable or plug are damaged or if you suspect that the appliance is not working correctly.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
  Children should be supervised to ensure that they do not play with the appliance.

Always unwind the mains cable fully to prevent it from overheating.
- Do not leave the appliance plugged in if it is not being used.
- You should always follow some basic rules when using electrical appliances:
- Do not handle the appliance with wet or damp hands.
- Do not operate appliances barefoot.
- Never tug on the cable or appliance to unplug it from the mains socket.
- Do not leave the appliance exposed to weather conditions (rain, sun, etc.).
- This appliance must not be used by persons (including children) with physical, sensory or mental impairments unless they have been instructed in its correct use by a responsible adult.
Children must be supervised to ensure that they do not play with the appliance.
Always place the appliance on a flat, stable surface.
- Do not place any object on or over the appliance while it is operating.
Always unplug the appliance from the mains supply before carrying out any filling, cleaning or maintenance operation on it.
NEVER IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID.
- Do not use this appliance close to baths, showers, wash basins or other containers of water.
- This appliance must be cleaned after each use to prevent a build-up of grease and other waste.
- When you have finished using the appliance, empty out any remaining water and rinse it thoroughly.
- If the mains cable becomes damaged it will have to be replaced by the manufacturer or after sales service.
- Repairs must only be carried out by an Authorised Technical Service Centre.
- Avoid moving or repositioning the facial sauna while it is operating.
- Switch the appliance on after filling the evaporation pan.
- Do not use the appliance without the face mask and cover fitted.
- The area around the evaporation pan becomes hot during use, so avoid touching this area while the appliance is operating.
- Never immerse the appliance in water
- The stains that appear inside the evaporation pan over time are due to the lime in the water. Clean the pan with diluted vinegar.

OPERATING INSTRUCTIONS

Before beginning, first clean your face thoroughly as usual. When your face is

completely clean and dry, it is advisable to apply a little moisturizing cream to the skin.

Preparation for use

Do not plug the appliance in until it is ready for use.

Make sure that the unit is completely dry before use.

Place the appliance on a hard, flat, stable surface directly in front of you.

Make sure that the mains cable does not hang freely and that it is out of children's reach.

Take the diffuser cover and the mask off the base of the appliance.

Fill the filling jug with tap water only. Fill up to the 20 ml mark. (Figure 1)

Never fill beyond the maximum level mark shown on the inside of the evaporation pan.

NOTE: If any liquid is spilled accidentally, unplug the unit from the mains electric supply.

Place the diffuser cover and the mask back on to the appliance.

Switching on

Switch the appliance on using button 9, select the desired temperature:

Position 1: Low heat setting (Gentle steam)

Position 2: High heat setting (Intense steam)

The pilot lamp "a" will light up. (Figure 2)

The appliance will start to produce steam after a few seconds.

To switch the appliance off, set the On/Off switch to the "0" position and unplug it from the mains supply.

Use as a Facial Cleanser:

Place the diffuser cover (4) and the skin-care treatment mask (2) on to the appliance. (Figure 3)

The skin-care treatment mask is ergonomically shaped to fit the contours of the face.

Close your eyes and rest your face on the edges of the mask. Relax for 5 minutes, letting your moisturising cream penetrate deeply. Afterwards, rinse and wash your face with fresh water or your usual cleansing astringent.

Using the appliance for Inhalation:

Place the diffuser cover (4) and the therapeutic and aromatherapy mask (3) on to the appliance. (Figure 4)

The therapeutic and aromatherapy mask is ergonomically shaped to fit the contours of your nose and mouth.

Add water soluble ethereal oils, the facial sauna is extremely suitable for inhalation purposes.

For Aromatherapy treatment, first add water and then between 1 to 4 drops of essential

oil.

NOTE: Always add the essential oil after the water.

IMPORTANT: Never add anything in the form of ointments or creams.

When using soluble ethereal oils always read the manufacturer's instructions, as certain oils may spit when heated.

Never exceed the dose recommended by the supplier of the oil.

After use, the pan will have to be cleaned of any remains. Just wipe the evaporation pan clean with a damp cloth.

After consulting your doctor, you can use your appliance several times a day for therapeutic applications, especially for chest colds and chills.

Timer function:

Open the battery compartment located on the base of the appliance. (Figure 5)

Fit the battery in to its compartment, observing the stated polarity (i.e. matching the "+" terminal on the battery with the "+" mark inside the compartment, and the "-" terminal with the "-" mark).

The timer does not switch the appliance off, it acts as a signal device to indicate and limit the time that you spend using the appliance.

The timer allows you to select the duration of your facial sauna treatment.

Chronometer function:

Pressing button 12 will activate the chronometer function. The display will show the time that has elapsed.

Pressing button 12 again will switch the chronometer off. Pressing it again will restart it.

To set it back to "0" press the RESET button 11.

Countdown function:

Each time you press button 10 the displayed time will increase by 1 minute.

This time setting can go from 1 to 59 minutes.

To set it back to "0" press the RESET button 11.

Once you have specified a time setting, press button 12 to commence the countdown.

Pressing button 12 again will switch the chronometer off. Pressing it again will restart it.

When the selected time has elapsed, the appliance will beep for 30 seconds.

To set it back to "0" press the RESET button 11.

After use:

When you have finished using the appliance, set the On/Off switch to the "0" position and unplug it from the mains supply.

Wait until the appliance cools down before attempting to clean it.

Remove the diffuser cover and the mask and empty out any remaining water that may be left in the evaporation pan. To do this, tip the appliance over toward the pouring spout as shown in Figure 6.

To clean the casing, wipe it down with a damp cloth.

ADVICE ON DISPOSAL:

Our goods come in optimized packaging. This basically consists in non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/CE. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalized. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased.

Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.
