USER MANUAL L2442WD DGM

Front view of a DGM computer monitor with a blank screen and stand (no text or symbols visible on the screen)

L-2442WD

24" Wide Screen LCD Monitor

English 2

繁體中文 9

简體中文 …… 16

Français 23

Deutsh 30

Italiano 37

Español 44

Português ....51

Dutch 58

Notice....3

Safety Information....3

Precaution....3

Package Contents....3

Hardware Installation....4

Control Buttons....4

OSD (On-Screen Display) Menu Mode....5-6

Troubleshooting....7

Supported Timing....7

Specification....8

◇ Notice

• All Information in this manual may change from time to time without prior notice.
  • To ensure safety operation of this product, please read the following menu carefully before using this product.

◇ Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

◇ Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

24" Wide Screen LCD Monitor

External Univ15 pin D-sub(RGB Analog)Input Signal Cable

Power Cord

Audio Connector :Stereo Phone Jack

* DVI Cord

User's Manual

*NOTI CE: DVI function is optional feature.

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

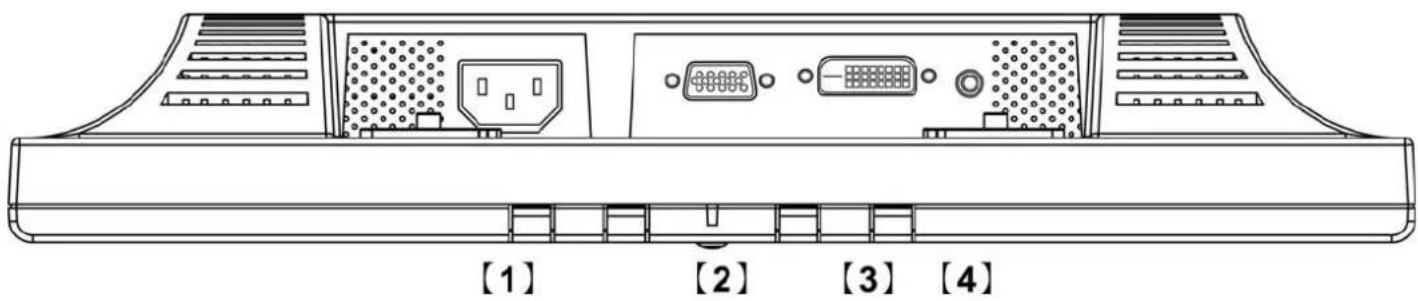

Input

[1] [2] [3] [4]

【1】AC Input : This is for connecting the power cable.
【2】 VGA PORT : This can be connected with the D-Sub 15 pin signal Cable.
【3】DVI port : This can be connected with the DVI signal Cable.
【4】Audio In : This can be connected to the PC audio-out connector of sound resource.

*NOTI CE: DVI function is optional feature.

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust <->", "Adjust <+)". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)--

A Function Select Button: This button allows you to select the control functions up in the OSD.

Hotkey: Press this button to apply the monitor setting automatically.

Menu (Function)--

M Function Select Button: This button allows you to select the control functions down in the OSD.

Hotkey: Press this button to get a pop-up OSD menu.

[Non-Text]

Power: Turn the LCD power on and off. When the power is on, the light is showing blue Stand by will be fladh

- Adjust <->: Decrease the option value in the OSD menu.

+ Adjust < +>: Increase the option value in the OSD menu.Switch the DVI operating environment to RGB.

OSD (On-Screen Display) Menu Mode

1. Please adjust your Speaker Volume via your PC computer Speaker Volume control icon.
2. Please note that Sound will continue to play when your monitor is off, to turn off please turn off your PC computer or mute the Speaker Volume control icon.
3. Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

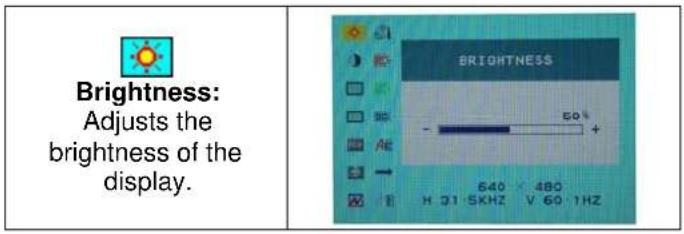

Brightness: Adjusts the brightness of the display.

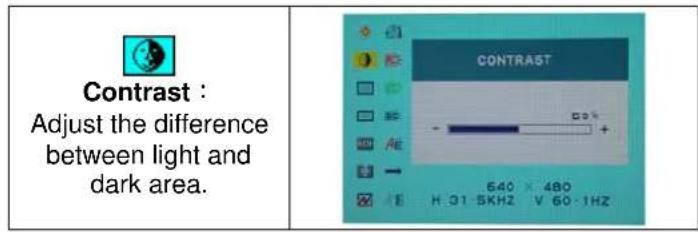

Contrast : Adjust the difference between light and dark area. CONTRAST 640 × 480 H 31.5KHZ V 60.1HZ

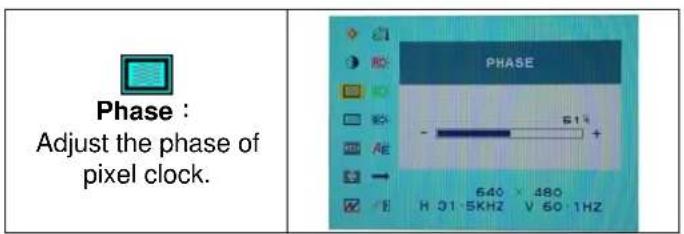

Phase : Adjust the phase of pixel clock. PHASE - 51% 640 × 480 H 31.5KHz V 60.1HZ

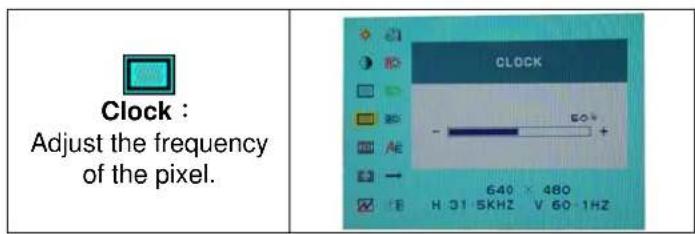

Clock : Adjust the frequency of the pixel. CLOCK 640 × 480 H 31 5KHZ V 60-1HZ

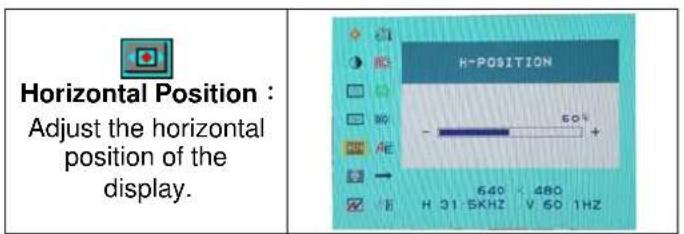

Horizontal Position : Adjust the horizontal position of the display.

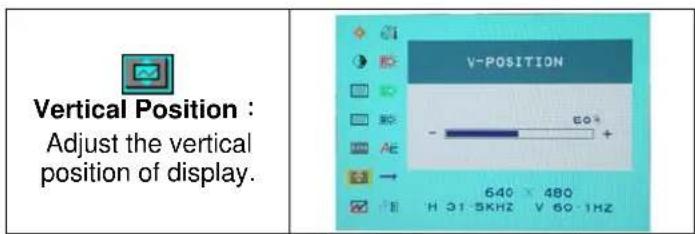

Vertical Position : Adjust the vertical position of display.

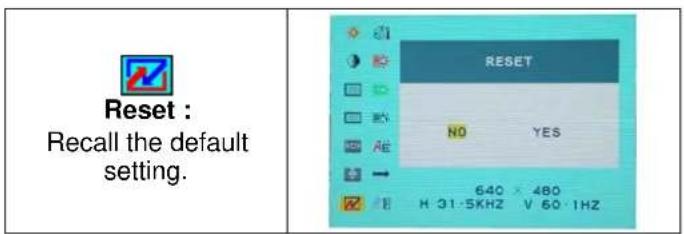

Reset : Recall the default setting. RESET NO YES 640 × 480 H 31·5KHZ V 60·1HZ

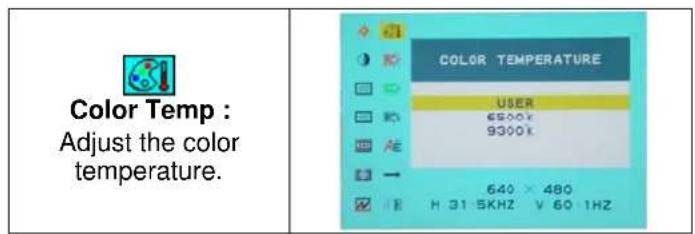

Color Temp : Adjust the color temperature.

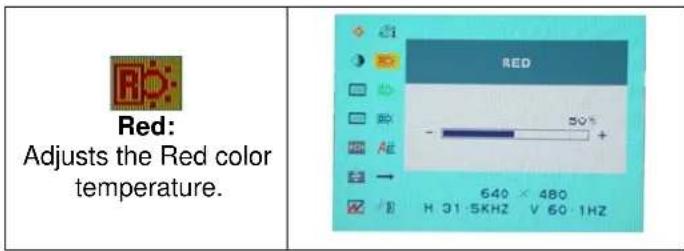

Red: Adjusts the Red color temperature.

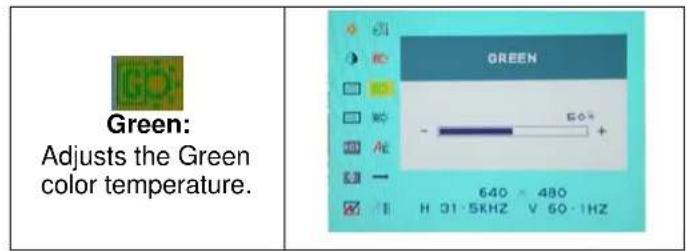

Green: Adjusts the Green color temperature. GREEN 60% - 480 H 31·5KHZ V 60·1HZ

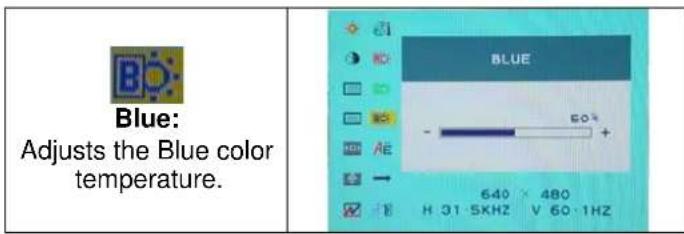

Blue: Adjusts the Blue color temperature. BLUE 60% AE 640 480 H 31·5KHZ V 60·1HZ

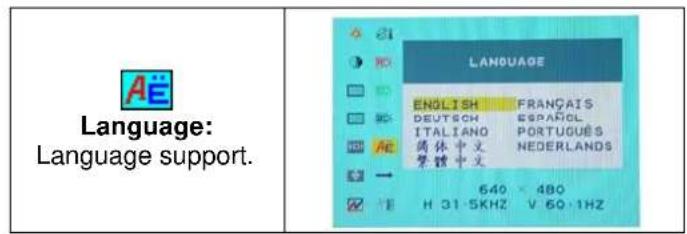

Language: Language support.

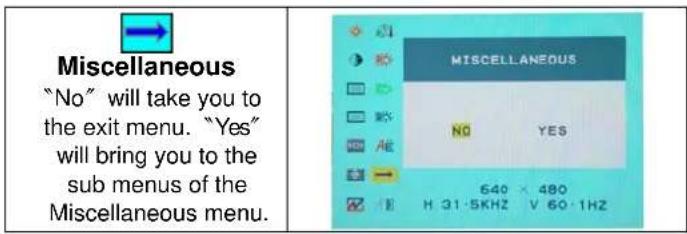

Miscellaneous "No" will take you to the exit menu. "Yes" will bring you to the sub menus of the Miscellaneous menu.

EXIT: Saving and Leave.

Miscellaneous

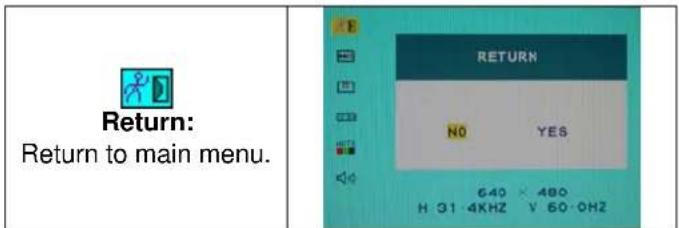

Return: Return to main menu.

Horizontal Position: Adjust the horizontal position of the OSD.

Vertical Position: Adjust the vertical position of the OSD. OSD V-POSITION - 640 X 480 H 31·4KHZ V 60·0HZ

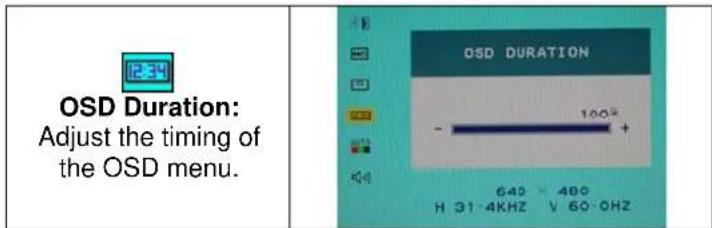

OSD Duration: Adjust the timing of the OSD menu. OSD DURATION - 100% 640 × 480 H 31·4KHZ V 60·0HZ

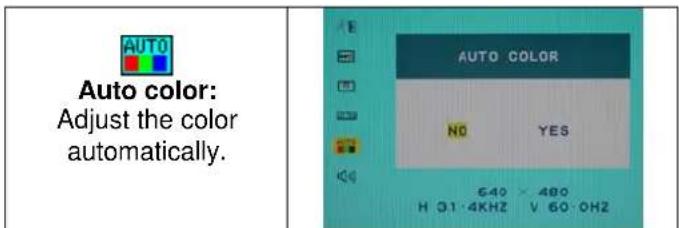

AUTO Auto color: Adjust the color automatically.

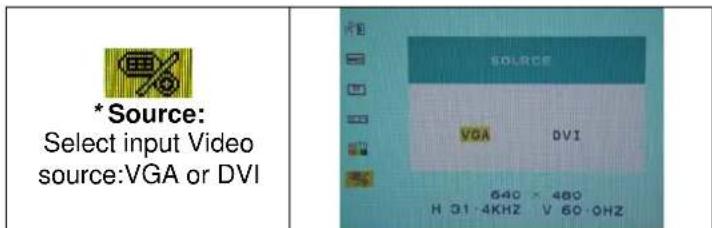

* Source: Select input Video source:VGA or DVI

Notice: * Source is optional feature.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1. Power saving mode. Press any key and move the mouse to deactivate the mode.

1. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Supported Timing

Display Mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
640X480 31.5 59.94
800X600 37.9 60.32
1024X768	48.4
1280X800	49.6
1440X900 55.9 60.00
1680X1050 65.29 59.94
1920X1200 74.55 59.88

Specification

LCD Panel	TypeViewing AngleContrast RatioBrightnessResponse Time(Tr+Tf)Display ColorsMax ResolutionPixel Pitch	24" Wide Screen LCD MonitorH:180°, V:180°1000 : 1 (Typical)500 cd/m2 (Typical)6 ms(G to G)16.7M colors(True color)1920X1200(WUXGA)0.270mm(H)x0.270mm(V)
Input Signals	VGADVI*	VGA compatible analog RGB Composite sync supportedDDWG compliant Single Link TMDS Digital VisualInterface (DVI)
Compatibility	PC Up to 1920X1200@60Hz(Non-interlaced)
Connector	VGADVI*AudioPower	D-sub 15-pinsDVI-D*Stereo Phone JackA/C Input
Power	VoltageConsumptionPower saving mode	Built-in universal power supply: 100-240 VAC, 50/60 HzActive < 100 Watt Max.Standby < 2 Watt
Internal Speaker	Speaker x 2
User Interface	LED Indicator Active	- BlueStandby - Flash
Operating Condition	TemperatureHumidity	Operating:5°C to 40°C20% ~ 80% R.H.
Dimensions	Physical 570mm(W) x 463mm(H) x 250mm(D)
Net Weight		6.0 Kg
Tilt Angle		-5° dip and 15° elevation
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)	UL/CUL, FCC, CE

Notice: * DVI is optional.

注意事項....10

安全事項....10

警示....10

包装....10

硬體安裝....11

控制按鍵介紹....11

OSD視控模式....12-13

簡易故障排除....14

支援顯示模式....14

產品規格表....15

◇ 注意事項

[1] [2] [3] [4]

[1] [2] [3] [4]

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

Câble VGA

[1] [2] [3] [4]

Miscellaneous (DIVERS)

Return:

Horizontal Position:

[1] [2] [3] [4]

Miscellaneous (VERSCHIEDENES)

Return:

(Zurück) Zum

Zurückkehren zum

Hauptmenü.

RETURN NO YES 640 × 480 H 31·4KHZ V 60·0HZ

Horizontal Position:

Modalita Menu OSD (On-Screen Display)....40-41

Ricerca Guasti....42

[1] [2] [3] [4]

Miscellaneous (VARI E)

Return:

Horizontal Position:

[1] [2] [3] [4]

PHASE E1% - H 31.5KHz 480 V 60.1HZ

Clock :

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Cabo VGA

Cordão Elétrico

Cabo Audio

* Cordān DVI

Manual do usuário

[1] [2] [3] [4]

【1】 AC Input: Para a conexão do cabo elétrico.
【2】 PORTO VGA: Para a conexão com o cabo de sinal D-Sub de 15 pinos.
【3】 Porto DVI: Para a conexão com o cabo de sinal DVI.
【4】Audio In: Para a conexão com o o conector audio-out da PC da fonte de som.

BLUE 60% - + 640 × 480 H :31.5KHz V :60.1HZ

Language:

Seleccionar pantalha de idioma do menu OSD.

LANGUAGE ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO PORTUQUÉS 偶体中文 NEDERLANDS 常體中文 640 × 480 H 31-5KHZ V 60-1HZ

Miscellaneous:

Horizontal Position:

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Externe univ 15 pin D-sub (RGB analoog) Input signaal kabel

Stroomsnoer

Audio verbinder : Stereo telefoon contactsnoer

* DVI snoer

[1] [2] [3] [4]

* Source: selecteer input video bron: VGA of DVI

Opmerking: * DVI is optioneel.
