USER MANUAL L1531W DGM

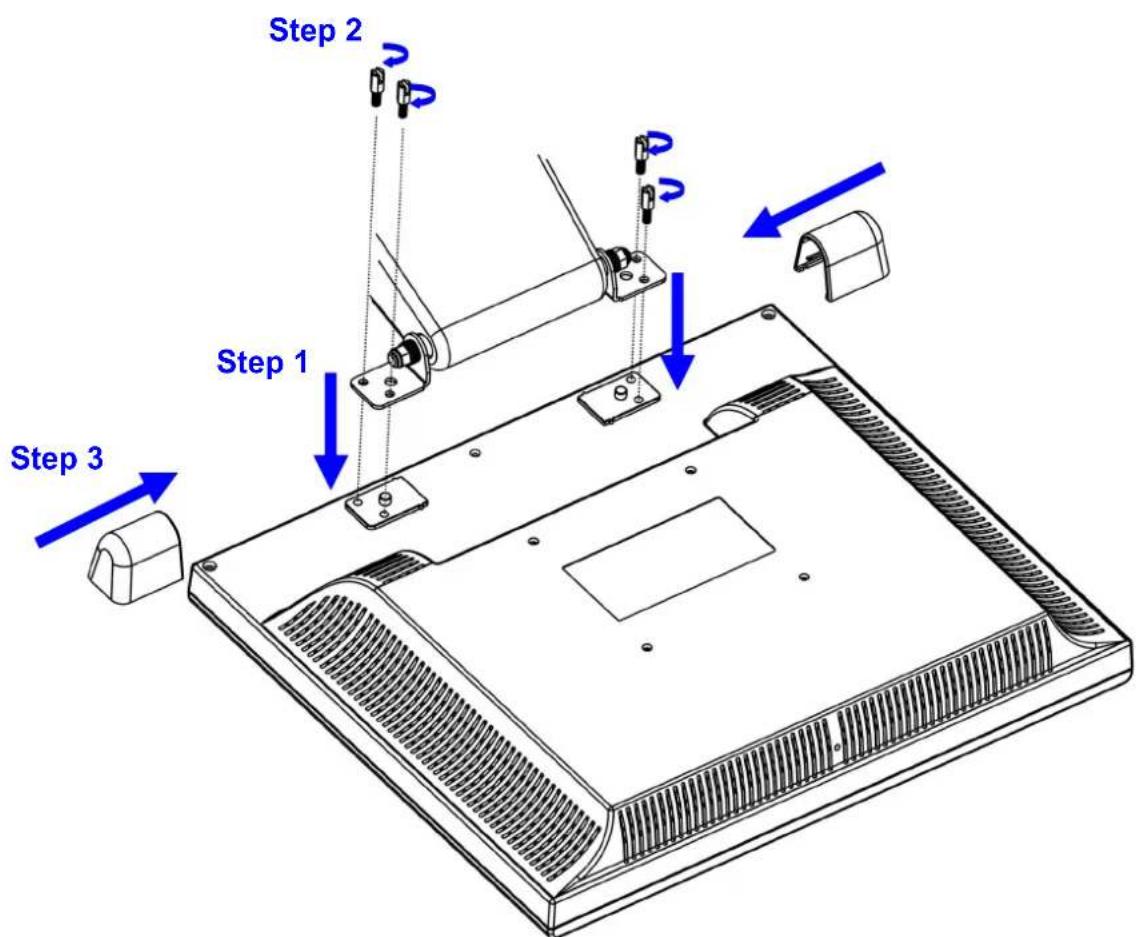

Attaching the Base to the Monitor

English 2
繁體中交 8
简體中文 14
François 20
Deutsch 26
Italiano 32
Espanol 38
Portugues 44
Dutch 50

Notice. 3
Safety Information. 3
Precaution 3
Package Contents. 3
Hardware Installation. 4
Control Buttons. 4
OSD (On-Screen Display) Menu Mode. 5
Troubleshooting. 6
Supported Timing. 6
Specification. 7

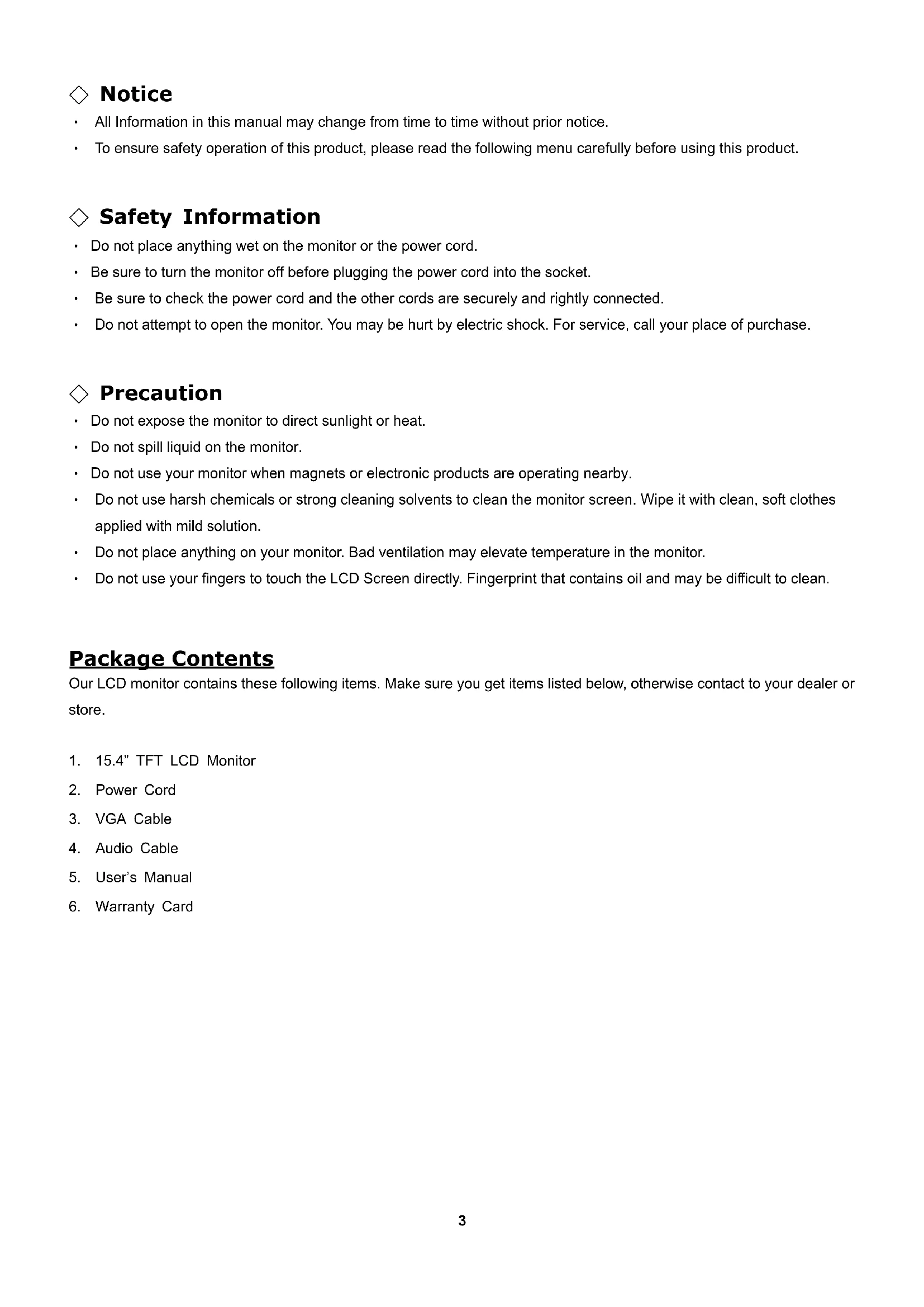

Notice

• All Information in this manual may change from time to time without prior notice.
  To ensure safety operation of this product, please read the following menu carefully before using this product.

Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

1. 15.4" TFT LCD Monitor
2. Power Cord
3. VGA Cable
4. Audio Cable
5. User's Manual
6. Warranty Card

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

Input

AC input : This is for connecting the power cable.

VGA port : This can be connected with the D-Sub 15 pin signal Cable.

Audio in : This can be connected to the PC audio-out connector of sound resource.

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust <-> ", "Adjust <+> ". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)--

A Function Select Button: This button allows you to select the control functions up in the OSD. Hotkey: Press this button to apply the monitor setting automatically. Menu (Function)--
M Function Select Button: This button allows you to select the control functions down in the OSD. Hotkey: Press this button to get a pop-up OSD menu.

Power: Turn the LCD power on and off. When the power is on, the light is showing green, Stand by will be orange.

• Adjust < -> : Decrease the option value in the OSD menu.
• Adjust < + > : Increase the option value in the OSD menu.

OSD (On-Screen Display) Menu Mode

1. Please adjust your Speaker Volume via your PC computer Speaker Volume control icon.
2. Please note that Sound will continue to play when your monitor is off, to turn off please turn off your PC computer or mute the Speaker Volume control icon.
3. Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

BRIGHTNESS	Adjust the brightness of the display.
CONTRAST	Adjust the difference between light and dark area.
PHASE	Adjust the phase of PLL.
CLOCK	Adjust the frequency of the PLL.
H-POSITION	Adjust the horizontal position of the display.
V-POSITION	Adjust the vertical position of display.
RESET	Recall the default setting.
COLOR TEMPERATURE	Adjust the color temperature.
RED	Adjust the Red color temperature.
GREEN	Adjust the Green color temperature.
BLUE	Adjust the Blue color temperature.
LANGUAGE	Select the display language of the OSD Menu.
MISCELLANEOUS	“No” will take you to the exit menu. “Yes” will bring you to the sub menus of the Miscellaneous menu.
EXIT OSD	Saving and Leave.

MISCELLANEOUS

RETURN	Return to main menu.
OSD H-POSITION	Adjust the horizontal position of the OSD.
OSD V-POSITION	Adjust the vertical position of the OSD.
OSD DURATION	Adjust the timing of the OSD menu.
AUTO COLOR	Adjust the color automatically.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1.Power saving mode. Press any key and move the mouse to deactivate the mode.

1. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Supported Timing

Display Mode
Resolution Vertical Frequency (Hz) Horizontal Frequency (KHz)
640x480	59.94	31.47
800x600	56.25	35.16
800x600	60.32	37.88
1024x768	60.00	48.36
1280x800	59.81	49.702

Specification

LCD Panel	Type	15.4" TFT Active Matrix LCD Display
	Viewing Angle	H:130°, V:100°
	Contrast Ratio	600:1 (Typical)
	Brightness	220 cd/m² (Typical)
	Response Time(Tr+Tf)	28 ms
	Display Colors	262K colors
	Max Resolution	1280X800(WXGA)
	Pixel Pitch	0.2588mm(H)x0.2588mm(V)
Input Signals	VGA VGA compatible analog	RGB Composite sync supported
Compatibility	PC Up to 1280X800@60Hz	(Non-interlaced)
Connector	VGA	D-sub 15-pins
	Audio	Stereo Phone Jack
	Power	A/C Input
Power	Voltage	Built-in universal power supply: 100-240 VAC, 50/60 Hz
	Consumption	Active < 24 Watt Max.
	Power saving mode	Standby < 2 Watt
Internal Speaker	Speaker x 2
User Interface	LED Indicator Active	- Green
		Standby - Orange
Operating Condition	Temperature	Operating:5°C to 40°C
	Humidity	20% ~ 80% R.H.
Dimensions	Physical	357 mm(W) x 324 mm(H) x 170 mm(D)
Net Weight		2.2 Kg
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)	UL/CUL, FCC, CE
