USER MANUAL L1523 DGM

15.4" TFT LCD Monitor

User's Manual

Contents

English 2
繁體中交 10
简體中交 18
François 26
Deutsch 34
Italiano 42
日本語 50
Espanol 58

Thank you for your purchase of our LCD product. To ensure safety operation of this product, Please read the following menu carefully before using this product.

Getting Start

Table of content 2
Unpacking 3
Warning 3
Cleaning Notices 3
Precaution 3
Hardware Installation 4
Hardware Installation Step by Step 4
Menu control button 5
OSD (On-Screen Display) Menu Mode. 6-7
Display Mode 8
Specification 8
Troubleshooting 9

All Information in this manual may change from time to time without prior notice.

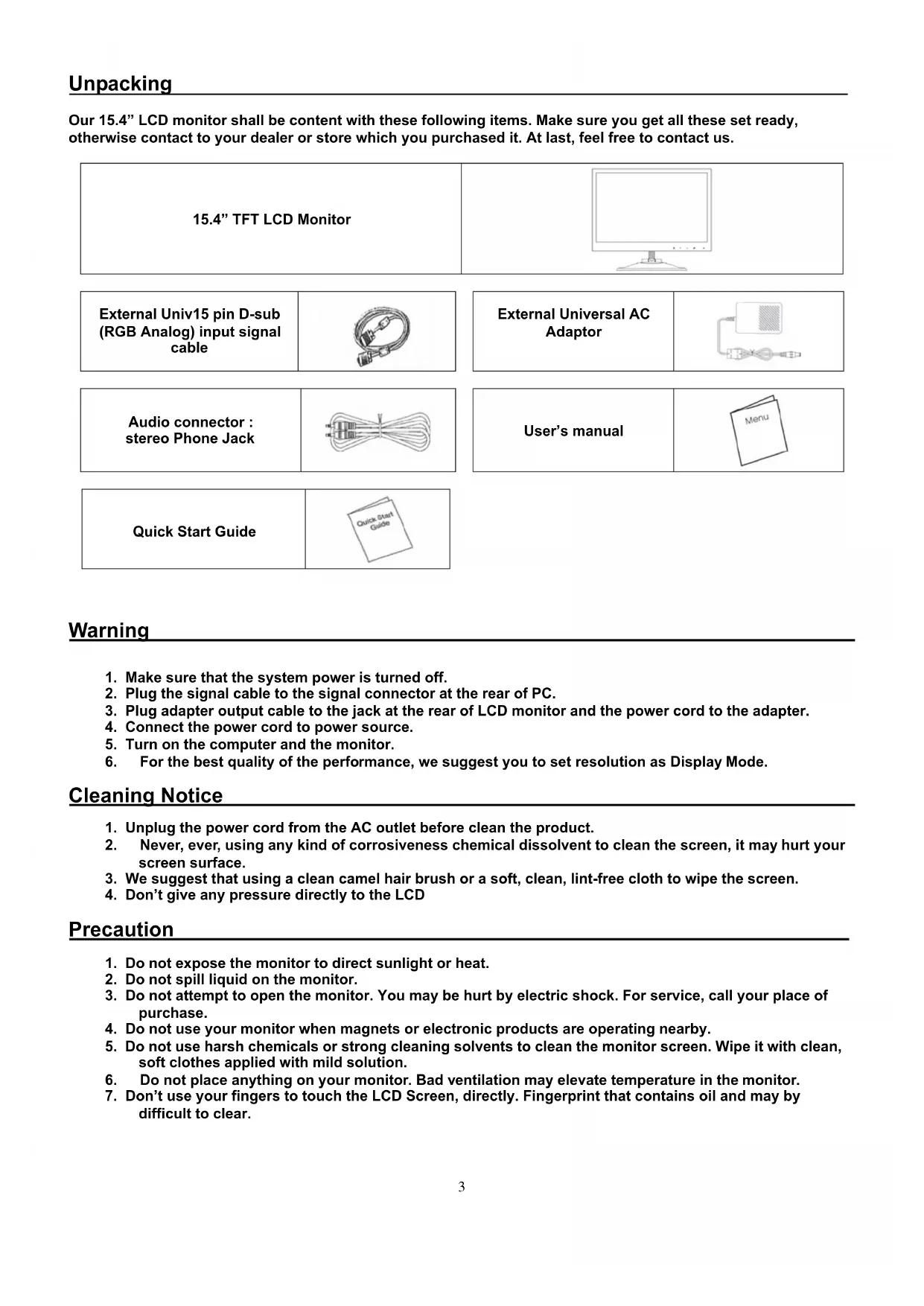

Our 15.4" LCD monitor shall be content with these following items. Make sure you get all these set ready, otherwise contact to your dealer or store which you purchased it. At last, feel free to contact us.

15.4" TFT LCD Monitor

External Univ15 pin D-sub (RGB Analog) input signal cable

External Universal AC Adaptor

Audio connector : stereo Phone Jack

User's manual

Quick Start Guide

Warning

1. Make sure that the system power is turned off.
2. Plug the signal cable to the signal connector at the rear of PC.
3. Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.
4. Connect the power cord to power source.
5. Turn on the computer and the monitor.
6. For the best quality of the performance, we suggest you to set resolution as Display Mode.

Cleaning Notice

1. Unplug the power cord from the AC outlet before clean the product.
2. Never, ever, using any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your screen surface.
3. We suggest that using a clean camel hair brush or a soft, clean, lint-free cloth to wipe the screen.
4. Don't give any pressure directly to the LCD

Precaution

1. Do not expose the monitor to direct sunlight or heat.
2. Do not spill liquid on the monitor.
3. Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.
4. Do not use your monitor when magnets or electronic products are operating nearby.
5. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
6. Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
7. Don't use your fingers to touch the LCD Screen, directly. Fingerprint that contains oil and may by difficult to clear.

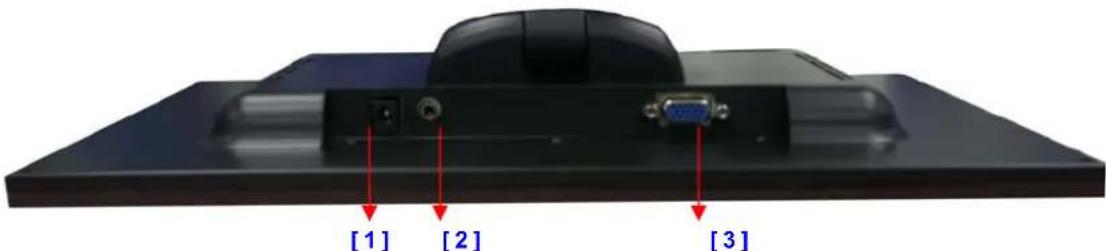

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

【1】DC port : This is for connecting the power cable
【2】Audio port : This can be connected to the audio-Signal connector of any sound resource.
【3】PC In : This can be connected with the D-Sub 15 pin signal Cable.

Hardware Installation Step by Step

1. Turn your LCD opposite carefully which can see all the connection port.
2. Inset the signal cable such as RGB analog to its own port, and the other side connects to computer.

1. Inset the Audio connector to its own port, and the other side connects to computer line out.

1. Put AC Adaptor and Power Cord together.

1. Insert the DC cable to its own port (DC in).

1. The other side connects to socket, turn on the power.

1. Congratulations you had done with it. You can enjoy the excellent performance.

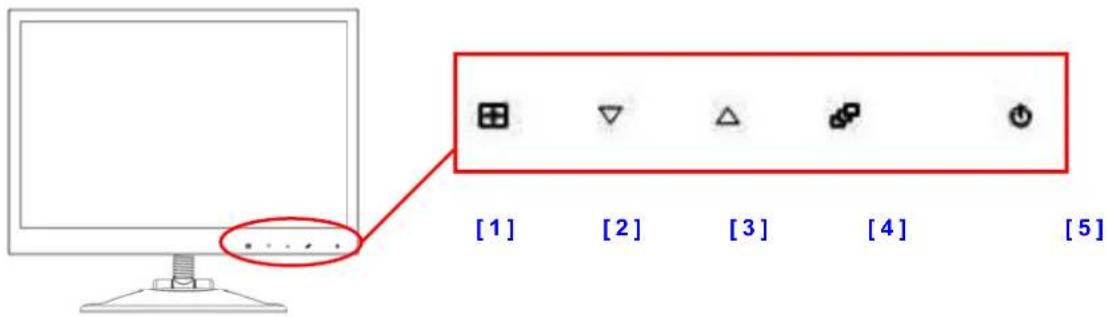

Monitor control buttons

You need not press the LCD monitor control buttons, you can only touch the buttons directly to adjust the function what you need.

1. Auto Tune: Auto adjust, menu left adjustment.
2. Decrease < -> : Decrease the option value in the OSD menu.
3. Increase < + > : Increase the option value in the OSD menu.
4. OSD Menu: Press the button to OSD menu.
5. Power: Turn the LCD power on and off. When the power is on, the LED Indicator is showing blue, standby will be Flash.

LED Indicator

When you turn on the power, the LED indicator will stay on until you turn off the power. If the monitor is "standby", the LED indicator will keep flashing until you turn on or turn off the power of the LCD monitor.

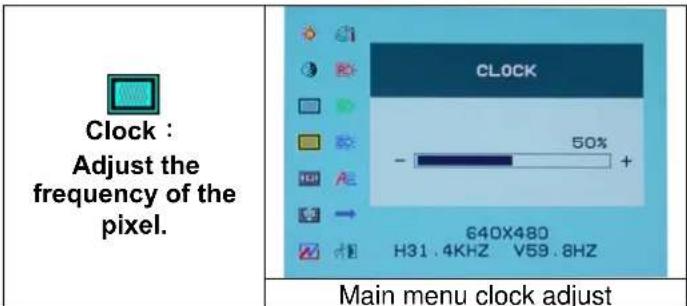

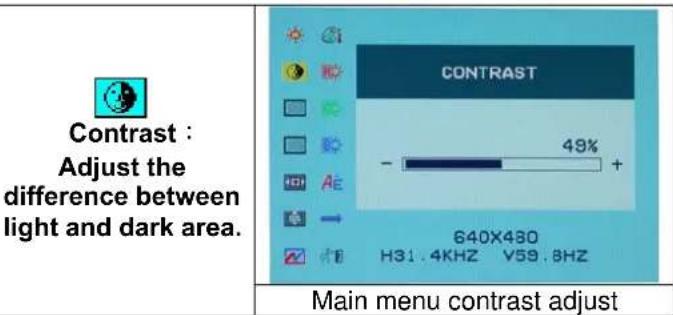

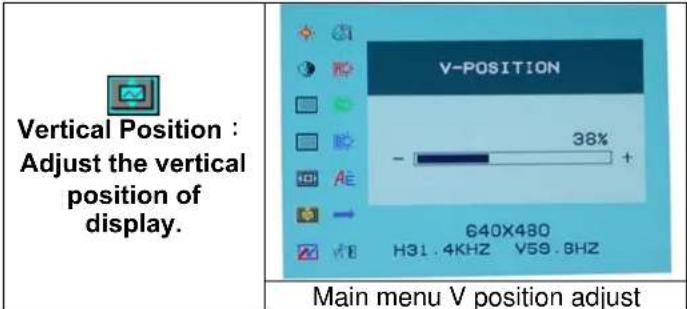

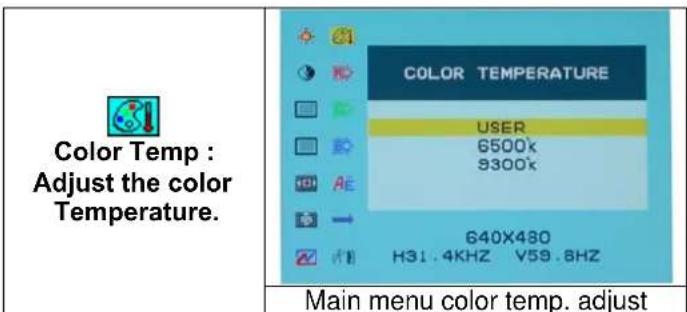

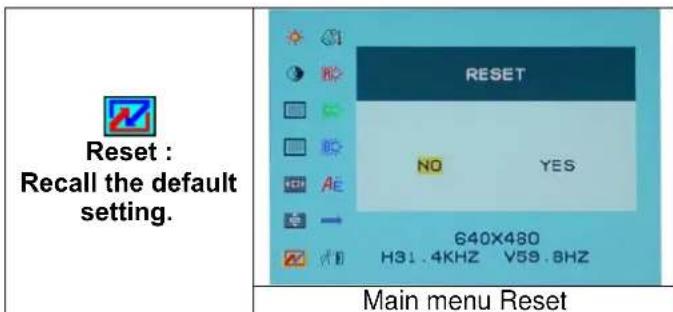

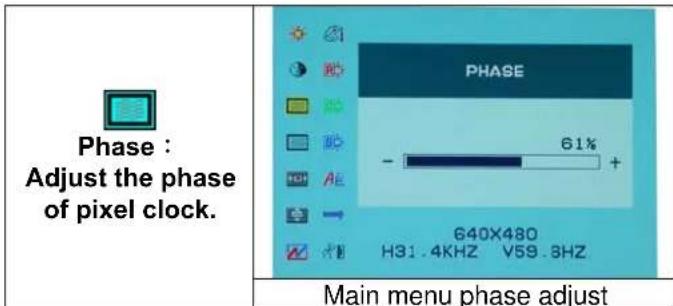

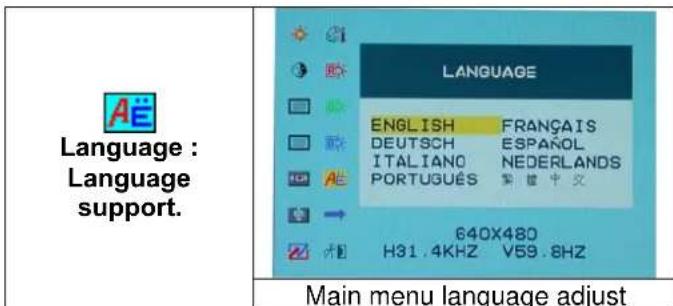

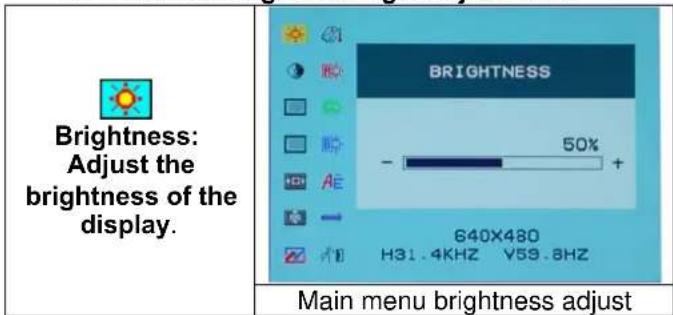

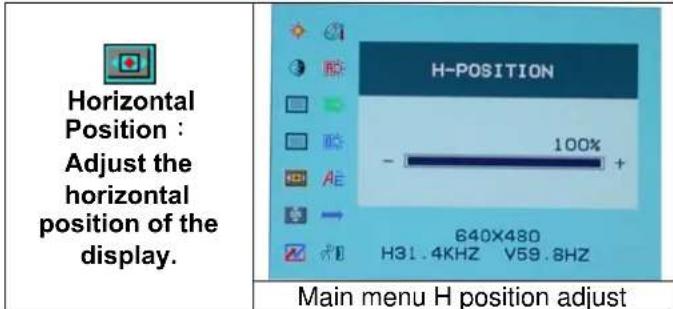

Option select

1. Press the OSD button to access menu.
2. Using Auto Tune for left adjustment.
3. Press OSD again for right adjustment.

EXIT:

Saving and

Leave.

Main menu EXIT adjust

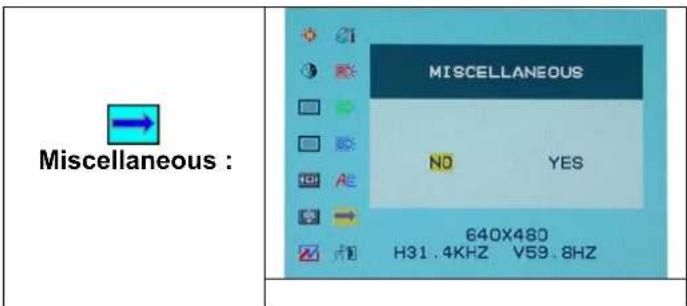

Miscellaneous

Return :

Return to main

menu.

Return

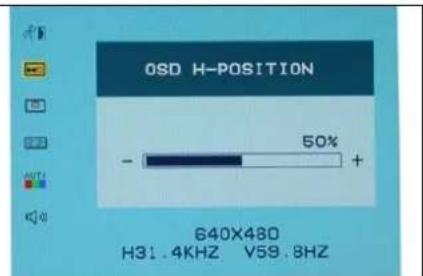

Horizontal

Position

Adjust the

horizontal

position of the

OSD.

OSD H position adjust

Vertical

Position :

Adjust the

vertical position

of the OSD.

OSD V position adjust

OSD Duration :

Adjust the timing

of the OSD menu.

OSD DURATION

OSD duration adjust

Auto color :

Adjust the color

automatically.

Auto color adjust

Volume :

Adjust of

speaker.

Menu Volume adjust

Incoming Display Mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
640X480	31.469	59.941
800X600	37.879	60.317
1024X768	48.363	60.004
1280X720	63.981	60.020

1. We offer you 4 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommended you to choose a Mode listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It's good for last service life of the product.

Specification

LCD Panel Type	Viewing Angle(CR=10) Contrast Ratio Brightness Response Time(Tr+Tf) Display Colors Max Resolution Pixel Pitch	15.4" TFT Active Matrix LCD Display H:140°, V:120° 400:1 (Typical) 220 cd/m² (Typical) (18+7) 25ms 262K colors(True color) 1280X720(WXGA) 0.2588mm(H)x0.2588mm(V)
Input Signals RGB Analog		Video Level:0.7Vp-p(75Ω) Sync TTL with 75Ω internal pull-up resistors Frequency FH:30~62KHz F V:56~75 Hz
Connector RGB Analog	Audio Power	D-sub 15-pins Stereo Phone Jack 12V/DC Power Jack
Power	Voltage	100-240V, 50/60Hz(universal) via external AC Adapter
	Consumption	Active < 24 Watt Max
	Power saving mode	Standby < 2.5 Watt
Internal Speaker		2Wx2(Stereo)
User Interface	LED Indicator	Active - Blue Standby - Green (flash) Off - Turn off
Operating Condition	Temperature	5°C~40°C
	Air Humidity	20% ~ 80% R.H.
Dimensions (W x H x D)	Physical	356mm(W) x 304mm(H) x 30mm(D)
Net Weight		1.8Kg
DDC		DDC1/DDC2B Compliant
Power Management		VESA DPMS, EPA Energy Star
Regulation (Certifications)		CE,FCC,VCCI,BSMI,UL/CUL,CSA

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check:

1. Power saving mode. Press any key and move the mouse to deactivate the mode.
2. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check:

1. Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check:

1. If the resolution of frequency is being changed.

. The Text appears on the screen are unclear.

Check

1. Make sure the resolution or refresh rate match with the Display Mode.
