USER MANUAL L1517 DGM

Table of content 3

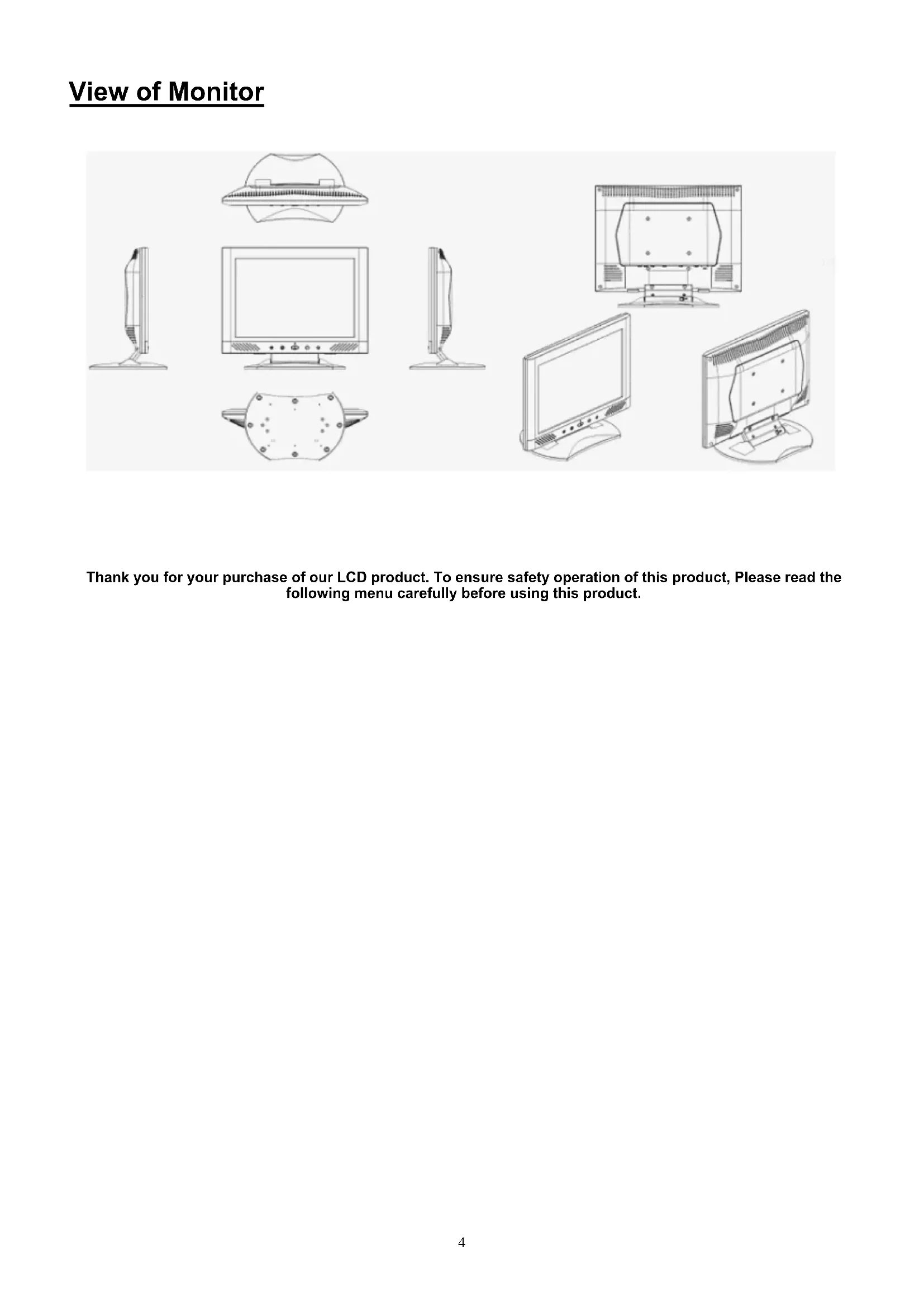

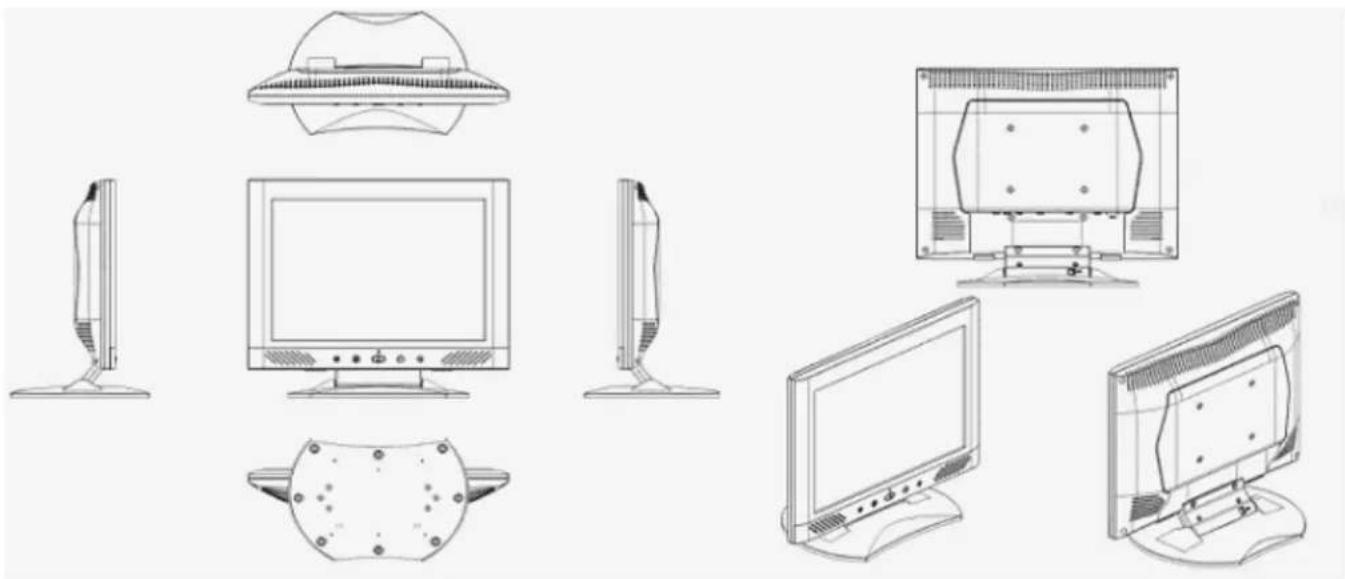

View of Monitor. 4
Unpacking 5
Warning 5
Hardware Installation 6
Hardware Installation Step by Step 7
Angle of Inclination 8
Hanging 8
Menu control button 9
Key introduction 9
Cleaning Notices 10
Precaution 10
Troubleshooting 10
OSD (On-Screen Display) Menu Mode. 11-12
Display Mode 13
Specification 13

All Information in this manual may change from time to time without prior notice.

Thank you for your purchase of our LCD product. To ensure safety operation of this product, Please read the following menu carefully before using this product.

Unpacking

Our 15" LCD monitor shall be content with these following items. Make sure you get all these set ready, otherwise contact to your dealer or store which you purchased it. At last, feel free to contact us.

15" TFT LCD Monitor

External Univ15 pin D-sub (RGB Analog) input signal cable

Adaptor

Audio connector : stereo Phone Jack

User's manual

Quick Start Guide

Warning

1. Make sure that the system power is turned off.
2. Plug the signal cable to the signal connector at the rear of PC.
3. Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.
4. Connect the power cord to power source.
5. Turn on the computer and the monitor.
6. For the best quality of the performance, we suggest you to set resolution as "Display Mode".
7. The lock (on the stand) must be locking in while using it.

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

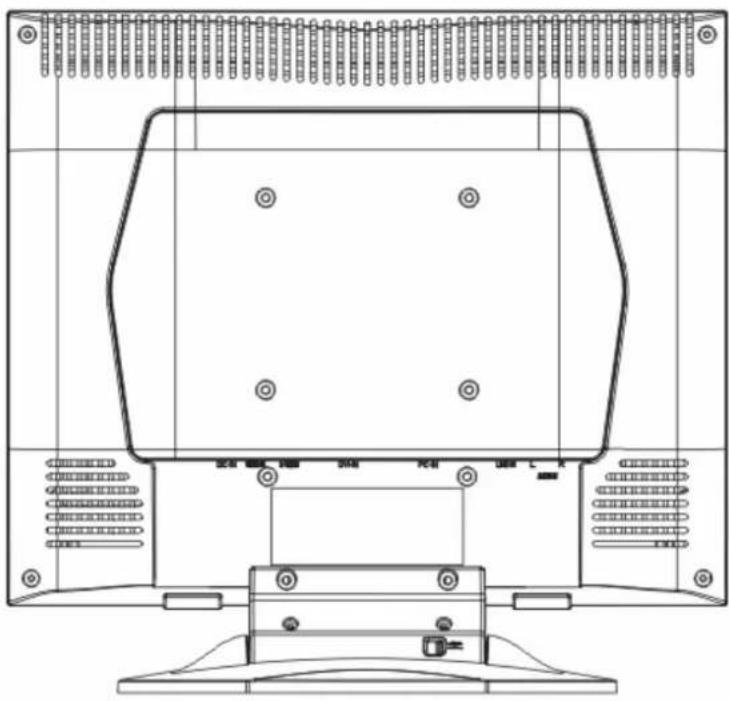

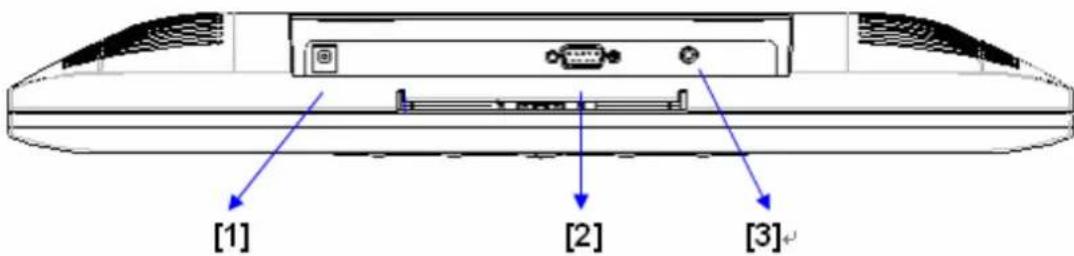

Input

【1】DC port : This is for connecting the power cable
【2】PC In : This can be connected with the D-Sub 15 pin signal Cable.
【3】LINE in : This can be connected to the audio-out connector of any sound resource.

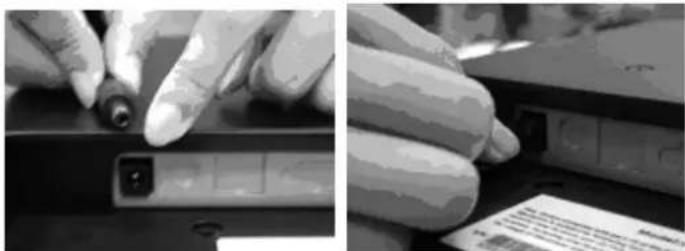

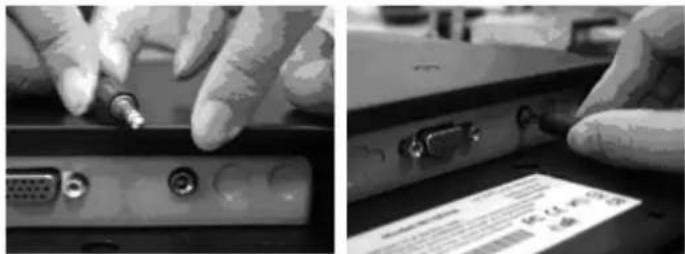

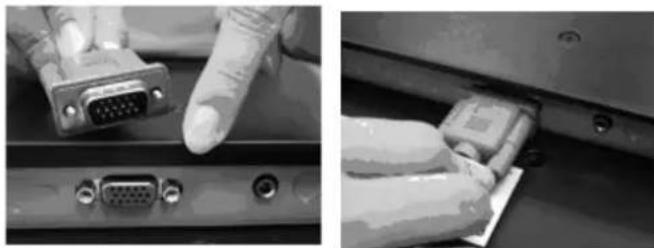

Hardware Installation Step by Step

1. Turn your LCD opposite carefully which can see all the connection port.

2.Inset the signal cable such as RGB analog (standard) to its own port, and the other side connects to computer.

3.Inset the Audio connector to its own port, and the other side connects to computer line out.

1. nset the DC cable to its own port (DC in), and the other side connect to socket.

1. Congratulations you had done with it. You can enjoy the excellent performance.

Angle of Inclination

1. In normal condition
2. With Lock in, LCD lay back 0^ 15^ (positive and negative 2^ )
3. With Lock off, LCD can lay back up to 90^ for hanging

1. 2. 3.

Hanging

1. Unlock
2. Lay back the stand

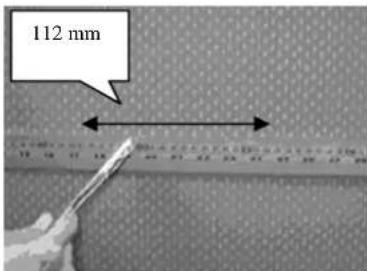

3. Use the tape measure to determine the position of two holes and mark them down. (112mm of the total length from eight edges)
4. Pick the right drill to bore holes in the wall.
5. Hammer the plastic ribbed anchor onto the holes for screw.(save 5 mm for Hanging)
6. Hang the LCD by use its stand to mount the screws.

1. 2.
5.

Monitor Adjusting

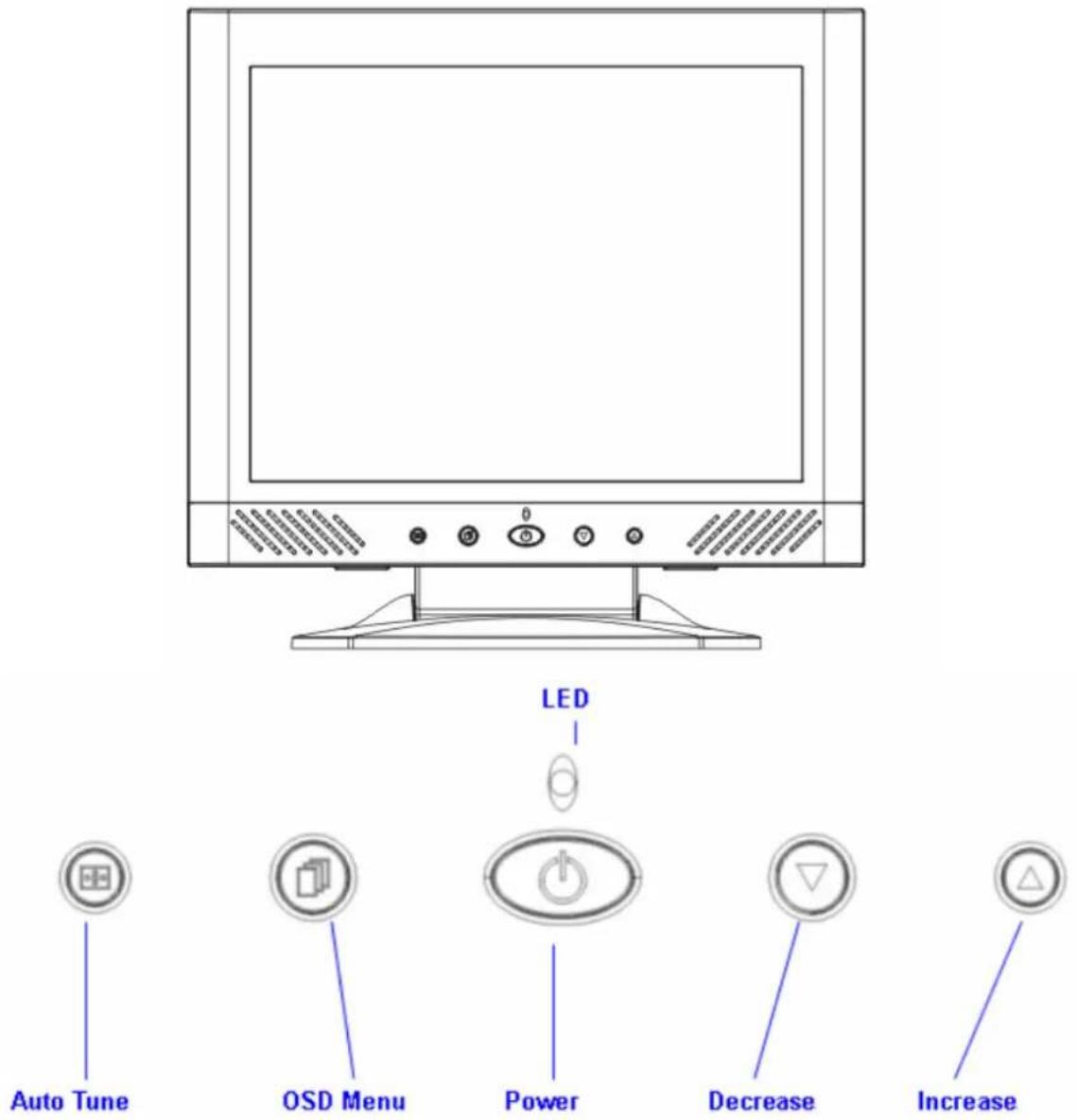

Menu control button

There 5 keys for user to set up the monitor, including, "OSD menu ", "Auto Tune", "Increase < + > ", "Decrease<->" , "Power". The following descriptions are the introduction of these Keys.

Key Introduction

1. "Power": Turn the LCD power on and off. When the power is on, the light is showing green, standby will be orange.
2. "Auto Tune": Auto adjust, menu left adjustment.
3. "OSD menu": Press the button to OSD menu, menu right adjustment.
4. "Increase < + > ": Increase the option value in the OSD menu.
5. "Decrease < -> ": Decrease the option value in the OSD menu.

Cleaning Notice

1. Be gentle to clean the screen.
2. Never, ever, using any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your screen surface.
3. We suggest that using a clean camel hair brush or a soft, clean, lint-free cloth to wipe the screen.
4. Don't give any pressure directly to the LCD

Precaution

1. Do not expose the monitor to direct sunlight or heat.
2. Do not spill liquid on the monitor.
3. Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.
4. Do not use your monitor when magnets or electronic products are operating nearby.
5. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
6. Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
7. Don't use your fingers to touch the LCD Screen, directly. Fingerprint that contains oil and may by difficult to clear.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check:

1. Power saving mode. Press any key and move the mouse to deactivate the mode.
2. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check:

1. Using OSD Menu to adjust the Brightness.

' When your monitor shall be Adjusted?

Check:

1. If the resolution of frequency is being changed.

. The Text appears on the screen are unclear.

Check

1. Make sure the resolution or refresh rate match with the Display Mode.

OSD (On-Screen Display) Menu Mode

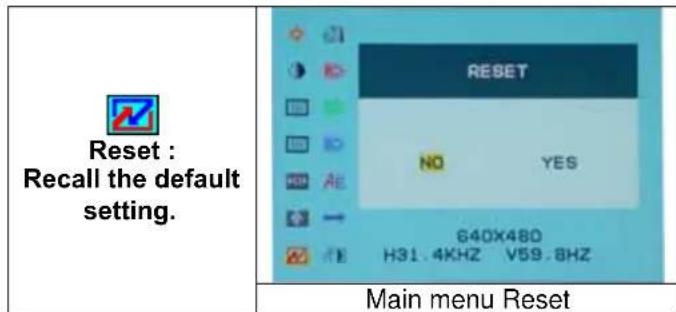

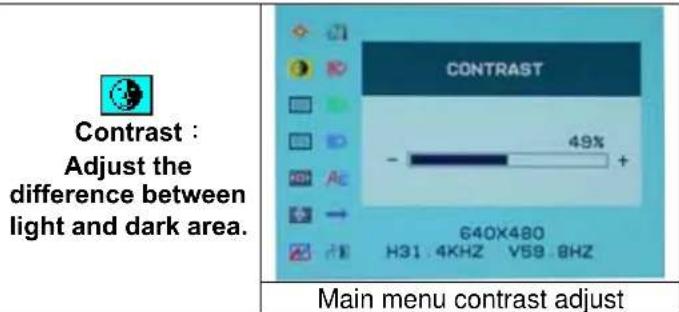

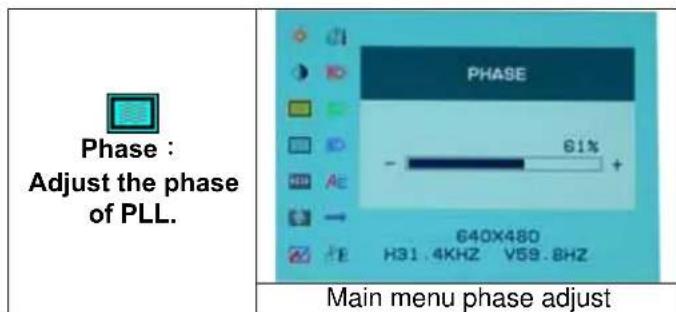

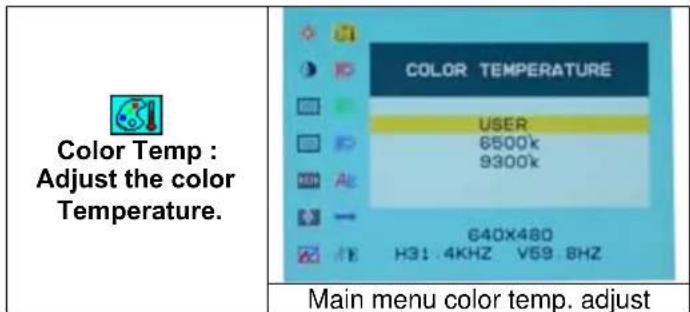

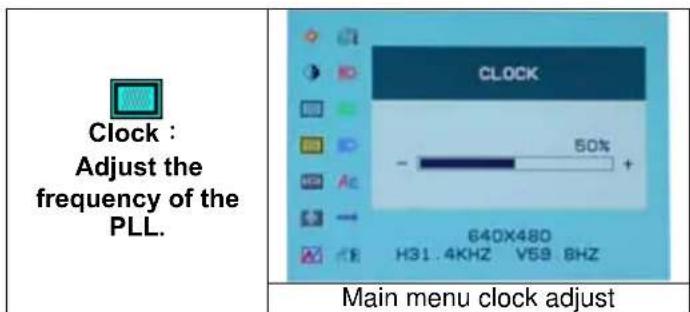

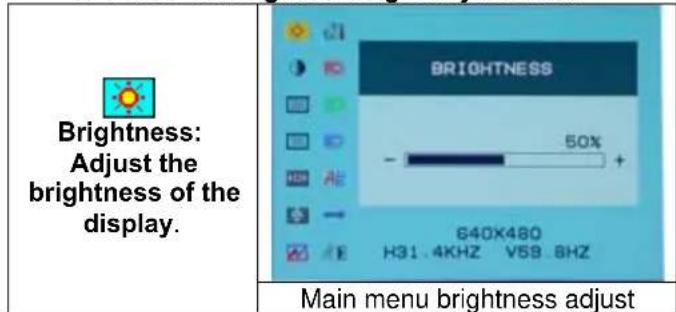

Option select

1. Press the OSD button to access menu.
2. Using Auto Tune for left adjustment.
3. Press OSD again for right adjustment.

EXIT:

Saving and Leave.

Main menu EXIT adjust

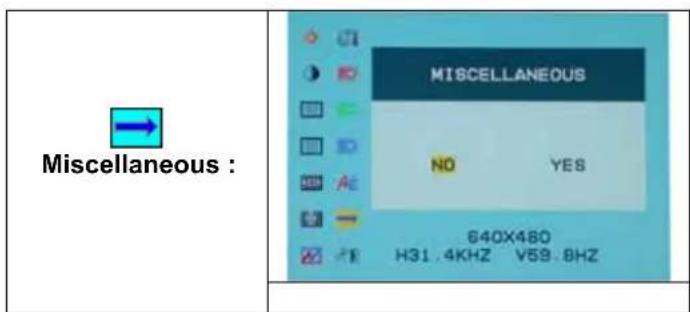

Miscellaneous

Return :

Return to main menu.

Return

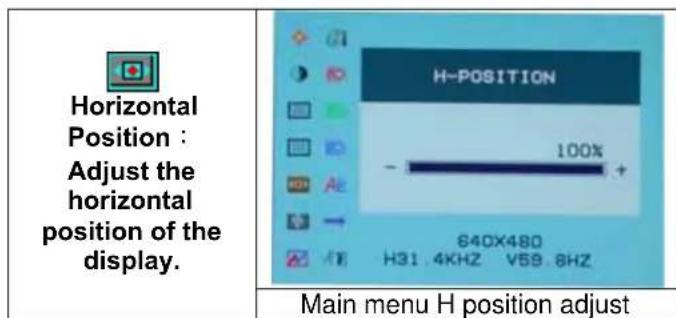

Horizontal

Position :

Adjust the

horizontal position of the OSD.

OSD H position adjust

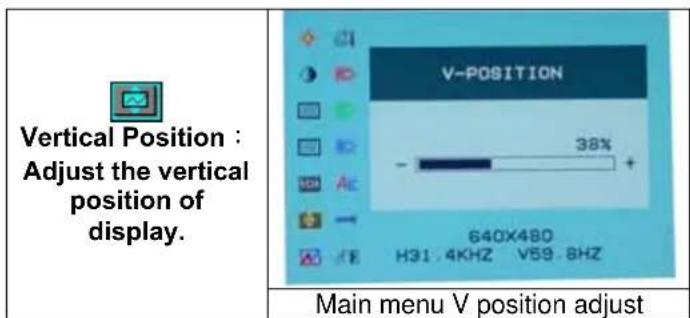

Vertical

Position :

Adjust the vertical position of the OSD.

OSD V position adjust

OSD Duration : Adjust the timing of the OSD menu.

OSD duration adjust

Auto color :

Adjust the color automatically.

Auto color adjust

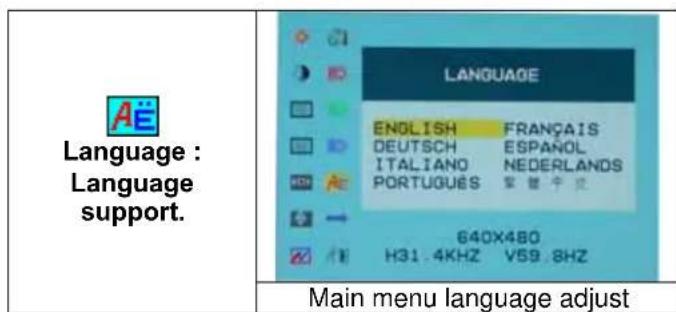

Volume: Adjust of speaker.

Menu Volume adjust

Incoming Display Mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
640X350	31.475	70.100
640X480	31.469	59.940
640X480	37.500	75.000
720X400	31.469	70.087
800X600	37.879	60.317
800X600	46.875	75.000
1024X768	48.363	60.004
1024X768	60.023	75.029

1. We offer you 8 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommend you to choose a Mode listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It's good for last service life of the product.

Specification

LCD Panel Type	Viewing Angle Contrast Ratio Brightness Response Time(Tr+Tf) Display Colors Max Resolution Pixel Pitch	15.0" TFT Active Matrix LCD Display H:120°, V:100° 450:1 (Typical) 250 cd/m² (Typical) 16 ms 16.7M colors(True color) 1024X768(XGA) 0.297mm(H)x0.297mm(V)
Input Signals RGB Analog		Video Level:0.7Vp-p(75Ω) Sync TTL with 75Ω internal pull-up resistors Frequency FH:30~62KHz F V:56~75 Hz
Compatibility	PC	Up to 1024X768@75Hz(Non-interlaced)
Connector RGB Analog	Audio Power	D-sub 15-pins Stereo Phone Jack 12V/DC Power Jack
Power	Voltage Consumption Power saving mode	100-240V, 50/60Hz(universal) via external AC Adapter Active < 35 Watt Max Standby < 3Watt
Internal Speaker		2Wx2(Stereo)
User Interface	LED Indicator	Active - Green Standby - Orange Off - Turn off
Operating Condition	Temperature Air Humidity	5°C~40°C 20% ~ 80% R.H.
Dimensions (H x W x D)	Physical (with Stand)	309mm(H) x 375mm(W) x 59mm(D) 355mm(H) x 375mm(W) x 59mm(D)
Net Weight		4.1Kg
DDC		DDC1/DDC2B Compliant
Power Management		VESA DPMS, EPA Energy Star
Regulation (Certifications)		CE, FCC, VCCI, UL/CUL,BSMI
