Product type	Automatic espresso coffee machine with built-in grinder
Brand	Krups
Model	Evidence Plus EA8948
Dimensions (H x W x D)	367 x 240 x 380 mm
Weight	8.4 kg
Power supply	220-240 V~ / 50 Hz
Energy consumption	1450 W (operating)
Pump pressure	15 bar
Water tank capacity	2.3 liters
Bean hopper capacity	250 g
Grinder	Metal burrs, adjustable grind setting
Main functions	Espresso, lungo, ristretto, doppio, americano, cappuccino, latte macchiato, caffè latte, flat white, espresso macchiato, frothed milk, green tea, black tea, herbal tea, hot water
Control panel	OLED display, backlit touch buttons
Special functions	One Touch Cappuccino, DARK (strength), EXTRA SHOT, double cup, custom settings
Maintenance	Automatic coffee cleaning programs (tablets), milk cleaning (liquid), descaling, rinses
Water filter	Claris Aqua Filter System cartridge (optional)
Included accessories	Milk hose, disassembly key, cleaning tablets (2), descaler sachet, Claris filter cartridge, water hardness test strip, safety booklet, warranty documents
Made in	France (SAS GSM, Mayenne)
Repairability	Spare parts available through Krups after-sales service; manual provided with directory of service centers
Warranty	Manufacturer's warranty (documents provided)

Frequently Asked Questions - Evidence Plus EA8948 KRUPS

How to adjust the grind setting on the Krups Evidence Plus EA8948?

Turn the grind adjustment knob located in the bean hopper (J) while grinding, notch by notch. The adjustment is noticeable after 3 preparations. The finer the grind, the stronger and creamier the coffee.

How to prepare a cappuccino with the One Touch system?

Connect the milk hose, immerse it in cold milk, place a cup under the spouts, then press the Cappuccino button. The machine first froths the milk (adjustable) then dispenses the coffee. At the end, a milk rinse is suggested.

Do I need to use a Claris filter cartridge?

The use of the Claris Aqua Filter System cartridge is recommended to remove chlorine and limescale, improve coffee taste, and protect the machine from scale. It screws into the water tank and is set to 2 months.

How to descale the Evidence Plus machine?

Remove the filter cartridge if present, fill with water up to the CALC mark, pour one dose of Krups descaler, place a 600 ml container under the steam outlet, and start the program from the Maintenance > Descaling menu. The cycle lasts about 20 minutes and includes descaling followed by two rinses.

What to do if the coffee flows too slowly?

Turn the grind adjustment knob to the right for a coarser grind. Perform one or more coffee rinse cycles. Run an automatic coffee circuit cleaning with a Krups tablet. Check and if necessary replace the filter cartridge.

How to clean the One Touch Cappuccino unit?

Disassemble the unit: remove the milk hose, the front cover, the cappuccino unit, the mixer. Clean all parts with soapy water, rinse with hot water, dry, then reassemble. You can also run a milk cleaning program from the Maintenance menu with Krups cleaning liquid.

Why is the EXTRA SHOT function not available?

The EXTRA SHOT function is not accessible if the coffee grounds container is full. Empty the container and try again after finishing the current beverage.

How to adjust the water hardness?

Use the provided test strip: dip it in a glass of water, wait 1 minute, then count the red zones. Refer to the table in the manual to select the class (0 to 4) and set it in the Settings > Water hardness menu.

Can I use plant-based milk (soy, almond, etc.)?

Plant-based milks may give less satisfactory results in terms of foam quality and quantity. It is best to use pasteurized cow's milk, UHT or fresh, taken from the refrigerator (3-5°C) for best results.

What to do if the machine does not turn on?

Check the fuses and the power outlet. Make sure both plugs of the cord are properly inserted. Press and hold the On/Off button for at least 3 seconds. If the problem persists, unplug for 20 seconds, remove the Claris cartridge if present, then plug back in.

USER MANUAL Evidence Plus EA8948 KRUPS

Dear Customer,

(Blonde) (Light French) (Brune)

Thank you for purchasing your KRUPS espresso machine with bean grinder. Designed and manufactured in France to give you "cafe" quality drinks with the greatest ease, your KRUPS machine allows you to enjoy espresso, ristretto, lungo, cappuccino, latte macchiato, flat white and even more drinks all day long.

Your KRUPS espresso machine is equipped with advanced technologies and an intuitive OLED interface; in order to obtain the best extraction possible with total ease, to reveal maximum aromas and flavours from the freshly ground coffee. For the best taste experience make sure you use water fresh from the tap.

For even greater pleasure, your KRUPS EVIDENCE PLUS machine allows you to make multiple drinks automatically, at the simple touch of a button. You will appreciate the possibility of achieving great cappuccino, latte macchiato and caffe latte thanks to the milk container and its One Touch Cappuccino system.

Because not all coffees are the same, you can customise your drinks:

• By changing the coffee beans (mixture or different roast) you can discover different flavours. You will probably need several tests to find the coffee beans that suit your tastes.
• By varying the grinding fineness you can obtain coffee that is more or less full-bodied.
• By choosing your length you'll always achieve the perfect cup.

We wish you a good coffee experience and hope that your KRUPS machine will give you complete satisfaction.

The KRUPS team

Tips

• The quality of the water strongly influences the quality of the flavours. Limescale and chlorine can alter the taste of coffee. We recommend that you use the Claris Aqua Filter System cartridge, or water with low mineral content, in order to preserve all the flavours of your coffee.
• When preparing drinks we recommend using preheated cups (by passing them under hot water) of a size appropriate to the quantity you want to make. For your milk-based preparations, we recommend that you use thick glass cups for an appetising result.
• The roasted coffee beans can lose their flavour if they are not protected. We advise you to use the amount of beans equivalent to your consumption over 2-3 days and to choose 250g bags. Always store beans in an airtight container in a cool, dry place. To achieve a good crema you should always use fresh beans.
• The quality of the coffee beans is variable and tastes are subjective. Arabica will give you fine, floral flavours unlike Robusta which is higher in caffeine, more bitter and full-bodied. It is common to mix the two types of coffee to get a more balanced coffee.
• We do not recommend the use of oily and caramelised beans as these can damage the machine.
• When using a new bean roast, start at the most coarse grind setting, and adjust to taste. Be careful of flavoured beans or extra dark roast coffee as some beans become oily in the roasting process and can cause blockages in the grinders. The finer the grind setting the slower the flow of coffee to your cup. Always make a long coffee using a coarse grind.
• For a strong coffee you do not need a fine grind. Grinding fineness does not affect the strength of the coffee - it is the type of bean (dark roast/light roast etc...). Dry beans on a fine grind will produce a powder - which may block the system.
• Use fresh pasteurised, UHT, skimmed, semi-skimmed or whole milk from the fridge (3 - 5°C) for best results.
• The use of special milks: micro filtered, raw, fermented, enriched or plant milks such as rice, oat or almond milk can give results that are less satisfactory in terms of quality and quantity of froth.

CONTENTS

IMPORTANT INFORMATION CONCERNING THE APPLIANCE AND INSTRUCTIONS. p.24

TECHNICAL DATA. p.24

APPLIANCE DESCRIPTION. p.25

OVERALL VIEW 25

USING YOUR APPLIANCE

INSTALLING THE APPLIANCE . 26

BEFORE PREPARING DRINKS

IMPORTANT INFORMATION. p.28

PREPARING COFFEE DRINKS VIA DIRECT ACCESS. p.29

PREPARING MILKY DRINKS VIA DIRECT ACCESS. p.30

PREPARING TEAS. p.31

PREPARING OTHER DRINKS. p.31

OTHER FUNCTIONS. p.32

FILTER CARTRIDGE 33

GENERAL MAINTENANCE. p.34

TROUBLESHOOTING. p.36

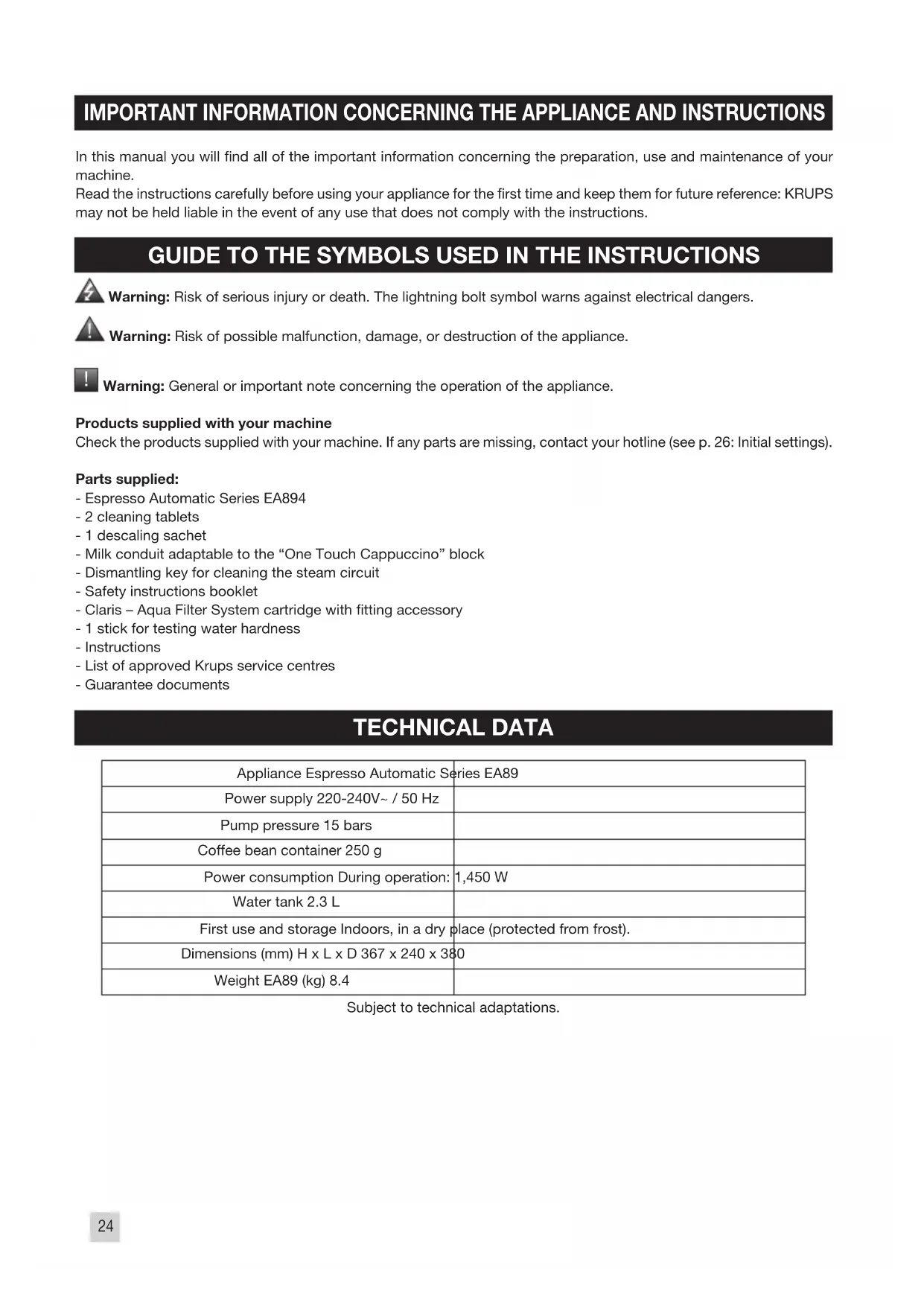

IMPORTANT INFORMATION CONCERNING THE APPLIANCE AND INSTRUCTIONS

In this manual you will find all of the important information concerning the preparation, use and maintenance of your machine.

Read the instructions carefully before using your appliance for the first time and keep them for future reference: KRUPS may not be held liable in the event of any use that does not comply with the instructions.

GUIDE TO THE SYMBOLS USED IN THE INSTRUCTIONS

Warning: Risk of serious injury or death. The lightning bolt symbol warns against electrical dangers.

Warning: Risk of possible malfunction, damage, or destruction of the appliance.

Warning: General or important note concerning the operation of the appliance.

Products supplied with your machine

Check the products supplied with your machine. If any parts are missing, contact your hotline (see p. 26: Initial settings).

Parts supplied:

• Espresso Automatic Series EA894
• 2 cleaning tablets
• 1 descaling sachet
• Milk conduit adaptable to the "One Touch Cappuccino" block
• Dismantling key for cleaning the steam circuit
• Safety instructions booklet
• Claris - Aqua Filter System cartridge with fitting accessory
• 1 stick for testing water hardness
• Instructions
• List of approved Krups service centres
• Guarantee documents

TECHNICAL DATA

Appliance Espresso Automatic Series EA89
Power supply 220-240V~ / 50 Hz
Pump pressure 15 bars
Coffee bean container 250 g
Power consumption During operation:	1,450 W
Water tank 2.3 L
First use and storage Indoors, in a dry place (protected from frost).
Dimensions (mm) H x L x D 367 x 240 x 380
Weight EA89 (kg) 8.4

Subject to technical adaptations.

APPLIANCE DESCRIPTION

A Water tank lid handle B Water tank C Coffee grounds collector D Height-adjustable coffee outlets E Grid and removable drip tray F Coffee bean container lid G One Touch Cappuccino removable block

G1 Dismantling key for cleaning the steam circuit

G2 One touch cappuccino block

H Milk tube and connector

Water level float

1 Coffee bean container J Grinding fineness adjustment button K Cleaning tablet funnel L Metal grinding mill 2 Display panel M OLED screen N ON/OFF button Selection buttons

Details:

The drip tray allows you to collect the water or the coffee that flows from the appliance during and after preparations. It is important to always leave it in place and to empty it regularly or as soon as the floats indicate.

Important: Read these instructions carefully and keep them for future reference. Please follow the safety guidelines.

Manufacturer:

SAS GSM

Presentation of the control panel:

Button Description / General Functions

Turn the machine on and off. A long press is necessary when turning the machine on for the 1st time.

Allows you to return to the previous screen or stop a recipe in progress.

Navigating upwards in the menu / increment the selected parameter.

Navigating downwards in the menu / decrement the selected parameter.

Validation of the selection made.

Function to increase the strength of the coffee by increasing the quantity of ground coffee.

Function to add a shot of espresso to the selected recipe. Accessible with the main recipes: espresso, long coffee, cappuccino, latte macchiato, caffe latte and tea.

Starts preparing an espresso.

Starts preparing a long coffee.

Starts preparing a cappuccino.

Starts preparing a latte macchiato (a large dose of milk, a shot of espresso topped with a creamy milk froth).

Starts preparing a caffe latte.

Allows you to access the menu to prepare a tea or an infusion.

Allows you to access additional preparations: Ristretto, doppio, americano, espresso macchiato, flat white and frothed milk.

Allows access to the general menu (Machine settings, maintenance and product info).

Our interface and its buttons illuminate in an intuitive way to facilitate the use of the machine and to guide you.

• Unlit button: the corresponding function is not accessible.
• Low-lit button: the function is available and can therefore be selected.
• Lit button/bright light: the function is selected/in progress.
• Hal-lit button: the function is no longer accessible.

USING YOUR APPLIANCE INSTALLING THE APPLIANCE

Danger: Connect the appliance to an earthed 230 V mains socket. Failure to do so means that you run the risk of fatal injury due to electricity!

Respect the safety guidelines indicated in the "Safety guidelines" booklet.

Powering on

Turn on the appliance by pressing the ON/OFF button until "Hello" appears on the screen Fig. 1. For the following steps, let your appliance guide you.

Initial Settings

When using the machine for the first time, you are asked to make various settings. Follow the directions that appear on the screen. The objective of the following paragraphs is to give you a few marks of the first requested settings:

• Language: Select a display language by pressing the arrows until the language of your choice appears. Press the "OK" button to confirm.
• Unit of measurement: You can select the unit of measurement of the volume of your choice: ml or oz.
• Date and time: For setting the time, press the time format you want: 24 hr or AM/PM.
• Auto on: It is possible to schedule the time at which you want your machine to come on automatically. This setting can be adapted to your convenience: daily, weekly, or weekend. Choose the time at which you want the automatic start-up in accordance with the time format you previously selected.
• Auto off: You can also choose the length of time after which your selected appliance will automatically turn off in order to optimise your energy consumption: 15 mins, 30 mins, 1 hr, 1 hr 30 mins.
• Rinsing the coffee circuit: to ensure the quality of your coffees, the coffee circuit is rinsed at each start-up, however, you can choose to disable this for greater ease of use.
• Installing the filter: When powering up for the first time, the appliance asks you if you want to install a filter. If you want to and if the hardness of your water requires it, select "YES" and follow the instructions on the screen.

Installation of the filter cartridge in the appliance:

We advise you to use a Claris Aqua Filter System cartridge for KRUPS machines in order to remove any trace of chlorine and limescale. In addition it limits the formation of limescale and ensures the longevity of your machine.

• Turn the grey ring located on the upper end of the filter cartridge until it displays 2 months. Fig. 5
• Empty the water tank and screw the filter cartridge in the bottom of the water tank using the accessory supplied with the cartridge. Fig. 4
• Fill the water tank and put it back in place. Fig. 7-8
• Let the machine guide you to finish the installation.

It is important to replace the filter cartridge properly on the date indicated

Priming the appliance:

The machine must be primed whether the filter is installed or not. Priming allows the water circuits to be filled, so that the machine can operate.

Follow the on-screen instructions

• Place a 600 ml container under the steam outlet. Fig. 6
• The machine will start by filling the water circuits, followed by preheating and then will proceed to automatic rinsing.
• The screen will indicate the end of the installation

Water hardness

Water hardness is a high concentration of minerals, in particular calcium, that is responsible for the formation of limescale. To avoid scaling of your machine which can lead to the malfunction or alteration of the taste of your coffee, you must adjust your machine depending on the hardness of your water, between 0 and 4.

Before the 1st use and in order to be able to adjust your machine, determine the hardness of your water using the stick supplied with your machine: Fig. 2

• Fill a glass of water
• Immerse the stick
• Wait for 1 minute to get the result
• The level of hardness of the water is equal to the number of red areas on the stick. Fig. 3

It is also possible to ask your water company.

The details of the classes are given in the table below:

Degree of hardness	Class 0 Very soft	Class 1 Soft	Class 2 Average hardness	Class 3 Hard	Class 4 Very hard
° dH < 3° > 4°	> 7° > 14° > 21°
° e < 3.75°	5° > 8.75° > 17°	5° > 26.25°
° f	< 5.4°	> 7.2°	> 12.6°	> 25.2°	> 37.8°
Appliance setting	0	1	2	3	4

Be sure to perform this operation at each time you use your machine in a place where the water hardness is different or if you notice a change in the hardness of your water.

Preparing the appliance

• Remove and refill the water tank and put it back in its place. Fig. 7-8
• Remove the lid of the coffee bean container, pour in the coffee beans, and replace the lid. (Fig. 9-10)

IMPORTANT INFORMATION BEFORE PREPARED DRINKS

Your machine offers pre-set drinks to obtain the best results. You can, however, customize your coffee depending on the result in the cup.

Preparing the grinder: adjust the grinding fineness (J)

You can adjust the strength of your coffee by adjusting the grinding fineness of the coffee beans; the finer the grinder setting, the stronger and creamier the coffee. The type of coffee used can also influence the result obtained.

We recommend using a very fine setting for ristretto, fine for espresso, and more coarse for lungo.

To adjust the degree of grinding fineness:

• Turn the adjustment button located in the bean container. This adjustment must be performed during grinding and notch by notch.
• After 3 preparations, you will notice a very distinct difference in taste.

The variation of grinding fineness allows:

• To be able to adapt to the different types of bean: a highly roasted and rather oily bean will require a coarse grinding, while a more lightly roasted bean will be drier and will require a finer grinding (dark to light bean).

Roasting:

Light

Average

Dark

• More or less flavour and power in the cup

Adjusting the coffee output

For all of the drinks proposed you can lower and adjust the coffee outputs according to the size of your cup(s). Fig. 11

Stopping a drink mid-preparation

You can stop the preparation at any time by pressing the back button

When a cycle is interrupted, stopping is not immediate. The machine will not be accessible for a period of time.

Preparation of two cups

Your appliance allows you to prepare two cups simultaneously. The dual cup function is valid for all directly accessible recipes and is accessible simply by pressing twice on the selected recipe (except for V and Xi). Fig. 12

DARK function UP

The DARK function allows you to increase the strength of the selected recipe by increasing the amount of ground coffee used.

This function is effective for the following drinks:

You can activate or deactivate it in different ways:

• Before each recipe you can press DARK and then the desired recipe.
• During the making of the drink and up to the end of the grinding you can press DARK.

You can activate it systematically for all directly accessible drinks (see above):

• Press the Settings button

• Choose "Settings" using the navigation buttons

• Go to "Drinks Settings" then press OK
• Select "DARK" using the OK button to activate it.
• You can disable the DARK function using the same steps.

EXTRA SHOT function

To add to your drink you can use the extra shot function that allows you to add an espresso at the end of your drink. This function is effective for the following drinks: P, P, P, V, V

You can activate or deactivate it in different ways:

• Before each recipe you can press on EXTRA SHOT and then on the desired recipe.
• During the making of the drink and up to the end of the grinding you can press EXTRA SHOT.

You can activate it automatically for all directly accessible drinks:

• Press the Settings button
• Choose "Settings" using the navigation buttons
• Go to "Drinks Settings" then press OK
• Select "EXTRA SHOT" using the OK button.
• Then you can enable or disable the EXTRA SHOT function.

PREPARING COFFEE DRINKS VIA DIRECT ACCESS

Please note: when starting each drink, the machine will take into account the settings for the last drink that was made.

The full-bodied espresso with pronounced aromas is covered with a slightly bitter caramel coloured crema. We recommend that you choose a volume between 40ml and 50ml. The long coffee is an espresso of 80ml, higher in caffeine but lighter in the mouth. Very well suited to the mornings.

The stages of preparation of the drink:

• Bean grinding
• Compaction of the grinding
• Percolation

Starting a drink

• Check that there are beans in the bean tray.
• Check that there is water in the water tank: if there is not enough water the machine will tell you and ask you to fill the tank.
• Place the cup or cups under the coffee nozzles.
• Press the button for the chosen drink.

Possible settings

You can:

• Prepare one or two cups at the same time.
• Increase the strength of the coffee by pressing DARK
• Add an espresso coffee in your DRINK by pressing EXTRA SHOT L-P
• Adjust the volume of coffee being prepared using the navigation buttons

You can stop the preparation at any time by pressing

PREPARING MILKY DRINKS VIA DIRECT ACCESS

Please note: when starting each drink, the machine will take into account the settings for the last drink that was made.

The stages of preparation of the drink:

• Bean grinding
• Compaction of the grinding
• Percolation
• Preheating phase to froth the milk

Possible settings

You can:

• Prepare one or two cups at the same time.
• Increase the strength of the coffee by pressing DARK
• Add an espresso coffee in your DRINK by pressing EXTRA SHOT L-P
• Adjust the coffee volume
• Adjust the length of time for frothing the milk.

Making a Cappuccino

A cappuccino is made up of 1/3 creamy froth, 1/3 coffee and 1/3 hot milk.

• Connect the milk tube Fig. 13 to the right side of the "One Touch Cappuccino" block.
• Immerse the other end of the tube (slanted side) in a container filled with milk or directly in your milk bottle or milk pot (according to model). Fig. 14
• Place the cup or cups under the coffee nozzles. Fig. 15
• Press the cappuccino button. Fig. 16
• The preparation begins with frothing the milk

You can adjust your frothing time using the navigation buttons ∧ ∨ which allow the quantity of milk and froth to be varied.

• This process continues with the flow of coffee

You can adjust your volume of coffee using the navigation buttons if you wish.

• Your drink is ready. Fig. 17.

A latte macchiato is made up of a higher dose of milk than a cappuccino. 1/4 of creamy froth, 1/4 of coffee and 2/4 of hot milk.

We recommend that you use a cup of approximately 250 ml.

To make a latte macchiato you can follow the same steps as for cappuccino by pressing the latte macchiato button.

Fig. 18.

Making a Caffe latte U

A caffe latte is made up of an espresso mixed with a large dose of milk and topped with froth tasting slightly of coffee.

We recommend that you use a cup of approximately 250 ml.

To make a caffe latte you can follow the same steps as for cappuccino by pressing the caffe latte button.

For this recipe the coffee is poured in first and then the machine delivers the frothy milk.

Rinsing milk after making milk-based drinks.

The screen shows "Rinse milk?" at the end of each preparation.

• Press OK to perform rinsing.
• During milk rinsing, you are required to systematically dismantle and clean the milk tube and connector with hot water. Fig. 21-25
• For the best results, it is advised to clean the "One Touch Cappuccino" removable block regularly (see general maintenance chapter).

Important: If you note a change in the quality of your milk froth, do not hesitate to repeat the rinsing and cleaning process: indeed a milk system that is not well maintained may cause this type of problem.

Possible settings

Your appliance offers you the preparation of 3 types of tea (green tea, black tea and infusions).

The temperature of the water is adapted to the selected drink.

You can adjust the volume of the drink according to your tastes.

You can program an EXTRA SHOT in your tea which will allow you to achieve fashionable "tea/coffee" drinks.

Preparing a tea

• Place the cup or cups under the coffee nozzles -Press. -Press. OK
• You can change the volume using the navigation buttons.

If the machine detects a lack of water during the request it will ask you to refill the tank, then the cycle will resume automatically.

PREPARING OTHER DRINKS

Please note: when starting each drink, the machine will take into account the settings for the last drink that was made.

• Press the button
• Using the navigation buttons, select the desired drink. Press OK.
• Adjust the volume of coffee you want.

You can stop the preparation at any time by pressing.

Ristretto:

Ristretto with a strong and powerful taste covered with a caramel-colored crema for difficult mornings. To prepare a ristretto, choose a volume between 20ml and 30ml.

Doppio:

A doppio is a double espresso, black in color, covered with an amber crema. A double dose of coffee for a drink with strong taste and aromas.

Americano:

The americano is a double espresso into which we simply pour hot water. This order of preparation makes the crema which covers the drink disappear. Ideal for people who like long coffees.

For the recipes below:

• Connect the milk tube to the right side of the "One Touch Cappuccino" block.
• Immerse the other end of the tube (slanted side) in a container filled with milk or directly in your milk bottle or milk pot (according to model).
• Press the button.
• Using the navigation keys, select the desired drink.
• Press OK.
• Adjust the coffee volume and/or the milk frothing time if you wish.

Flat white:

The flat white is made with a double ristretto base in which a large dose of frothy milk has been poured.

Espresso macchiato

With its strong taste and consistent texture, the espresso macchiato is made up of an espresso softened with a spoon of foam milk.

Milk rinsing

Please refer to the paragraph "Milk rinsing" in the section PREPARING MILKY DRINKS

OTHER FUNCTIONS

The Settings button shows you to access the general menu (machine setting, maintenance and product info). To exit the Settings menu, press return or Settings.

Adjustments

By selecting Settings, you can adjust various settings of your machine for a optimum comfort of use, adapted to your preferences.

Main settings available:

Date Setting the date is	necessary, particularly if using an anti-limescale cartridge.
Clock Setting the time/	12 or 24 hour clock.
Language Selection of	the language of your choice from 19 languages.
Unit of measurement	Selection of the unit of measurement: ml or oz.
Screen brightness To	adjust the screen brightness.
Coffee temperature 3	temperature adjustment levels for your coffee drinks.
Tea temperature 3	temperature adjustment levels for your tea drinks.
Water hardness	To adjust the hardness of the water between 0 and 4. See chapter “Measuring the water hardness”.
Auto-on	To turn on the machine and automatically start preheating the equipment at a chosen time.
Auto-off To choose the	duration after which your appliance will stop automatically.
Auto rinsing	You can choose to activate automatic rinsing of the coffee outlet or not when starting the machine.
Drinks settings	To restore the default settings, you can also permanently activate the DARK and EXTRA SHOT function for all of your drinks. Except for the drinks in MORE

If you disconnect your machine, the will be retained in the memory, with the exception of the date and time.

Maintenance

The options below allow you to start the selected programs. Next, you must follow the instructions on the screen.

Cleaning milk	Allows you to clean the One Touch Cappuccino block of the machine. Essential for ensuring good hygiene and good quality frothing. This process requires the use of KRUPS cleaning liquid.
Milk rinsing	Allows you to clean the One Touch Cappuccino block of the machine. Essential for ensuring good hygiene and good quality frothing. This process performs simple rinsing with warm water of the One Touch Cappuccino block.
Coffee cleaning	Allows you to perform cleaning and degreasing of the coffee circuit of the machine. This process requires the use of a KRUPS cleaning tablet. Ensures you optimal preservation of the aromas of your drinks.
Coffee flushing	Allows you to perform flushing of the coffee circuit of the machine. This process uses only hot water. Ensures the authentic taste of your coffee.
Descending	Allows you to perform descending. This process requires the use of KRUPS descaler sachets. Eliminates any deposit of limescale or tartar that can influence the taste of the coffee. When the number of drinks is not enough for descending to be necessary, the function is not active.
Filter	Allows you to access the filter setting to install it, change it or remove it. Maximises the life of your machine, removes any trace of chlorine or limescale for a more delicious coffee.

Info

The "Info" menu gives you the opportunity to access information on:

The use of your machine

Certain steps in the life of your machine

Information of the upkeep requirements

Here we present to you the main information available.

Drinks prepared Displays	the number of drinks made.
Coffee circuit cleaning	Indicates that it should be done in x cycles.
Descaling	Indicates that it should be done in x cycles.
Filter Indicates that it will	be changed in x days or x litres.

FILTER CARTRIDGE

To access the Filter menu

• Press Settings
• Using the navigation arrows \vee \wedge go to "Maintenance" and press OK and then go to "Filter" and press OK.

Installing the filter cartridge

• In the Filter menu, select "Insert".
• Turn the grey ring located on the upper end of the filter cartridge until it displays 2 months.
• Empty the water tank and screw the filter cartridge in the bottom of the water tank using the accessory supplied with the cartridge.
• Fill the water tank and put it back in place.
• Let the machine guide you to finish the installation.

Replacement of the filter cartridge

• In the Filter menu, select "Change".
• Remove the water tank and remove the old filter cartridge.
• Turn the grey ring located on the upper end of the filter cartridge until it displays 2 months.
• Empty the water tank and screw the new filter cartridge in the bottom of the water tank using the accessory supplied with the cartridge.
• Fill the water tank and put it back in place.
• Let the machine guide you to finish.

Remove the filter cartridge

• In the Filter menu, select "Remove".
• Remove the water tank and remove the old filter cartridge.

It is important to replace the filter cartridge properly on the date indicated.

GENERAL MAINTENANCE

Carrying out proper maintenance will prolong the life of your machine and preserve the authentic taste of your coffee.

Maintenance of the coffee grounds collector and drip tray

The drip tray receives the waste water.

The coffee grounds collector receives extracted grindings.

When do I empty the drip tray?

When the float is in the upper position, indicating that it is too full.

When the machine shows "empty the 2 trays".

When do I empty the coffee grounds collector? Fig. 19 - 20

When the machine shows "empty the 2 trays".

You can periodically empty it before the machine asks you to.

Not performing these operations correctly can damage your machine.

Rinsing of circuits

You can perform rinsing at any time.

- Press. - Select Maintenance. - Choose 'Milk rinsing' or "Coffee rinsing".

Depending on the preparation, the machine can perform automatic rinsing during its powering off.

It is also possible to set automatic rinsing at start-up (see Settings section).

Automatic coffee circuit cleaning programs (approximately 13 minutes)

Cleaning of the coffee circuit allows you to combat residue, fatty deposits of coffee and preserve the aromas of your drinks.

To perform this cleaning you will need:

• 1 KRUPS cleaning tablet
• 1 container of a minimum of 600 ml

The cycle will link two phases:

-1 cleaning phase -1 rinsing phase

When do I run this program?

• When it is necessary to run a cleaning program, the appliance notifies you. Allow yourself to be guided by the instructions displayed on the screen.

Important: You do not have to run the cleaning program as soon as the appliance requests it, but you must do it

reasonably soon after. If the cleaning is postponed the alert message will remain displayed as long as the operation has not been performed.

You can also launch cleaning at any time:

-Press.

• Select Maintenance.
• Choose "Coffee cleaning".

Important: if you unplug your machine during cleaning or in the event of electrical failure, the cleaning program will

resume the current step at the time of the incident. It will not be possible to postpone this operation: it is mandatory for reasons of rinsing the water circuit. In this case a new cleaning tablet may be necessary.

Cleaning program for the "One Touch Cappuccino" block (approximately 5 minutes)

Cleaning the "One Touch Cappuccino" block allows you to fight against milk deposits and ensures the best possible hygiene.

To perform this cleaning you will need:

• KRUPS cleaning liquid
• 1 container (minimum 600 ml)
• Press the Settings button
• Select Maintenance.
• Then Milk Cleaning.
• Let yourself be guided by the instructions on the screen.

Removing the "One Touch Cappuccino" block

In addition to the rinsing it is necessary to clean the different elements of the block after each use. To remove the block follow the following instructions:

• Remove the milk tube Fig. 21
• Remove the front cover of the "One Touch Cappuccino" removable block by sliding it down and pulling it toward you. Fig. 22
• Remove the "One Touch Cappuccino" block by pulling on the upper part of the block and pull the orange cleaning tool. Fig. 23
• Completely dismantle the block. Fig. 24
• Remove the connector of the milk tube. Fig. 27
• Clean all of the dismantled parts (block, connector and milk tube) in soapy water. Then rinse them under hot water. Fig. 28
• Once the elements are cleaned and dried, assemble the block. Put it back in its original position. Fig. 32
• Reposition the front cover of the removable "One Touch Cappuccino" block.
• Replace the connector in the milk tube. Fig. 35
• Reconnect the milk tube to the "One Touch Cappuccino" removable block. Fig. 36

Automatic descending program of the steam circuit: (approximately 20 minutes)

Descale to remove the taste of the coffee.

The frequency at which this program is run depends on the quality of the water used and whether a Claris Aqua Filter System filter cartridge is used or not. The more limescale from your water, the more often the descaling has to be carried out.

Warning: If your appliance is equipped with our Claris Aqua Filter System cartridge, please remove it before the descending procedure.

To perform this cleaning you will need:

• 1 dose of KRUPS descaler
• 1 container of a minimum of 600 ml

The cycle will link two phases:

-1 descending phase - 1st rinsing phase - 2nd rinsing phase

When do I run this program?

When you need to carry out descending, your appliance will notify you.

• Fill the water tank up to the CALC mark.
• Pour the dose of descaler into the water tank. -Press to start the descending program.
• To postpone it press
• Then let yourself be guided by the instructions on the screen.

Important: You do not have to run the cleaning program as soon as the appliance requests it, but you must do it reasonably soon after. If the cleaning is postponed the alert message will remain displayed as long as the operation has not been performed.

When the number of drinks is not enough for descending to be necessary, the function is not active.

You can also start the descending program when you want:

• Fill the water tank up to the CALC mark.
• Pour the dose of descaler into the water tank.
• Press the Settings button
• Select Maintenance.
• Then Descaling.

Important: if you unplug your machine during cleaning or in the event of electrical failure, the descending program will resume the current step at the time of the incident. It will not be possible to postpone this operation. Complete the full descending cycle in order to remove all traces of the descending product which is harmful to health.

TROUBLESHOOTING

	PROBLEM CORRECTIVE ACTIONS
OPERATION	The machine displays a fault, the software is frozen.ORYour machine has a malfunction.	Turn off and unplug the machine, remove the filter cartridge, wait a minute and restart the machine.Press and hold the on/off button for at least 3 seconds for starting.
	The appliance does not turn on after pressing the On/Off button (for at least 3 seconds).	Check the fuses and the power socket of your electrical installation.Check that the two power plugs are correctly inserted into the socket.
	The appliance must be disconnected and reconnected.	Unplug the appliance for 20 seconds, remove the Claris Aqua Filter System cartridge if necessary, then put it back into service.
	A power failure has occurred during a cycle.	The appliance resets automatically when it turns back on.
USE	The grinder makes an abnormal noise. Foreign bodies are surely present in the grinder.
	There is water under the appliance.	Before removing the water tank, wait 15 seconds after the flow of coffee so that the machine finishes its cycle correctly.Verify that the drip tray is well positioned on the machine. It must always be in place even when the machine is not in use.Verify that the drip tray is not full.
	When switching off, hot water flows through the coffee outputs and the One Touch Cappuccino block.	Depending on the type of preparation the machine can perform automatic rinsing during its powering off.The cycle lasts only a few seconds and stops automatically.
	The adjustment button for the grinding fineness is difficult to turn.	Turn the adjustment button of the grinding fineness only when the grinder is operating.
	The appliance has not issued any coffee.	An incident has been detected during its making.The appliance is reset automatically and is ready for a new cycle.
	You have used ground coffee instead of coffee beans.	Use your vacuum cleaner to collect the ground coffee contained in the bean container.
STEAM	The steam output of your machine appears to be partially or completely blocked.	Remove the end piece from its support using the dismantling key Fig. 25. Clean the different parts and check that the hole in the tip is not blocked by residues of milk or limescale. Use the cleaning needle if necessary. Fig. 26 Replace the nozzle Fig. 31. Launch the milk rinsing cycle of the One Touch Cappuccino block to remove any deposits.
	No steam comes out.	Ensure that the steam output is not blocked. See above "The steam output of your machine appears to be partially or completely blocked". If this does not work, empty the water tank and temporarily remove the Claris Aqua filter system cartridge. Fill the tank with mineral water high in calcium (>100mg/L) and make successive steam cycles (5 to 10 cycles) in a container until a continuous jet of steam is obtained. Put the cartridge back in the tank.
	Steam escapes from the grid of the drip tray.	Depending on the type of preparation, steam may escape from the grid of the drip tray.
	Appearance of steam under the bean tray lid.	Close the cleaning tablet funnel located under the lid. (K)
MAINTENANCE	The machine asks for the drip tray to be emptied while it is not full.	The machine is programmed to ask for the emptying of the drip tray after a certain number of coffees, independently of the intermediate emptings that you make.
	The machine does not request descaling.	The descaling cycle is requested only after a large number of uses of the steam circuit.
	Some grounds are in the drip tray.	A small amount of ground coffee can get into the drip tray. The machine is designed to evacuate any excess ground coffee so that the percolation zone remains clean.
	The warning message is still displayed after you have emptied the coffee grounds tray.	Reinstall the coffee grounds tray and follow the directions on the screen.
	The warning message is still displayed on the screen after you have filled the water tank.	Check the correct positioning of the tank in the appliance. The float at the bottom of the tank must move freely. Check and unlock the float if necessary.

DRINKS	After starting to make a drink, if you ask for an extra shot the machine tells you that this is not possible.	The coffee grounds collector is full and the extra shot function is not available. Once the drink has been made, you have the option to restart an espresso after you have emptied the coffee grounds collector.
	The One Touch Cappuccino block does not suck the milk up. The One Touch Cappuccino block makes little or no froth.	Verify that the block is assembled correctly (including the connector in the milk tube) Fig. 35 Check that the connector Fig. 29 is not blocked or dirty; soak it in a mixture of warm water and dishwasher liquid, then rinse and dry before reassembly. Ensure that the steam output is not blocked. If it is, see “The steam output of your machine appears to be partially or completely blocked”. Verify that the flexible pipe is not blocked or kinked and that it is well seated in the One Touch Cappuccino block to avoid any air leaks. Check that it is properly immersed in the milk. Rinse and clean the block (see chapters corresponding to the rinsing and cleaning of the One Touch Cappuccino block). For the milk-based preparations, we advise you to use fresh, pasteurised or UHT milk, recently opened. It is also recommended to use a cold container.
	The milk or the water is not flowing correctly in the cup or cups.	Check that the One Touch Cappuccino block is correctly positioned.
	The coffee is flowing too slowly.	Turn the “fineness of grinding” button to the right (I) to obtain a coarser ground coffee (depending on the type of coffee used). Perform one or several rinsing cycles. Start the cleaning of the machine (see “Automatic cleaning program”) Change the Claris Aqua Filter System cartridge (see “Installing the filter”)
	Traces of milk are present in an americano or a hot water.	Perform a milk rinsing, or disassemble and clean the One Touch Cappuccino block before starting to prepare the drink.
	The coffee is too light or not full-bodied enough.	Avoid the use of oily, caramelised or flavoured coffees. Check that the bean container contains coffee and that it is moving down correctly. Decrease the volume of the preparation and increase the strength of the preparation using the DARK function. Turn the “fineness of grinding” button to the left to obtain a finer ground coffee. Make your drink in two cycles using the 2-cup function.
	The espresso or the coffee is not hot enough.	Perform a coffee rinsing circuit before you start to make your coffee. Increase the temperature of the coffee in the Settings menu. Heat the cup in the rinsing with hot water before starting to prepare the drink.
	Your tea is not hot enough or is too hot.	Increase or decrease the temperature of the hot water in the Settings menu.

Here are some example recipes to make

Café crème

Prepare a lungo in a large cup, sweeten it and then pour in thick cream. For even more luxuriousness add chocolate chips.

Moka

Run a cappuccino, sprinkle the milk foam with a teaspoon of cocoa and finally cover with whipped cream

Coffee Smoothie

For a luxurious breakfast, mix a natural yoghurt with an espresso. To soften add 1 teaspoon of liquid honey, then depending on the season, add a banana or a peach to make the smoothie more creamy.

Café Viennois

Make yourself a double espresso or doppio, sweetened, and then cover it with a generous layer of whipped cream. Those looking for something more luxurious can sprinkle with a teaspoon of cocoa and/or add chocolate sprinkles.

(Blonde) (Light French) (Brune)

DESCRIPTION OF THE APPLIANCE

A Lid handle of the water reservoir B Water reservoir C Coffee grounds container D Height-adjustable coffee spouts E Grid and removable drip tray F Lid of the coffee bean container G Removable One-Touch Cappuccino block

(Blonde) (Light French) (Brune)

Then the filter menu

J Grinding level adjustment knob K Tablet cleaning compartment L Metal grinder

2 Display panel

M OLED screen N ON/OFF button Selection buttons

Details:

(Blonde) (Light French) (Brune)

Medium

Long

• More or less aroma and strength in the cup

Adjusting the coffee spout

You can lower and adjust the coffee spout according to the cup size for all drinks. Fig. 11

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

long

-To obtain a stronger or weaker aroma intensity of the drink

(Blonde) (Light French) (Brune)

dark

(Blonde) (Light French) (Brune)

Medium

Long

(Blonde) (Light French) (Brune)

Making cappuccino

PROBLEMS AND CORRECTIVE ACTIONS

Dear customer,

Thank you for purchasing the automatic coffee machine. The device, designed and created in France, allows you to prepare drinks that are not inferior in quality to professionally brewed coffee, but with much less effort. With the coffee machine, you can enjoy espresso, ristretto, lungo, cappuccino, latte macchiato, and other drinks at any time.

The automatic coffee machine KRUPS is created using modern technologies and is equipped with an intuitive display, so you can easily get drinks filled with the whole range of flavors and aromas of freshly ground coffee beans. For the best taste sensations, use fresh tap water.

The KRUPS EVIDENCE PLUS coffee machine is all the pleasure at once: it can automatically prepare several drinks with just one touch. You will discover the possibilities of making perfect cappuccino, latte, and latte macchiato thanks to the milk container and the one-touch cappuccino system.

Since each coffee variety is not like another, you can make your drink individual:

• Using different types of coffee beans (or different degrees of roasting), you can discover different coffee flavors. You will probably not be able to choose coffee beans to your taste from the first time.
• By changing the degree of grinding of the beans, you can get a more or less intense coffee.
• By choosing the cup height, you will find your ideal option.

We wish you many pleasant moments with coffee and hope that the KRUPS coffee machine will give you unforgettable pleasure.

The KRUPS team

Tips

The quality of water strongly affects the aroma of the drink. Impurities in water can change the taste of coffee. To preserve the coffee aroma, we recommend using the Claris Aqua Filter System or softened water. - To prepare drinks, we recommend using pre-heated cups (for example, rinsed with hot water) that match the size of the drink you want to make. - Roasted coffee beans stored in an open container can lose their aroma. We recommend using the amount of coffee beans that corresponds to your consumption over the next 2-3 days, and using 250 g packages. - The quality of coffee beans can vary depending on subjective perception. The Arabica variety gives a drink with subtle, floral aromas, while Robusta gives a more intense and bitter drink. To obtain a balanced coffee, these two varieties are often blended. For advice, consult sellers in coffee shops. It is not recommended to use oily or caramelized coffee beans, as they can damage the coffee grinder. - The degree of grinding affects the aroma and quality of the foam. The finer the grind, the denser the foam. In addition, the degree of grinding can be adjusted for specific drinks. - To get the best result, use pasteurized, ultra-pasteurized, skimmed, semi-skimmed, or whole milk cooled to 3-5°C. - When using special types of milk (microfiltered, raw, fermented, enriched, or plant-based, such as rice, oat, or almond), the result may be less satisfactory in terms of the quantity and quality of the foam.

TABLE OF CONTENTS

IMPORTANT PRODUCT INFORMATION AND OPERATING INSTRUCTIONS. p. 324 TECHNICAL INFORMATION .p. 324 DESCRIPTION OF THE DEVICE. p. 325 OVERVIEW .p. 325 PREPARATION FOR USE AND INSTALLATION OF THE APPLIANCE. p. 326 IMPORTANT NOTES BEFORE PREPARING DRINKS. p. 327 QUICK PREPARATION OF DRINKS . p. 329 QUICK PREPARATION OF MILK DRINKS . p. 330 PREPARATION OF TEA.. p. 331 PREPARATION OF FRUIT DRINKS. p. 331 OTHER FUNCTIONS . p. 332 FILTER p. 333 MAINTENANCE p. 334 TROUBLESHOOTING AND REMEDIES . p. 336

IMPORTANT PRODUCT INFORMATION AND OPERATING INSTRUCTIONS

In this brief manual, you will find all the important information about commissioning, operation, and technical maintenance of your coffee machine.

Read the instructions carefully before first use of the appliance and keep them. Use contrary to the instructions releases the manufacturer from all liability.

SYMBOLS USED IN THE OPERATING MANUAL

Caution! Warning about the risk of serious injury. This symbol warns of dangers associated with the presence of electricity.

Caution! Warning about the possible occurrence of malfunctions, damage, or destruction of the device.

Important! General or important note about the operation of the device.

Items included with the coffee machine

Check the device as a set with the coffee machine. If any part is missing, contact us directly by phone (see page 326: Initial settings).

Supplied parts:

• Automatic coffee machine Krups series EA894 - 2 cleaning tablets - 1 packet of descaling agent
• Milk suction tube, intended for the "One Touch Cappuccino" block
• Key for dismantling the steam system adapter - Safety instructions - AquaFilterSystem filter with fixing accessory - 1 test strip for determining water hardness - Operating instructions - Warranty certificate Krups - Warranty documents

TECHNICAL INFORMATION

G2 One Touch Cappuccino block

And milk suction tube, adapter, and float showing water level

Bean container

Grinder adjustment handle, opening for placing cleaning tablet, metal coffee grinder

Control panel

M OLED display, On/Off button, touch buttons

Detailed information:

Drip tray collects water or coffee dripping from the device during or after beverage preparation. Do not remove the tray and empty it regularly as it fills.

Important: Read the operating instructions carefully and keep them. Follow the safety instructions.

SAS GSM

Pio Cen-JeohapΦ-53104, Maien

France

OVERVIEW

Description of the control panel:

You can also contact a service organization.

You will find information about the hardness class in the table below:

(Blonde) (Light French) (Brune)

- Change the saturation and strength of the drink.

Adjusting the nozzles by height

For all proposed drinks, you can reduce or increase the height of the nozzles depending on the height of the cups. Fig. 11

Stopping the drink preparation

When preparing a drink, you can stop at any moment by pressing the return button 5. When interrupting, the stop of the process takes some time. During this time, the device is not accessible for any action.

Preparing two cups

The device can prepare two drinks simultaneously. The function of two cups is available for all recipes of the main menu shown on the screen, and is activated by double-pressing the button of the selected drink (except for the vD option).

The "DARK" function

The "DARK" function allows you to increase the strength of the drink by increasing the volume of ground coffee.

This function is available for the following drinks: P, PP

There are several ways to enable/disable this function:

- Press the selected drink, then press the "DARK" button. - Press the button during the drink preparation process until the end of the coffee dispensing.

This function can be enabled directly for all drinks (see above):

- Press the settings button - Select "Settings" using the navigation buttons - Select "Drink settings" and press OK - Select the "DARK" option and confirm with the OK button - Perform the same operations to disable the "DARK" function.

The drink preparation can be stopped at any moment by pressing the button.

Note: At each new drink preparation, the device takes into account the settings of the last prepared drink.

Stages of drink preparation:

If necessary, the coffee volume can be changed using the navigation buttons

To prepare a latte macchiato, follow the same instructions as for a cappuccino, but press the button (latte macchiato). Fig. 18

Preparation of latte U

The coffee consists of one espresso portion and a large portion of milk, covered with a light coffee foam.

Recommended dosage: prepare a volume of approximately 250 ml.

To prepare, follow the same instructions as for cappuccino, but press the "Latte" button.

In this recipe, coffee is added first, then milk foam.

Rinsing the milk block after preparing milk-based drinks.

After each preparation, the message "Rinse milk block?" appears on the screen.

- Press the rinse cycle twice. - During the milk block rinse, it is necessary to periodically remove the milk suction tube and the rinse connector and rinse them under running water. Fig. 21-25 - For optimal results, it is recommended to regularly clean the One Touch Cappuccino milk block (see section on general cleaning).

Important information: it is recommended that after each use of the milk-based drink preparation function, you perform a complete cleaning to maintain hygienic cleanliness of the milk frothing accessories and optimal frothing results.

PREPARATION OF TEA

Possible settings

The device allows you to prepare different tea varieties (green, black, herbal).

The water temperature is set automatically depending on the selected drink.

If necessary, the drink strength can be changed.

When preparing tea, you can also use the "EXTRA SHOT" function to get a stronger drink immediately, mixing coffee and tea.

Preparing tea

• Place a cup or cups under the coffee spout. - Press the button
• Drink preparation. - Press the OK button - You can change the drink volume using the navigation buttons.

If the device is not equipped with a water tank, you will be prompted to add water and after filling the reservoir the machine will automatically start working.

PREPARATION OF OTHER DRINKS

Note: for each new drink preparation, the device takes into account the settings of the last prepared drink.

- Press the button - Use the navigation buttons to select the desired drink. - Press the OK button - If necessary, change the coffee volume.

Drink preparation can be stopped at any time by pressing the button.

Ristretto:

Ristretto with a strong and pronounced taste, covered with a light hazelnut-colored foam, ideal for a morning wake-up. For ristretto, a cup with a volume of 20 to 30 ml is suitable.

Doppio:

Doppio is a double espresso of a gray color, covered with a light-colored foam. Doppio is suitable for those who want to get a strong and aromatic drink.

Americano:

Americano is a double espresso with the addition of hot water. During the preparation of the drink, the foam is removed from its surface. The drink is suitable for those who like the drink to be larger.

To prepare the recipes below, perform the following steps:

- Connect the milk suction tube on the right side to the One Touch Cappuccino block. - Insert the other end (the beveled edge) into a container for milk or directly into a bottle/package of milk (depending on the model). - Press the button - Use the buttons to select the drink. - Press the OK button - If necessary, change the milk volume and/or the milk frothing time.

Flat white:

The milk frother is ready to prepare the base drink, to which a large portion of frothed milk is added.

Espresso Macchiato

Espresso Macchiato with a strong taste and thick consistency consists of espresso mixed with frothed milk.

Milk froth block

See the paragraph "Milk froth block" in the section "PREPARING MILK-BASED DRINKS".

OTHER FUNCTIONS

The "Parameters" button gives you access to the main menu (device settings, maintenance, and product information).

To exit the settings menu, press the Back button or the "Parameters" button.

Settings

When selecting settings, you can make the necessary changes for optimal use of the coffee machine according to your preferences.

Basic settings:

Даара Нстroduка даты ообени Heobховima ри Исплбзовань karртуджа OT наши.
Часы Perули探测ка вразец / отообравенье вразец в 12- milli 24-часовом Форmate
Янык Велиcodя зада и зрпотов.
Еденицил ИЗмерения Велиcodя_edениц ИЗмерения (мл milli унци).
ЯрковExceptionа Perули探测ка ярковExceptionа Exceptiona
Temпера typа koфе 3 уразьпяrelули探测ка Temпера typы koфейного наpitka.
Temпера typа чay 3 уразьпяrelули探测ка Temпера typы чay.
Жостков Воры	Perули探测ка уразьпяожecTKOSTN BODы OT 0 до 4. См. paздел «Изberгене жессКSTN BODы».
АВТOMATUCEСКОЕВКLOЧЕНИ	Велиcodя устroduка устroduка виз幕后 садуавалдувсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсявсяв竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдувсявсявсявсяв竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садиавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка вizhal. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавalan. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавalam. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавalam. Вallestор畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestор畸а устroduка устroduка виз幕后 садуавalam. Вallestor畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestor畸а устroduка устroduка виз幕后 садуавalam. Вallestor畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestor畸а устroduка устroduка виз幕后 садуавalam. Вallestor畸а устroduка устroduка виз幕后 садуавалдув竺. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostuрашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor畸а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的 Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostурашп下的. Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Вallestor略а уrostу？ Ballestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 ВallestOR Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestore Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallesto Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestorb Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestorg Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestorty Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestoty Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 В tallest Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestur Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestr Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallesta Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestar Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestorf Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestord Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestlor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Вallestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰州 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 BallestOR Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballesto Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestoro Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestore Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballestor略兰 Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta BallestA Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestas Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestan Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestau Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestaa Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestu Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestal Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta BallestaNb Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestaal Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestg Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballestaz Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballest a Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta BallesttA Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Ballesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bhesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bresta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bvesta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Byshta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bresta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysteria Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bystta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bysta Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bysts Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa BystSa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystssa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystva Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystse Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystra Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa BystSA Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystya Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystwa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa Bystsa

When the device is turned off, the settings will be saved in memory, except for the date and time.

Maintenance

The following options allow you to start the selected programs. Then follow the instructions on the screen.

Until as many drinks are prepared as can be accommodated by the amount of milk in the device, this

You can run the descaling program at a convenient time:

• Fill the water tank up to the CALC mark. -Add one sachet of descaling agent to the water.

-Press the settings button - select "Maintenance" - then "Descaling"

Important note: if during descaling you switch off the device or a power failure occurs, the descaling program will resume at the stage where it was interrupted. It is impossible to postpone this procedure after it has started. Proper execution of the descaling procedure helps remove all harmful limescale deposits.

FAULTS, POSSIBLE CAUSES AND THEIR REMEDIATION

If any of the problems listed in the table persists, contact the KRUPS service center.

Milk frothing tube and float -Water level indicator

Water tank

Steam regulator, Carafe, Coffee spout, Drip tray, Milk container, Bean hopper, Ground coffee funnel

Control panel

Display, ON/OFF button, Selection buttons

Details:

The appliance is designed for making coffee using water or milk, which is inserted into the machine before and after preparation. It is important to protect it from scale and empty it regularly, otherwise the float will signal the need for cleaning.

Important! Please read the instruction manual carefully and keep it. Follow the safety instructions.

Manufacturer:

SAS GSM

NoaTkOBI HanaTuBaHHA

After the first use, the machine will prompt you to perform various settings. Follow the instructions on the screen. Here is information about the necessary settings:

• Language. Select the display language by pressing the arrows until the desired language appears. Press "OK" to confirm.
• Units of measurement. You can choose the unit of measurement for volume - metric or imperial. Select the desired time format, 24-hour or AM/PM.
• Automatic switch-off. You can set the time for the desired automatic switch-off of the device. This parameter can be adjusted to suit you: by day, by weekday, or by weekend. Select the time when you want the device to switch off automatically, according to the time format selected earlier.
• Automatic switch-off. You can also select a period of time after which the device will automatically switch off to optimize energy consumption: 15 min, 30 min, 1 hour, 1 hour 30 min.
• Flushing the water system. 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36
• Installing the filter. After the first switch-off of the machine, you will be prompted to install the filter. If you want to install the filter (and if you want to use it), select it and follow the instructions on the screen.

Installing the filter in the device.

We recommend using the Claris Aqua Filter System filter cartridges for KRUPS appliances. Using this cartridge guarantees a better taste of coffee. In addition, it prevents the formation of limescale and ensures a long service life for the coffee machine.

- Press the button on the top edge of the filter, which should not be visible after installation. Fig. 5 - Rinse the water tank and insert the filter cartridge into the lower part of the water tank, using the accessory provided in the package. Fig. 4 - Fill the tank with water and install it back on the machine. Fig. 7-8 - Follow the instructions on the coffee machine to complete the filter installation.

Important: Replace the cartridge by the indicated date.

Completion of preparation for use

The coffee machine can be started regardless of whether the filter is installed. The first use allows the water system to be filled so that the coffee machine can operate.

To display on the screen, press the 'ABOUT' button.

• Set the unit volume to 600 ml using the salt container. Fig. 6
• The water softening system will automatically start after the heating cycle, and then it will be automatically rinsed. The screen will display a message about the completion of the preparation process for operation.

Water hardness

Water hardness is a high concentration of minerals, especially calcium, which can lead to the formation of scale. To avoid scale buildup in the water softener, which can cause malfunction or affect the taste of coffee, it is necessary to set the water softener according to the water hardness class, from 0 to 4.

Prefer using the device for setting the water softener. Determine the water hardness using the test strip included in the delivery set: Fig. 2

• Dip the test strip into the water for a second, then wait for a minute to get the result. The water hardness level is indicated by the number of red marks on the strip. Fig. 3

You can also contact the water supply service.

Information about water hardness classes can be found in the table below.

Adjusting the coffee grinder

The device can prepare drinks for two cups at once. The function of the grinder works in all direct recipes; you can select it by simply pressing the selected recipe (except for recipes with 'E'). Fig. 12

DARK function

The DARK function increases the strength of the selected drink, increasing the amount of ground coffee used.

This function can be used for the following drinks:

You can turn it on or off in different ways:

• You can press the DARK button to prepare coffee, and then select the desired strength. After the preparation is complete, you can press the DARK button.

You can activate the coffee strength function from the quick preparation menu (see below):

- Press the "Preparation" button

- Select "Preparation" using the navigation buttons - Select "Coffee Preparation", then press OK - Select "DARK", then confirm by pressing OK - You can activate the DARK function and then perform the same actions.

You can prepare coffee at any time by pressing

QUICK PREPARATION MENU COFFEE PREPARATION WITH MILK

Note: When preparing a new coffee, the last prepared coffee is taken into account.

Preparation steps:

Preparing Tea Macchiato

Tea Macchiato contains more milk, its capsules. 1/4 cream milk, 1/4 coffee and 2/4 hot milk.

We recommend using a cup with a volume of about 250 ml.

Preparing Tea Macchiato can be done in the same way, i.e., for each capsule, press the Tea Macchiato button using the appropriate button. fig.18

Preparing Tea U

Tea is made from espresso, mixed with a large amount of milk, topped with a light coffee foam.

We recommend using a cup with a volume of about 250 ml.

You can prepare them yourself, using the instructions given in the corresponding chapter.

After preparation, the drink should be consumed immediately, as it may otherwise lose its flavor.

Rinse the milk system after preparing drinks with milk.

On the display, select the "Rinse milk system?" option after each preparation.

• Press OK to rinse. - For thorough cleaning of the milk system, it is recommended to regularly run hot water through the milk tube and the frother. See pages 21-25 - For optimal results, it is recommended to use the One Touch Cappuccino (see chapter "Maintenance").

Important: after each use of the milk-based drink preparation function, it is recommended to perform a complete rinse to maintain perfect cleanliness of the accessories and to ensure optimal frothing results.

PREPARING DRINKS

Possible settings

The device allows you to prepare drinks with milk (cappuccino, latte macchiato, and more).

The water temperature is automatically adjusted according to the selected drink.

You can also adjust the amount of milk according to your preferences.

The following basic settings are available:

In the container, the milk is heated and frothed automatically.

When is it necessary to empty the drip tray?

When the float indicator rises, indicating that it is full.

When the indicator says "Empty 2 containers".

You need to empty the container of the right side. See items 19-20

When the indicator says "Empty 2 containers".

You can empty it after each use, before it asks you to do so.

Improper execution of operations may damage the machine.

Rinsing the system

You can perform a system rinse at any time.

- Press. - Select "Maintenance". - Select "Rinse system with milk" or "Rinse system with coffee".

Depending on the indicator, the machine may automatically perform a rinse before turning off.

You can also set automatic rinses at shutdown (see section "Settings").

The automatic rinse program for the coffee system takes about 13 minutes.

Rinsing the coffee system helps remove coffee residues and, if necessary, also preserves aromas.

(Blonde) (Light French) (Brune)

(Blonde) (Light French) (Brune)

Drinks with two cups

You can brew coffee into two cups at the same time. The two-cup function is suitable for all recipes with a direct or indirect double brewing of the selected recipe (except for U.12).

DARK UP function

The DARK function allows the coffee for the selected recipe to become stronger by increasing the amount of coffee used.

This function is available for the following drinks: P, UP

You can activate or deactivate it in different ways:

- Before brewing, you can press DARK, then select the recipe. - During the preparation of the drink or at the end of the brewing process, you can press the DARK button.

You can activate the function systematically for all drinks with a direct strength (selected by default):

-Press the settings button -Select "Settings" using the navigation buttons -Position yourself on "Drink settings" and press OK -Select "DARK" with the help of the buttons and activate the function. -You can deactivate the DARK function by repeating the same actions.

You can stop the preparation of the drink at any moment by pressing

PREPARATION OF MILK-BASED DRINKS WITH DIRECT STRENGTH

Attention: at every drink dispensing, the machine will take the real settings of the last prepared drink.

Stages of the preparation of the drink:

-Milk heating -Frothing of the milk -Filtering of the coffee -Phase of pre-infusion for the separation of the milk

Possible settings

You can:

Brew both beverages simultaneously. Increase the coffee strength by pressing DARK. Add an extra dose of espresso to the drink by pressing EXTRA SHOT. Adjust the coffee volume. Set the milk dispensing time.

Brewing Cappuccino

The cappuccino consists of 1/3 cream-like foam, 1/3 coffee, and 1/3 hot milk.

• Insert the milk tube (Fig. 13) into the right side of the cappuccino block One Touch Cappuccino.
• Place a cup under the spout (slanted edge) and pour milk, directly into the milk container or into a milk jug (depending on the model). Fig. 14 - Place the cup under the spout. Fig. 15 - Press the cappuccino button. Fig. 16 - The milk dispensing starts.

If you wish, you can set the milk dispensing time using the A button, which allows you to change the amount of milk in the drink.

Brewing Latte Macchiato

The Latte Macchiato consists of a larger amount of milk than the cappuccino: 1/4 cream-like foam, 1/4 coffee, and 2/4 hot milk.

We recommend using a cup with a capacity of about 250 ml.

To prepare Latte Macchiato, you can follow the same steps as for cappuccino, but press the Latte Macchiato button. Fig. 18

Brewing Café Latte

The Café Latte consists of espresso mixed with a hot dose of milk on top of the foam with a delicate coffee flavor.

We recommend using a cup with a capacity of about 250 ml.

To prepare Café Latte, you can follow the same steps as for cappuccino, but press the Café Latte button.

For this recipe, the coffee is poured first, then the machine dispenses the heated milk.

Preparation of milk for various drinks.

The display shows "Preparing milk?" before each preparation.

- Press to start the preparation. - After milk preparation, it is necessary to periodically perform maintenance and cleaning of the milk spout and mixer. Fig.21-25 - For optimal results, it is recommended to regularly clean the nozzle for cappuccino capsules (see chapter on general maintenance).

Important: it is recommended to perform a full cleaning after each use of the milk function, in order to ensure good hygiene and proper milk frothing.

PREPARATION OF BEVERAGES

Possible settings

The appliance offers preparation of 3 types (green tea, black tea, or herbal tea).

The water temperature is adjusted according to the selected drink.

You can adjust the drink volume according to taste, etc.

You can program the EXTRA SHOT function in advance, which allows preparing a very strong drink "on demand".

Preparation of coffee

- Place a cup under the coffee spouts. - Press - Select the desired drink. - Press OK - You can change the volume using the navigation buttons.

If the machine is installed with a water connection at the end, it will require filling the reservoir, after which it will automatically rinse.

PREPARATION OF OTHER DRINKS

Attention: at each drink preparation, the machine takes the settings of the last prepared drink.

-Press the button -Simply press the button to start preparing the drink. -Press OK -If you wish, adjust the volume of the coffee.

You can stop preparing the drink at any moment by pressing

Ristretto:

The Ristretto drink is an intense espresso with a strong taste, covered with a layer of caramel-colored crema, ideal for demanding mornings. To prepare a Ristretto coffee, choose a volume between 20 ml and 30 ml.

Lungo:

The Lungo drink is a double espresso with a lighter crema, covered with a hazelnut-colored crema. The Lungo is ideal for those who prefer a milder taste and aroma.

Americano:

Americano is a double espresso to which hot water is added. With this preparation method, the crema covering the drink disappears. Ideal for those who enjoy a lighter coffee.

For special recipes:

• Insert the milk tube into the slot on the One Touch Cappuccino block.
• Then place the other end of the tube (the slanted end) into the milk, directly into the milk bottle or into a milk container (recommended). -Press the button
• Using the buttons for dispensing, select the desired drink. -Press OK -If you wish, adjust the coffee volume and/or the milk dispensing time.

Flat white:

The Flat white drink is made on the basis of a double ristretto, to which hot, frothed milk is added.

Espresso macchiato

The drink is prepared with a pleasant taste and a thick texture, the beverage is made from espresso, and it is served without espresso, the milk is also added.

Milk preparation

For milk, refer to the paragraph "Milk preparation" in the section PREPARATION OF MILK DRINKS.

OTHER FUNCTIONS

The button with parameters allows access to the main menu (machine settings, maintenance, product information).

To access the settings menu, press the button for parameter adjustment.

Settings

Once you select "Settings", you can adjust various machine parameters for optimal performance during use and cleaning according to your preferences.

Basic settings:

We present the basic information.

Depending on the drink being prepared, the machine may automatically perform rinsing when turned on.

It is also possible to set automatic rinsing when turning on (see section, Settings).

Automatic program for rinsing the coffee brewing unit (about 13 minutes)

The rinsing of the coffee brewing unit helps to prevent residues, coffee oils, and deposits that affect the taste of the drinks.

To perform this rinsing, you have the following:

• KRUPS washing machine -1 with a minimum capacity of 600 ml

Cleaning:

-1 phase for washing -1 phase for rinsing

When should this program be used?

• When it is necessary to use the program, the device will inform you. The instructions shown on the screen will guide you.

Important: It is not mandatory to use the program every time the device informs you, but you should use it as soon as possible. If washing is delayed, the pre-warning message remains displayed until the operation is performed.

You can also start washing at your convenience:

(Blonde) (Light French) (Brune)

• Getting coffee with more or less aroma and strength in the cup

Coffee with milk (flat white):
